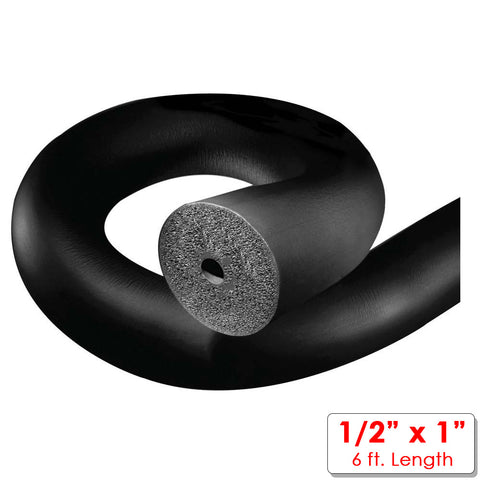

Insulation Pipe

Color: Black

Material: NBR (= nitrile-butadiene rubber)

Length of Insulation Pipe: 6 Feet (1.83metre)

Inner Diameter: 1/2-inch

Thickness: 1-inch

Features:

    • Blocks heat loss or gain to save energy.
    • Use on hot or cold pipes.
    • Stops condensation on cold pipes to prevent water damage.
    • Simple, easy way to save energy costs.

    Technical Parameter

    Item

    Unit

    Performance Index

    Implemented Standard

    Surface Density

    Kg/m3

    ≤ 80

    GB/T6343

     Burning Performance

    ---

    Meet requirement

    GB/T2406

    GB/T8627

    Grade B

    GB/T8624

    Meet requirement

    B1

    Smoke Toxicity



    ZA3

    GB/T6343

    Thermal Conductivity

    -20℃

    W/

    (m·K)

    ≤0.031

    GB/T10294

    0℃

    ≤0.033

    40℃

    ≤0.037

    Water Vapor Penetrating Performance

    Water vapor permeability

    g/

    (m.s.pa)

    1.3X10-11

    GB/T17146

    Moisture resistance

    12000

    Water absorption ratio in vacuum

    %

    ≤8

    GB/T17794

    (105± 37d) Dimension stability

    %

    10.0

    GB/T8811

    Rebound rate after compression

    compression rate 50%,72h

    %

    70

    GB/T6669

    Aging resistance 150h

    ---

    no wrinkle, no crack, no pinhole, no distort

    GB/T16259

    Temperature range

    -40~105

    GB/T17794

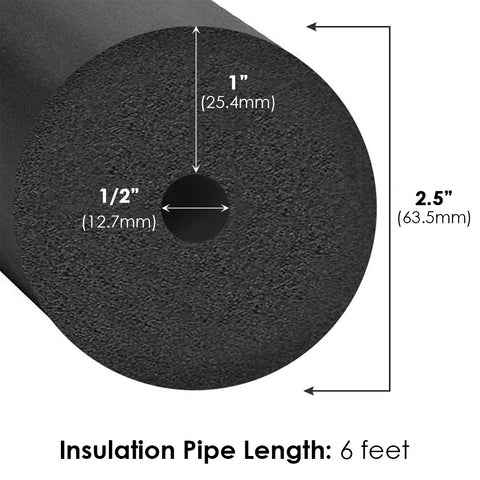

    Measurements:

    Size

    Millimeter (mm)

    Inch (”)

    Feet (ft.)

    Inner Diameter

    12.7mm

    1/2” (0.5”)

    0.04ft

    Thickness

    25.4mm

    1”

    0.08ft

    Length

    1829mm

    72”

    6ft
