Specification

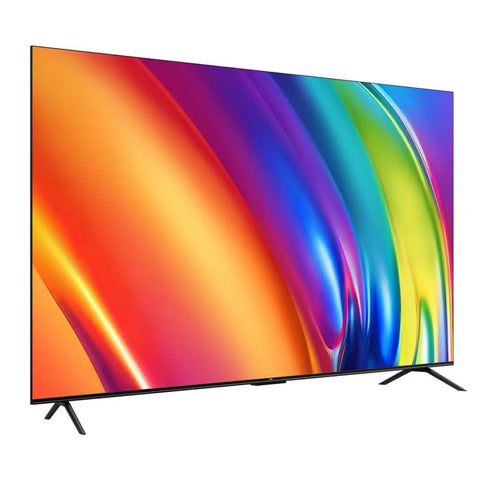

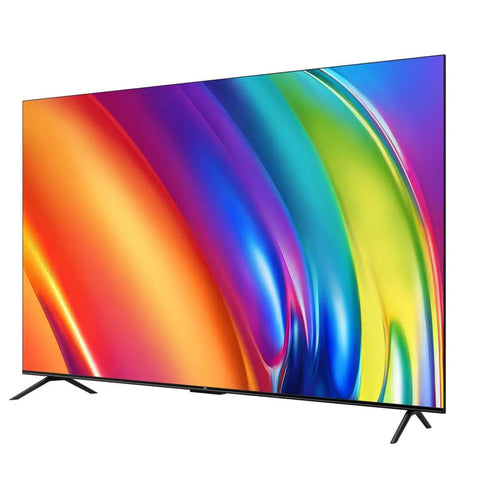

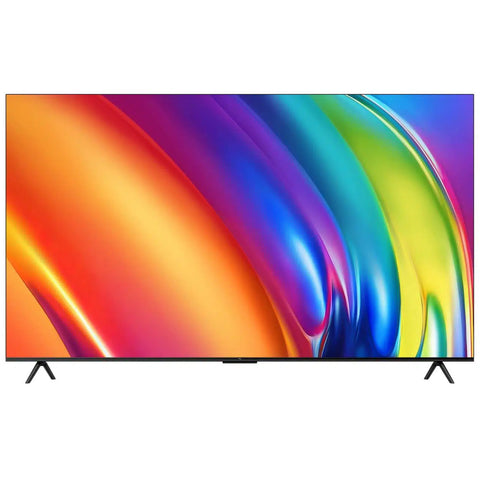

TCL (85P745) 85” 4K UHD Google TV

Basic Information:

Brand: TCL

Model: 85P745

Size: 85-inch

CPU: 64-bit A55×4 1.3GHz

GPU: G31x2 800MHz

Operating System: Google TV

RAM: DDR4-2400: 2G Bytes

Storage: eMMC5.0 16G Bytes

UI Style: Google TV UI + TCL TV UI

Launcher Homepages Show: Google Play, Netflix, Youtube, Featured Apps, Source, etc

Languages: English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish (Latin America), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc.

TV System:

• ATV: ATV: PAL-M/N, NTSC-M
• DTV: DTV: DVB-C/T/T2

AV System: PAL, NTSC

HDMI & HDCP Version: HDMI1.4 & HDMI2.1, HDCP1.4 & HDCP2.2

HDR: HDR10+, HLG, Dolby Vision

Power Supply: AC 100V-240V 50/60Hz

Power Consumption (TV On): 320W

Power Consumption (Standby): ≤0.5W

ECO Energy Efficiency: Yes

Certification:

• CB, HDMI, Dolby Audio, Dolby Vision, DTS-HD
• CTS (Google Official Certification), Netflix

Internet Link:

• 2.4GHz/5GHz dual-band Wi-Fi 802.11 b/g/n 2T2R
• Ethernet Network (RJ45, 10/100M)

Bluetooth: Yes (Bluetooth 5.0)

LED Indicator:

• Standby indicator (1-LED, white, below the middle of the bezel)
• MIC indicator (4-LED, colored, below the middle of the bezel)

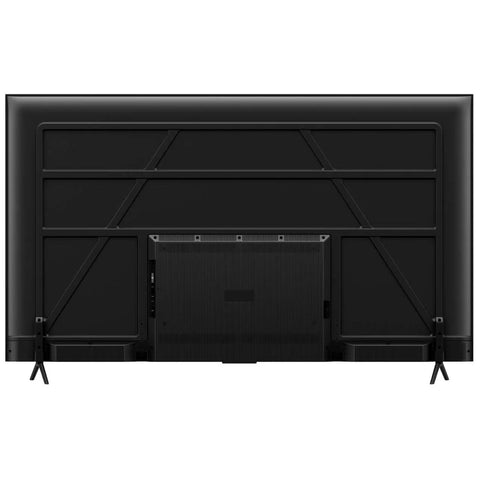

VESA Hole Pattern: 600 x 300mm

Warranty: 12 Months Warranty

Panel Specification:

Display: 85-inch

Backlight Unit: DLED

Aspect Ratio: 16:9

Panel Active Size (Inch): 85

Display Resolution: UHD (3840 x 2160)

Brightness (cd/m2): 450 (typ.)

Contrast Ratio (Open Cell): 5000:1 (typ.)

Response Time (G to G) (ms): 8.5 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Life Time (hrs): 30,000 (typ.)

Color: 1.07G (8 bit + FRC)

Refresh Rate (Hz): 60

Color Volume: ≥90% DCI-P3(CIE1976) Coverage

White Uniformity (Brightness): ≥60%

Picture:

Picture Preset: Dynamic, Standard, Smart HDR, Sport, Movie (Game, PC)

Backlight (Brightness): 0~100

Auto Format: On, Off

Screen Mode: 16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up

Overscan: On, Off

Dynamic Brightness: Off, ECO, Brightness+

Micro Dimming: Off, Low, High

Motion Clear: On, Off

Advanced Settings: Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction

Input Lag: 15ms @Game Mode

Special Feature: MEMC (60Hz)

USB Device Media Format

Music: MP3, WMA, AC4

Picture: JPEG, PNG, BMP

Multimedia Video/Audio Decoder: H.265, H.264, MPEG2/4, VC1, VP9

Video Format up to: Up to 4K@60Hz

USB Mouse/Key Board Support: Yes

Sound:

Speakers: Integrated Speaker Boxes (Bottom Side)

Audio Power Output (THD=7%): 15W x2

Sound Mode: Standard, Dynamic, Movie, Music, Voice, Game, Stadium

Sound Preset Reset: Yes

TV Placement: Desk Top, Wall Mount

Dolby Audio: MS12Z wit Dolby Atmos

Button Sound: On, Off

Bass Enhancer: On, Low, Middle, High

Audio Only: Yes

Advanced Settings: Balance, Auto Volume Control, Digital Audio Out

Special Feature: DTS-HD Decoding

Basic Function:

Google Assistant/Voice Search:

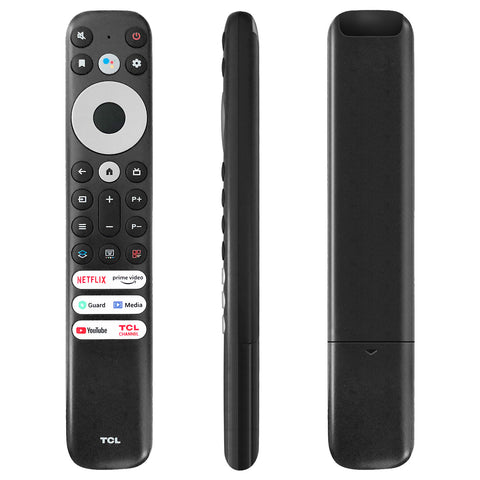

• Voice input via remote control.
• Hands-free voice input via built-in MIC.

Initial Setup: Yes, for user setting in TV first start-up.

Instant Power On: A special standby mode for start-up in shorter time.

Bluetooth: Yes, for external Bluetooth speaker/sound bar.

Channels Edit: Yes, for TV channel renaming.

Input Setting: For input source device name choice and edit.

Input Method: T-IME, Gboard, Virtual Remote Keyboard

System Update: Yes

HDMI CEC: Yes

HDMI ARC / eARC: Yes

Audio Language/MTS/NICAM: Yes

PVR/Timeshift: Yes (for DTV programme only)

EPG: Yes (for DTV programme only)

Close Caption/Subtitle: Yes

E-Sticker: Yes

Parental Control: Yes (for DTV programme only)

Featured Apps:

• Google Play Store: Popular apps and games.
• YouTube: Watch countless contents online.
• Google Play Games: Game platform of Google Play.
• Google Play Movies & TV: Watch Google Play Movies & TV on Android TV.
• Chrome Cast: To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.
• Netflix: Watch TV shows and movies online.
• Media Center: Video/Music play for USB device.

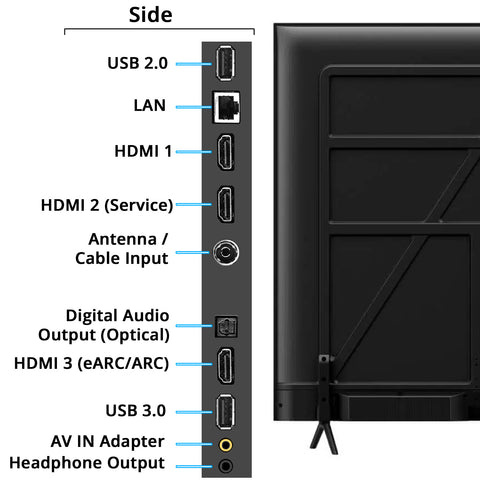

Connectivity:

• USB 2.0 - x1
• USB 3.0 - x1
• LAN Port - x1
• HDMI 1 - x1
• HDMI 2 (Service) - x1
• HDMI 3 (eARC/ARC) - x1
• Antenna/Cable Input - x1
• AV Inpuy- x1
• Headphone Output - x1
• Digital Audio Output (Optical) - x1

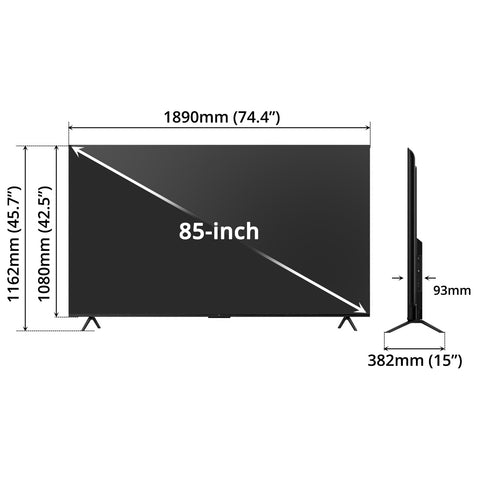

Dimensions & Weight:

Product Dimension with Stand (W x D x H): 1890 x 382 x 1162mm

Product Dimension without Stand (W x D x H): 1890 x 93 x 1080mm

Carton Dimension (W x D x H): 2055 x 210 x 1200mm

Net Weight with Stand: 30kg

Net Weight without Stand: 29kg

Gross Weight with Packaging: 43kg
