Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

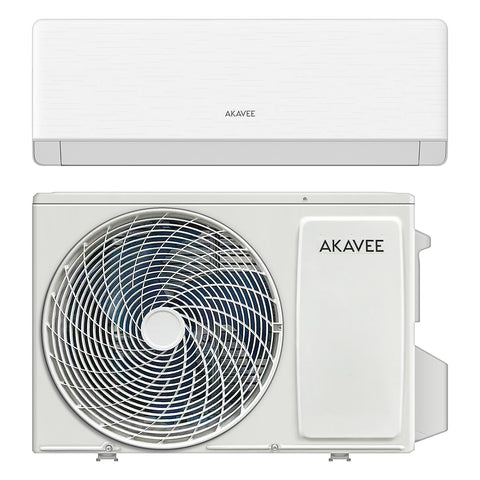

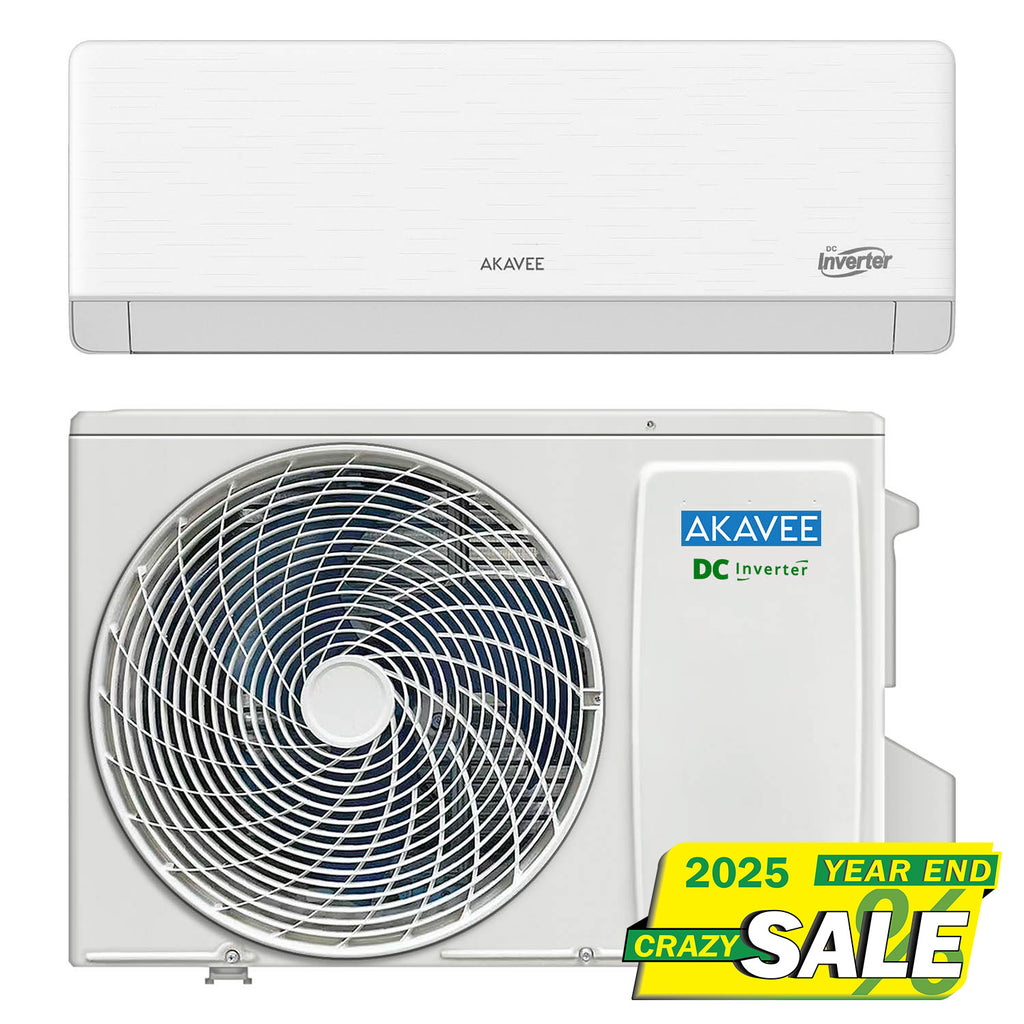

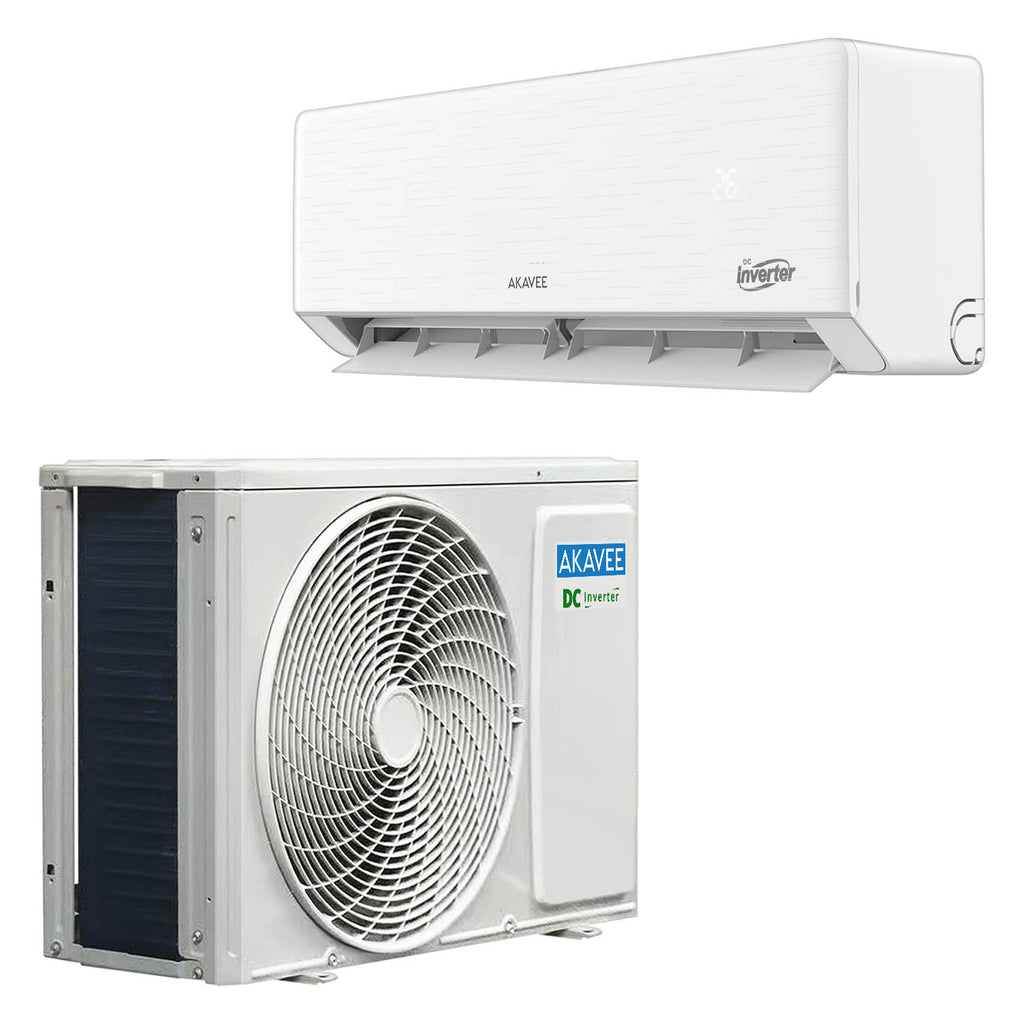

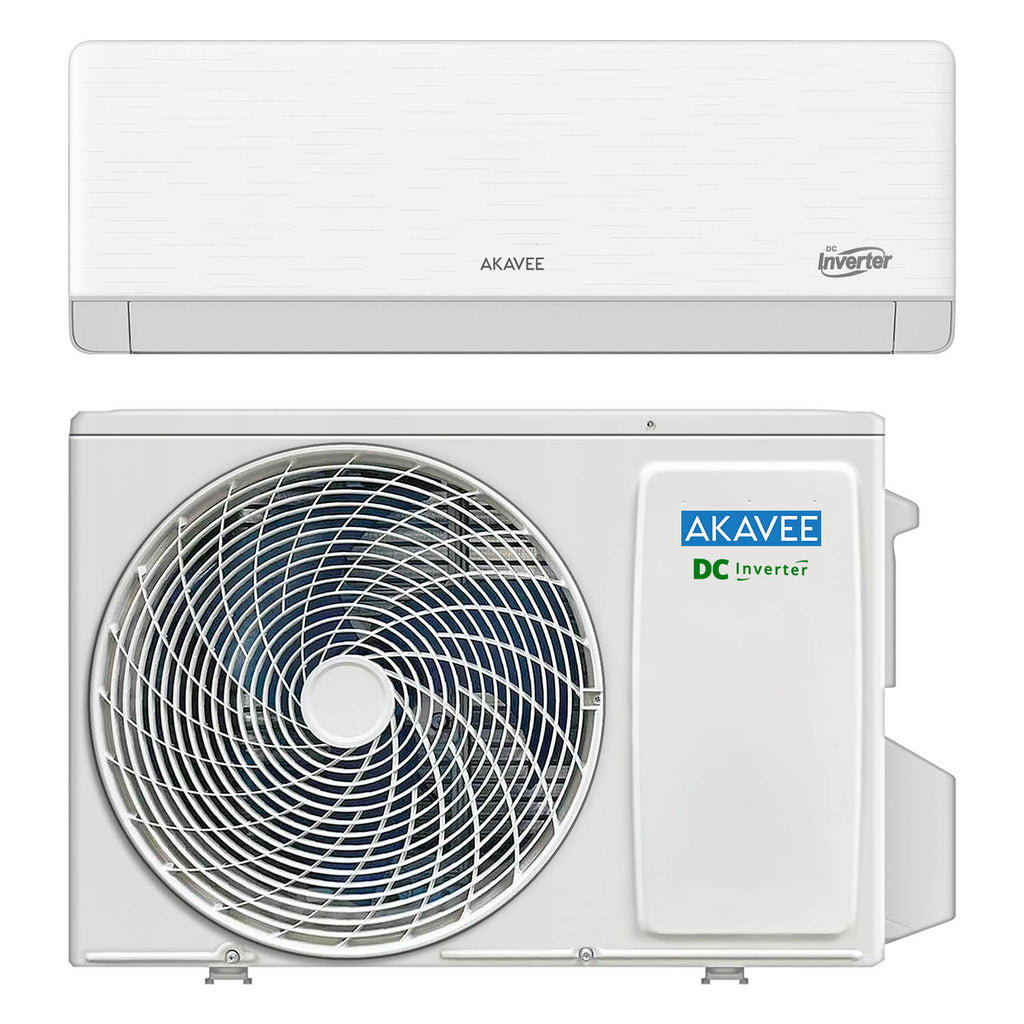

Akavee - Air Conditioner (9000BTU)

Manufactured by AUX

Brand: Akavee

Model: AS-09MER3DI

Type: DC Inverter Split Type

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Technical Specs:

Rated Capacity (Cooling): 2700 (600 - 3200) W

Dehumidifying: 0.7 Kg/h

Rated Power Consumption (Cooling): 730 (100 - 1200) W

Rated Running Current: 4.4 (0.56 - 5.32) A

Max. Input Power: 1600W

Max. Input Current: 9A

CSPF (Cooling Seasonal Performance Factor): 4.63 W/W

Air Flow Volume: 660m³/h

Power Supply Source: 220-240V / 1Ph / 50Hz

Refrigerant & Pressure:

Refrigerant: R32

Refrigerant Charged: 360g

Max. Discharge Pressure: 4.3Mpa

Max. Suction Pressure: 2.5Mpa

Connection:

Connect pipe (Length): 3m

Stop Valve:

• • Liquid Valve: DG4
  • Gas Valve: DG8

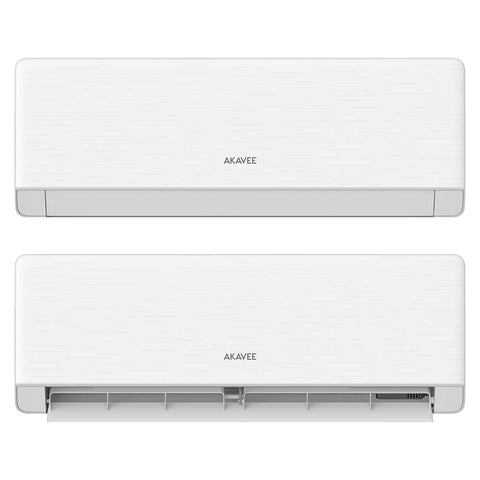

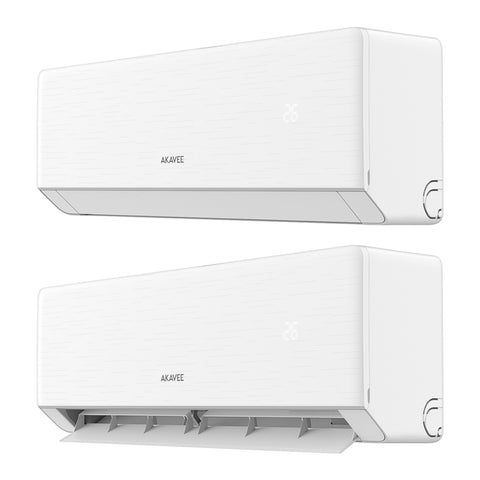

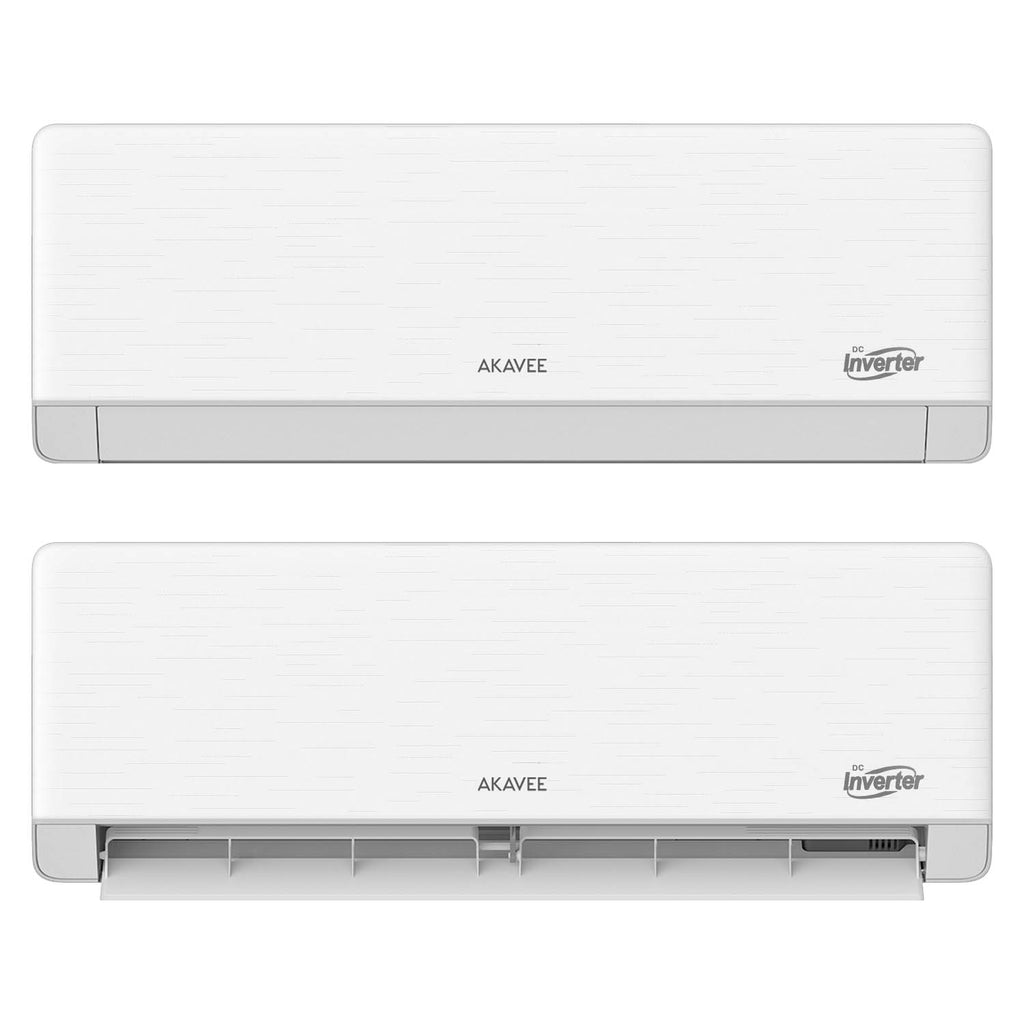

Indoor Unit:

Noise level: 41db

Evaporator (tube):

• • Length: 562mm
  • Diameter: 5mm

Fan system (fan motor): Model D-13-10L

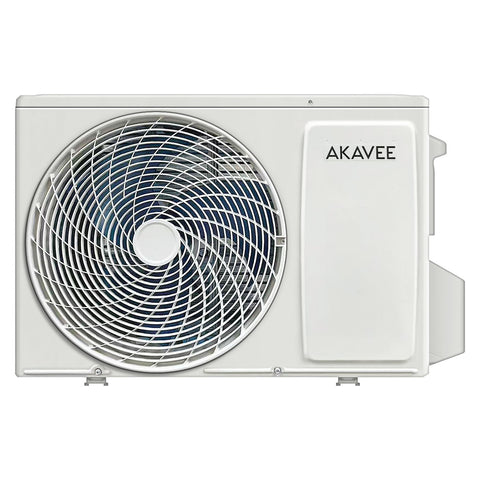

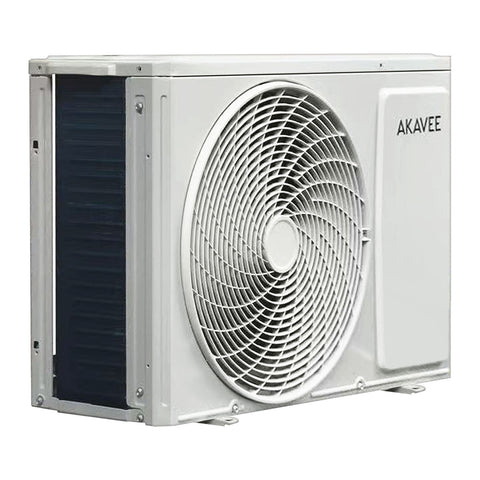

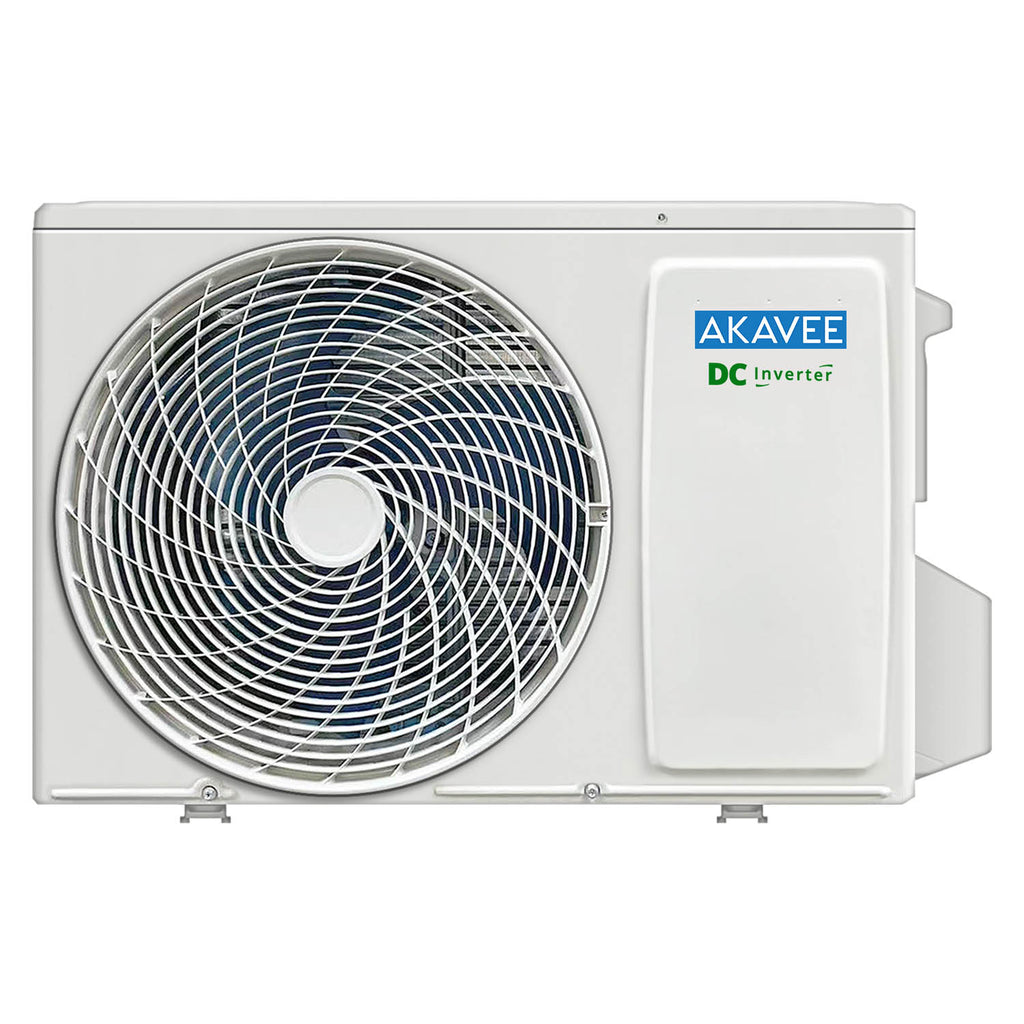

Outdoor Unit:

Noise level: 51db

Compressor Model: GMCC

Compressor Parameter (type): Rotation

Fan system (fan motor): Model D-20-10A

Condenser (tube):

• • Length: 632mm
  • Diameter: 5mm

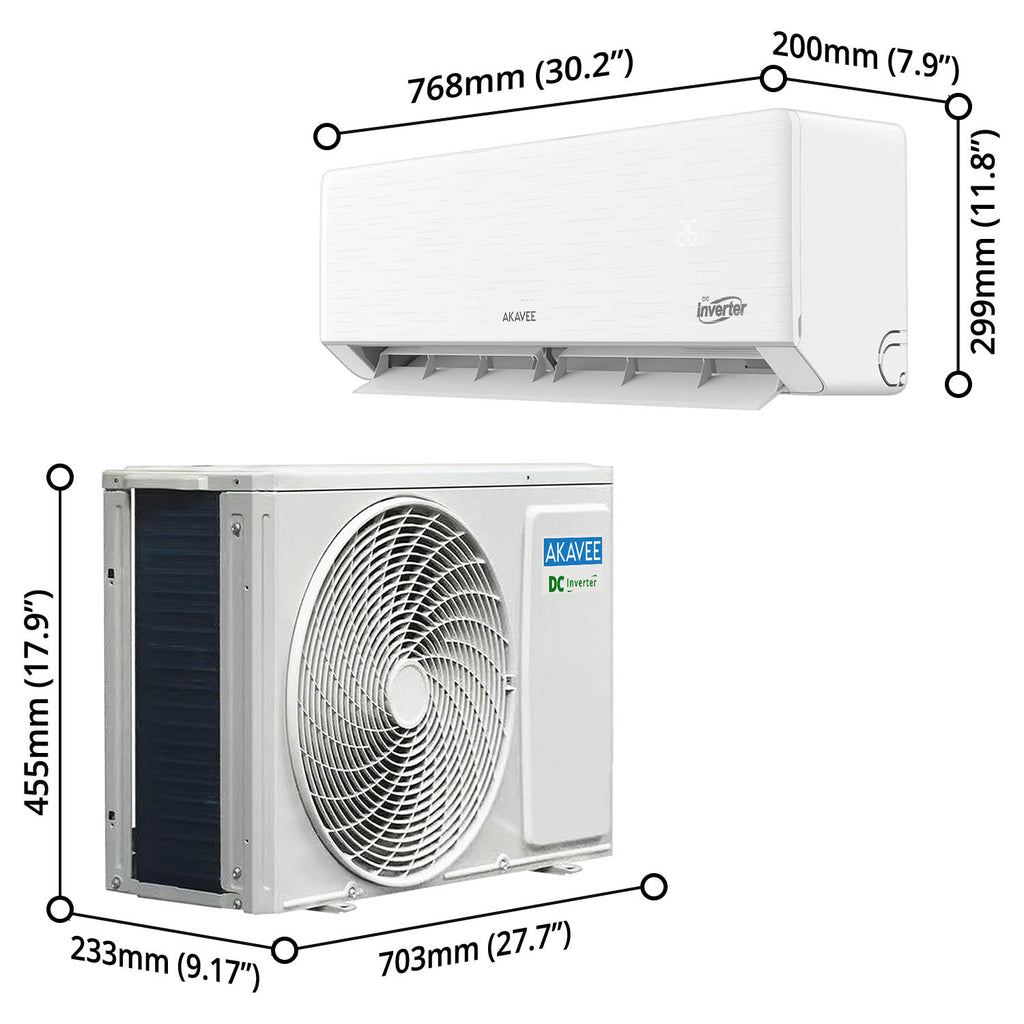

Dimension & Weight:

Width x Depth x Height

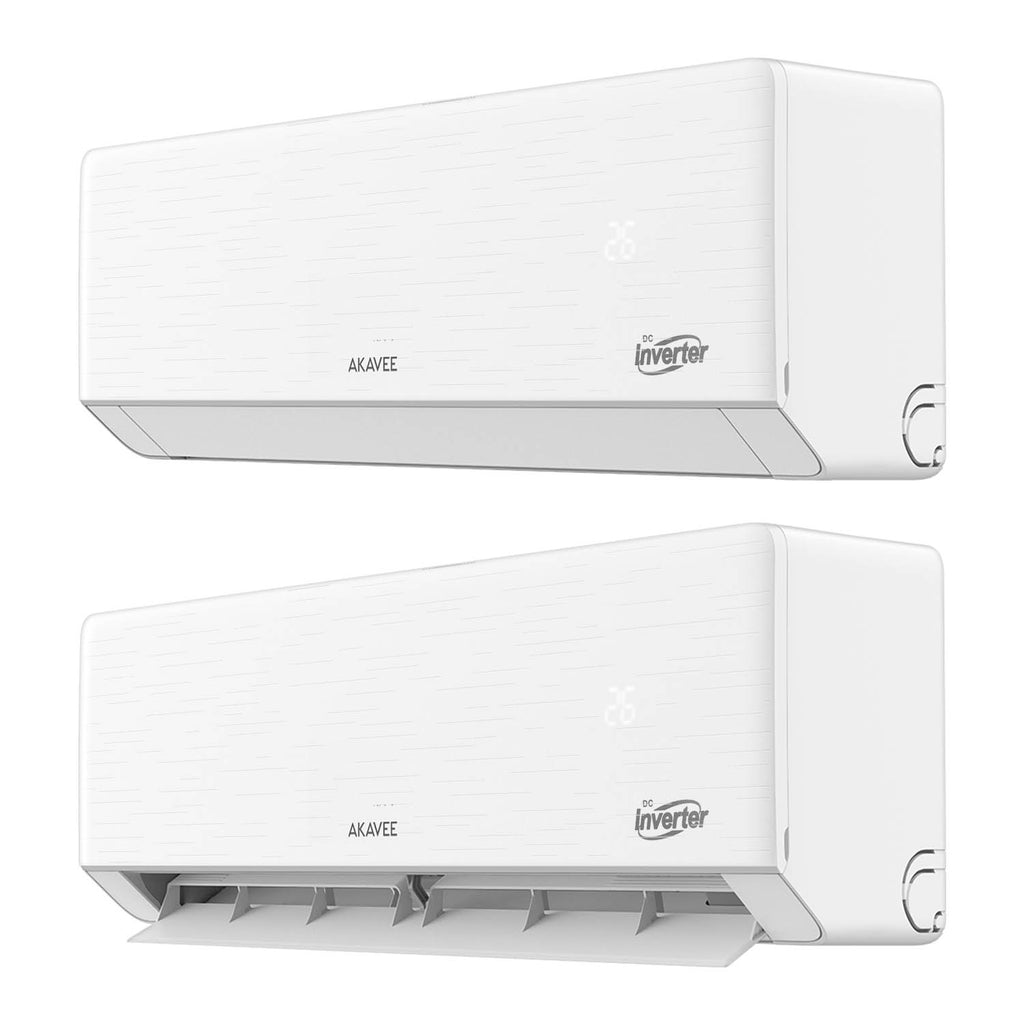

Indoor Unit:

• • Product Dimension: 768 x 200 x 299mm (30.2” x 7.9” x 11.8”)
  • Packing Dimension: 831 x 371 x 282mm (32.7” x 14.6” x 11.1”)
  • Net Weight: 8kg
  • Gross Weight: 10kg

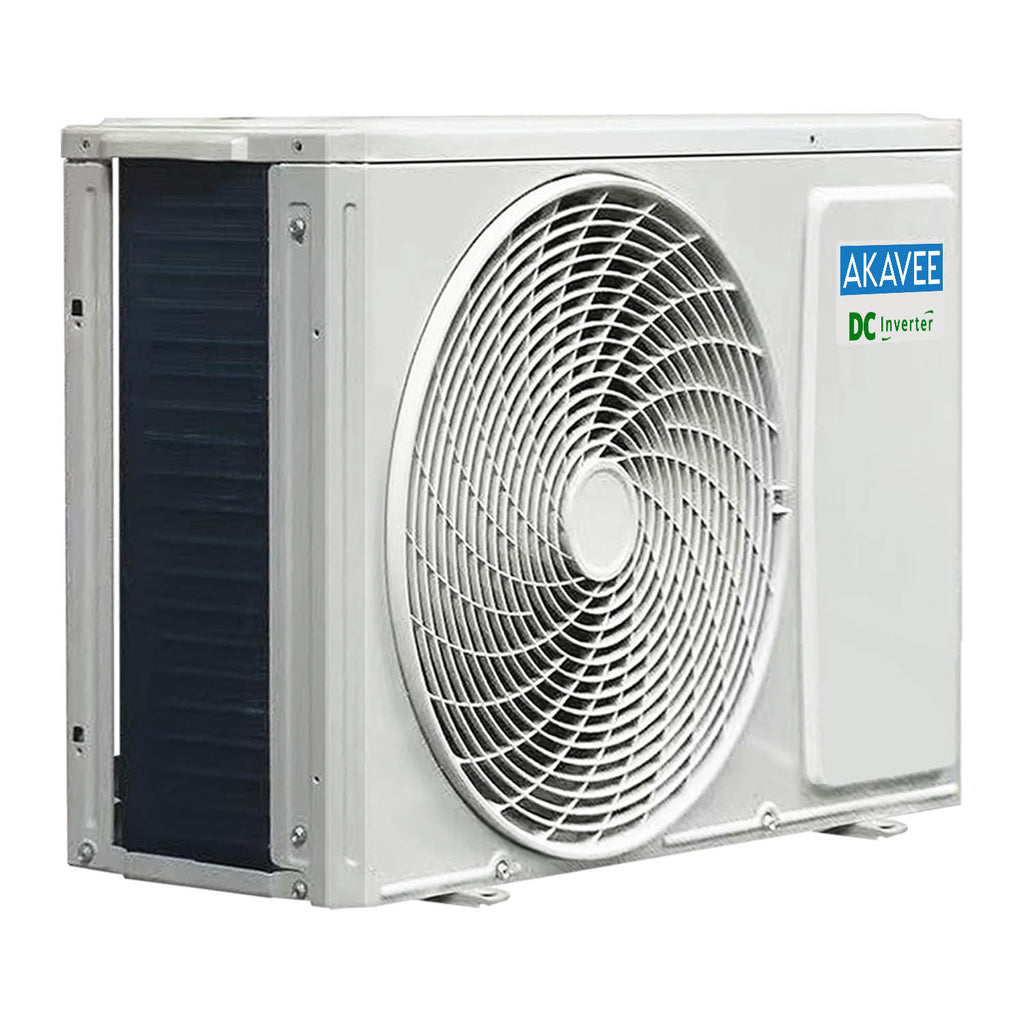

Outdoor Unit:

• • Product Dimension: 703 x 233 x 455mm (27.7” x 9.17” x 17.9”)
  • Packing Dimension: 760 x 315 x 510mm (29.9” x 12.4” x 20.1”)
  • Net Weight: 16kg
  • Gross Weight: 18.5kg

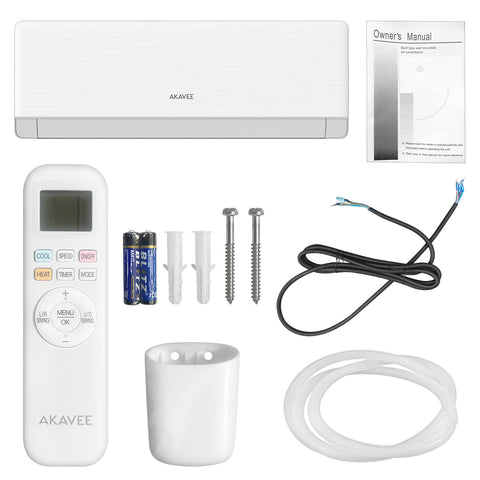

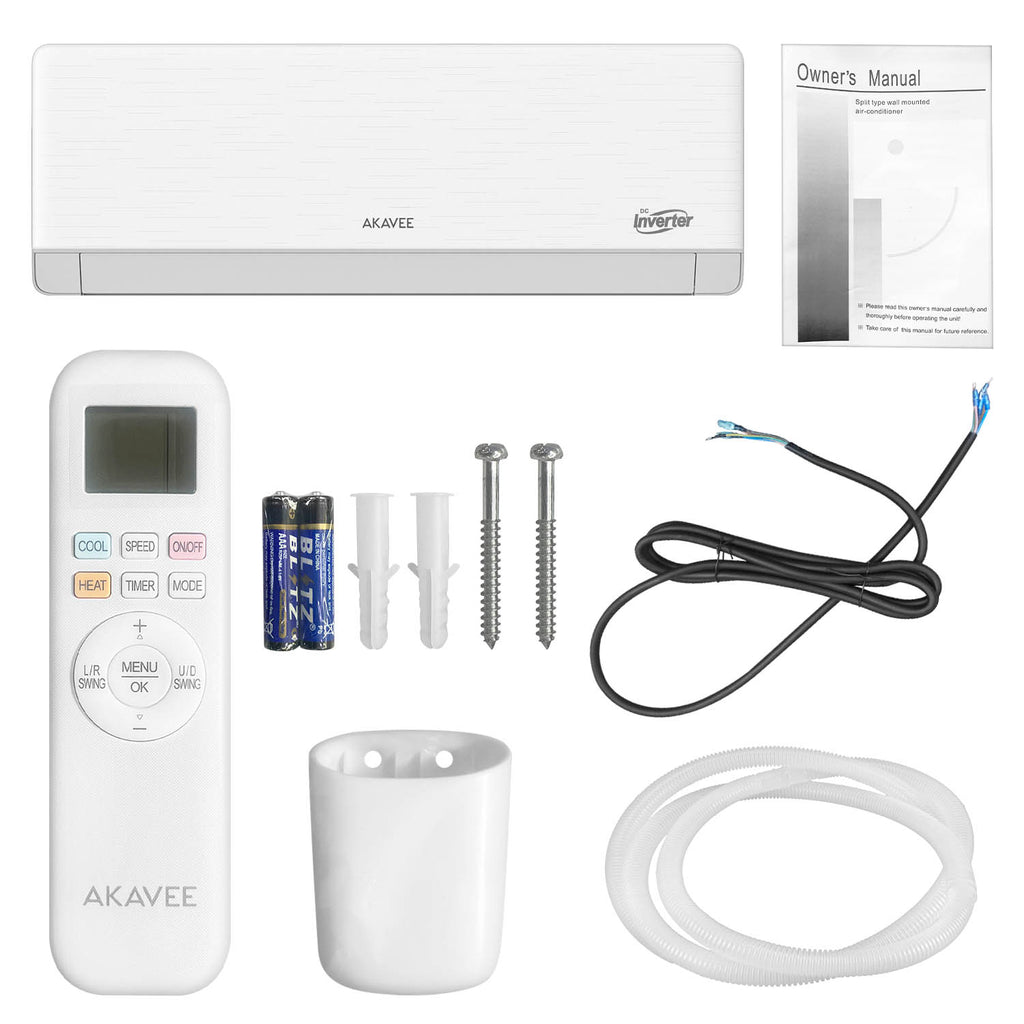

Packing Contents:

9k BTU Indoor Unit – x1

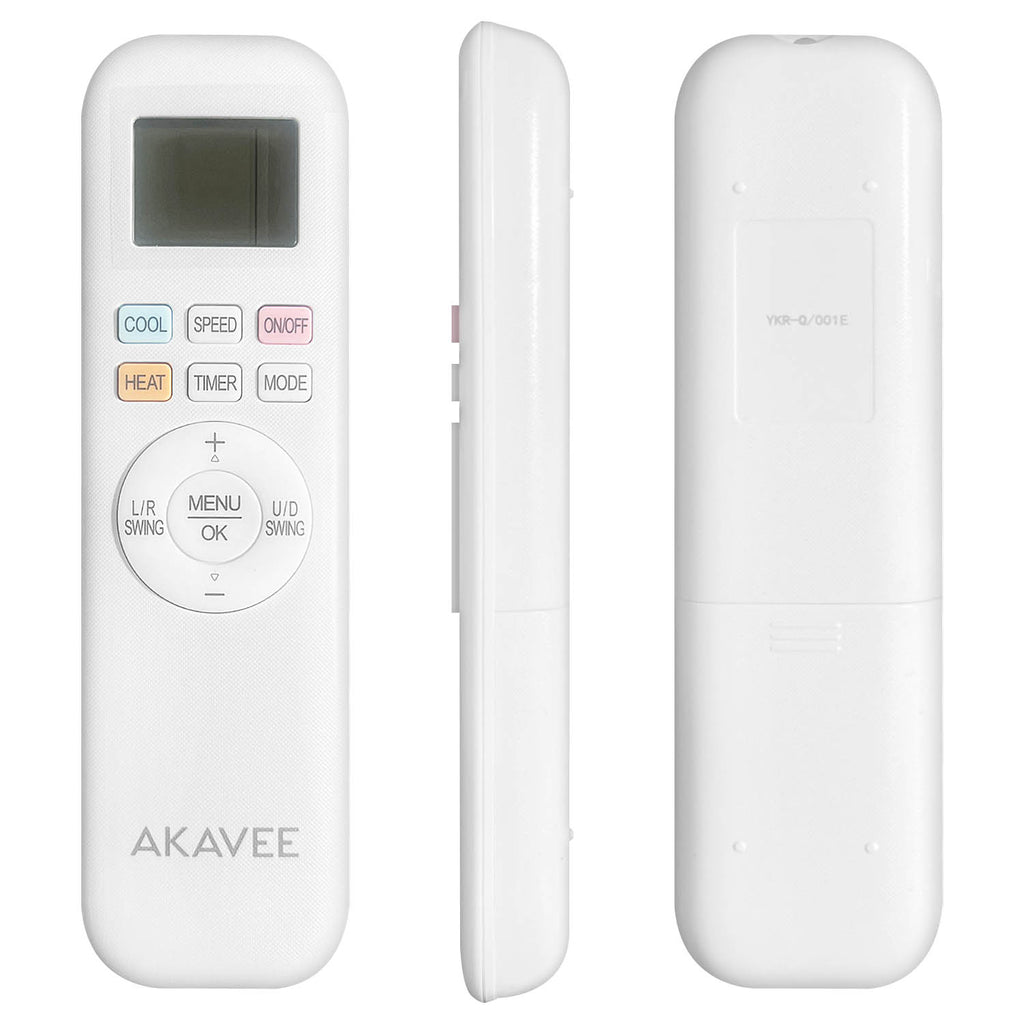

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

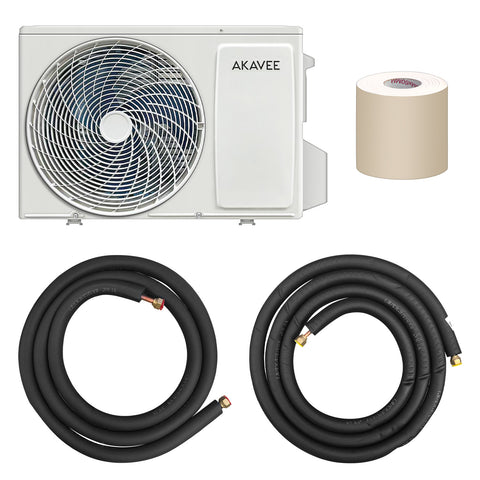

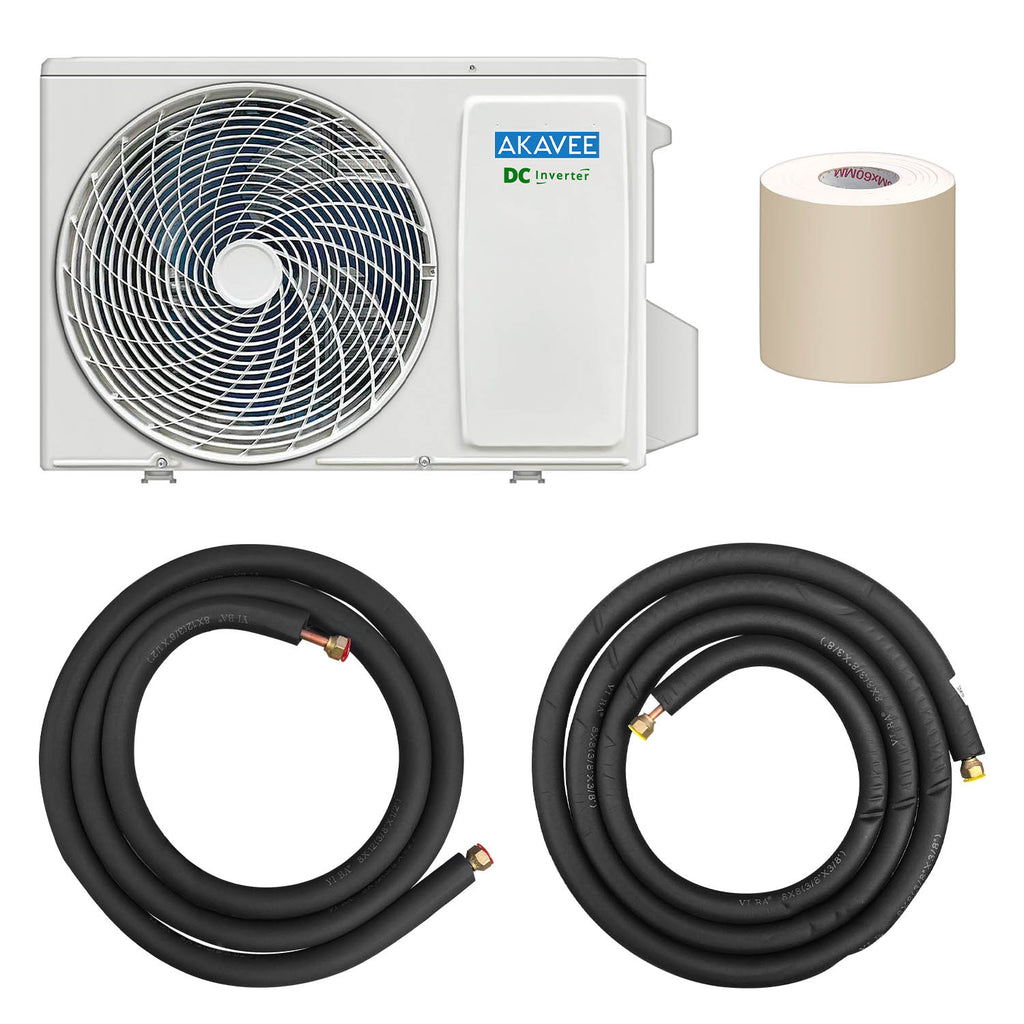

9k BTU Outdoor Unit – x1

• Insulated Copper Tube – x1
• Insulated Copper Tube – x1
• Wrapping Roll – x1
