Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

Midea – Air Conditioner

Brand: Midea

Model: MSXS-19CRDN8

Capacity: 18000BTU

Type: Cooling Only

Control type: Remote (Wi-Fi Control Optional)

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 18000Btu/h
• Input (W): 1650W
• Rated Current (A): 7.2A
• EER (W/W): 3.2

Max. Input Consumption (W): 3200W

Max. Current (A): 14A

Compressor:

• Type: Rotary
• Capacity (W): 4385W
• Input (W): 1140W
• Rated current (RLA) (A): 7.50A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Indoor Unit:

Indoor Fan Motor:

• Input (W): 71W
• Capacitor (uF): 1.5 uF
• Speed (High/Middle/Low): 1200/980/870 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
3. Fin spacing: 1.2mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ7,Inner groove tube
6. Coil (length x height x width): 750 x 210 x 26.74mm + 750 x 126 x 26.74mm
7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 844/639/547 m3/h

Indoor noise level (High/Middle/Low): 42.5/36/32.5 dB (A)

Outdoor Unit:

Outdoor Fan Motor:

• Input (W): N/A
• Capacitor (uF): 2.5 uF
• Speed: 890 r/min

Outdoor Coil:

1. Number of rows: 1.6
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5,Inner groove tube
6. Coil (length x height x width): 755 x 507 x 11.6mm + 462 x 507 x 11.6mm
7. Number of circuits: 4

Outdoor air flow: 2100 m3/h

Outdoor noise level: 56.5 dB (A)

Other:

Refrigerant Type: R32/0.65 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 10m

Connection Wiring: 5.5m

Plug Type: 1.5 x 3/no-plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• Indoor (Cooling): 17 ~ 32 °C
• Outdoor (Cooling): 0 ~ 50 °C

Application Area: 24 ~ 35m²

Dimension & Weight:

Net dimensions (W x D x H):

• Indoor: 969 x 241 x 320mm
• Outdoor: 765 x 303 x 555mm

Packing dimensions (W x H x D):

• Indoor: 1045 x 315 x 405mm
• Outdoor: 887 x 337 x 610mm

Net weight:

• Indoor: 11.9kg
• Outdoor: 27.2kg

Gross weight

• Indoor: 15.2kg
• Outdoor: 29.4kg

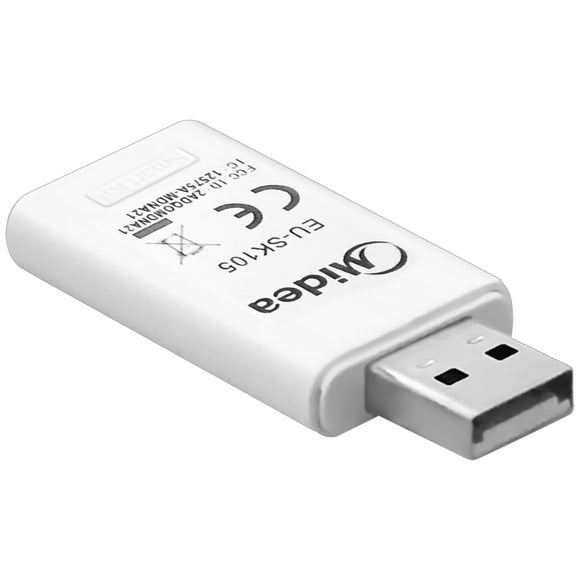

Click here for Wi-Fi USB Dongle (Sold Separately)

Wi-Fi USB Dongle
