Pre-Order Details

ETA: NOVEMBER

Order and pay today to benefit from huge savings!!

This particular product is not yet available for instant purchase but it can be bought now as PRE-ORDER.

FOR ONLINE purchases of PRE-ORDER items, you can either pay by card or visit Asters to pay in cash to confirm the order.

The PRE-ORDER PRICE is only valid until the product arrives to the Asters shop.

The products arrive latest at the given ETA DATE (=Estimated Date of Arrival). As soon as the product has arrived, you will be contacted by Asters to come to our Showroom to check the product. If you like it, it will be delivered to you within a few days. In case you don’t like the product for any reason, you receive a 100% refund. If the payment was made in cash, you receive your refund on spot in cash. If you have paid by card through BML payment gateway, the full amount will be reimbursed to your account through BML which usually takes 3-5 working days.

IMPORTANT THINGS TO REMEMBER:

• Limited stock - goods are sold on a "first come first serve basis".
• The DISCOUNT will not be available once the goods have arrived to the shop.
• Fabrics and product details are available at the Asters showroom.
• If item does not arrive on time, customers can get an immediate refund.
• In case the customer doesn't like the product for any reason, Asters refunds the full amount that has been paid without discussions (If item was paid in cash, refund will be given on spot in cash. If item was paid by card through BML payment gateway, refund is processed through account transaction which can take 3-5 working days).
• 100% risk free.

• Deliveries in Male or Hulhumale will take place during 3 - 4 Days (No Deliveries on Friday only).

Specification

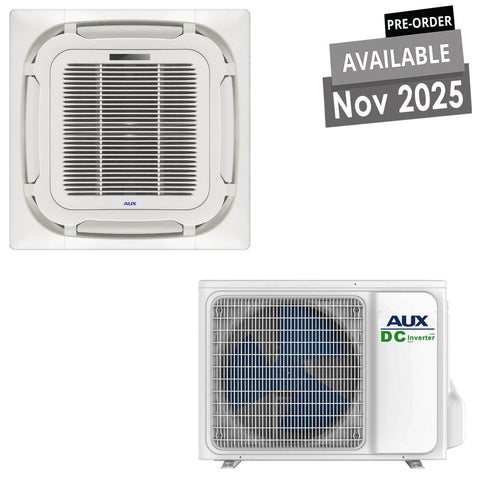

Aux - Inverter 8-Way Cassette (18000BTU)

Brand: Aux

Model: ALCA-C18/4DR3YA(U)

Capacity: 18000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Indoor Unit:

Power Supply: 220-240V, 50Hz, 1Ph

Capacity (Cooling):

• 18000 Btu/h
• 5.28 (1.58 – 5.59) kW

Electric Data

• Rated Cooling Power Input: 1.60 (0.43 – 1.90) kW
• Rated Cooling Current: 8 (2.18 – 8.70) A

Performance:

• EER: 3.30 W/W
• SEER (india): 4.0

Indoor Coil:

• Number Of Row: 2
• Tube Pitch (a) x Row Pitch (b): 19.05 x 11.6mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø5mm, Inner grooved
• Coil (Length x Height x Width):  2084 x 190.5 x 23.2mm

Indoor Fan Motor:

• Output Power: 22W
• Capacitor: 2.00 μF
• Speed (Hi/Mi/Lo): 490/410/350 r/min

Indoor Air Flow (Hi/Mi/Lo): 1100/950/800 m³/h

Noise Level (Hi/Mi/Lo): 42/39/36 dB (A)

Sound Power Level (Hi/Mi/Lo): 52/48/46 dB (A)

Refrigerant Pipe:

• Liquid Side: Ø6.35mm
• Gas Side: Ø12.70mm

Outdoor Unit:

Power Supply: 220-240V, 50Hz, 1Ph

Max. Input Consumption: 2000W

Max. Current: 10A

DC Inverter Compressor:

• Type: Rotary
• Capacity: 3375W
• Input: 805W
• Frequency range: 15-130Hz
• Rated Current (RLA): 2.52A
• Refrigerant Oil: 300ml (ALF68SZ)

Outdoor Fan Motor

• Output Power x Fan quantity: 35W x1
• Speed: 920 r/min

Coil:

• Number Of Row: 2
• Tube Pitch (a)x Row Pitch (b): 19.05 x 11.6mm
• Fin Pitch: 1.4mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: Ø5mm, Inner grooved
• Coil (Length x Height x Width): 688 x 495 x 23.2mm
• Number of circuits: 4

Air Flow Volume: 1353 CFM, 2300 m³/h

Noise Level:

• Sound Pressure Noise Level: 52 dB(A)
• Sound Power Noise Level: 62 dB(A)

Design Pressure: 4.4/1.4 MPa

Refrigerant: R32, 740g

Refrigerant Piping:

• Liquid Side: Ø6.35mm
• Gas Side: Ø12.7mm
• Length: 20m
• Height: 15m

Operation Temperature Range: 16°C ~ 32°C

Ambient Temperature Range (Cooling): 18°C ~ 48°C

Connection Wiring:

• Power Wiring: 3 x 1.5mm²
• Signal Wiring: 3 x 1.0 + 1 x 1.0mm²

Dimension & Weight:

Weight x Depth x Height

Indoor Unit:

• Product Dimension: 840 x 840 x 246mm
• Packing Dimension: 910 x 910 x 310mm
• Net Weight: 25kg
• Gross Weight: 29kg

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1000 x 1000 x 100mm
• Net Weight: 5.3kg
• Gross Weight: 7.8kg

Outdoor Unit:

• Product Dimension: 709 x 536 x 280mm
• Packing Dimension: 825 x 345 x 595mm
• Net Weight: 23kg
• Gross Weight: 25kg

Click here for User Manual
