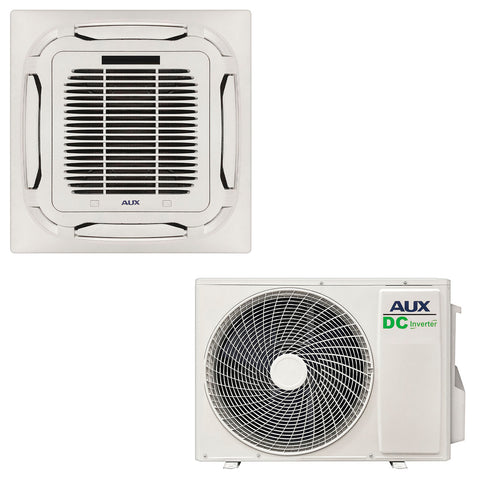

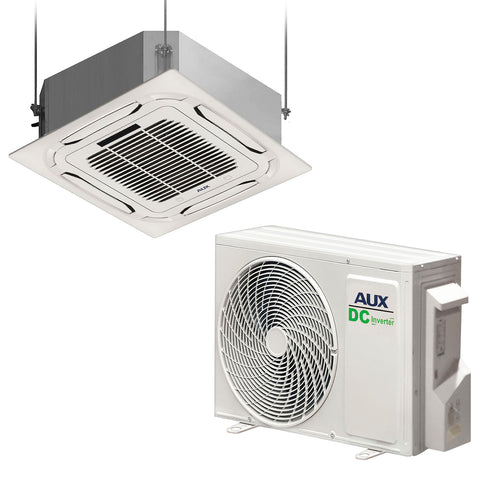

Bundle Includes:

#43994 -18000 BTU Multi IDU Cassette AC (Inverter) - x1

• Inverter (Free Match)
• Brand: Aux
• Series: Free Match
• Model: AMCA-H18/4R3AA
• Capacity: 18000BTU
• Cooling Capacity (btu): 17060 (8530 – 19107) Btu/h
• Cooling Capacity (kw): 5.0 (2.50 – 5.6) kW

#43990 - 18000 BTU Multi Outdoor AC (Inverter) - x1

• Inverter (Free Match) = 1 Drive 2
• Brand: Aux
• Series: Free Match
• Model: AM2-H18/4DR3
• Capacity: 18000 BTU
• System Format: 1 Drive 2
• Cooling Capacity (btu): 18084 (6824 - 19892) Btu/h
• Cooling Capacity (kw): 5.3 (2.0 - 5.83) kW

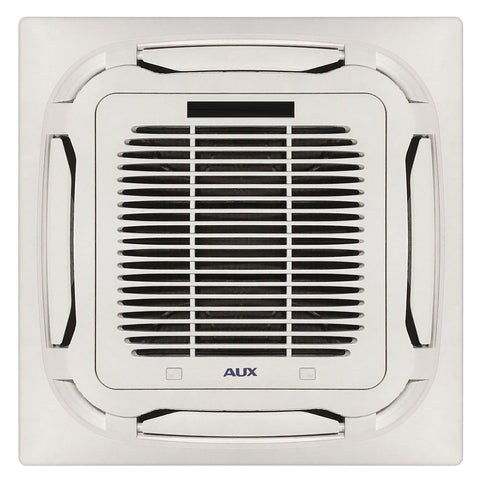

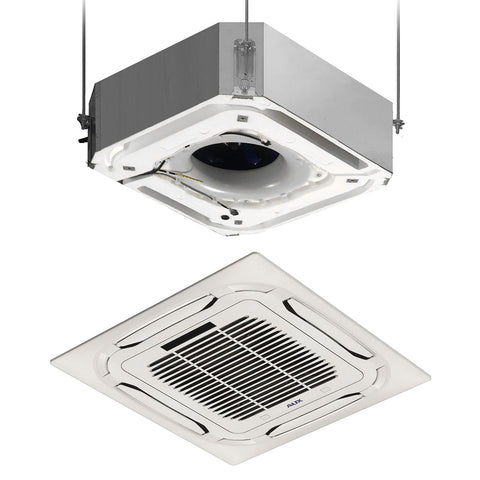

Aux – Multi IDU 4-Way Cassette-type AC

Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMCA-H18/4R3AA

Capacity: 18000BTU

Warranty: 12 Months Warranty

Cooling Capacity:

• 17060 (8530 – 19107) Btu/h
• 5.0 (2.50 – 5.6) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 70 (17.5 - 109) W

Fan Motor:

• Output Power: 30W
• Capacitor: 2uF
• Speed (Hi / Mi / Lo): 810 / 750 / 660 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch x Row Pitch: 20.5 X 12.7mm
• Fin Pitch: 1.5mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 1320 x 205 x 25.4mm

Performance:

• Air Flow Volume: 412/353/312 CFM, 700/600/530 m³/h
• Sound Pressure Level: 45/41/35 dB (A)
• Sound Power Level: 56 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 12.7mm (1/2")
• Drainage: 20mm

Dimension & Weight:

Width x Depth x Height

Product Dimension:

• Panel: 650 x 650 x 55mm (25.6” x 25.6” x 2.2”)
• Indoor Unit: 570 x 570 x 260mm (22.4” x 22.4” x 10.2”)

Packing Dimension:

• Panel: 710 x 710 x 80mm (28” x 28” x 3.1”)
• Indoor Unit: 655 x 655 x 295mm (25.8” x 25.8” x 11.6”)

Net Weight:

• Panel: 2.2kg
• Indoor Unit: 18kg

Gross Weight:

• Panel: 3.7kg
• Indoor Unit: 21kg

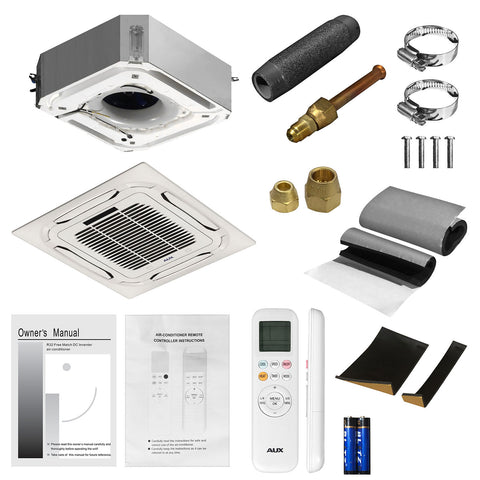

Packing Contents:

Panel – x1

Indoor Unit – x1

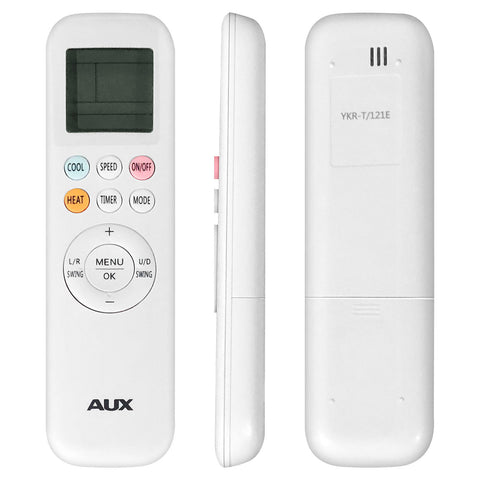

Remote Control – x1

AA Battery – x1

Insulation – x3

Copper Reducer – x1

Flaring Nut – x2

Hose Clamp – x2

Foam Tape – x2

Screws – x4

Remote Control Manual – x1

User Manual – x1

Click here for User Manual

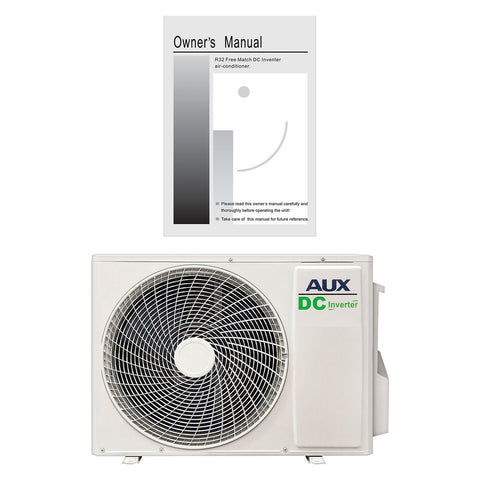

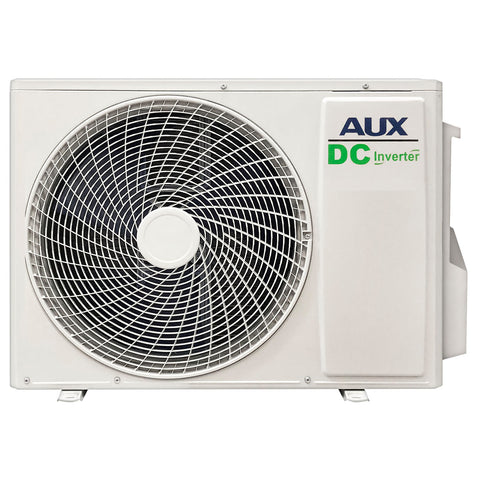

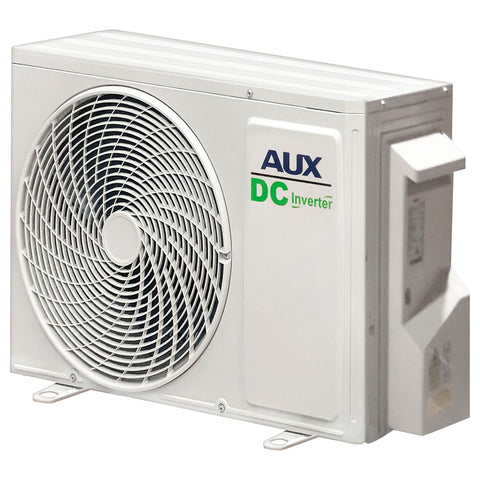

Aux – Multi-Outdoor AC

Inverter (Free Match) = 1 Drive 2

Brand: Aux

Series: Free Match

Model: AM2-H18/4DR3

Capacity: 18000 BTU

System Format: 1 Drive 2

Warranty: 12 Months Warranty

Cooling Capacity:

• 18084 (6824 - 19892) Btu/h
• 5.3 (2.0 - 5.83) kW

Electric Data:

• Power Supply: 220~240V, 50Hz, 1Ph
• Cooling Power Input: 1750 (280 - 2300) W
• Rated Current (Cooling): 7.6A
• Max current: 11A
• Max power: 3kW

DC Inverter Compressor:

• Type: Rotary
• Capacity: 4245W
• Input: 1075W
• Power Supply: 220~240V, 50Hz, 1Ph
• Rated Current: 7.1A
• Operating Frequency: 60Hz
• Refrigerant Oil: VG74/440ml
• Frequency Range: 10~120 Hz

Outdoor DC Inverter Fan Motor:

• Type: DC Inverter
• Insulation Class: E
• Safe Class: IP24
• Input Power: 60W
• Output Power: 40W
• Speed: 850 - 350 r/min

Outdoor Fan:

• Material: Plastic
• Diameter: Ø421 x 117mm

Outdoor Coil:

• Number of Row: 2
• Tube Pitch (a) x Row Pitch (b): 22 x 19.05mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. and Material: φ7, Inner grooved
• Coil Length x Height x Width: 757 x 506 x 38.1mm

Air Flow Volume:

• 1353 CFM
• 2300 m³/h

Noise Level:

• Sound Pressure Noise Level: 55 dB (A)
• Sound Power Noise Level: 62 dB (A)

Refrigerant type:

• Type: R32
• Charged Volume: 0.95kg
• Additional charge: 20 (g/m)

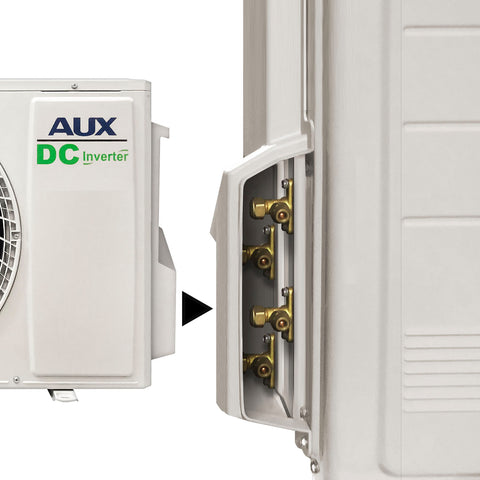

Piping:

• Liquid Side: 2 x 6.35 mm (1/4”)
• Gas Side: 2 x 9.52 mm (3/8”)
• Length for all rooms (m): 40m
• Length for one IU (m): 25m
• Height difference between IU and OU (m): 15m
• Height difference between IUs (m): 10m

Ambient Temp (Cooling): -15~52℃/

Dimension & Weight:

Width x Depth x Height

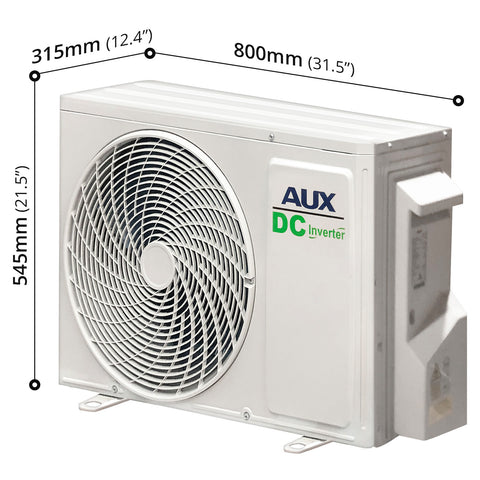

Product Dimension: 800 x 315 x 545mm (31.5” x 12.4” x 21.5”)

Packing Dimension: 920 x 400 x 620mm (36.2” x 15.7” x 24.4”)

Net Weight: 36kg

Gross Weight: 39kg

Packing Contents:

18k BTU Outdoor AC – x1

User Manual – x1

Click here for User Manual
