Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

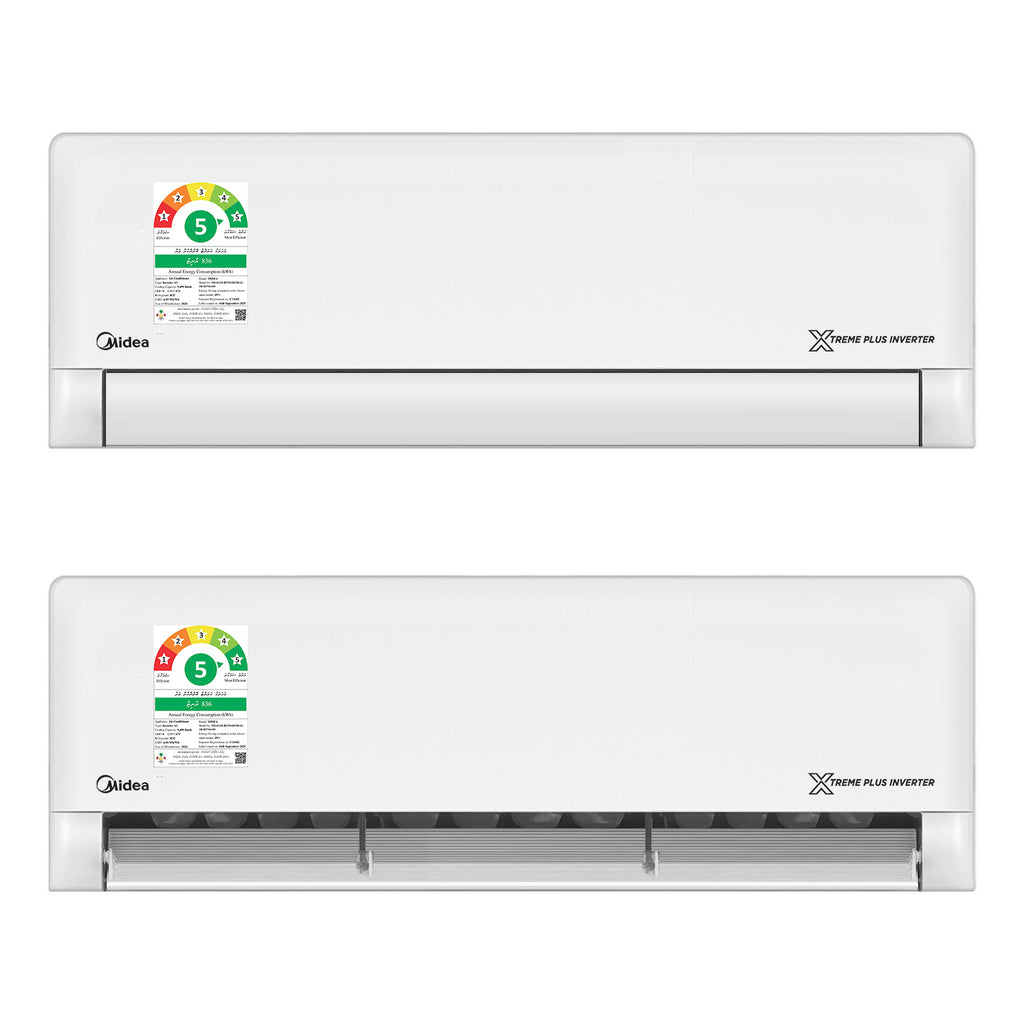

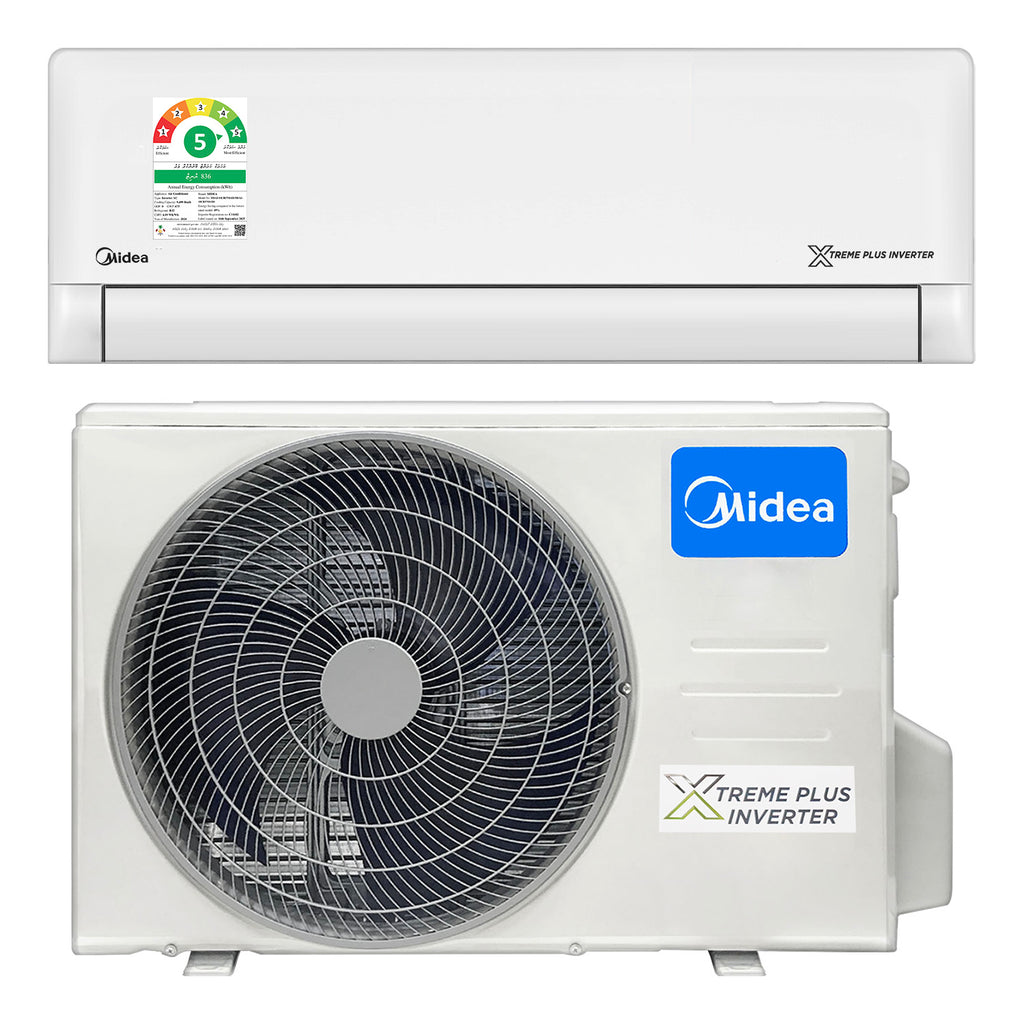

Midea – Air Conditioner

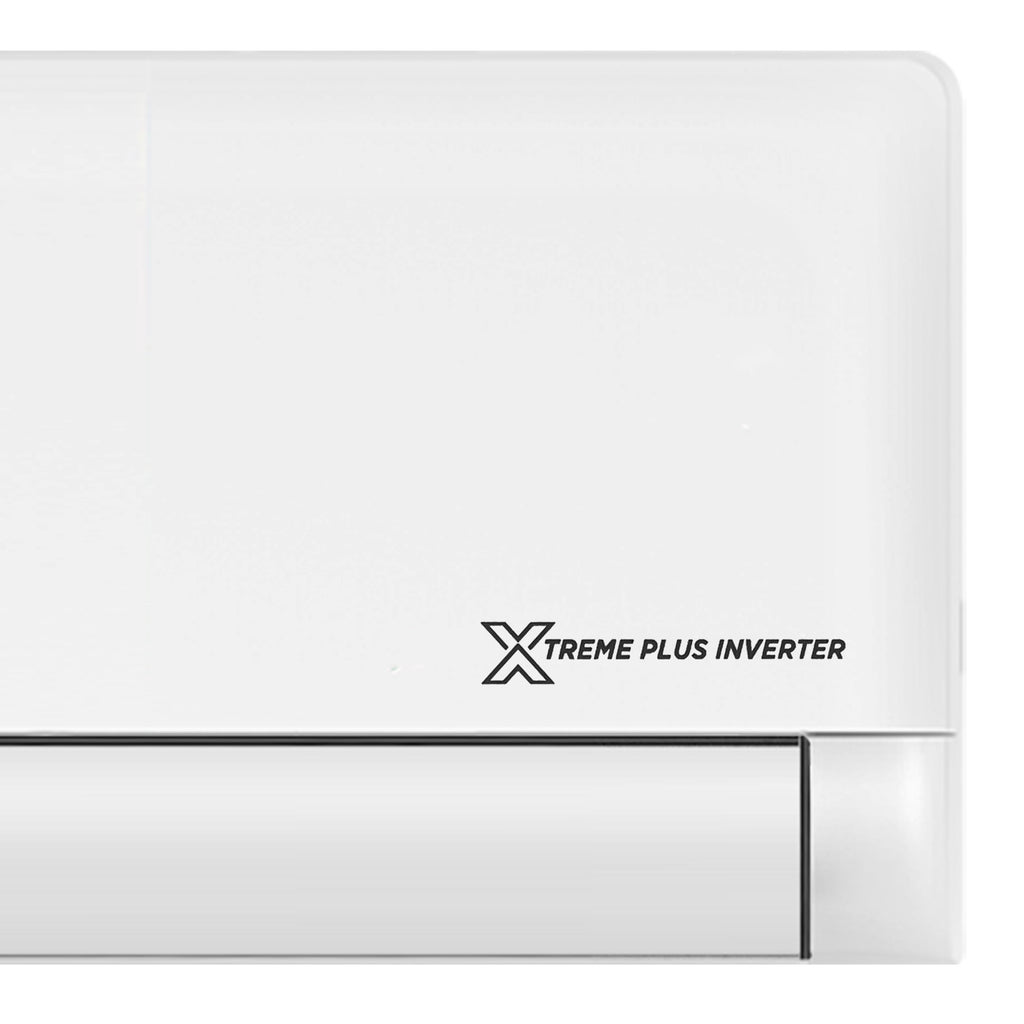

Xtreme Plus Series

Brand: Midea

Model: MSAI-13CRFN8

Capacity: 12000BTU

Type: Cooling Only

Control type: Remote & App Control (Wi-Fi Built-in)

Power Supply (V, Ph, Hz): 220-240 V, 1-Phase, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 12500
• Input (W): 1100W
• Rated Current (A): 4.9A
• EER (W/W): 3.33

Rated Power Input (W): 2050W

Rated Current (A): 9A

Compressor:

• Type: Rotary
• Capacity (W): 2020/3245 ±3%
• Input (W): 332/850 ±3%
• Rated Current (RLA) (A): 2.42/5.70 ±3%

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

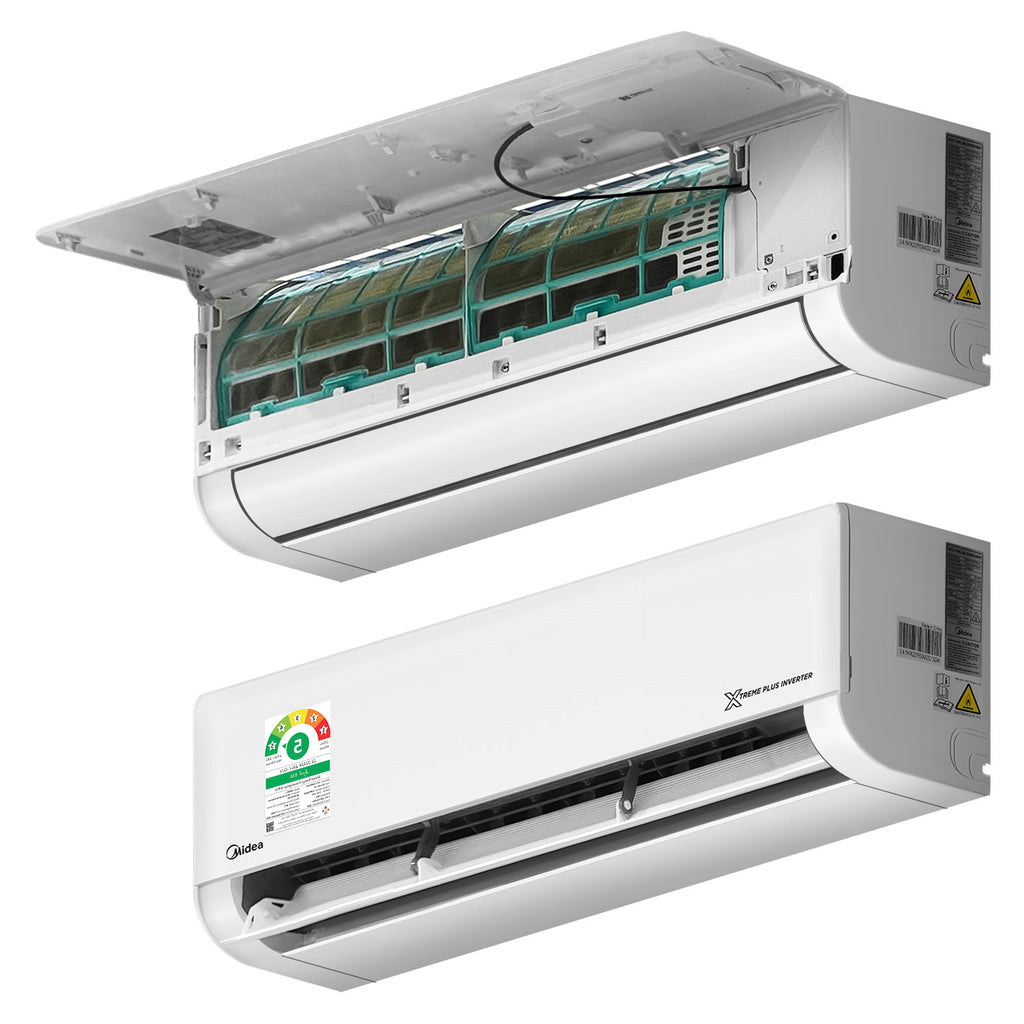

Indoor Unit:

Indoor Fan Motor: Speed (High/Middle/Low): 1000/840/760 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.3mm
4. Tube outside dia. and type: Ø5mm
5. Coil (length x height x width): 620 x 195 x 23.2mm + 620 x 97.5 x 23.2mm
6. Number of circuits: 3

Indoor air flow (High/Middle/Low): 625/450/370 m3/h

Indoor noise level (High/Middle/Low): 38/31.5/29 dB (A)

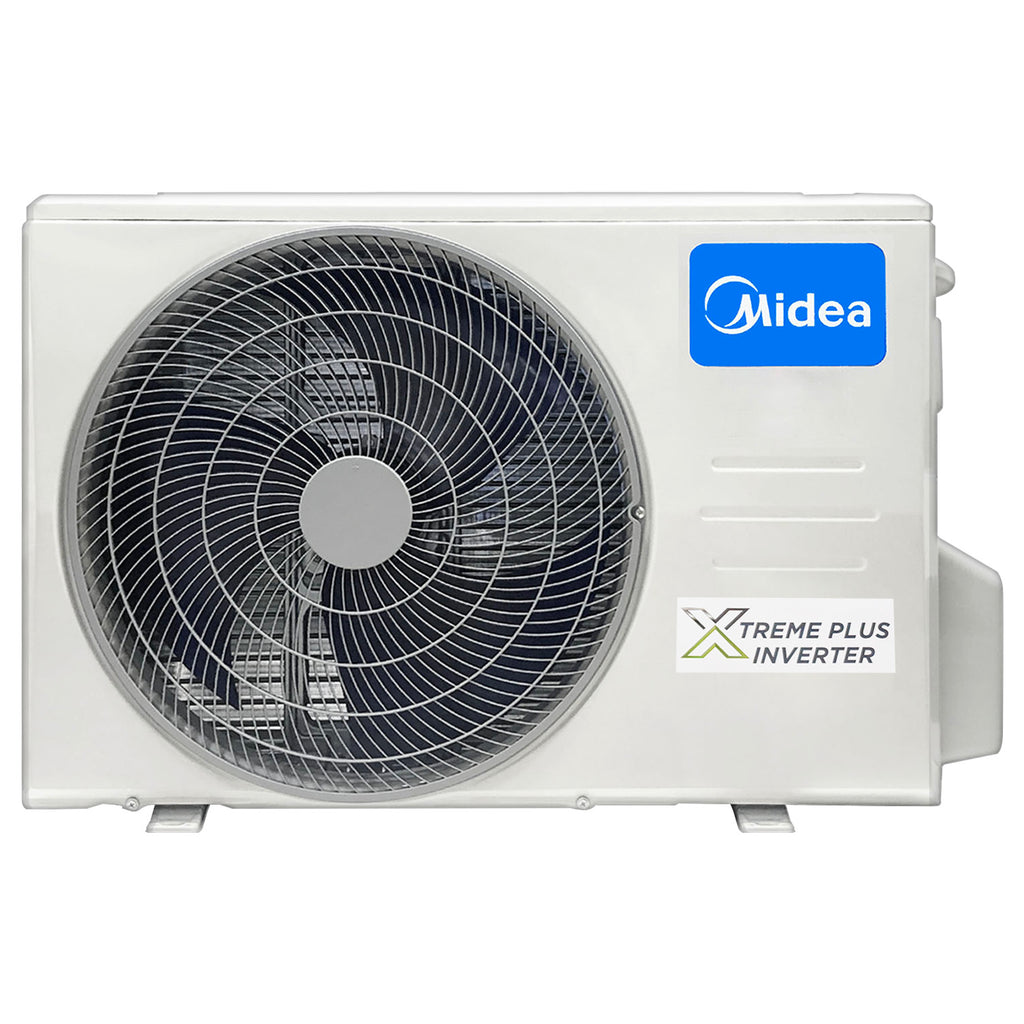

Outdoor Unit:

Outdoor Fan Motor: Speed: 800/700/600 r/min

Outdoor Coil:

1. Number of rows: 1
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): Unhydrophilic aluminium
5. Tube outside dia. and type: Ø5mm, Inner groove tube
6. Coil (length x height x width): 740 x 468 x 11.6mm
7. Number of circuits: 2

Outdoor air flow: 1800 m3/h

Outdoor noise level: 54 dB (A)

Additional Specs:

Refrigerant Type: R32/0.42kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 10m

Connection Wiring: 1.5x4//

Plug Type: 1.5x3//no-plug

Thermostat Type: Remote Control

Room Temperature:

• Indoor (Cooling): 16 ~ 32°C
• Outdoor (Cooling): 0 ~ 50°C

Application Area (Cooling Standard): 17 ~ 24m²

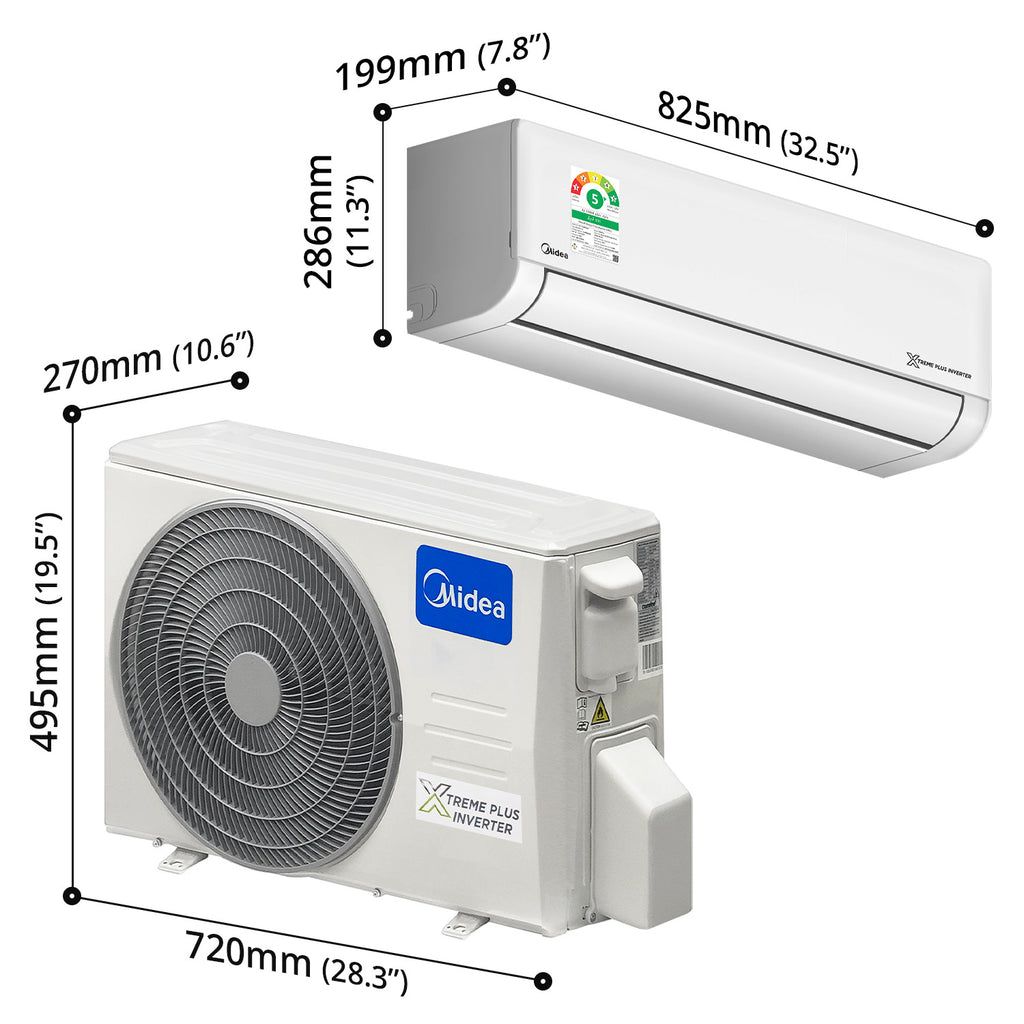

Dimension & Weight:

Weight x Depth x Height

Indoor Unit:

• Product Dimension: 825 x 199 x 286mm (32.5” x 7.8” x 11.3”)
• Packing Dimension: 895 x 290 x 365mm (35.2” x 11.4” x 14.4”)
• Net Weight: 8.1kg
• Gross Weight: 10.8kg

Outdoor Unit:

• Product Dimension: 720 x 270 x 495mm (28.3” x 10.6” x 19.5”)
• Packing Dimension: 835 x 300 x 540mm (32.9” x 11.8” x 21.3”)
• Net Weight: 19.6kg
• Gross Weight: 21.4kg

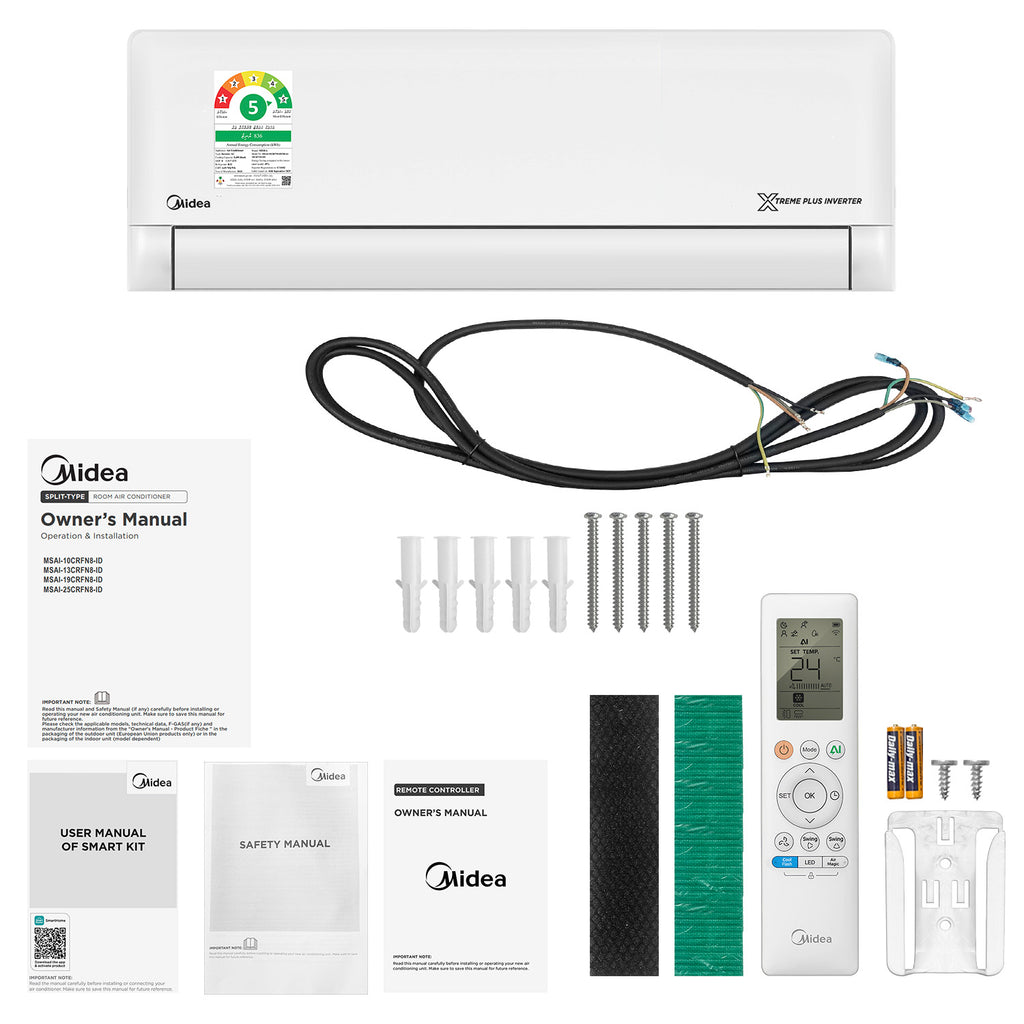

Packing Contents:

12k BTU Indoor Unit – x1

• Electric Wire – x1

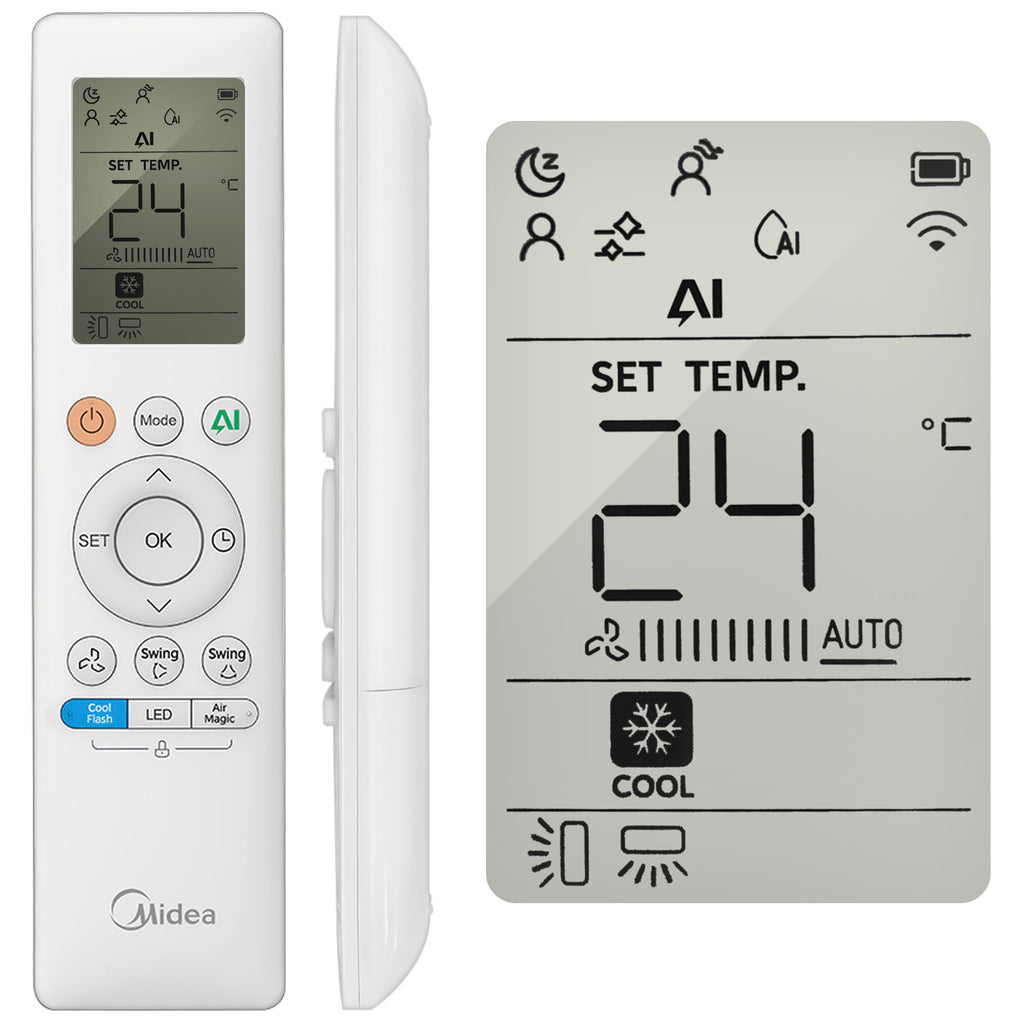

• Remote Control – x1
• AA Battery – x2
• Remote Holder (Wall-Mount) with 2 Screws – x1
• Screws – x5
• Wall Plugs – x5
• Small Filter – x2
• Remote Controller User Manual – x1
• Smart Kit User Manual – x1
• Safety Manual – x1
• Product User Manual – x1

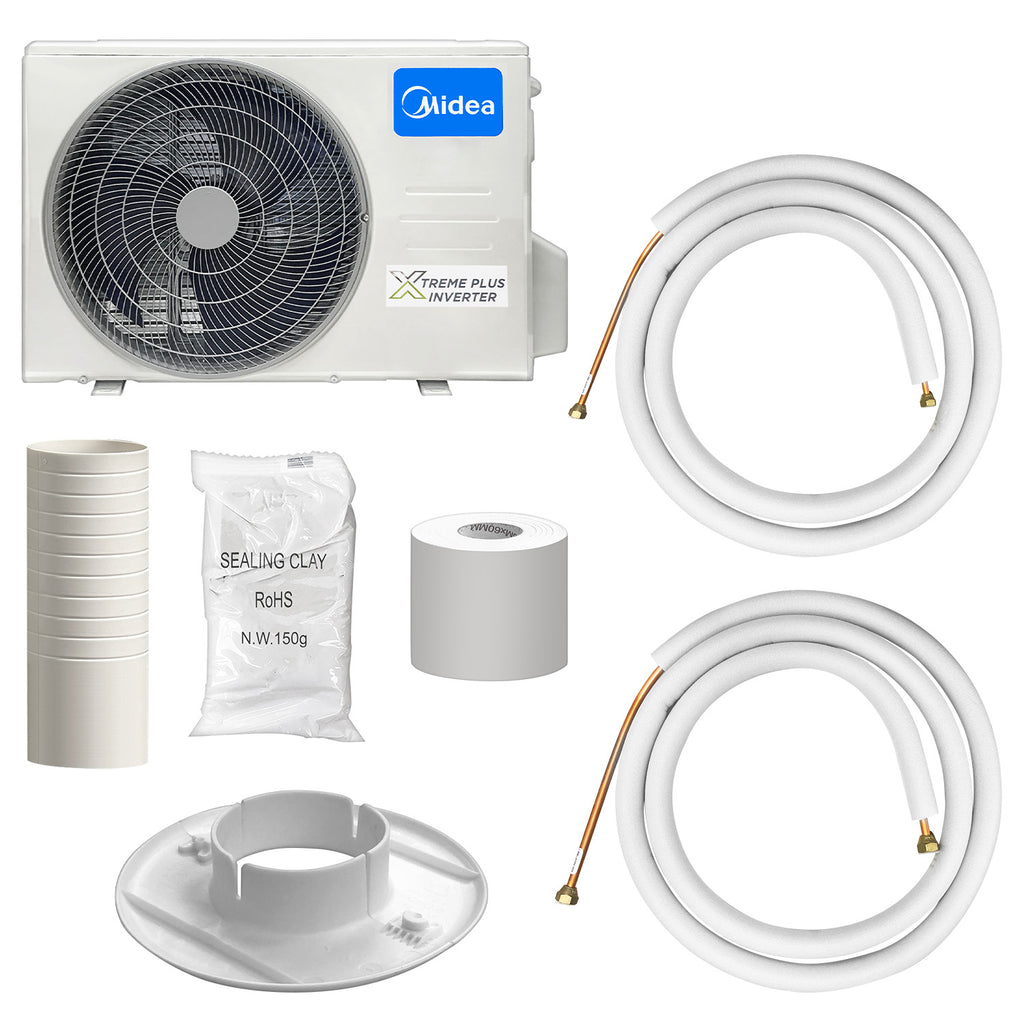

12k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 3/8” Insulated Copper Tube – x1
• Sealing Clay – x1
• Wall Sleeve – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
