Note: Power cord not included.

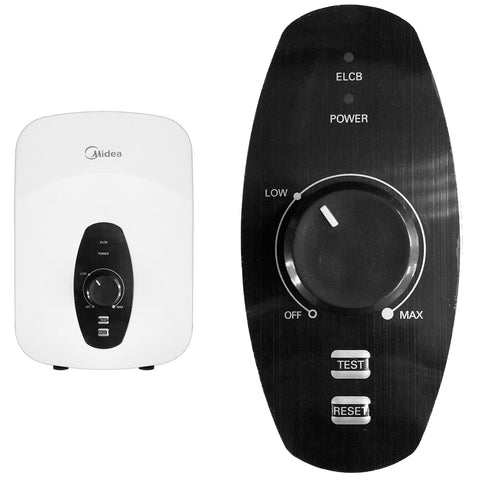

Midea – Instant Water Heater

Built-in ELCB: Cuts off current flow in the event of any current leakage.

Stepless control: Shower Temperature can be selected according to personal preference.

Splash-proof IP25 Standard: Protection against water seeping into heater’s internal mechanism.

Built-in Auto flow sensor: Shuts off heater if water flow is lower than 1.2 liters/minute, water saving.

Precise thermal cut-out: Electronic detector auto shut off in the event of water temperature over 55°C.

Nylon Glass Fibre: Strong & Durable non-conductive material for further insulation against electric shock.

Advantages:

• Double relay.
• Fast Heating.
• CB Certificate.
• Thermal cut out.
• ELCB protection.
• Earthing protection.
• Dry heat protection.
• Overheat protection.
• Japan JST connector.
• Great value for money.
• Copper Heating Element.
• Water-proof grade IPX25.
• Precise temperature control.

Electric Instant Water Heater

Brand: Midea

Model: DSK45Q

Installation Method: Wall-Mounting

Rated Power: 4500W

Rated Voltage: 220-240V~

Rated Frequency: 50/60Hz

Rated Current: 19.6A

Dia. of Wire Code: 2.5mm²

Air Switch: ≥25A

Rated Pressure: 0 MPa

Flow Rate (min.): 1.2 Liters/minute

Inlet Pressure (min.): 0.02 MPa

Inlet Pressure (max.): 0.3 MPa

Protection Class: Class I

Outlet Water Temperature (max.): 55 °C

Waterproof Grade: IP25

Max Temperature: 95°C

Heating Elements Material: Copper

Operating Condition: Open Type

Pump: No

Warranty: 12 Months Warranty

Dimension & Weight:

Product Dimension (W x D x H): 22.4 x 9.3 x 33cm (8.8” x 3.7” x 13”)

Package Dimension (W x D x H): 26 x 10.5 x 58cm (10.2” x 4.1” x 22.8”)

Net Weight: 1.6kg

Gross Weight: 3kg

Packing Contents:

• Water heater – x1
• Filter control valve – x1
• Screws – x4
• Screw plugs – x4
• Flat gaskets – x4
• User manual – x1

Click here for User Manual

User Manual
