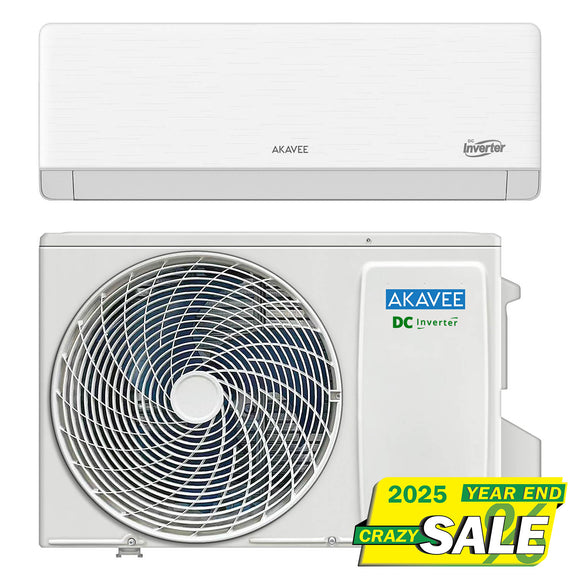

9000 BTU AC (Inverter)
Share:
SKU: 59066
INVERTER WIFI READY
Model no: AS-09MER3DI
Brand: AKAVEE
ALU: 9959066
Size: 9000BTU
Manufactured by AUX
Available Size:
|
Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes and any kind of carpentry or electrical works. All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation. |
| Akavee - Air Conditioner (9000BTU) | |
| Brand: | Akavee |
| Model: | AS-09MER3DI |
| Type: | DC Inverter Split Type |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Technical Specs: | |
| Rated Capacity (Cooling): | 2700 (600 - 3200) W |
| Dehumidifying: | 0.7 Kg/h |
| Rated Power Consumption (Cooling): | 730 (100 - 1200) W |
| Rated Running Current: | 4.4 (0.56 - 5.32) A |
| Max. Input Power: | 1600W |
| Max. Input Current: | 9A |
| CSPF (Cooling Seasonal Performance Factor): | 4.63 W/W |
| Air Flow Volume: | 660m³/h |
| Power Supply Source: | 220-240V / 1Ph / 50Hz |
| Refrigerant & Pressure: | |
| Refrigerant: | R32 |
| Refrigerant Charged: | 360g |
| Max. Discharge Pressure: | 4.3Mpa |
| Max. Suction Pressure: | 2.5Mpa |
| Connection: | |
| Connect Pipe (Length): | 3m |
| Liquid Valve: | DG4 |
| Gas Valve: | DG8 |
| Indoor Unit: | |
| Noise Level: | 41db |
| Evaporator (tube) Length: | 562mm |
| Evaporator (tube) Diameter: | 5mm |
| Fan system (fan motor): | Model D-13-10L |
| Outdoor Unit: | |
| Noise Level: | 51db |
| Compressor Model: | GMCC |
| Compressor Parameter (type): | Rotation |
| Fan system (fan motor): | Model D-20-10A |
| Condenser (tube) Length: | 632mm |
| Condenser (tube) Diameter: | 5mm |
| Dimension & Weight: | |
| Indoor Unit (W x D x H): | |
| Product Dimension: | 768 x 200 x 299mm (30.2” x 7.9” x 11.8”) |
| Packing Dimension: | 831 x 371 x 282mm (32.7” x 14.6” x 11.1”) |
| Net Weight: | 8kg |
| Gross Weight: | 10kg |
| Outdoor Unit (W x D x H): | |
| Product Dimension: | 703 x 233 x 455mm (27.7” x 9.17” x 17.9”) |
| Packing Dimension: | 760 x 315 x 510mm (29.9” x 12.4” x 20.1”) |
| Net Weight: | 16kg |
| Gross Weight: | 18.5kg |
| Packing Contents: | |
| 9k BTU Indoor Unit x1 | |
| Remote Control | x1 |
| Remote Holder (Wall-Mount) | x1 |
| Screws with Plugs | x2 |
| AA Battery | x2 |
| Electric Wire | x1 |
| Drainage Hose | x1 |
| User Manual | x1 |
| 9k BTU Outdoor Unit x1 | |
| Insulated Copper Tube | x1 |
| Insulated Copper Tube | x1 |
| Wrapping Roll | x1 |
