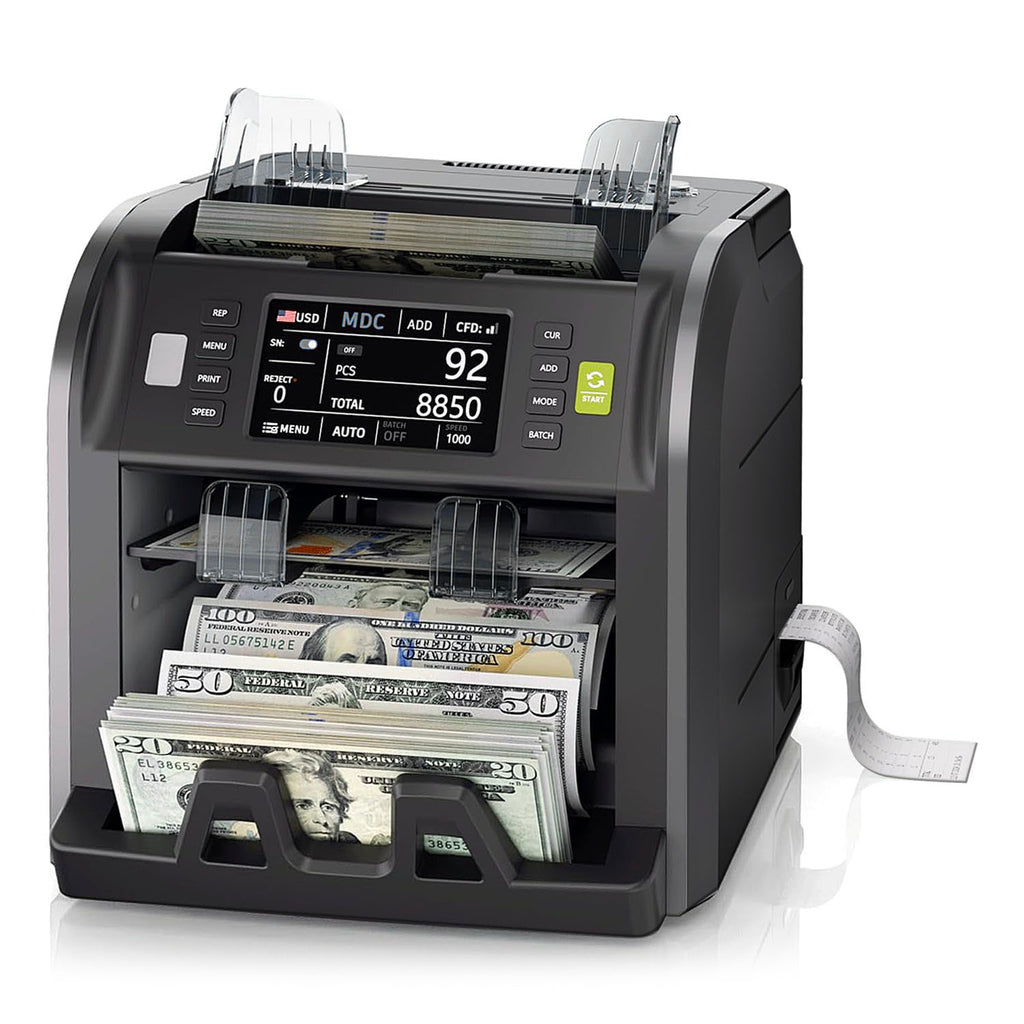

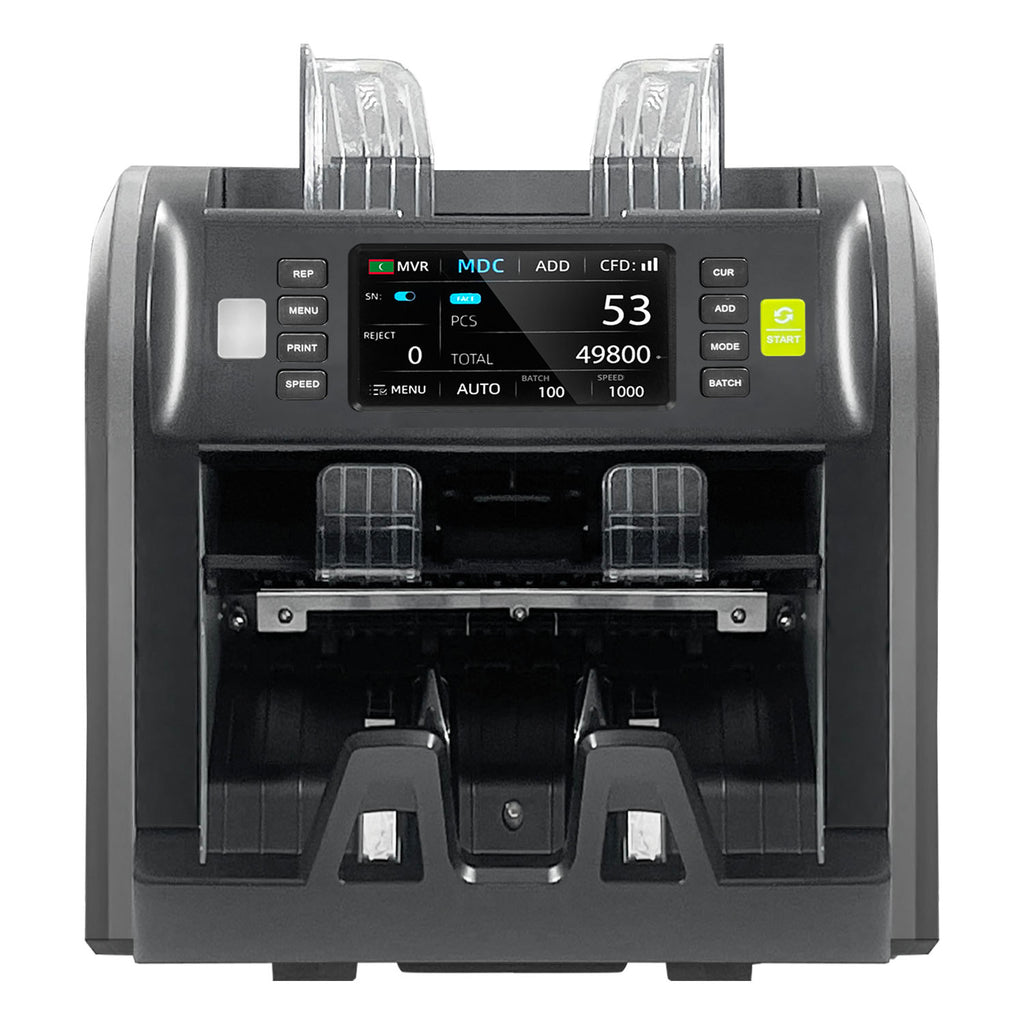

CH&Q – Currency Counter

2 Pocket Multi Currency Sorter with Built-in Printer

Brand: CH&Q

Model: YW19-01 (AL-958)

Color: Black

Capacity:

• • Hopper Capacity: Max. 500 Notes
  • Stacker Capacity: Max. 200 Notes

Feed System: Roller Friction System

Detection Technology: UV, MG, MT, IR, 2CIS

Counting Speed:

• • Standard: 800, 1000, 1200 notes/min
  • MDC & SDC Mode: 800, 1000 notes/min for

Note Compatibility:

• • Size of Countable Notes: 50 x 110 – 90 x 190mm
  • Thickness of Countable Notes: 0.08mm – 0.12mm

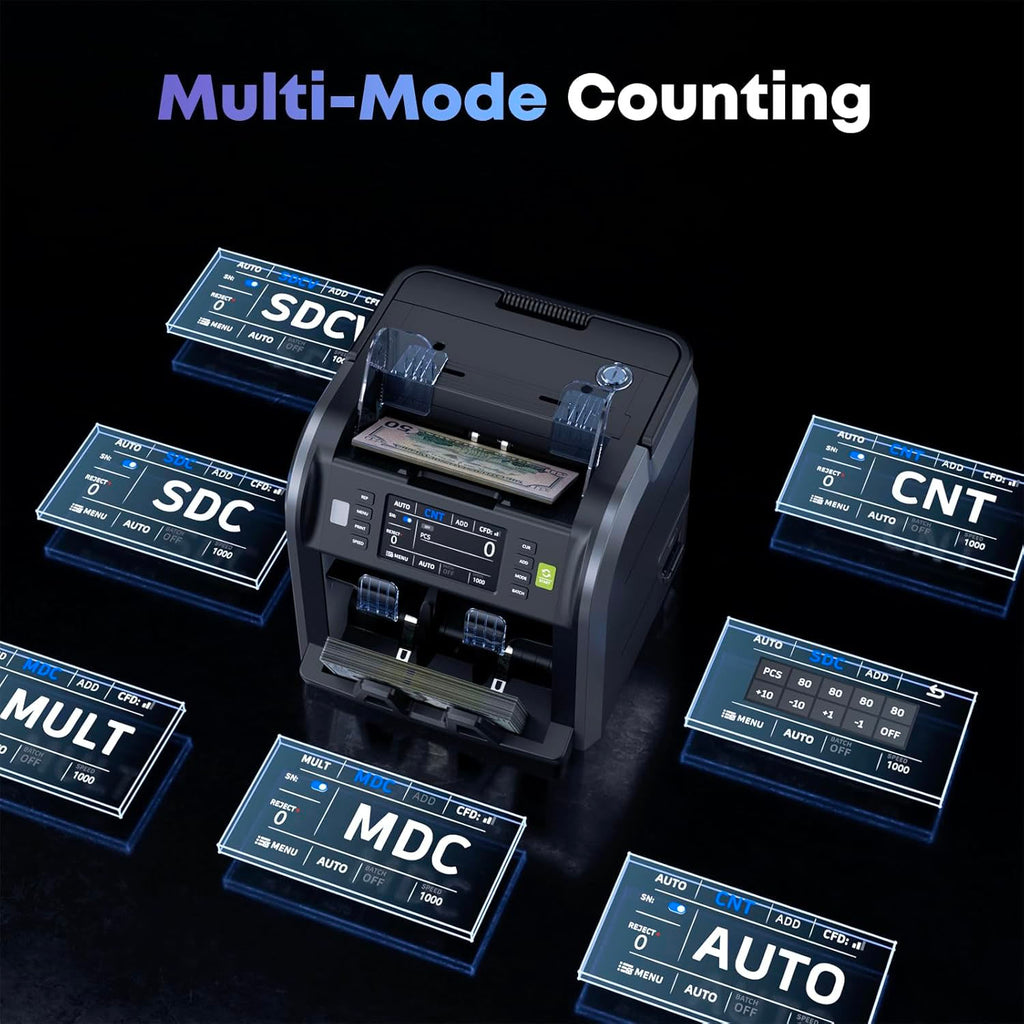

Counting Modes:

• • MDC (Mixed Denomination Counting)
  • SDC (Single Denomination Counting)
  • SDCV (Version Sorting)
  • CNT (Piece Counting – no value detection)
  • Face Mode
  • Orient Mode
  • Automatic / Manual Counting Mode

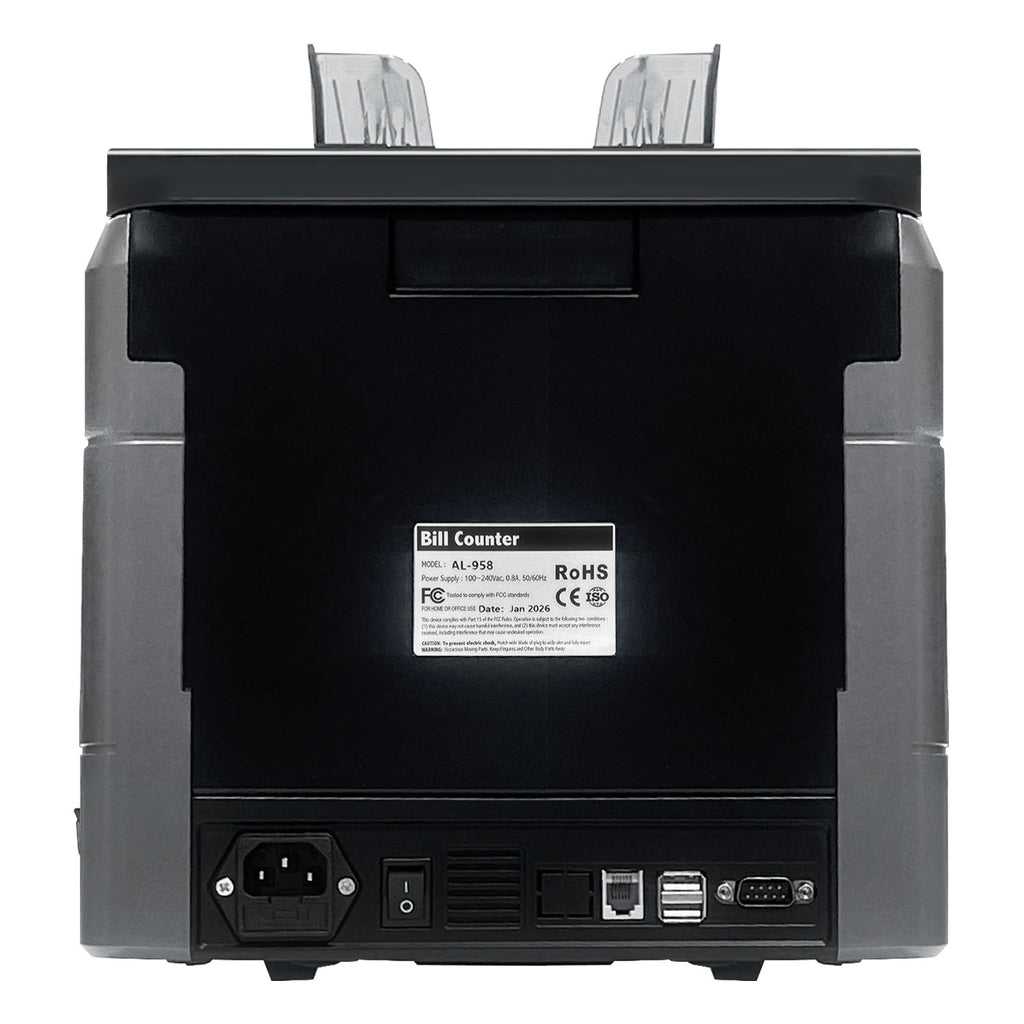

Connectivity:

• • USB – x2
  • RJ-11 Port – x1 (for External Display)
  • RS-232 Serial Port – x1

Power:

• • Power Supply: AC100-240V ±10%, 0.8A, 50/60Hz
  • Power Consumption: ≤ 80W

Environment:

• • Operation Temperature: 15-35°C
  • Operation Humidity: 30-80% R.H.

Features:

• • Interface: Multi-language user interface.

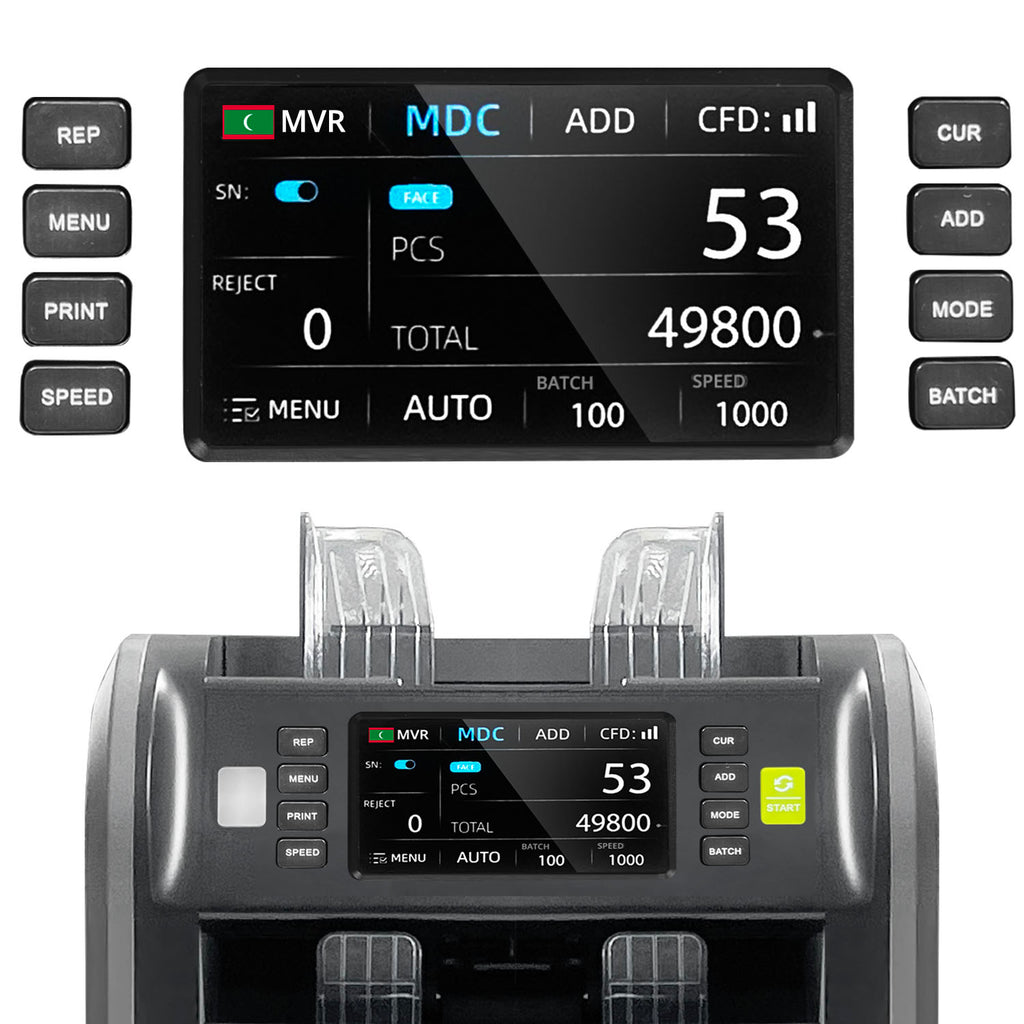

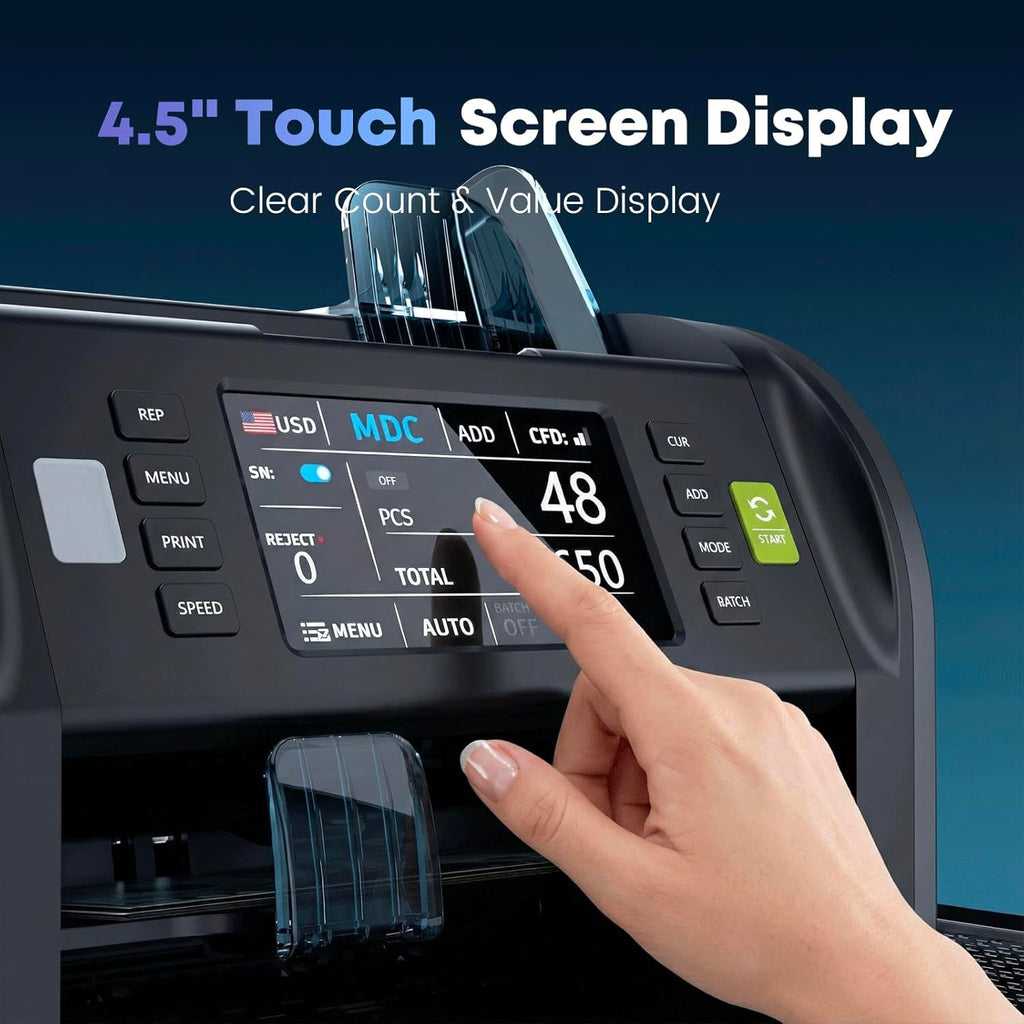

  • Display: 4.5-inch touchscreen interface.
  • Compliance: FCC tested and RoHS certified.
  • Software Upgrade: Easy updates via USB port.
  • Usage: Suitable for home and office environments.

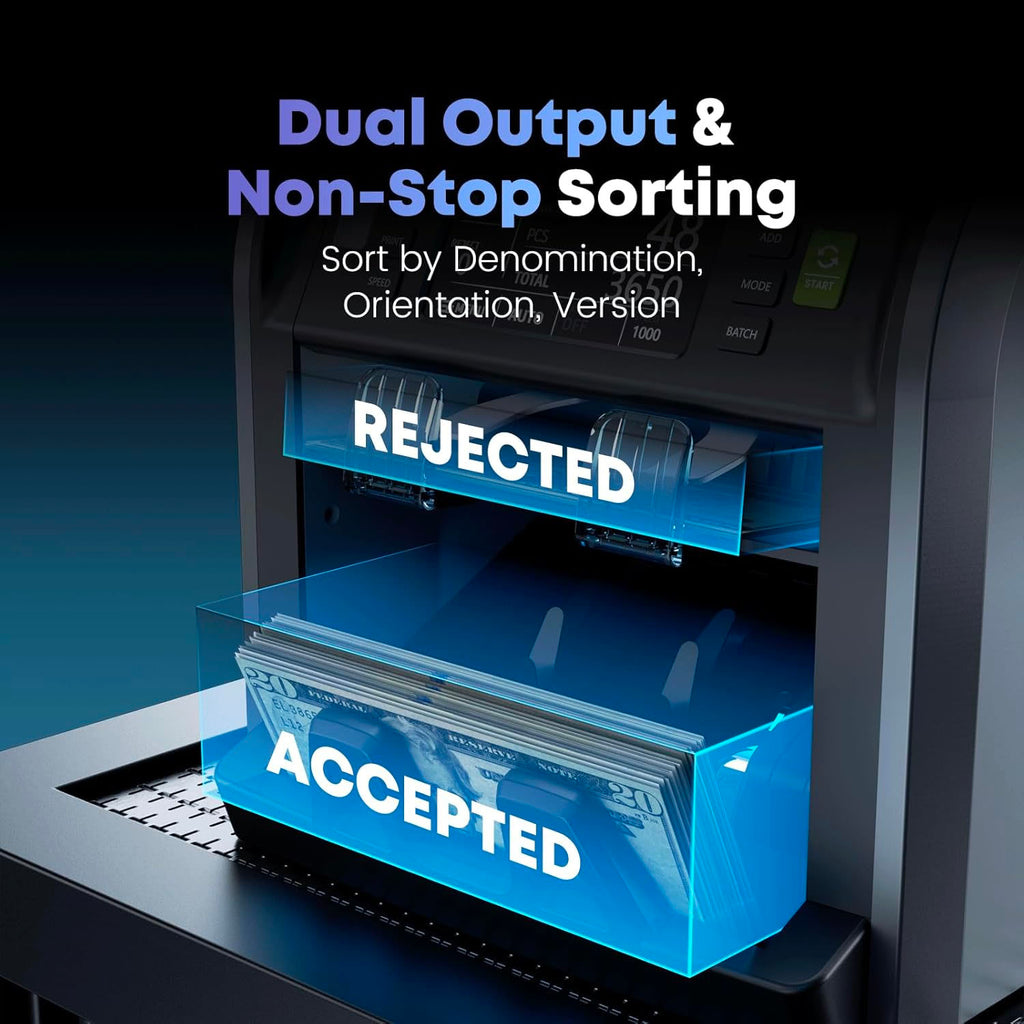

  • Counting System: Non-stop counting with reject pocket.
  • Capacity: High-capacity hopper, stacker, and reject pocket.
  • Functions: Add, batch, reporting, and printing capabilities.

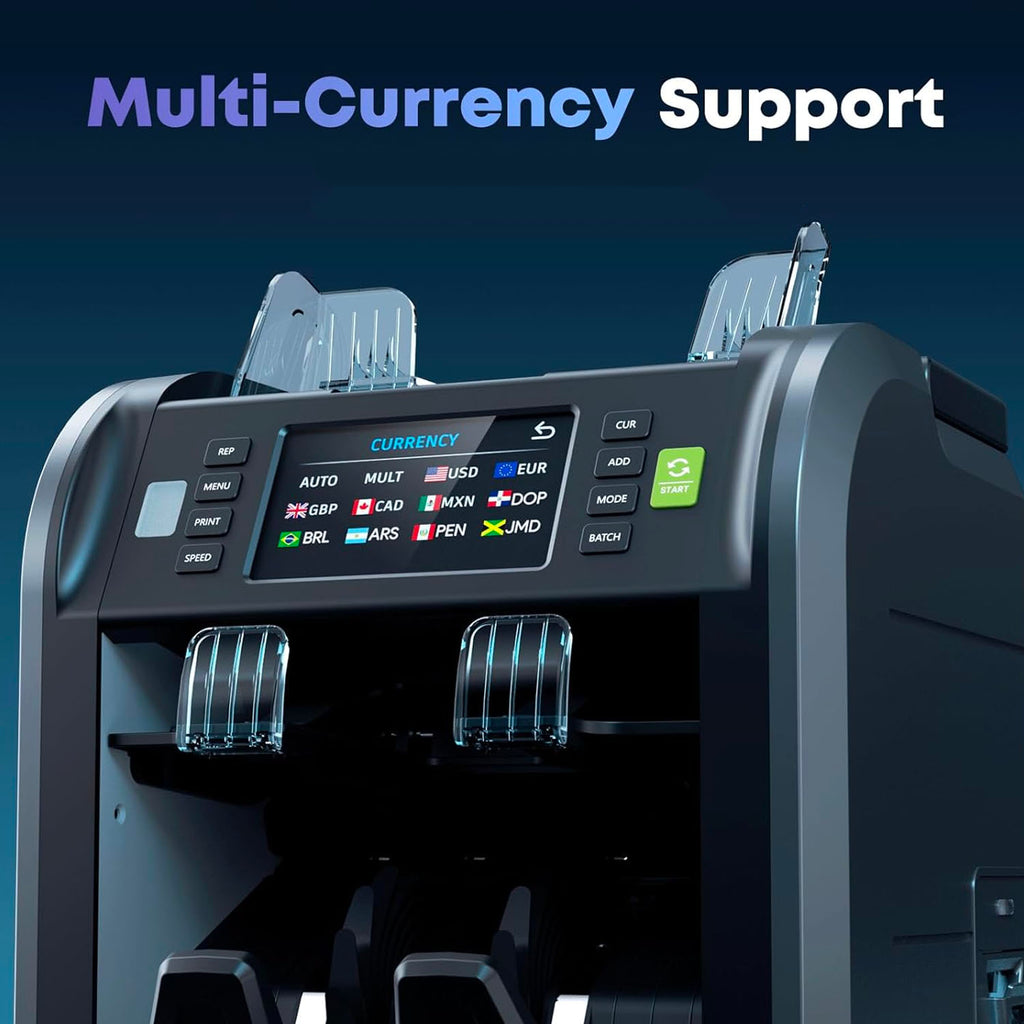

  • Currency Support: Suitable for most currencies worldwide.
  • Serial Number Recognition: Available for supported currencies.
  • Error Detection: Half-note, double-note, and chain-note detection.
  • Sorting Functions: Face, orientation, version, and denomination sorting.
  • Orientation Processing: Banknotes can be processed in all four directions.

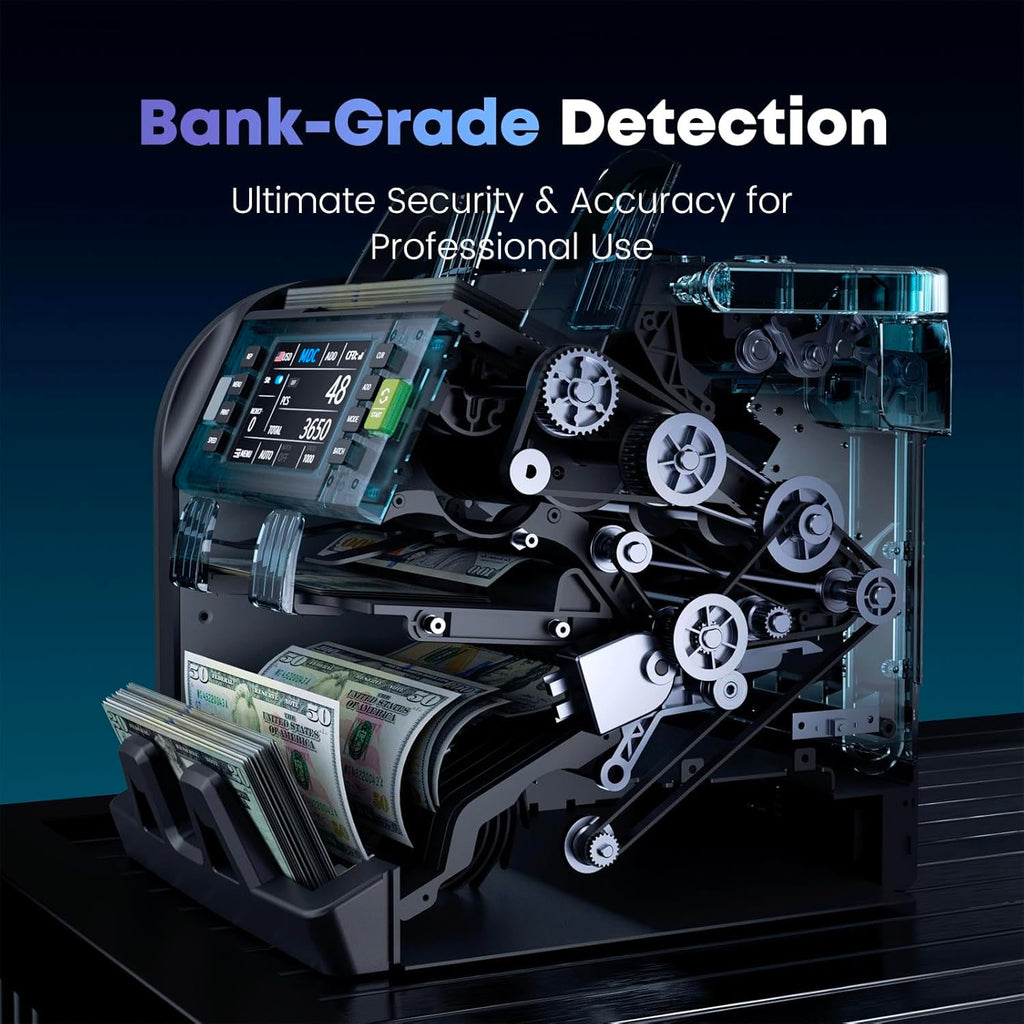

  • Counterfeit Detection: UV, MG, IR, and dual CIS (image sensor) technology.

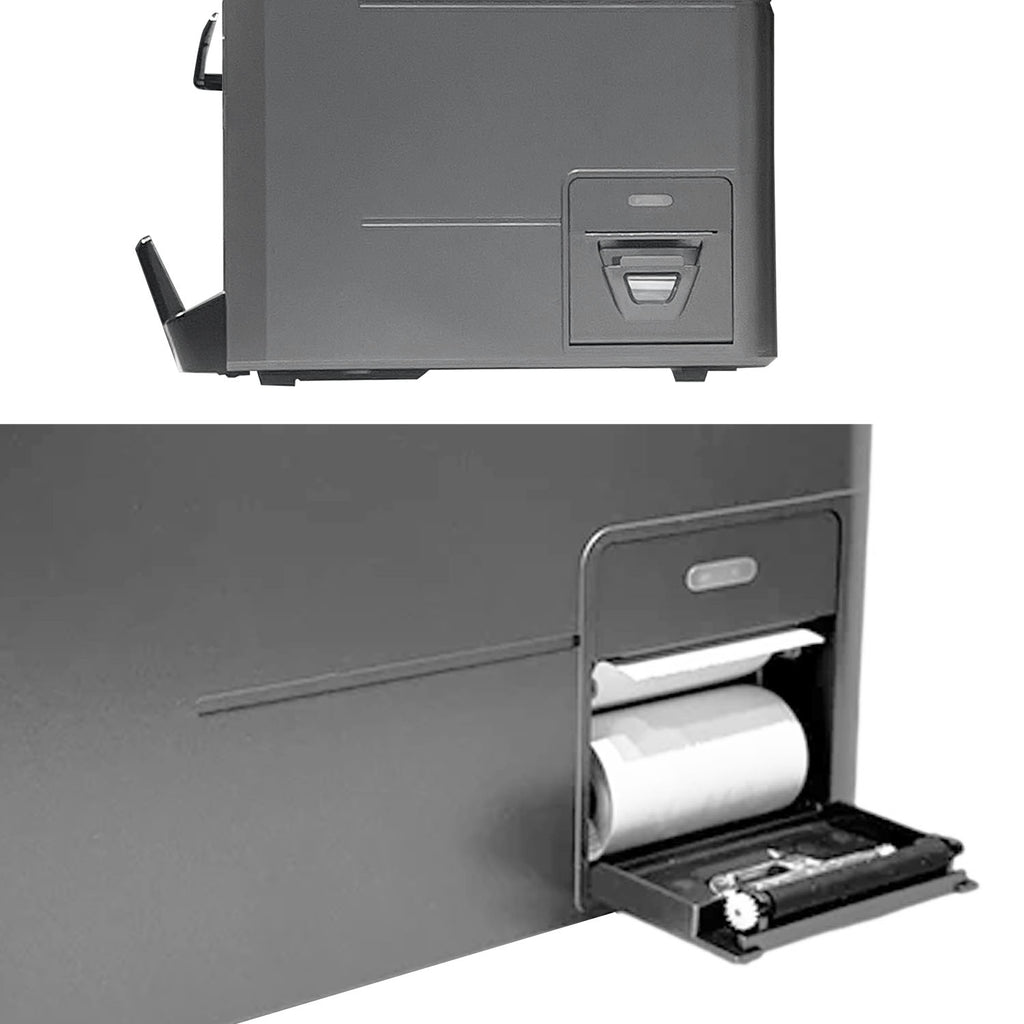

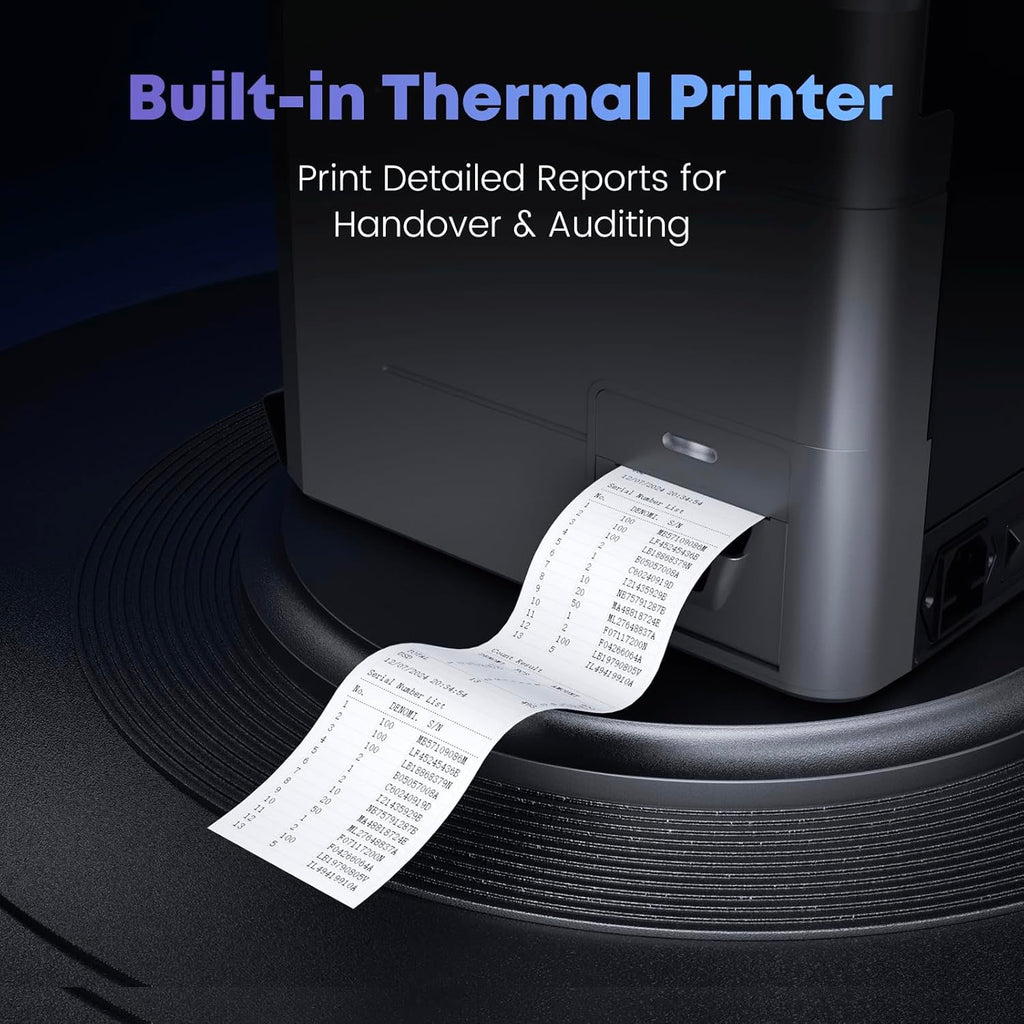

  • Connectivity: USB interface, external display support, and built-in side printer.
  • Currency Handling: Automatic currency identification and multi-currency mixed counting.
  • Maintenance Design: Full open-channel structure for easy cleaning and jam removal.

Dimensions & Weights:

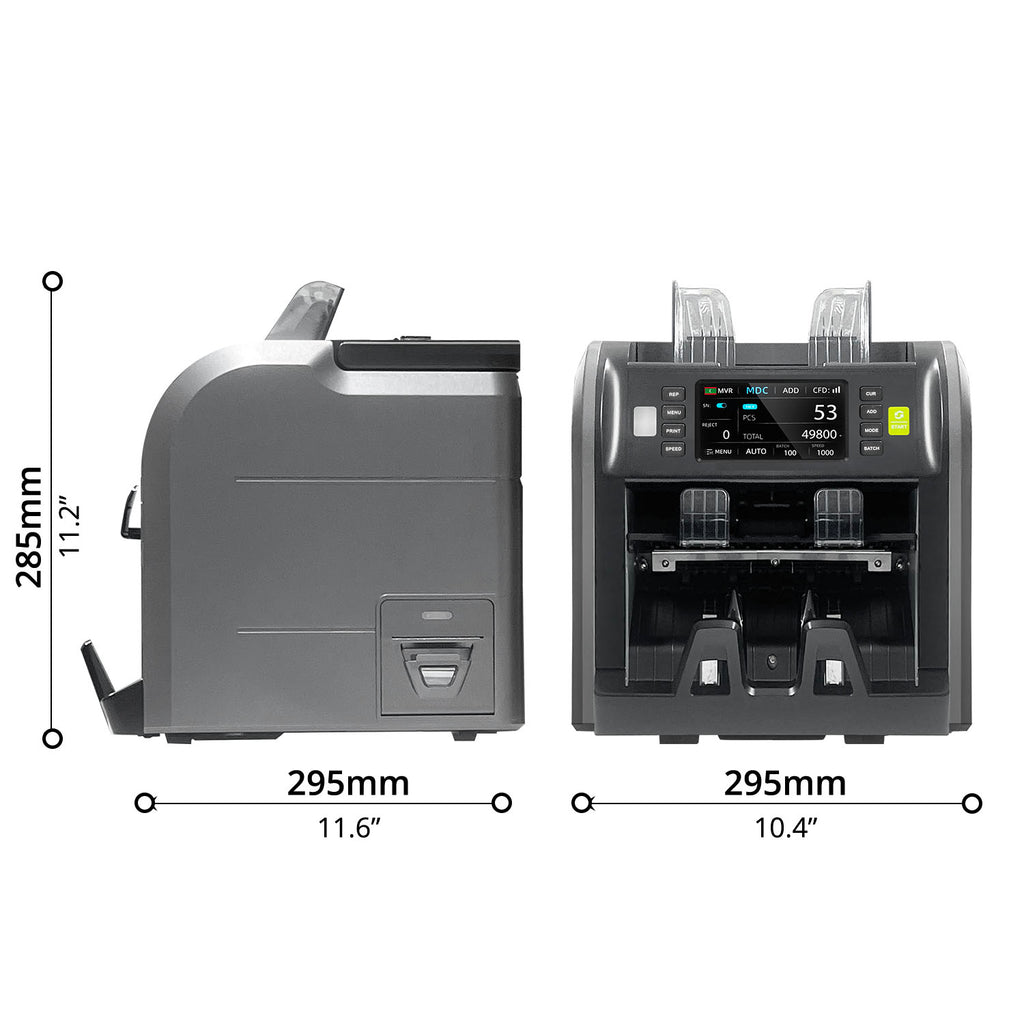

Product Dimension (W x D x H): 265 x 295 x 285mm (10.4” x 11.6” x 11.2”)

Packing Dimension (W x D x H): 390 x 350 x 370mm (15.4” x 13.8” x 14.6”)

Net Weight: 9kg

Gross Weight: 11kg

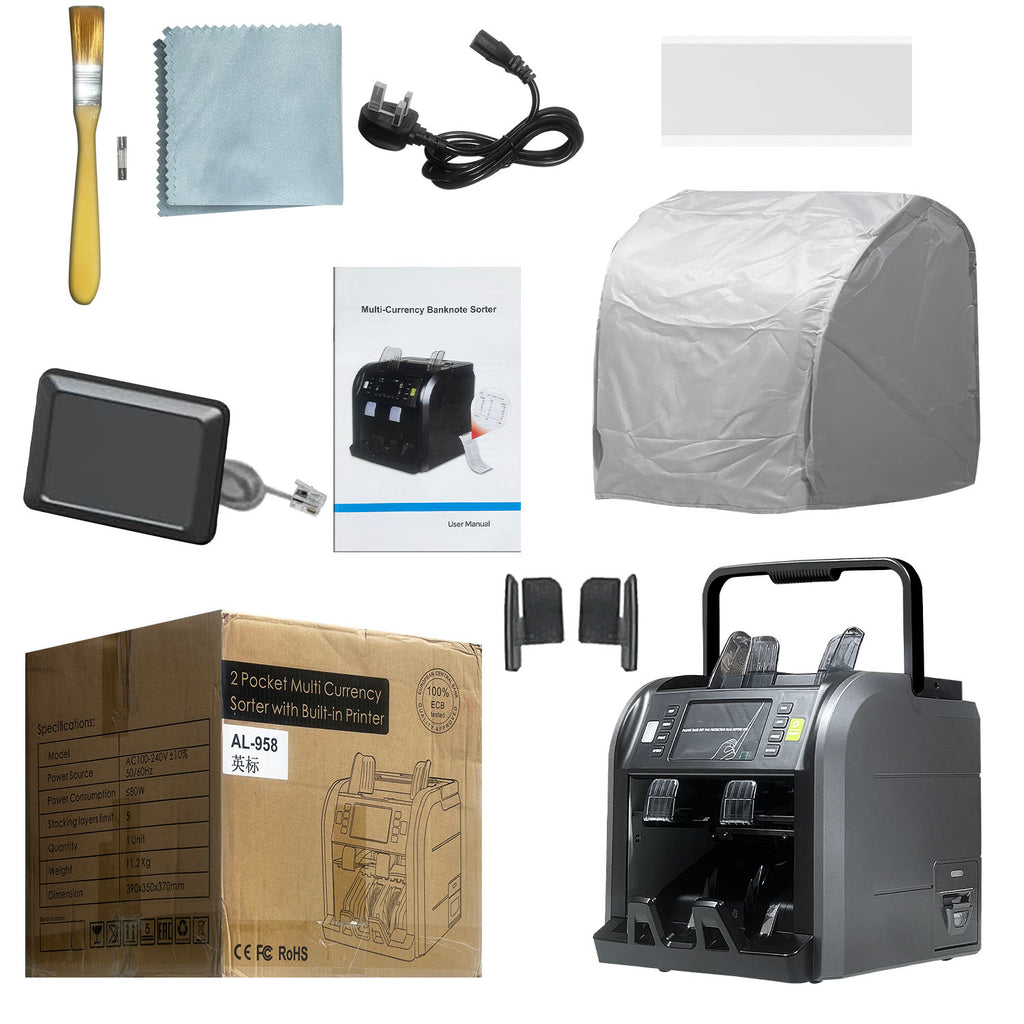

Packing Contents:

Currency Counter – x1

External Display – x1

Banknote Guiders – x2

Power Cable – x1

CIS Calibration Paper – x1

Nylon brush – x1

Soft Cleaning Cloth – x1

Fuse – x1

Cover – x1

User Manual – x1
