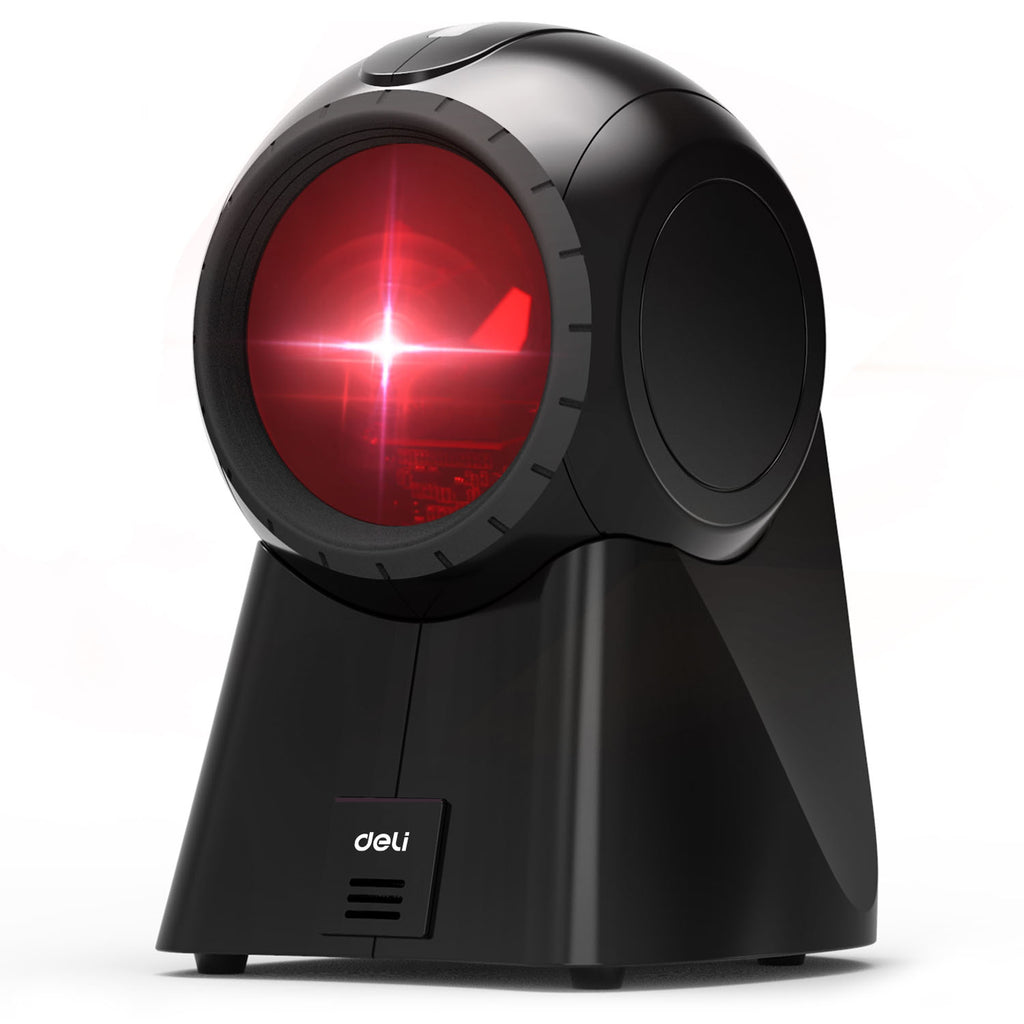

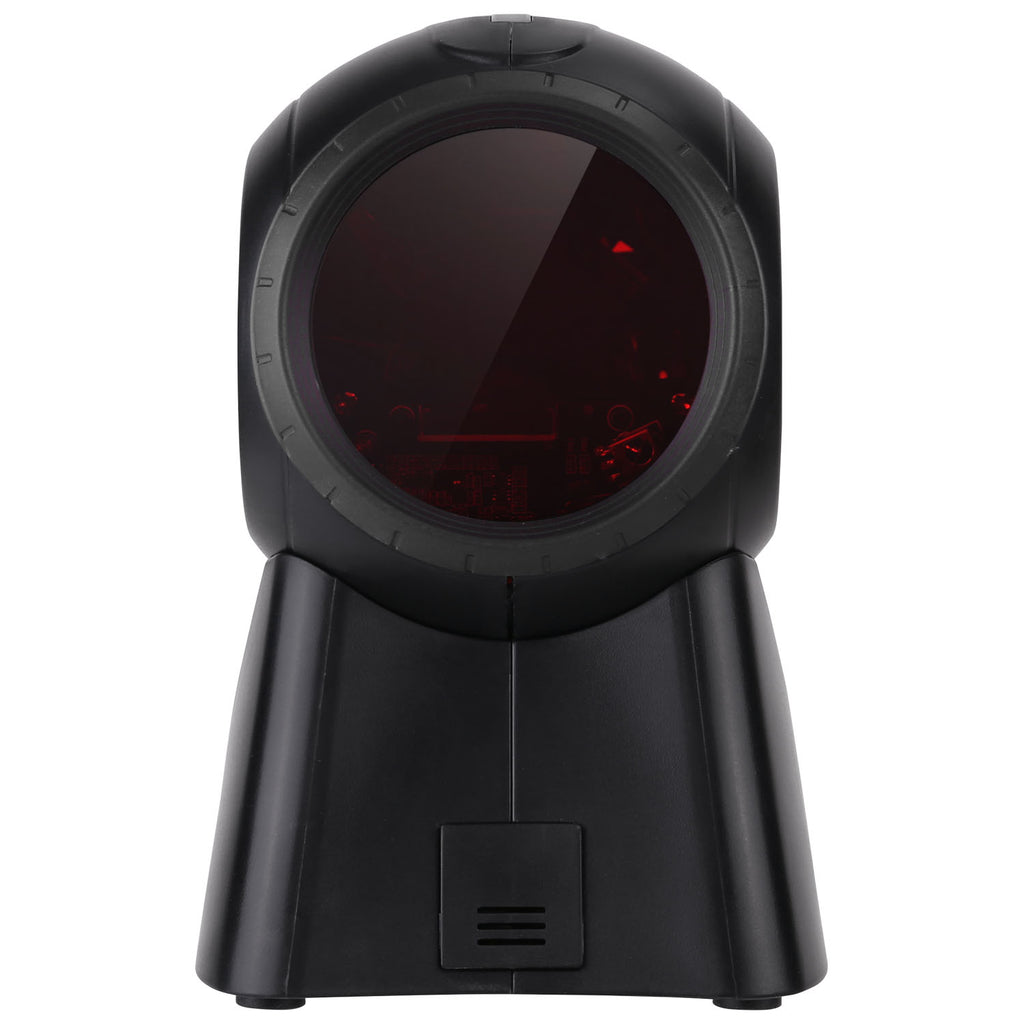

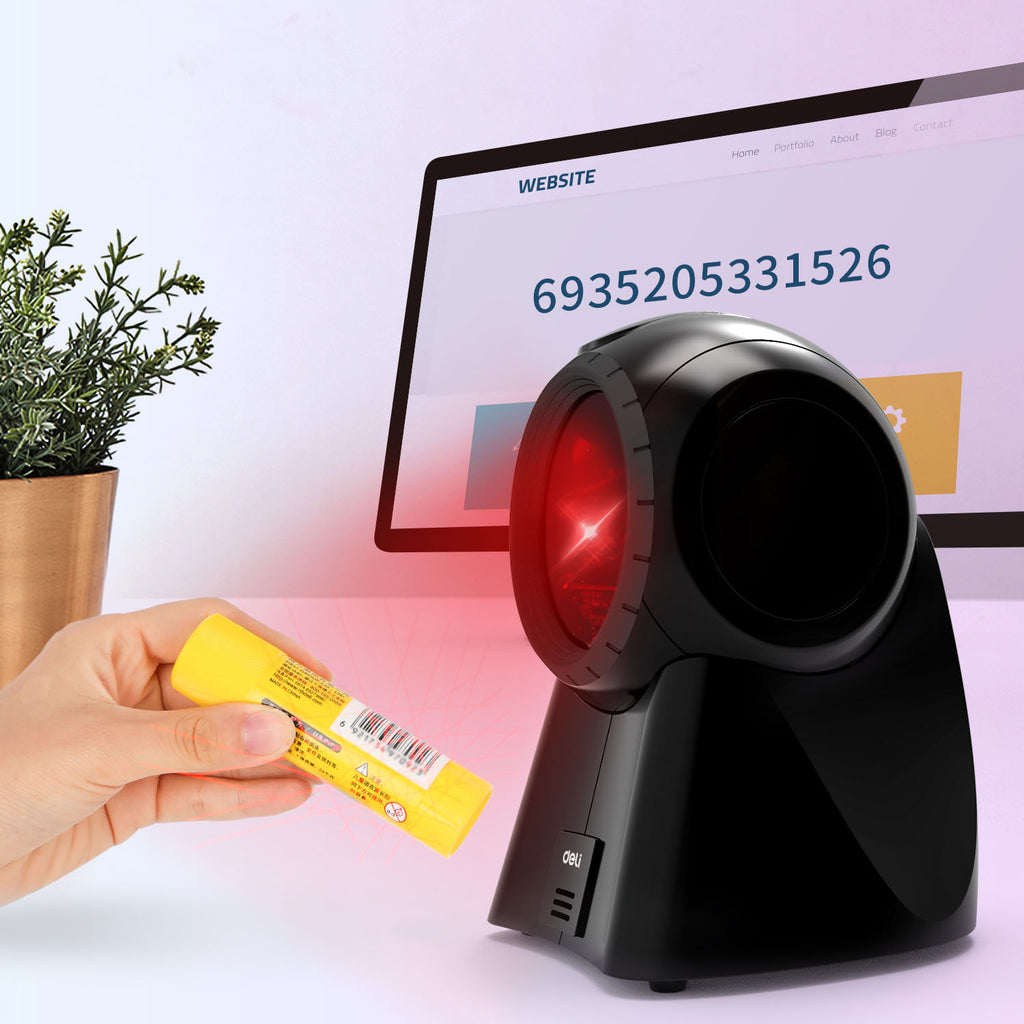

Deli – Barcode Scanner

20-Line Laser Scanning

Brand: Deli

Model: 14884

Color: Black

Operating Voltage: DC5V± 0.5V

Operating Current: 265mA (typical value)

Scan & Barcodes Specs:

• DSP digital signal decoding technology
• Scan Mode: Laser type
• Laser scan distance: up to 40cm
• Light Source: Laser 650nm ± 10nm

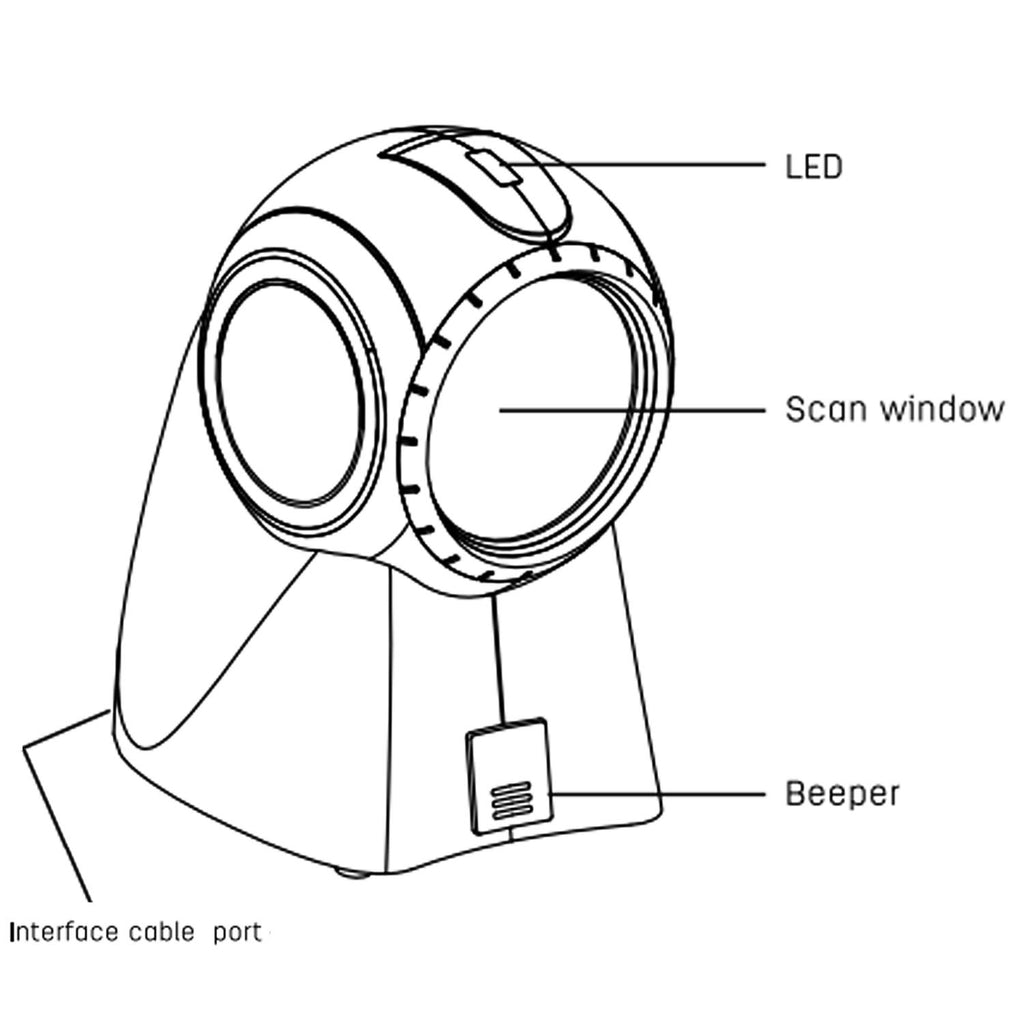

• Indication: Buzzer, LED
• Barcode Types: 1D barcodes
• Barcode density: 1D barcodes ≥5mil
• Applicable Barcode: Code 11, Code 39, Code 93, Code 128, Codebar, EAN-8, EAN-13, Industrial 25, Interleaved 25 and matrix of 2 of 5, MSI, UPC-A, UPC-E, GS1-RSS14, ITF-14, etc..

Temperature:

• Operating Temperature: -0°C ~ +50°C
• Storage Temperature: -20°C ~ +60°C

System compatible:

• Win XP/7/8/10
• Max OS

Interface type: USB

Anti-shock capability: Pass the 1.0m free fall test

Material: ABS + TPU

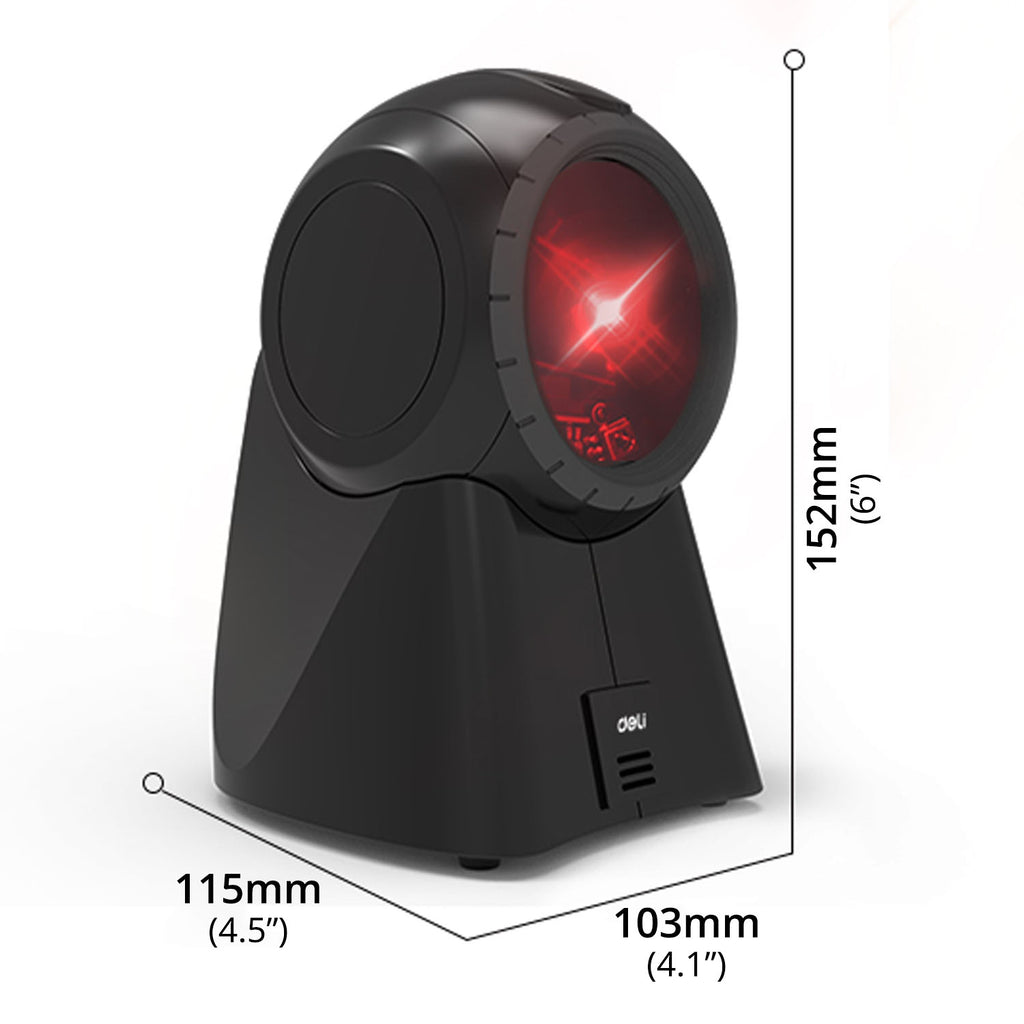

Dimension (W x D x H): 103 x 115 x 152mm (4.1” x 4.5” x 6”)

Features:

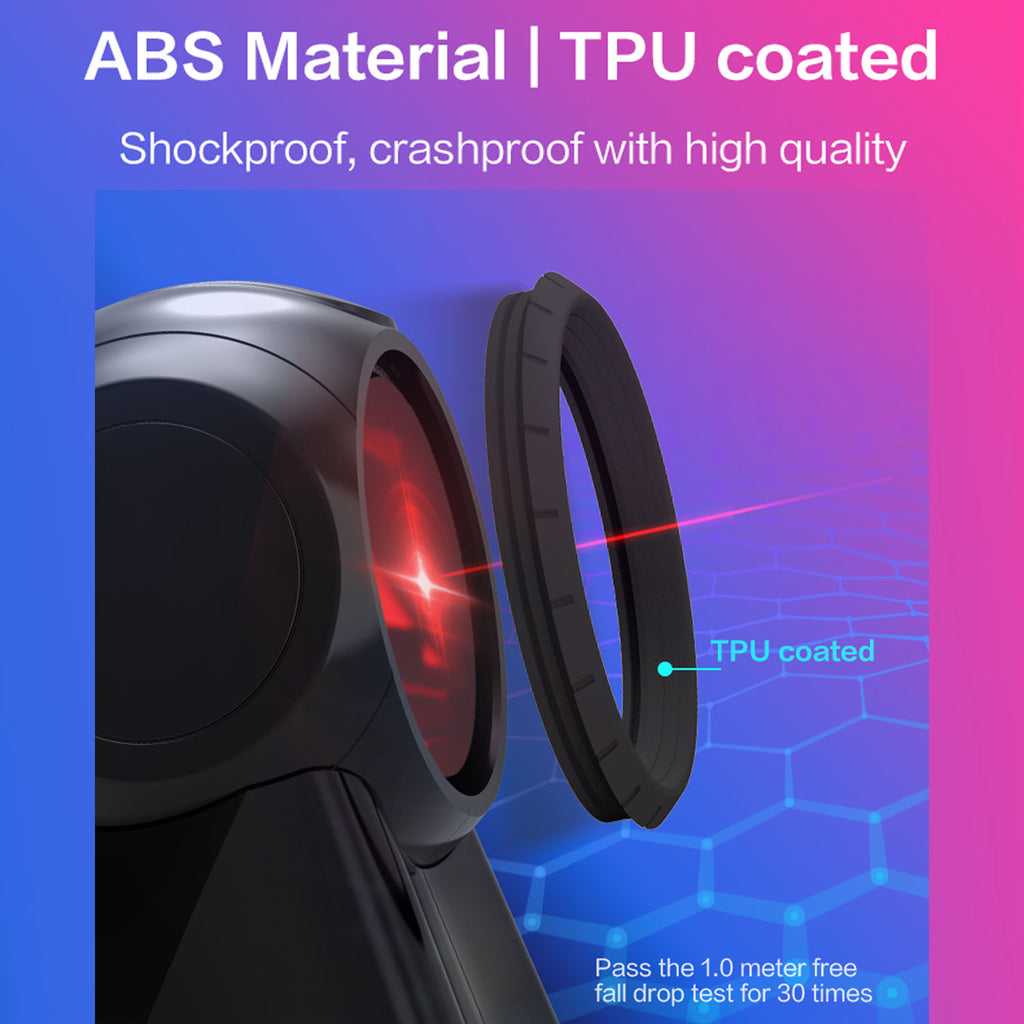

• ABS material, TPU coated: Shockproof, crashproof with high quality.
• Multi-angle auto recognition: One-lick scanning to shrink working hours.
• Compatible with multiple terminal systems: Windows 7/8/10 and Mac OS.
• Exclusively used for retails goods = supermarket, shopping malls, and other retail stores.
• Fast and continuous scanning: Easily reads the large volume of commodity barcodes, saving your work time.
• Professional micron level scanning: Intelligent recognition of damaged cods, fuzzy codes and color codes.
• 20-line omni-directional scanning: Omni directional precise scanning, large area scanning for 127-micron barcodes.
• DSP digital signal decoding technology: Adopted DSP digital signal decoding technology, fast decoding, quick response.

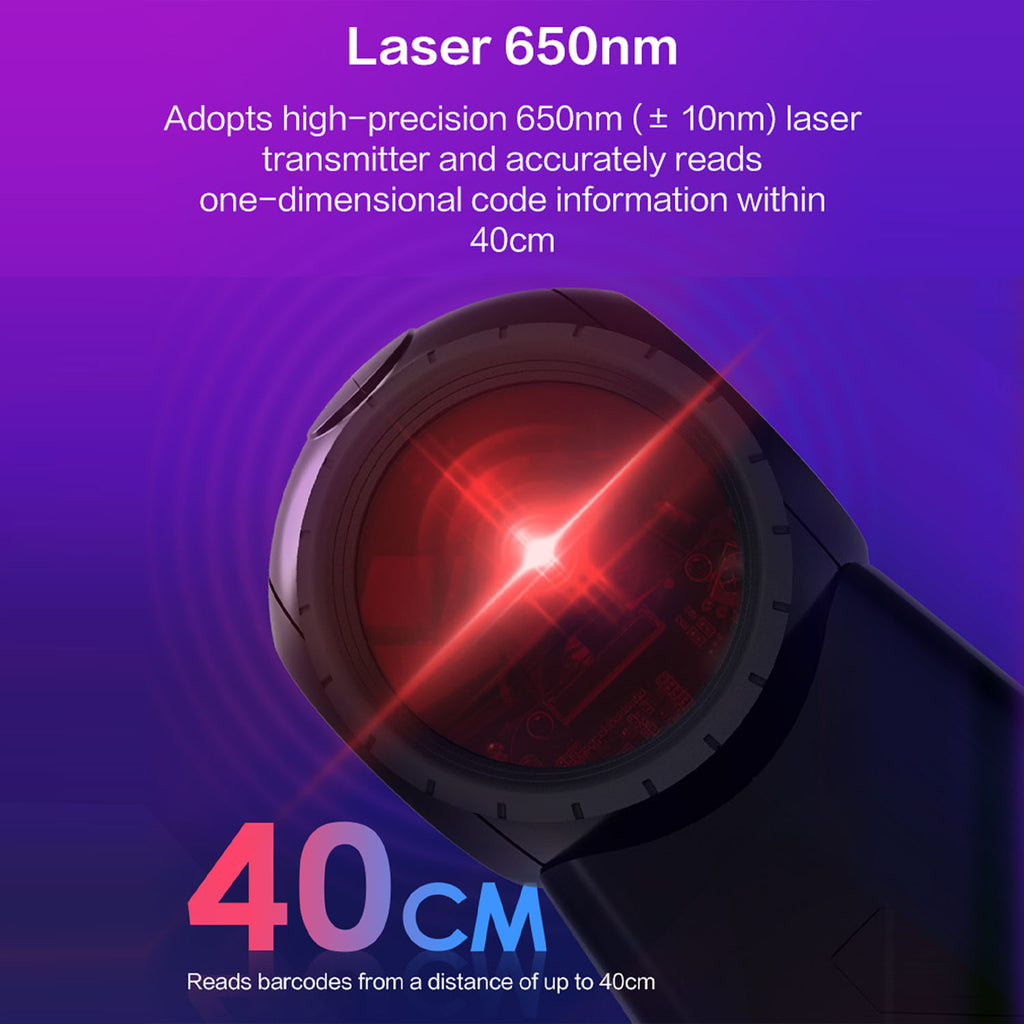

• Laser 650nm: Adopts high-precision 650nm (±10nm) laser transmitter and accurately reads one-dimensional code information within 40cm.
• Adjustable scan head flexible rotation for difference applications: the scan can be rotated up and down and can fine adjusted according to the scanning height.

Packing Contents:

Barcode Scanner – x1

USB Cable (1.8m) – x1

User Manual – x1
