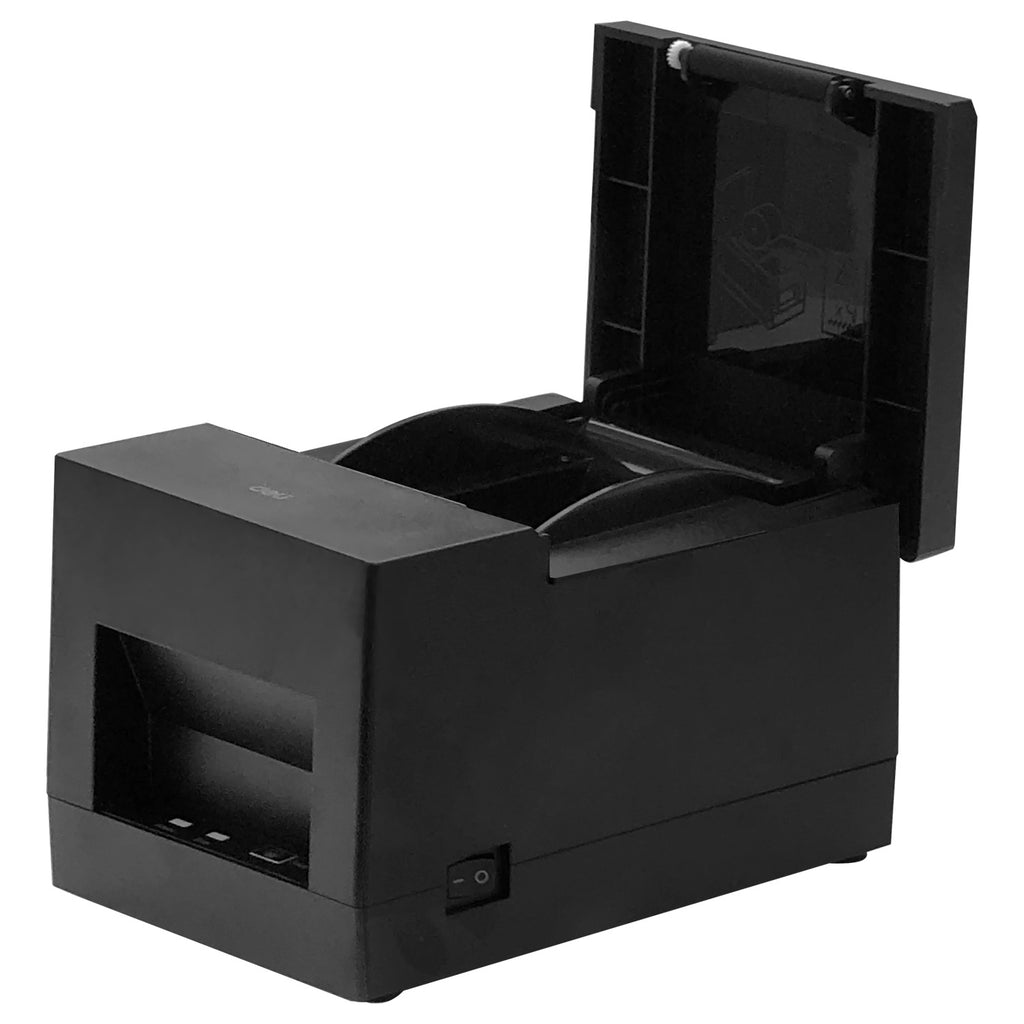

Deli – Label Printer

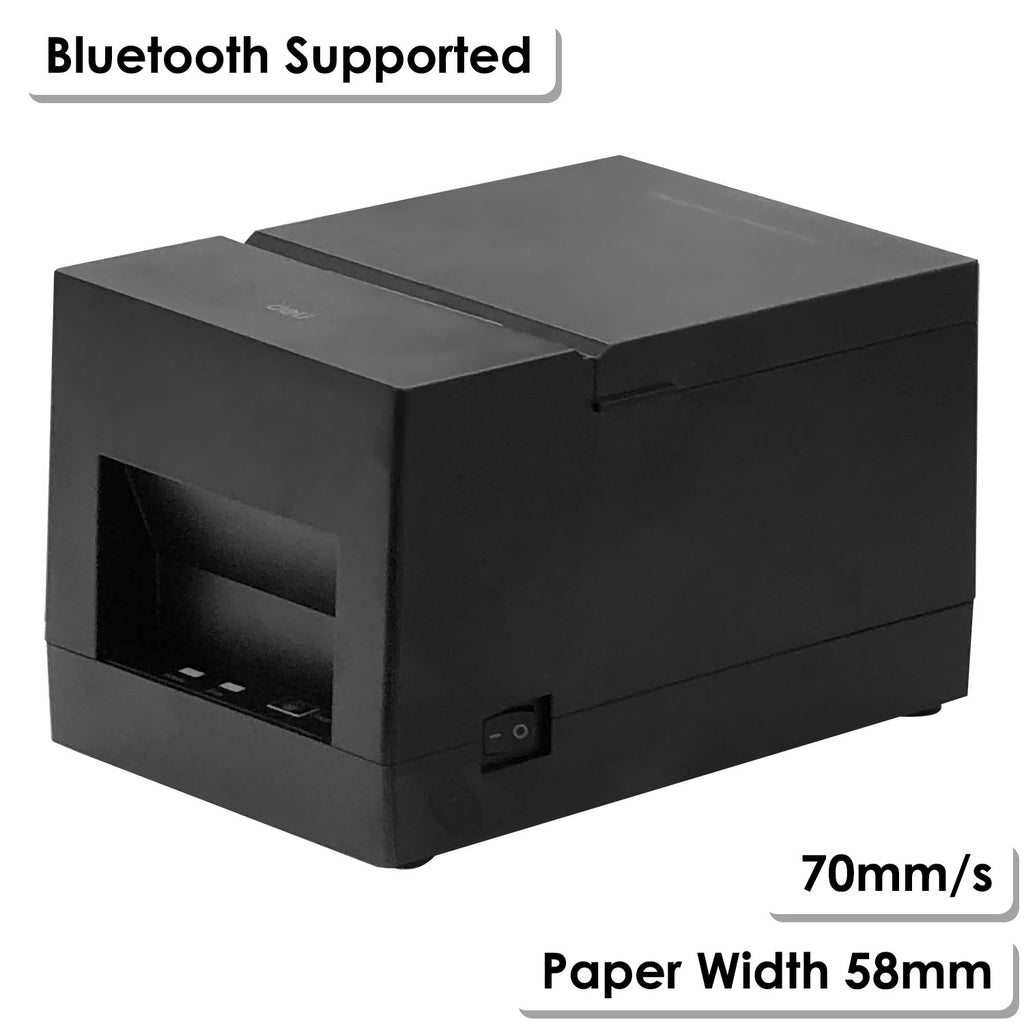

Thermal Receipt Printer

Brand: Deli

Model: 581PW

Color: Black

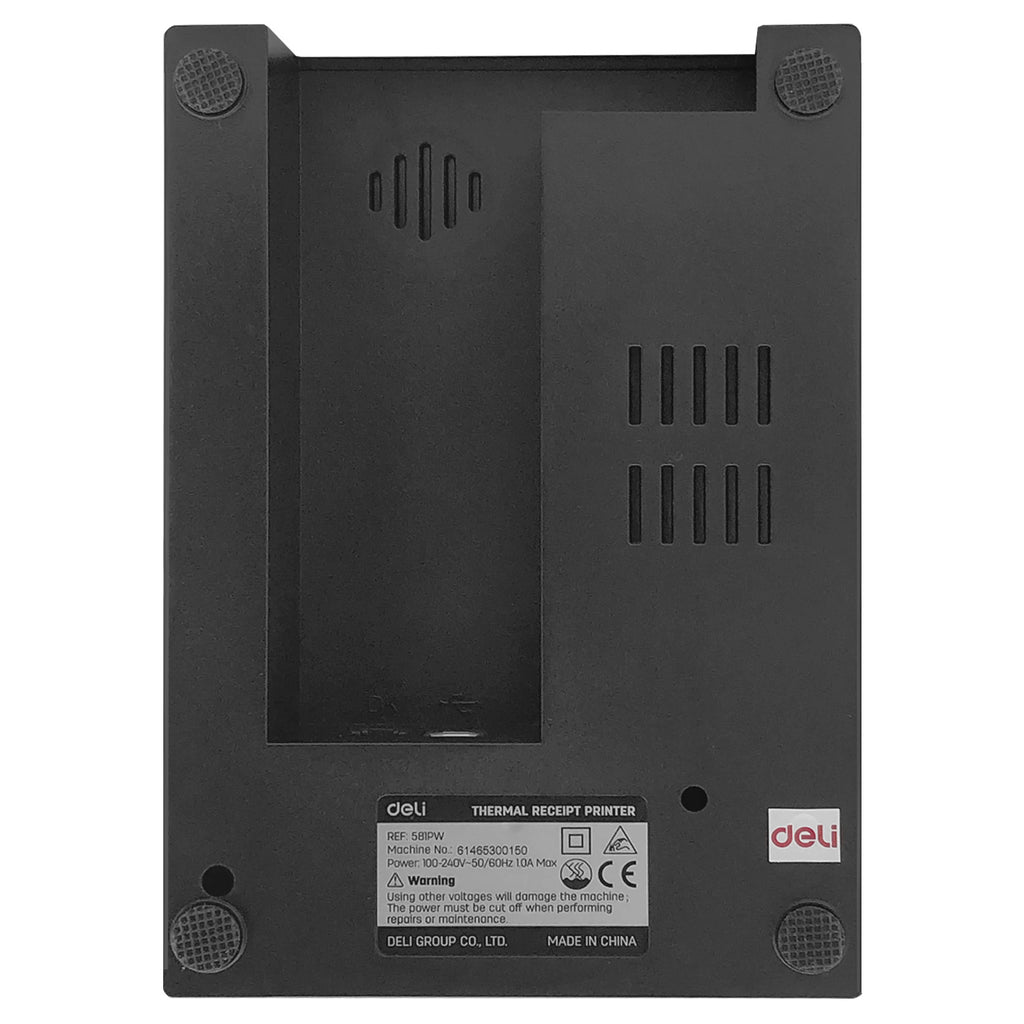

Power Supply: 100-240V~, 50/60Hz, 1.0A Max

Printing Method: Thermal

Print Resolution: up to 203dpi

Print Speed: max. 70mm/s

Paper Width: max. 58mm

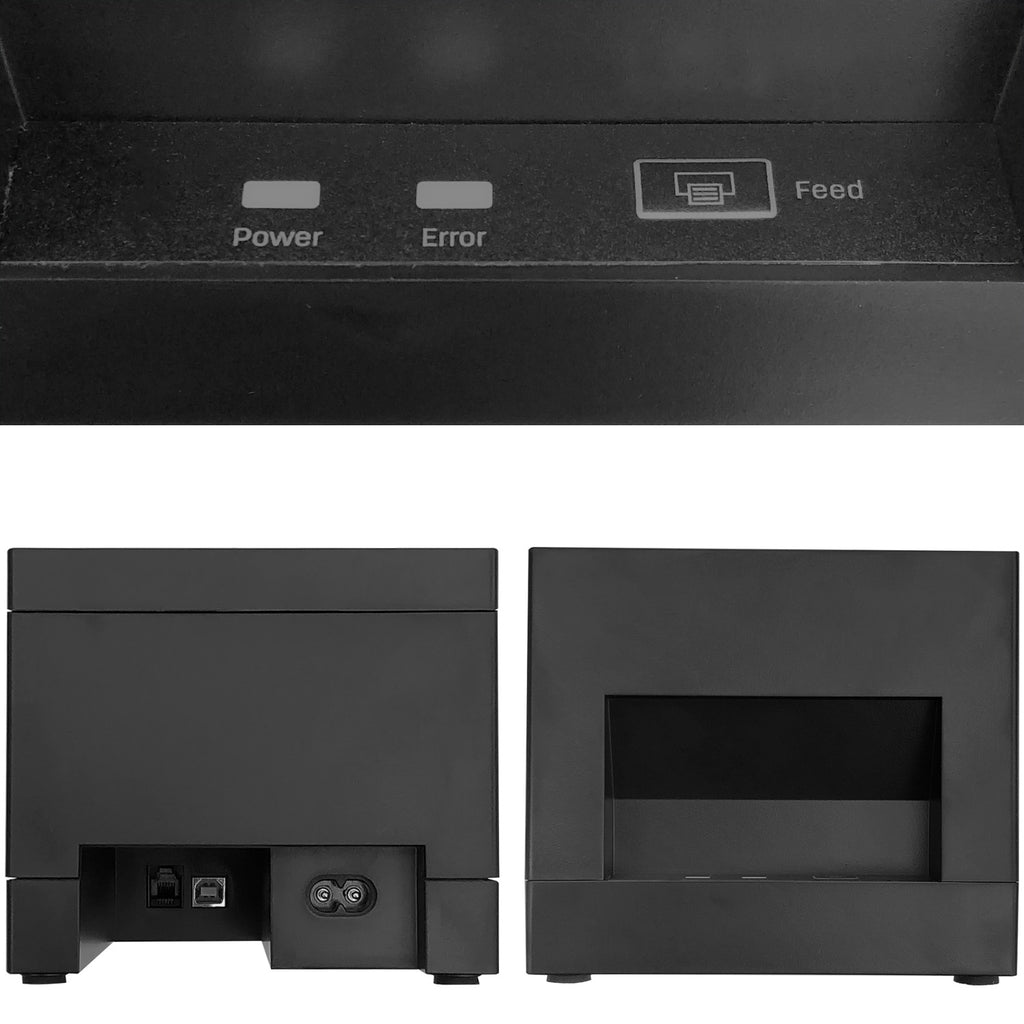

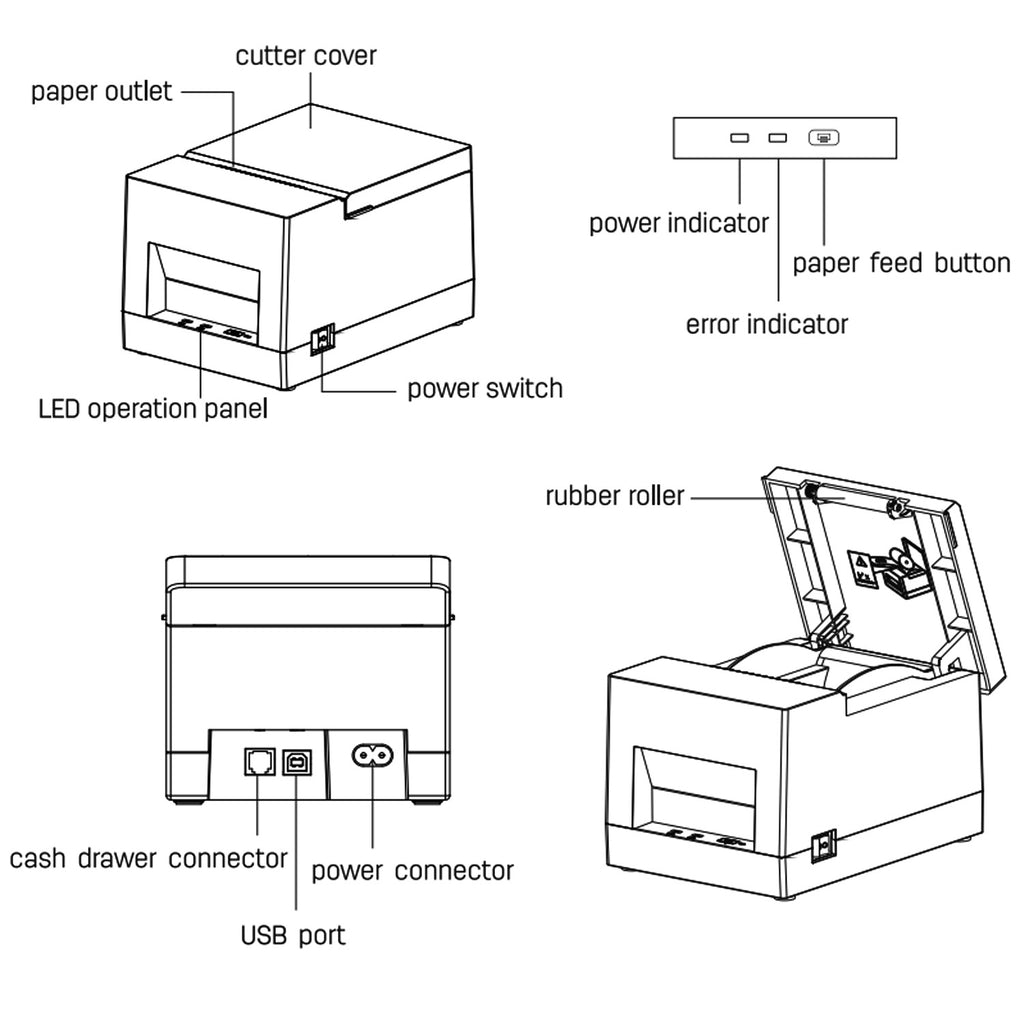

Interfaces:

• Cash Drawer Connector (x1)
• USB Port (x1)
• Power Connector (x1)

Bluetooth: Bluetooth Supported

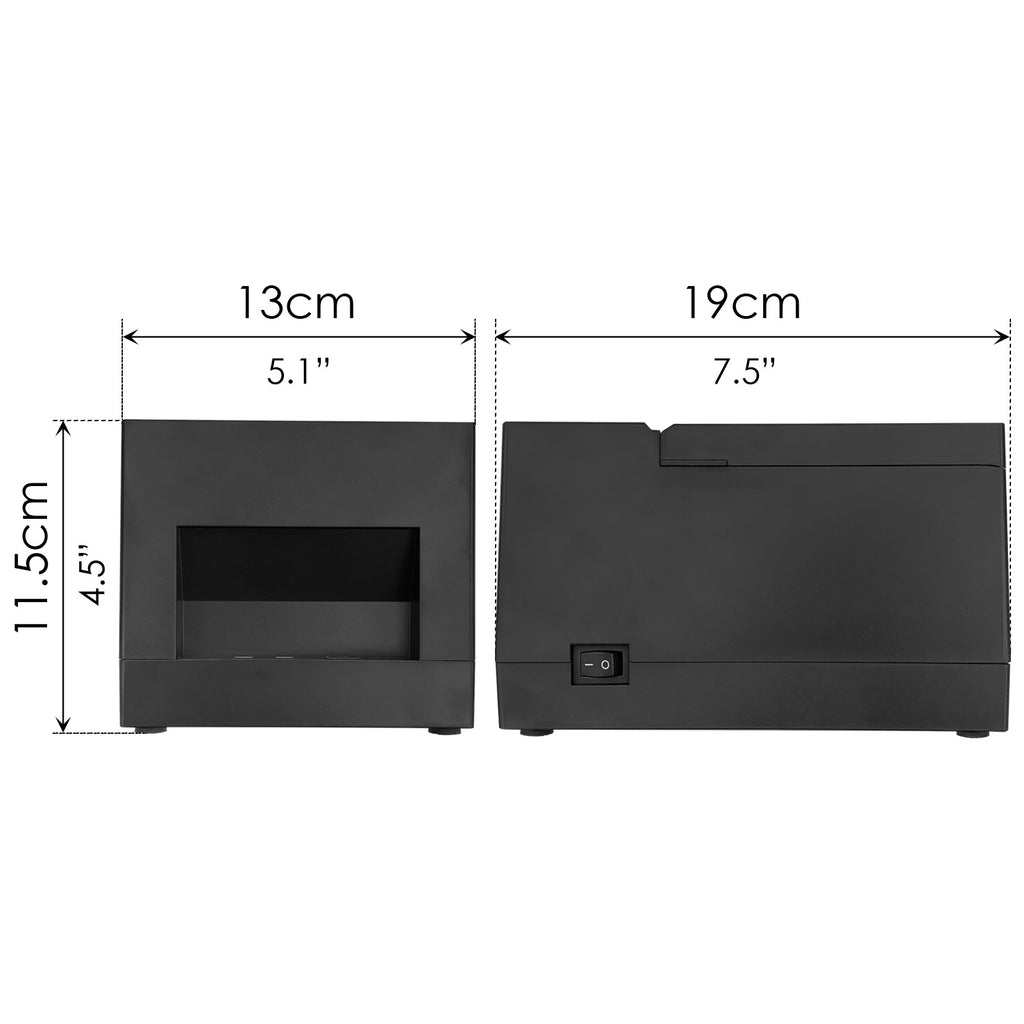

Product Dimension (W x D x H): 13 x 19 x 11.5cm (5.1” x 7.5” x 4.5”)

Gross Weight: 1.05kg

Features:

• Bluetooth supported.
• Cash drawer connector.
• Easy to use and maintain.

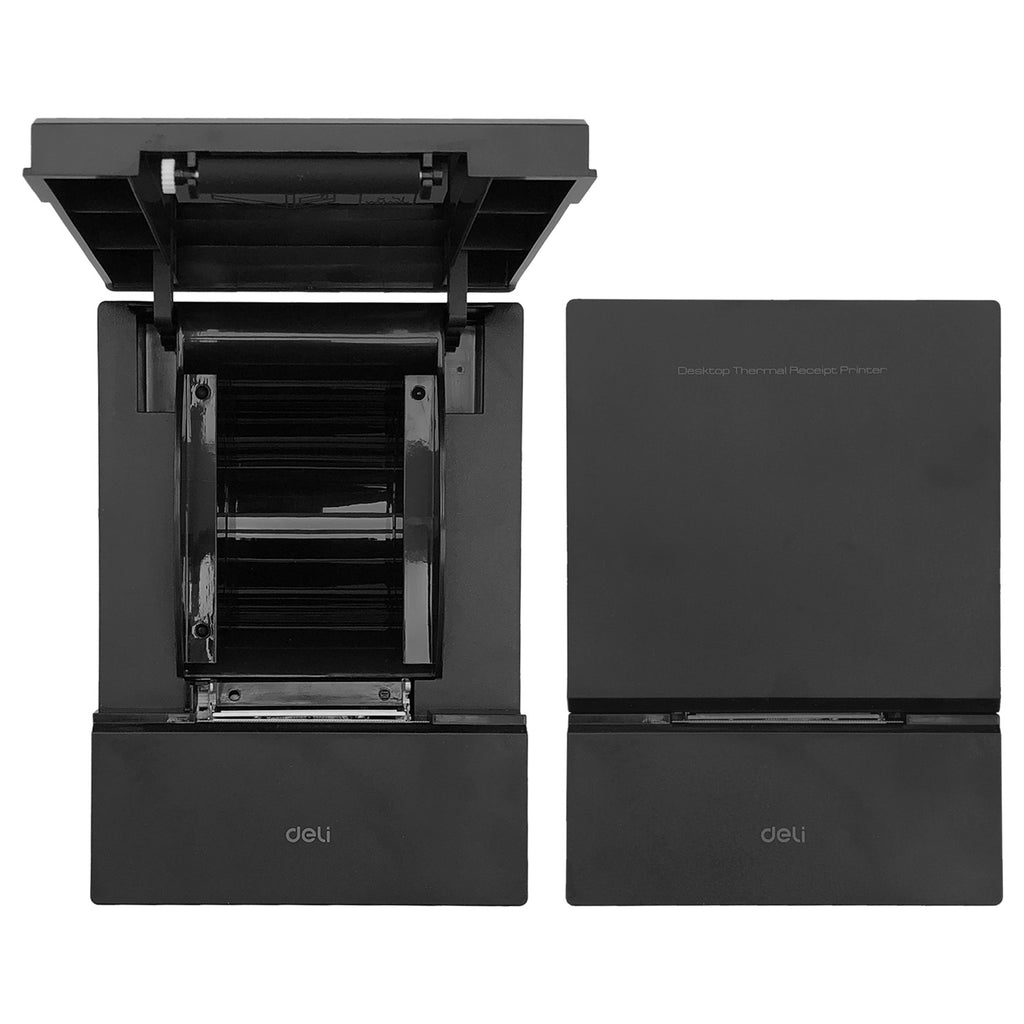

• Convenient paper loading.
• It can be connected to other devices via USB and cash drawer connector and support drivers like WINDOWS XP/7/8/10/vista and more.
• Automatic positioning: with RISC Intelligent control chip, no need to deliberately adjust the paper placement, the RISC chip can automatically position the label paper.
• The printer features high print quality, high speed and great stability and it is widely used to work with POS systems in catering industry and other occasions that require on-site real-time printing of receipts.

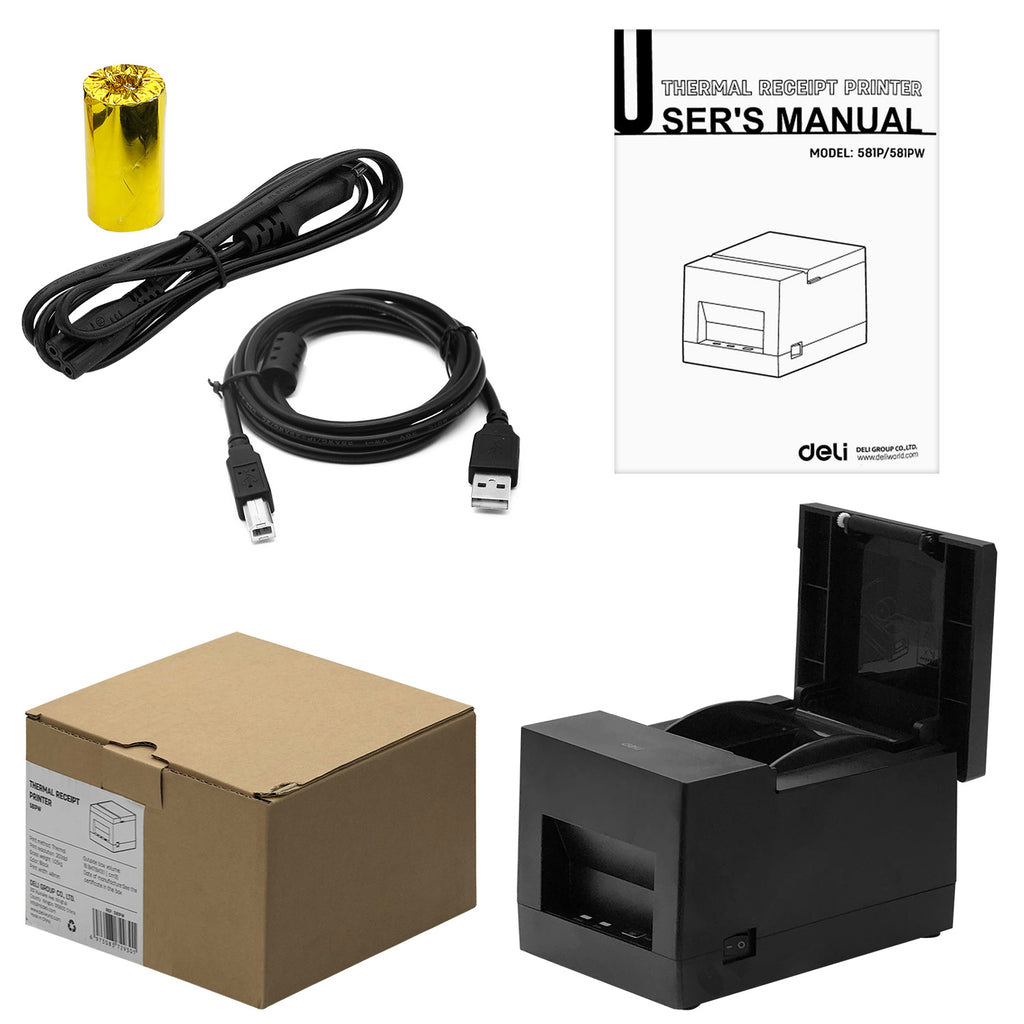

Package Contents:

• Receipt Printer – x1
• Power Cord - x1
• USB Printer Cable - x1
• Paper Roll - x1
• User Manual – x1

Use of Bluetooth

It needs to be paired with the main device before using Bluetooth to print.

The pairing process is initiated by the main device.

The usual pairing method as follows:

1. Turn on the printer;
2. Search for external Bluetooth devices through the main device;
3. If there are multiple external Bluetooth devices, select the printer;
4. Complete matching;

When pairing, the printer must be on.

Tips: When pairing, please pair one-to-one, otherwise it may not be able to determine which printer is paired successfully. After pairing successfully, other host computers cannot be paired with the printer. If you need to pair with other upper computers, you need to disconnect it first.

Print Using Bluetooth Interface:

For PCs with virtual Bluetooth serial ports (such as mobile phones using SMARTPHONE, POCKET PC, PALM, notebook computers, etc.), after pairing successful, you can send print data to the printer through the virtual Bluetooth serial port for printing

Click here for User Manual
