Deli Tools – Laser Level

Self-leveling Line Laser (5 Lines)

Brand: Deli Tools

Model: DL332305

Color: Black/Yellow

Tool Category: Semi-professional

Battery Capacity: 4000mAh

Operating Time: >4hrs

Laser Line Specs:

• Laser Color: Green
• Laser Class: 3R
• No. of Laser Lines: 5 Lines
• Laser Wavelength: 515nm
• Laser Line Width: ≤2.5mm/7m
• Vertical & Horizontal Accuracy: ±1.5mm / 7m
• Working Range: ≤10m

Tool Box Dimension (W x D x H): 270 x 130 x 235mm (10.6” x 5.1” x 9.25”)

Features:

• • Micro Adjustment Knob: Enables precise alignment and quick targeting without disturbing the unit's position.
  • Flexible Mounting: Compatible with standard tripods and laser mounting poles for versatile setup options.

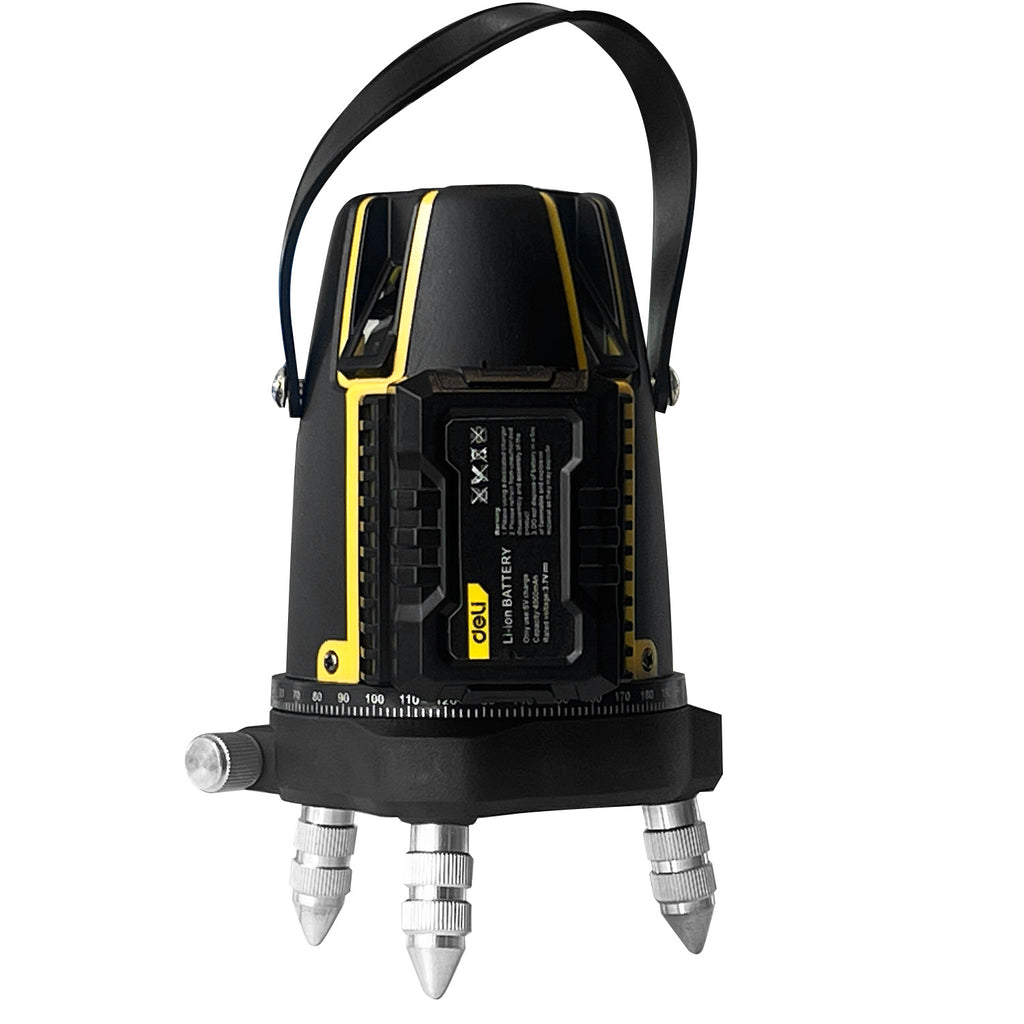

  • Long Battery Life: Dual 4000mAh rechargeable Li-ion batteries provide over 4 hours of continuous use.
  • Wide Applications: Ideal for construction, interior decorating, tiling, electrical, HVAC, and carpentry projects.
  • Durable & Portable: Compact design with included hard storage case for easy transport and protection on job sites.
  • Touch-Sensitive Control Panel: Intuitive, modern interface allows simple operation with responsive touch keys.

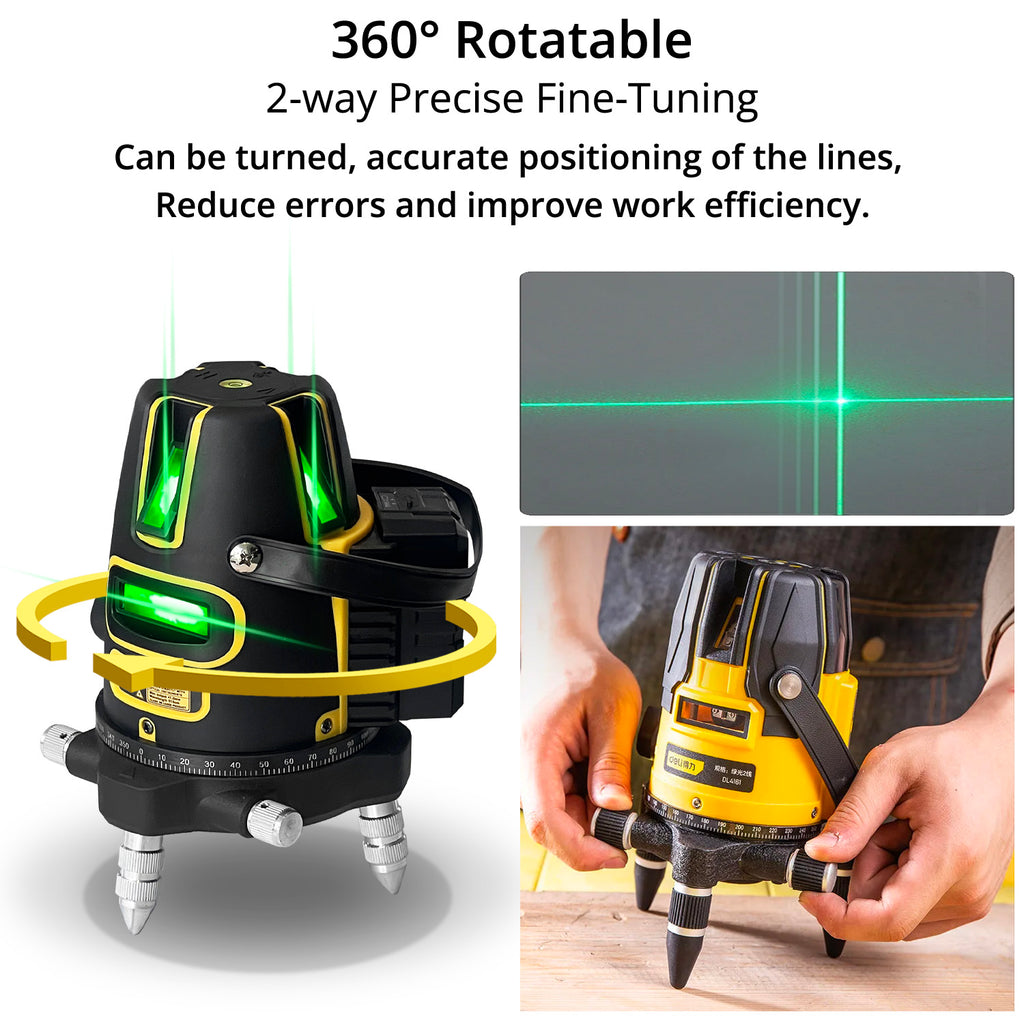

  • 360° Rotating Base: Smooth chassis rotation allows laser lines to be directed in any direction without repositioning the device.
  • Tilt Alarm Function: Audible alarm sounds if the device is tilted beyond the self-leveling range, helping prevent measurement errors.
  • Multi-Line Output: Projects 5 laser lines: 1 horizontal, 4 vertical (intersecting at 90°) with a zenith point at the top for plumb reference.
  • High-Visibility Green Laser: Uses a 515nm semiconductor laser for sharp, bright lines that are easy to see indoors—even in well-lit spaces.
  • Auto Lock Mechanism: Automatically locks the internal pendulum when powered off, protecting the leveling mechanism during transport.

Packing Contents:

• Laser Level – x1
• Li-ion Battery – x2
• Type-C Cable – x1
• Storage Box – x1
• User Manual (Eng Ver.) – x1

Click here for User Manual
