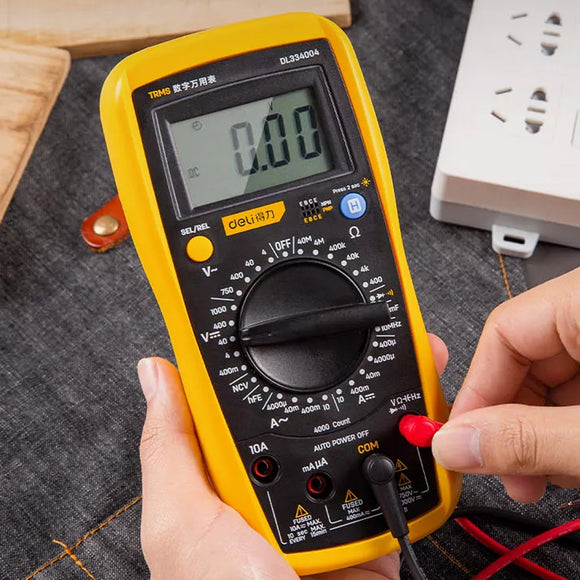

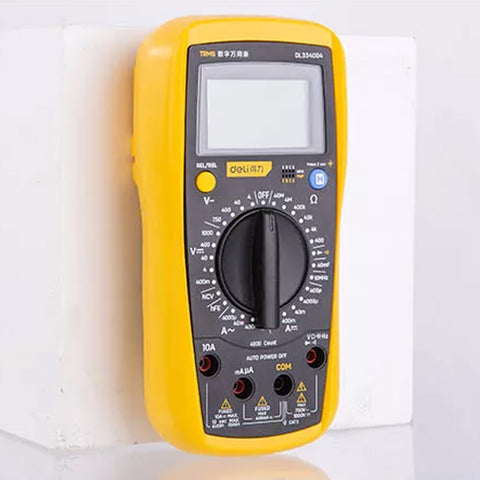

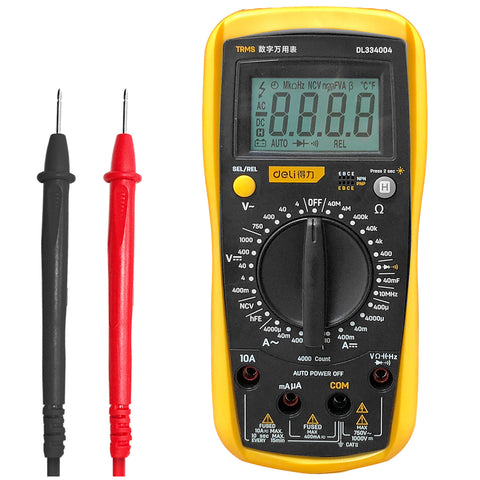

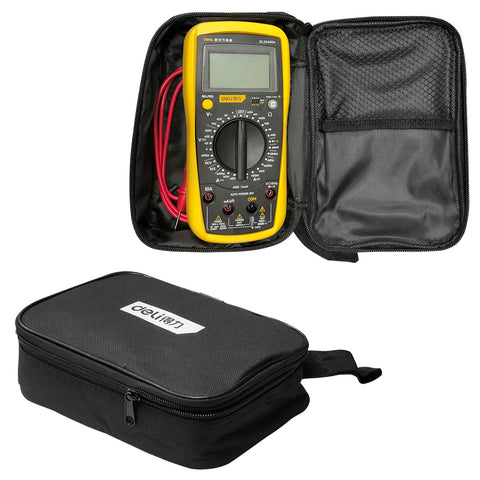

Deli Tools – Digital Multimeter

Brand: Deli Tools

Model: DL334004

Color: Black/Yellow

Display: 3 ¾ digits LCD, 3999 counts

IP Rating: IP20

Max. DC Voltage: 1000V

Max. AC Voltage: 750V

Max. DC Current: 10A

Max. Ohm: 40M

Over range Indication: “OL” shown on the display

Negative Polarity Indication: Negative sign “-“shown on the display automatically

Sampling Rate: About 2 to 3 times/sec

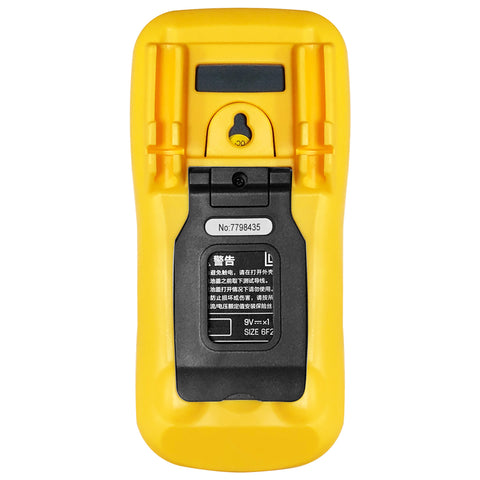

Battery: 9V battery, 6F22 or equivalent, 1 piece

Operating Altitude: 0 to 2000 meters

Operating Environment:

• Temperature: 0°C to 40°C
• Relative Humidity: < 75%

Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18°C or >28°C)

Storage Environment:

• Temperature: -10°C to 50°C
• Relative Humidity: < 85%

Material: Plastic

Dimension (W x D x H): 8.8 x 6.2 x 18.5cm

Weight: About 393g (including battery and holster)

Features:

• Backlit LCD Display.
• Overload Protection.
• Accurate measurement.
• Maximum Display 3999.

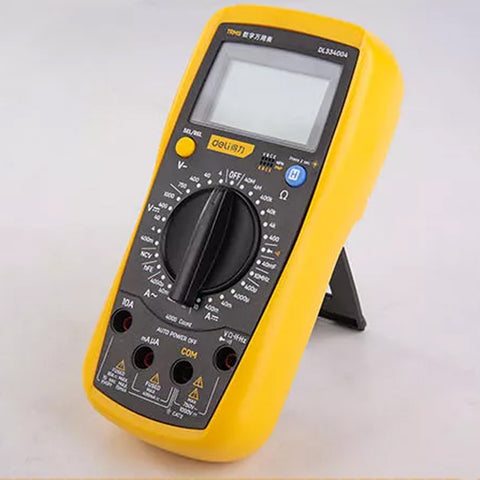

• Back support, convenient and quick to read data.
• A Variety of gears, adjust the gears through the knob.

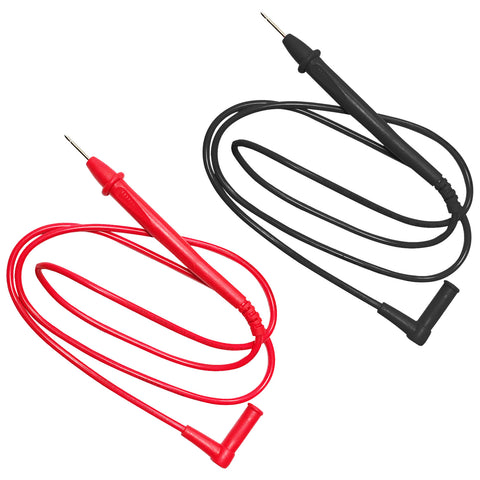

• Test lead socket, insert the test lead smoothly and tightly.
• Accuracy is specified for a period of one year after calibration and at 18°C to 28°C, with relative humidity <75%.
