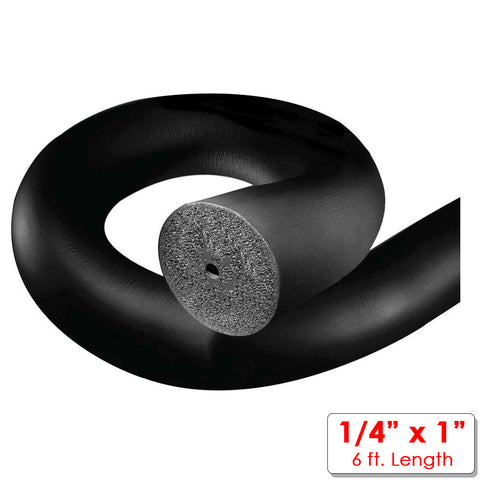

Insulation Pipe

Color: Black

Material: NBR (= nitrile-butadiene rubber)

Length of Insulation Pipe: 6 Feet (1.83metre)

Inner Diameter: 1/4-inch

Thickness: 1-inch

Features:

    • Blocks heat loss or gain to save energy.
    • Use on hot or cold pipes.
    • Stops condensation on cold pipes to prevent water damage.
    • Simple, easy way to save energy costs.

      Technical Parameter

      Item

      Unit

      Performance Index

      Implemented Standard

      Surface Density

      Kg/m3

      ≤ 80

      GB/T6343

       Burning Performance

      ---

      Meet requirement

      GB/T2406

      GB/T8627

      Grade B

      GB/T8624

      Meet requirement

      B1

      Smoke Toxicity



      ZA3

      GB/T6343

      Thermal Conductivity

      -20℃

      W/

      (m·K)

      ≤0.031

      GB/T10294

      0℃

      ≤0.033

      40℃

      ≤0.037

      Water Vapor Penetrating Performance

      Water vapor permeability

      g/

      (m.s.pa)

      1.3X10-11

      GB/T17146

      Moisture resistance

      12000

      Water absorption ratio in vacuum

      %

      ≤8

      GB/T17794

      (105± 37d) Dimension stability

      %

      10.0

      GB/T8811

      Rebound rate after compression

      compression rate 50%,72h

      %

      70

      GB/T6669

      Aging resistance 150h

      ---

      no wrinkle, no crack, no pinhole, no distort

      GB/T16259

      Temperature range

      -40~105

      GB/T17794

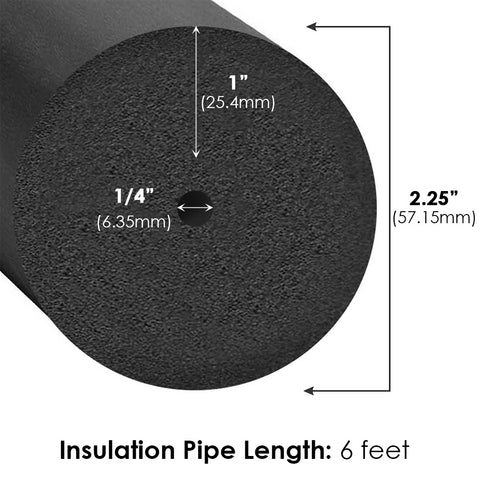

      Measurements:

      Size

      Millimeter (mm)

      Inch (”)

      Feet (ft.)

      Inner Diameter

      6.35mm

      1/4” (0.25”)

      0.02ft

      Thickness

      25.4mm

      1”

      0.08ft

      Length

      1829mm

      72”

      6ft
