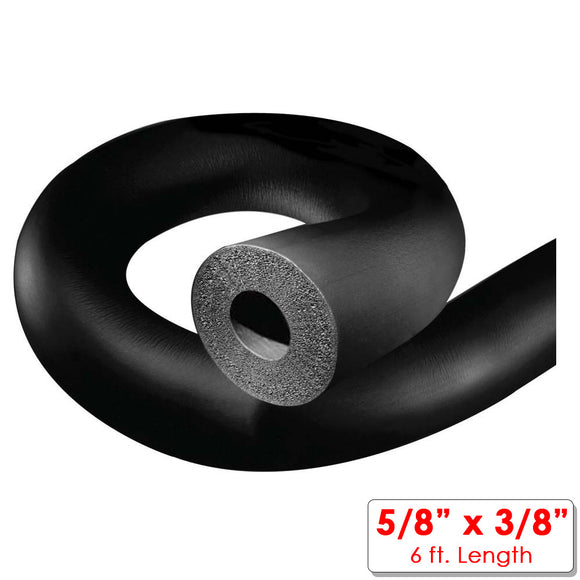

Insulation Pipe

Color: Black

Material: NBR (= nitrile-butadiene rubber)

Length of Insulation Pipe: 6 Feet (1.83metre)

Inner Diameter: 5/8-inch

Thickness: 3/8-inch

Features:

    • Blocks heat loss or gain to save energy.
    • Use on hot or cold pipes.
    • Stops condensation on cold pipes to prevent water damage.
    • Simple, easy way to save energy costs.

Technical Parameter

Item

Unit

Performance Index

Implemented Standard

Surface Density

Kg/m3

≤ 80

GB/T6343

 Burning Performance

---

Meet requirement

GB/T2406

GB/T8627

Grade B

GB/T8624

Meet requirement

B1

Smoke Toxicity



ZA3

GB/T6343

Thermal Conductivity

-20℃

W/

(m·K)

≤0.031

GB/T10294

0℃

≤0.033

40℃

≤0.037

Water Vapor Penetrating Performance

Water vapor permeability

g/

(m.s.pa)

1.3X10-11

GB/T17146

Moisture resistance

12000

Water absorption ratio in vacuum

%

≤8

GB/T17794

(105 ± 37d) Dimension stability

%

10.0

GB/T8811

Rebound rate after compression

compression rate 50%,72h

%

70

GB/T6669

Aging resistance 150h

---

no wrinkle, no crack, no pinhole, no distort

GB/T16259

Temperature range

-40~105

GB/T17794

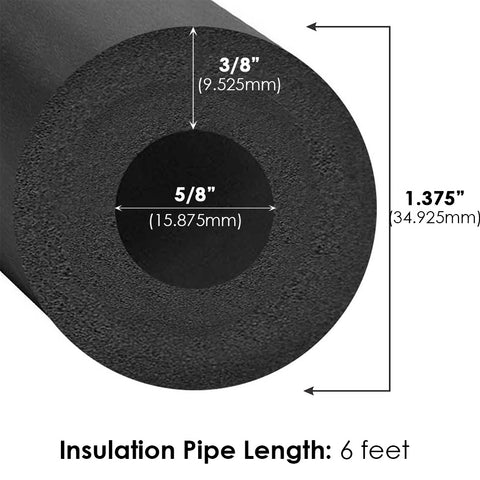

Measurements:

Size

Millimeter (mm)

Inch (”)

Feet (ft.)

Inner Diameter

15.9mm

5/8” (0.625”)

0.05ft

Thickness

9.53mm

3/8” (0.375”)

0.03ft

Length

1829mm

72”

6ft
