Insulation Pipe
SKU: 39555
LENGTH - 6 FEET
ALU: 7206
Size: 1/2" X 1"

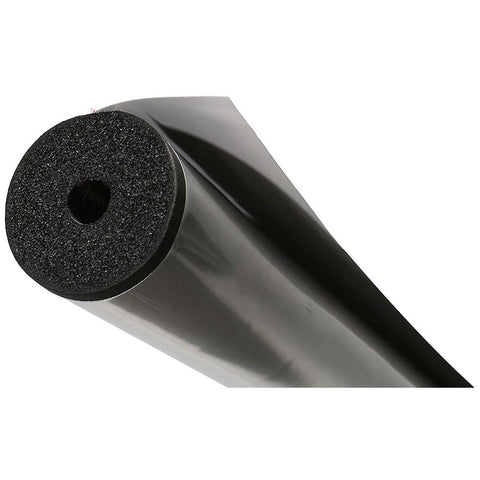

Insulation Pipe with aluminum jacket
Color: Black
Material: NBR (= nitrile-butadiene rubber)
Length of Insulation Pipe: 6 Feet (1.83metre)
Inner Diameter: 1/2-inch
Thickness: 1-inch
Features:
- Aluminum is the premier protective outer surface covering for insulation pipe.
- It protects the insulation and underlying pipe/vessel from physical damage, UV exposure, corrosive atmospheres, and water.
- Blocks heat loss or gain to save energy.
- Use on hot or cold pipes.
- Stops condensation on cold pipes to prevent water damage.
- Simple, easy way to save energy costs.
Technical Parameter
|
Item |
Unit |
Performance Index |
Implemented Standard |
|
|
Surface Density |
Kg/m3 |
≤ 80 |
GB/T6343 |
|
|
Burning Performance |
--- |
Meet requirement |
GB/T2406 |
|
|
GB/T8627 |
||||
|
Grade B |
GB/T8624 |
|||
|
Meet requirement |
B1 |
|||
|
Smoke Toxicity |
|
ZA3 |
GB/T6343 |
|
|
Thermal Conductivity |
-20℃ |
W/ (m·K) |
≤0.031 |
GB/T10294 |
|
0℃ |
≤0.033 |
|||
|
40℃ |
≤0.037 |
|||
|
Water Vapor Penetrating Performance |
Water vapor permeability |
g/ (m.s.pa) |
1.3X10-11 |
GB/T17146 |
|
Moisture resistance |
12000 |
|||
|
Water absorption ratio in vacuum |
% |
≤8 |
GB/T17794 |
|
|
(105℃ ± 3℃，7d) Dimension stability |
% |
10.0 |
GB/T8811 |
|
|
Rebound rate after compression compression rate 50%,72h |
% |
70 |
GB/T6669 |
|
|
Aging resistance 150h |
--- |
no wrinkle, no crack, no pinhole, no distort |
GB/T16259 |
|
|
Temperature range |
℃ |
-40~105 |
GB/T17794 |
|

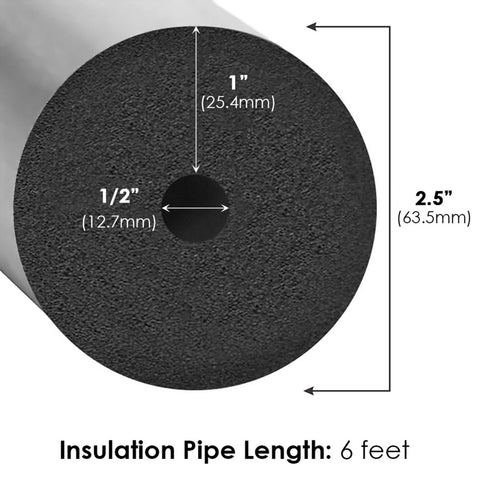

Measurements:
|
Size |
Millimeter (mm) |
Inch (”) |
Feet (ft.) |
|
Inner Diameter |
12.7mm |
1/2” (0.5”) |
0.04ft |
|
Thickness |
25.4mm |
1” |
0.08ft |
|
Length |
1829mm |
72” |
6ft |
