Note: Power cord not included.

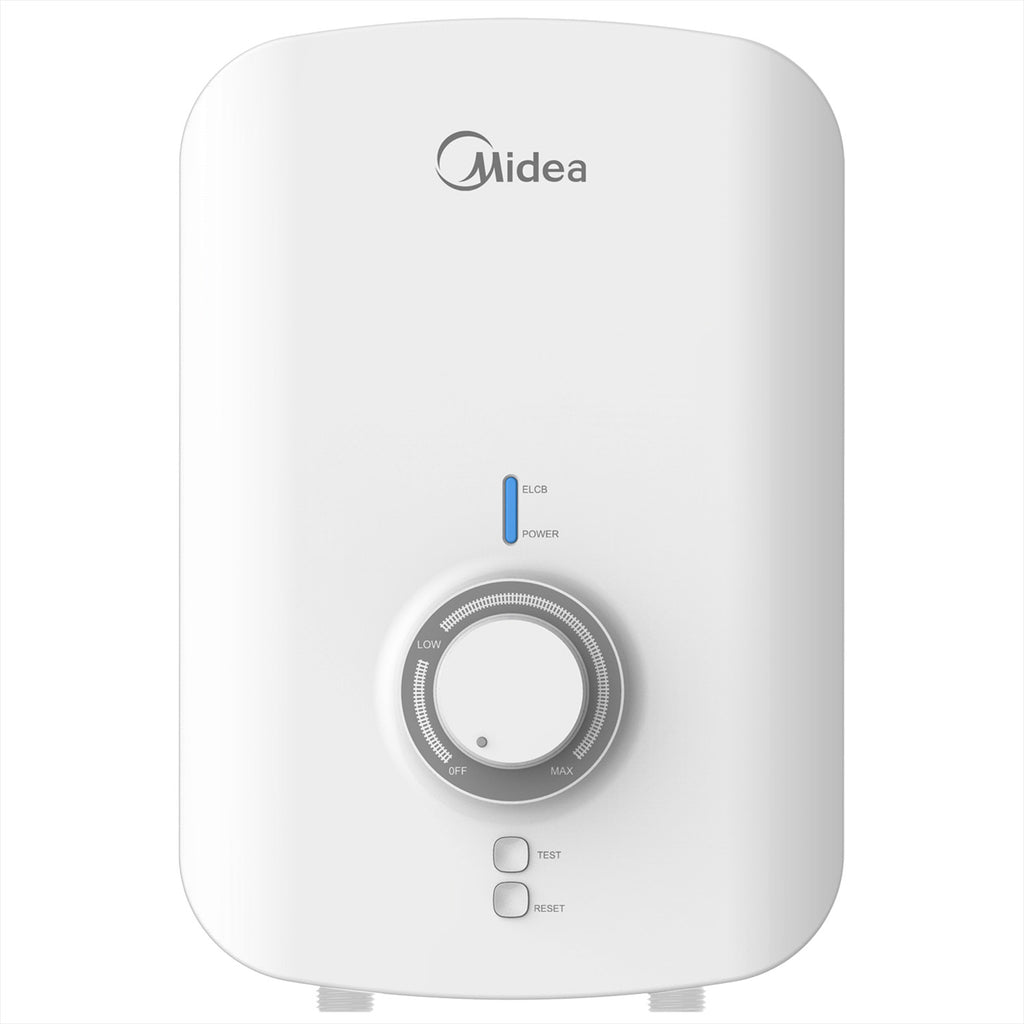

Midea – Instant Water Heater

Instant Electric Water Heater

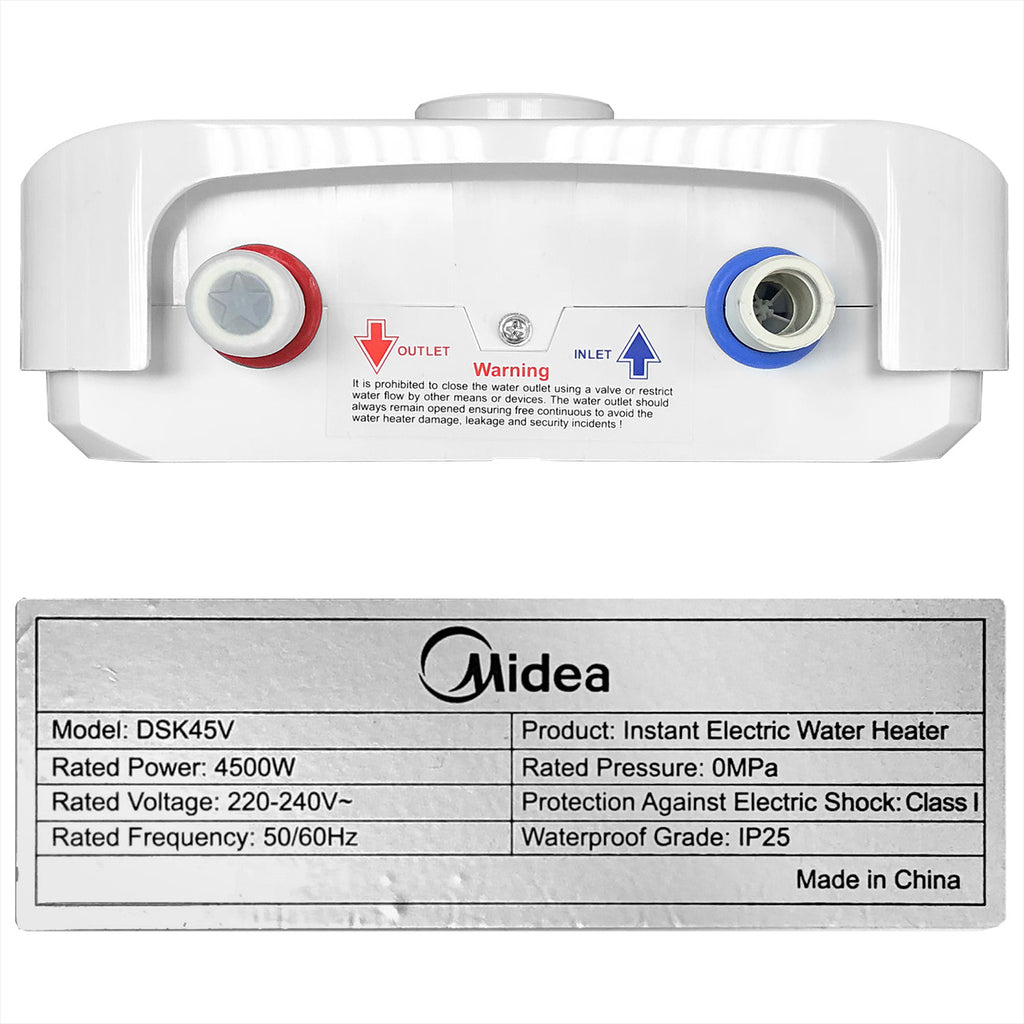

Brand: Midea

Model: DSK45V

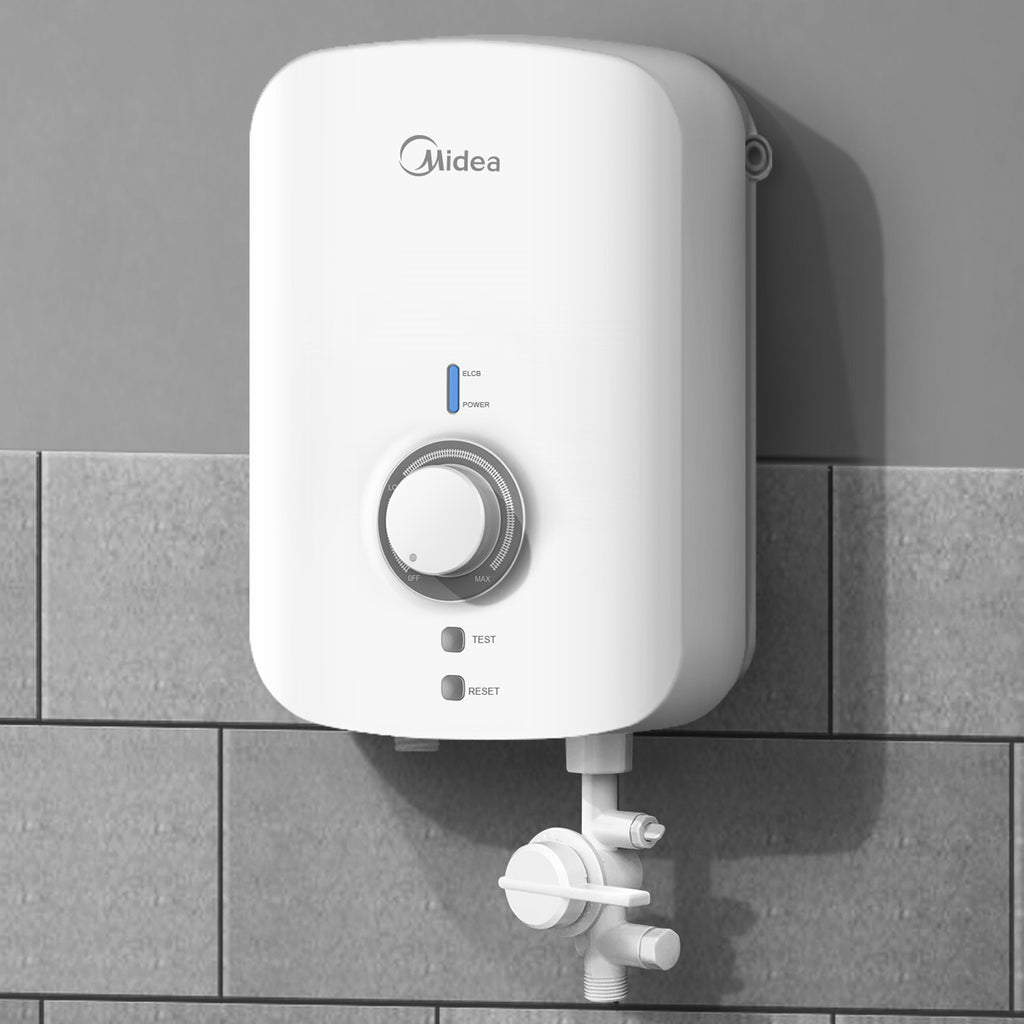

Installation Method: Wall-Mounting

Rated Power: 4500W

Rated Voltage: 220/230V

Rated Frequency: 50/60Hz

Rated Current: 19.6A

Dia. of Wire Code: 2.5mm2

Air Switch: ≥25A

Rated Pressure: 0 MPa

Flow Rate (min.): 1.5 Liters/minute

Inlet Pressure (min.): 0.03MPa

Inlet Pressure (max.): 0.3MPa

Protection class: Class I

Outlet Water Temperature (max.): 55℃

Water proof class: IP25

Max Temperature: 95℃

Heating elements material: Copper

Operating Condition: Open Type

Pump: No

Warranty: 12 Months Warranty


    • Built-in ELCB: Cuts off current flow in the event of any current leakage.
    • Splash-proof IP25 Standard: Protection against water seeping into the heater’s internal mechanism.
    • Precise thermal cut-out: Electronic detector auto shut off in the event of water temperature over 55℃.
    • Nylon glass fibre: A strong & durable non-conductive material for further insulation against electric shock.

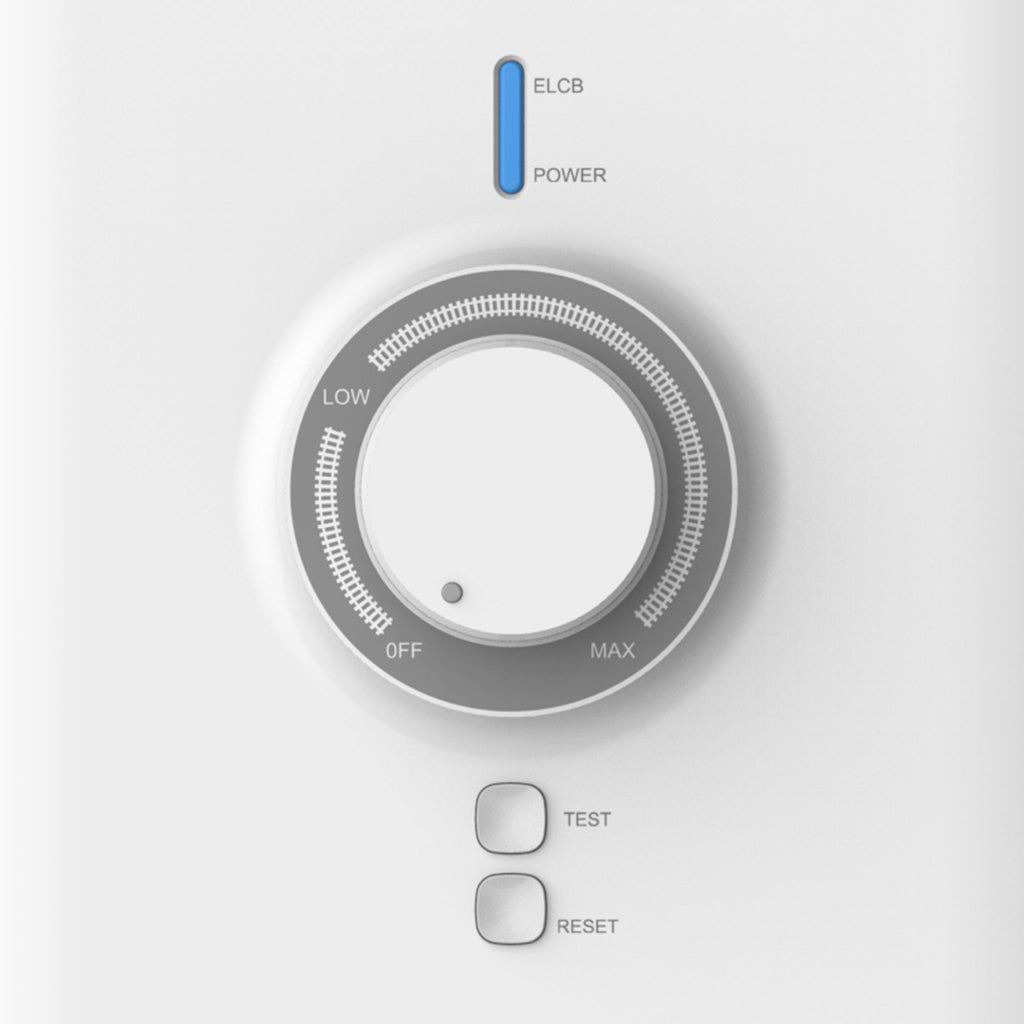

    • Stepless control: Shower temperature can be selected according to personal preference.
    • Built-in Auto flow sensor: Shuts off heater if water flow is lower than 1.2 litre/minute, water saving.

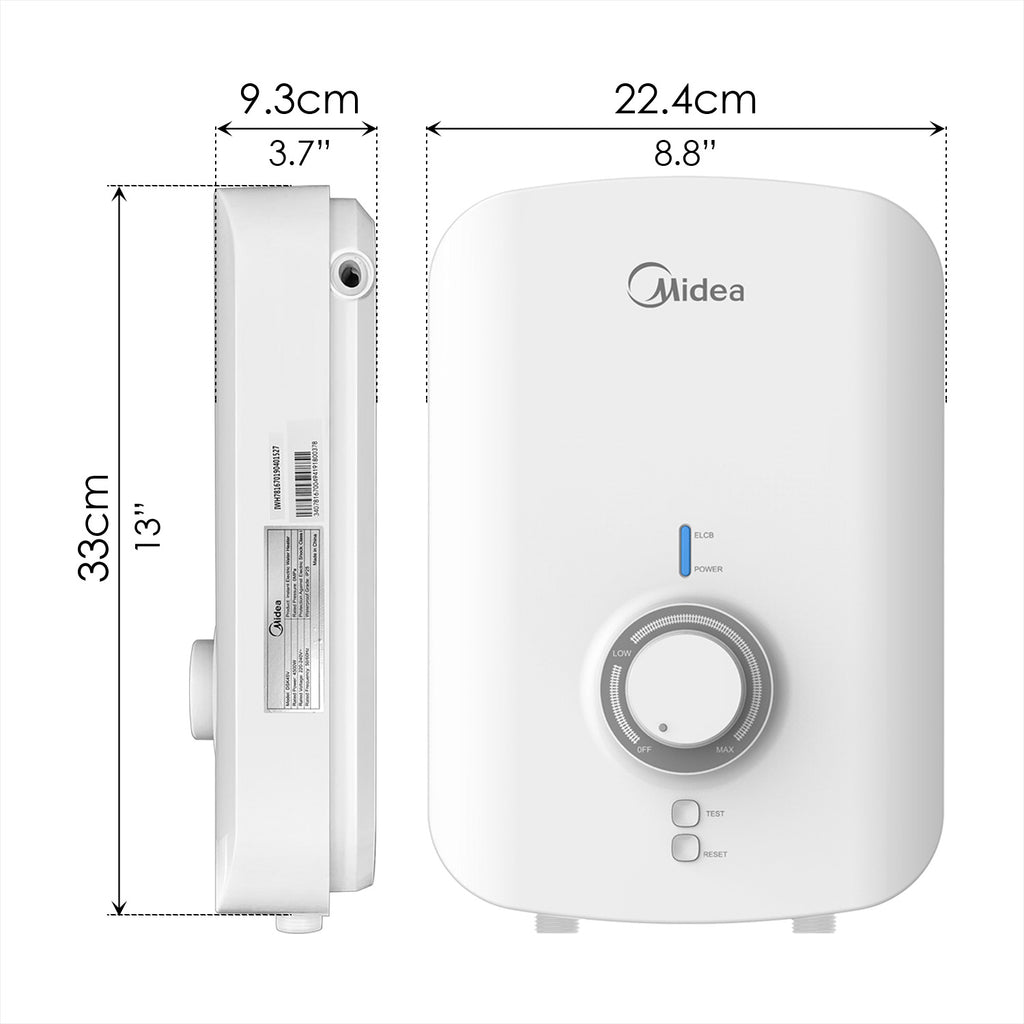

Dimension & Weight:

Product Dimension (W x D x H): 22.4 x 9.3 x 33cm (8.8” x 3.7” x 13”)

Package Dimension (W x D x H): 26 x 10.5 x 58cm (10.2” x 4.1” x 22.8”)

Net Weight: 1.6kg

Gross Weight: 2.25kg

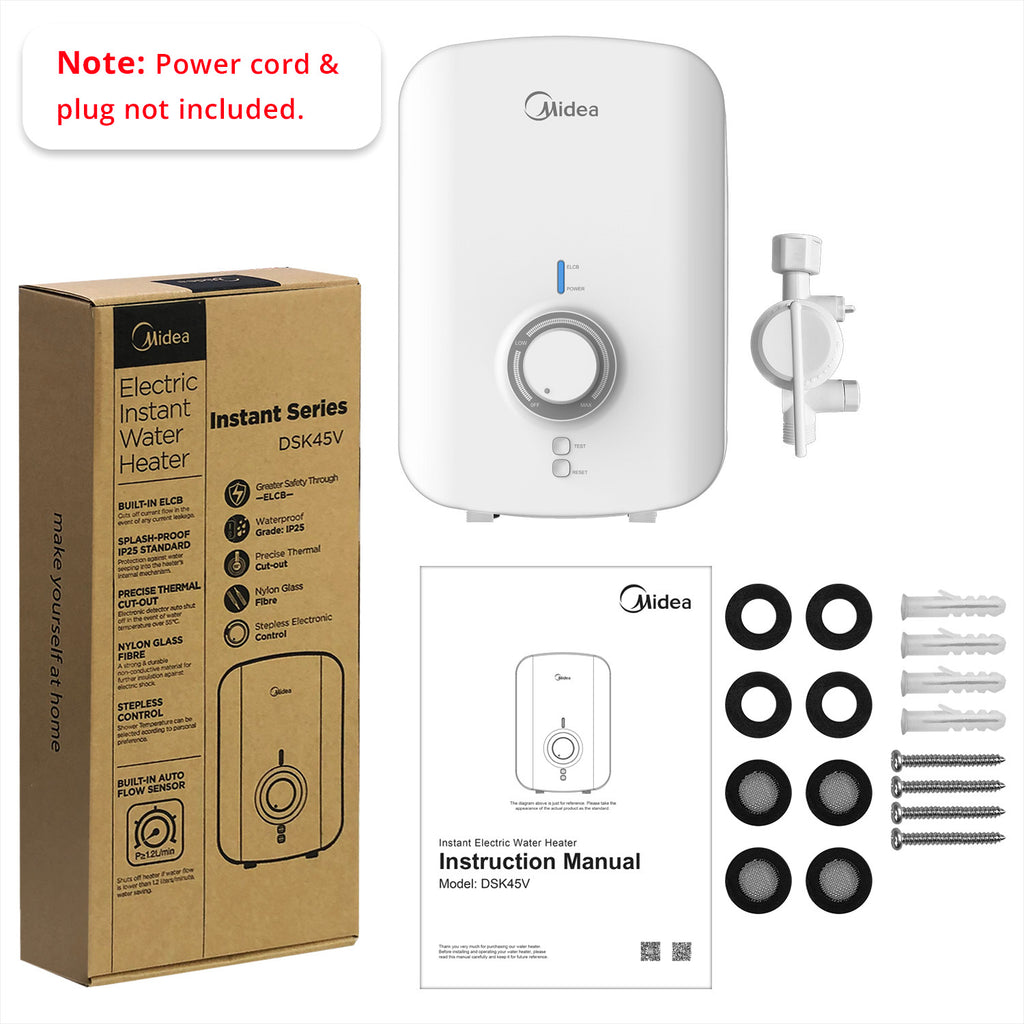

Packing Contents:

    • Water heater – x1

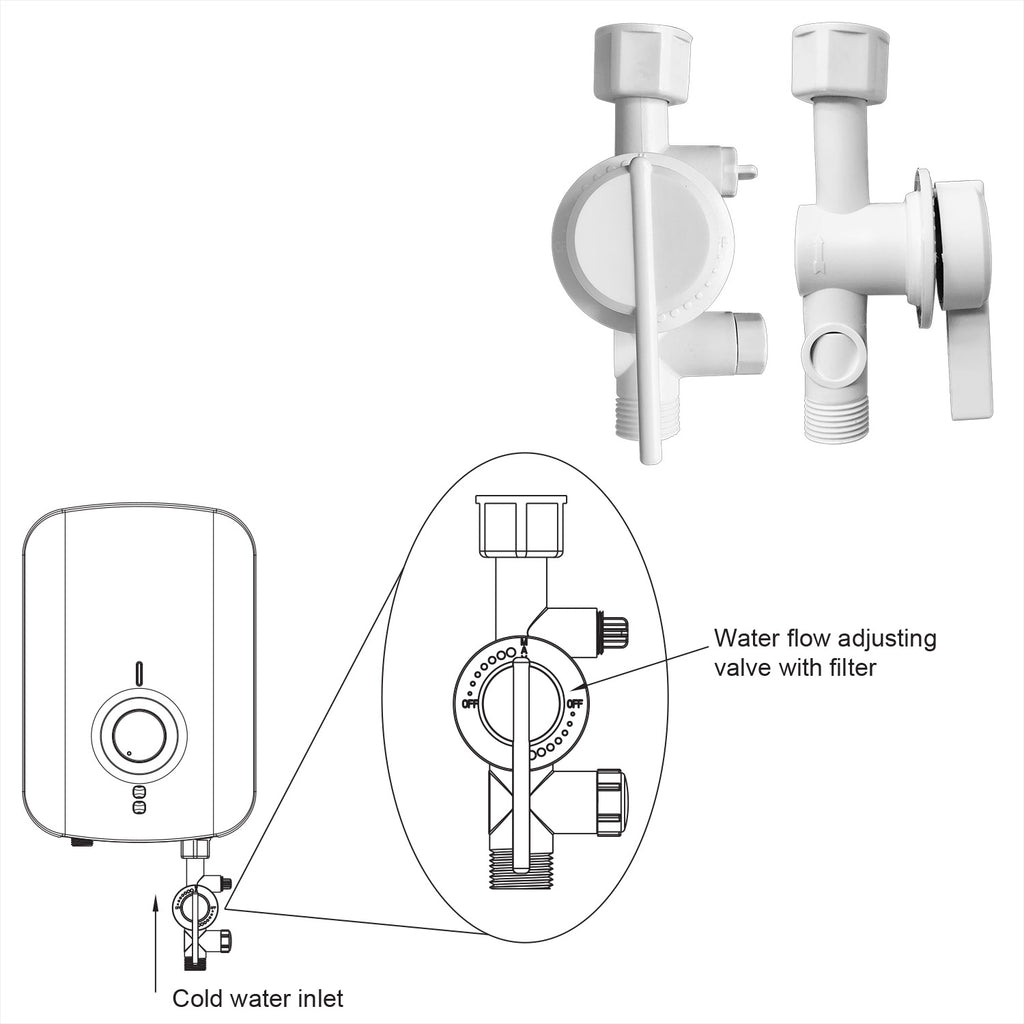

    • Filter control valve – x1
    • Screws – x4
    • Screw plugs – x4
    • Flat gaskets – x8
    • User manual – x1


Click here for User Manual

User Manual
