Branch Header (1:4)

SKU: 61477

HEADER FOR 4 BRANCHES
Model no: DXFQT4-02
Brand: MIDEA
ALU: 15111700001942

Compatibility: Exclusively for Midea VRF Air Conditioning systems.
View Compatible Midea VRF ACs

61475

Branch Header (1:2)

61476

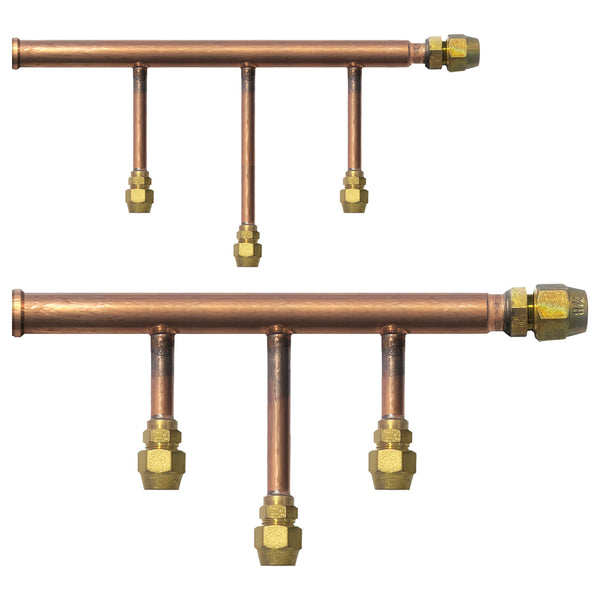

Branch Header (1:3)

61478

Branch Header (1:5)

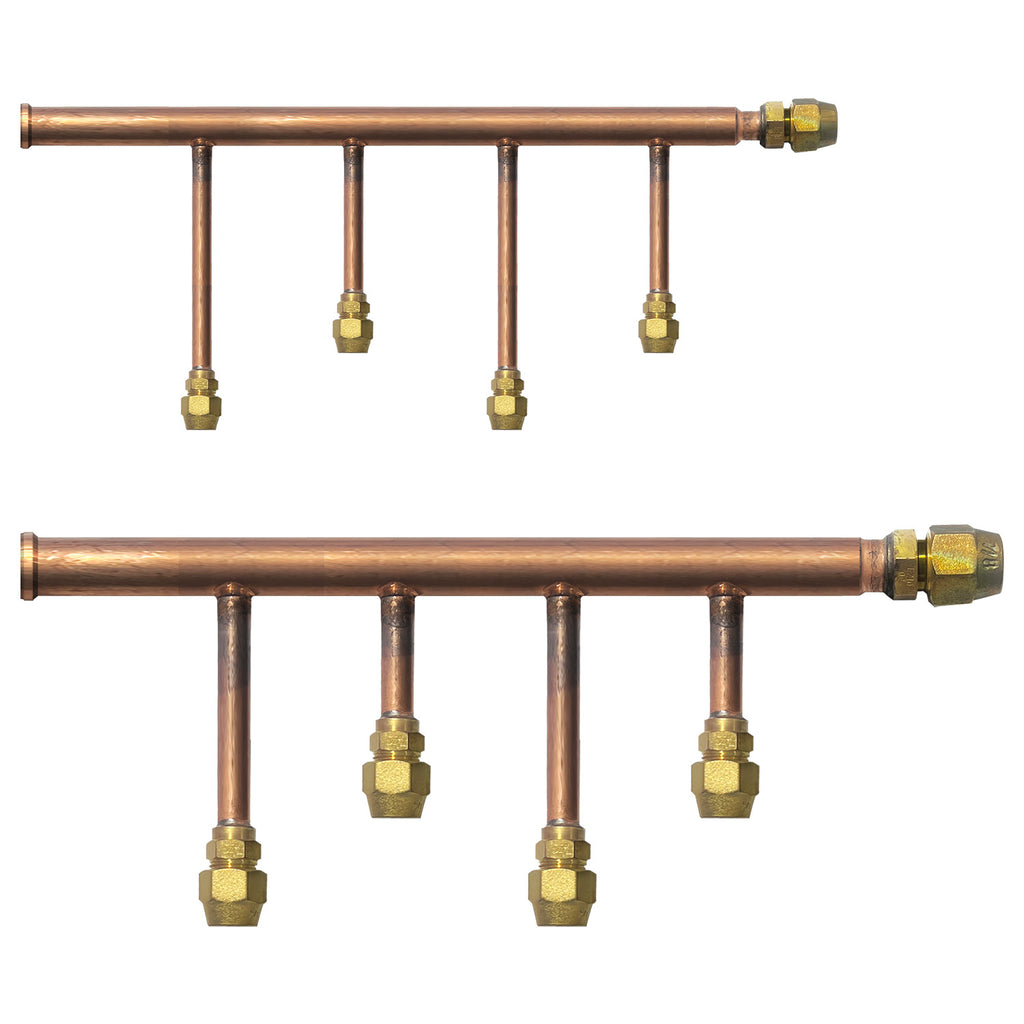

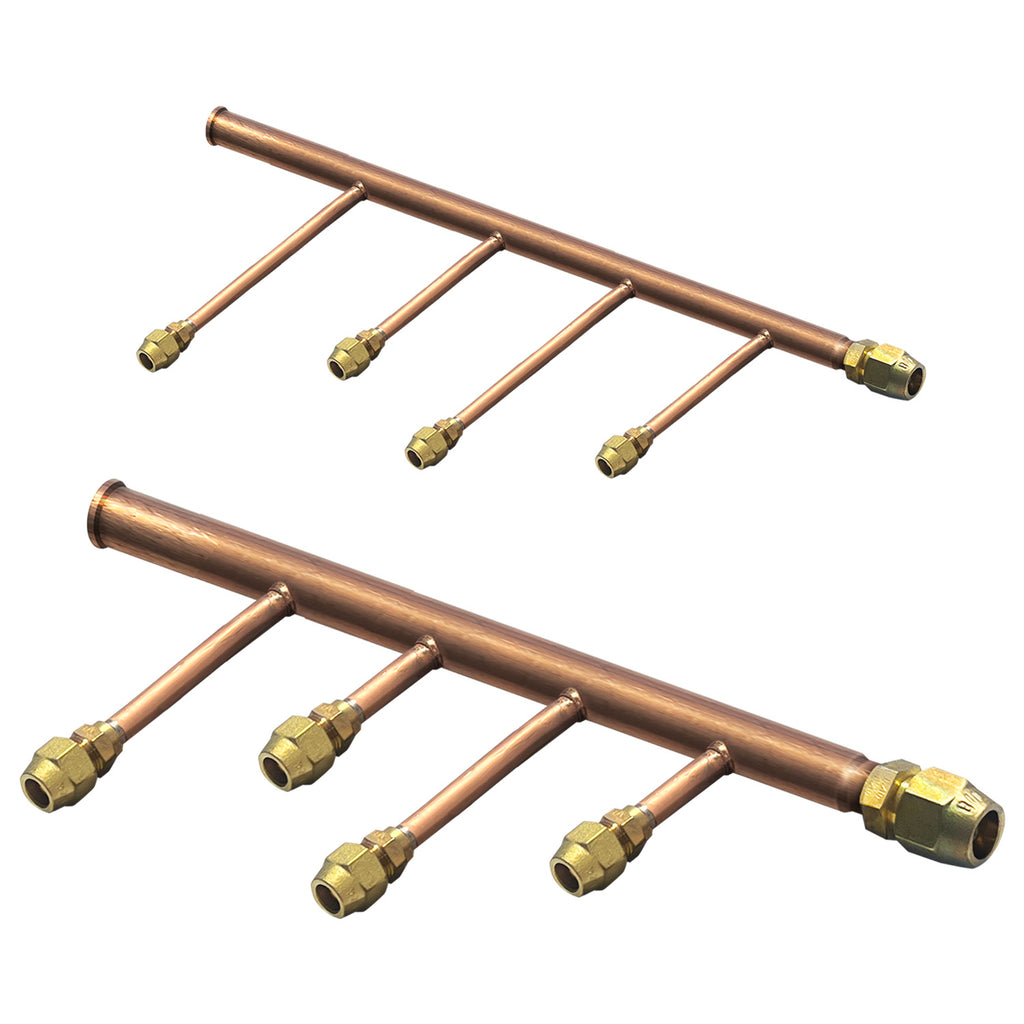

Midea 4-Branch Header
Header of 4 Branches (1:4)
Brand:	Midea
Model:	DXFQT4-02
Application:	Midea VRF Systems
No. of Branches:	4 Indoor Unit Connections
Material:	Copper
Features:

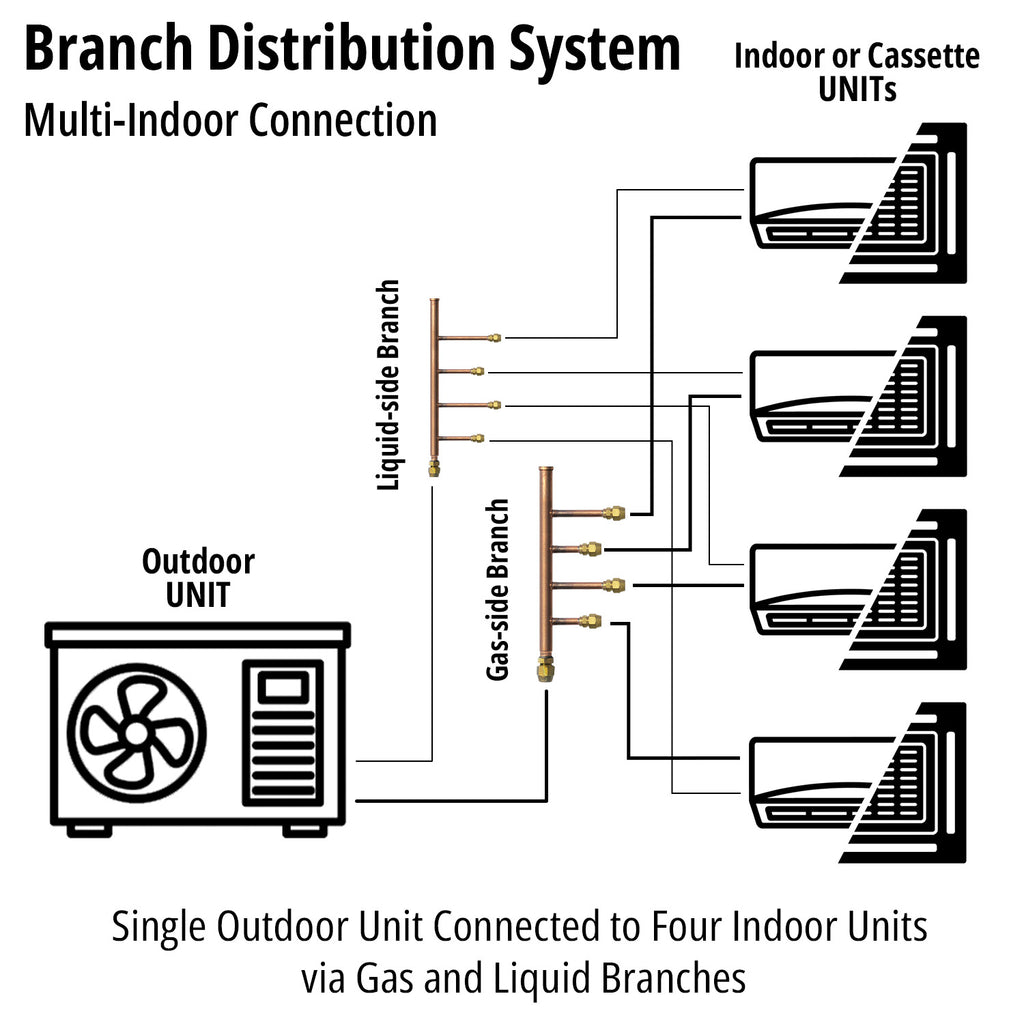

Designed for Midea VRF air conditioning systems only. Each branch outlet is intended for connection to a single indoor unit. Supplied with pipe adaptors to accommodate different pipe diameters. Supplied with insulation materials to help reduce heat loss and condensation. Manufactured from durable copper for reliable performance and long service life. Includes separate gas-side and liquid-side branch headers for proper flow management. Distributes flow from a single main line (4-branch header) to four indoor unit connections.

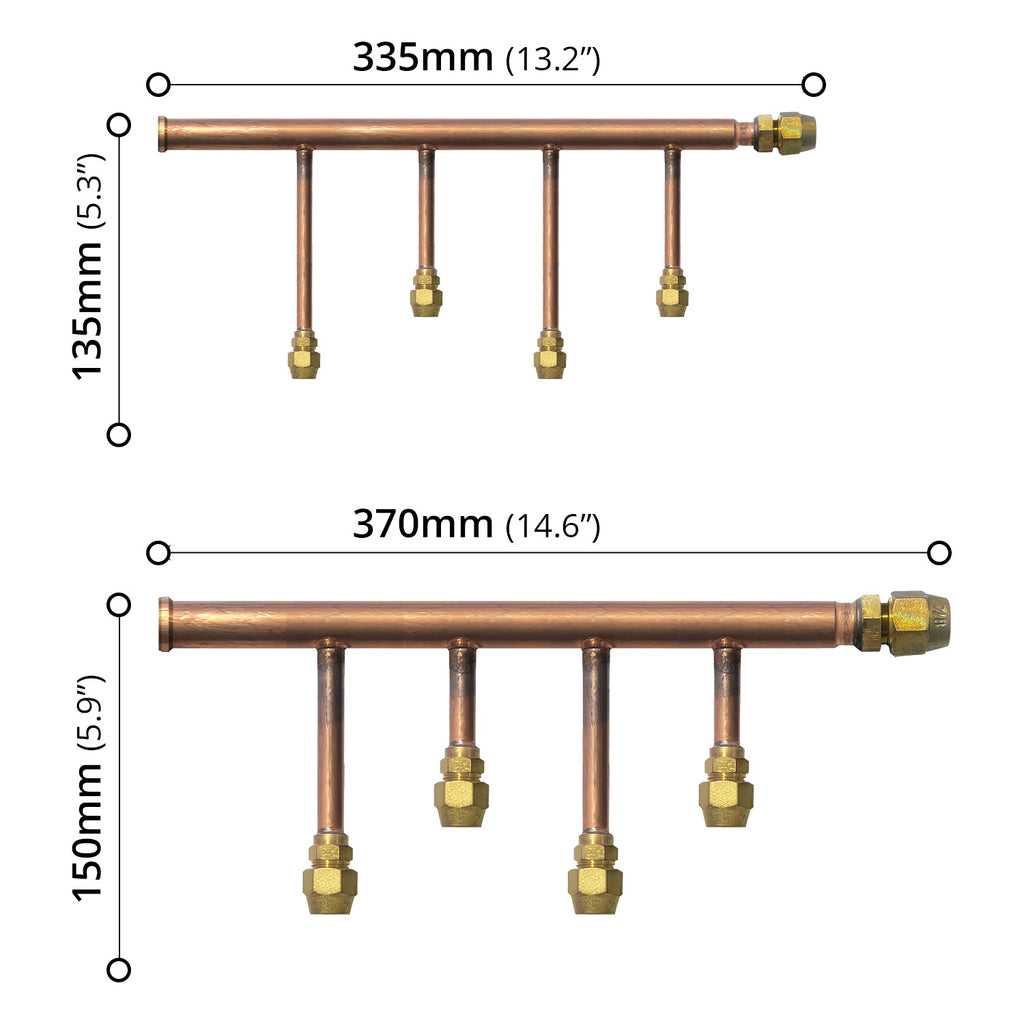

Dimensions & Weight:
Product Dimension (Liquid Side):	335 x 135mm (13.2” x 5.3”)
Product Dimension (Gas Side):	370 x 150mm (14.6” x 5.9”)
Packing Dimension (W x D x H):	465 x 255 x 115mm (18.3” x 10” x 4.5”)
Net Weight:	1.0kg
Gross Weight:	2.4kg

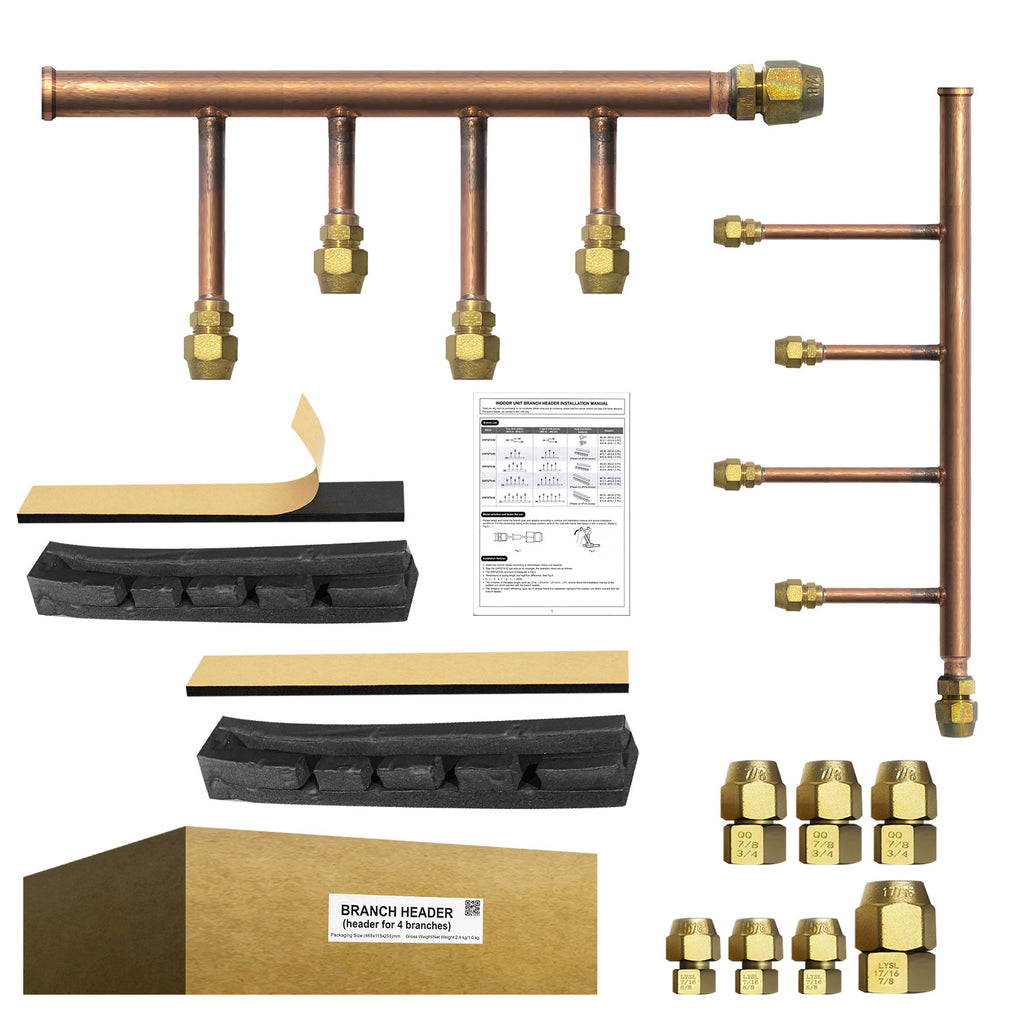

Packing Contents:
4-Branch Header (Gas side)	x1
4-Branch Header (Liquid side)	x1
Heat Insulation Material	x2

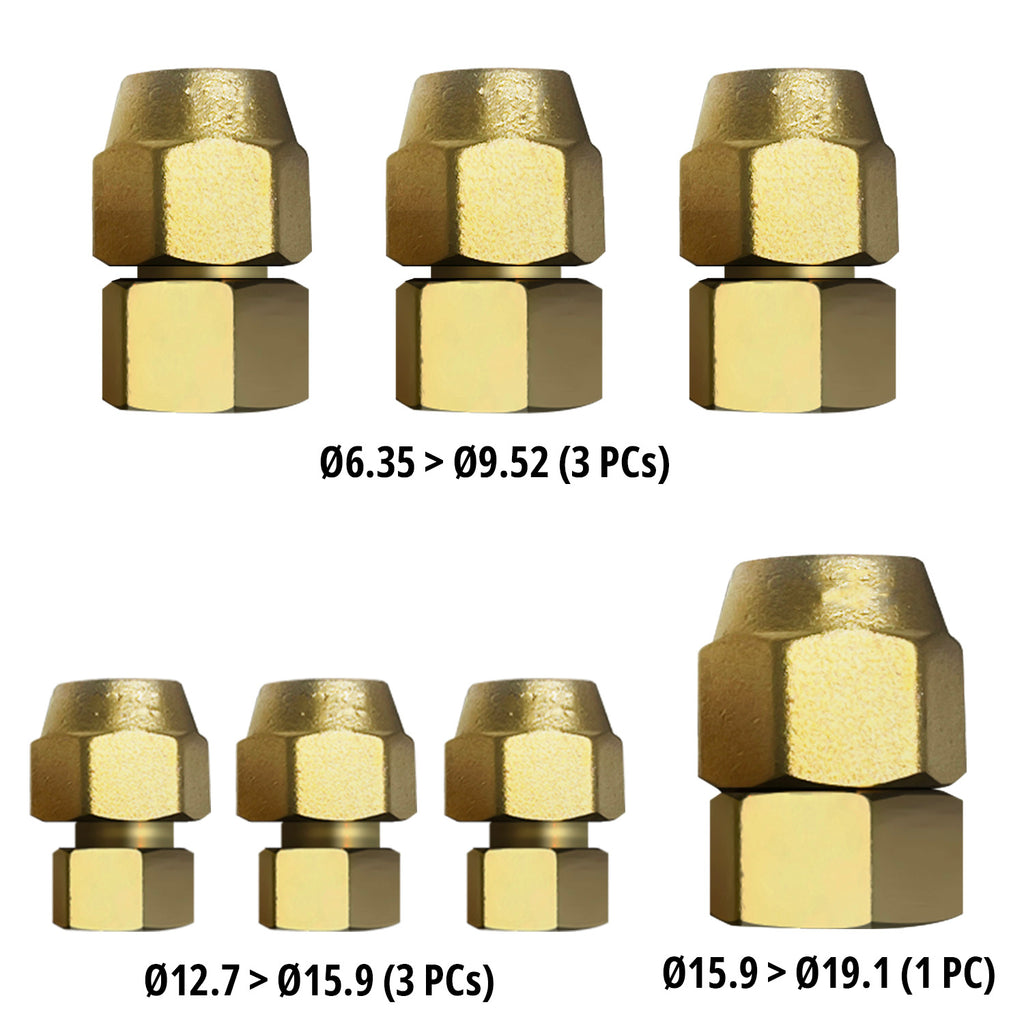

Pipe Adapters Ø6.35 → Ø9.52	x3
Pipe Adapters Ø12.7 → Ø15.9	x3
Pipe Adapters Ø15.9 → Ø19.1	x1
Installation Manual	x1
