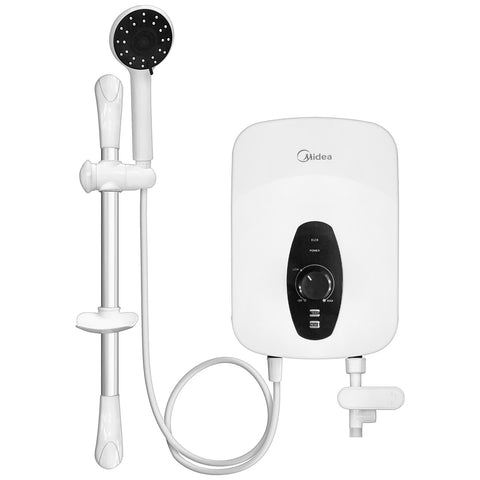

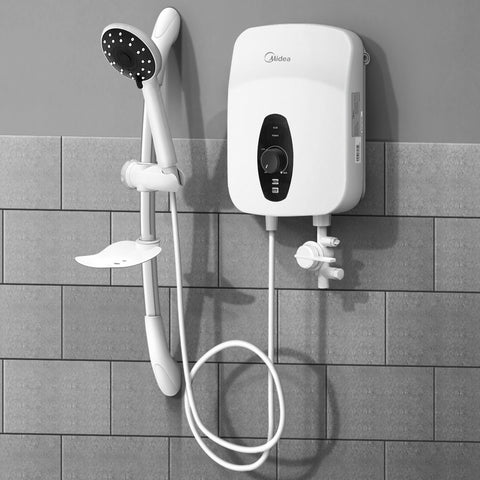

Midea – Water Heater Bundle

Bundle Includes:

#41934 – Instant Water Heater – x1

Note: Power Cord not included.

Brand: Midea

Model: DSK45Q

Color: White

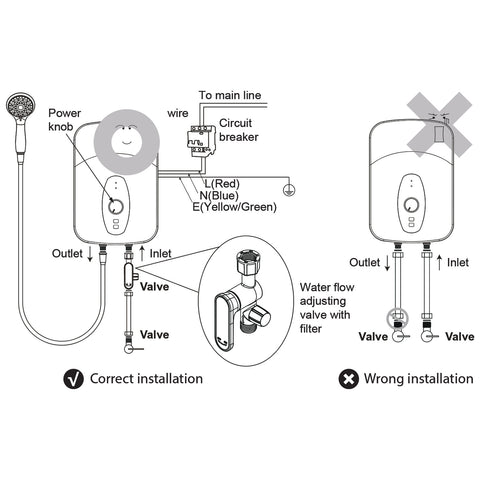

Installation Method: Wall-Mounting

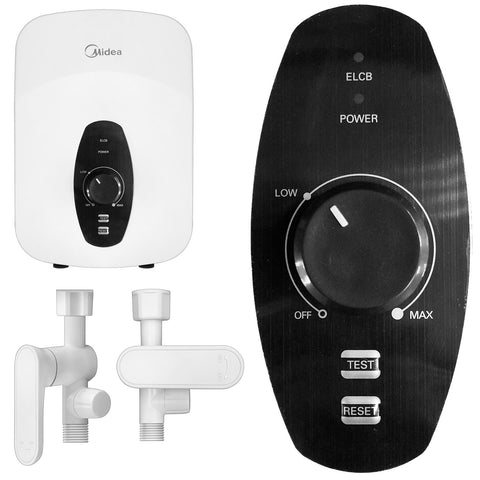

Advantages:

• Built-in ELCB: Cuts off current flow in the event of any current leakage.
• Stepless control: Shower Temperature can be selected according to personal preference.
• Splash-proof IP25 Standard: Protection against water seeping into heater’s internal mechanism.
• Built-in Auto flow sensor: Shuts off heater if water flow is lower than 1.2 liters/minute, water saving.
• Precise thermal cut-out: Electronic detector auto shut off in the event of water temperature over 55°C.
• Nylon Glass Fibre: Strong & Durable non-conductive material for further insulation against electric shock.

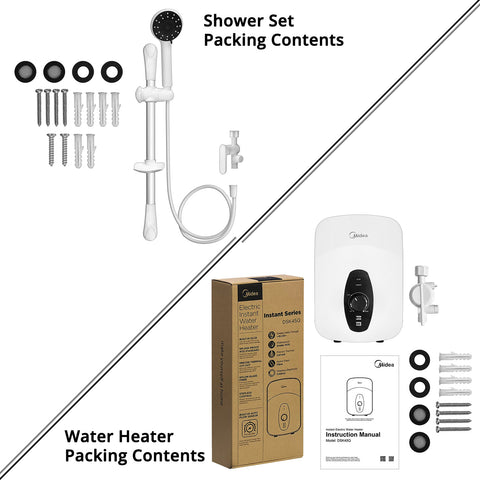

Packing Contents:

• Water heater – x1
• Filter control valve – x1
• Screws – x4
• Screw plugs – x4
• Flat gaskets – x4
• User manual – x1

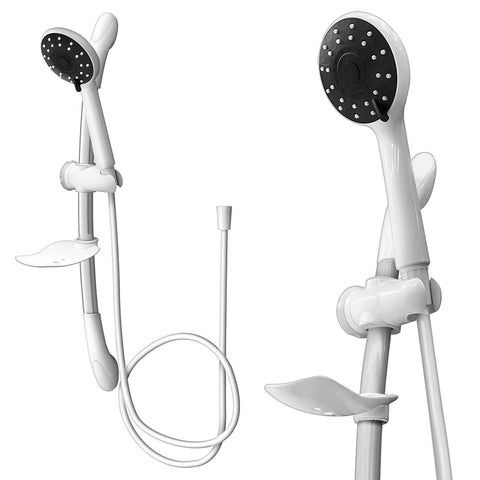

#51183 – Shower Set – x1

Brand: Midea

Color: White/Silver

Material: Plastic + Steel

Shower Bar Length: 67cm (26.4”)

Shower Head Diameter: 10cm (3.9”)

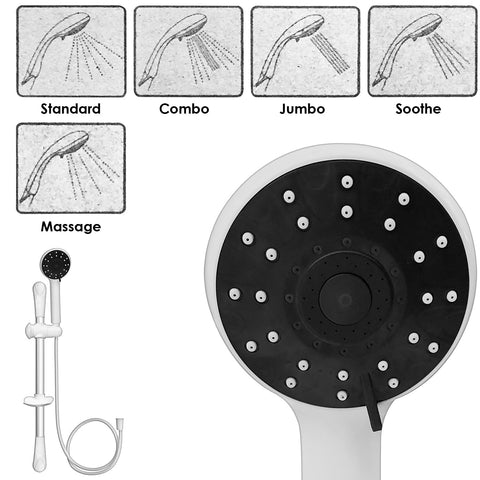

5 Types of Shower Spray:

• Standard: Full body sprays relieve muscle tension to rejuvenate and invigorate your body.
• Combo: Mixes standard sprays with pulsating streams to smoothe and revitalize.
• Jumbo: Concentrate a stream of water into a small area for fast rinsing.
• Soother: Provides cooling relief on hot summer day or after exercise.
• Massage: Uses pulsating jets of water to relive stress.

Packing Contents:

• Filter control valve – x1
• Shower Bar – x1
• Shower Head – x1
• Shower Hose – x1
• Shower Soap Holder – x1
• Screws – x6
• Screw plugs – x6
• Flat gaskets – x4
• User Manual – x1

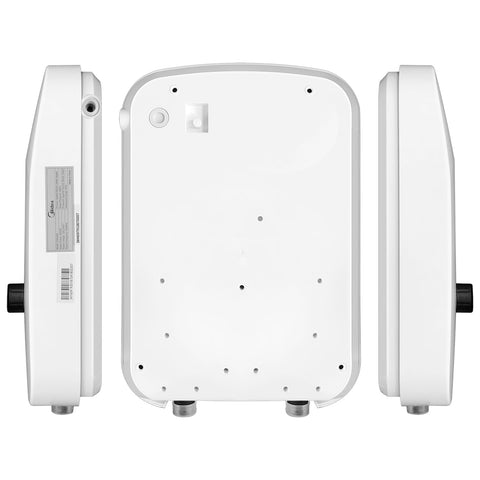

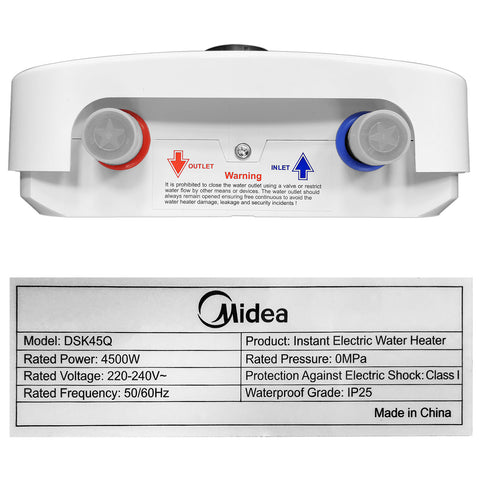

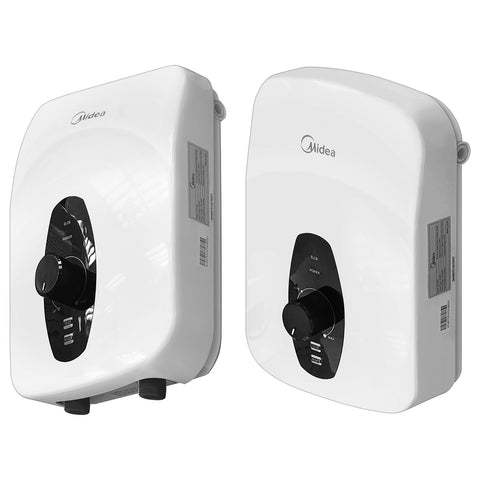

#41934 - Instant Water Heater

Electric Instant Water Heater

Brand: Midea

Model: DSK45Q

Installation Method: Wall-Mounting

Rated Power: 4500W

Rated Voltage: 220-240V~

Rated Frequency: 50/60Hz

Rated Current: 19.6A

Dia. of Wire Code: 2.5mm²

Air Switch: ≥25A

Rated Pressure: 0 MPa

Flow Rate (min.): 1.2 Liters/minute

Inlet Pressure (min.): 0.02 MPa

Inlet Pressure (max.): 0.3 MPa

Protection Class: Class I

Outlet Water Temperature (max.): 55 °C

Waterproof Grade: IP25

Max Temperature: 95°C

Heating Elements Material: Copper

Operating Condition: Open Type

Pump: No

Warranty: 12 Months Warranty

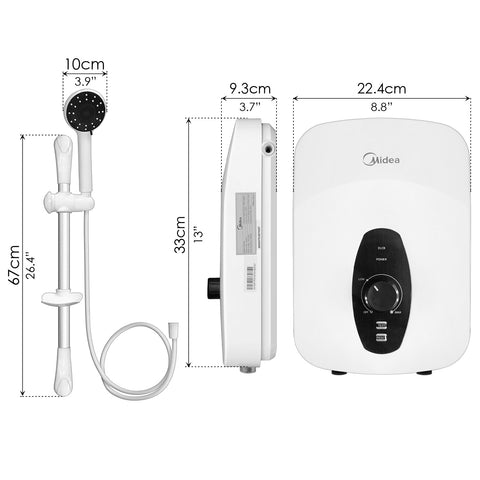

Dimension & Weight:

Product Dimension (W x D x H): 22.4 x 9.3 x 33cm (8.8” x 3.7” x 13”)

Package Dimension (W x D x H): 26 x 10.5 x 58cm (10.2” x 4.1” x 22.8”)

Net Weight: 1.6kg

Gross Weight: 3kg
