Specification

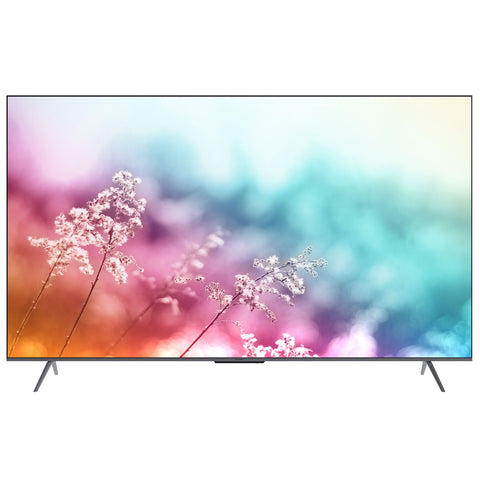

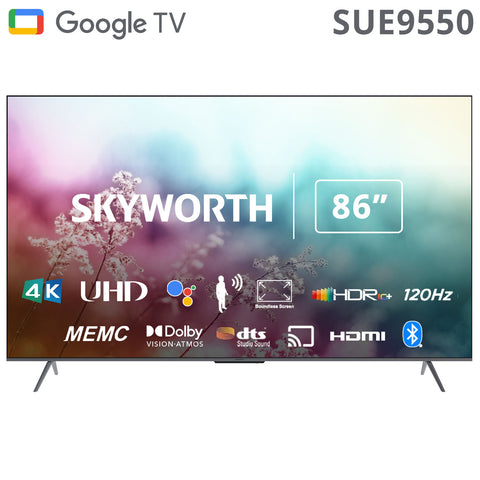

Skyworth – 86” 4k Google TV

Brief Information:

Brand: Skyworth

Model: 86SUE9550

Operation System: Google TV

Configuration:

• CPU:  A53 x 4 – 1.5GHz
• GPU: Mali-G52
• DDR: 2GB
• Flash: 32GB

Warranty: 1 Year Warranty

Display:

Screen Size: 86 inch

Resolution: 3840 x 2160

Product Category: DLED & Frameless

Backlight Type: Direct

Direct distance: OD18

Viewing Angle: 176°/176°

Set Brightness (nit) (Typ.): 400

Color gamut: 80%

Full Screen: Yes

Refresh frequency: 100/120Hz

Picture Enhancement:

• MEMC
• Game Mode
• Dolby Vision
• HDR10
• HDR10+
• HLG

Audio:

Audio Enhancement:

• Surround
• Equalizer
• DTS Studio Sound
• Dolby ATMOS for TV
• Dolby Digital (Decoder)
• Dolby Digital plus (Decoder)

Audio Output Power (RMS): 2 x 12W

Main Speaker Direction: Bottom

Speaker Number: 2

AC Power:

AC Input Range: 100-240V

AC Cable Length: 1.5M

Power Consumption: 400W

Passive Standby Power Consumption: <0.5W

Active Standby Power Consumption: <2W

Features:

AI:

• Google Assistant built-in
• Work with Google Assistant

Far Field:

• Google Far Field Voice Control

Content:

• Netflix
• Prime video
• YouTube
• YouTube HDR
• Coocaa Service
• App Store/Content store: Google Store

Chromecast: Yes

Wi-Fi:

• Working Frequency: 2.4G + 5G
• Wi-Fi solution: 7663BU
• Wake on LAN/Wake on WLAN: Yes
• Wi-Fi Support type: 2T2R

Bluetooth:

• Version: 5.0
• Audio transmission: Input/Output

TV Receiving System:

ATV Receiving:

• PAL-BG/I/DK SECAM-BG/DK NTSC-M
• NICAM
• A2

DTV Receiving:

• DVB-T/T2
• DVB-C

Displaying Text:

• Subtitle
• Teletext

Decoder:

• Video: VP8, VP9, VC1, AV1, H.263, H.264, HEVC/H.265, MPEG1/2, MPEG4
• Audio: MPEG1/2 Layer1, MPEG1/2 Layer2, MPEG1/2/2.5 Layer3, AC3(DD), EAC3(DD+), HEAAC, WMA, AC4,
• Photo: JPEG, PNG, BMP

HDMI:

• CEC (Consumer Electronics Control)
• ARC (Audio Return Channel)

Language: English, العربية, Русский, Deutsch, Français, Español, Español (Argentina), Português, Português (Brazil), ไทย, Tiếng Việt,繁体中文,简体中文, فارسی‎,Burmese, עִבְרִית, Kiswahili, Indonesia, Melayu, தமிழ், Монгол, Українська, አማርኛ,Српски, Românâ, Български, Magyar, Hrvatski, Македонски, Slovenscina, Albanian language, Italiano, Nederlands, Dansk, Norsk, Suomen kieli, Svenska, Eesti keel‎,latviešu valoda, Slovenčina, lietuvių kalba, Česky, Polski, Ελληνικ, Türkçe, Kazakh, Georgian, Ўзбек тили‎,

Teletext Language: West/East/Russian/Arabic/Farsi

Others:

• Parent Control (Child Lock)
• EPG
• Channel list
• Favorite Channel List
• Channel Editor
• Time Shift
• AD(Audio Description)
• Fast boot
• Hotel mode

Software Update:

• Update Software By Internet
• Update Software By Over-Air

Terminal (Ports):

• USB 2.0 – X2

• Antenna Input – X1
• HDMI  – X3
• AV Input – X1
• LAN – X1
• Digital Audio Output (Optical) – X1

Dimensions & Weight:

Size (with stand): 1921 x 388 x 1179mm

Size (without stand): 1921 x 91 x 1107mm

Package Size (with stand): 2050 x 335 x 1290mm

Weight (with stand): 43.3kg

Weight (without stand): 42.3kg

Gross Weight (Kg): 59kg
