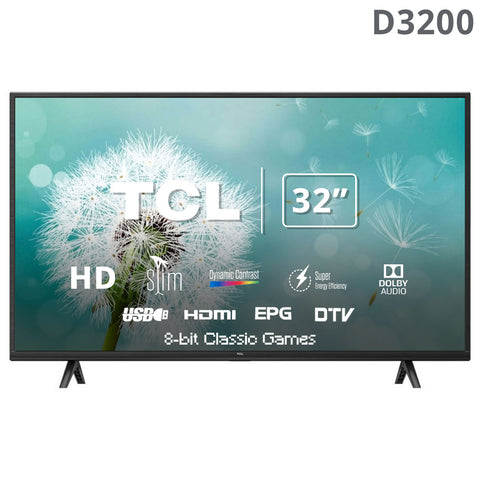

TCL (32D3200) 32” LED HD TV

Brand: TCL

Model: 32D3200

Size: 32-inch

Product Type: LED HD DTV

OSD Language: English/Vietnamese/Thai/France/Spanish/Russian/ Arabic/Farsi/Mongol/Uzbek/Hebrew/Malay/Indonesian/Chinese/Chinese Traditional

TV System:

    • DTV: DVB-C/T/T2

AV System: NTSC, PAL

Power Supply: AC 100V-240V 50/60Hz

Power Consumption (TV On): 50W

Power Consumption (Standby): ≤0.5W

Certification: CB/EMC/Dolby

ECO Energy efficiency: Yes

LED Indicator Status: In The Center of Front lower, White in Standby

AC power cord: Integrated in the TV Set (Default)

Warranty: 12 Months Warranty


Panel Specification

Backlight Unit: LED

Aspect Ratio: 16:9

Panel Active Size (inch): 32”

Display Resolution: 1366 x 768

Brightness (cd/m2): 220 (typ.)

Contrast Ratio: 3000:1

Response Time (G to G): 6.5ms

Viewing Angle (H/V): 178°/178°

Life Time (Typ.): 30,000hrs

Color: 16.7 Million (8bit)

Refresh Rate: 60Hz


Basic Function

Tuning setup:

    • Auto/Manual Tuning, Country select
    • Tune Type: ATV/DTV

TV Program Edit: move/skip/delete

System Lock: set password/channel lock/key lock

Parental Guidance: Yes

Auto Standby: Yes

Time Zone: Yes

Sleep Timer: Yes

System Update: Yes (From USB/OAD)


Audio language/Audio description: For DTV enable

EPG: Yes (Only for DTV Programme)

PVR: Yes (Only for DTV Programme)

Teletext: Yes

Subtitle: Yes

Blue screen (No signal): On/Off



Picture Mode: Vivid, Standard, Mild, User

Contrast/Brightness Adjustable: Yes

Color/Tint/Sharpness Adjustable: Yes

Aspect ratio: Auto/4:3/16:9/Zoom1/Zoom2

Noise Reduction: Off/Low/Middle/High/Default

Backlight Adjustable: Yes (0~10)

Color Temperature: Cold/Normal/Warm

Dynamic Contrast: Yes

Dynamic backlight: Yes


USB Device Media Format


Movie: MPEG1/2/4,H.265,VC1, FLV

Music: MP3/AC3


Signal Format Capability

DVI Video Format: Up to XGA for HDMI-PC

HDMI Video Format: HDMI1.4b, Up to 1080P@60Hz



Speakers: Integrated speakers (bottom side)

Audio Power Output (THD=7%): 2x 5W

Auto Volume Control: Yes

Sound Mode: Standard, Music, Movie, Sports, User

Tune Control: Treble/Bass

SPDIF mode: PCM/Auto

Surround Sound: Yes

Dolby audio: MS11


Terminals (Ports)


    • USB – X1
    • Digital Audio Output (Coaxial) – X1
    • HDMI – X2
    • Antenna / Cable Input – X1
    • AV Input – X1
    • Headphone & Audio Output – X1


Dimensions & Weight

Product (with Stand) (W x D x H): 730.5 x 180.2 x 481.3mm

Product (without Stand) (W x D x H): 730.5 x 74.4 x 432.2mm

Carton Dimensions (W x D x H): 830 x 128 x 520mm

Net Weight with Stand (Kg): 3.45kg

Net Weight without Stand (Kg): 3.4kg
