Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

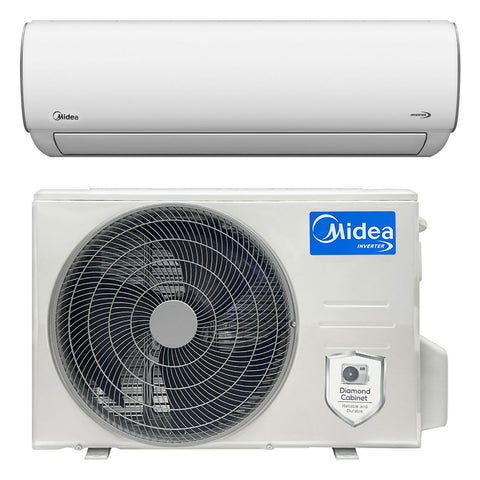

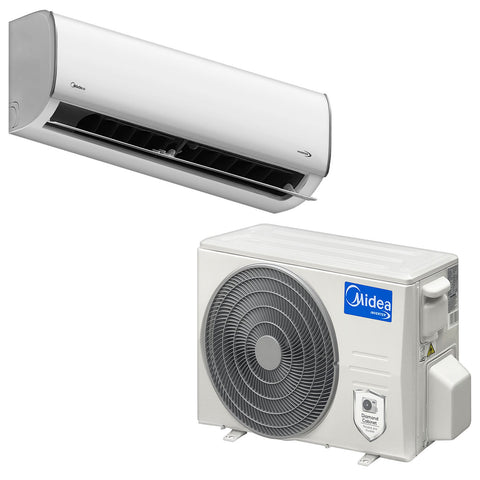

Midea – Air Conditioner

Inverter - Forest Series

Brand: Midea

Model: MSAF-13CRDN8

Capacity: 12000BTU

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 12000
• Input (W): 1150W
• Rated Current (A): 5A
• EER (W/W): 3.06

Max. Input Consumption (W): 2050W

Max. Current (A): 9.5A

Compressor:

• Type: Rotary
• Capacity (W): 3255W
• Input (W): 826W
• Rated current (RLA) (A): 5.65A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

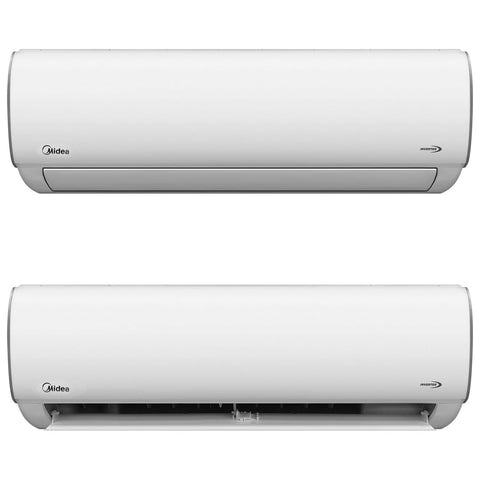

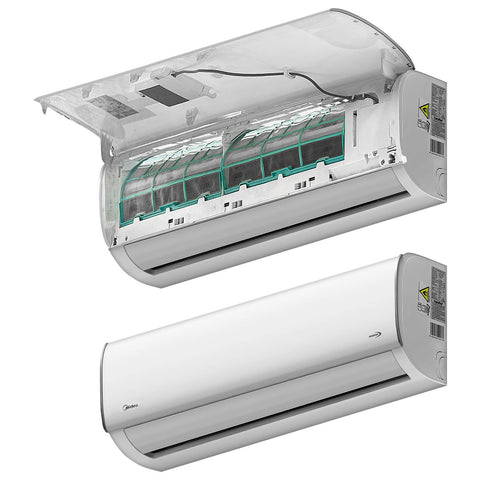

Indoor Unit:

Indoor Fan Motor:

• Input (W): 40W
• Capacitor (uF): 1.2 uF
• Speed (High/Middle/Low): 1200/950/800 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ5, Inner groove tube
6. Coil (length x height x width): 595 x 78 x 23.2mm + 595 x 117 x 23.2mm + 595 x 78 x 23.2mm
7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 599/442/350 m3/h

Indoor noise level (High/Middle/Low): 41.5/35/32.5 dB (A)

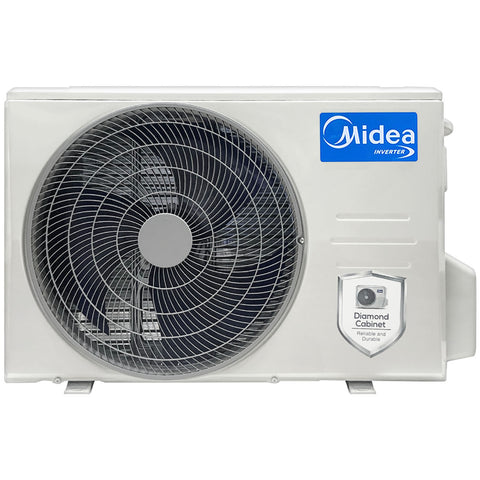

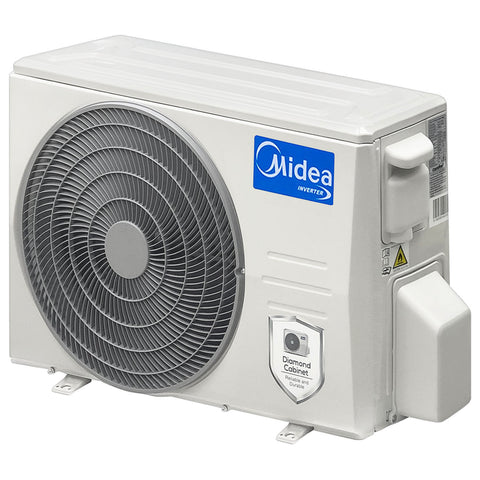

Outdoor Unit:

Outdoor Fan Motor:

• Input (W): 63.5W
• Capacitor (uF): 2.5 uF
• Speed: 860 r/min

Outdoor Coil:

1. Number of rows: 1
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5, Inner groove tube
6. Coil (length x height x width): 740 x 468 x 11.6mm
7. Number of circuits: 2

Outdoor air flow: 1800 m3/h

Outdoor noise level: 55 dB (A)

Additional Specs:

Refrigerant Type: R32/0.38 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
• Max. Refrigerant Pipe Length: 25m
• Max. Difference in Level: 10m

Connection Wiring: 3.5m

Plug Type: BS three flat pin plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• Indoor (Cooling): 17 ~ 32 °C
• Outdoor (Cooling): 0 ~ 50 °C

Application Area (Cooling Standard): 16 ~ 23m²

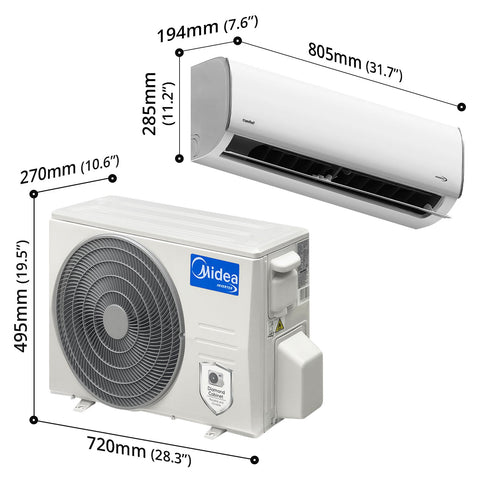

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• Product Dimension: 805 x 194 x 285mm (31.7” x 7.6” x 11.2”)
• Packing Dimension: 870 x 270 x 365mm (34.2” x 10.6” x 14.4”)
• Net Weight: 8.2kg
• Gross Weight: 10.4kg

Outdoor Unit:

• Product Dimension: 720 x 270 x 495mm (28.3” x 10.6” x 19.5”)
• Packing Dimension: 835 x 300 x 540mm (32.9” x 11.8” x 21.3”)
• Net Weight: 21.5kg
• Gross Weight: 23.4kg

Packing Contents:

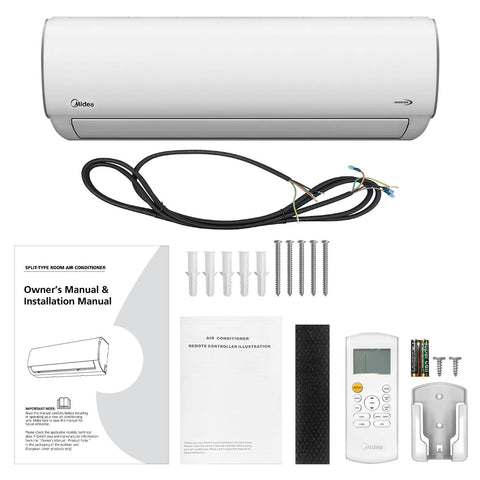

12k BTU Indoor Unit – x1

• Electric Wire – x1

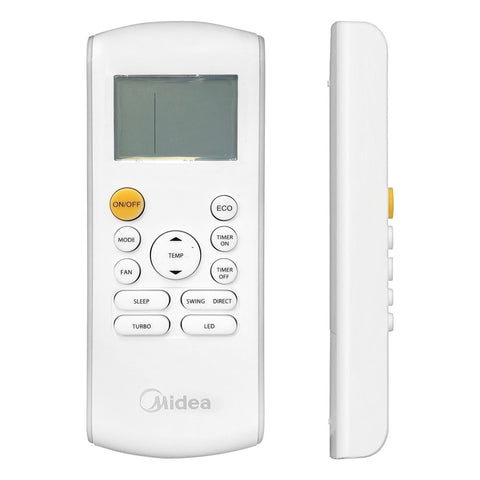

• Remote Control – x1
• AA Battery – x2
• Remote Holder (Wall-Mount) with 2 Screws – x1
• Screws – x5
• Wall Plugs – x5
• Small Filter – x1
• Remote Controller User Manual – x1
• User Manual – x1

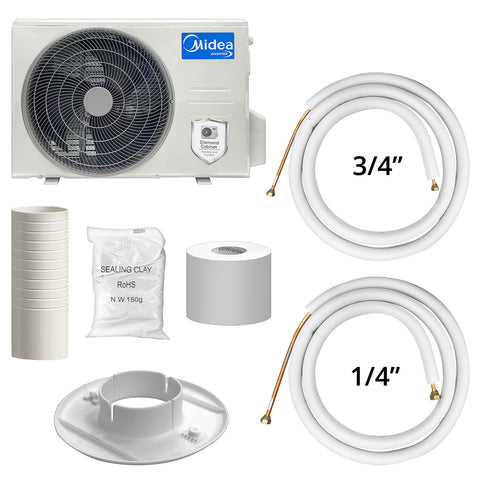

12k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 3/8” Insulated Copper Tube – x1
• Sealing Clay – x1
• Wall Sleeve – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
