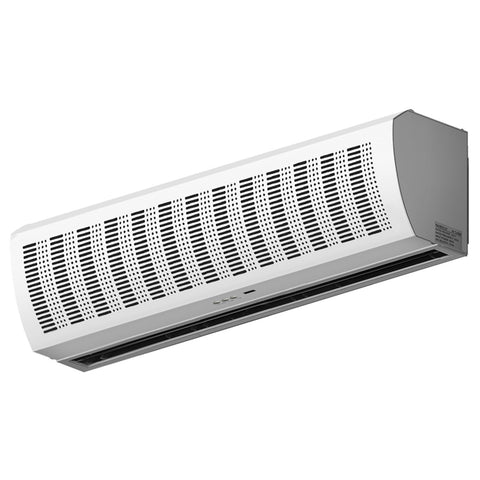

Indoor Air Curtain

Model: FM-5509-L/Y

Color: White

No. of Speeds: 2 (Low/High)

Input Power: 450W

Rated Voltage: 220-240V~

Rated Frequency: 50Hz

Max. Input Flow: 1520 m³/h

Max. Wind Speed: 21 m/s

Noise: ≤52 dB

Effective Height: 5.0 - 5.5m

Material (body): Steel

Features:

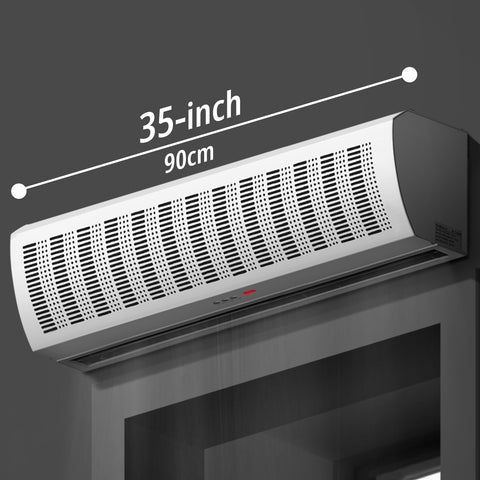

• • 35-inch Compact Design: Ideal for smaller doorways or retail entrances.

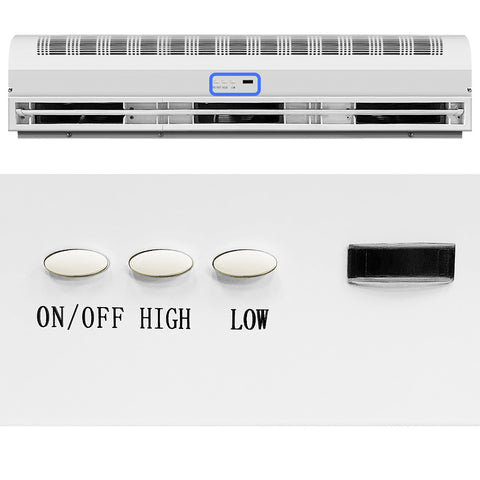

  • 2-Speed Settings: Adjustable fan speeds (Low/High) for different airflow needs.
  • Wind Speed: Maximum wind speed of 21 m/s, creating a strong barrier of air across entryways.
  • Low Noise Operation: Operates at ≤52 dB, suitable for indoor commercial use without disturbing occupants.
  • Air Flow: Provides a stronger airflow up to 1520 m³/h, creating a more robust barrier against air, dust, insects, and pollutants.

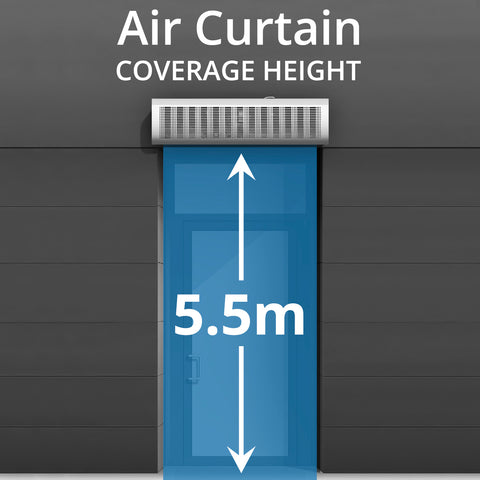

  • Effective Height Coverage: Designed to provide an efficient air barrier for doorways up to 5.0 – 5.5 meters tall, ensuring optimal protection in tall commercial or industrial entrances.

Dimensions & Weights:

Width x Depth x Height

Product Dimension:

• • Millimeter (mm): 900 x 210 x 230mm
  • Inch (”): 35.4” x 8.3” x 9.1”
  • Feet (’) Inch (”): 2’11”x 0’8” x 0’9”

Packing Dimension: 960 x 290 x 270mm (37.8” x 11.4” x 10.6”)

Net Weight: 17.5kg

Gross Weight: 19.0kg

Click here for User Manual
