Indoor Air Curtain

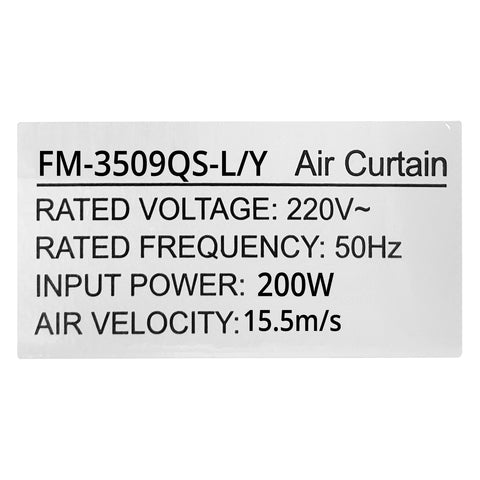

Model: FM-3509QS-L/Y

Color: White

No. of Speeds: 3 (Low/Mid/High)

Input Power: 200W

Rated Voltage: 220-240V~

Rated Frequency: 50Hz

Max. Input Flow: 1080 m³/h

Max. Wind Speed: 15.5 m/s

Noise: ≤44 dB

Effective Height: 3.0 - 3.5m

Material (body): Plastic

Features:

• • 35-inch Compact Design: Ideal for smaller doorways or retail entrances.
  • 3-Speed Settings: Adjustable fan speeds (Low / Mid / High) for flexible airflow control.
  • Wind Speed: Maximum wind speed of 15.5 m/s, creating a strong barrier of air across entryways.
  • Air Flow: Delivers up to 1080 m³/h, effectively blocking external air, dust, insects, and pollutants.
  • Low Noise Operation: Operates at ≤44 dB, suitable for indoor commercial use without disturbing occupants.
  • Effective Height Coverage: Provides an efficient air barrier for doorways up to 3.0 – 3.5 meters tall, ideal for standard commercial entrances with moderate ceiling heights.

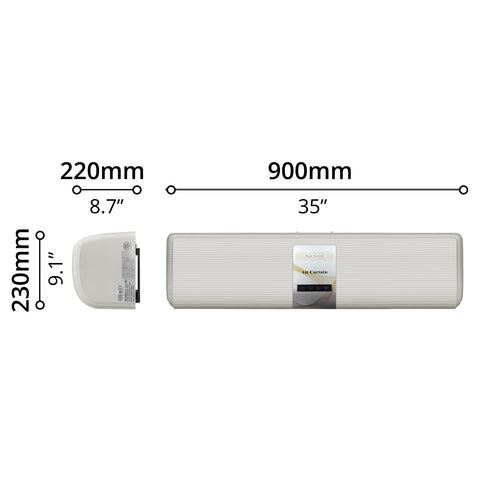

Dimensions & Weights:

Width x Depth x Height

Product Dimension:

• • Millimeter (mm): 900 x 210 x 230mm
  • Inch (”): 35.4” x 8.3” x 9.1”
  • Feet (’) Inch (”): 2’11”x 0’8” x 0’9”

Packing Dimension: 960 x 290 x 270mm (37.8” x 11.4” x 10.6”)

Net Weight: 13.5kg

Gross Weight: 15.0kg

Click here for User Manual
