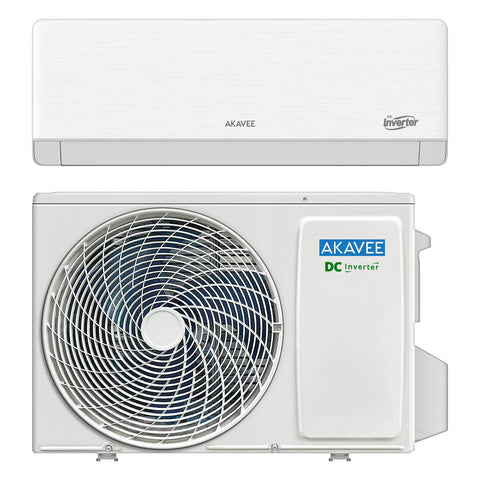

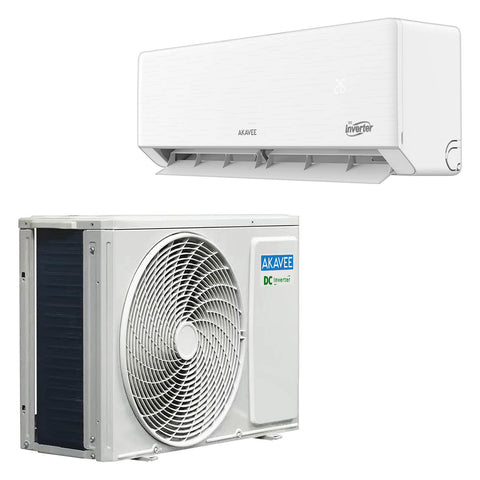

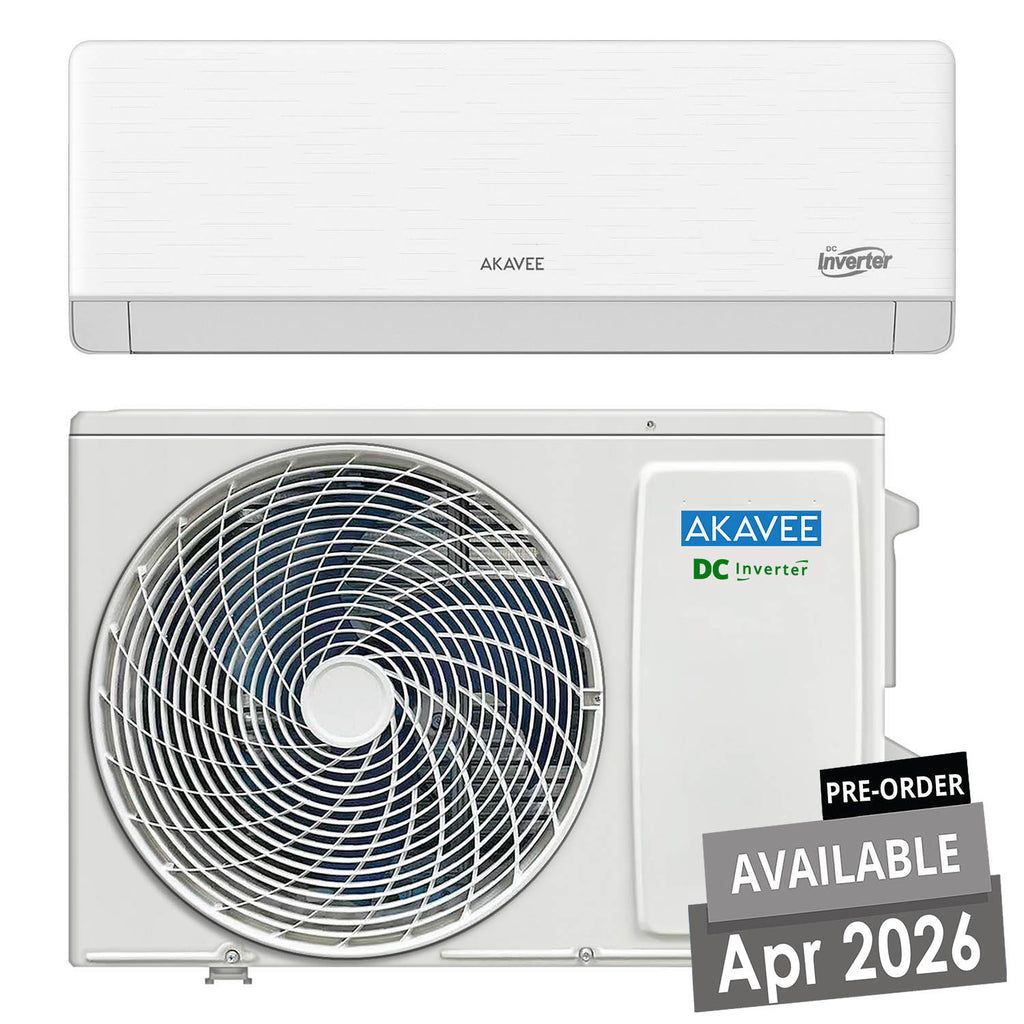

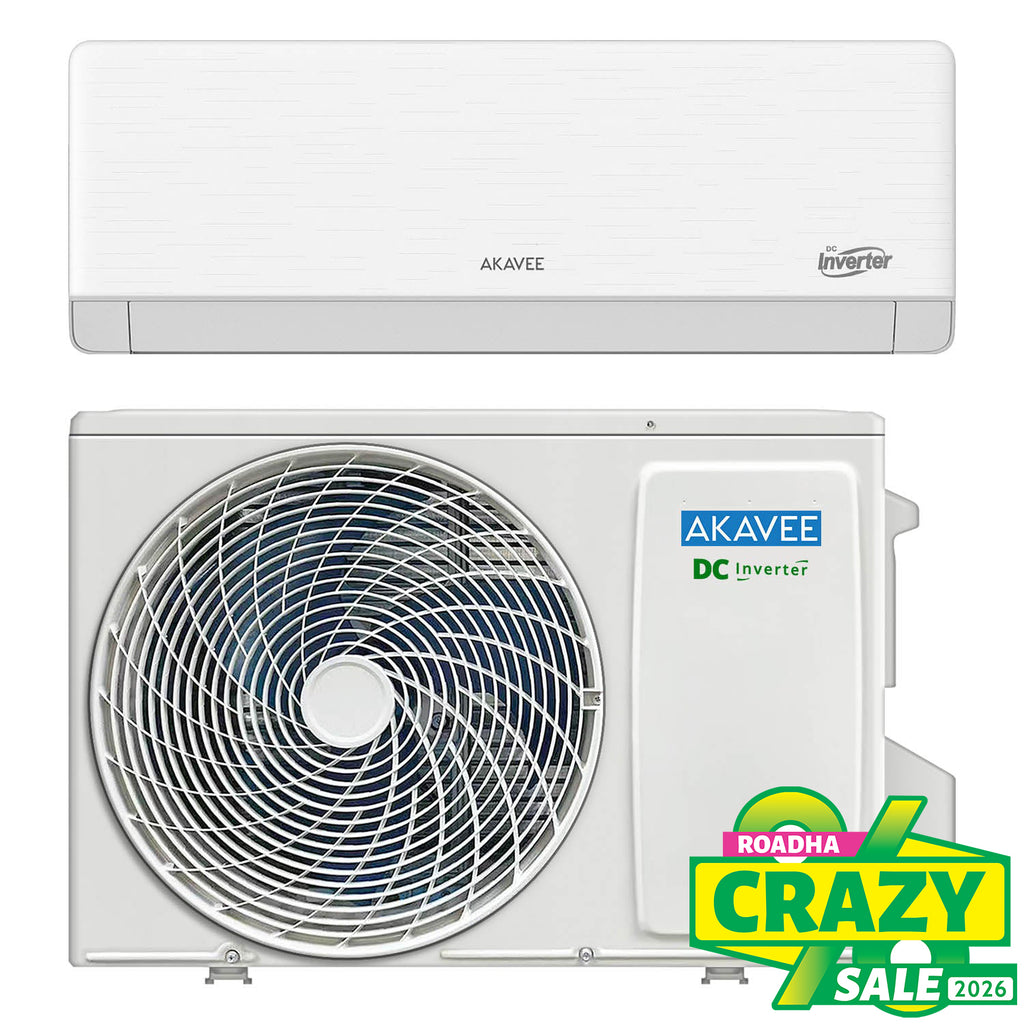

24000 BTU AC (Inverter)
Share:
SKU: 59068
INVERTER WIFI READY
Model no: AS-24MER3DI
Brand: AKAVEE
ALU: 9959068
Size: 24000BTU
|
Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes and any kind of carpentry or electrical works. All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation. |
| Akavee Air Conditioner (24000BTU) | |
| Brand: | Akavee |
| Model: | AS-24MER3DI |
| Type: | DC Inverter Split Type |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Technical Specs: | |
| Rated Capacity (Cooling): | 7100 W |
| Dehumidifying: | 2.2 Kg/h |
| Rated Power Consumption (Cooling): | 2200 W |
| Rated Running Current: | 11 A |
| Max. Input Power: | 2800W |
| Max. Input Current: | 15A |
| CSPF (Cooling Seasonal Performance Factor): | 4.56 W/W |
| Air Flow Volume: | 1300m³/h |
| Power Supply Source: | 220-240V / 1Ph / 50Hz |
| Refrigerant & Pressure: | |
| Refrigerant: | R32 |
| Refrigerant Charged: | 850g |
| Max. Discharge Pressure: | 4.3Mpa |
| Max. Suction Pressure: | 2.5Mpa |
| Connection: | |
| Connect Pipe (Length): | 3m |
| Liquid Valve: | DG4 |
| Gas Valve: | DG10 |

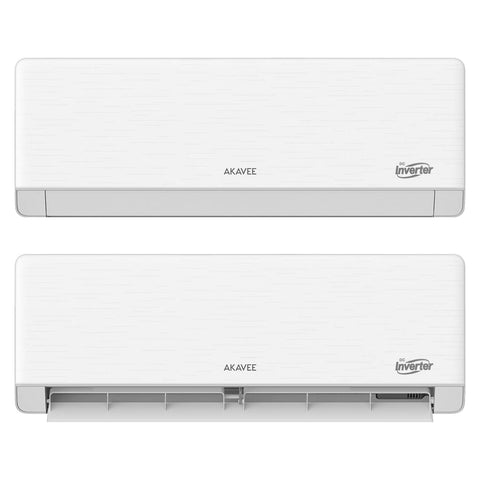

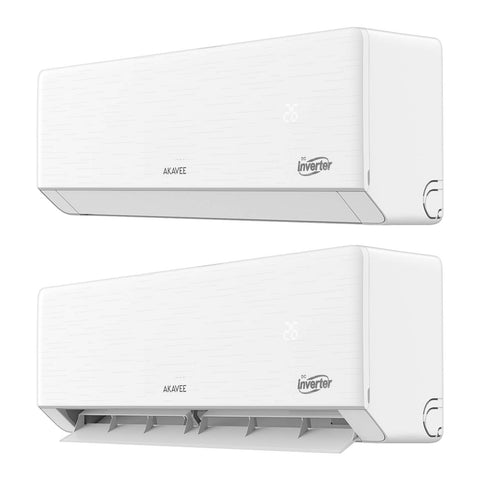

| Indoor Unit: | |
| oise Level: | 47db |
| Evaporator (tube) Length: | 850mm |
| Evaporator (tube) Diameter: | 5mm |
| Fan system (fan motor): | Model D-310-50-10A |

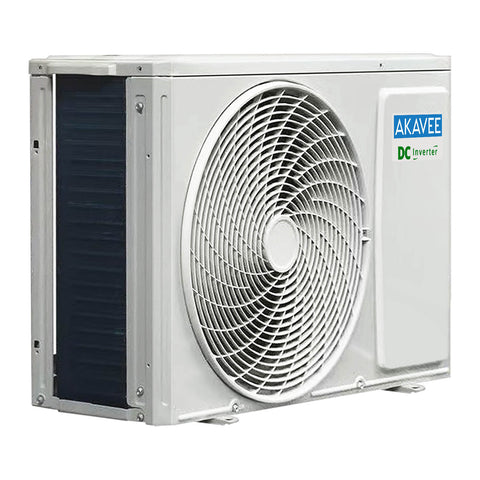

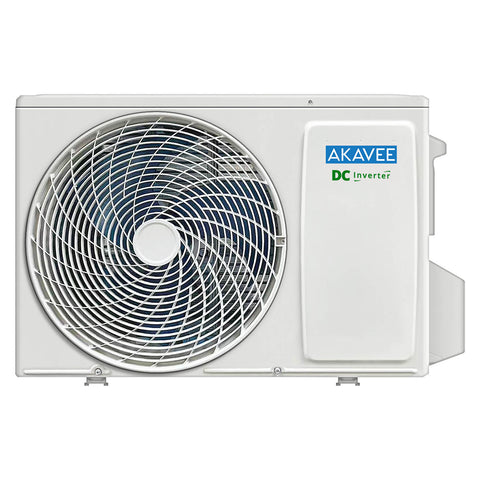

| Outdoor Unit: | |
| Noise Level: | 57db |
| Compressor Model: | GMCC |
| Compressor Parameter (type): | Rotation |
| Fan system (fan motor): | Model D-60-10M |
| Condenser (tube) Length: | 886mm |
| Condenser (tube) Diameter: | 7mm |

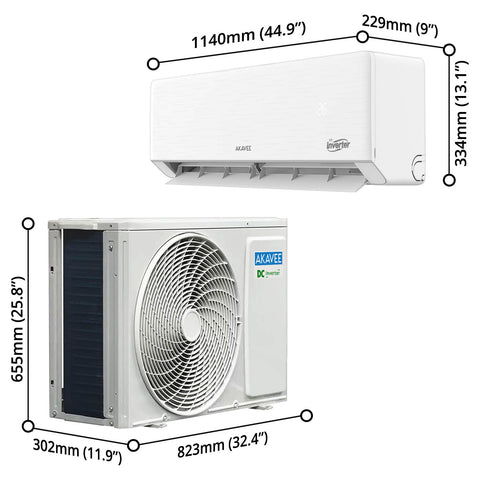

| Dimension & Weight: | |
| Indoor Unit (W x D x H): | |
| Product Dimension: | 1140 x 229 x 334mm (44.9” x 9” x 13.1”) |
| Packing Dimension: | 1210 x 327 x 400mm (47.6” x 12.9” x 15.7”) |
| Net Weight: | 13kg |
| Gross Weight: | 17kg |
| Outdoor Unit (W x D x H): | |
| Product Dimension: | 823 x 302 x 655mm (32.4” x 11.9” x 25.8”) |
| Packing Dimension: | 945 x 400 x 715mm (37.2” x 15.7” x 28.1”) |
| Net Weight: | 28.5kg |
| Gross Weight: | 33kg |

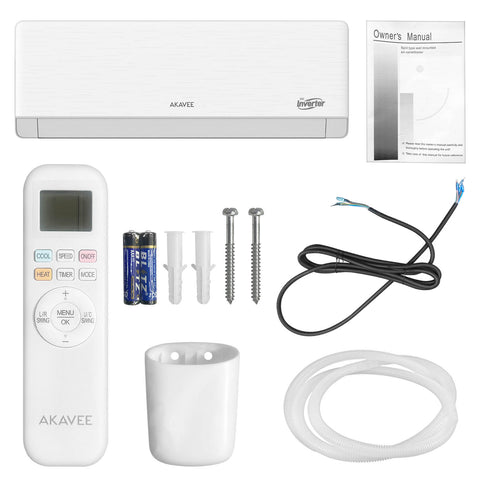

| Packing Contents: | |
| 24k BTU Indoor Unit x1 | |

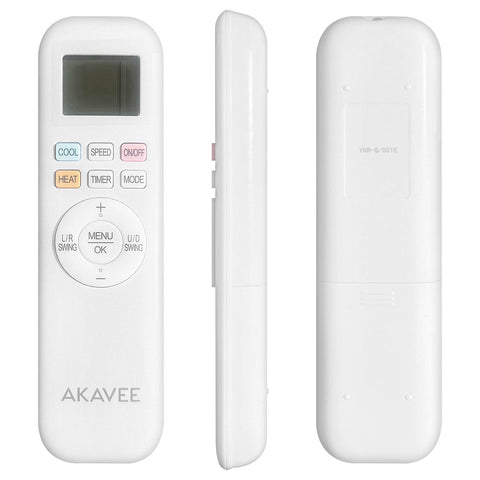

| Remote Control | x1 |
| Remote Holder (Wall-Mount) | x1 |
| Screws with Plugs | x2 |
| AA Battery | x2 |
| Electric Wire | x1 |
| Drainage Hose | x1 |
| User Manual | x1 |
| 24k BTU Outdoor Unit x1 | |
| Insulated Copper Tube | x1 |
| Insulated Copper Tube | x1 |
| Wrapping Roll | x1 |
