Specification

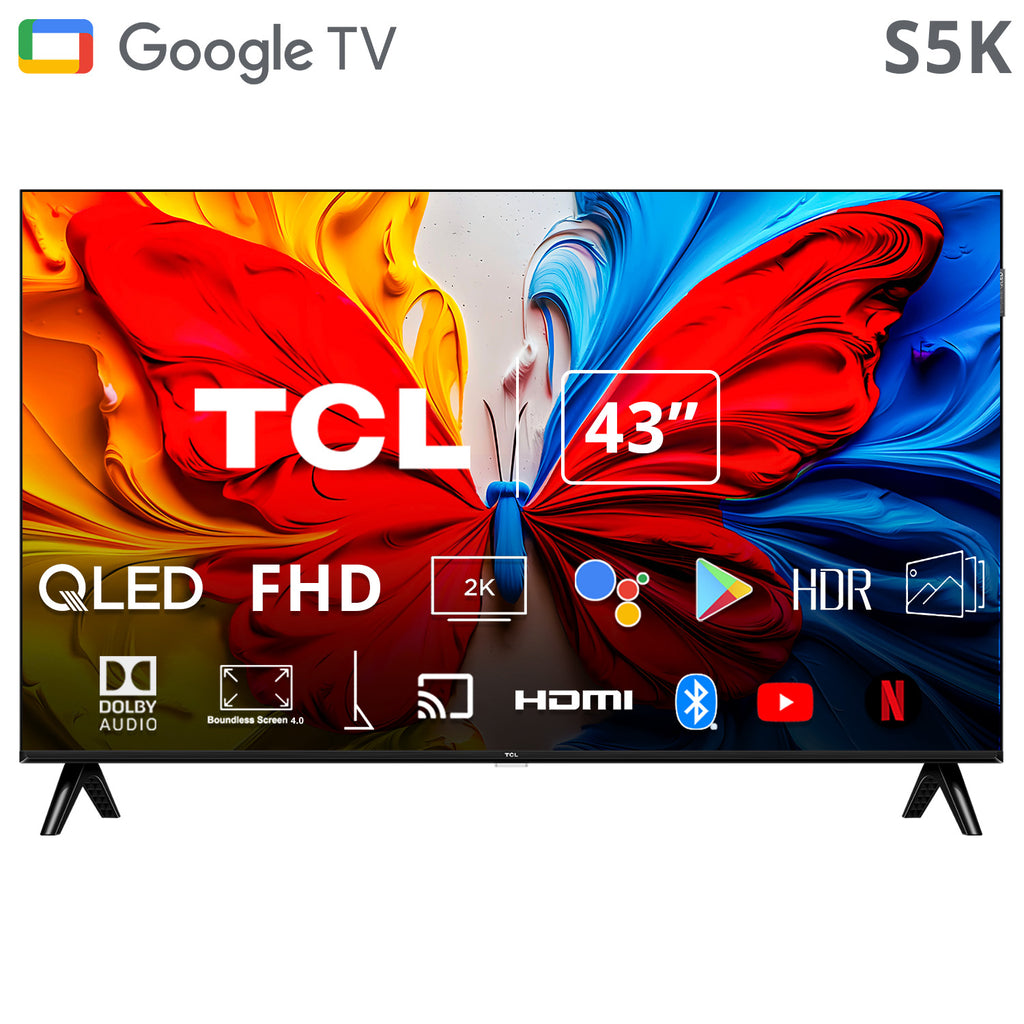

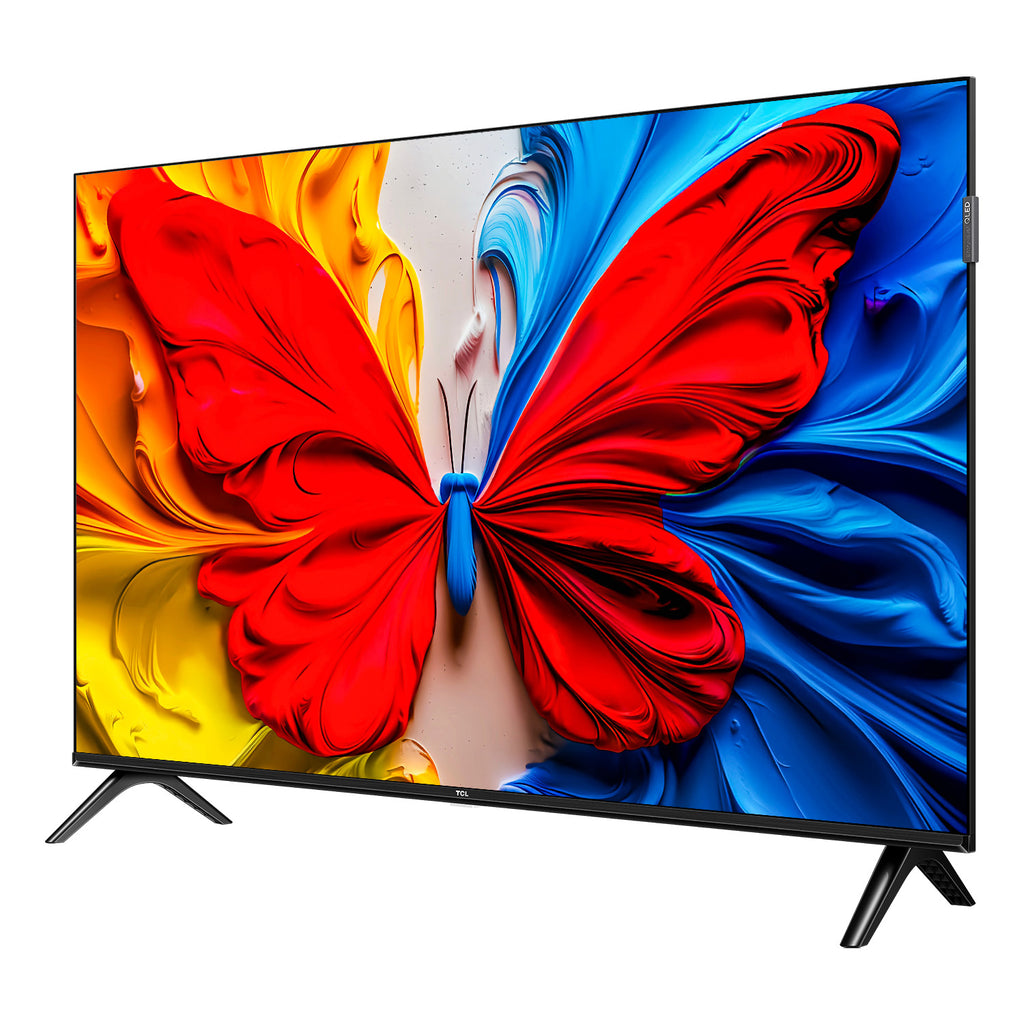

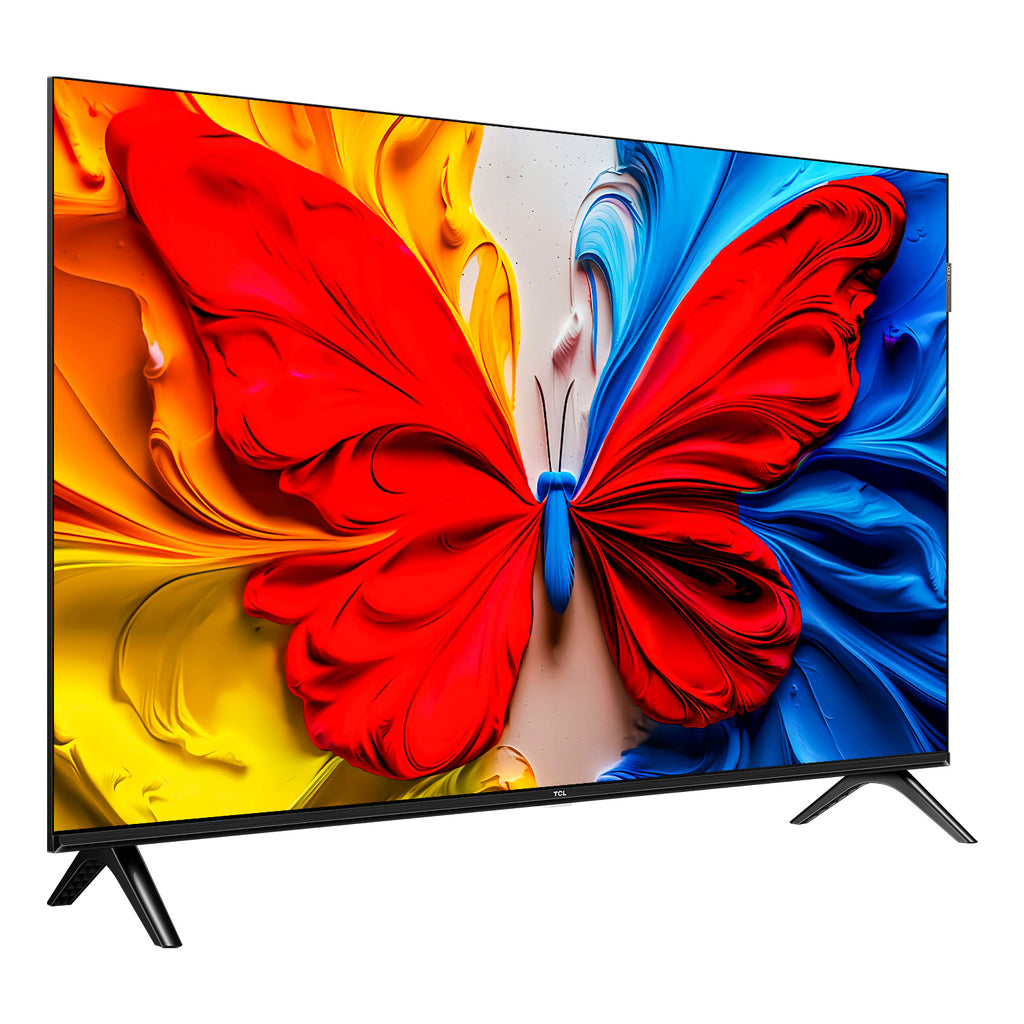

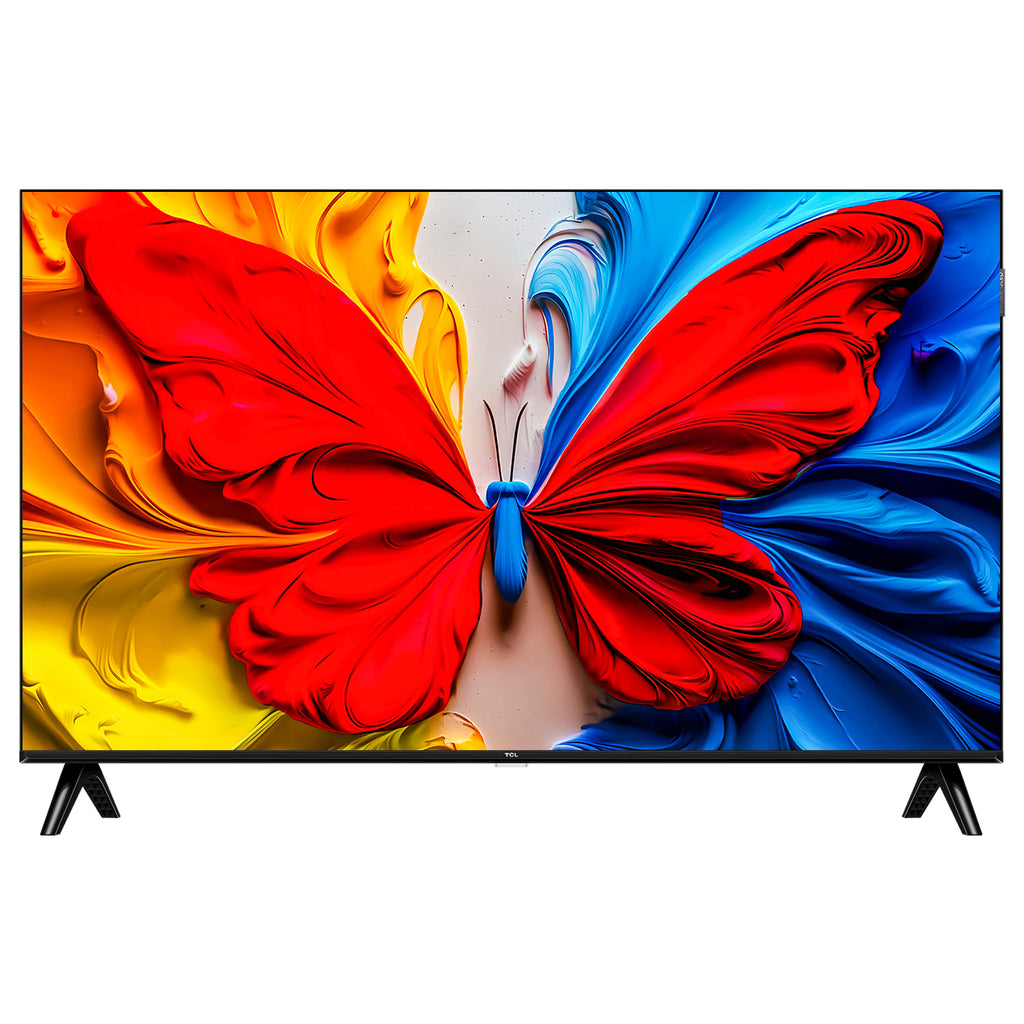

TCL 43” FHD QLED Google TV

Basic Information

Brand: TCL

Model: 43S5K

Size: 43-inch

Display Type: FHD QLED

Operating System: Google TV

CPU: CA55x4 @1.1GHz

RAM / Storage: 1GB / 8GB

Local Dimming: No

Wireless: Wi-Fi 4

Bluetooth: BT 5.0

Power Supply: AC 100V-240V 50/60Hz

Power Consumption

• TV On: 80W
• Standby: 0.5W

ECO Energy Efficiency: Yes

Warranty: 12 Months Warranty

Panel Specification:

Screen Size (Diagonal): 43-inch (42.5" active area)

Resolution: 1920 × 1080 (FHD)

Backlight Unit: DLED

Aspect Ratio: 16:9

Brightness (cd/m2): 300 (typ.); 250 (min.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Color: 16.7 million (8bit)

Refresh Rate (Hz): 60Hz

MEMC: No

Picture:

Picture Preset: User, Standard, Vivid, Sport, Movie, Game, Energy Saving

Picture certification: HDR10, HLG

Audio

Speakers: Integrated Speakers (Bottom Side)

Channel Configuration: 2.0CH

Audio Power Output (THD=7%): 2x 10W

Sound Mode: User, Standard, Vivid, Sports, Movie, Music, News

Audio Certification: Dolby audio

USB Device Media Format:

Music: MP3, AC3, AC4

Picture: JPEG, PNG, BMP, GIF

Multimedia Video/Audio Decoder: H.264, H.265, MPEG1/2/4, WMV, VC1, VP8, VP9, AV1

Video Format: Up to 1920x1080@60Hz

USB Mouse/Keyboard Support: Yes

Basic Function:

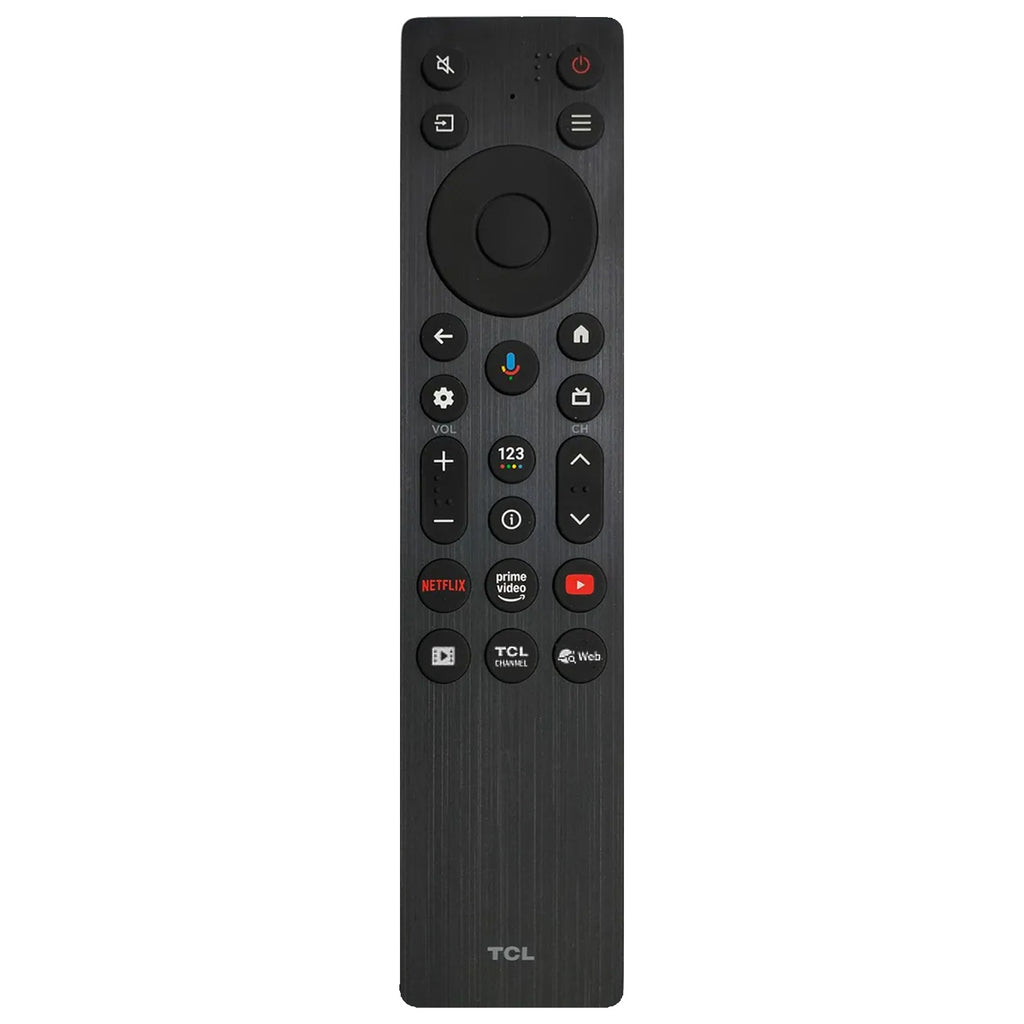

Google Assistant: Voice input via remote control (Optional)

Input Method: Gboard, Virtual Remote Keyboard

HDMI CEC: Yes

EPG: Yes (for DTV only)

Closed Caption/Subtitle: Yes (for DTV only)

Parental Control: Yes (for DTV only)

Featured Apps:

• Google Play Store – Access apps & games
• YouTube – Watch online content
• Netflix – Stream movies & series
• Google Play Games – Game platform
• Google Play Movies & TV – Watch movies/shows
• Google Cast – Cast content from phone/tablet/laptop
• Media Center – USB media playback

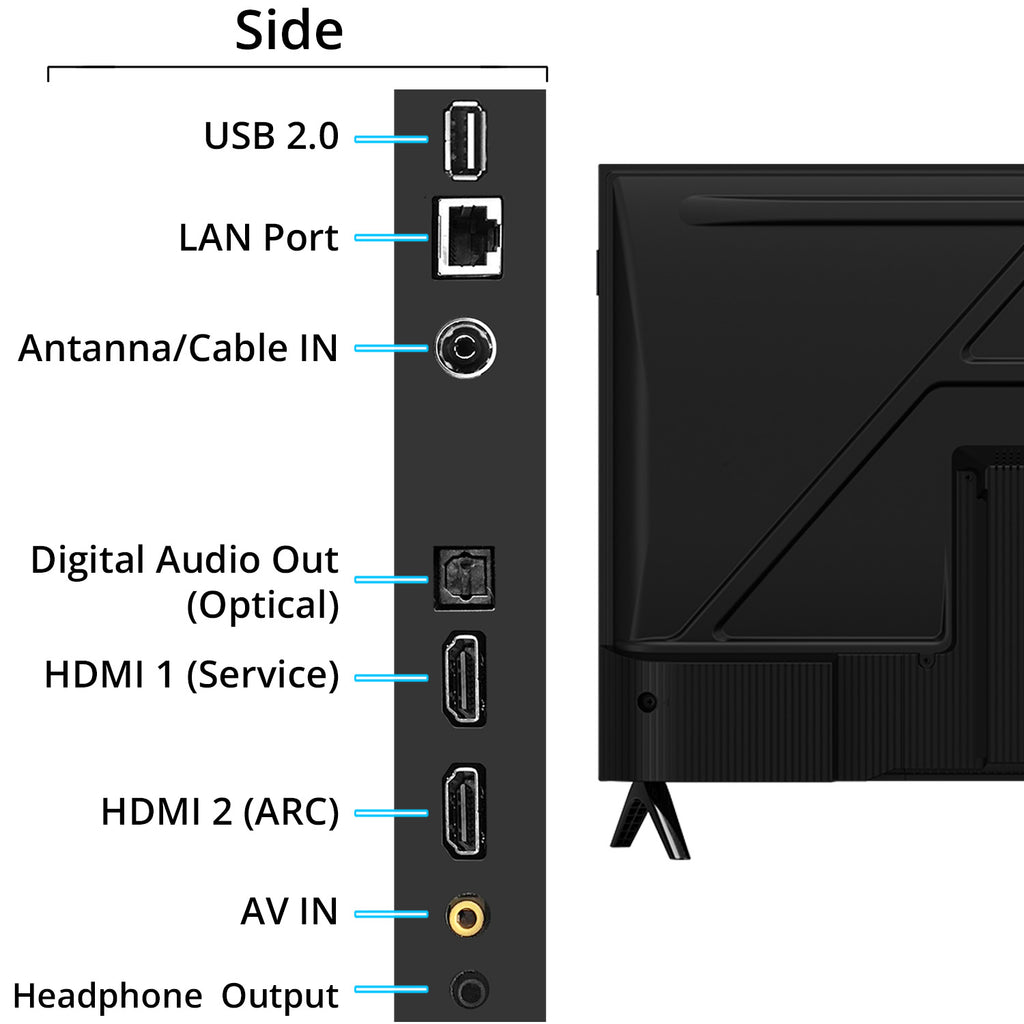

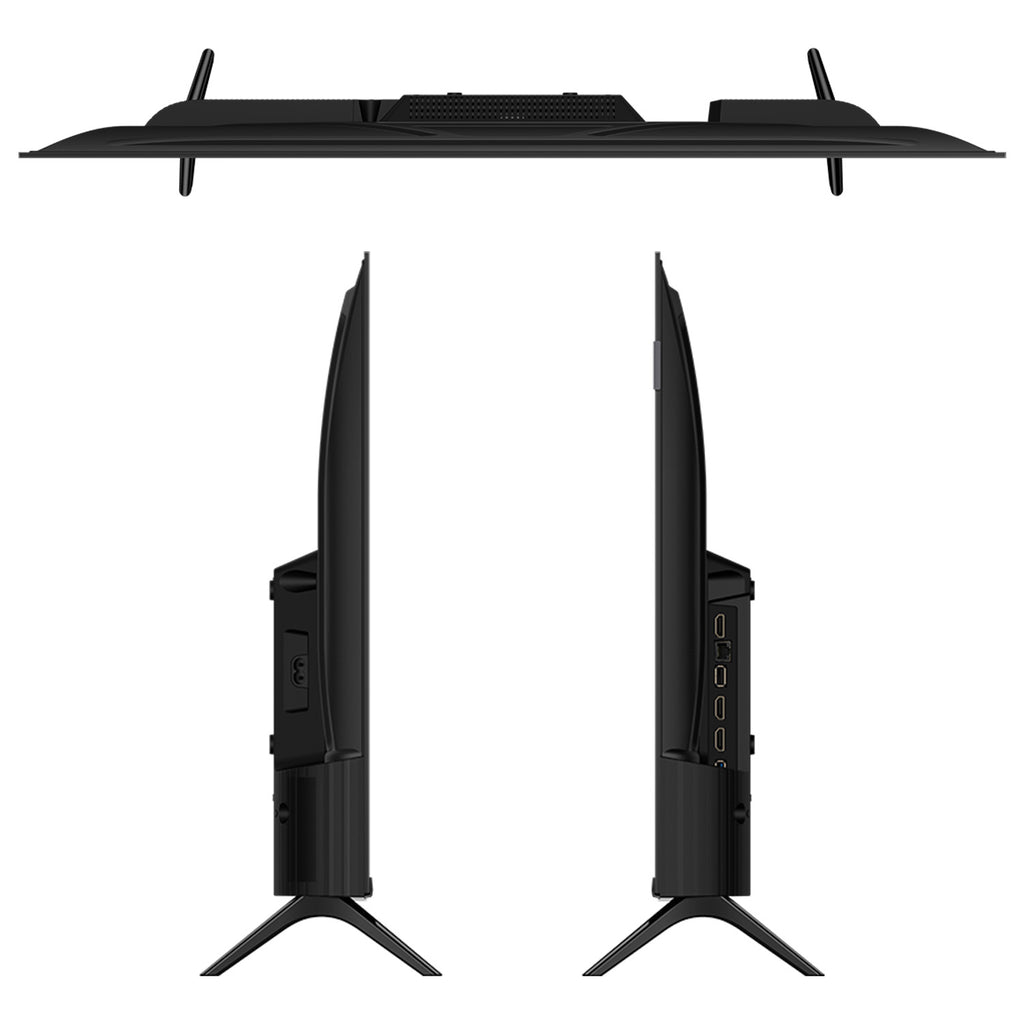

Connectivity:

Right Side:

• USB 2.0 – x1
• LAN Port – x1
• Antenna/Cable In – x1
• Digital Audio Output (Optical) – x1
• HDMI 1 (Service) – x1
• HDMI 2 (ARC) – x1
• AV Input – x1
• Headphone Output – x1

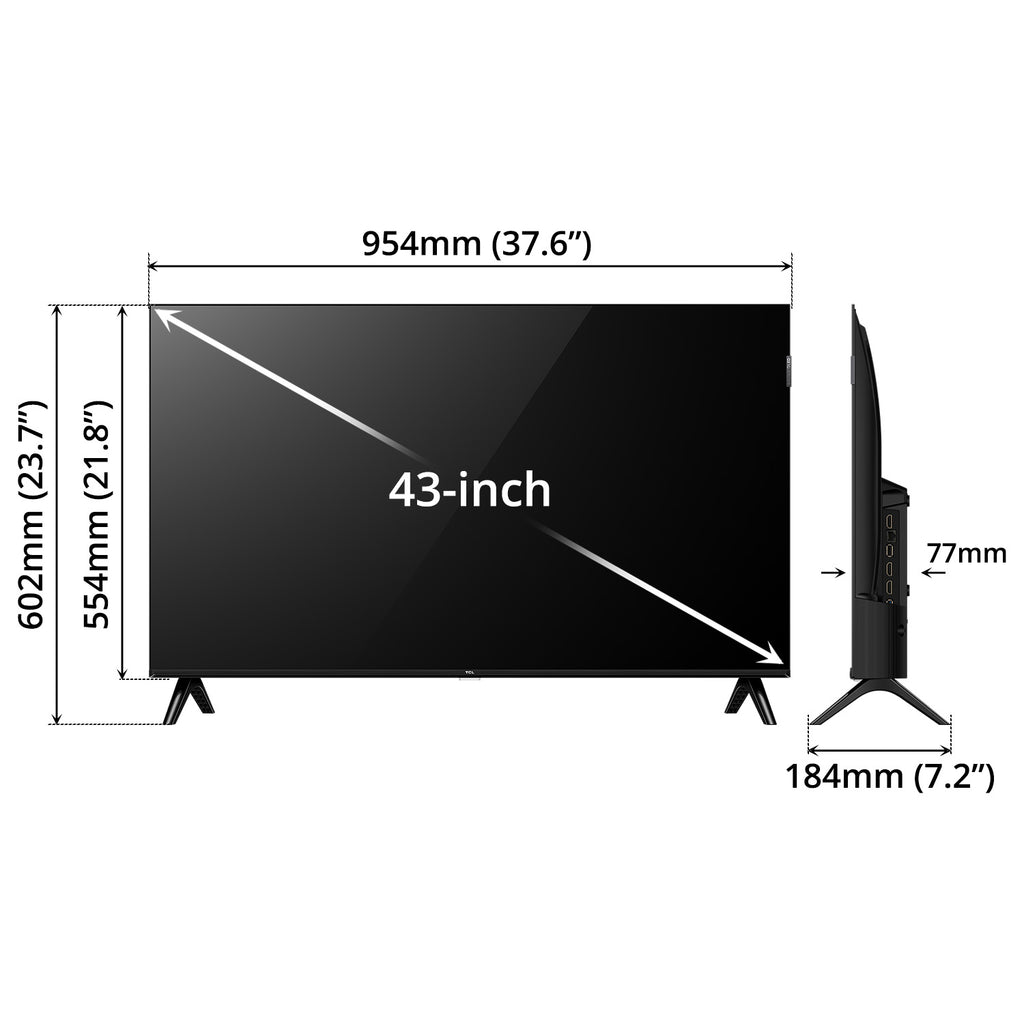

Dimensions & Weight:

Product Dimension with Stand (W x D x H): 954 x 184 x 602mm (37.6” x 7.2” x 23.7”)

Product Dimension without Stand (W x D x H): 954 x 77 x 554mm (37.6” x 3” x 21.8”)

Carton Dimension (W x D x H): 1075 x 122 x 646mm (42.3” x 4.8” x 25.4”)

Net Weight (with Stand): 5.08kg

Net Weight (without Stand): 5.02kg

Gross Weight (with Packaging): 7.18kg
