Specification

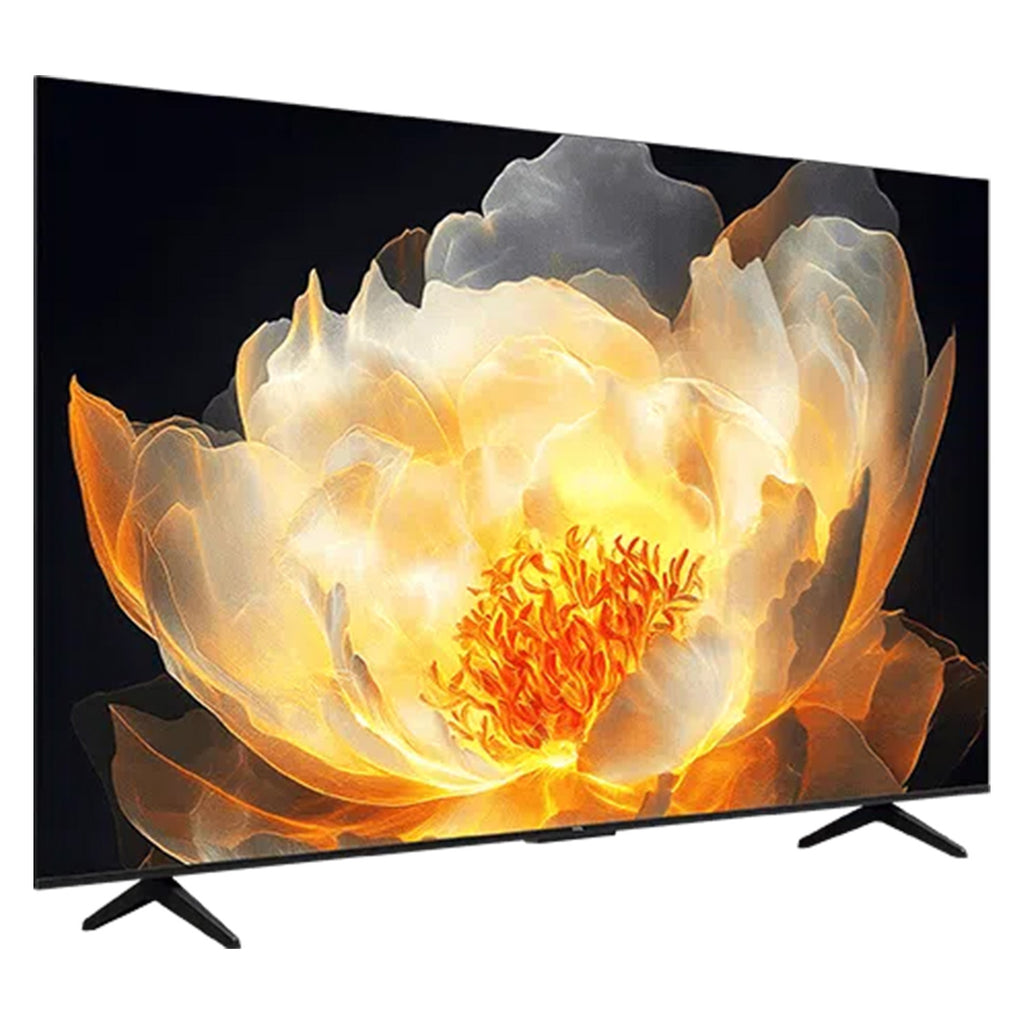

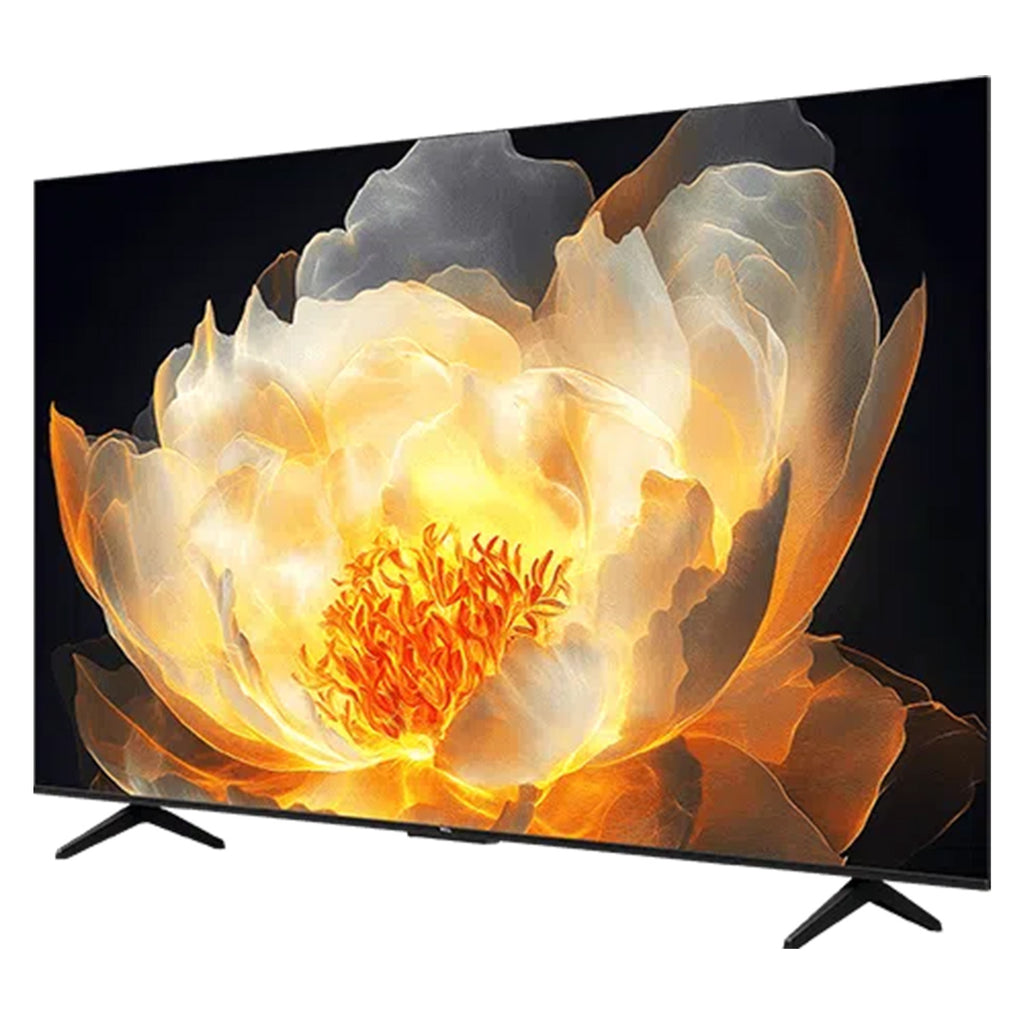

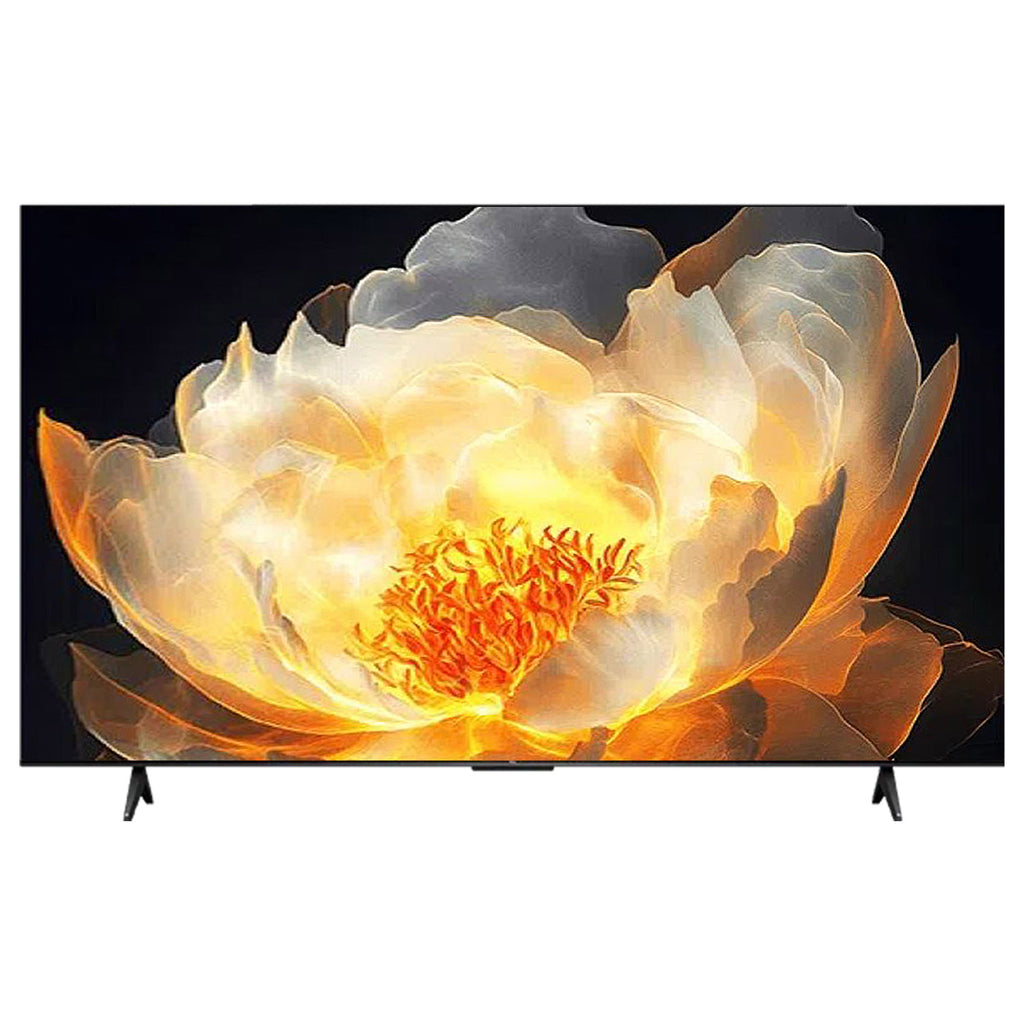

TCL 75” 4K UHD Google TV

Basic Information:

Brand: TCL

Model: 75V6C

Size: 75-inch

Display Type: 4K LED

Operating System: Google TV

CPU: A75x2 + A55x2

RAM / Storage: 2GB / 16GB

Local Dimming: No

Wireless: Wi-Fi 5

Bluetooth: BT 5.2

Power Supply: AC 100V-240V 50/60Hz

Power Consumption:

• TV On: 200W
• Standby: 0.5W

ECO Energy Efficiency: Yes

VESA Hole Pattern: 200 x 200mm

Warranty: 12 Months Warranty

Panel Specification:

Screen Size (Diagonal): 75-inch (74.5” active area)

Resolution: 3840 x 2160 (4K UHD)

Aspect Ratio: 16:9

Brightness (cd/m2): 330 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Color: 1.07G 8bit + FRC

Color Gamut: 72% NTSC (typ.)

Refresh Rate (Hz): 60Hz (DLG 120)

MEMC: 60Hz

Picture:

Picture Preset: Intelligent, Vivid, Standard, Sports, Movie, Game

Picture certification: HDR10

Audio:

Speakers: Integrated Speakers (Bottom Side)

Channel Configuration: 2.0CH

Audio Power Output (THD=7%): 15W

Sound Mode: Dynamic, Standard, Movie, Music, Voice, Game, Sport

Audio Certification: Dolby audio

USB Device Media Format:

Music: MP3, MKV, WMA, AV

Picture: JPEG, PNG, BMP, HEIF codec

Multimedia Video/Audio Decoder: H.264, H.265, MPEG1/2/4, WMV, VC1, VP8, VP9, AV1

Video Format: Up to 4k@60Hz

USB Mouse/Keyboard Support: Yes

Basic Function:

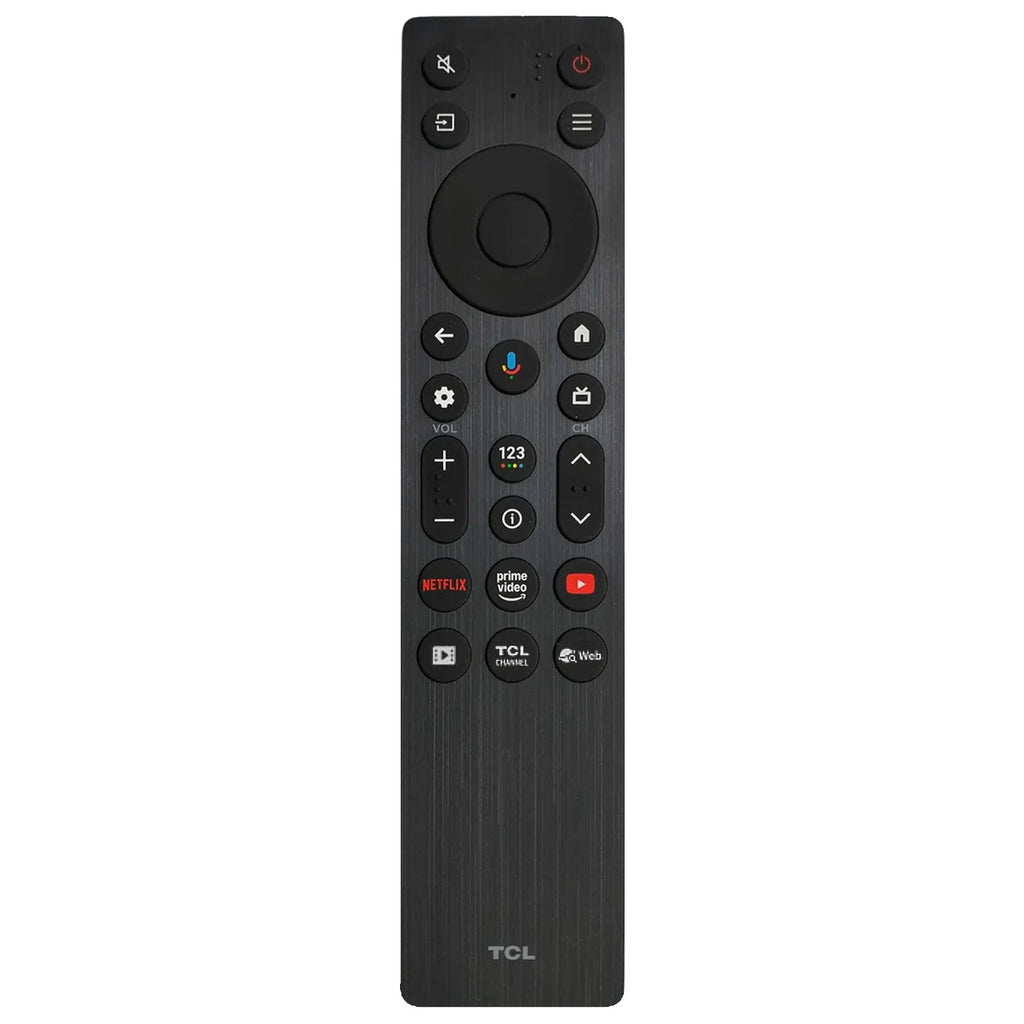

Google Assistant: Voice input via remote control

Input Method: T-IME, Gboard, Virtual Remote Keyboard

HDMI CEC: Yes

EPG: Yes (for DTV only)

Closed Caption/Subtitle: Yes (for DTV only)

Parental Control: Yes (for DTV only)

Featured Apps:

• Google Play Store – Access apps & games
• YouTube – Watch online content
• Netflix – Stream movies & series
• Google Play Games – Game platform
• Google Play Movies & TV – Watch movies/shows
• Google Cast – Cast content from phone/tablet/laptop
• Media Center – USB media playback

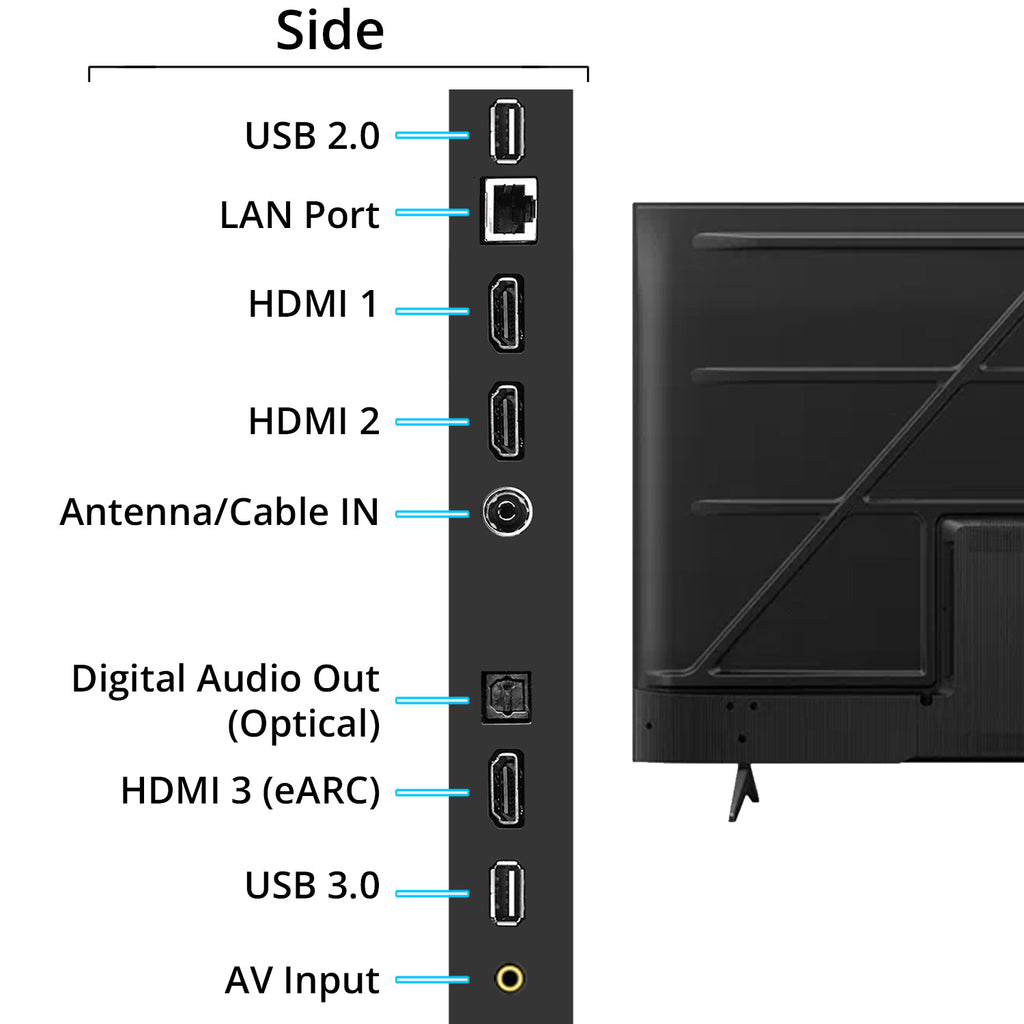

Connectivity:

Right Side:

• USB 2.0 – x1
• LAN Port – x1
• HDMI 1 – x1
• HDMI 2 – x1
• Antenna/Cable In – x1
• HDMI 3 (eARC) – x1
• Digital Audio Output (Optical) – x1
• USB 3.0 – x1
• AV Input – x1

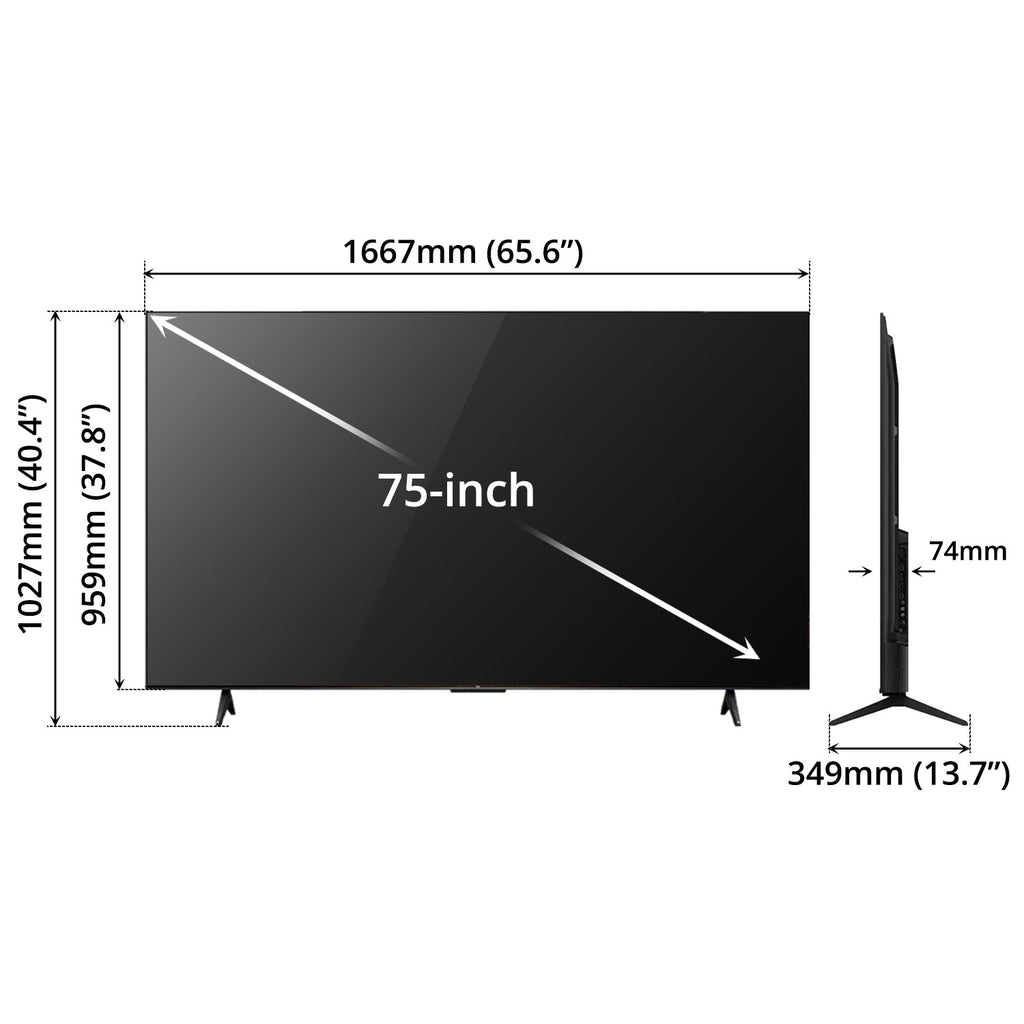

Dimensions & Weight:

Product Dimension with Stand (W x D x H): 1667 x 349 x 1027mm (65.6” x 13.7” x 40.4”)

Product Dimension without Stand (W x D x H): 1667 x 74 x 959mm (65.6” x 2.9” x 37.8”)

Carton Dimension (W x D x H): 1850 x 178 x 1125mm (72.8” x 7” x 44.3”)

Net Weight (with Stand): 18.2kg

Net Weight (without Stand): 18kg

Gross Weight (with Packaging): 27.8kg
