Specification

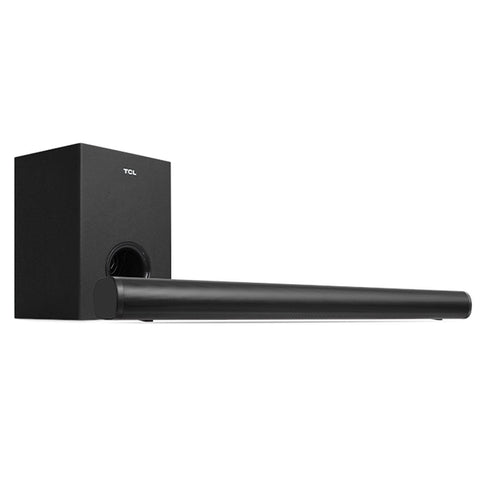

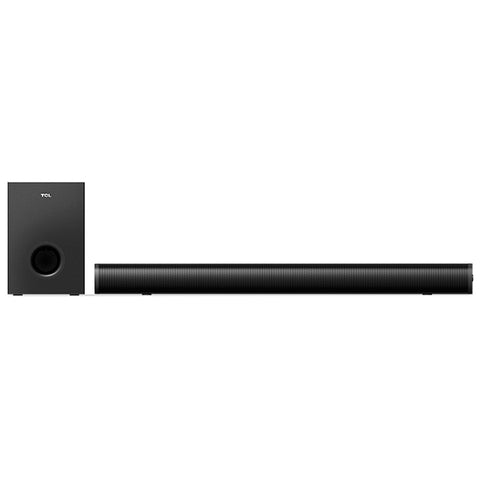

TCL – Sound Bar

2.1 Channel Soundbar with Wireless Subwoofer

Brand: TCL

Model: S522W

Color: Black

Sound Bar Length: 810mm (31.8”)

Speaker frequency: 50Hz-20KHz

Bluetooth Version: v5.1

Bluetooth Range: up to 10m

Warranty: 12 Months Warranty

Sound Bar:

• Driver Dimensions: 2.25" driver
• Sound Pressure Level: 87 db (±3dB)
• EQ Settings: Music/Movie/News/Treble/Bass

Subwoofer:

• Subwoofer included: Yes
• Wired/Wireless/Built-in: Wireless
• Subwoofer Driver Dimensions: 5.25" driver

Features:

• Ideal for 32” TVS and above.
• Max. Audio Power 200W
• Channels: 2.1 CH
• Bluetooth v5.1
• HDMI with ARC
• Wall-Mountable (kit included)
• Stream Music Wirelessly
• Specialized sound modes
• Slim and Sleek Design
• LED indicator: Multi-color LED
• Keypad: On/O, Vol -, Vol+, BT

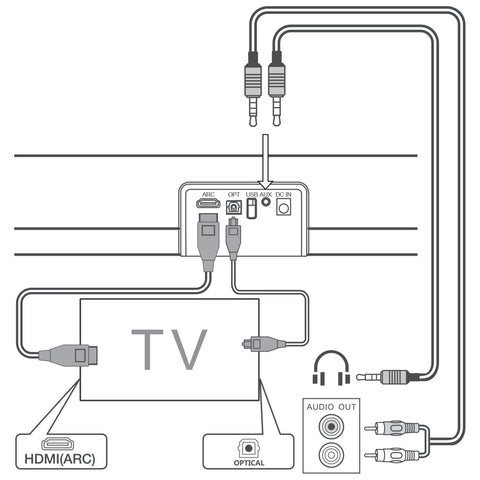

Connectivity:

• HDMI ARC – x1
• Digital Audio Output (Optical) – x1
• USB – x1
• 3.5mm AUX in – x1

USB Feature:

• Audio format support: MP3, WMA, WAV
• Software Upgrade: Yes

Power:

• Rated Power: 200W
• Power Consumption (Sound Bar): 9W
• Power Consumption (Subwoofer): 10W
• Standby Power (Both): <0.5W

Dimension & Weight:

Dimension:

• Sound bar Size (W x D x H): 810 x 99 x 70mm (31.9” x 3.9” x 2.8”)
• Subwoofer Size (W x D x H): 165 x 240 x 298mm (6.5” x 9.5 x 11.7”)
• Package Size (W x D x H): 842 x 200 x 375mm (33.1” x 7.9” x 14.8”)

Weight:

• Sound bar Weight: 1.34kg
• Subwoofer Weight: 2.05kg
• Package Weight: 4.96kg

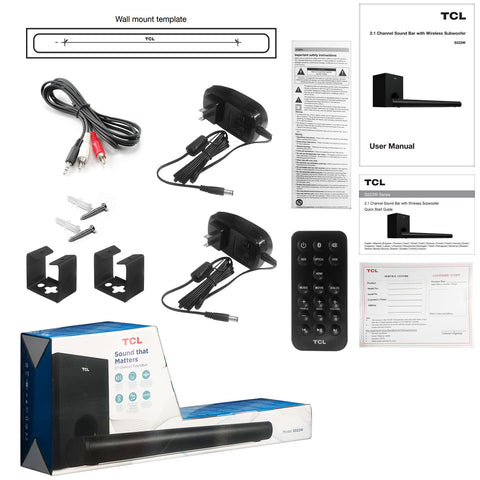

Packing Contents:

• Sound Bar – x1
• Subwoofer – x1

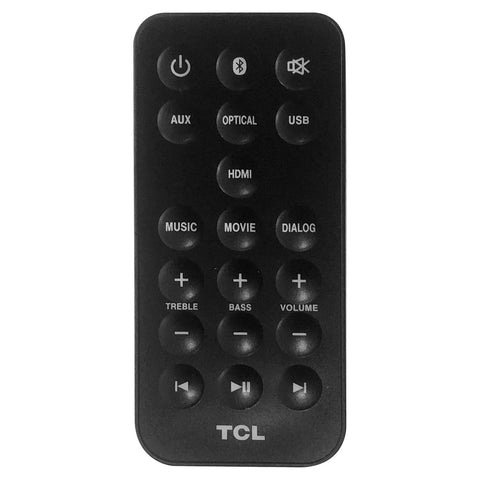

• Remote control – x1

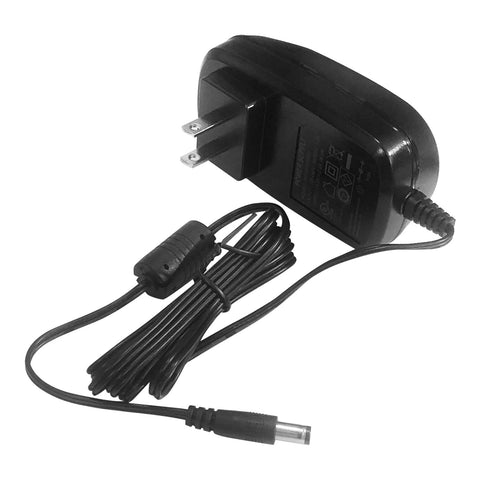

• AC Adaptors – x2
• Aux Cable (3.5mm to RCA) – x1
• Wall Mount Bracket – x2
• Screws – x2
• Screw Plugs – x2
• Wall Mount Template – x1
• Service Center (Customer’s copy) – x1
• Important Safety Instructions – x1
• Quick Start Guide – x1
• User Manual – x1
