48000 BTU 4-Way Cassette AC (Inverter)
Share:
SKU: 54692
INVERTER FOUR-WAY
Model no: MCD1-48CRDN8
Brand: MIDEA
ALU: 39062
Size: 48000BTU
Size:
| Midea – Cassette AC (48000BTU) | |
| Inverter Four-Way | |
| Brand: | Midea |
| Model: | MCD1-48CRDN8 |
| Product Type: | Inverter Four-Way Cassette |
| Capacity: | 48000 BTU |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Indoor Unit Specs: | |
| Type: | Cooling Only |
| Control Type: | Remote |
| Power Supply (V, Ph, Hz): | 380 - 415V, 3-Phase, 50Hz |
| Cooling Performance: | Cooling Capacity (Btu/h): 48000Btu/h Input (W): 5800W Rated Current (A): 8.3 A EER (W/W): 2.43 |
| Rated Power Input: | 7050W |
| Rated Current: | 13A |
| Capacitor: | 5 uF |
| Indoor Fan Motor Speed (High/Middle/Low) | 760/690/610 r/min |
| Indoor Air Flow (High/Middle/Low) | 2000/1800/1600 m³/h |
| Indoor Noise Level (High/Middle/Low) | 55/53/50 dB(A) |
| Indoor Coil: | Number of rows: 3 Tube pitch (a) x row pitch (b): 21 x 13.37mm Fin spacing: 1.3mm Fin type (code): Golden Hydrophilic aluminum Tube outside dia. and type: Φ7, Inner groove tube Coil (length x height x width): 980 x 252 x 40.11mm + 980 x 252 x 40.11mm Number of circuits: 10 |
| Drainage Water Pipe Diameter: | OD Ø25 mm |
| Room Temperature Indoor (Cooling): | 16 ~ 32 °C |
| Outdoor Unit Specs: | |
| Power Supply (V, Ph, Hz): | 380 - 415V, 3-Phase, 50Hz |
| Compressor: | Type: Rotary Capacity (W): 10010W Input (W): 2765W Rated current (RLA) (A): 5.38A |
| Output Power x Fan quantity: | 150W x1 |
| Outdoor Fan Motor Speed: | 1050/900/850 r/min |
| Outdoor Coil: | Number of rows: 2 Tube pitch (a) x row pitch (b): 21 x 13.37 mm Fin spacing: 1.4mm Fin type (code): Golden Hydrophilic aluminum Tube outside dia. and type: Φ7, Inner groove tube Coil (length x height x width): 9100 x 756 x 26.74mm Number of circuits: 6 |
| Outdoor Noise Level: | 62 dB (A) |
| Operation Temperature: | 17 ~ 30 °C |
| Room Temperature Outdoor (Cooling): | 0 ~ 50 °C |
| Refrigerant & Piping: | |
| Refrigerant Type | R32 / 1.95 kg |
| Design Pressure | 4.3/1.7 MPa |
| Liquid Side / Gas Side | 9.52 mm (3/8 in) / 15.9 mm (5/8 in) |
| Max. Refrigerant Pipe Length | 50 m |
| Max. Difference in Level | 30 m |

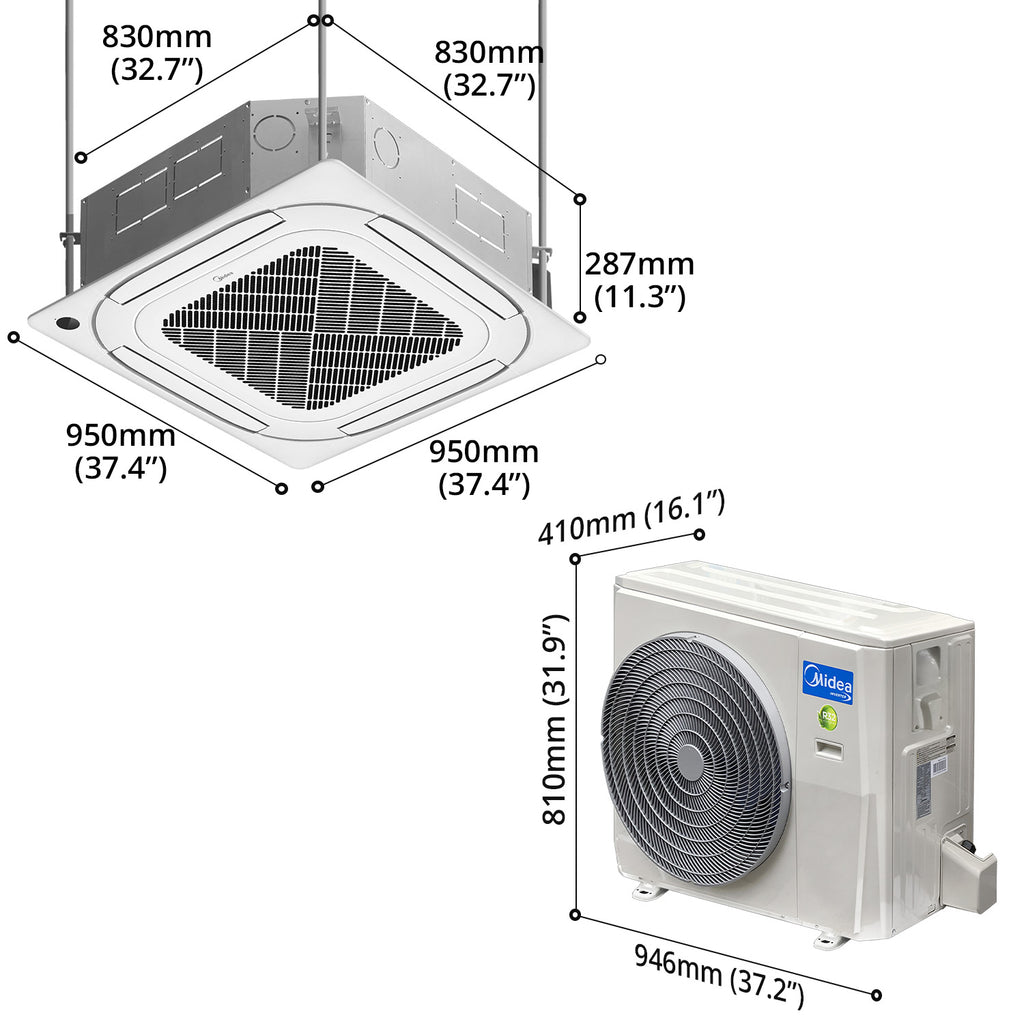

| Dimensions & Weight: | |
| Panel: | |
| Product Dimension (W x D x H): | 950 x 950 x 55mm (37.4" x 37.4" x 2.2") |
| Packing Dimension (W x D x H): | 1035 x 1035 x 90mm (40.7" x 40.7" x 3.5") |
| Net Weight: | 6kg |
| Gross Weight: | 9kg |
| Indoor Unit: | |
| Product Dimension (W x D x H): | 830 x 830 x 205mm (32.7" x 32.7" x 8.1") |
| Packing Dimension (W x D x H): | 910 x 910 x 250mm (35.8" x 35.8" x 9.8") |
| Net Weight: | 30kg |
| Gross Weight: | 35kg |
| Outdoor Unit: | |
| Product Dimension (W x D x H): | 946 x 410 x 810mm (37.2" x 16.1" x 31.9") |
| Packing Dimension (W x D x H): | 1090 x 500 x 885mm (42.9" x 19.7" x 34.8") |
| Net Weight: | 65.5kg |
| Gross Weight: | 70.5kg |
| Packing Contents: | |
| 48k BTU 4-Way Panel – x1 | |
| Screws | x4 |
| 48k BTU Indoor Unit – x1 | |
| Suspension Bolt | x4 |
| Ceiling Hook | x4 |
| Hose Clamp | x2 |
| Screws | x4 |
| Cable Tie | x6 |
| Insulation Sheath | x2 |
| Outlet pipe sheath | x1 |
| Copper Nut | x2 |
| Magnetic Ring Cable Filter | x2 |
| Remote Control | x1 |
| AAA Battery | x2 |
| Wall Mount Remote Holder | x1 |
| 48k BTU Outdoor Unit – x1 | |
