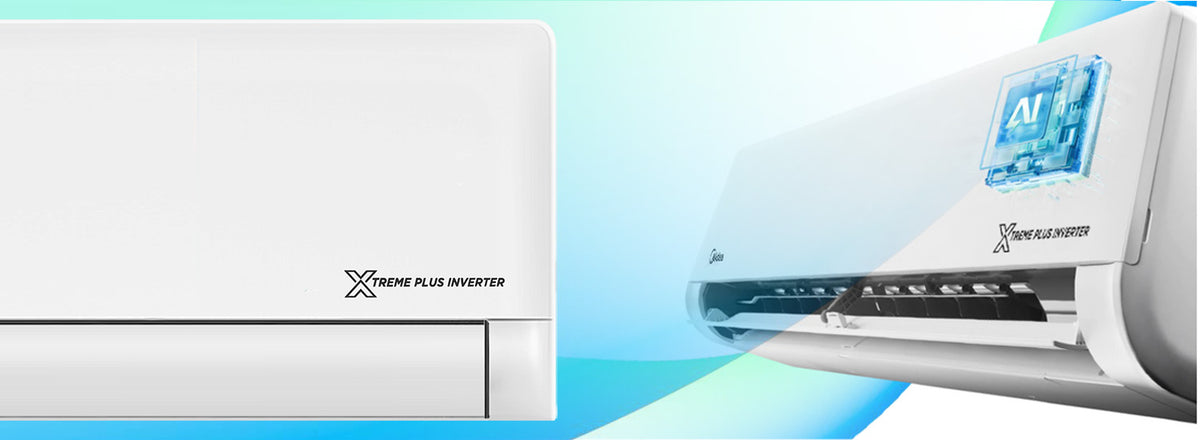

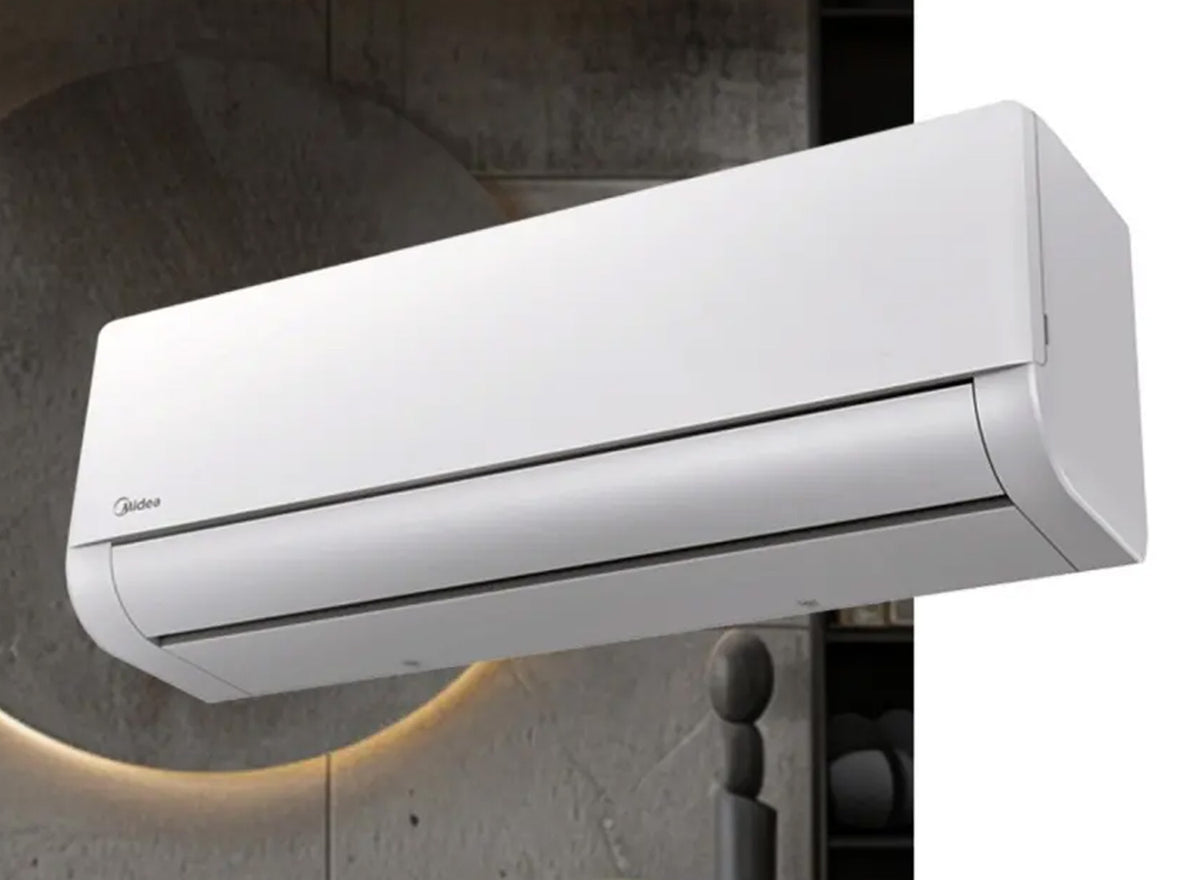

18000 BTU AC (Inverter-Xtreme Plus)
SKU: 60561
INVERTER-XTREME PLUS
SMART AC (No Dongle Required)
Model no: MSAI-19CRFN8
Brand: MIDEA
ALU: 9960561
Size: 18000BTU

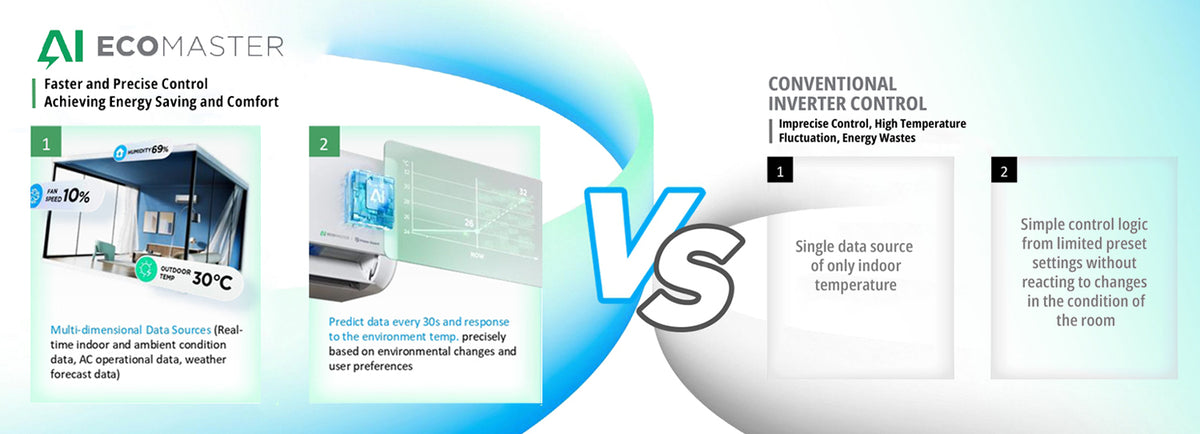

ECOMASTER
Smart energy-saving cooling
AI-powered technology optimizes performance to reduce energy consumption while delivering enhanced comfort and efficient cooling.

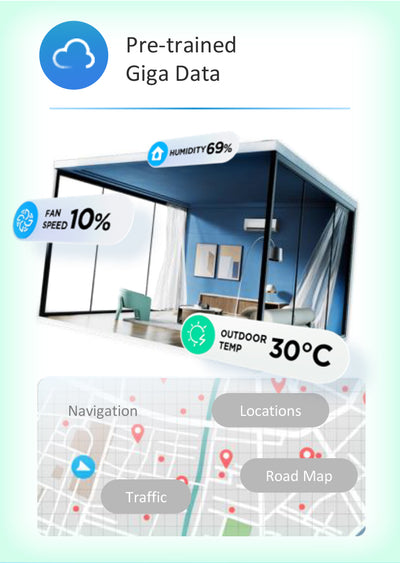

Master Giga Data
Bigger than Bigger
Powered by the industry's largest operational data, ECOMASTER can deliver much faster and more accurate comfort energy saving strategies, far ahead of conventional inverter technologies.
Master Precise Control
Smarter than Smarter

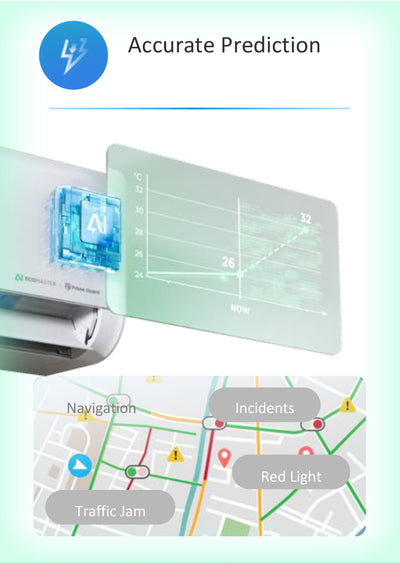

By pre-training the multi-dimensional environmental factors, ECOMASTER can predict the best AC operation strategy based on user historical preferences and dynamic room conditions. This smarter AI algorithm allows more precise indoor environmental adjustments than traditional algorithm to enhance occupant comfort with less energy consumption.

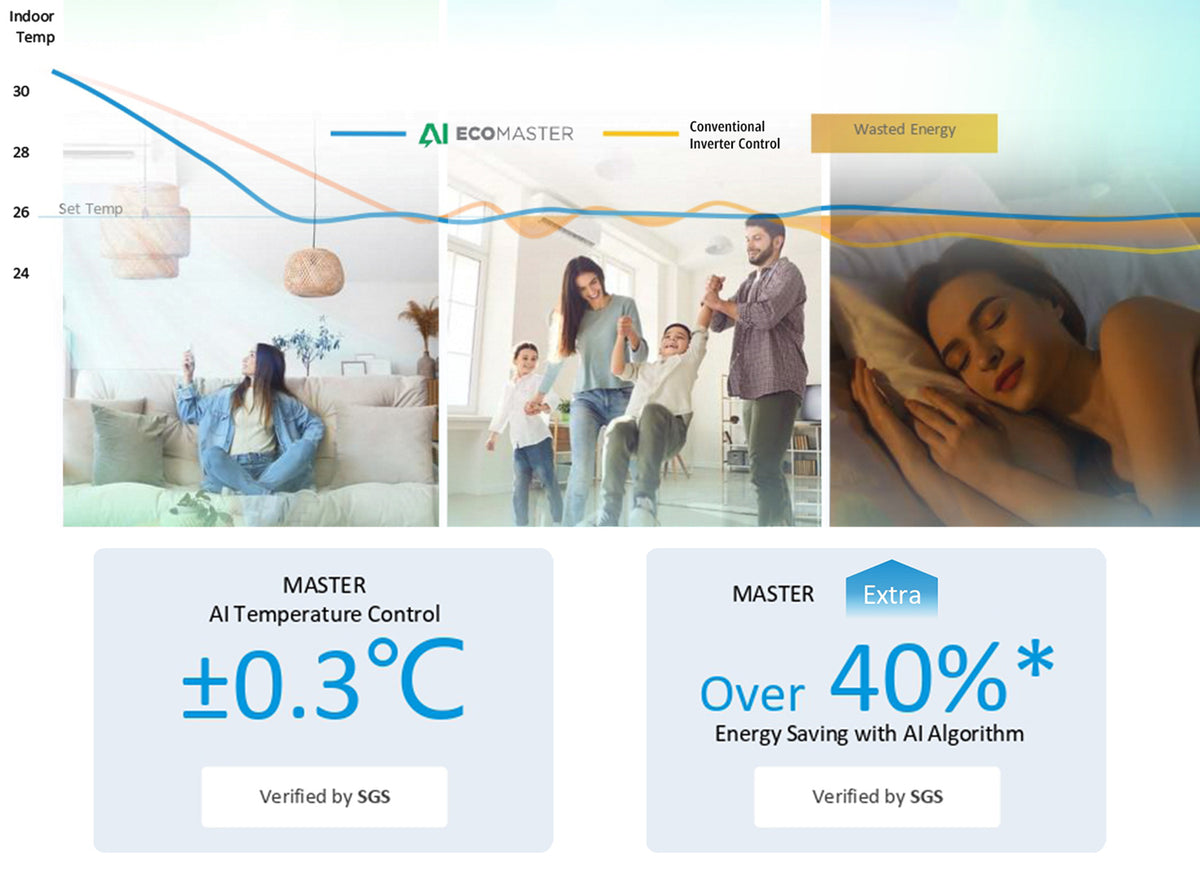

Master Comfort Saving
Inverter than Inverter

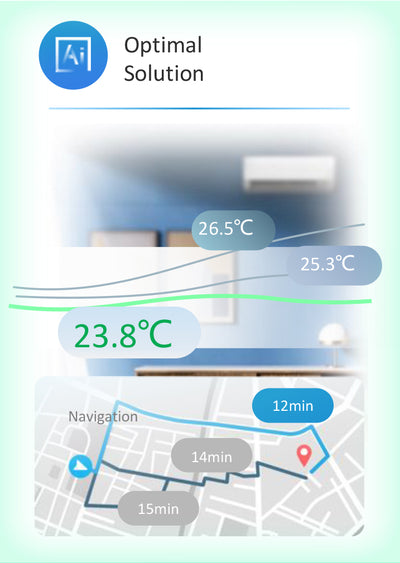

Predicts indoor and outdoor heat loads in real time to optimize room temperature faster and more efficiently.
AI-driven control adapts to daytime temperature fluctuations, while nighttime forecasting prevents overcooling and maintains precise comfort with minimal energy consumption.
Predict indoor and outdoor heat loads for faster room temp. optimization.
AI-driven precise control to handle daytime temp. fluctuations.
Nighttime predictions ensure accurate control to avoid excessive cooling.
Smart Energy Management
Energy Intelligence at Your Fingertips
Take control of your cooling efficiency with real-time monitoring, detailed energy analytics, predictive consumption forecasting, customizable energy targets, and timely notifications designed to help you save more.

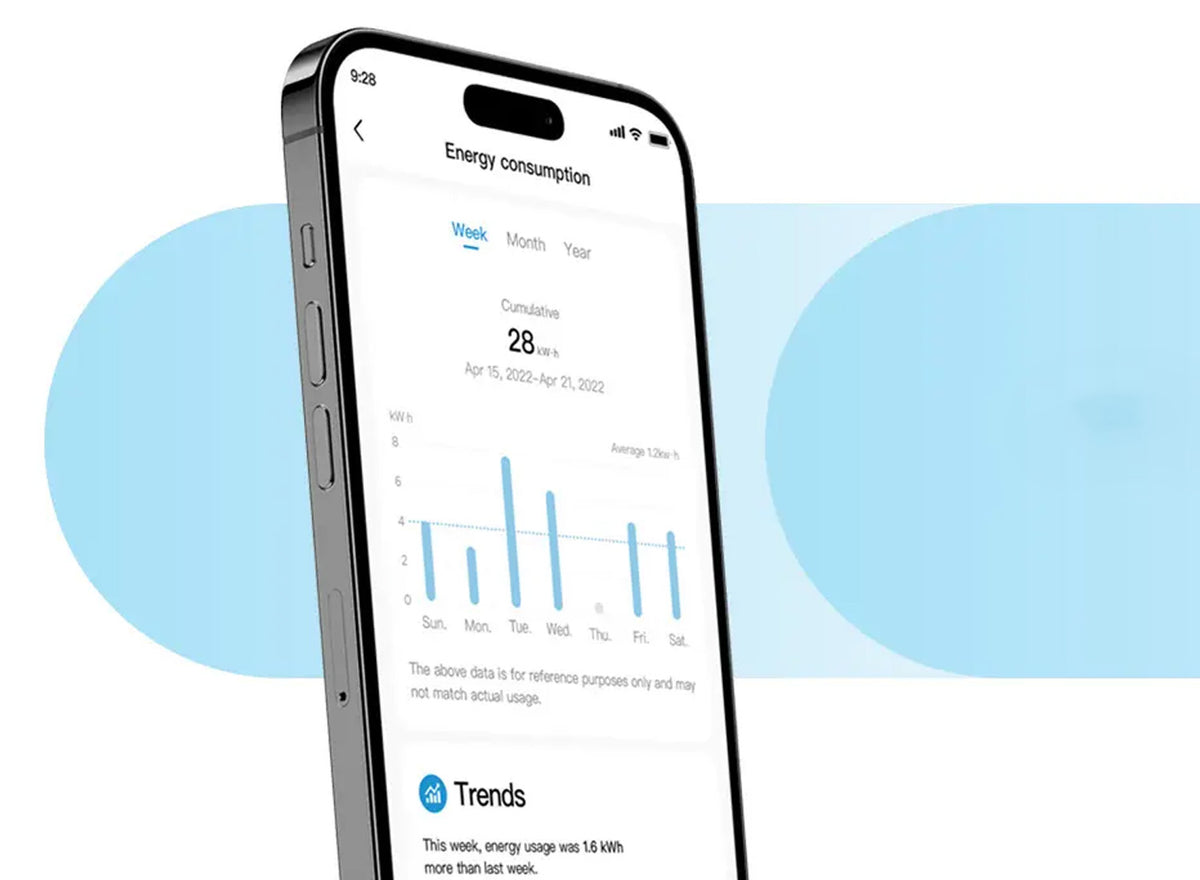

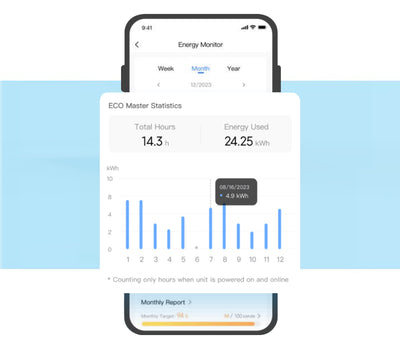

Energy Monitor
Through the Smart Home APP, you can monitor the daily, weekly, and monthly usage duration and power consumption of the air conditioner.

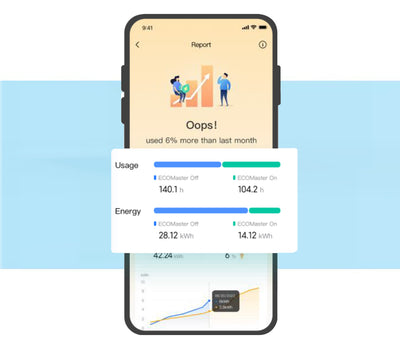

Energy Report
Regular reports will show ECOMASTER activation time, power usage, and comparisons with the normal mode.
Time Forecasting

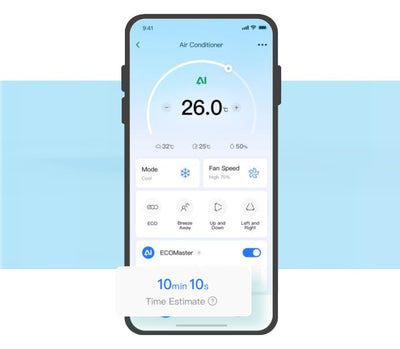

Active ECOMASTER at cool mode, you can see how soon the room temperature is going to reach the target temperature.

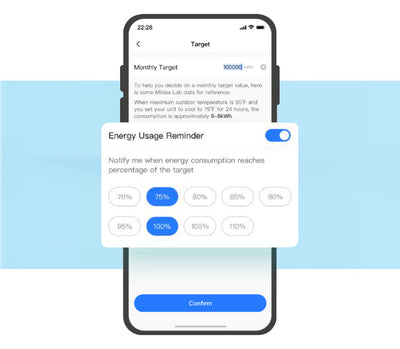

Energy Target and Forewarning
Set your monthly target and turn on the reminder and then the app will send you a notification if over-use.
Smart Control
Total control from anywhere
Control your air conditioner anytime and anywhere while monitoring energy consumption, optimizing efficiency, and personalizing your comfort through intelligent management tools and smart control features.

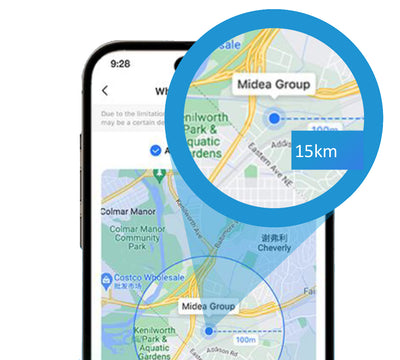

LBS
Comfort Before You Arrive
Turn on the AC from 15km away before arriving home.

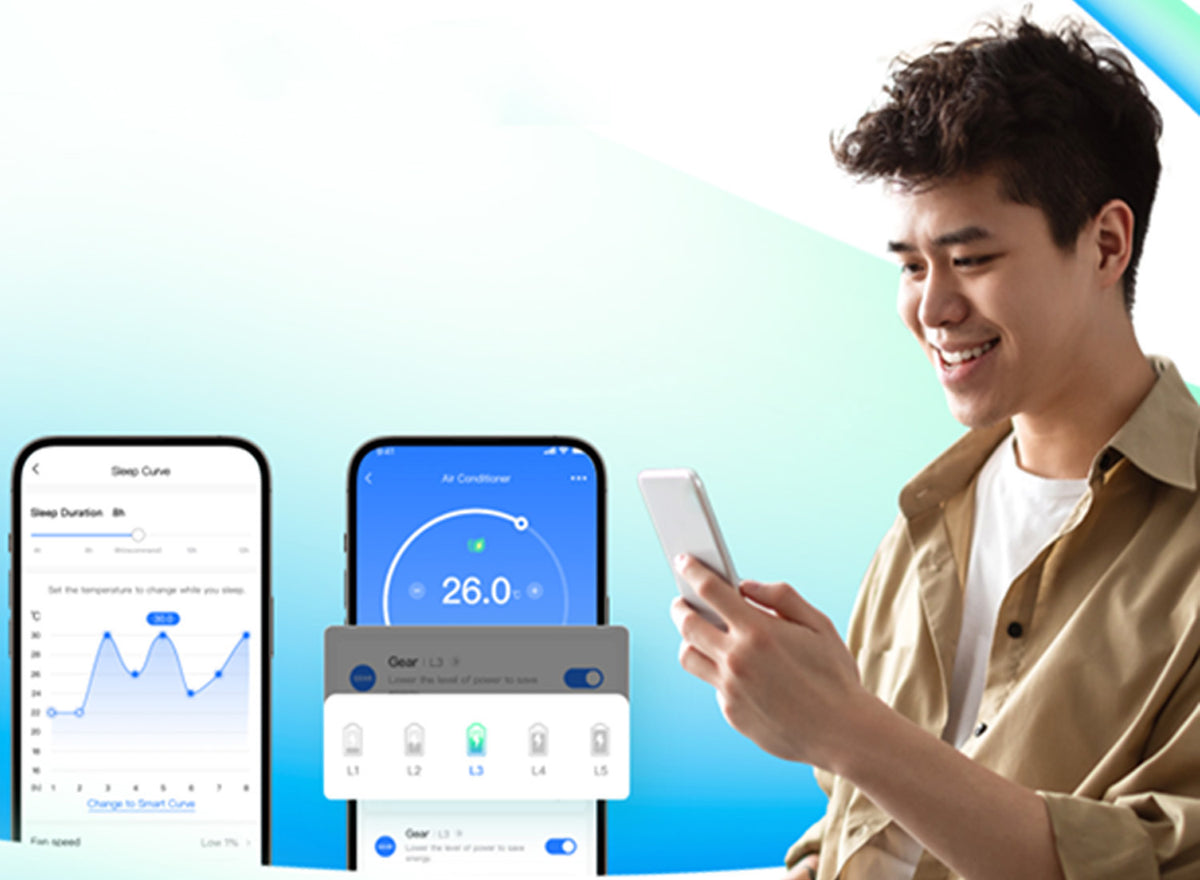

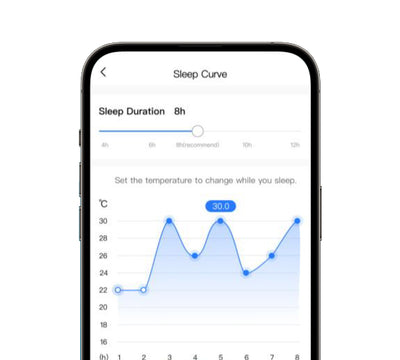

Sleep Curve
Personalized Sleep Comfort
Customize your preferred sleep mode with sleep duration, temperature and fan speed

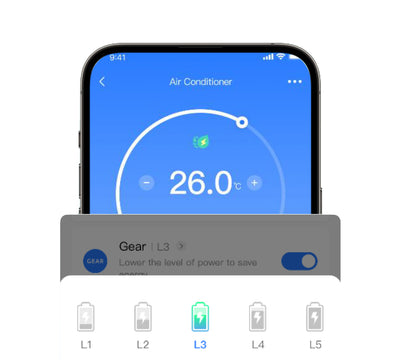

Gear Control
Precision Power Management
Upgraded to 5 levels to achieve more accurate power control to meet different usage scenarios.
Cool Flash
Instant, powerful cooling
The latest generation of COOLFLASH achieves faster cooling speed, stronger air circulation, larger swing angle, and further airflow distance through dual upgrades of hardware and software.
With one press of the COOLFLASH button, your room can be quickly cooled down to the desired temperature, immersing you in an evenly cool room.
Prime Guard
Durable and reliable cooling
Built to last with Midea’s Prime Technologies, delivering reliable, durable, and cool comfort—featuring Hyper Graphins, UV-coated PCB with wide voltage operation, Silver Shield anti-corrosion protection, TU1 copper tubes, and Auto Dedusting.
TU1 Corrosion-Resistance Copper Tube
Hyper Graphene Coating
Hyper Grapfins
PCB With UV Conformal Coating
Wide Voltage Operation
Auto Dedusting

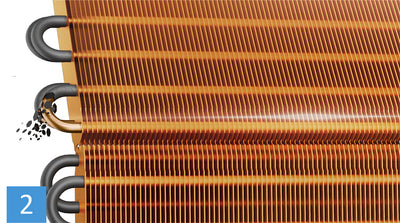

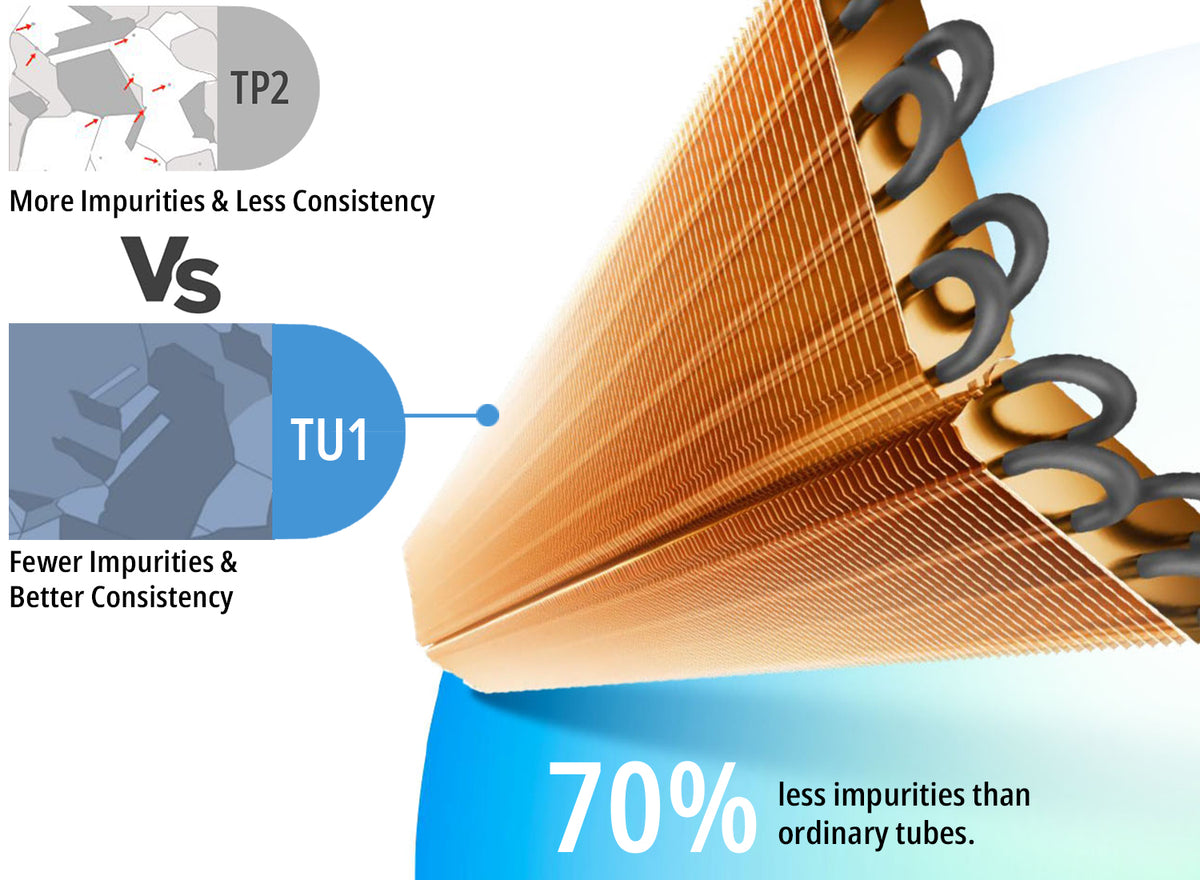

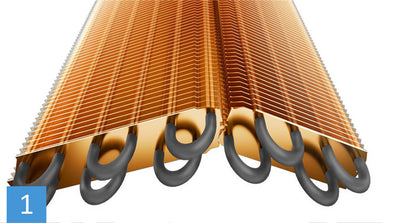

TU1 Corrosion-Resistant Copper Tube
Superior Purity. Enhanced Durability.
TU1 is an oxygen-free copper with a copper content of ≥99.97%. TU1 copper tubes have higher purity and fewer impurities, making them more resistant to corrosion and cold.
70%
less impurities than ordinary tubes.

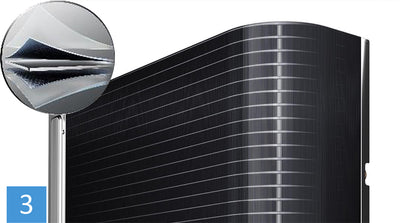

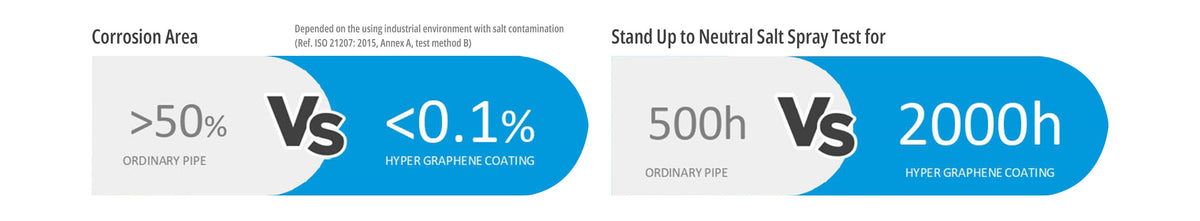

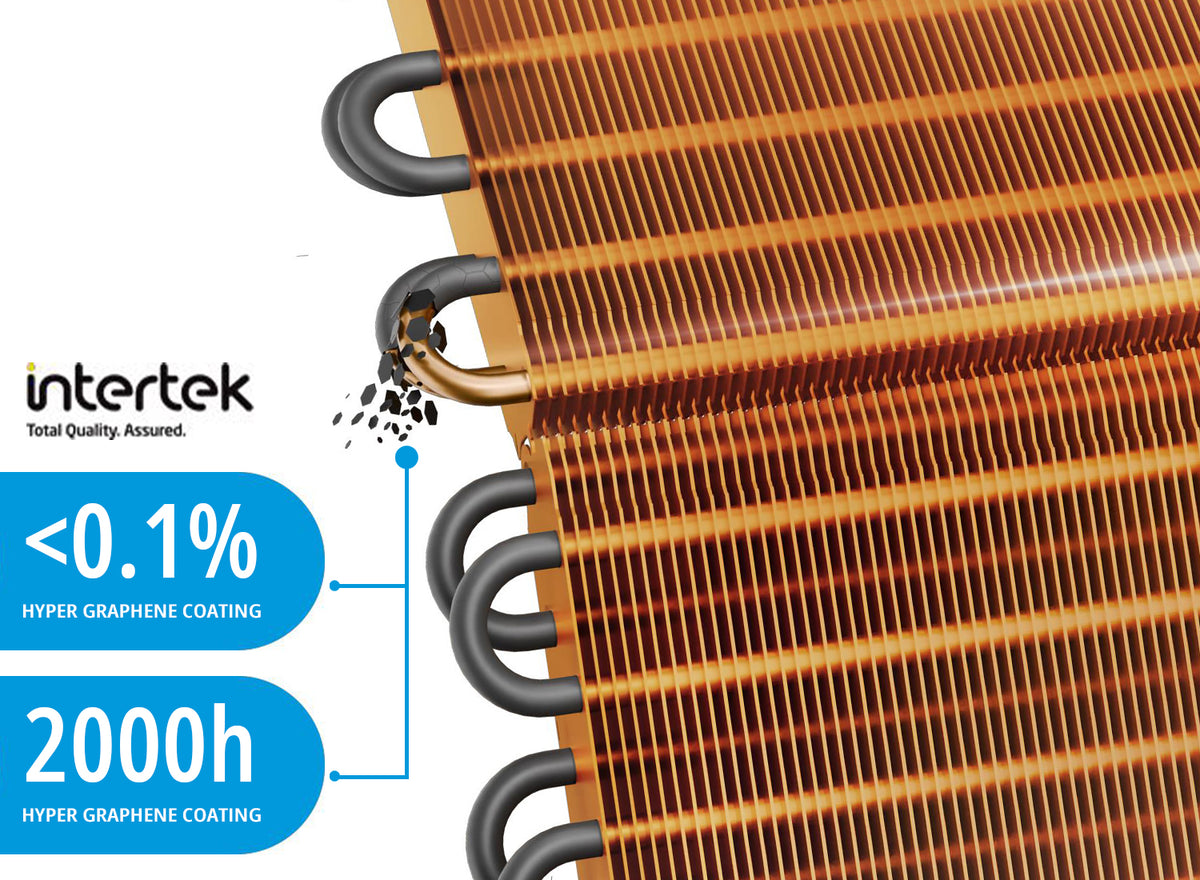

Hyper Graphene Coating
Advanced Protection for Lasting Durability
Both sides of the evaporator are coated with upgraded material "HYPER GRAPHENE" to prevent the copper pipe from being polluted and corroded by air pollutants, making it more secure and durable.

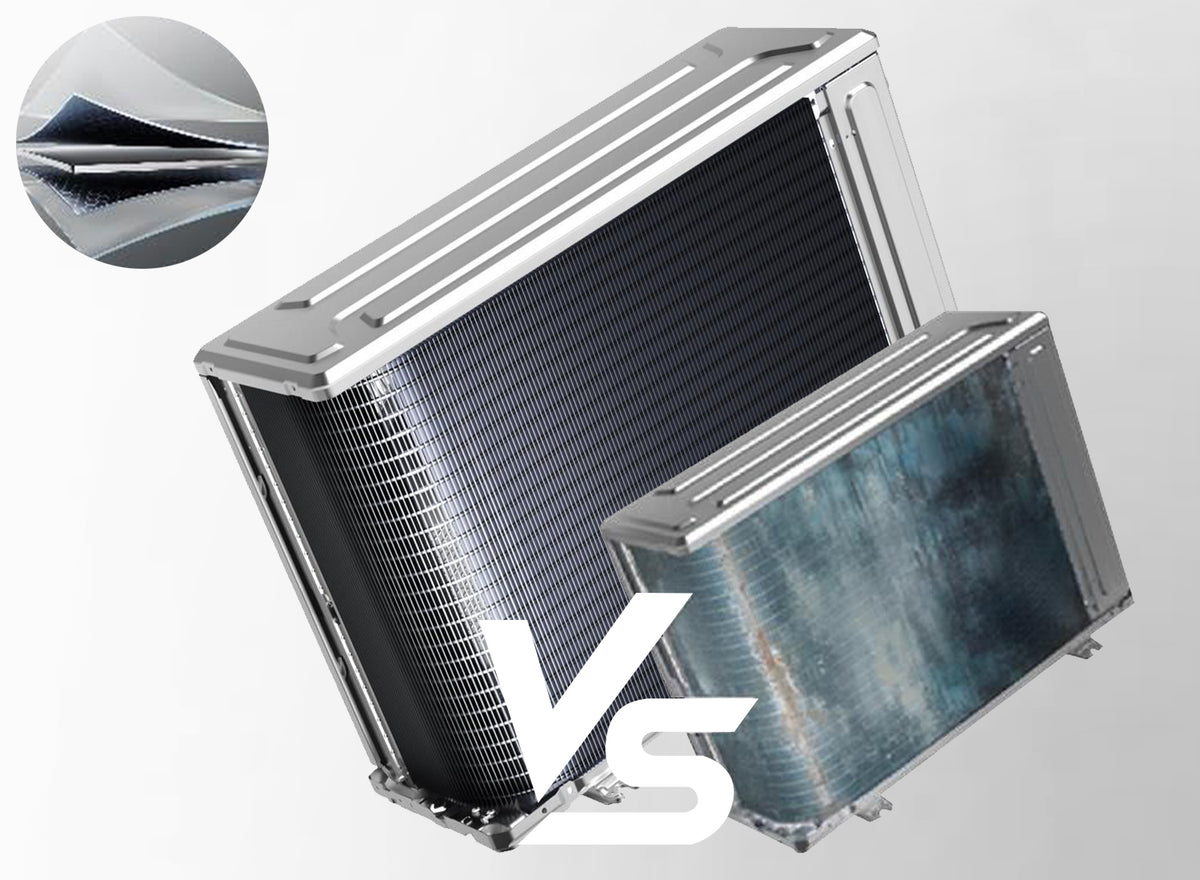

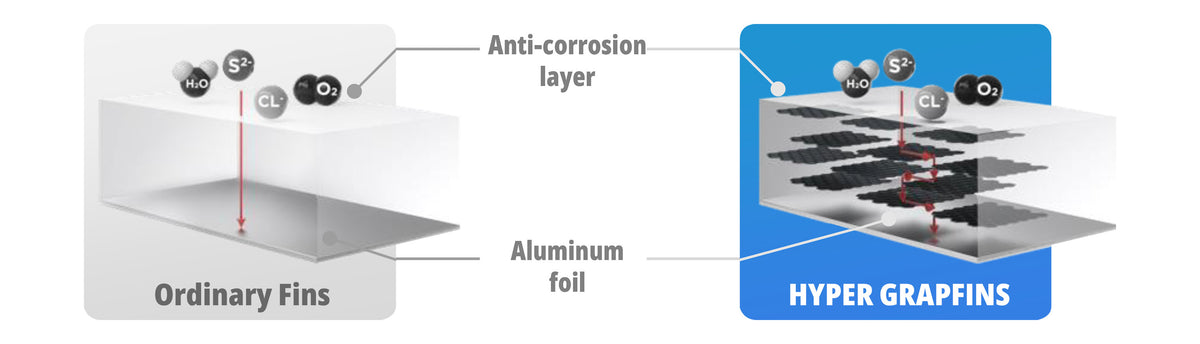

HYPER GRAPFINS™
Greater Corrosion Resistance
Graphene is a single monolayer of carbon atoms, tightly bound in a hexagonal honeycomb lattice. When graphene is added to the anti-corrosion layer, the density of the layer can be improved to resist corrosion.
12.5X
Corrosion Resistance than Blue Coated Fins
HYPER GRAPFINS™
Verified Protection. Proven Durability.

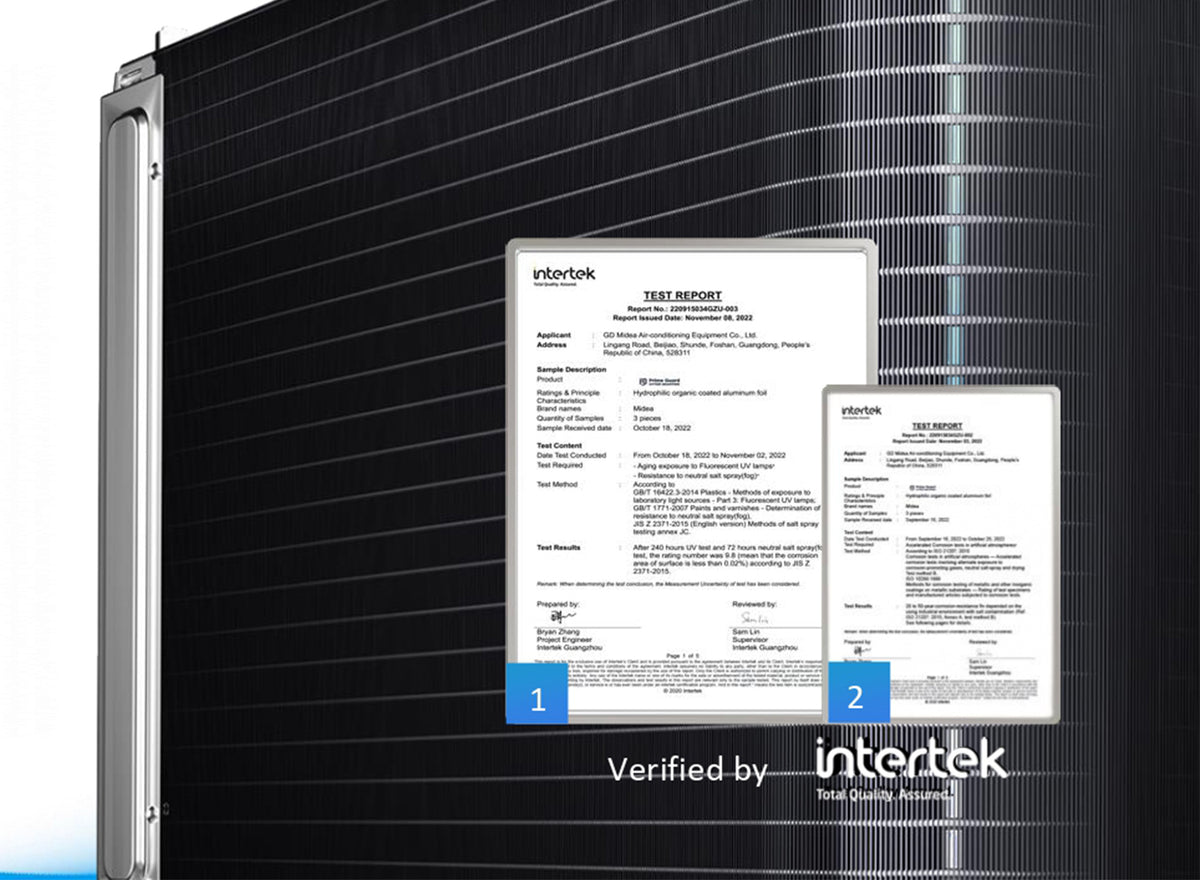

Enhanced with graphene coating technology, HYPER GRAPFINS™ provide a denser protective layer for exceptional corrosion resistance. Verified through three test standards, they deliver long-lasting durability with only 0.02% corrosion area and up to 12.5× higher resistance than blue-coated fins.
Depended on the using industrial environment with salt contamination.
After 240 hours UV test and 72 hours neutral salt spray (fog) test.
Stand Up to Neutral Salt Spray Test for 1500h

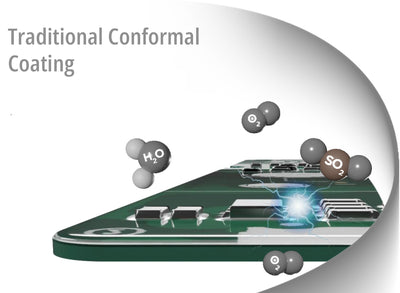

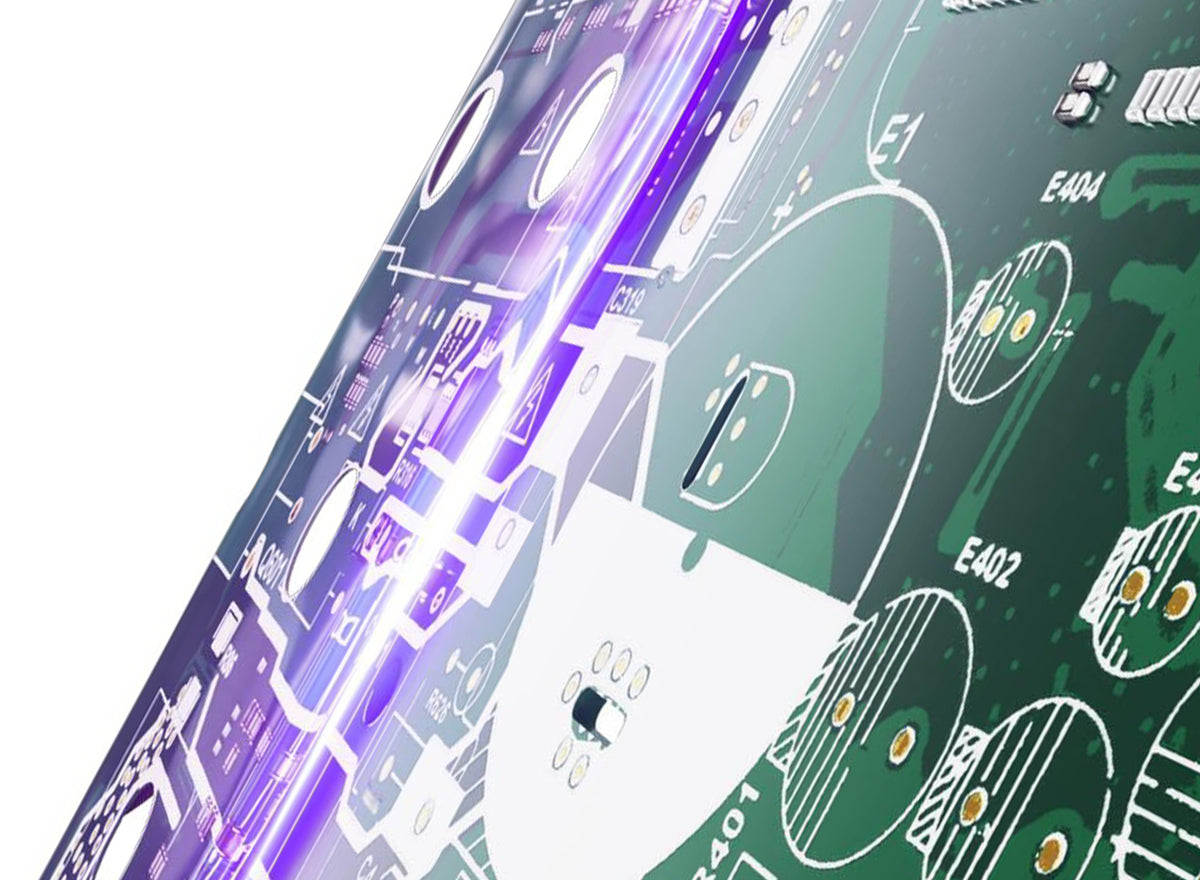

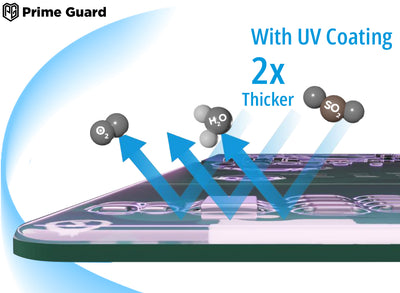

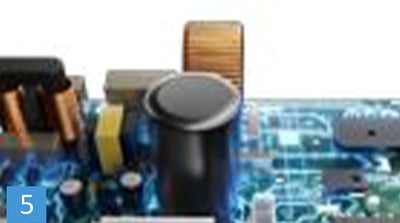

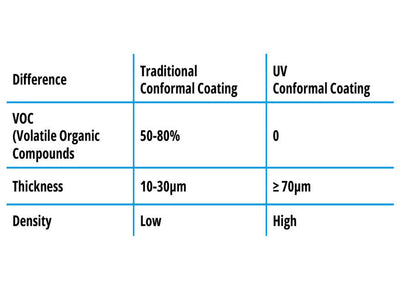

Reliable PCB with UV Conformal Coating
2× Thicker Protection for Enhanced Reliability
UV-cured conformal coating creates a high-density protective barrier with up to 2× thicker coverage, helping safeguard the PCB against environmental stresses for enhanced durability and long-term reliability.

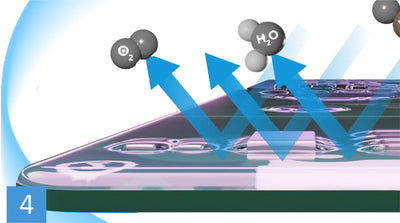

Moisture in the air can easily corrode PCB components and cause creepage, the main reason PCBs are easily damaged.
Curing using UV light, Greener and with 2x Thicker and Higher Density Protection.

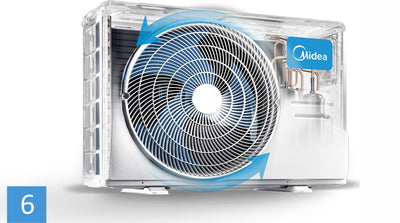

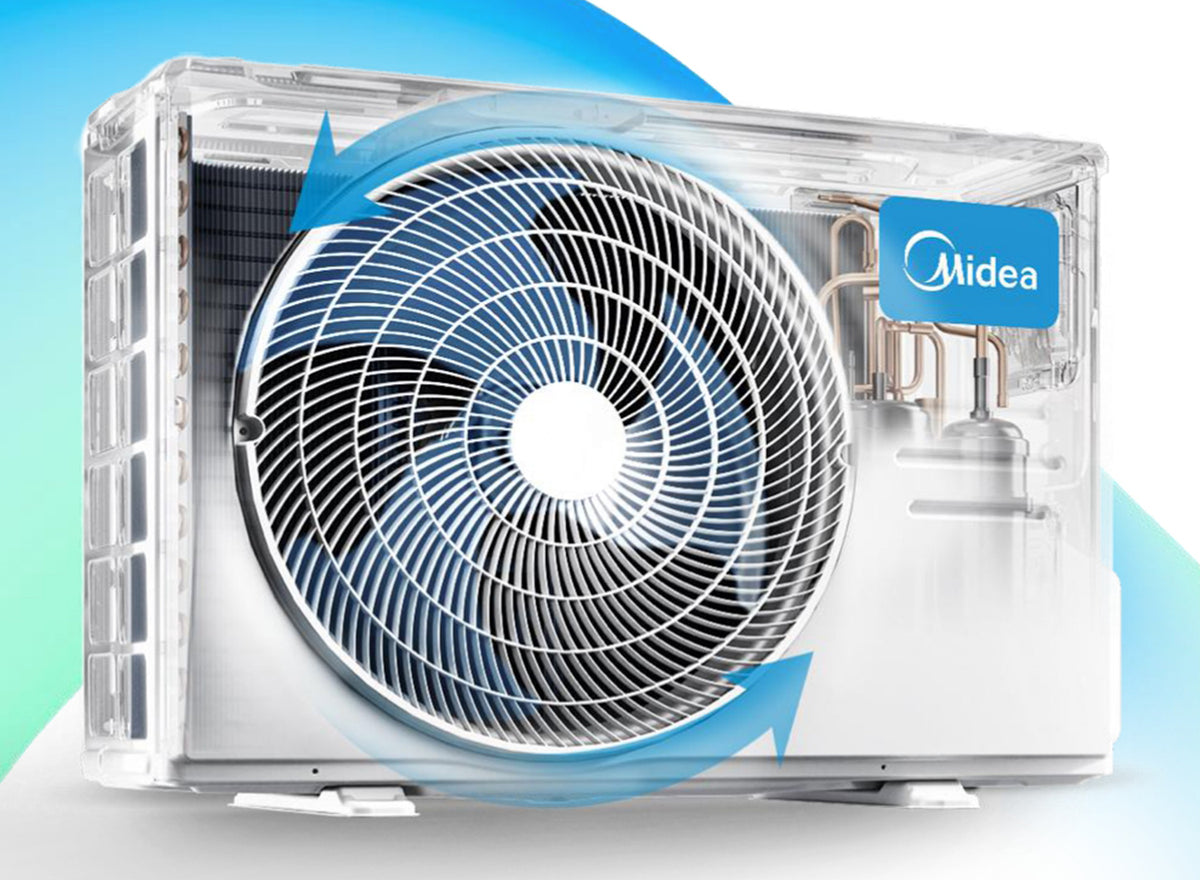

Auto Dedusting
Automatic Dust Removal
When the AC is turned off, the fan blade of the outdoor unit will automatically rotate in reverse to get rid of the accumulated sand and dust, ensuring the AC is clean and operates well in any environment.

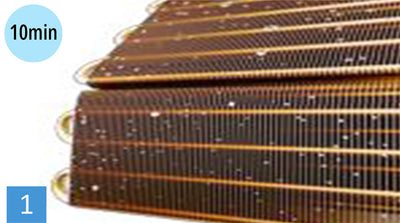

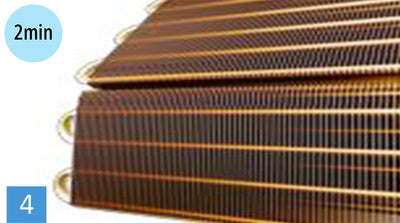

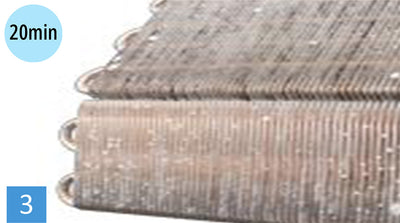

I-CLEAN™ Healthy Air Management
Reclean Your AC. Refresh Your Air.

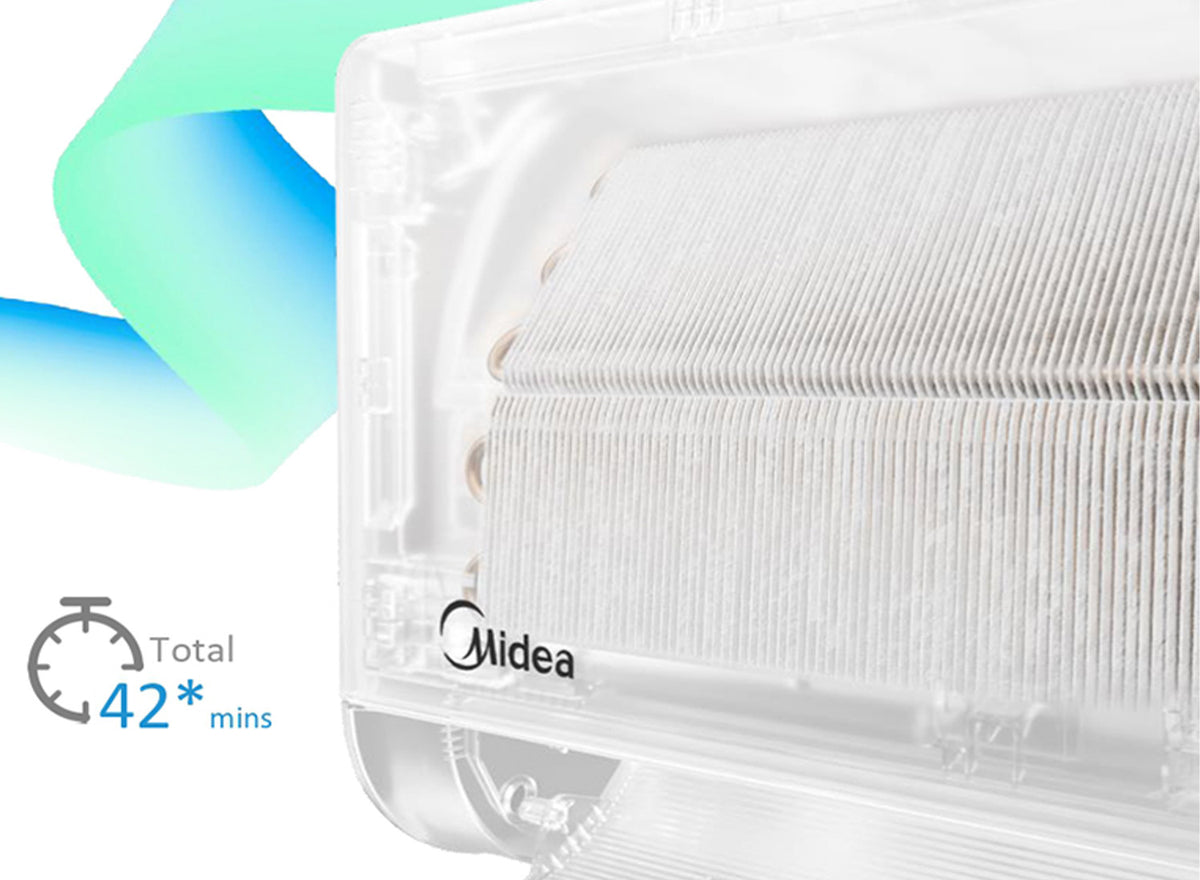

Midea Inverter AC has been upgraded from water washing (20 mins) to frost cleaning (42 mins), which can remove more dust and bacteria, keeping the AC clean and performing well.
Condensed Water
Cooling mode & Mid speed wind
Frosting
The temperature cools rapidly (T≤ -10°C) and frost forms on the evaporator surface.
Washing
Defrost into water to remove dust and dirt.
Drying
Dry the evaporator to prevent mold growth.
Unfriendly Installation
Long Installation Time.
Insufficient Working Space.
Inconvenient Piping and Wiring.

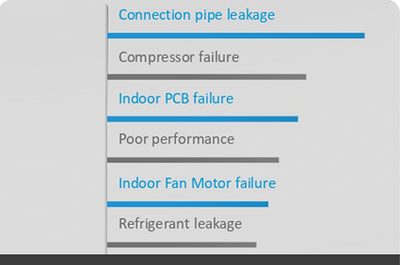

Troublesome Maintenance
Based on the research as below, pipe leakage, PCB and fan motor failure are the top complaints.

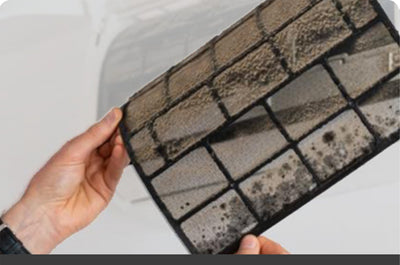

Complex Cleaning
Accumulated dust and dirt.
Reduced airflow and cooling capacity.
Higher energy consumption and electricity bills.
Increased risk of water leaks.
Breeding bacteria affect your health.

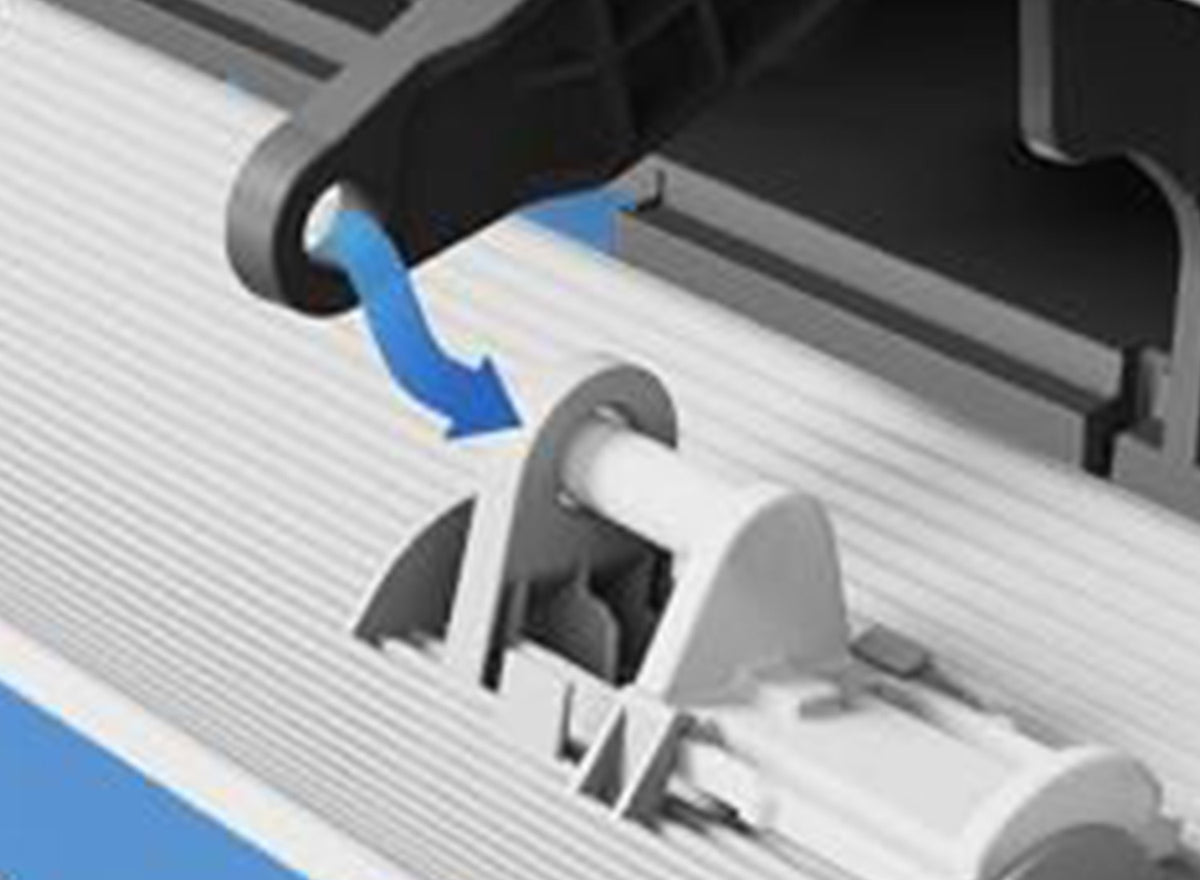

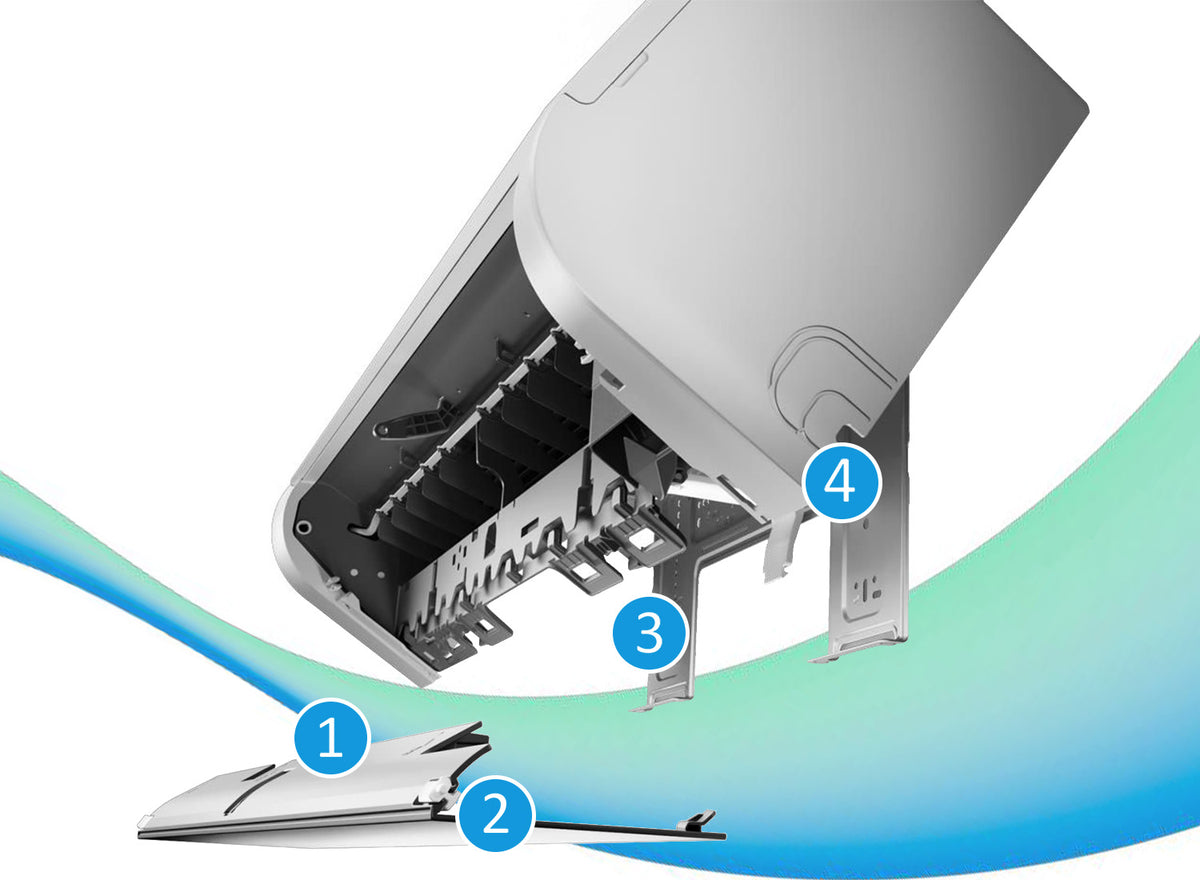

Pull-Down Structure
Easy Access. Effortless Maintenance.

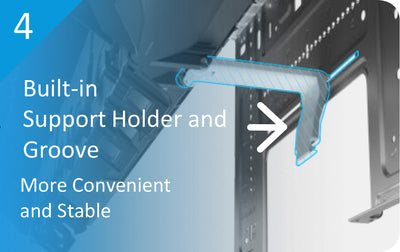

Designed for greater installation convenience, the pull-down structure allows quick access by simply loosening one screw and sliding the frame. The built-in support holder and groove provide more stable positioning, while the enlarged working space improves maintenance efficiency.

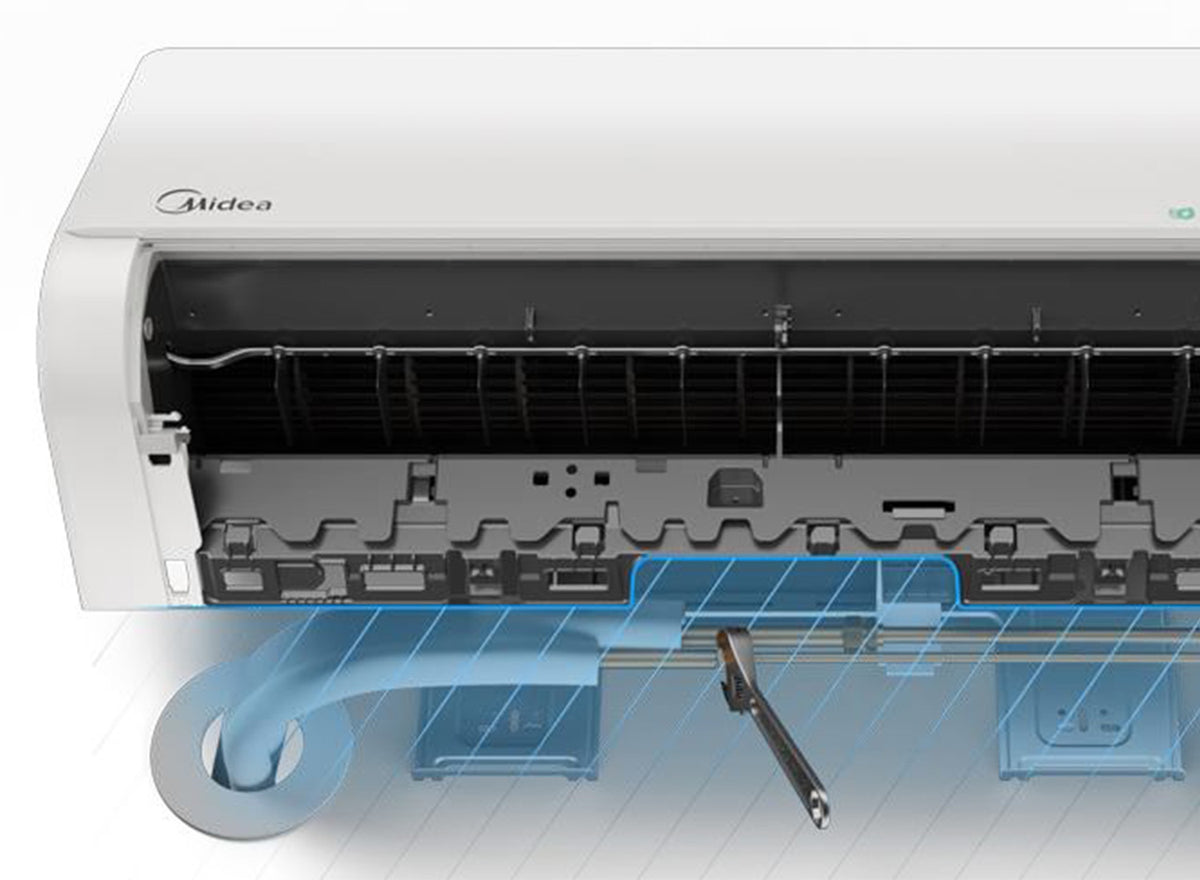

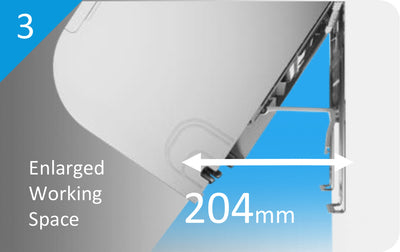

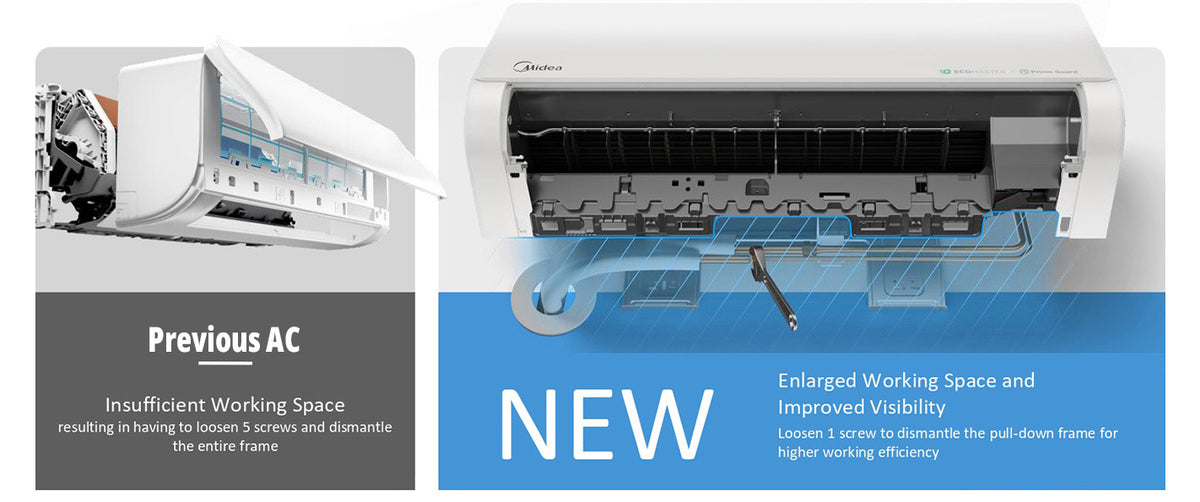

In Embedded Pipe
Enlarged Working Space and Improved Visibility
Designed with an enlarged working space and improved visibility, the embedded pipe structure simplifies installation and maintenance.

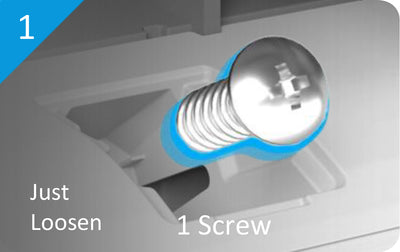

With just one screw to loosen, the pull-down frame can be easily dismantled, improving working efficiency and saving installation time.

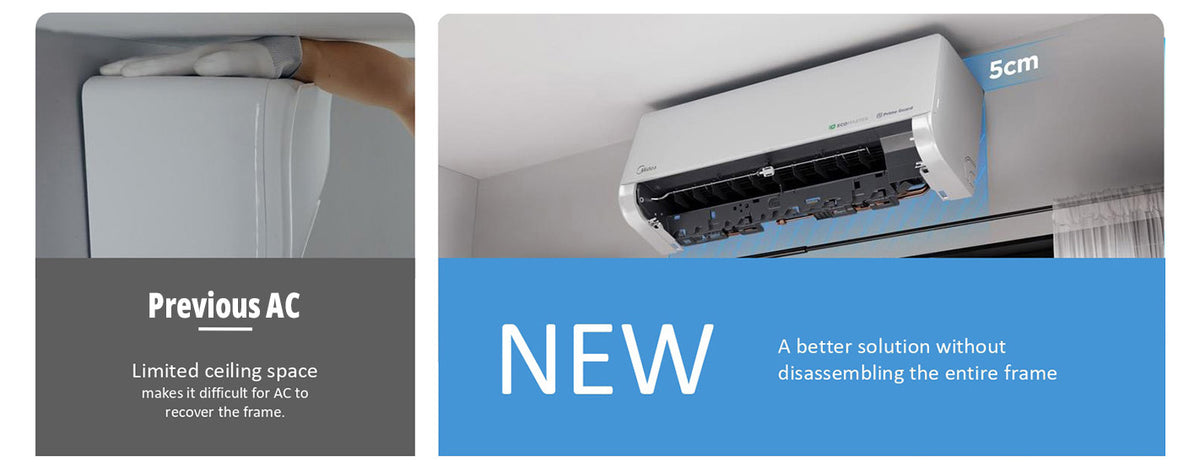

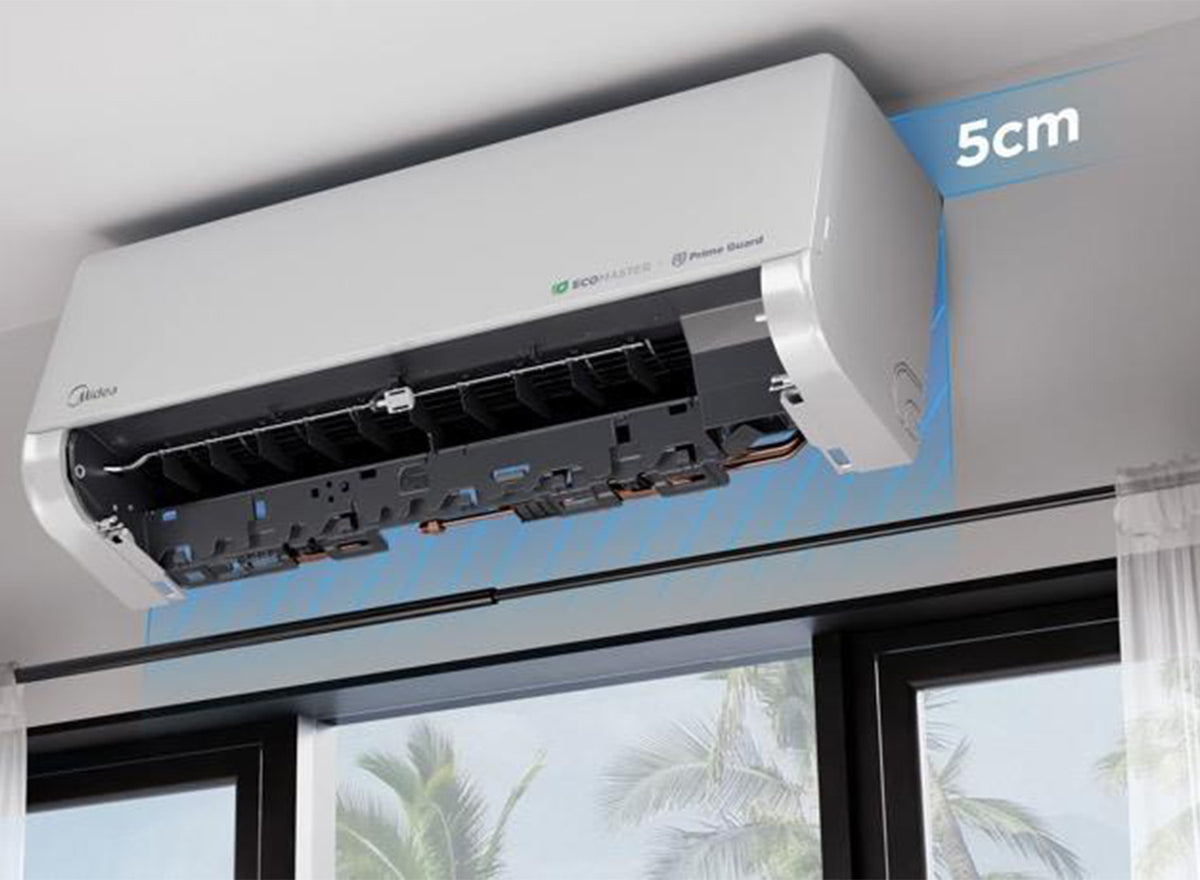

In 5cm Ceiling
A Better Solution Without Full Frame Disassembly
Designed for low-clearance ceiling applications, the 5cm ceiling design enables easier installation and maintenance without the need to disassemble the entire frame, improving efficiency and reducing installation time.

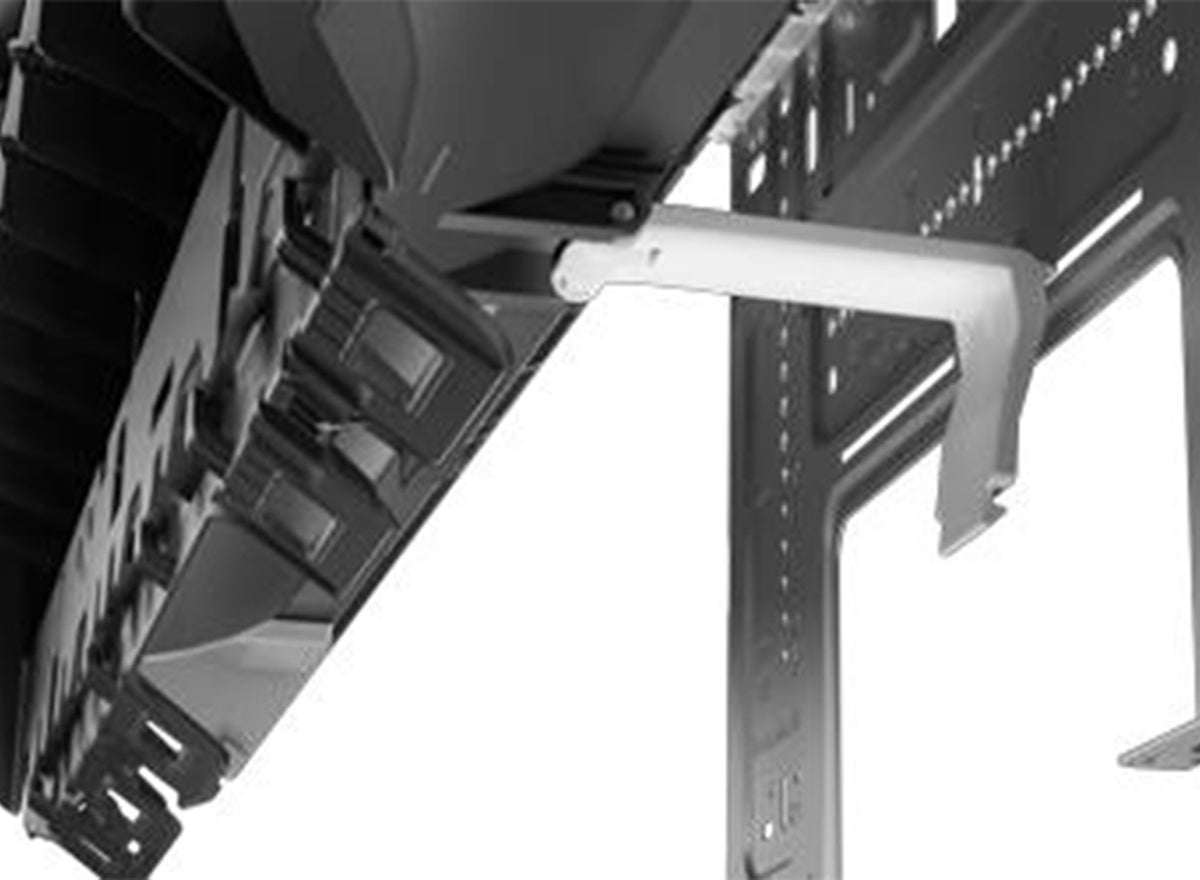

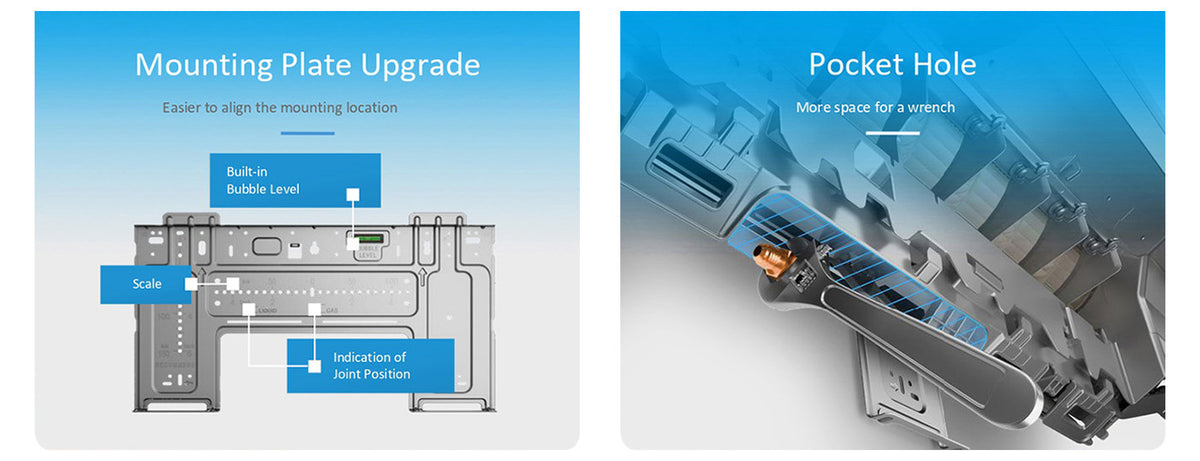

Installer-Friendly Design
Easier Maintenance
The upgraded mounting plate simplifies alignment with a built-in bubble level, scale, and joint position indicators, while the pocket hole design provides extra wrench space for faster and more efficient installation.

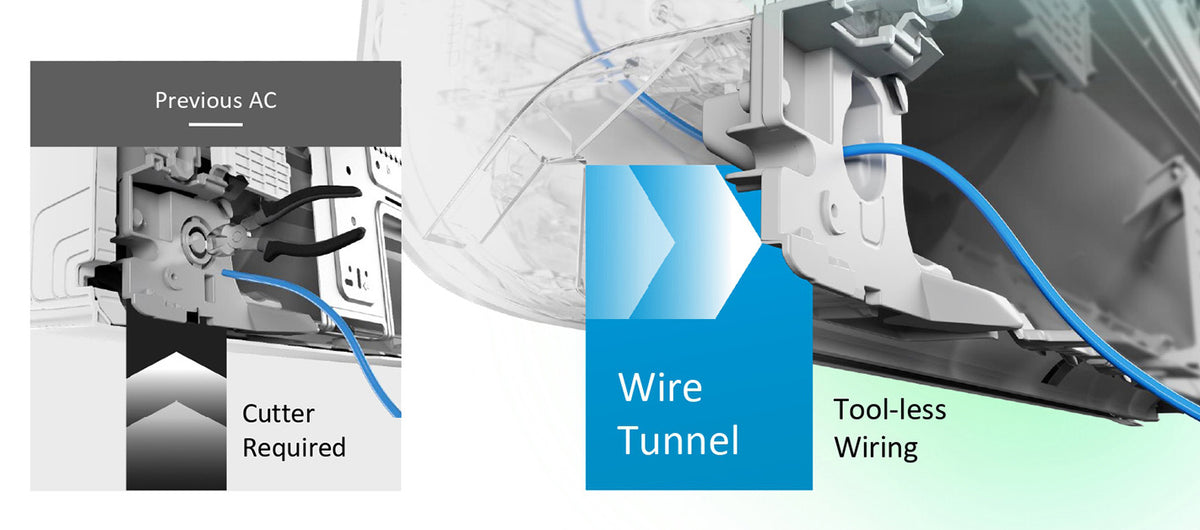

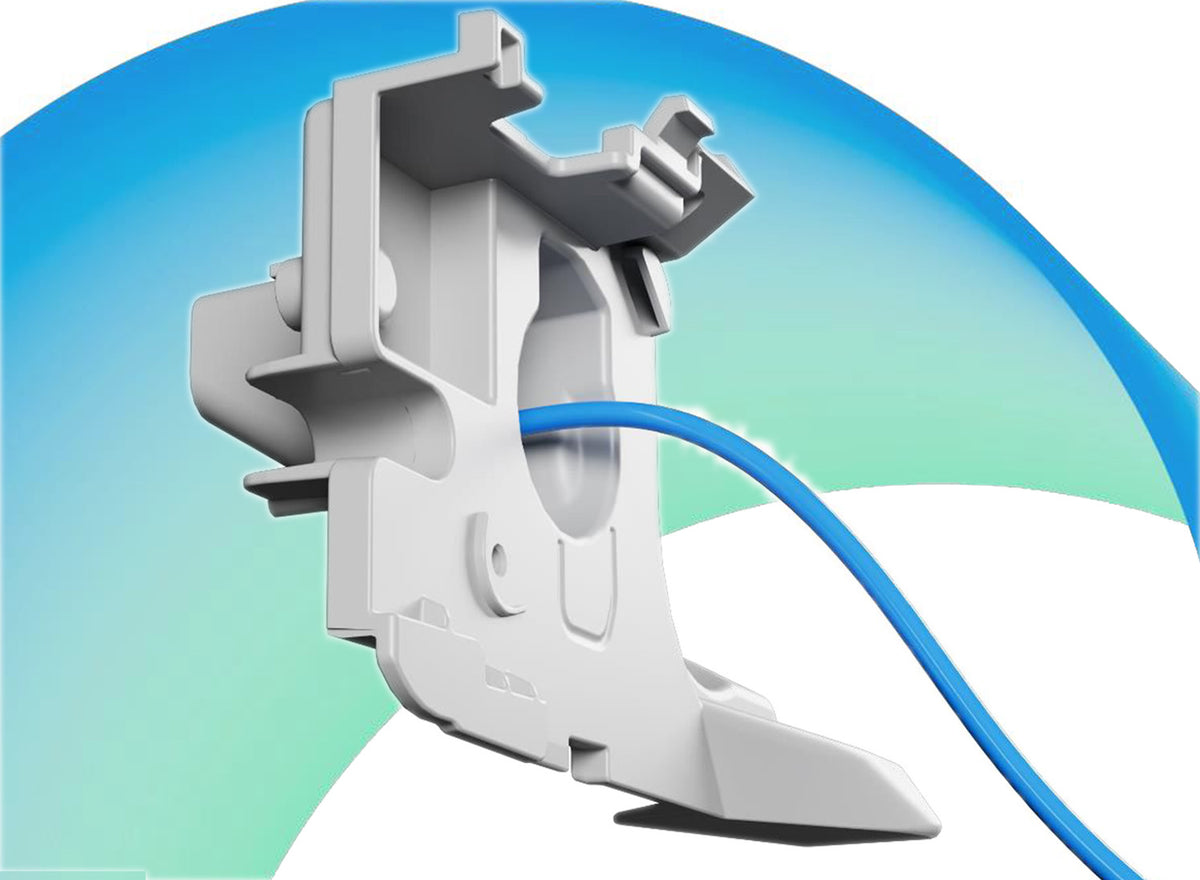

Wire Tunnel
Simplified Wiring. Faster Installation.
The integrated wire tunnel streamlines cable routing and organization, providing easier wiring access for a cleaner, faster, and more efficient installation process.

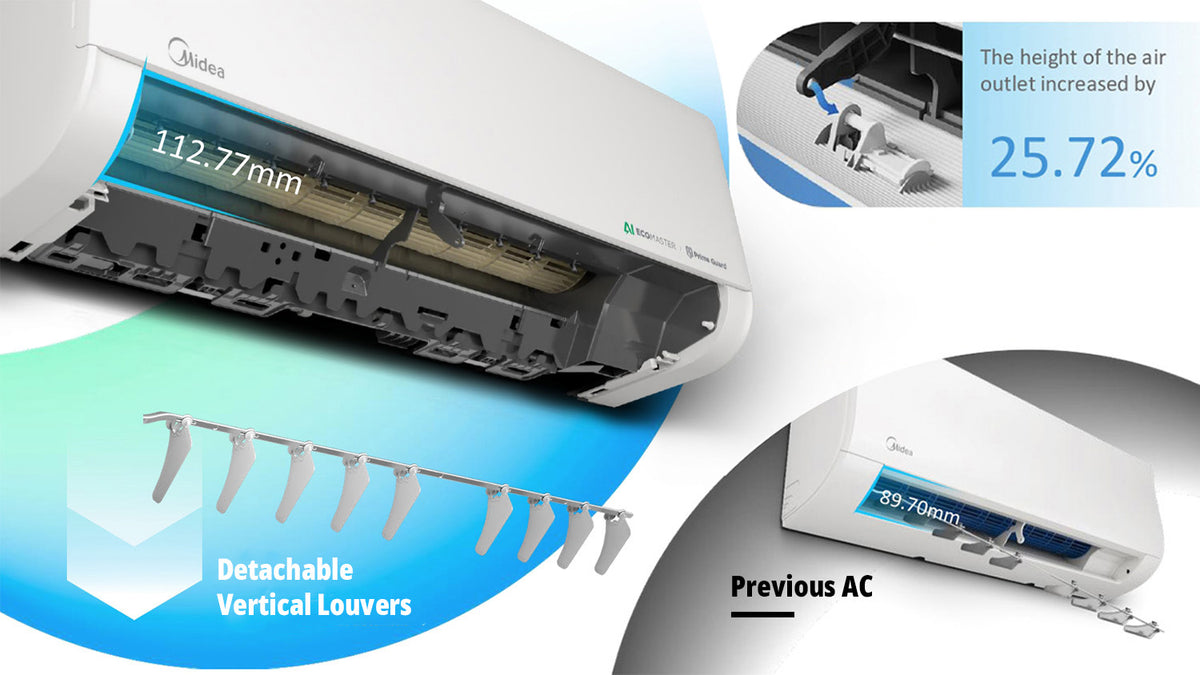

Easy to Clean
Deep Cleaning Made Easier
With improved access to internal components and detachable vertical louvers, the design allows more thorough cleaning with less effort, helping maintain cleaner airflow and long-lasting performance.
|
Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes and any kind of carpentry or electrical works. All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation. |
| Midea – Air Conditioner (18000BTU) | |
| Xtreme Plus Series | |
| Brand: | Midea |
| Model: | MSAI-19CRFN8 |
| Capacity: | 18000BTU |
| Type: | Cooling Only |
| Control type: | Remote & App Control (Wi-Fi Built-in) |
| Room Temperature: | Indoor (Cooling): 16 ~ 32°C Outdoor (Cooling): 0 ~ 50°C |
| Application Area (Cooling Standard): | 24 ~ 35m2 |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Cooling: | |
| Cooling Capacity (Btu/h): | 18000 |
| Input (W): | 1691W |
| Rated Current (A): | 7.69A |
| EER (W/W): | 3.12 |
| Power: | |
| Power Supply (V, Ph, Hz): | 220-240 V, 1-Phase, 50 Hz |
| Rated Power Input (W): | 3000W |
| Rated Current (A): | 13.5A |
| Connection Wiring: | 1.5x4// |
| Plug Type: | 1.5x3//no-plug |
| Indoor Unit: | |
| Indoor Fan Motor Speed (High/Middle/Low): | 1050/900/828 r/min |
| Indoor Coil: | Number of rows: 2 Tube pitch (a) x row pitch (b): 21 x 13.37mm Fin spacing: 1.3mm Tube outside dia. and type: Ø7mm Coil (length x height x width): 770 x 210 x 26.74mm + 620 x 105 x 26.74mm Number of circuits: 4 |
| Indoor air flow (High/Middle/Low): | 895/740/650 m3/h |
| Indoor noise level (High/Middle/Low): | 44/37.5/34 dB (A) |
| Outdoor Unit: | |
| Compressor: | Type: Rotary Capacity (W): 2690/4350 Input (W): 434/1127 Rated Current (RLA) (A): 3.18/6.9 |
| Outdoor Fan Motor Speed: | 850/600 r/min |
| Outdoor Coil: | Number of rows: 1.6 Tube pitch (a) x row pitch (b): 19.5 x 11.6mm Fin spacing: 1.2mm Fin type (code): Unhydrophilic aluminium Tube outside dia. and type: Ø5mm, Inner groove tube Coil (length x height x width): 755 x 507 x 11.6mm + 462 x 507 x 11.6mm Number of circuits: 4 |
| Outdoor air flow: | 2100 m3/h |
| Outdoor noise level: | 56 dB (A) |
| Refrigerant System: | |
| Refrigerant Type: | R32 |
| Charge Amount: | 0.72kg |
| Design Pressure: | 4.3/1.7 Mpa |
| Refrigerant Piping: | Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in) Max. Refrigerant Pipe Length: 30m Max. Difference in Level: 20m |
| Dimension & Weight: | |
| Indoor Unit: | |
| Product Dimension (W x D x H): | 986 x 216 x 305mm (38.8” x 8.5” x 12”) |
| Packing Dimension (W x D x H): | 1065 x 300 x 385mm (41.9” x 11.8” x 15.2”) |
| Net Weight: | 10.9kg |
| Gross Weight: | 14.2kg |
| Outdoor Unit: | |
| Product Dimension (W x D x H): | 765 x 303 x 555mm (30.1” x 11.9” x 21.9”) |
| Packing Dimension (W x D x H): | 887 x 337 x 610mm (34.9” x 13.3” x 24”) |
| Net Weight: | 25.1kg |
| Gross Weight: | 27.4kg |
| Packing Contents: | |
| 18k BTU Indoor Unit – x1 | |
| Electric Wire | x1 |
| Remote Control | x1 |
| AA Battery | x2 |
| Remote Holder (Wall-Mount) with 2 Screws | x1 |
| Screws | x5 |
| Wall Plugs | x5 |
| Small Filter | x2 |
| Remote Controller User Manual | x1 |
| Smart Kit User Manual | x1 |
| Safety Manual | x1 |
| Product User Manual | x1 |
| 18k BTU Outdoor Unit - x1 | |
| 1/4" Insulated Copper Tube | x1 |
| 1/2” Insulated Copper Tube | x1 |
| Sealing Clay | x1 |
| Wall Sleeve | x1 |
| Wall Hole Cover | x1 |
| Wrapping Roll | x1 |
