Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

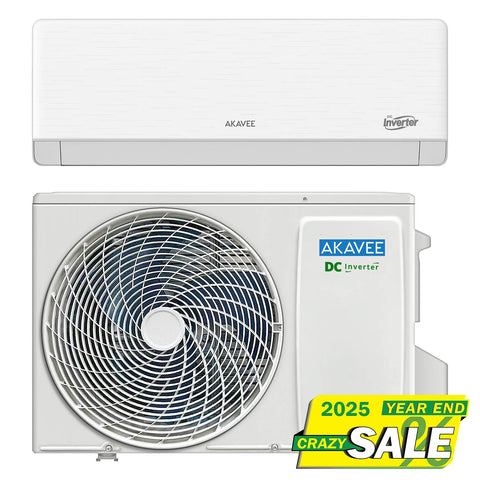

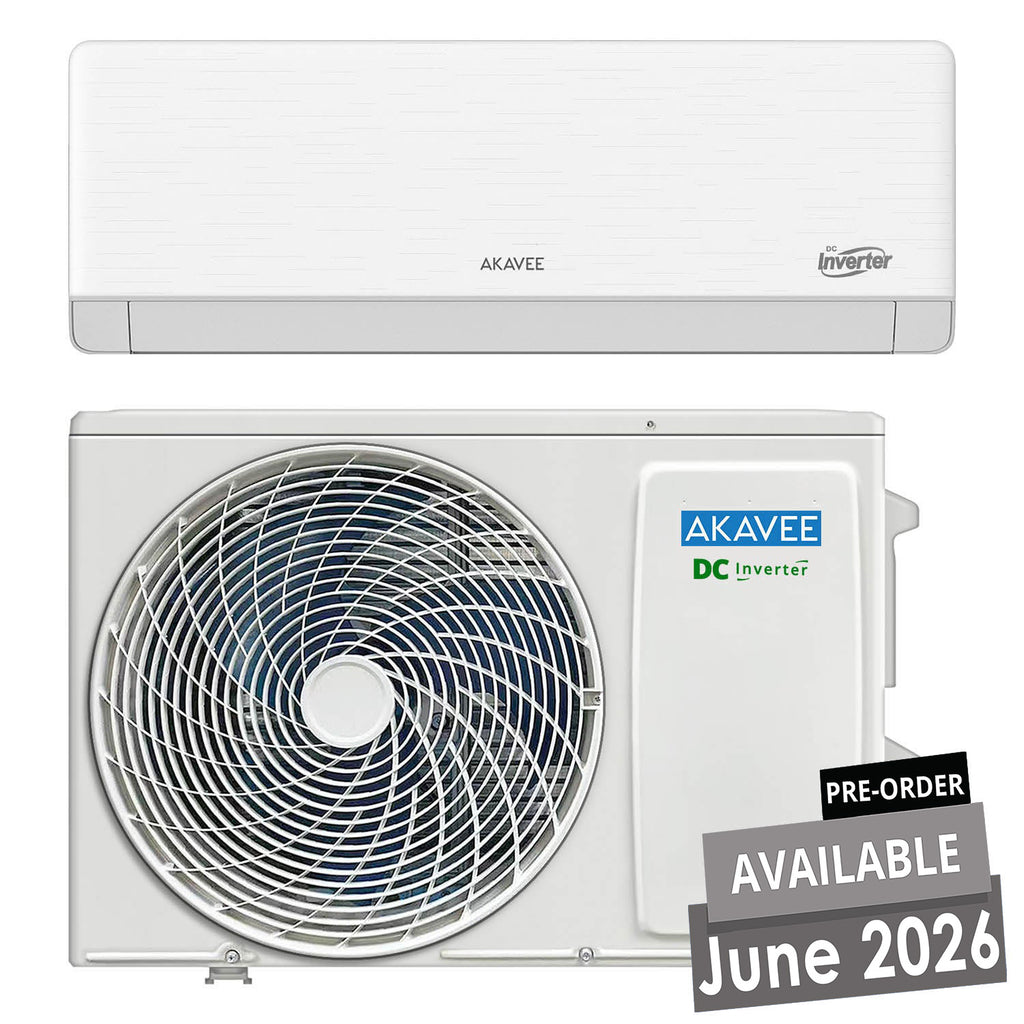

Akavee - Air Conditioner (18000BTU)

Brand: Akavee

Model: AS-18MER3DI

Type: DC Inverter Split Type

Technical Specs:

Rated Capacity (Cooling): 5300 (1300 - 5300) W

Dehumidifying: 1.6 Kg/h

Rated Power Consumption (Cooling): 1700 (240 - 2200) W

Rated Running Current: 7.7 (2.3 - 9) A

Max. Input Power: 1900W

Max. Input Current: 9A

CSPF (Cooling Seasonal Performance Factor): 5.42 W/W

Air Flow Volume: 850m³/h

Power Supply Source: 220-240V / 1Ph / 50Hz

Refrigerant & Pressure:

Refrigerant: R32

Refrigerant Charged: 360g

Max. Discharge Pressure: 4.3Mpa

Max. Suction Pressure: 2.5Mpa

Connection:

Connect pipe (Length): 3m

Stop Valve:

• • Liquid Valve: DG4
  • Gas Valve: DG10

Indoor Unit:

Noise level: 47db

Evaporator (tube):

• • Length: 722mm
  • Diameter: 5mm

Fan system (fan motor): Model D-310-30-10A

Outdoor Unit:

Noise level: 53db

Compressor Model: GMCC

Compressor Parameter (type): Rotation

Fan system (fan motor): Model D-35-10M

Condenser (tube):

• • Length: 688mm
  • Diameter: 5mm

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• • Product Dimension: 997 x 222 x 321mm (39.3” x 8.7” x 12.6”)
  • Packing Dimension: 1070 x 312 x 385mm (42.1” x 12.3” x 15.2”)
  • Net Weight: 11kg
  • Gross Weight: 14.5kg

Outdoor Unit:

• • Product Dimension: 709 x 280 x 536mm (27.9” x 11” x 21.1”)
  • Packing Dimension: 825 x 345 x 595mm (32.5” x 13.6” x 23.4”)
  • Net Weight: 21.5kg
  • Gross Weight: 25kg

Packing Contents:

18k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

18k BTU Outdoor Unit – x1

• Insulated Copper Tube – x1
• Insulated Copper Tube – x1
• Wrapping Roll – x1

Click here for Wi-Fi USB Dongle (Sold Separately)
