Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works.

All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation.

Specification

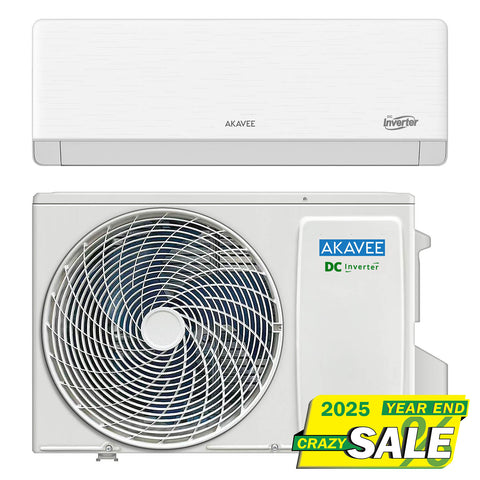

Akavee - Air Conditioner (24000BTU)

Manufactured by AUX

Brand: Akavee

Model: AS-24MER3DI

Type: DC Inverter Split Type

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

Technical Specs:

Rated Capacity (Cooling): 7100 W

Dehumidifying: 2.2 Kg/h

Rated Power Consumption (Cooling): 2200 W

Rated Running Current: 11 A

Max. Input Power: 2800W

Max. Input Current: 15A

CSPF (Cooling Seasonal Performance Factor): 4.56 W/W

Air Flow Volume: 1300m³/h

Power Supply Source: 220-240V / 1Ph / 50Hz

Refrigerant & Pressure:

Refrigerant: R32

Refrigerant Charged: 850g

Max. Discharge Pressure: 4.3Mpa

Max. Suction Pressure: 2.5Mpa

Connection:

Connect pipe (Length): 3m

Stop Valve:

• • Liquid Valve: DG4
  • Gas Valve: DG10

Indoor Unit:

Noise level: 47db

Evaporator (tube):

• • Length: 850mm
  • Diameter: 7mm

Fan system (fan motor): Model D-310-50-10A

Outdoor Unit:

Noise level: 57db

Compressor Model: GMCC

Compressor Parameter (type): Rotation

Fan system (fan motor): Model D-60-10M

Condenser (tube):

• • Length: 886mm
  • Diameter: 7mm

Dimension & Weight:

Width x Depth x Height

• • Product Dimension: 1140 x 229 x 334mm (44.9” x 9” x 13.1”)
  • Packing Dimension: 1210 x 327 x 400mm (47.6” x 12.9” x 15.7”)
  • Net Weight: 13kg
  • Gross Weight: 17kg

Outdoor Unit:

• • Product Dimension: 823 x 302 x 655mm (32.4” x 11.9” x 25.8”)
  • Packing Dimension: 945 x 400 x 715mm (37.2” x 15.7” x 28.1”)
  • Net Weight: 28.5kg
  • Gross Weight: 33kg

Packing Contents:

24k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

24k BTU Outdoor Unit – x1

• Insulated Copper Tube – x1
• Insulated Copper Tube – x1
• Wrapping Roll – x1

Click here for Wi-Fi USB Dongle (Sold Separately)
