Specification

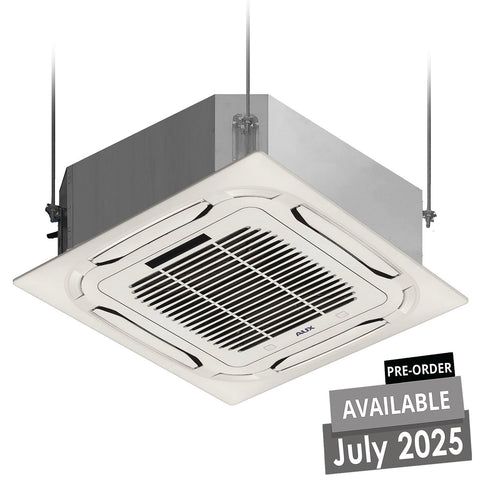

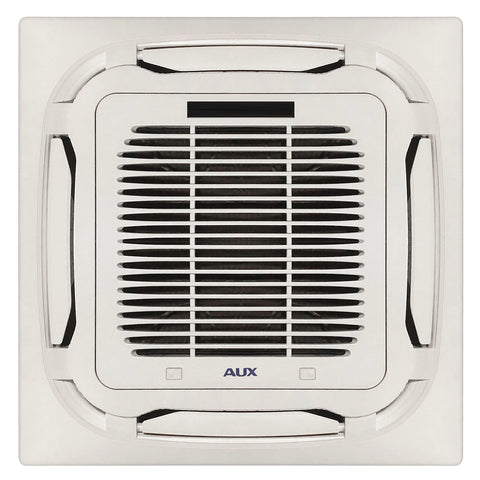

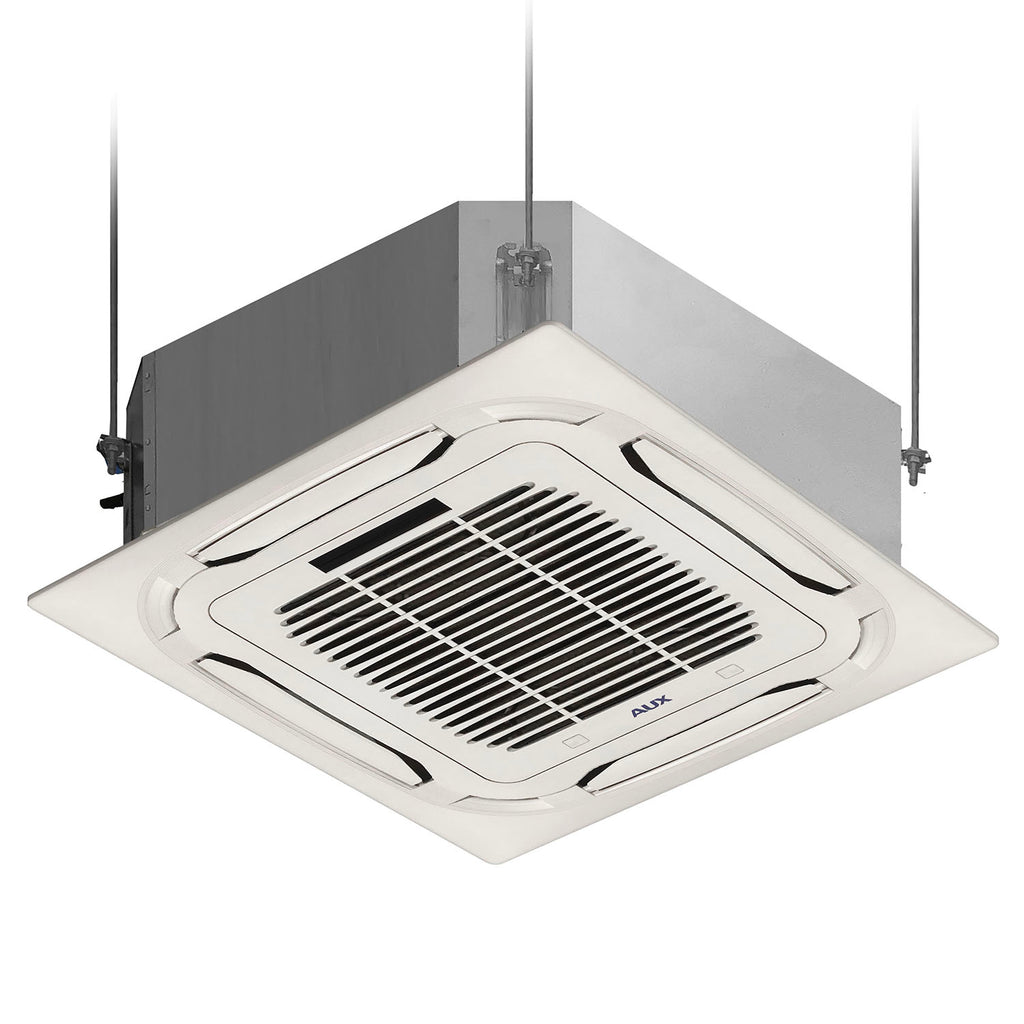

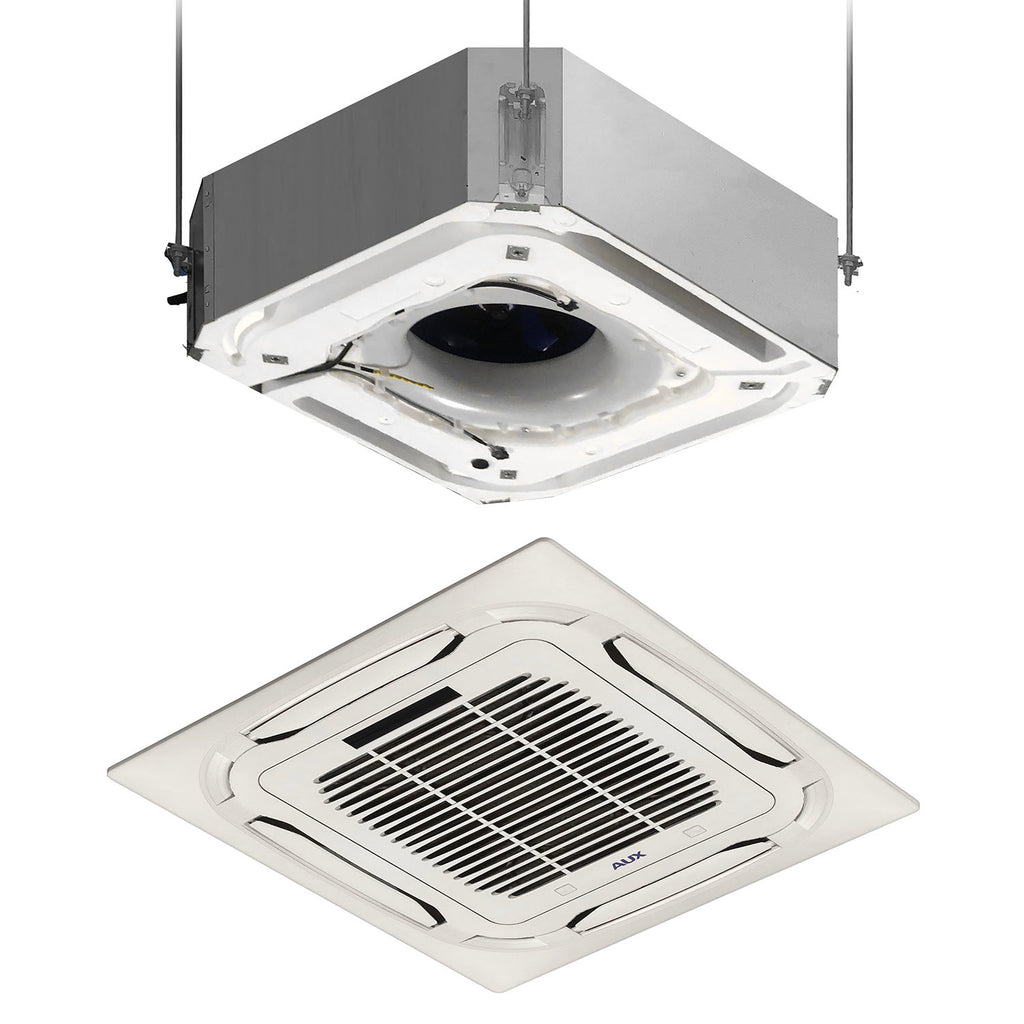

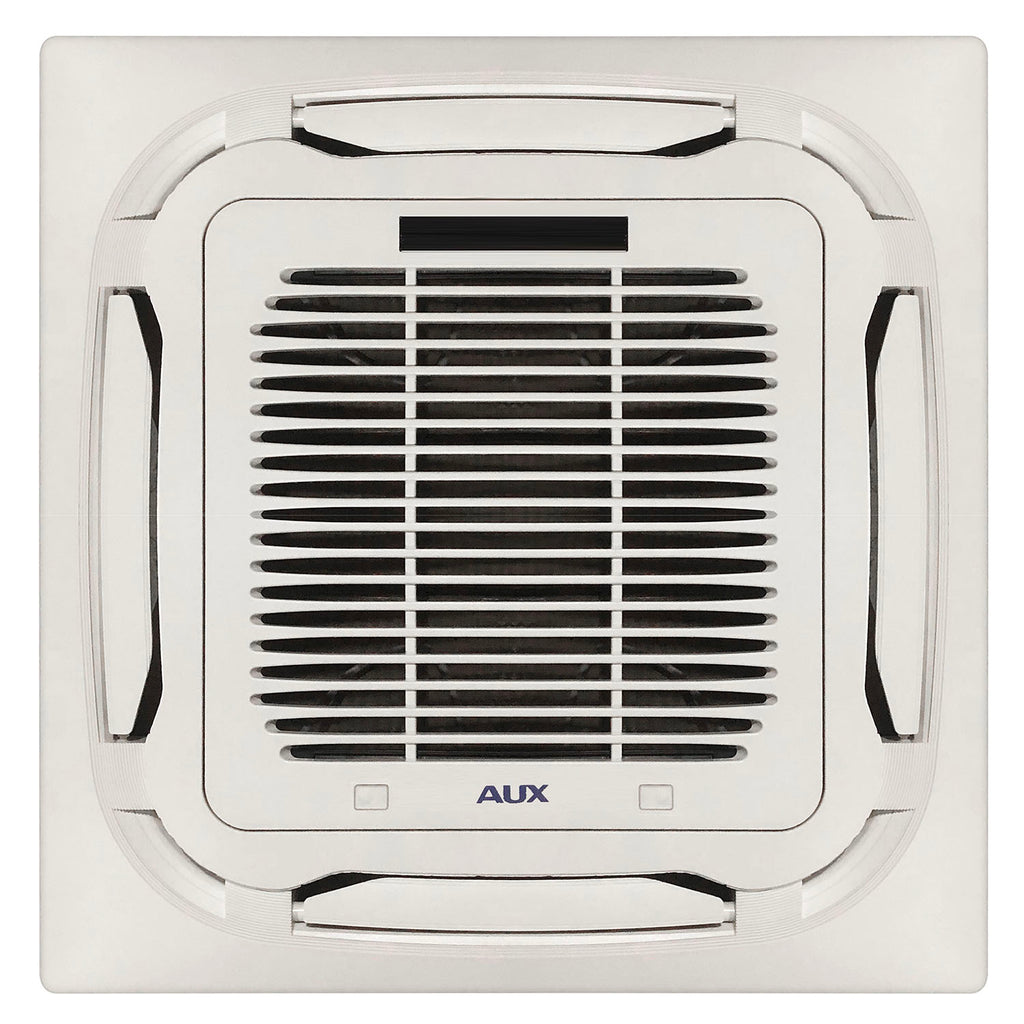

Aux – Multi IDU 4-Way Cassette-type AC Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMCA-H12/4R3AA

Capacity: 12000BTU

Warranty: 1 Year Warranty

Cooling Capacity:

• 12285 (5800 - 12625) Btu/h
• 3.60 (1.70 – 3.70) kW

Heating Capacity:

• 13306 (6930 – 15080) Btu/h
• 3.9 (2.03 – 4.42) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 70 (17.5 - 109) W
• Heating Power Input: 70 (17.5 - 109) W

Fan Motor:

• Output Power: 30W
• Capacitor: 2uF
• Speed (Hi / Mi / Lo): 810 / 750 / 660 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch x Row Pitch: 20.5 X 12.7mm
• Fin Pitch: 1.5mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 1320 x 205 x 25.4mm
• Heat Exchanging Area: 6.12m²

Performance:

• Air Flow Volume: 412/353/312 CFM, 700/600/530 m³/h
• Sound Pressure Level: 45/41/35 dB (A)
• Sound Power Level: 56 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 12.7mm (1/2")
• Drainage: 20mm

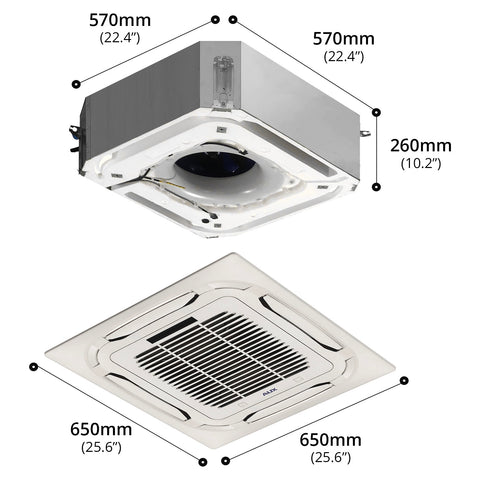

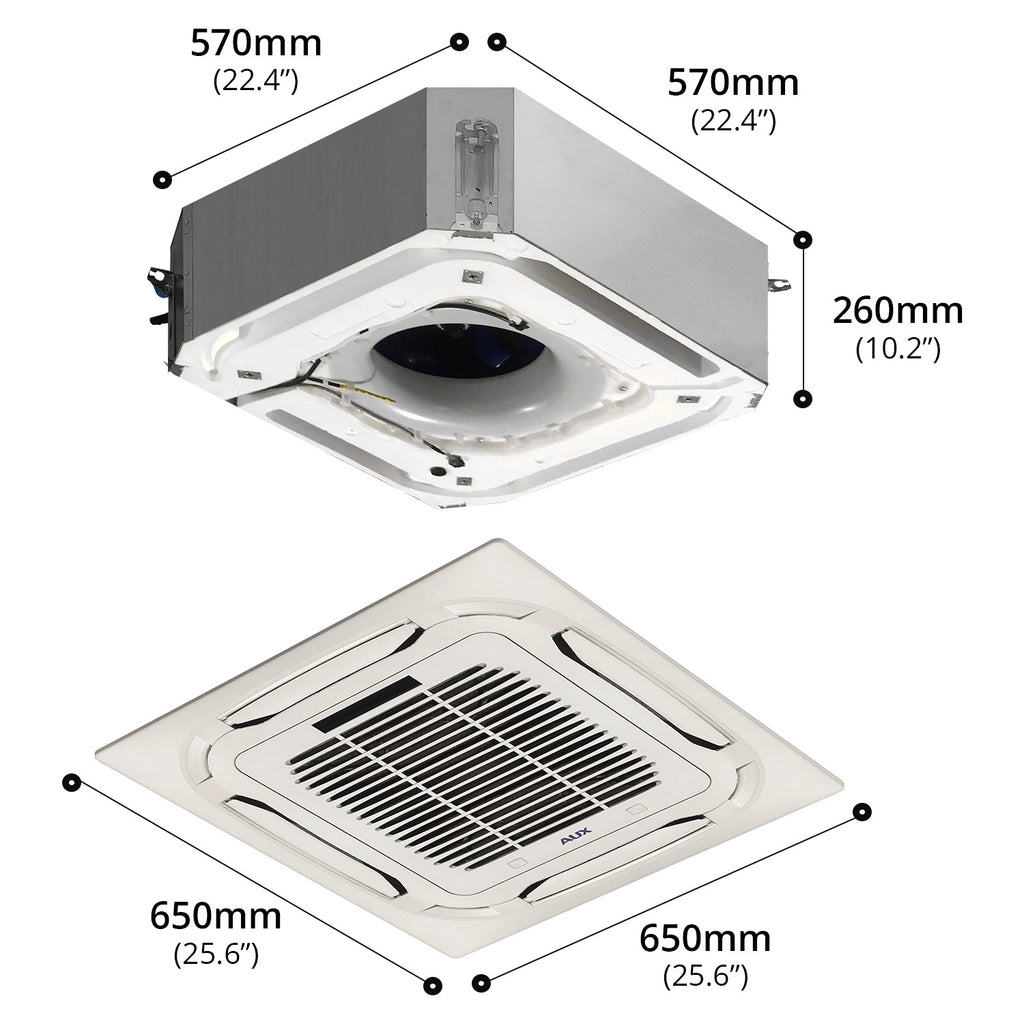

Dimension (W x D x H):

• Net (Body): 570 x 570 x 260mm
• Packing (Body): 655 x 655 x 295mm
• Net (Panel): 650 X 650 X 55mm
• Packing (Panel): 710 X 710 X 80mm

Weight:

• Net (Body): 18 kg
• Gross (Body): 21 kg
• Net (Panel): 2.2kg
• Gross (Panel): 3.7kg
