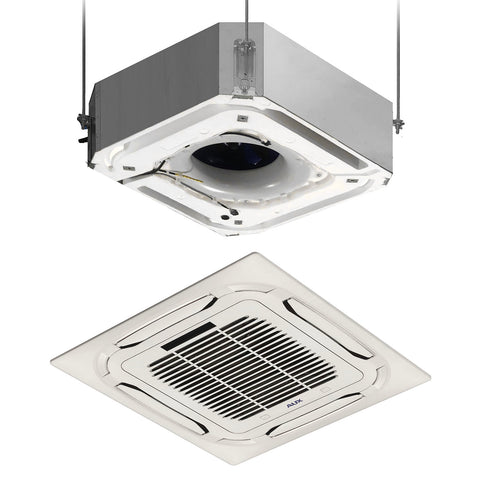

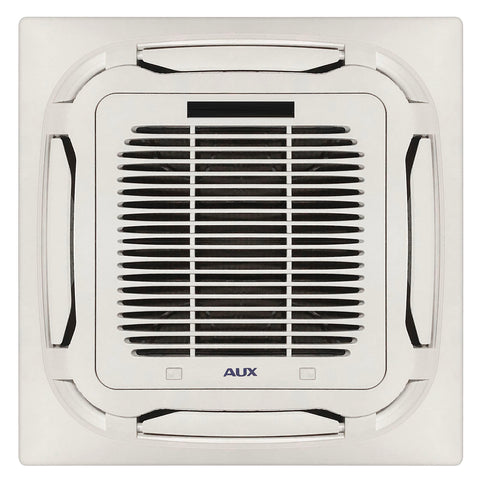

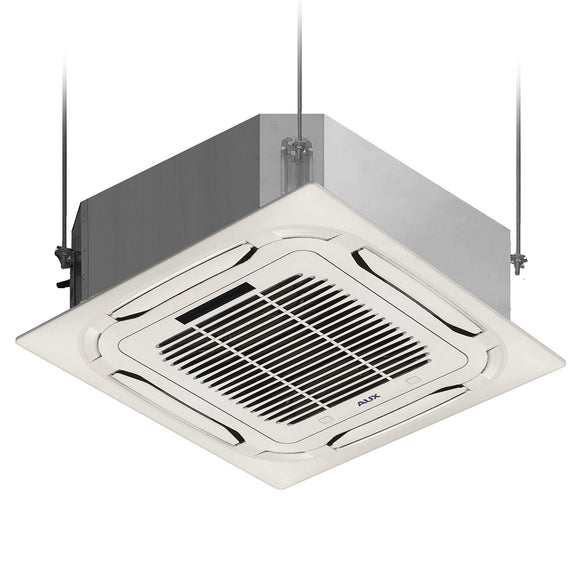

Aux – Multi IDU 4-Way Cassette-type AC Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMCA-H18/4R3AA

Capacity: 18000BTU

Warranty: 1 Year Warranty

Cooling Capacity:

    • 17060 (8530 – 19107) Btu/h
    • 5.0 (2.50 – 5.6) kW

Heating Capacity:

    • 19107 (10340 – 24000) Btu/h
    • 5.6 (3.03 – 7.03) kW

Electric Data:

    • Power Supply: 220 ~ 240V, 50Hz, 1Ph
    • Cooling Power Input: 70 (17.5 - 109) W
    • Heating Power Input: 70 (17.5 - 109) W

Fan Motor:

    • Output Power: 30W
    • Capacitor: 2uF
    • Speed (Hi / Mi / Lo): 810 / 750 / 660 r/min

Indoor Coil:

    • Number Of Row: 2
    • Tube Pitch x Row Pitch: 20.5 X 12.7mm
    • Fin Pitch: 1.5mm
    • Fin Material: Hydrophilic aluminum fin
    • Tube outside Dia. And Material: φ7, Inner grooved
    • Coil Length x Height x Width: 1320 x 205 x 25.4mm
    • Heat Exchanging Area: 6.12m2

Performance:

    • Air Flow Volume: 412/353/312 CFM, 700/600/530 m3/h
    • Sound Pressure Level: 45/41/35 dB (A)
    • Sound Power Level: 56 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

    • Liquid Side: 6.35mm (1/4")
    • Gas Side: 12.7mm (1/2")
    • Drainage: 20mm

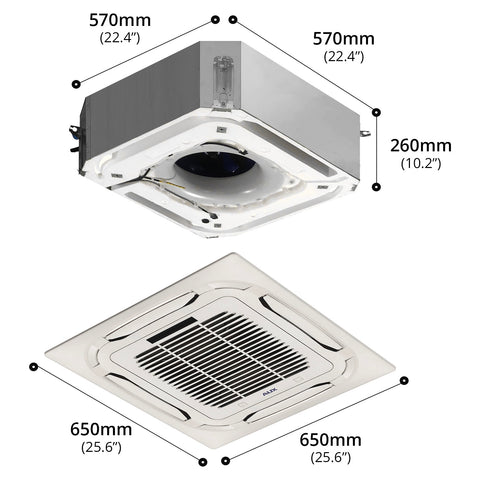

Dimension (W x D x H):

    • Net (Body): 570 x 570 x 260mm
    • Packing (Body): 655 x 655 x 295mm
    • Net (Panel): 650 X 650 X 55mm
    • Packing (Panel): 710 X 710 X 80mm

Weight:

    • Net (Body): 18 kg
    • Gross (Body): 21 kg
    • Net (Panel): 2.2kg
    • Gross (Panel): 3.7kg
