Specification

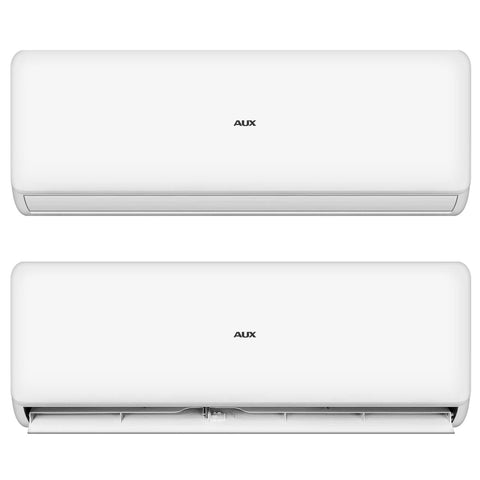

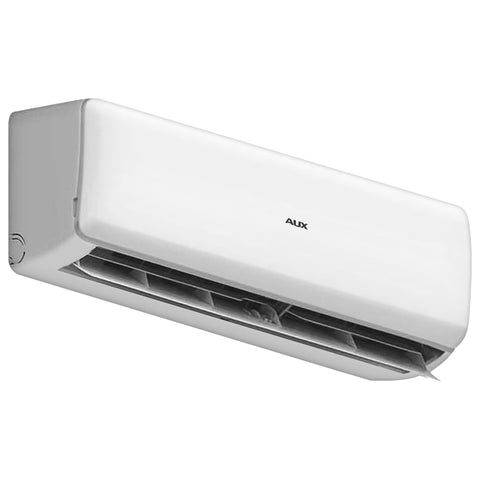

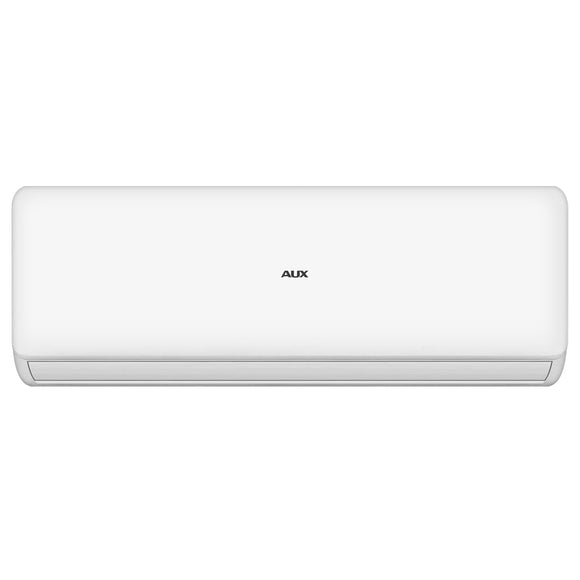

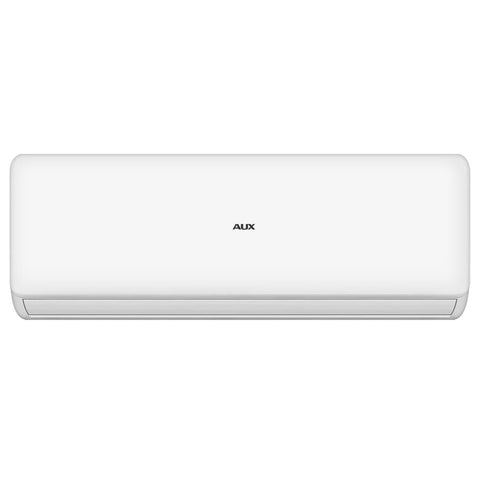

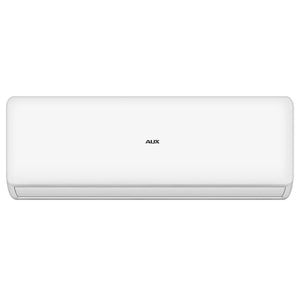

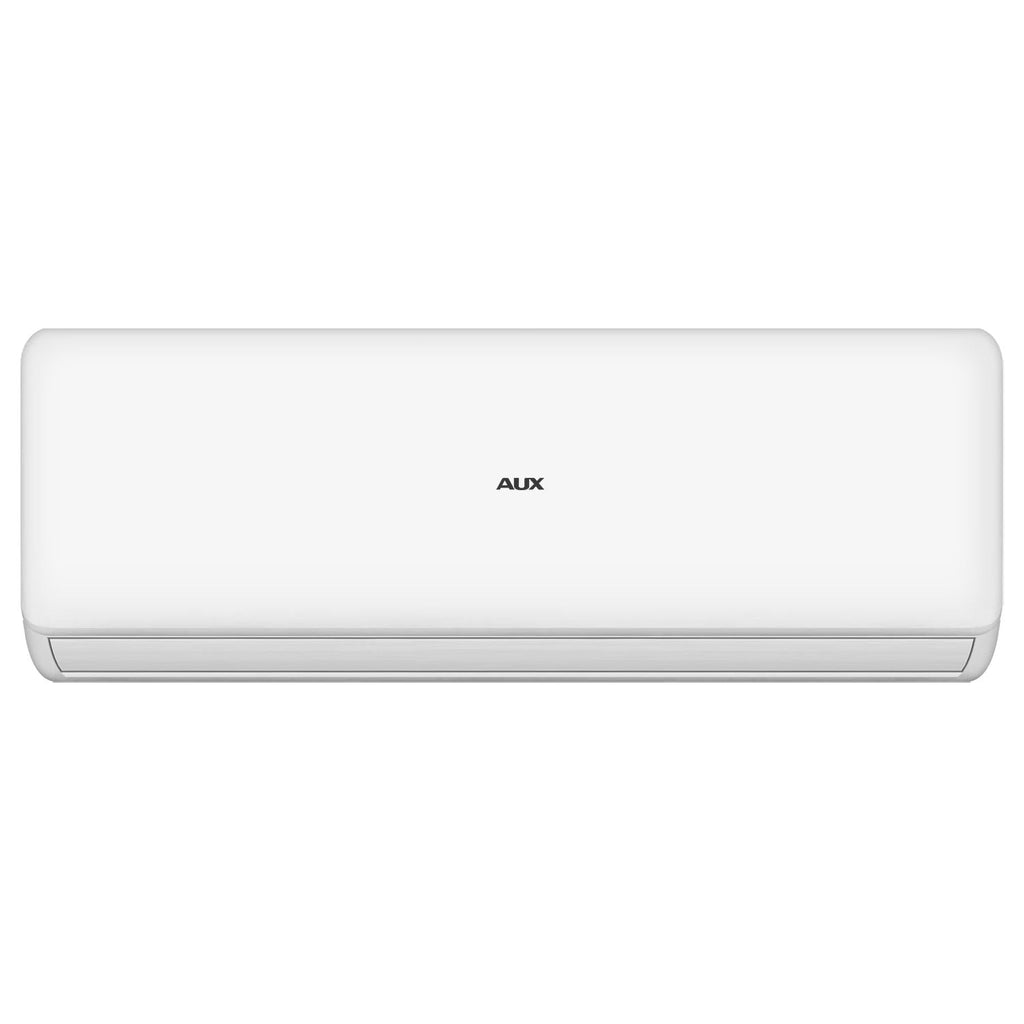

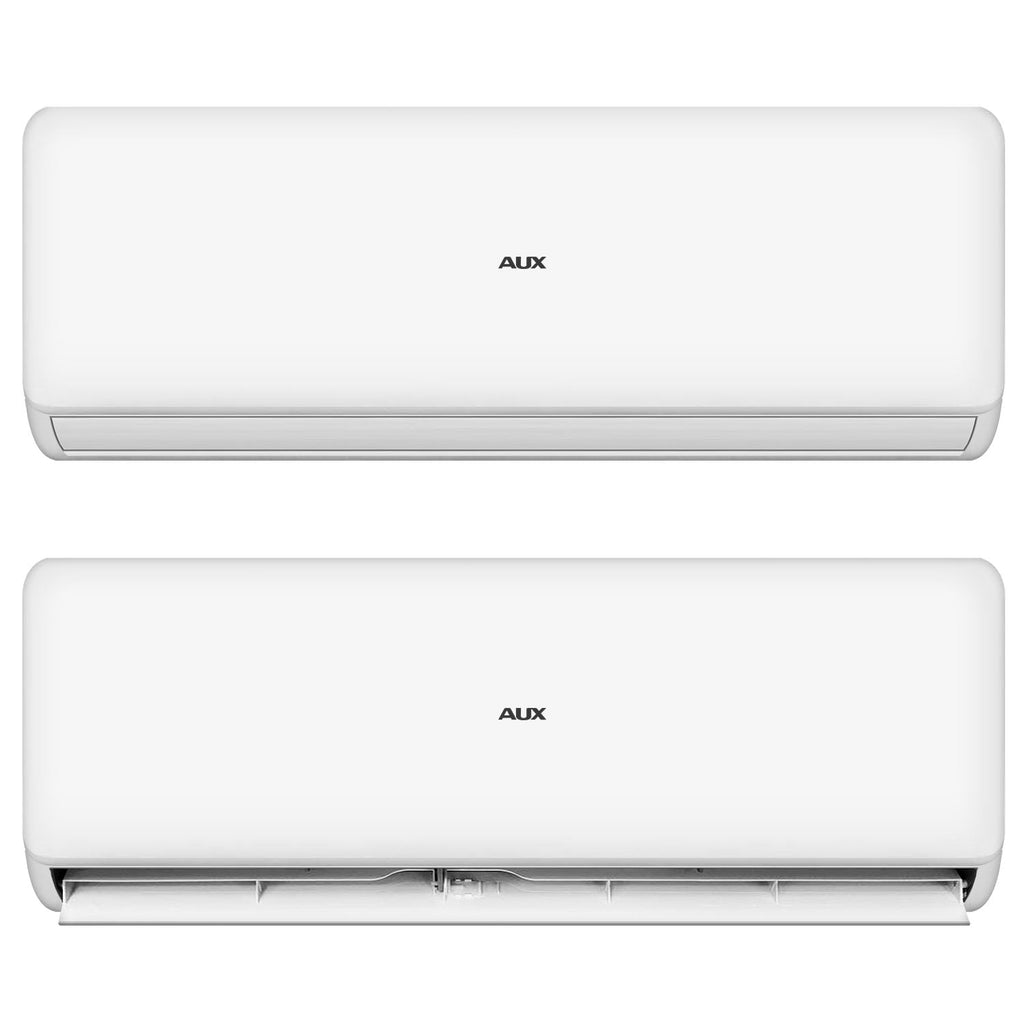

Aux – Multi-Indoor AC

Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMWM-H18/4R3F

Capacity: 18000BTU

Warranty: 12 Months Warranty

Cooling Capacity:

• 17747 (8530 - 19790) Btu/h
• 5.27 (2.50 – 5.80) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 63 (16 - 88) W

Indoor Fan:

• Output Power: 30W
• Speed: 1330 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch(a)x Row Pitch(b): 20.5 X 12.7mm
• Fin Pitch: 1.4mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 670 x 41 x 16mm

Air Flow Volume: 500 CFM, 850 m³/h

Noise Level

• Sound Pressure: 45 dB (A)
• Sound Power: 57 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 12.7mm (1/2")
• Drainage: 16.5mm

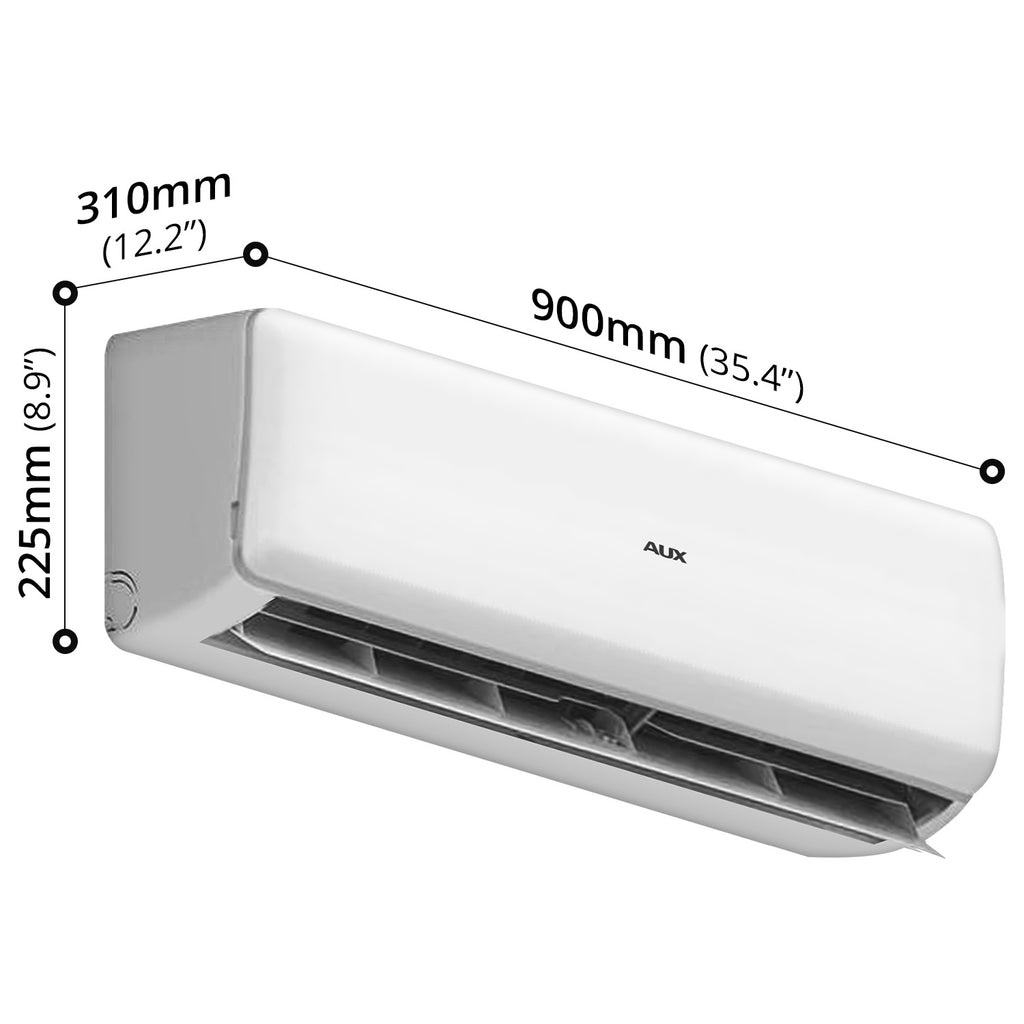

Dimension & Weight:

Width x Depth x Height

Product Dimension: 900 x 310 x 225mm (35.4” x 12.2” x 8.9”)

Packing Dimension: 970 x 382 x 302mm (38.2” x 15.2” x 11.9”)

Net Weight: 12kg

Gross Weight: 14kg

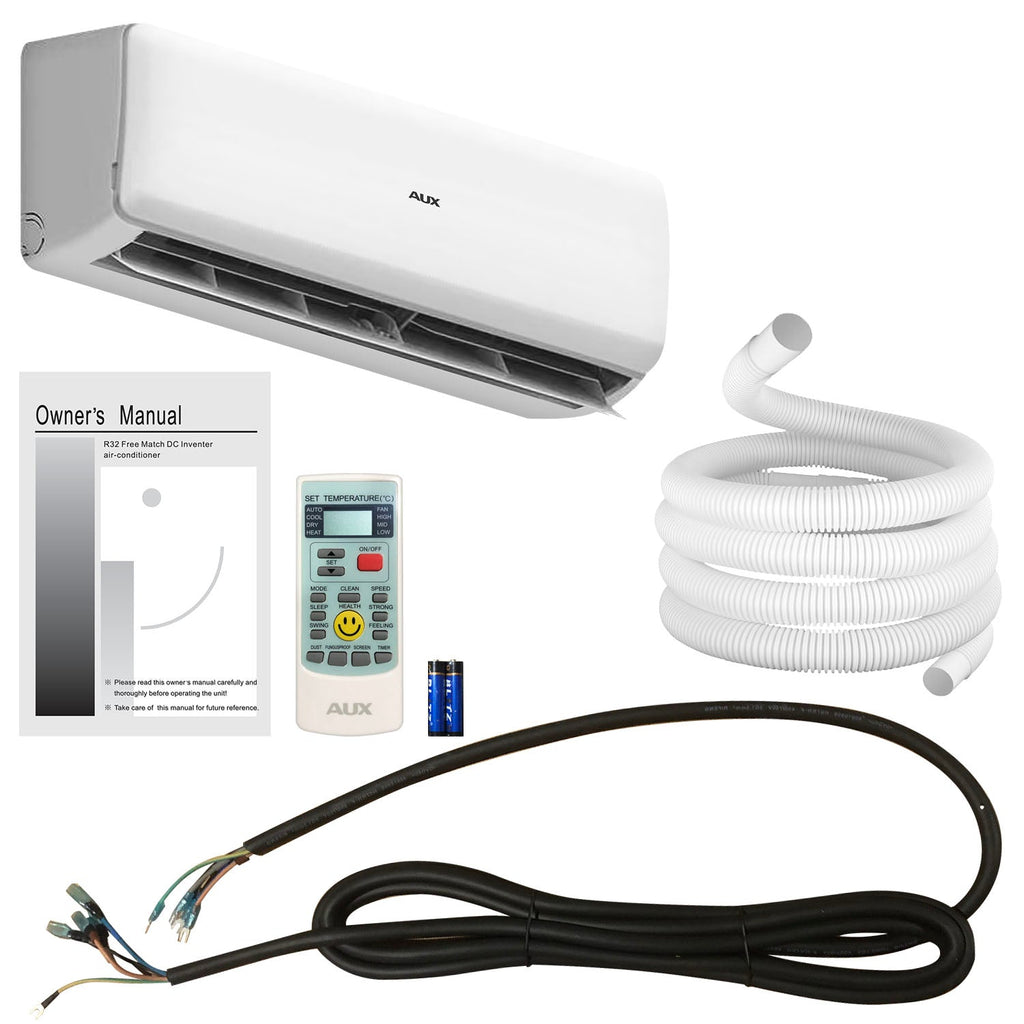

Packing Contents:

18k BTU Indoor AC – x1

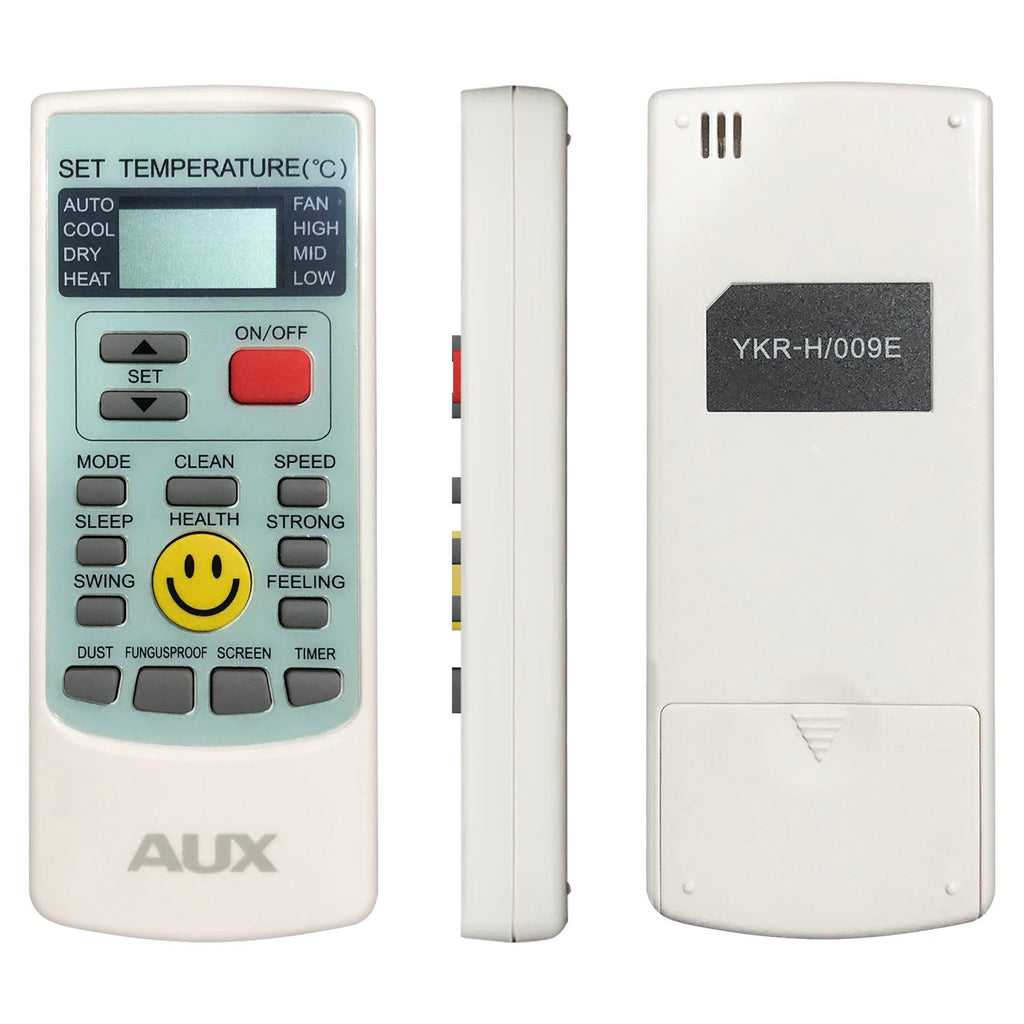

Remote Control – x1

AA Battery – x2

Electric Wire – x1

Drainage Pipe – x1

User Manual – x1
