Specification

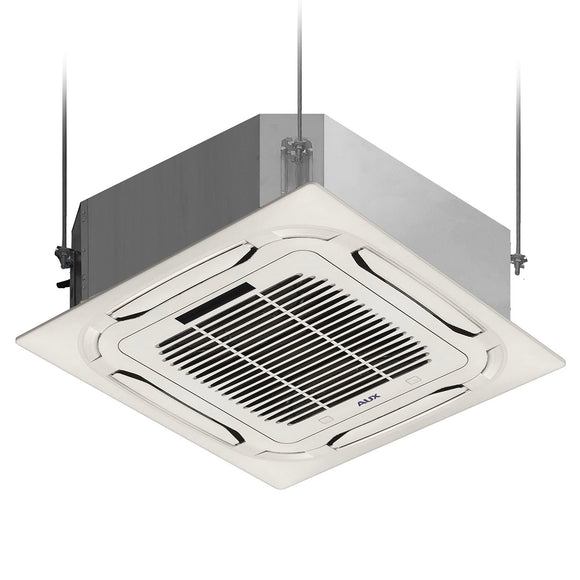

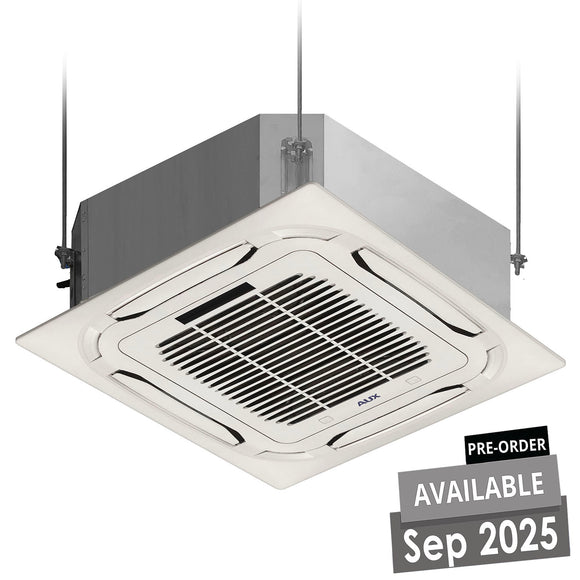

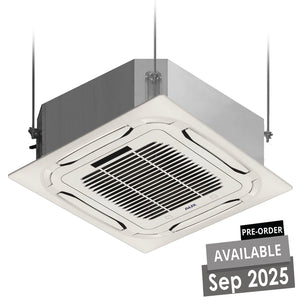

Aux – Multi IDU 4-Way Cassette-type AC

Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMCA-H24/4R3AA

Capacity: 24000BTU

Warranty: 12 Months Warranty

Cooling Capacity:

• 24000 (9895 ~ 24908) Btu/h
• 7.03 (2.90 ~ 7.30) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 70 (17.5 ~ 109) W

Performance:

• Air Flow Volume: 1300/1050/950 m³/h
• Sound Pressure Level: 47/43/38 dB (A)
• Sound Power Level: 57 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 15.88mm (5/8")
• Drainage: 20mm

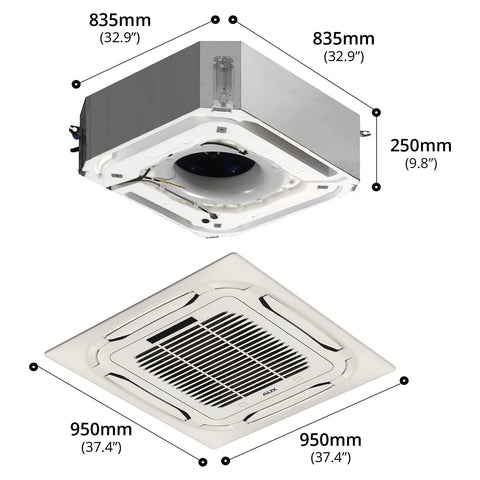

Dimension & Weight:

Width x Depth x Height

Product Dimension:

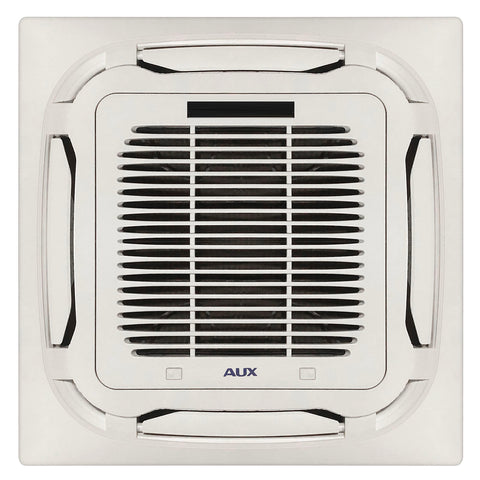

• Panel: 950 x 950 x 55mm (37.4” x 37.4” x 2.2”)
• Indoor Unit: 835 x 835 x 250mm (32.9” x 32.9” x 9.8”)

Packing Dimension:

• Panel: 1000 x 1000 x 100mm (39.4” x 39.4” x 3.9”)
• Indoor Unit: 910 x 910 x 310mm (35.8” x 35.8” x 12.2”)

Net Weight:

• Panel: 5.3kg
• Indoor Unit: 24kg

Gross Weight:

• Panel: 7.8kg
• Indoor Unit: 27.5kg

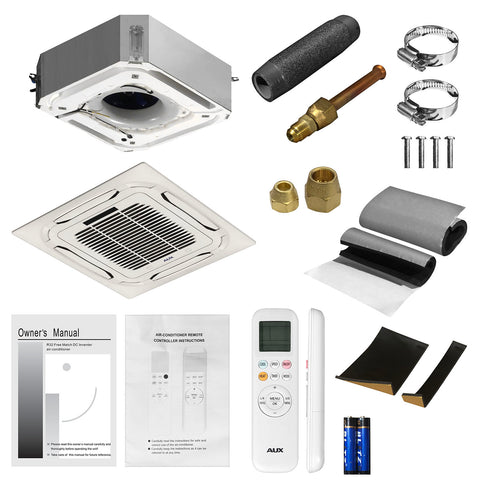

Packing Contents:

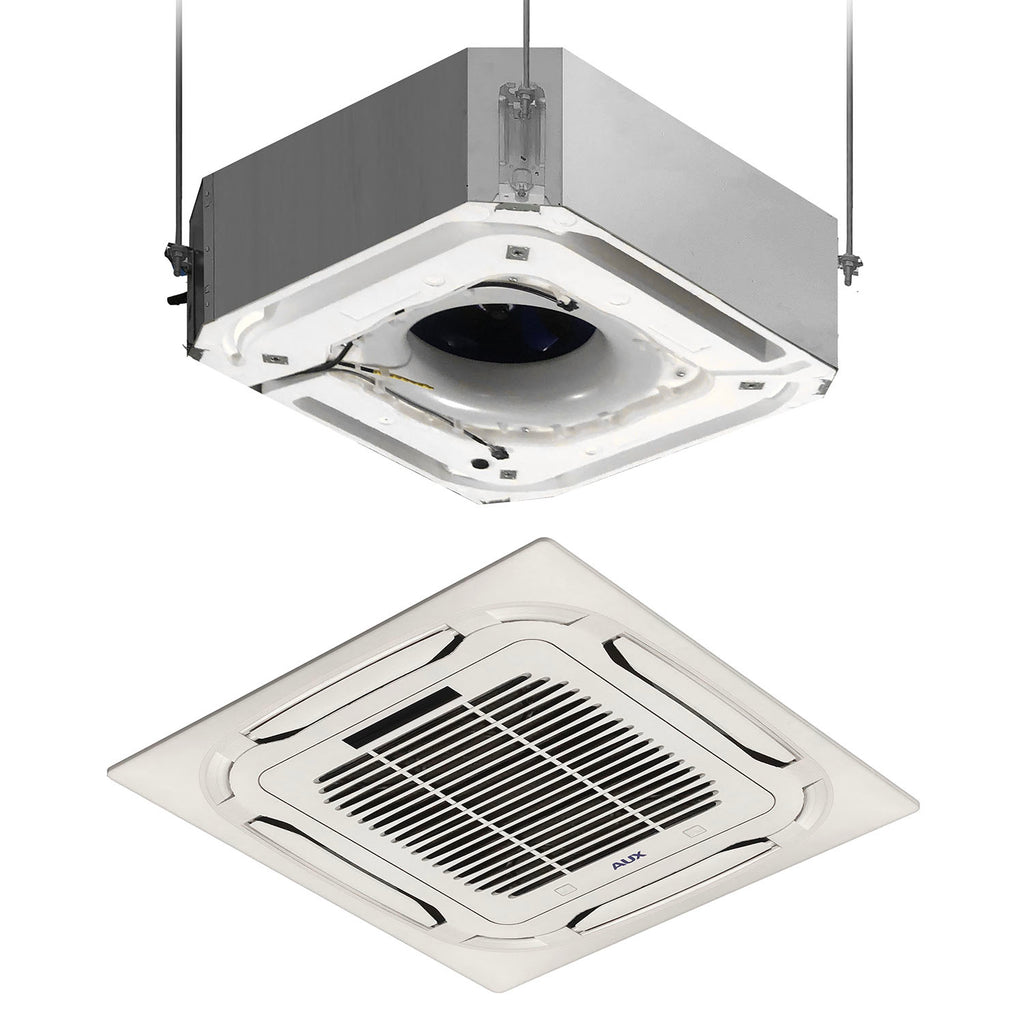

Panel – x1

24k Indoor Unit – x1

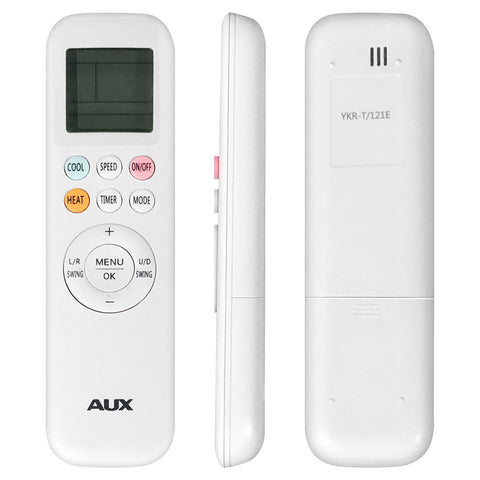

Remote Control – x1

AA Battery – x1

Insulation – x3

Copper Reducer – x1

Flaring Nut – x2

Hose Clamp – x2

Foam Tape – x2

Screws – x4

Remote Control Manual – x1

User Manual – x1

Click here for User Manual
