Specification

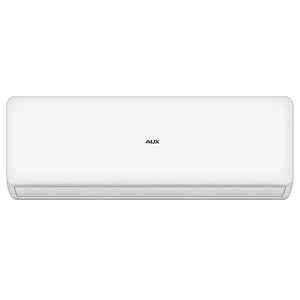

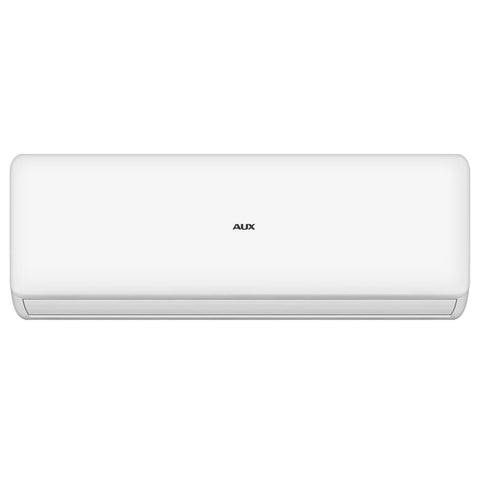

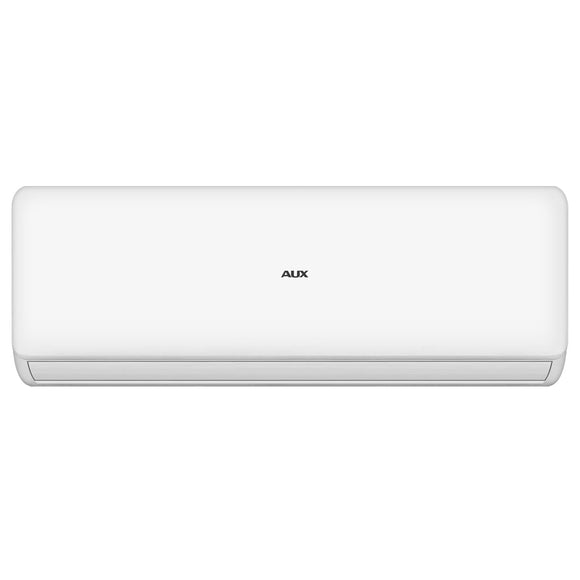

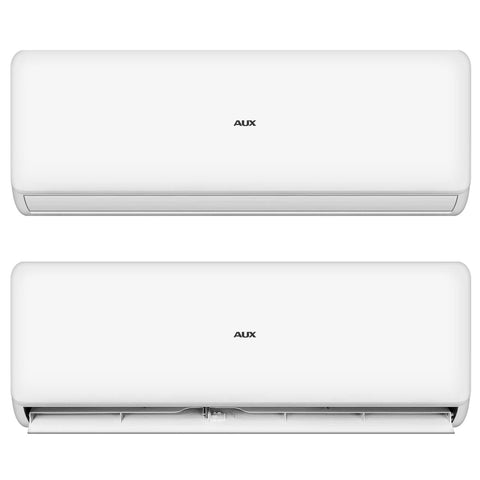

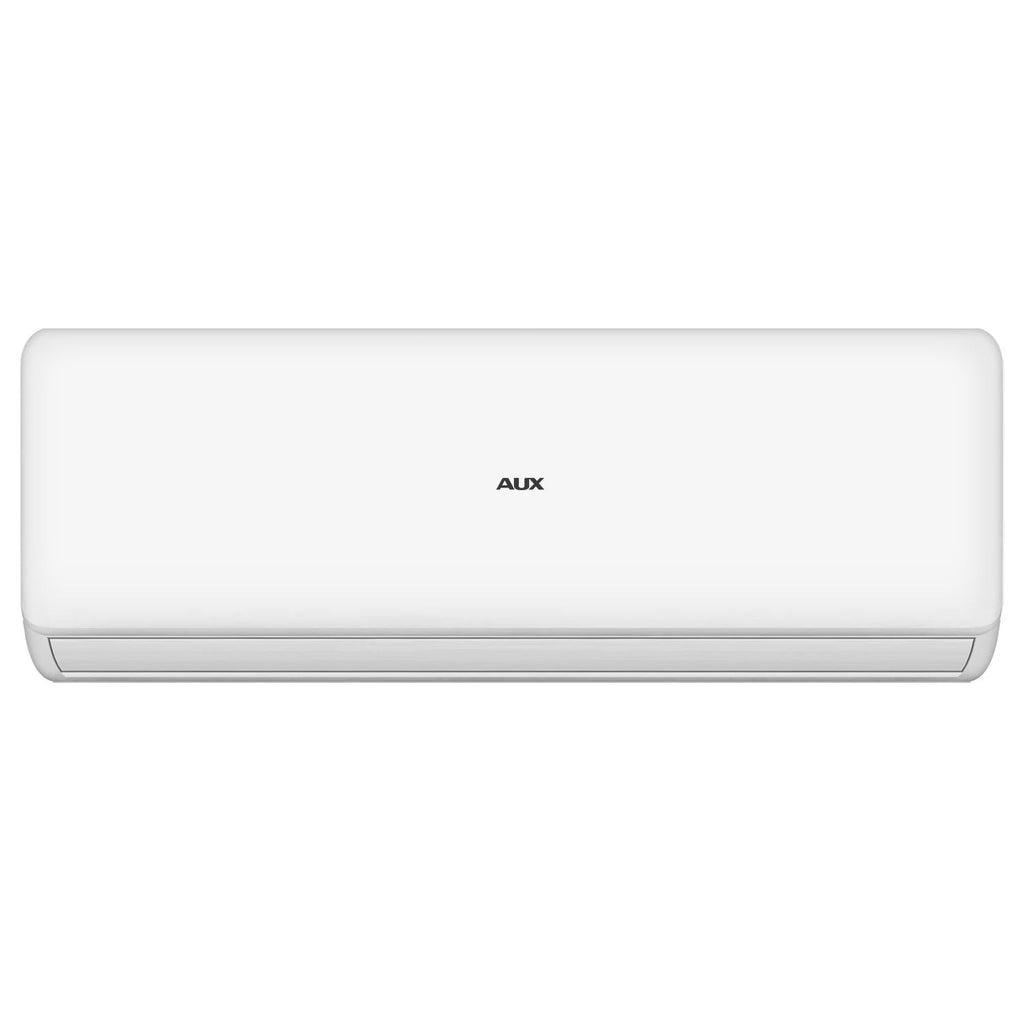

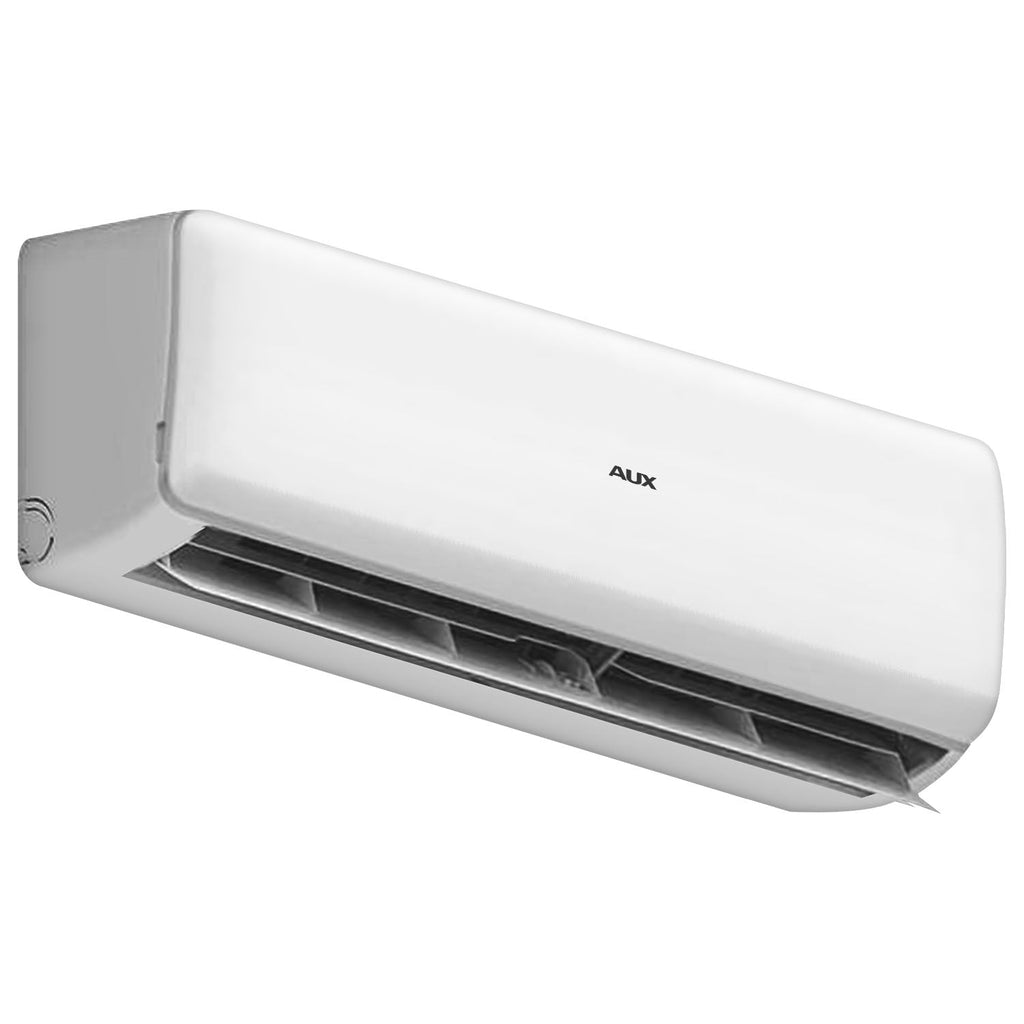

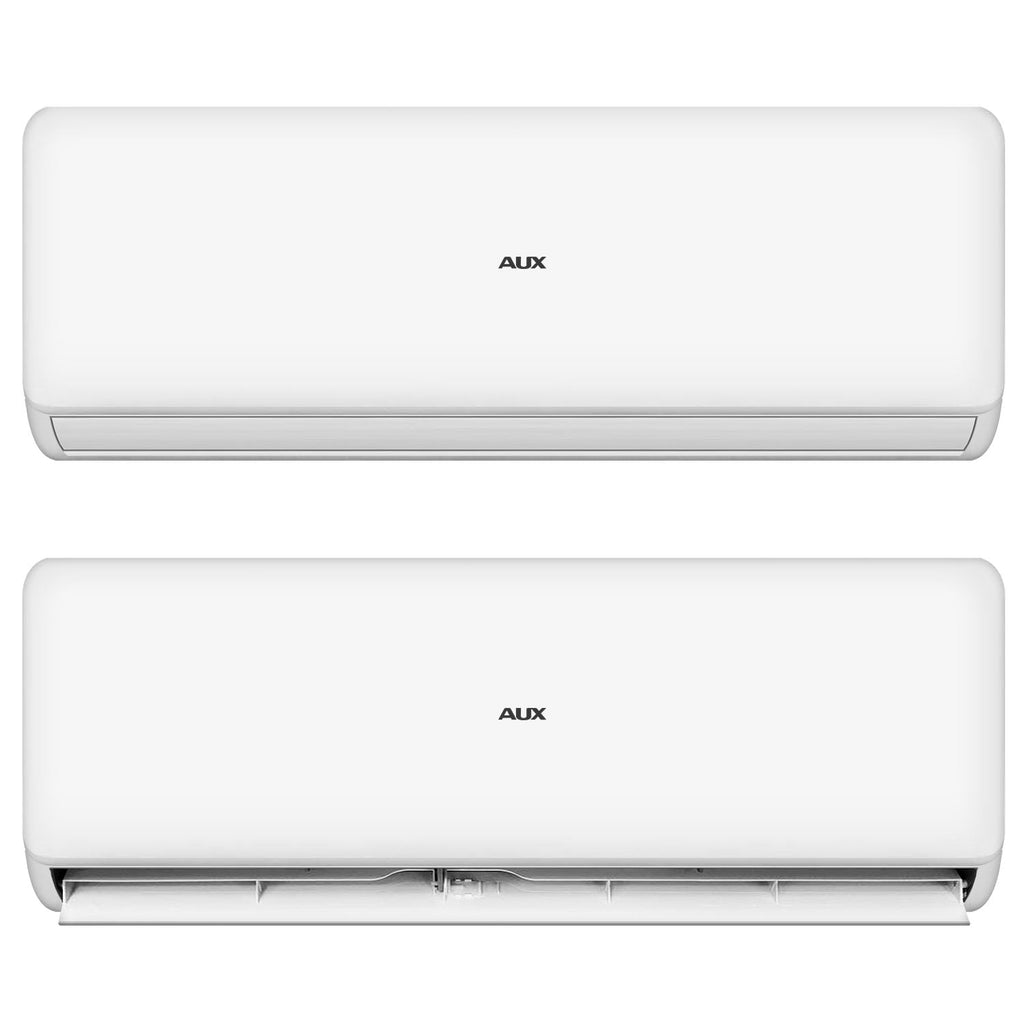

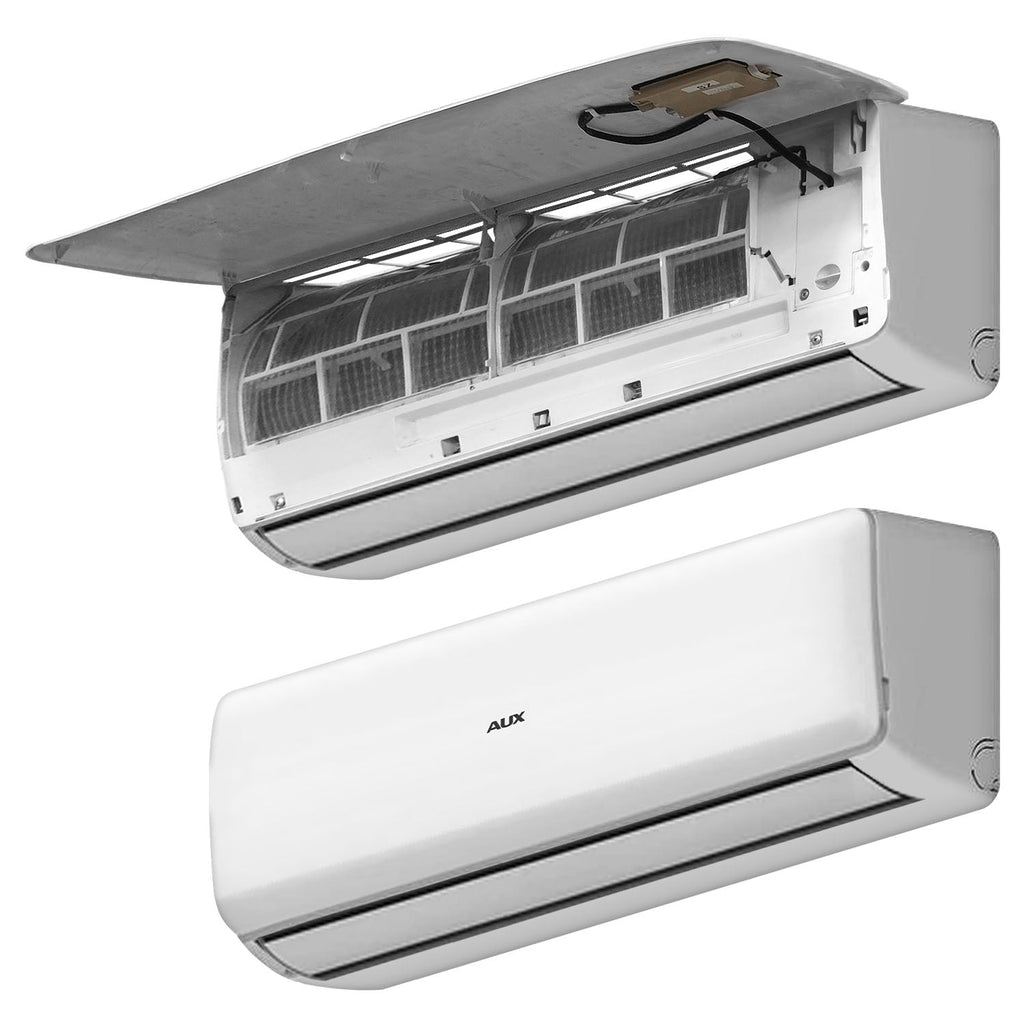

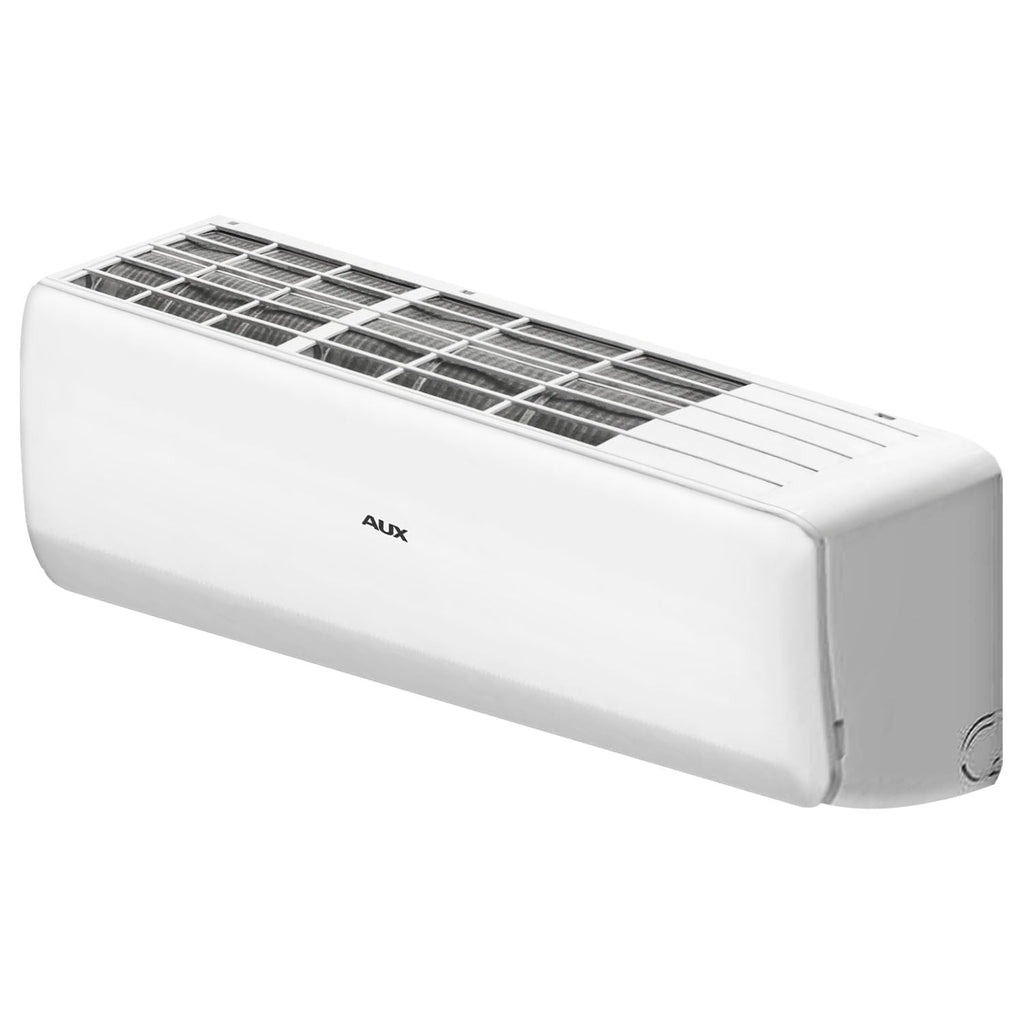

Aux – Multi-Indoor AC

Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMWM-H24/4R3F

Capacity: 24000BTU

Warranty: 12 Months Warranty

Cooling Capacity:

• 23986 (9895 - 24908) Btu/h
• 7.03 (2.90 – 7.30) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 63 (16 - 88) W

Indoor Fan:

• Output Power: 50W
• Speed: 1230 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch(a)x Row Pitch(b): 20.5 X 12.7mm
• Fin Pitch: 1.4mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 850 x 41 x 18mm

Air Flow Volume: 676 CFM, 1150 m³/h

Noise Level

• Sound Pressure: 49 dB (A)
• Sound Power: 60 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 15.88mm (5/8")
• Drainage: 16.5mm

Dimension & Weight:

Width x Depth x Height

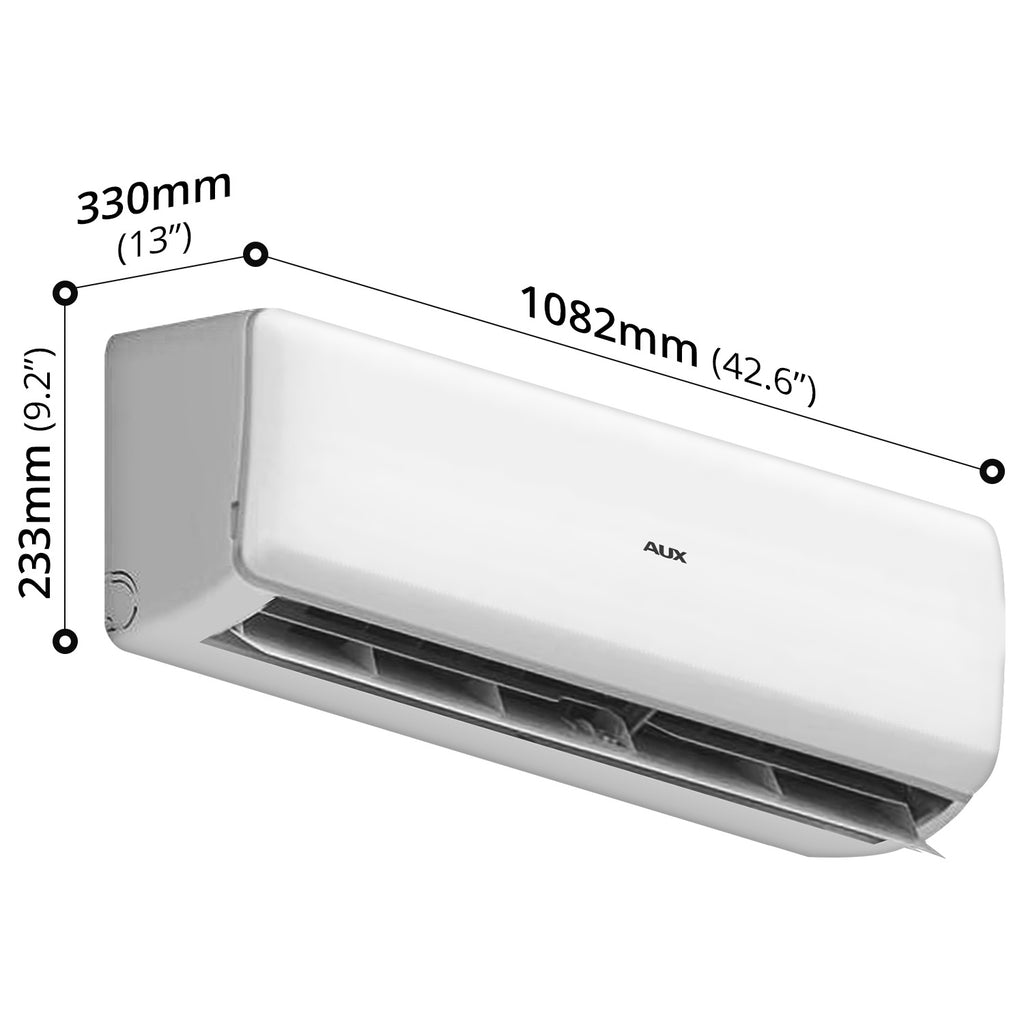

Product Dimension: 1082 x 330 x 233mm (42.6” x 13” x 9.2”)

Packing Dimension: 1155 x 397 x 312mm (45.5” x 15.6” x 12.3”)

Net Weight: 15kg

Gross Weight: 16.5kg

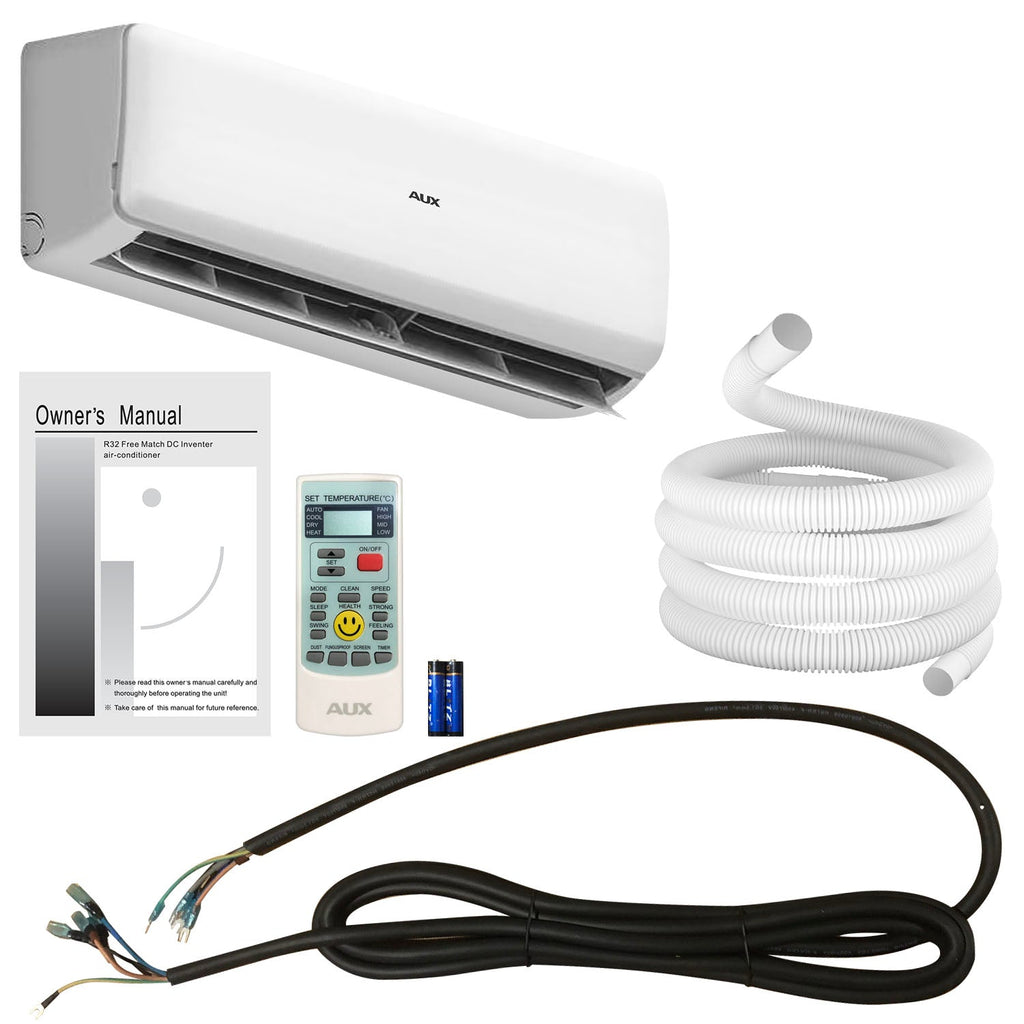

Packing Contents:

24k BTU Indoor AC – x1

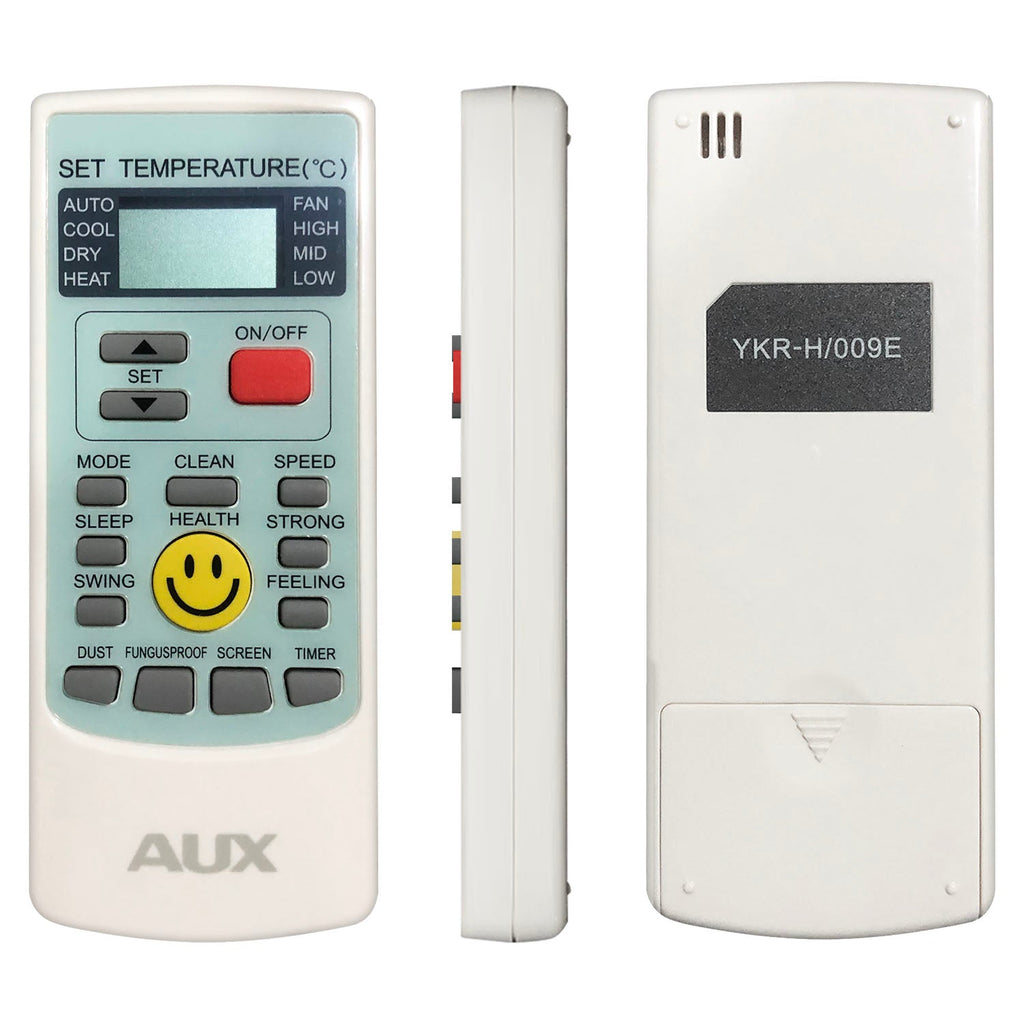

Remote Control – x1

AA Battery – x2

Electric Wire – x1

Drainage Pipe – x1

User Manual – x1
