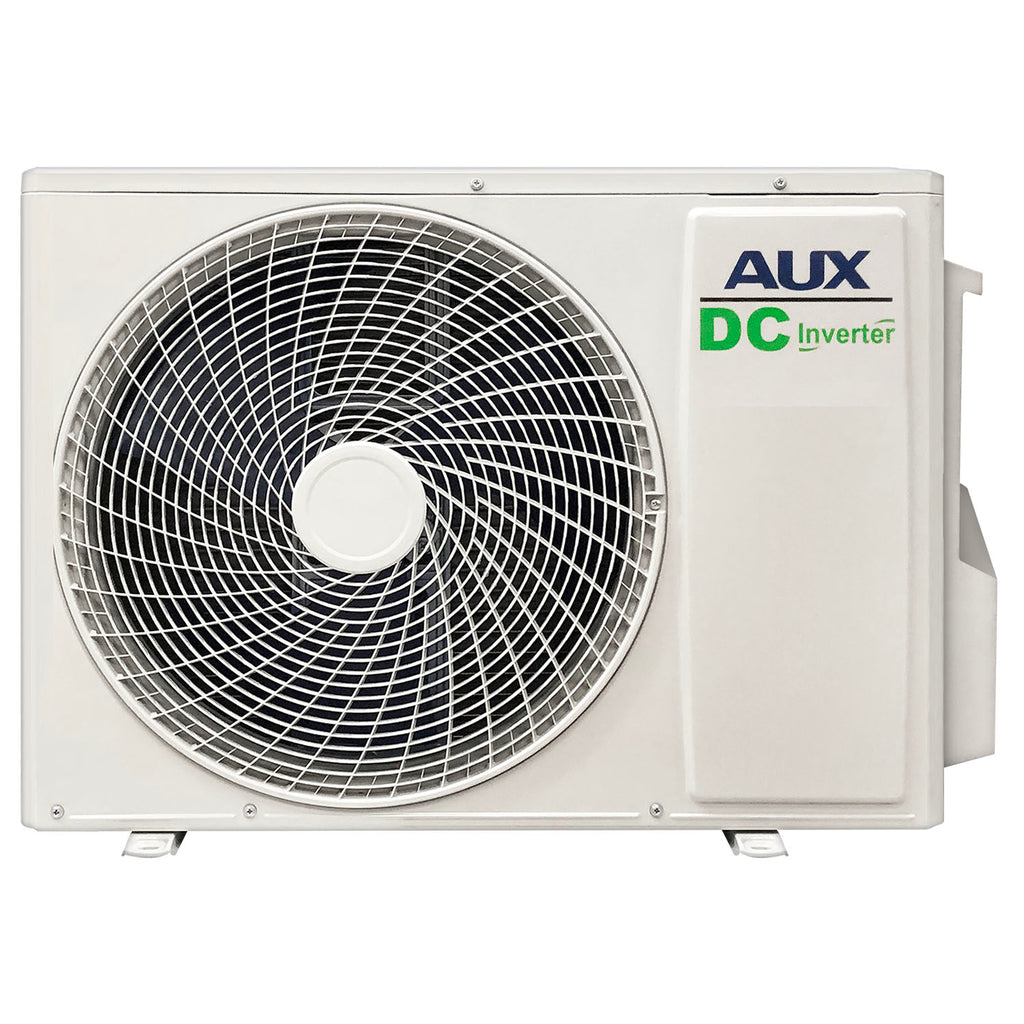

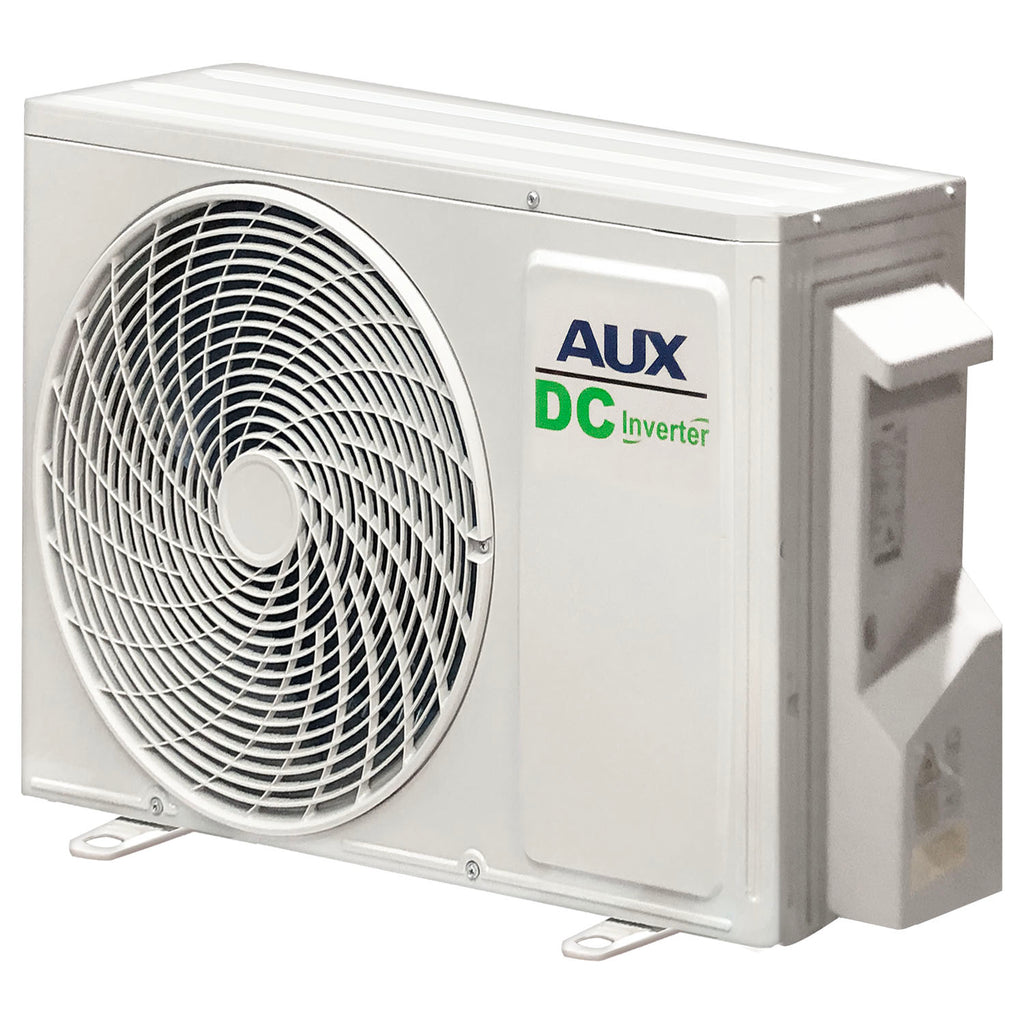

Aux – Multi-Outdoor AC Inverter (Free Match) 1 Drive 3

Brand: Aux

Series: Free Match

Model: AM3-H27/4DR3

Capacity: 27000 BTU

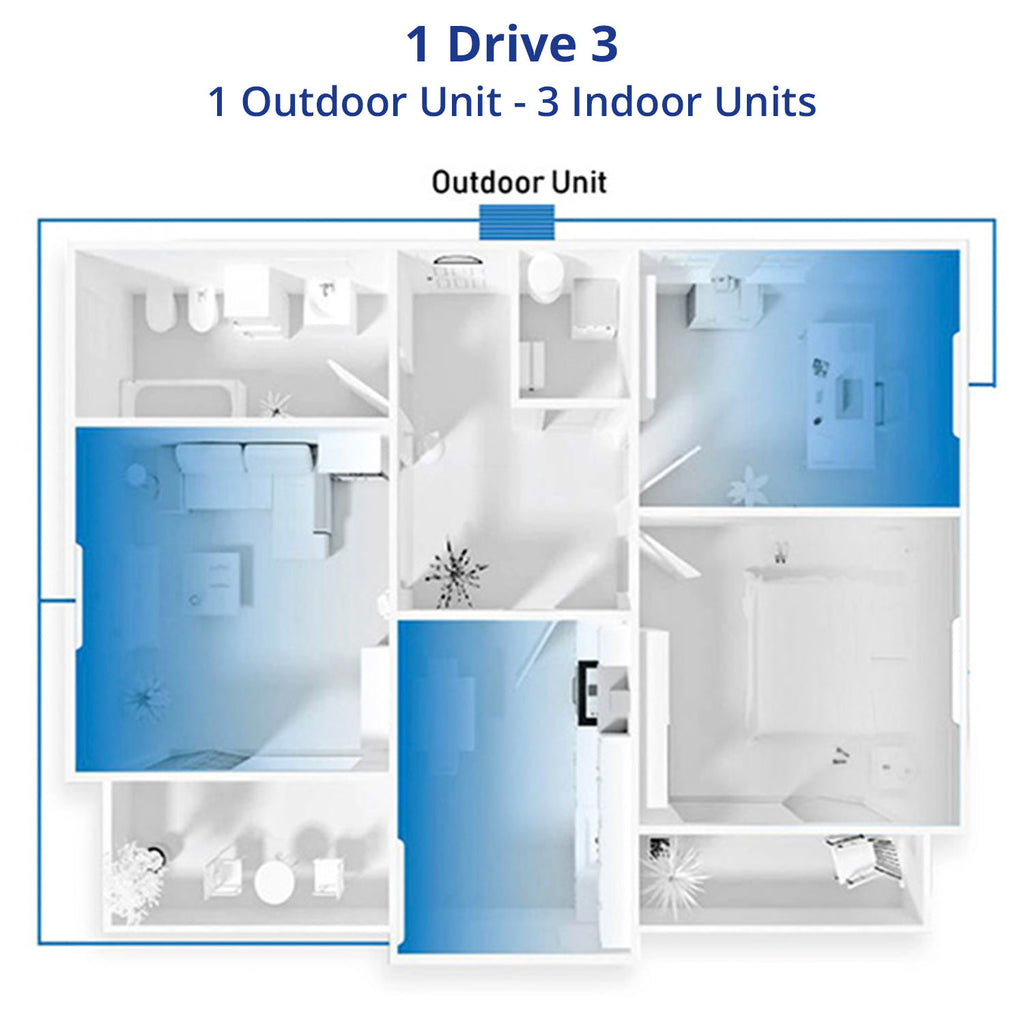

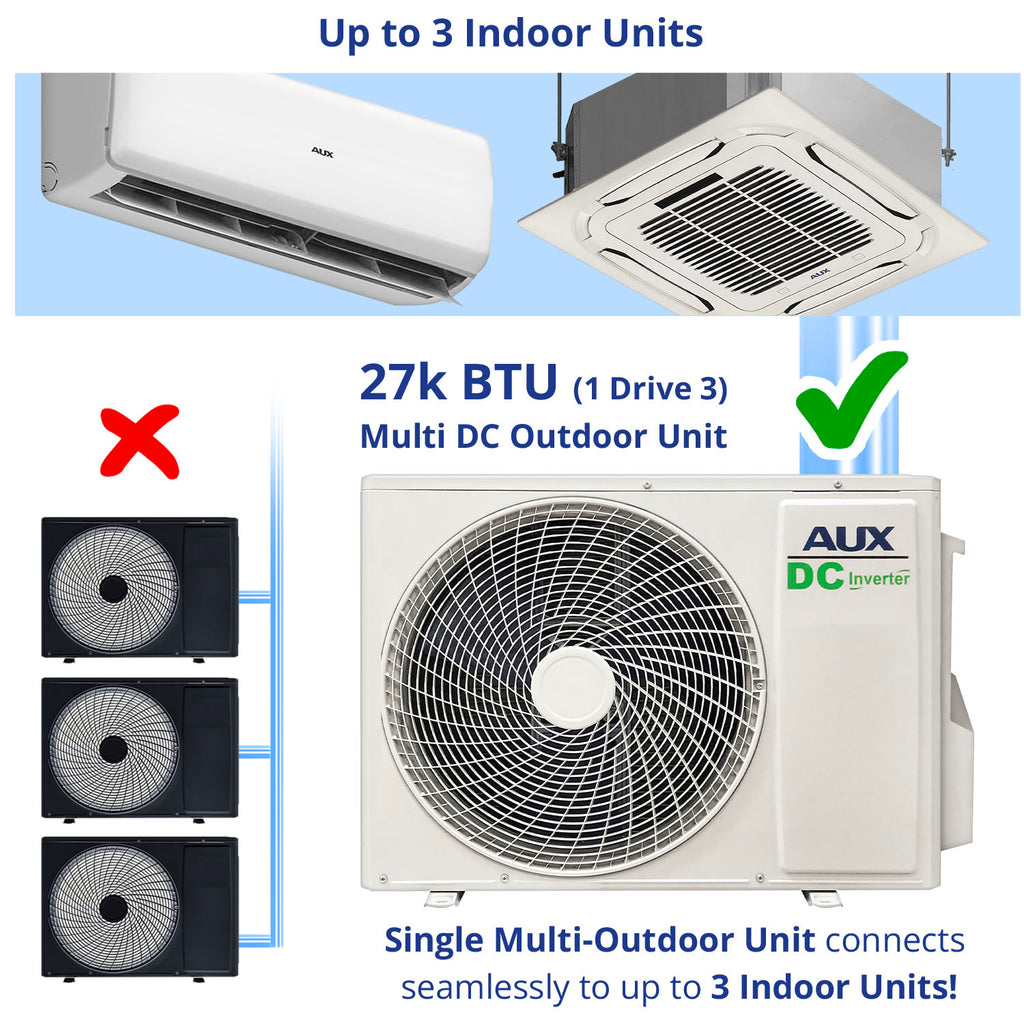

System Format: 1 Drive 3

Warranty: 1 Year Warranty

Capacity:

Cooling:

    • 26955 (7848 - 29650) Btu/h
    • 7.9 (2.3 – 8.69) kW

Heating:

    • 27978 (8359 - 30776) Btu/h
    • 8.2 (2.45 – 9.02) kW

Electric Data:

    • Power Supply: 220~240V, 50Hz, 1Ph
    • Cooling Power Input: 2460 (560 - 3400) W
    • Heating Power Input: 2270 (560-3400) W
    • Rated Current (Cooling & Heating): 10.7A / 9.8A
    • Max current: 16A
    • Max power: 3.4kW

DC Inverter Compressor:

    • Type: Rotary
    • Capacity: 7715W
    • Input: 2085W
    • Power Supply: 220~240V, 50Hz, 1Ph
    • Rated Current: 9.5A
    • Operating Frequency: 60Hz
    • Refrigerant Oil: VG74/670ml
    • Frequency Range: 12~120 Hz

Outdoor DC Inverter Fan Motor:

    • Type: DC Inverter
    • Insulation Class: E
    • Safe Class: IP24
    • Input Power: 85W
    • Output Power: 65W
    • Capacitor: /
    • Speed: 870-350 r/min

Outdoor Fan:

    • Material: Plastic
    • Diameter: Ф470 x 140

Outdoor Coil:

    • Number of Row: 2
    • Tube Pitch (a) x Row Pitch (b): 22 x 19.05mm
    • Fin Pitch: 1.3mm
    • Fin Material: Hydrophilic aluminum fin
    • Tube outside Dia. and Material: φ7, Inner grooved
    • Coil Length x Height x Width: 757 x 616 x 38.1mm
    • Heat Exchanging Area: 13.2m2

Air Flow Volume:

    • 1824 CFM, 3100 m3/h

Noise Level:

    • Sound Pressure Noise Level: 58 dB (A)
    • Sound Power Noise Level: 65 dB (A)

Refrigerant type:

    • Type: R32
    • Charged Volume: 1.05kg
    • Additional charge: 20 (g/m)

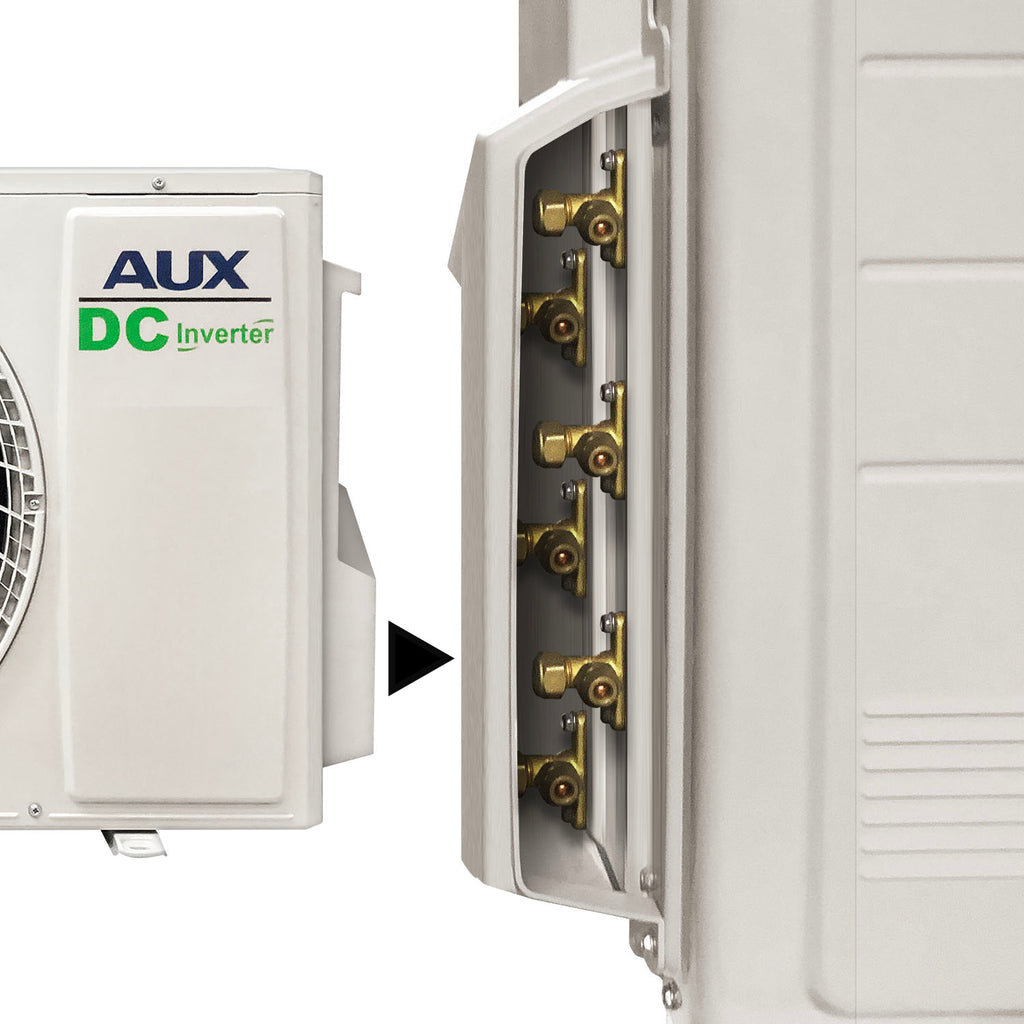

Piping:

    • Liquid Side: 3 X 6.35 mm (1/4”)
    • Gas Side: 3 X 9.52 mm (3/8”)
    • Length for all rooms (m): 60m
    • Length for one IU (m): 30m
    • Height difference between IU and OU (m): 15m
    • Height difference between IUs (m): 10m

Ambient Temp (Cooling/Heating): -15~52℃/-15~24℃

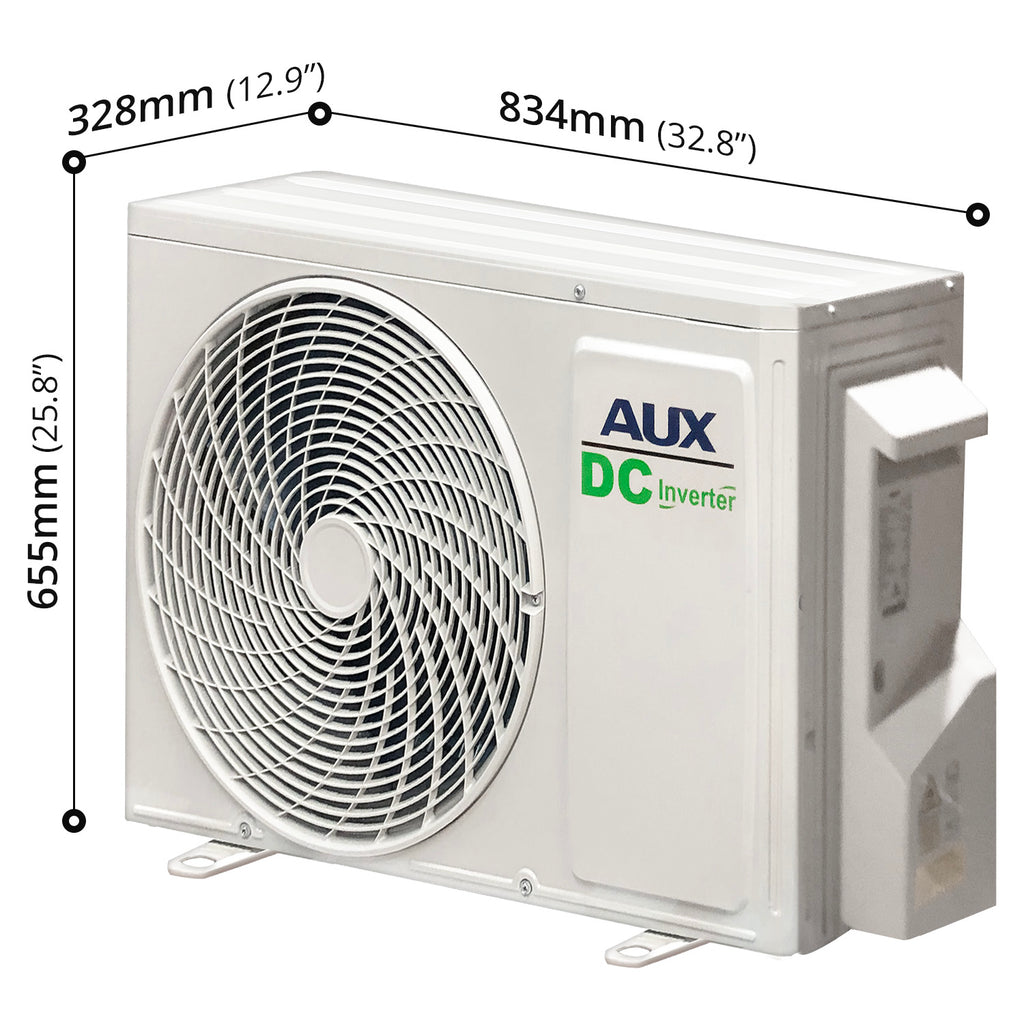

Dimension (W x D x H):

    • Net: 834 x 328 x 655mm
    • Packing: 945 x 435 x 725mm

Weight:

    • Net: 46kg
    • Gross: 49kg
