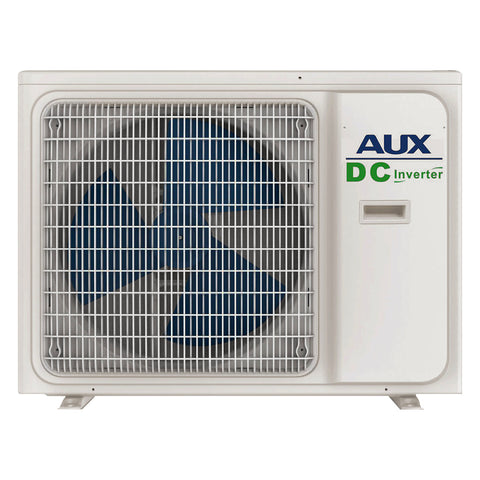

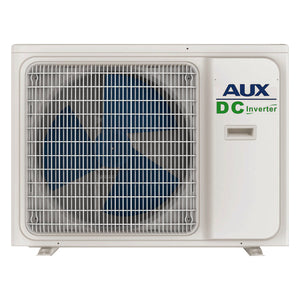

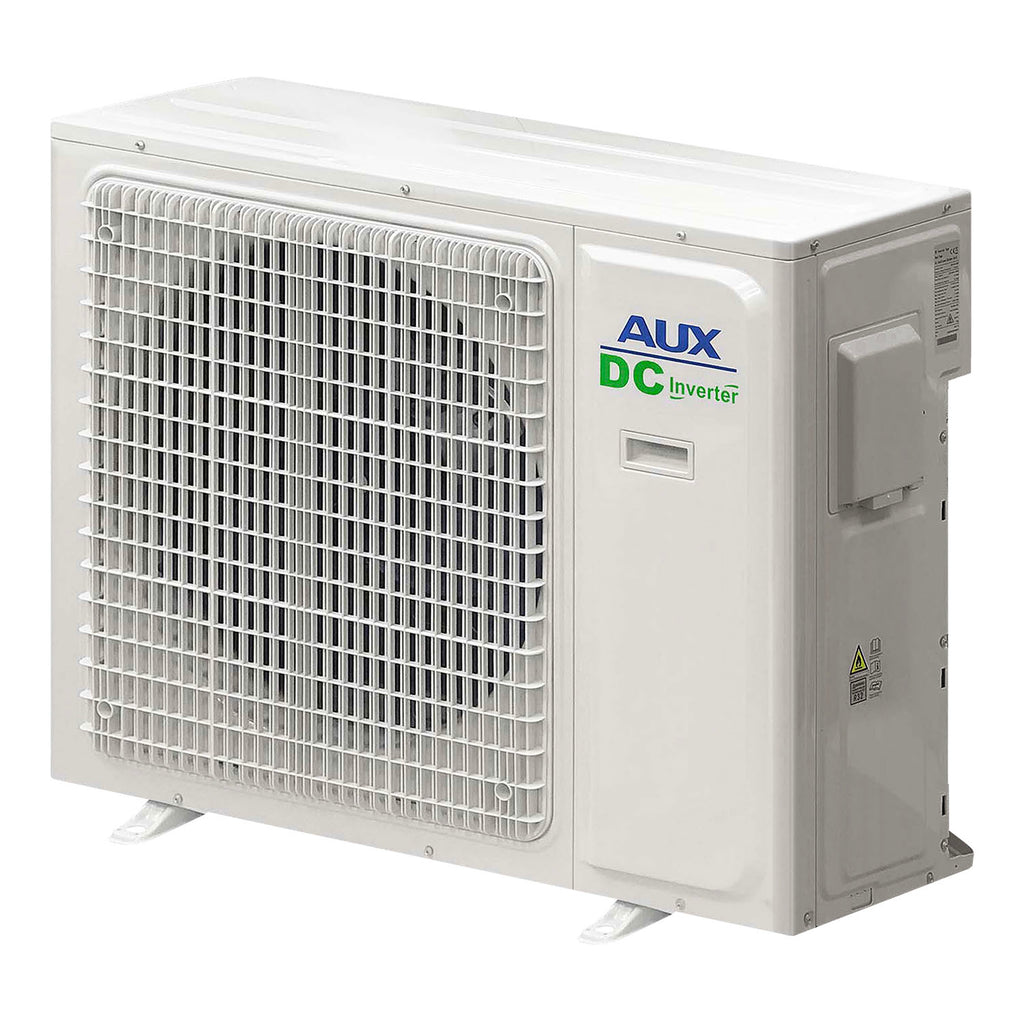

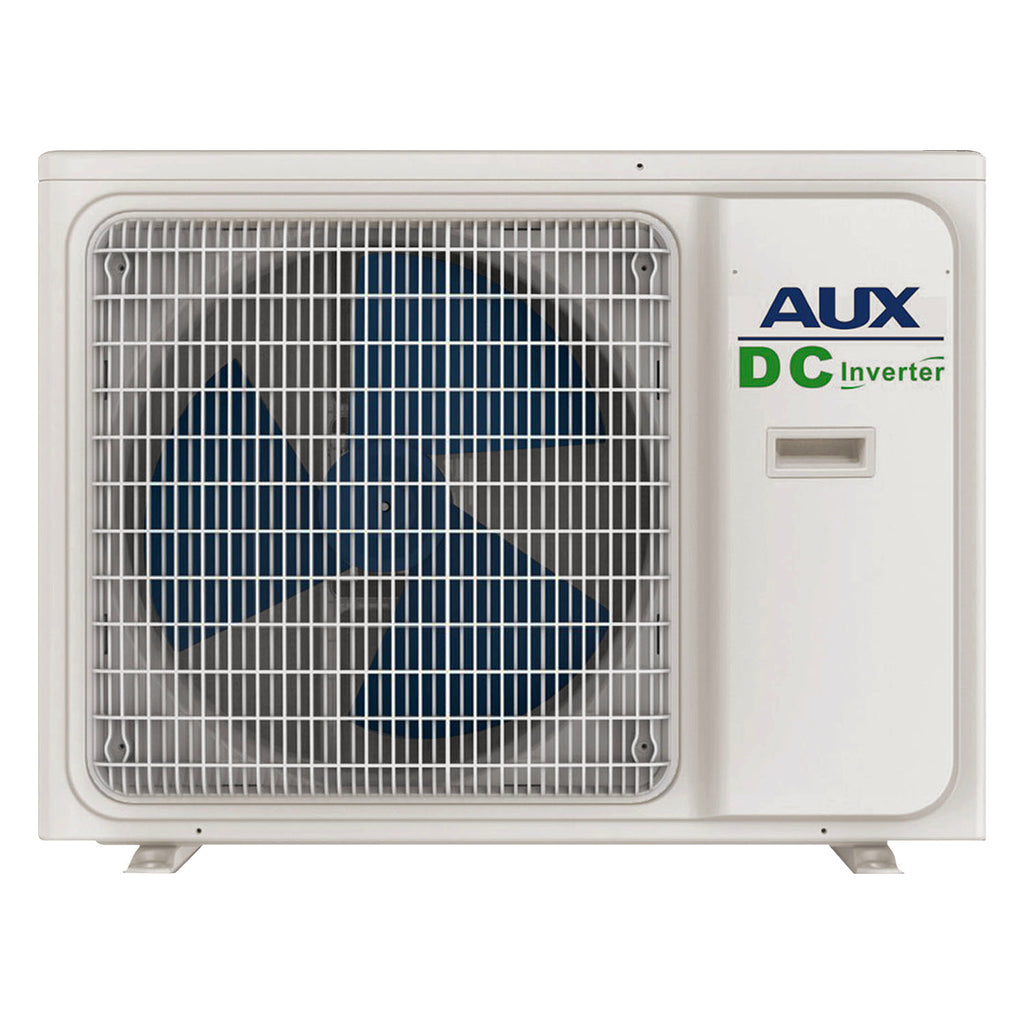

Aux – Multi-Outdoor AC Inverter (Free Match) 1 Drive 4

Brand: Aux

Series: Free Match

Model: AM4-H36/4DR3

Capacity: 36000 BTU

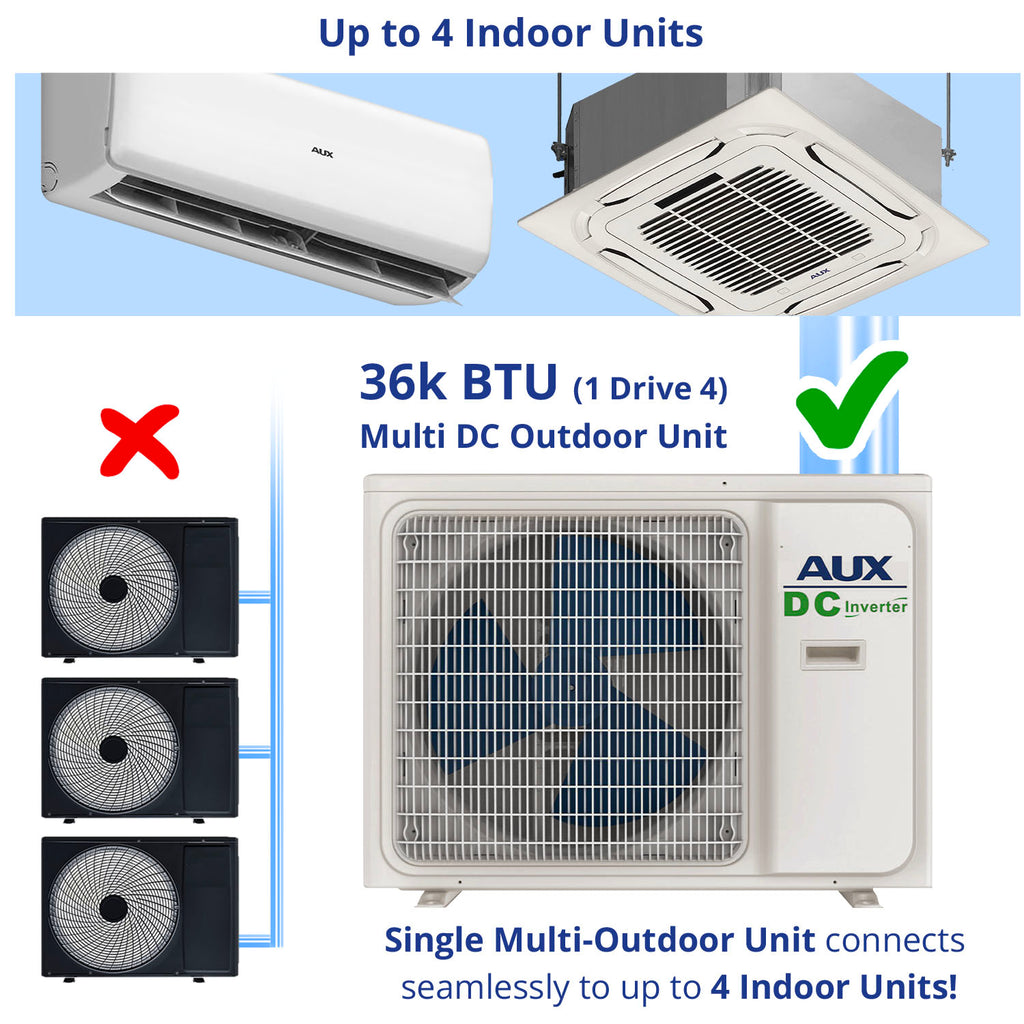

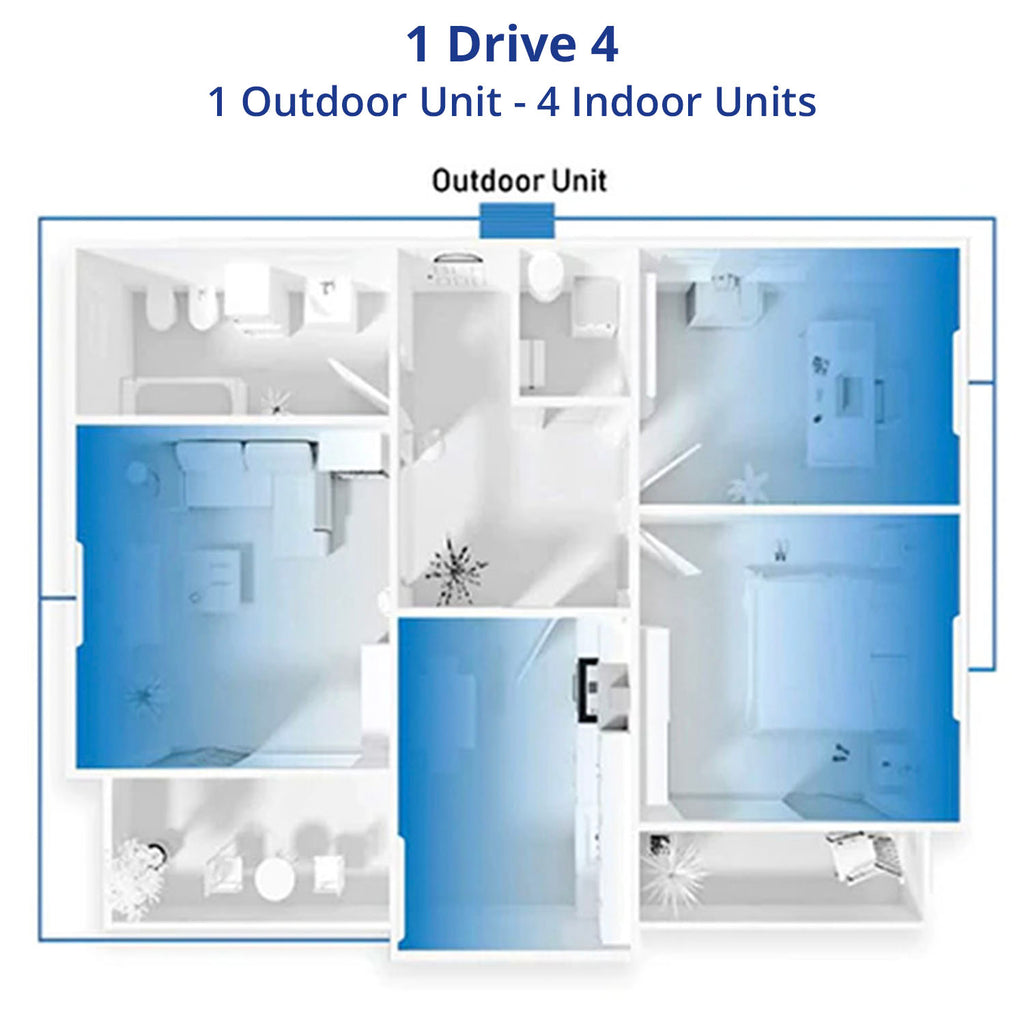

System Format: 1 Drive 4

Warranty: 1 Year Warranty

Capacity:

Cooling:

    • 35826 (8530 – 37532) Btu/h
    • 10.50 (2.5 – 11.0) kW

Heating:

    • 37532 (9110 – 38214) Btu/h
    • 11.00 (2.67 – 11.2) kW

Electric Data:

    • Power Supply: 220~240V, 50Hz, 1Ph
    • Cooling Power Input: 3950 (680 - 4930) W
    • Heating Power Input: 3150 (530 - 3850) W
    • Rated Current (Cooling & Heating): 17.5A / 13.96A
    • Max current: 23.5A
    • Max power: 5.3kW

DC Inverter Compressor:

    • Type: Rotary
    • Capacity: 10010W
    • Input: 2765W
    • Power Supply: 220~240V, 50Hz, 1Ph
    • Rated Current: 5.38A
    • Operating Frequency: 60Hz
    • Refrigerant Oil: VG74/1000ml
    • Frequency Range: 12~120 Hz

Outdoor DC Inverter Fan Motor:

    • Type: DC Inverter
    • Insulation Class: E
    • Safe Class: IP24
    • Input Power: 150W
    • Output Power: 120W
    • Capacitor: /
    • Speed: 940/min

Outdoor Fan:

    • Material: Plastic
    • Diameter: Ф550 x 125

Outdoor Coil:

    • Number of Row: 3
    • Tube Pitch (a) x Row Pitch (b): 20.5 x 19.05mm
    • Fin Pitch: 1.5mm
    • Fin Material: Hydrophilic aluminum fin
    • Tube outside Dia. and Material: φ7, Inner grooved
    • Coil Length x Height x Width: 1070 x 759 x 38.1mm
    • Heat Exchanging Area: 58.33m2

Air Flow Volume:

    • 2353 CFM, 4000 m3/h

Noise Level:

    • Sound Pressure Noise Level: 61 dB (A)
    • Sound Power Noise Level: 68 dB (A)

Refrigerant type:

    • Type: R32
    • Charged Volume: 2.3kg
    • Additional charge: 20 (g/m)

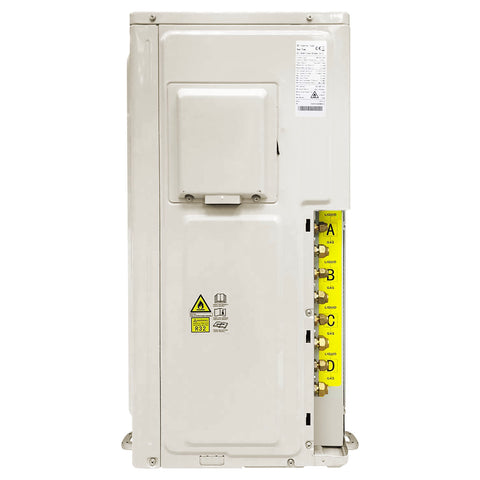

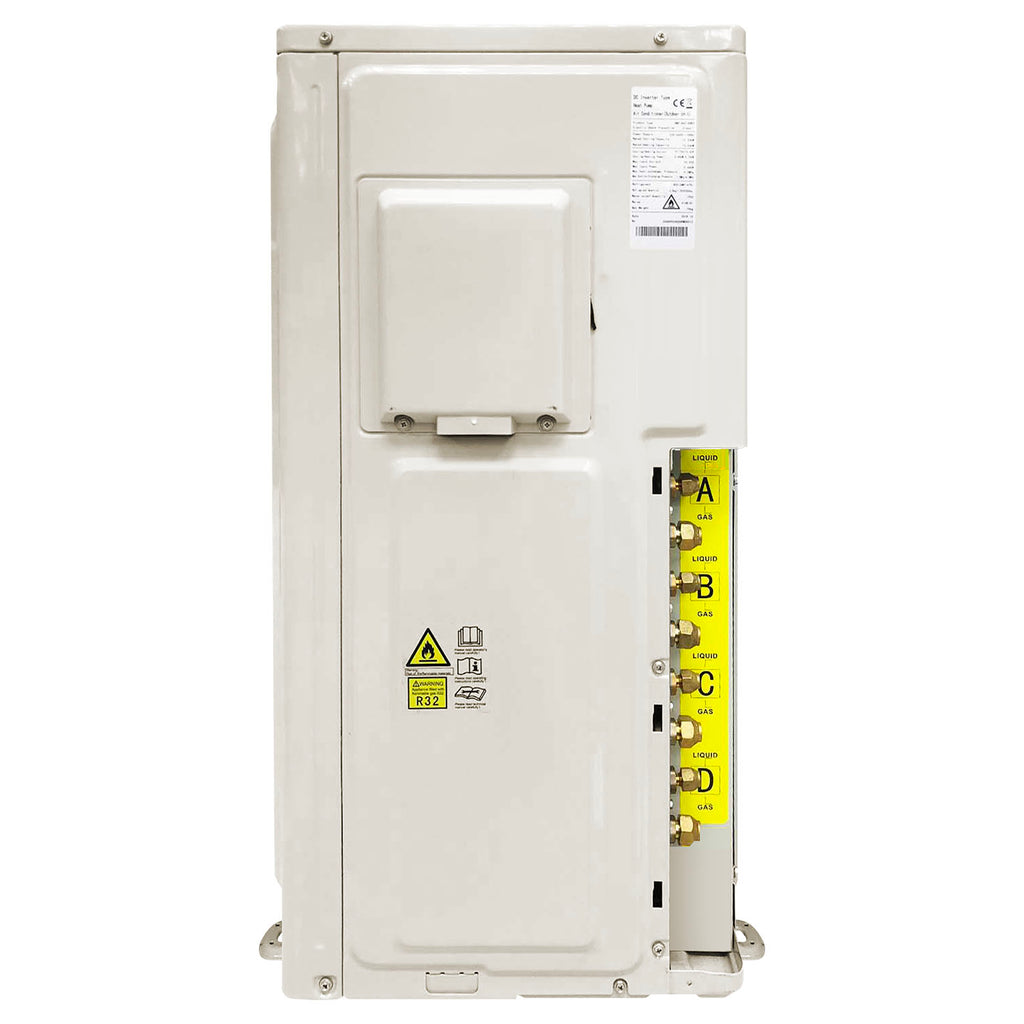

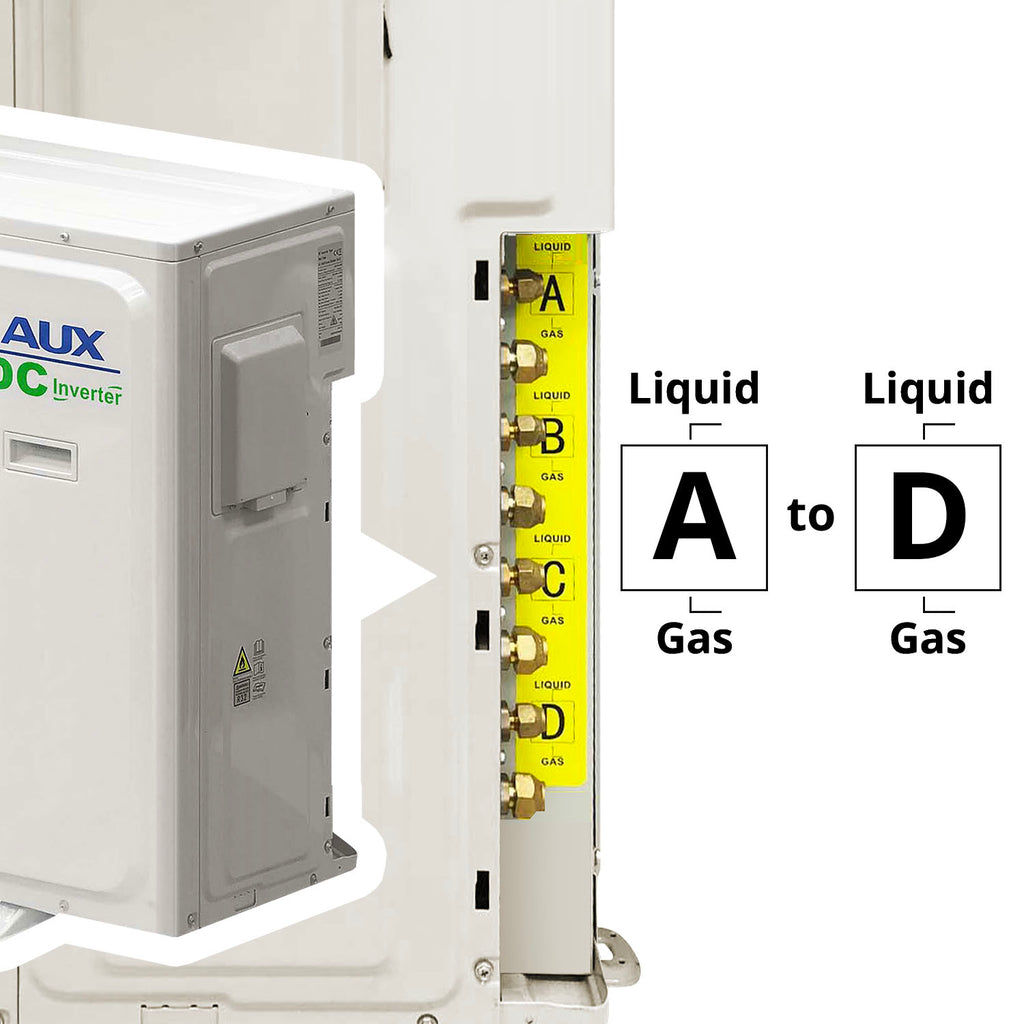

Piping:

    • Liquid Side: 4 X 6.35 mm (1/4”)
    • Gas Side: 4 X 9.52 mm (3/8”)
    • Length for all rooms (m): 80m
    • Length for one IU (m): 35m
    • Height difference between IU and OU (m): 15m
    • Height difference between IUs (m): 10m

Ambient Temp (Cooling/Heating): -15~52℃/-15~24℃

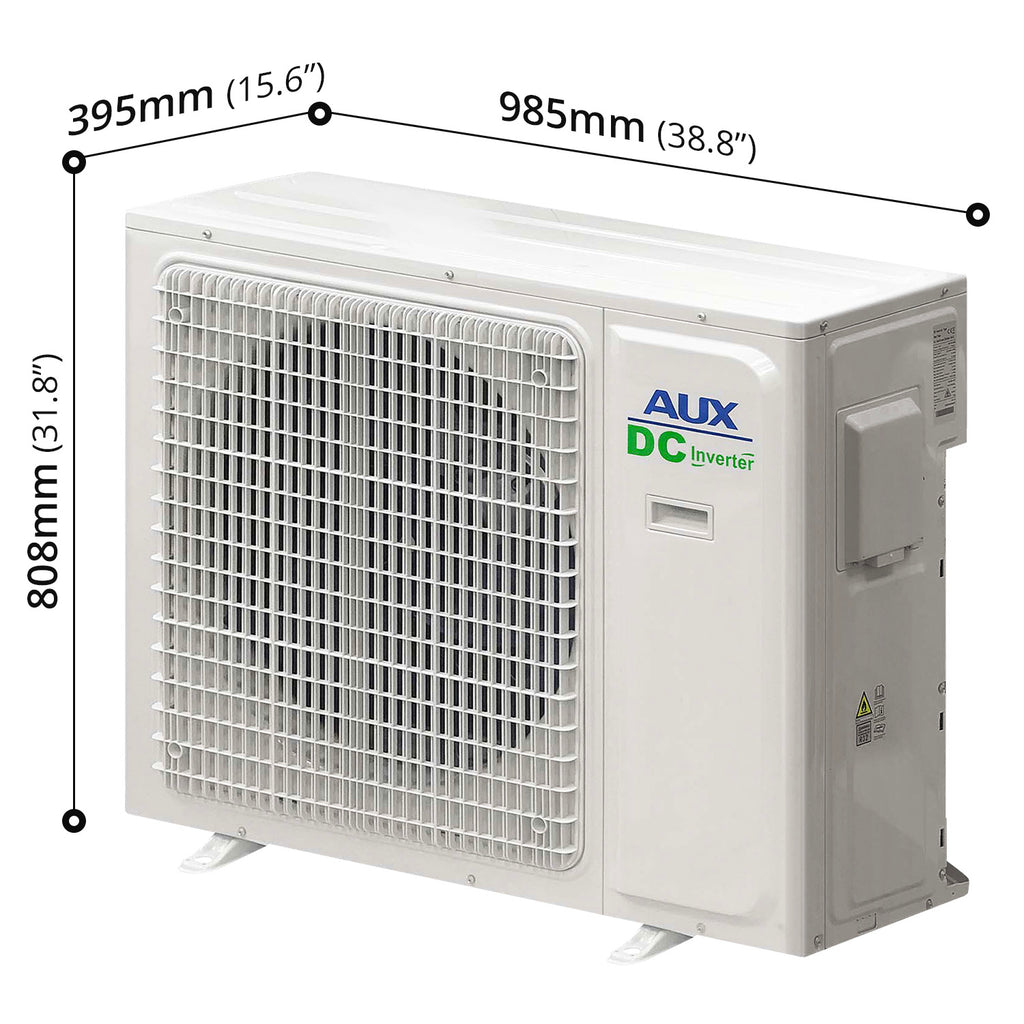

Dimension (W x D x H):

    • Net: 985 x 395 x 808mm
    • Packing: 1105 x 495 x 895mm

Weight:

    • Net: 74kg
    • Gross: 78kg
