Specification

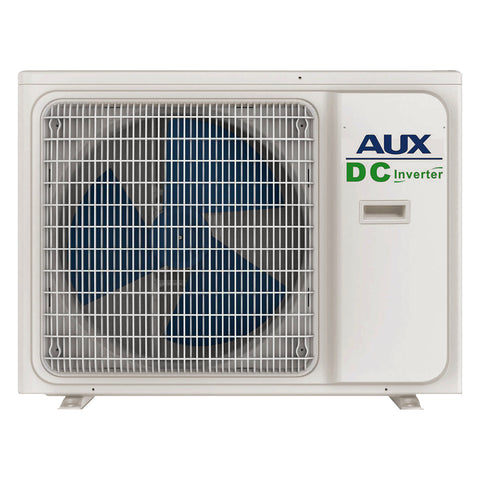

Aux – Multi-Outdoor AC

Inverter (Free Match) = 1 Drive 4

Brand: Aux

Series: Free Match

Model: AM5-H42/4DR3

Capacity: 42000 BTU

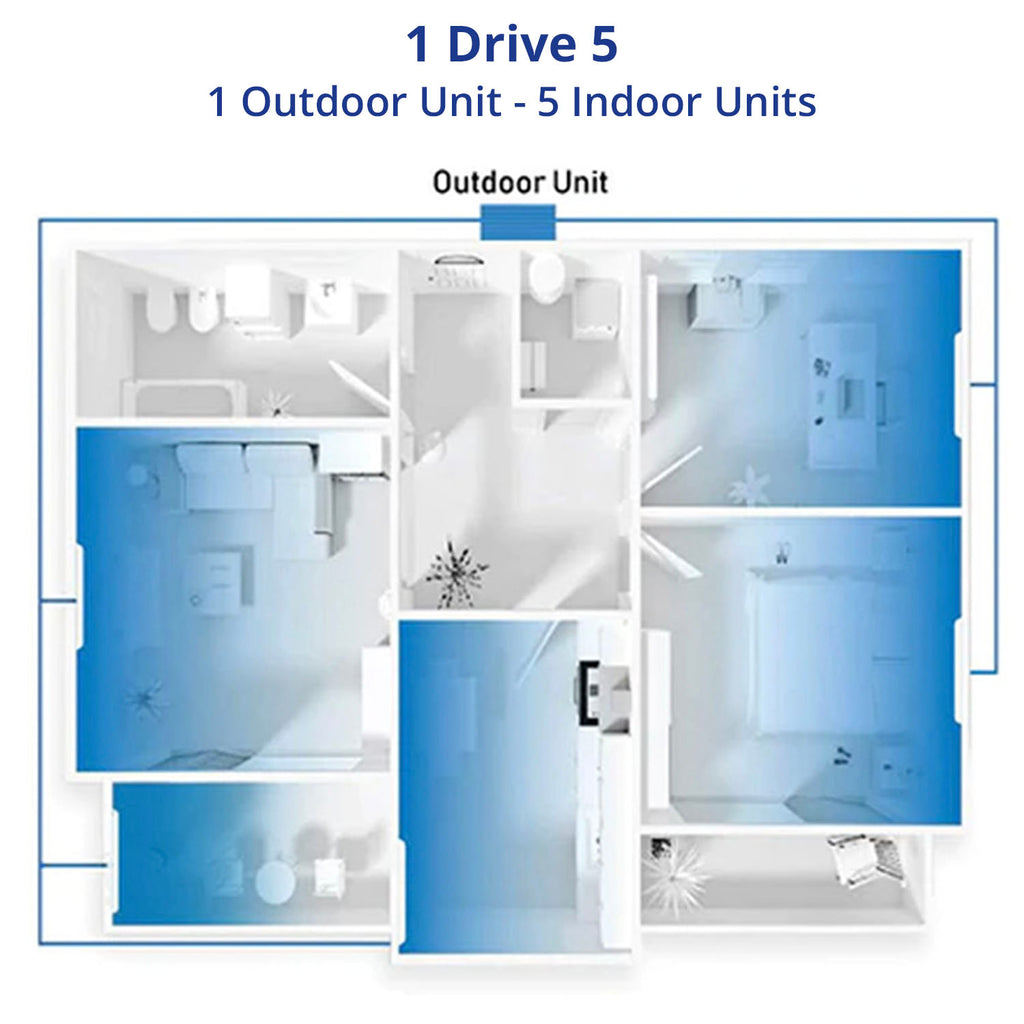

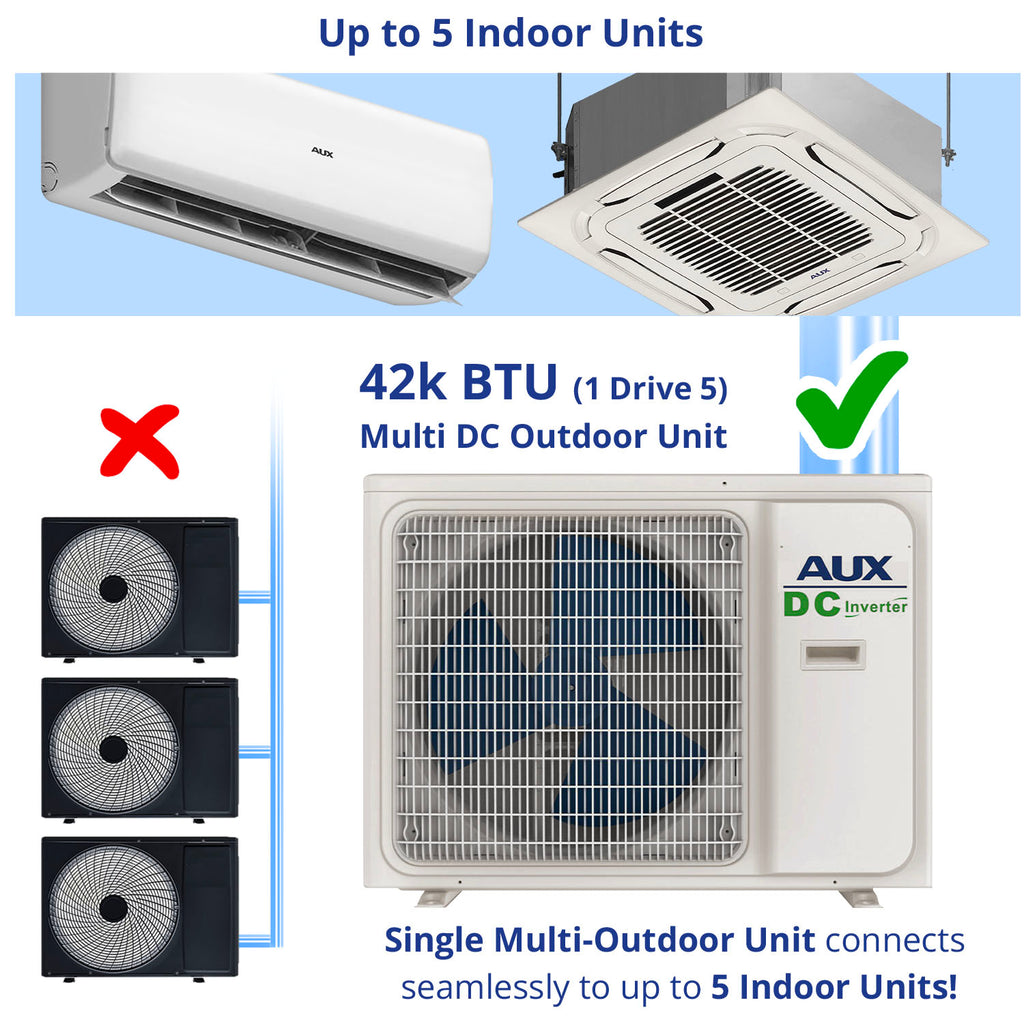

System Format: 1 Drive 5

Warranty: 12 Months Warranty

Cooling Capacity:

• 40944 (9451 – 43332) Btu/h
• 12 (2.77 – 12.7) kW

Electric Data:

• Power Supply: 220~240V, 50Hz, 1Ph
• Cooling Power Input: 4450 (750 – 5450) W
• Rated Current (Cooling): 19.72A
• Max current: 24.5A
• Max power: 5.6kW

DC Inverter Compressor:

• Type: Rotary
• Capacity: 10010W
• Input: 2765W
• Power Supply: 220~240V, 50Hz, 1Ph
• Rated Current: 5.38A
• Operating Frequency: 60Hz
• Refrigerant Oil: VG74/1000ml
• Frequency Range: 12~120 Hz

Outdoor DC Inverter Fan Motor:

• Type: DC Inverter
• Insulation Class: E
• Safe Class: IP24
• Input Power: 150W
• Output Power: 120W
• Speed: 940/min

Outdoor Fan:

• Material: Plastic
• Diameter: Ø550 x 125mm

Outdoor Coil:

• Number of Row: 3
• Tube Pitch (a) x Row Pitch (b): 20.5 x 19.05mm
• Fin Pitch: 1.5mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. and Material: φ7, Inner grooved
• Coil Length x Height x Width: 1070 x 759 x 38.1mm

Air Flow Volume:

• 2471 CFM
• 4200 m²/h

Noise Level:

• Sound Pressure Noise Level: 61 dB (A)
• Sound Power Noise Level: 68 dB (A)

Refrigerant type:

• Type: R32
• Charged Volume: 2.3kg
• Additional charge: 20 (g/m)

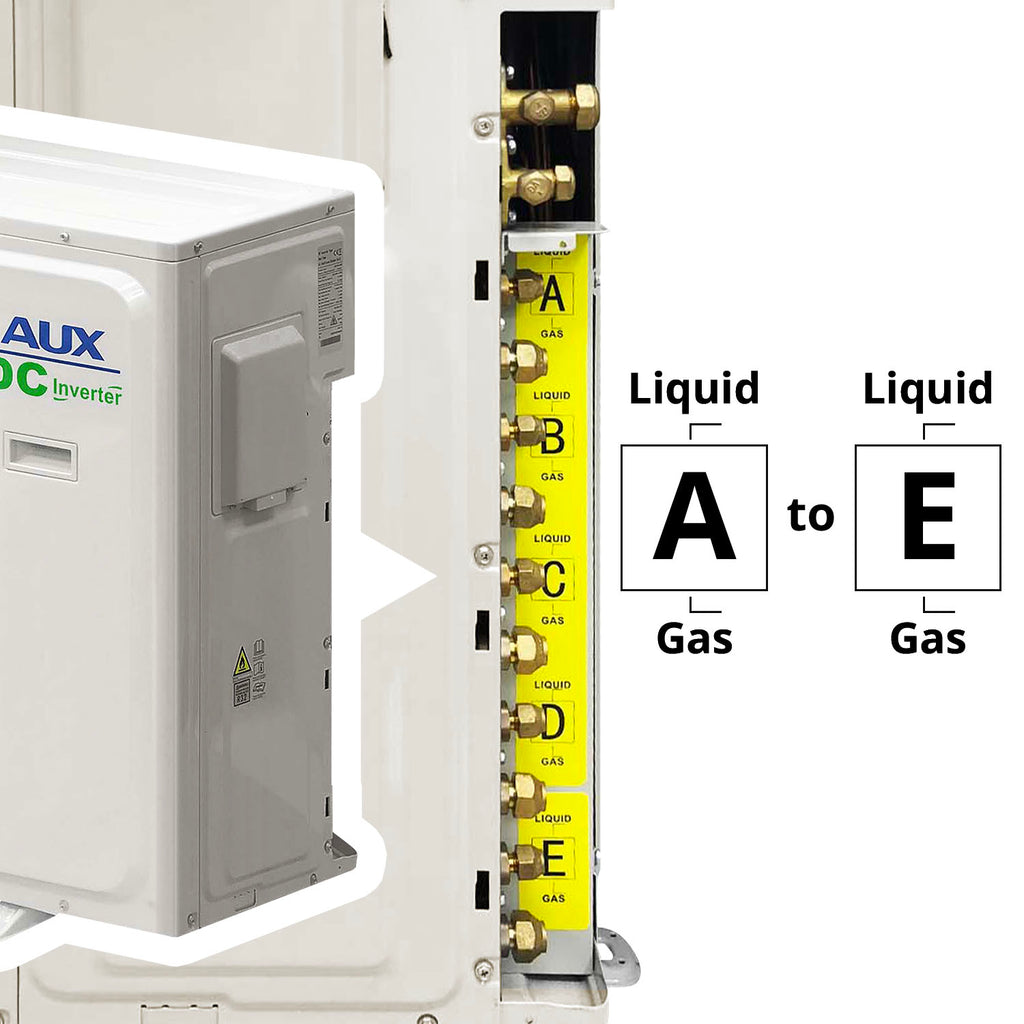

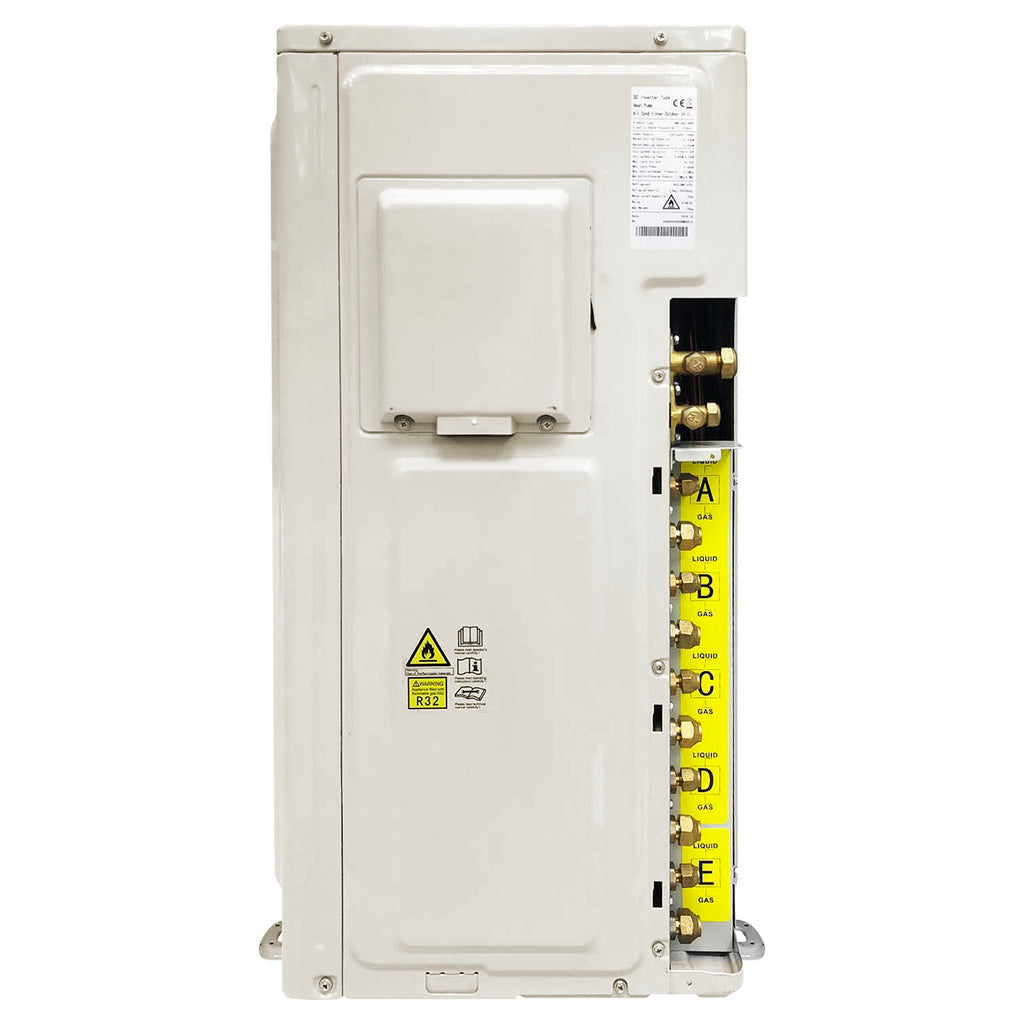

Piping:

• Liquid Side: 5 X 6.35 mm (1/4”)
• Gas Side: 5 X 9.52 mm (3/8”)
• Length for all rooms (m): 80m
• Length for one IU (m): 35m
• Height difference between IU and OU (m): 15m
• Height difference between IUs (m): 10m

Ambient Temp (Cooling): -15~52℃

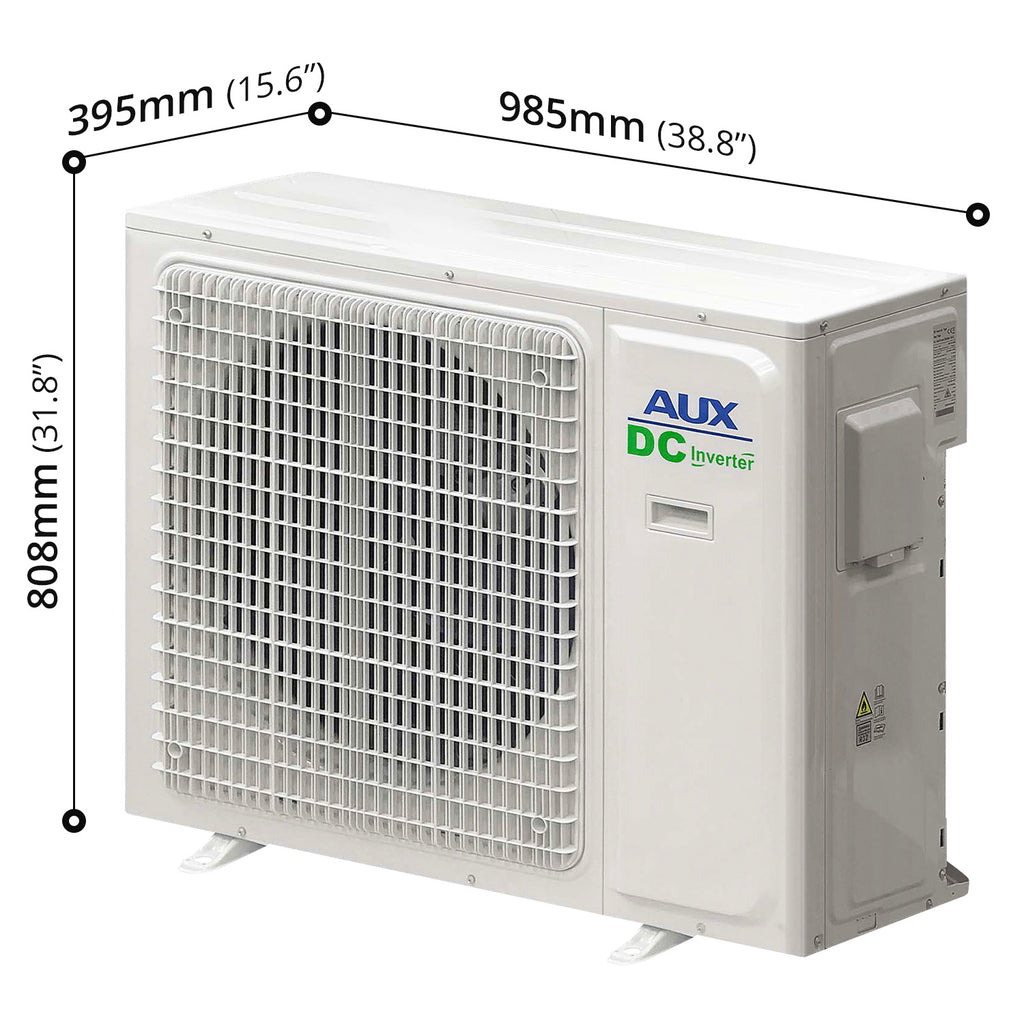

Dimension & Weight:

Width x Depth x Height

Product Dimension: 985 x 395 x 808mm (38.8” x 15.6” x 31.8”)

Packing Dimension: 1105 x 495 x 895mm (43.5” x 19.5” x 35.2”)

Net Weight: 75kg

Gross Weight: 79kg

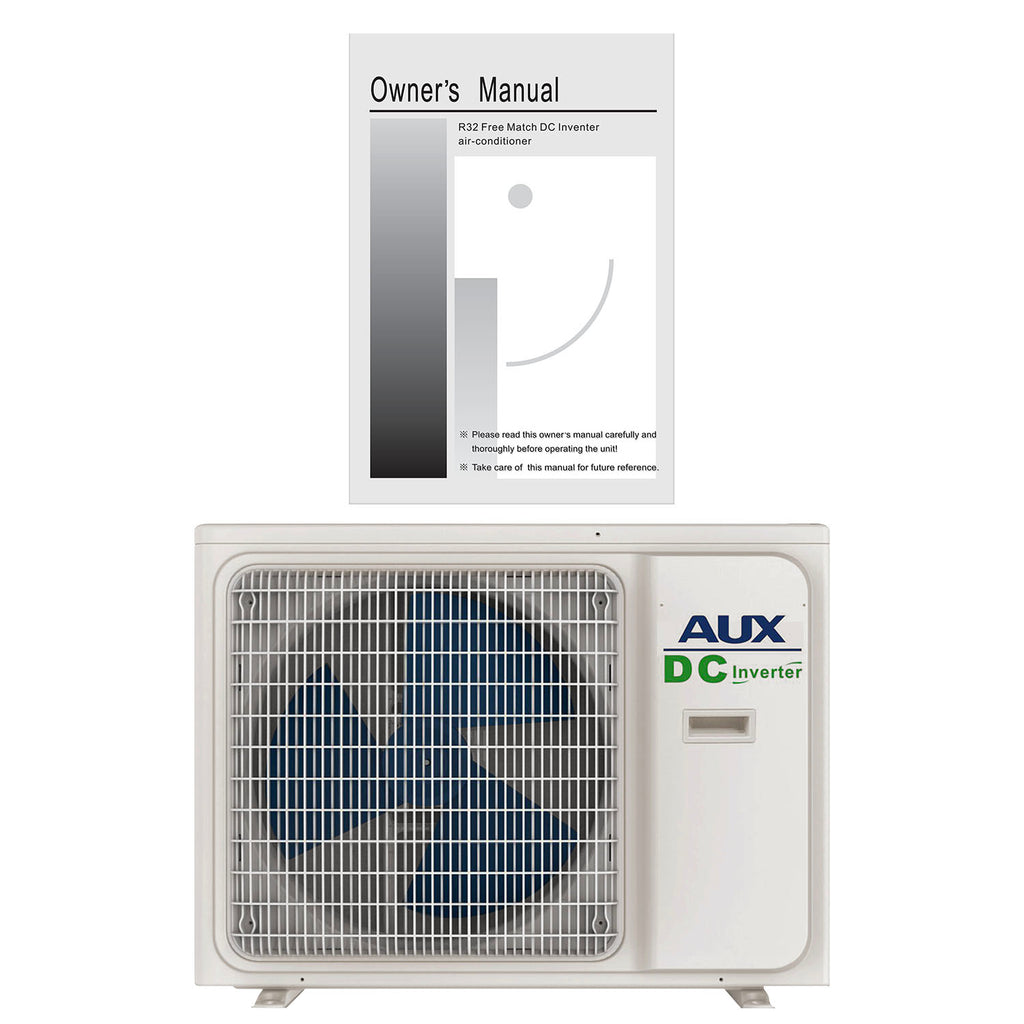

Packing Contents:

42k BTU Outdoor AC – x1

User Manual – x1
