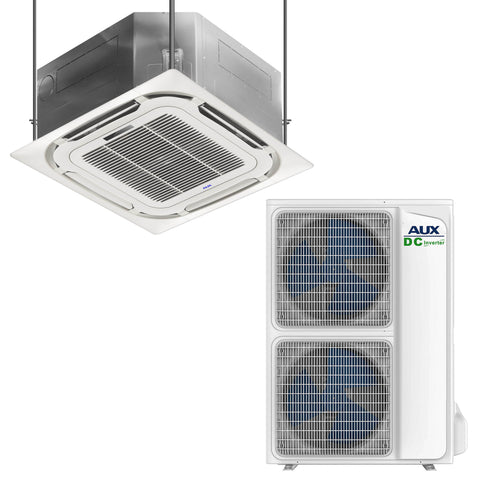

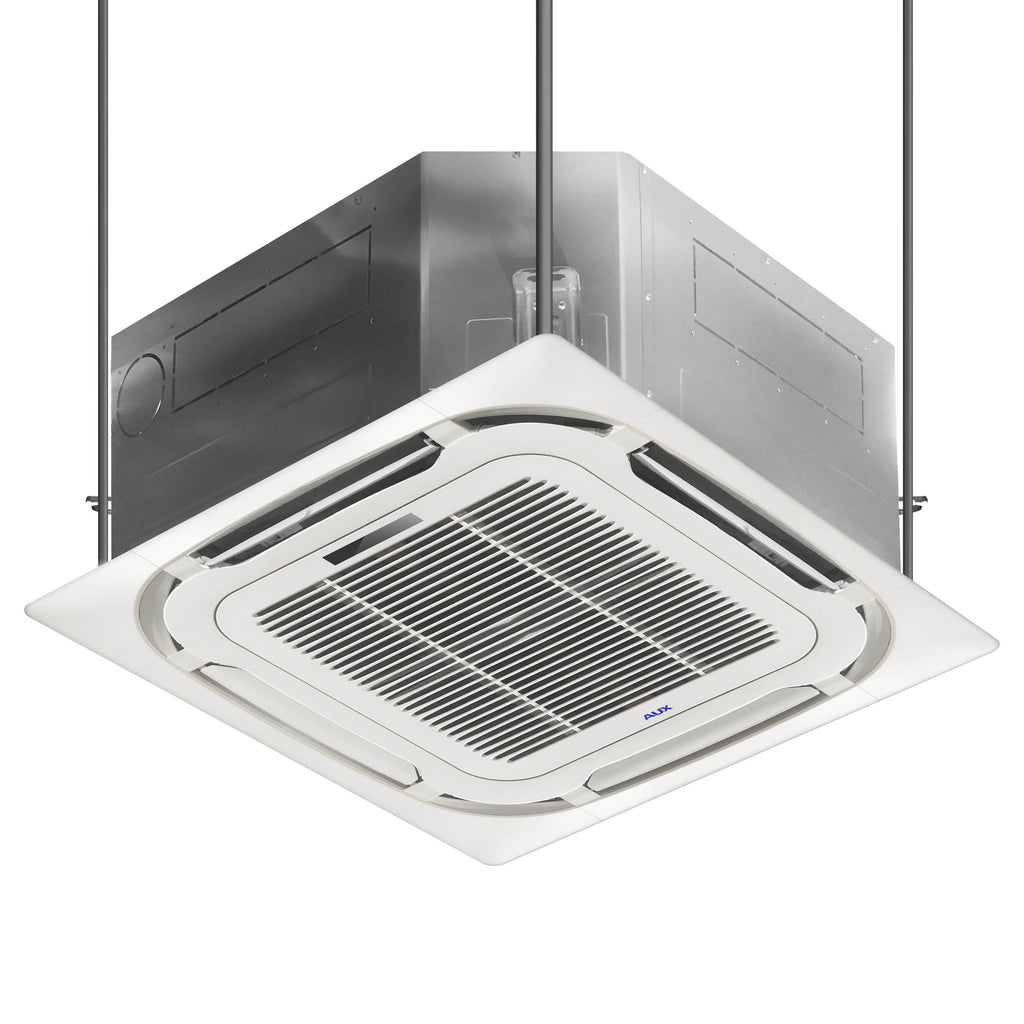

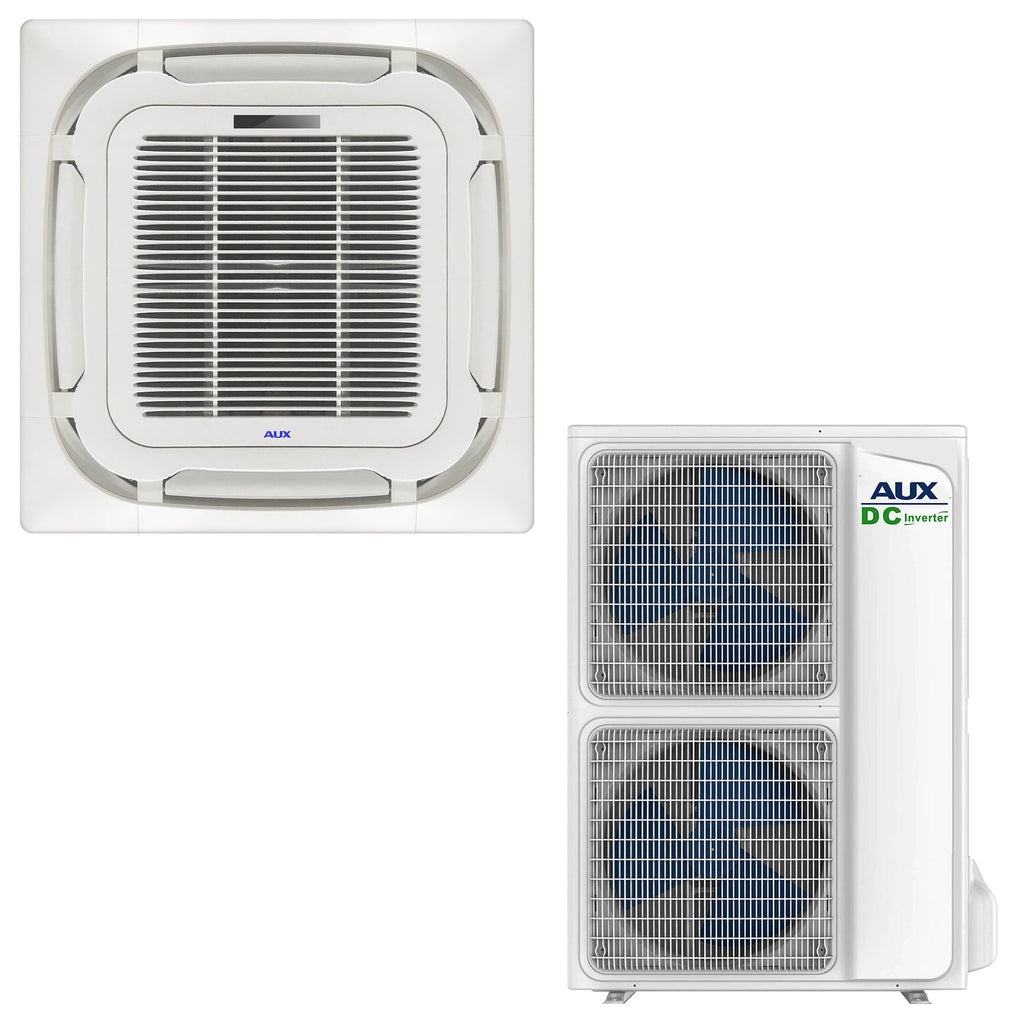

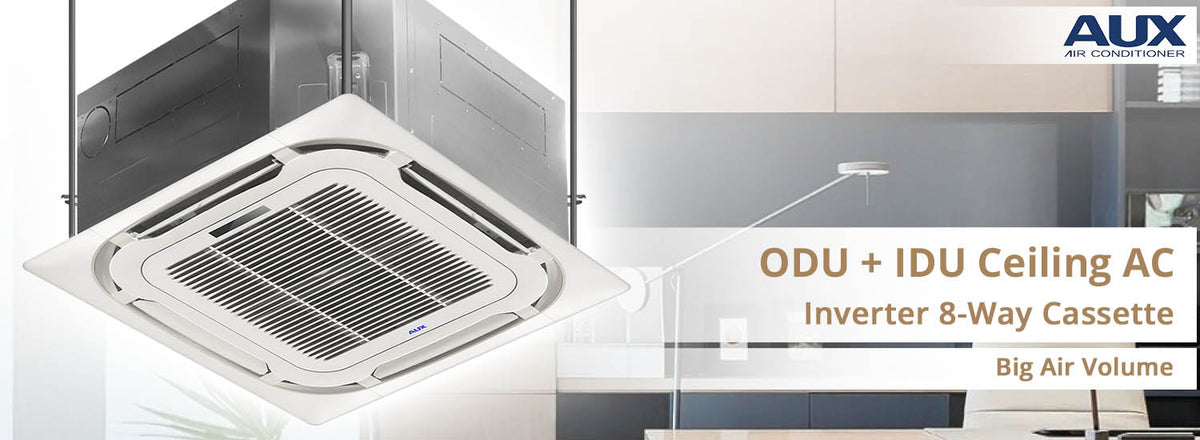

48000 BTU 8-Way Cassette AC (Inverter)
SKU: 53657
INVERTER 8-WAY CASSETTE
Model no: ALCA-C48/5DR3HI
Brand: AUX
ALU: 58476
Size: 48000BTU
Inverter Technology
Efficient & Stable Cooling
Advanced DC inverter technology optimizes compressor operation, improving cooling performance while maintaining efficient and stable operation.
Up to 30% Energy Saving
Energy Saving Performance
The advanced DC inverter technology helps reduce energy consumption and achieve up to 30% energy savings compared with conventional ON/OFF systems.
Energy-Efficient Operation

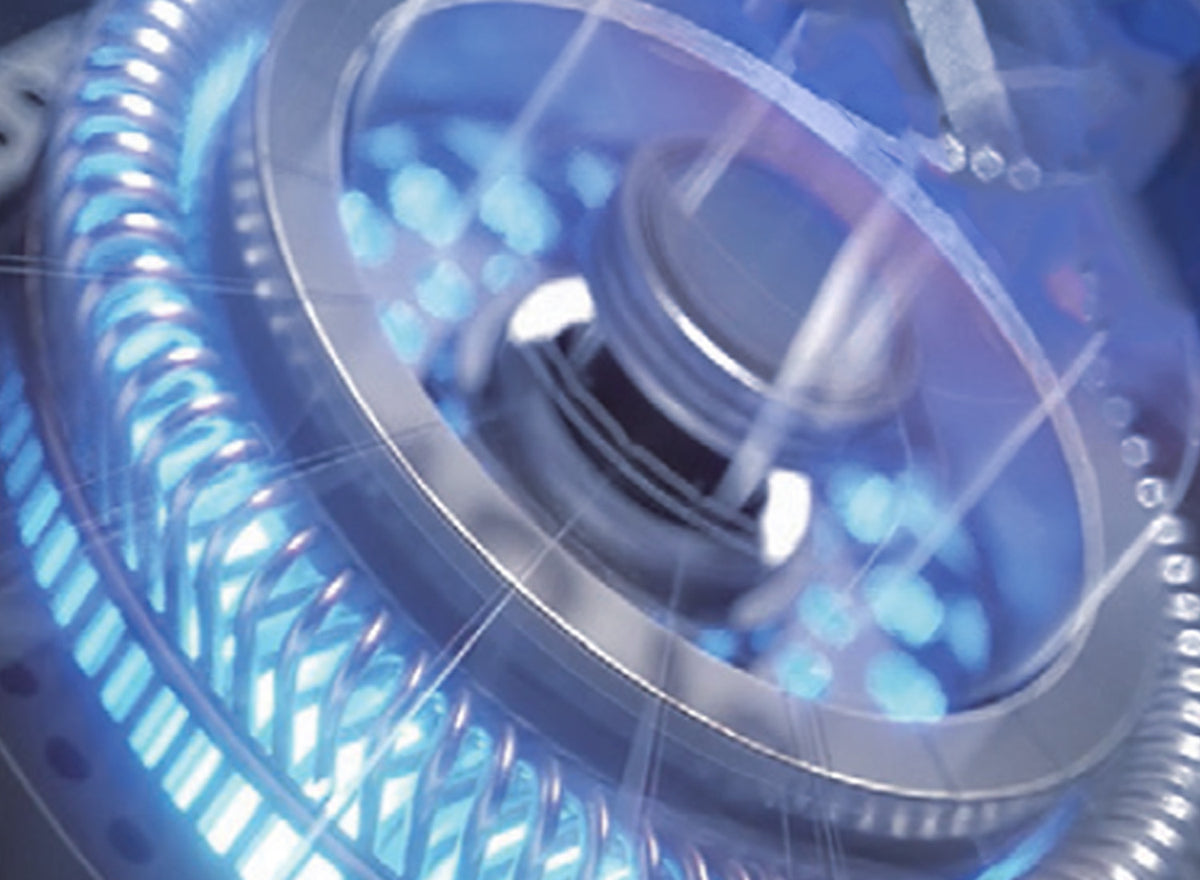

Inverter Compressor
The DC inverter compressor adjusts operation according to cooling demand, helping maintain stable performance while improving overall cooling efficiency.

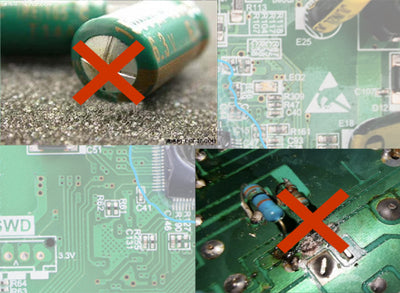

Patented Inverter Technology
Improved Reliability
The patented inverter design without electrolytic capacitors helps reduce common issues such as capacitor bulging and leakage, supporting more reliable operation.
Component Protection
Long-Lasting Performance
Designed with multiple protective technologies to help improve durability, maintain stable operation, and extend the service life of key components.

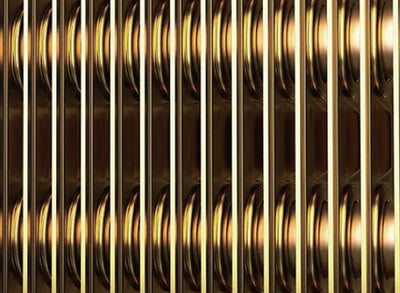

Golden Anti-Corrosion Fin
Improved Corrosion Resistance
The golden fin coating offers better corrosion resistance than conventional blue fin coatings and is especially suitable for coastal environments.

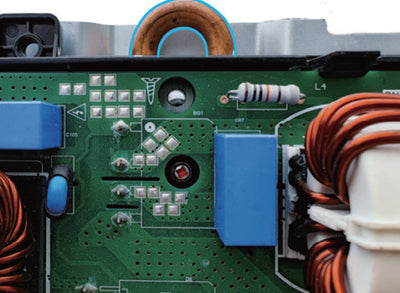

Coated Circuit Board
Moisture Protection
The circuit board is coated with protective coating to avoid the impact of humid air on the PCB and prolong its service life.
Refrigerant-Cooling PCB
Efficient Heat Dissipation
The latest refrigerant cooling technology is adopted to improve the heat dissipation efficiency of the PCB, ensure the safe and stable operation of the PCB, and prolong the service life

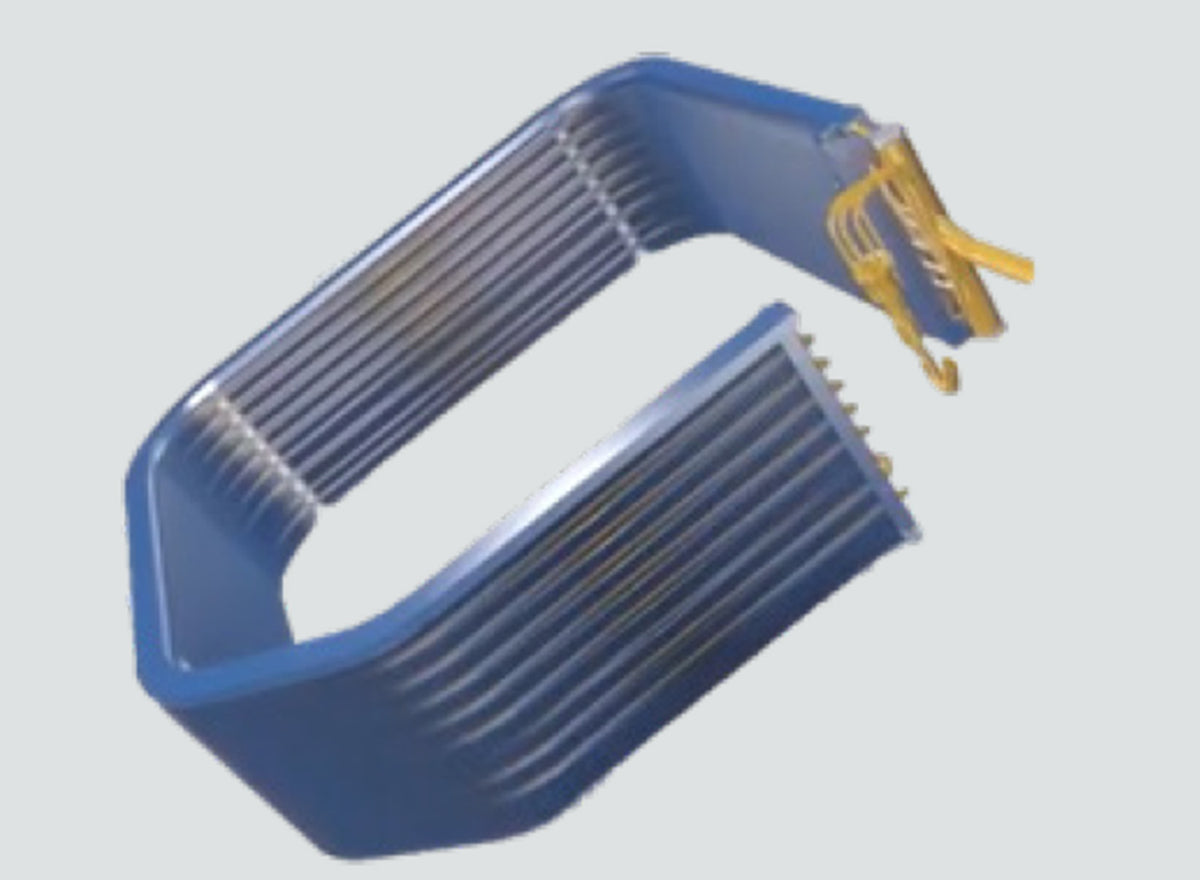

5-Fold Evaporator
Improved Heat Exchange
The evaporator adopts a 5-fold evaporator, which has a larger heat exchange area and a 12% increase in heat exchange efficiency compared to traditional 4-fold evaporators.

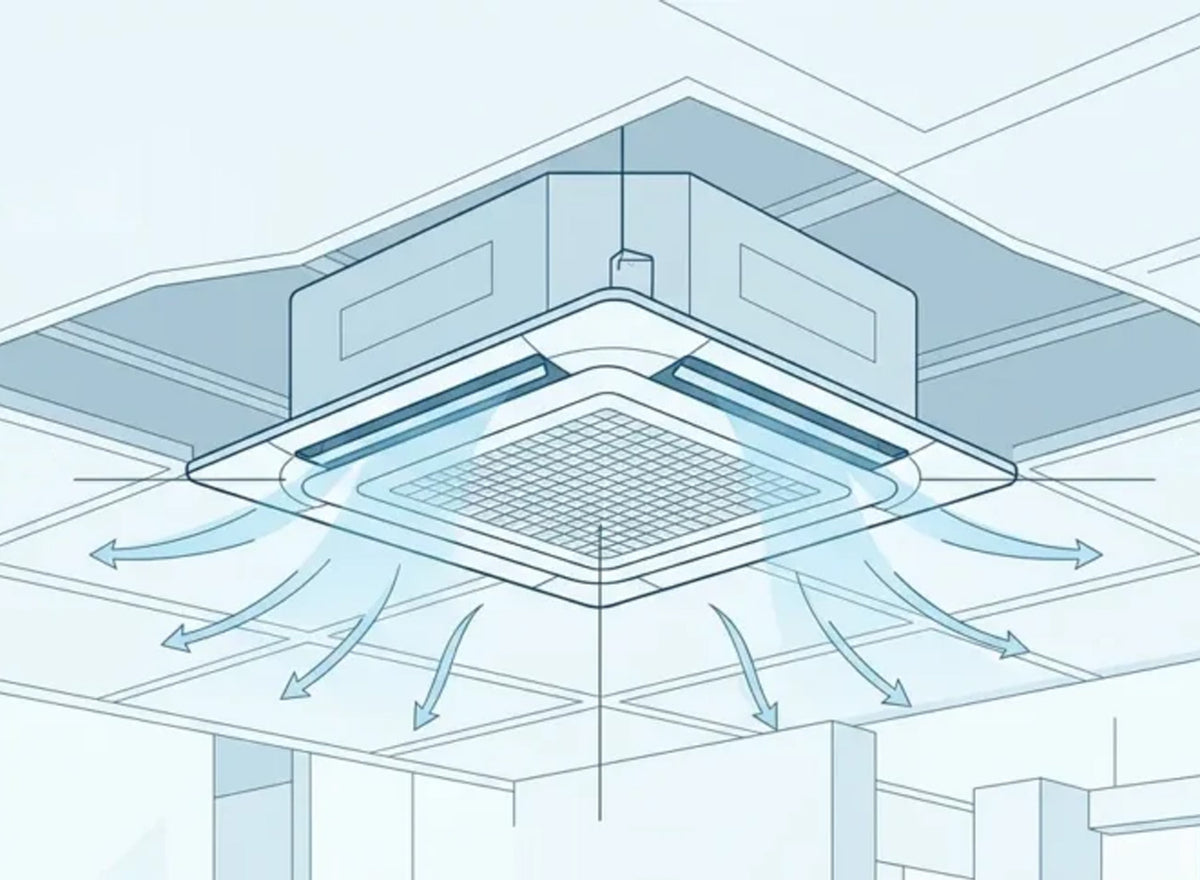

Air Distribution
Uniform Airflow
Designed to distribute air evenly across the room, providing wider air coverage and more uniform temperature distribution for everyday comfort.

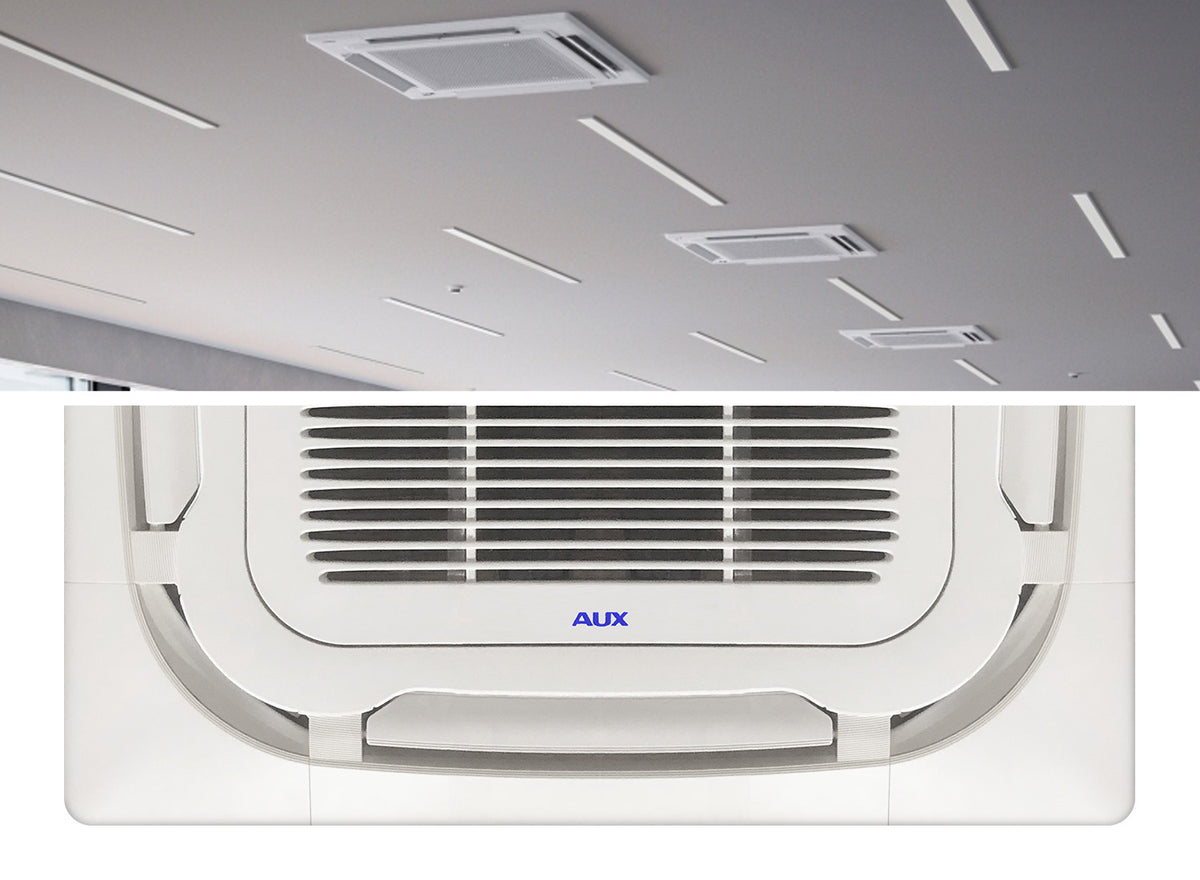

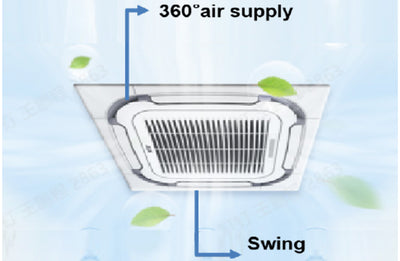

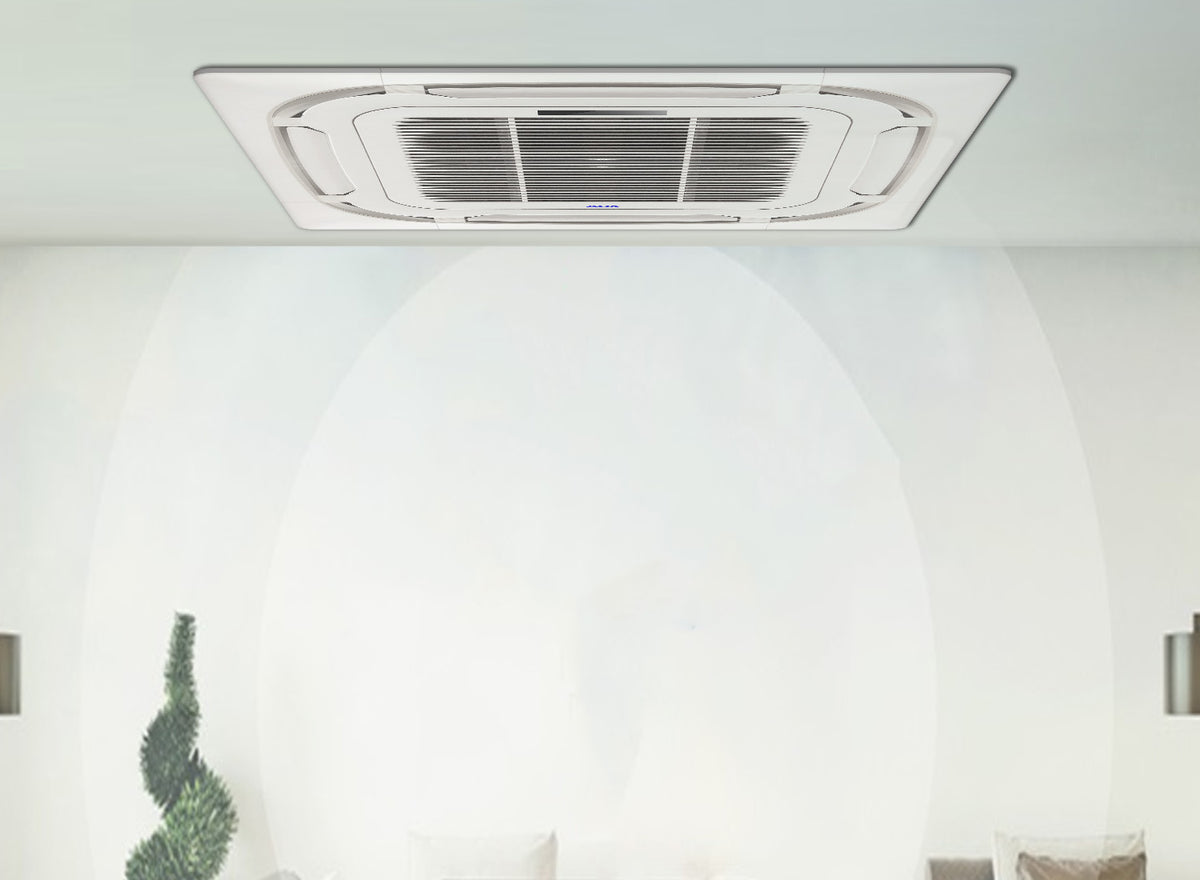

360° Round Air Supply
Uniform Cooling
Round flow panel make the air diffuse from 360°direction, and the temperature distribution is more uniform.
Long-Distance Air Supply
Up to 4m Airflow
Designed to deliver airflow up to 4 meters, making it suitable for taller spaces and wider air coverage.

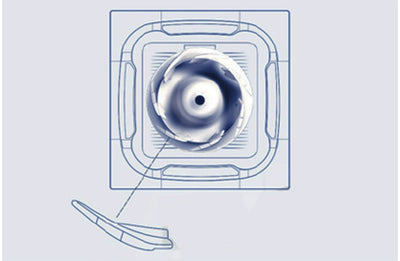

Large Air Volume
Powerful Airflow
Equipped with a large-diameter spiral fan to provide greater air volume while helping reduce operating noise.
Convenient Controls
Easy Everyday Operation
Designed with practical control features that make daily operation more convenient, allowing you to customize settings to suit your comfort and schedule.
Display Control
Adjustable Screen Display
The display panel can be turned on or off to suit different user preferences and installation environments.

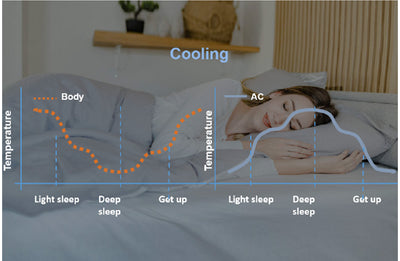

Sleep Mode
Comfortable Night Operation
Sleep mode helps maintain a comfortable temperature throughout the night for a more restful sleeping environment.
Weekly Timer
Scheduled Operation
Set the operating schedule for an entire week to automate operation, reducing the need to manually turn the unit on or off each day.

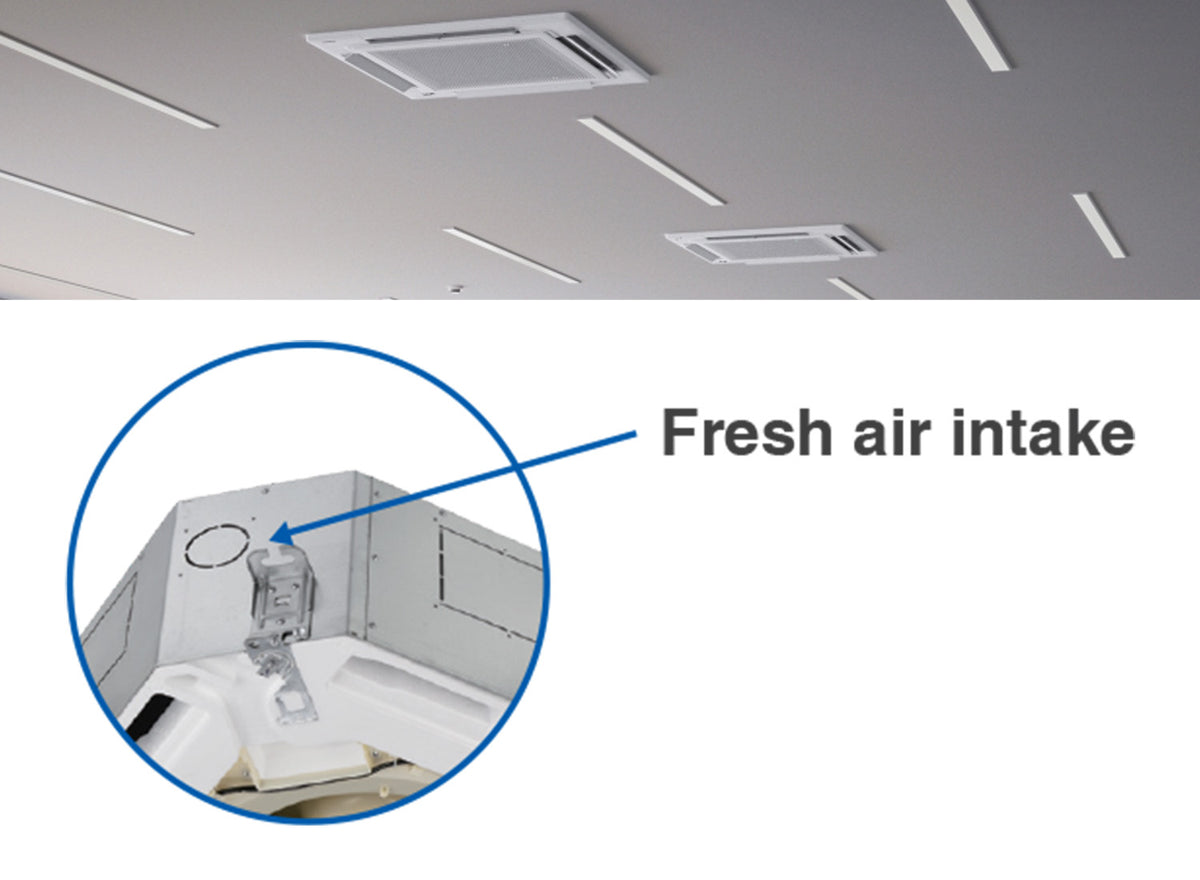

Fresh Air
Comfortable Indoor Environment
Introduces fresh air to help maintain a healthier and more comfortable indoor environment during everyday operation.
Auto Clean
Automatic Evaporator Cleaning
Automatically cleans the evaporator to help remove dust and dirt, supporting cleaner operation and helping maintain cooling performance.
Efficient Drainage System
Flexible Installation & Water Management
Designed with practical drainage features to support flexible installation while helping ensure efficient condensate drainage and reliable operation.

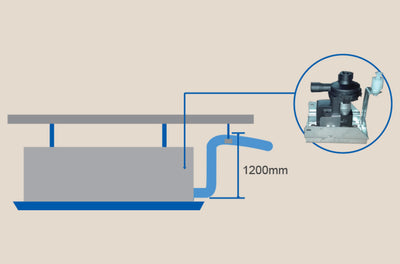

Built-in Drain Pump
Up to 1200mm Lift
The built-in drain pump provides a lifting height of up to 1200mm, supporting more flexible installation options and efficient condensate drainage.

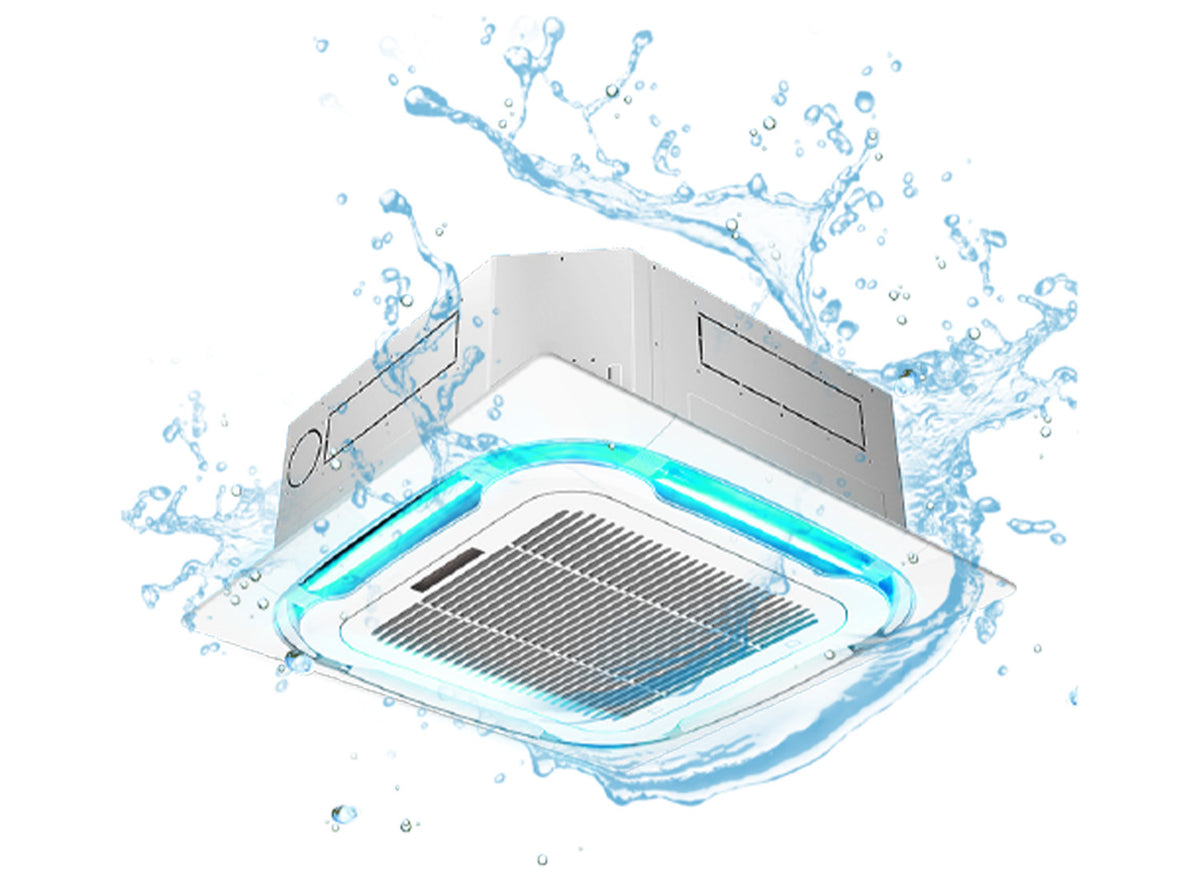

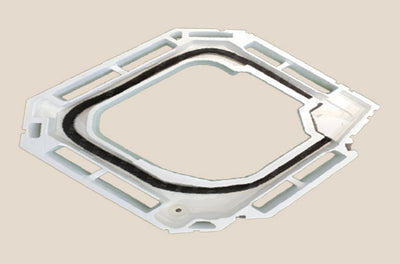

Anti-Leakage Drain Pan
Improved Water Protection
The 1.5mm thick plastic drain pan is designed with high waterproof performance to help reduce water seepage and improve drainage reliability.
Reliable Construction
Stable System Operation
Designed with protective components to help improve electrical safety, maintain stable operation, and support long-term system reliability.

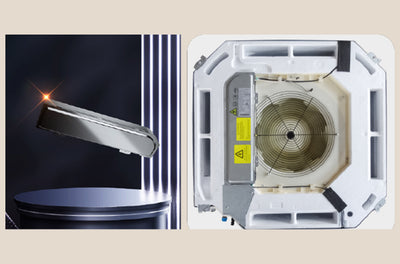

Fire-Proof Cover
Improved Electrical Safety
The metal electric control box provides higher safety protection and helps ensure safe operation of the unit’s electrical components.

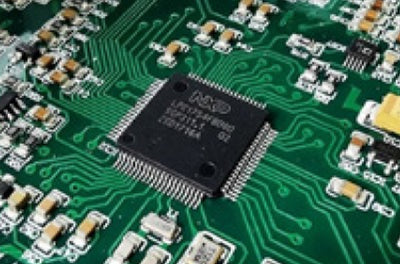

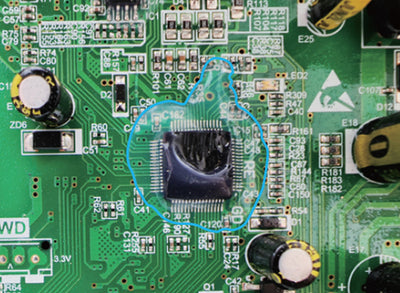

Reliable Control Board
Stable Electronic Components
Hot-melt adhesive is applied around electronic components to help keep them stable and securely positioned during operation.

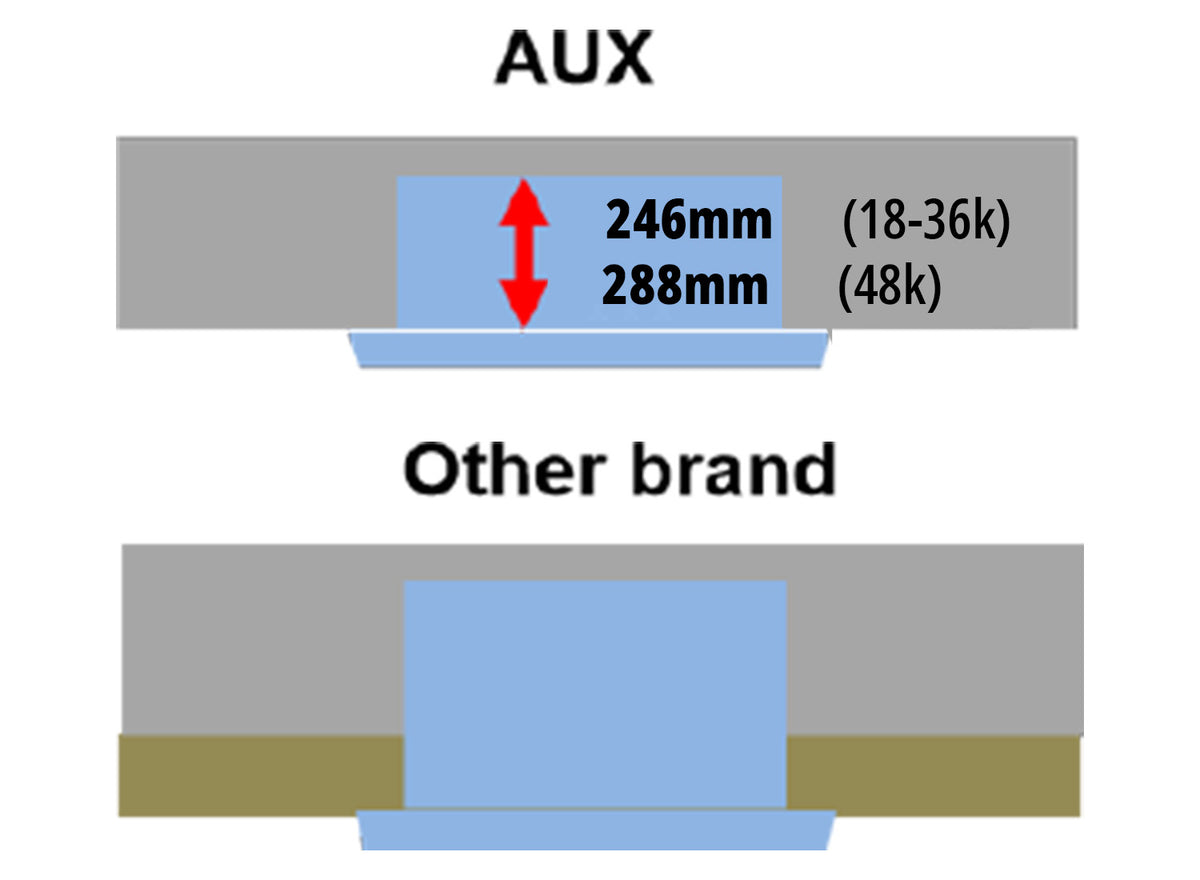

Compact Body Size
Space-Saving Installation
With a body thickness of 246mm, the unit occupies less ceiling space, making installation easier and more convenient, especially in areas with limited installation space.

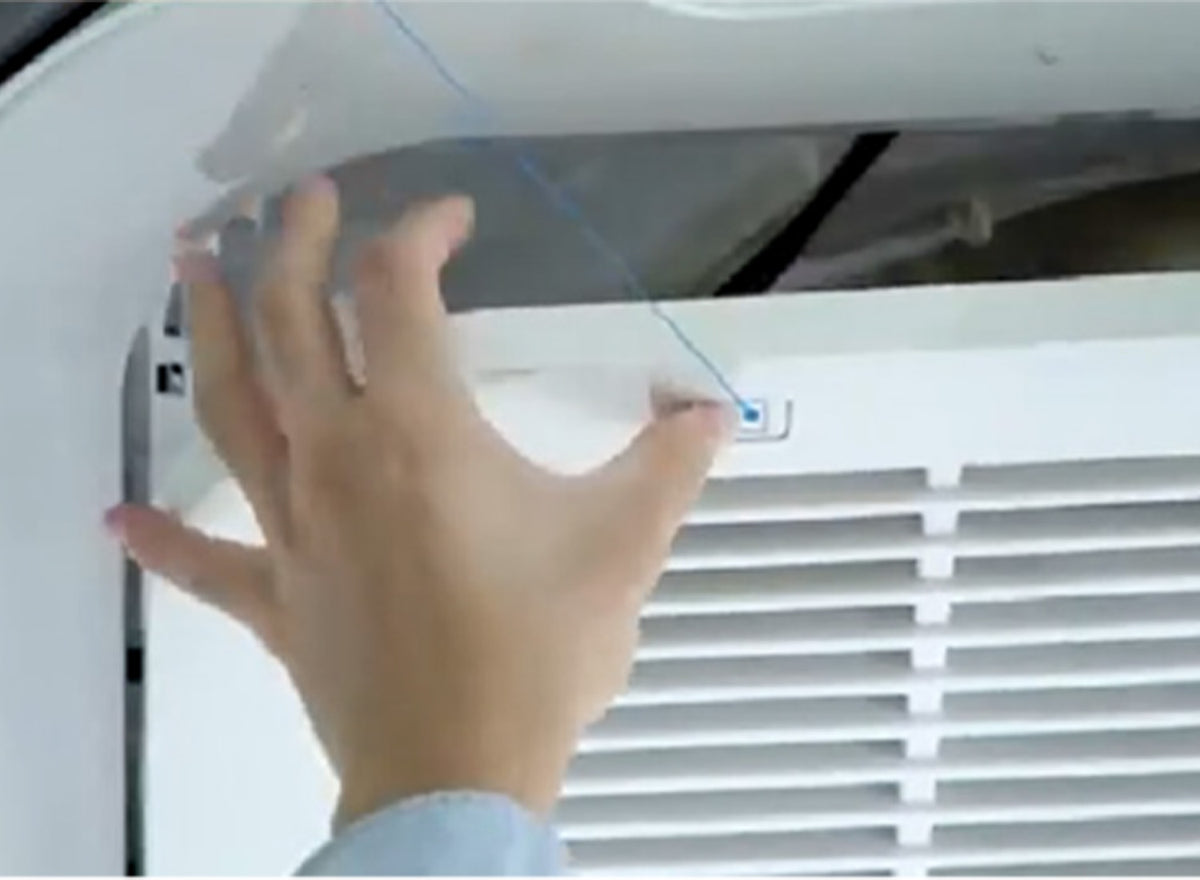

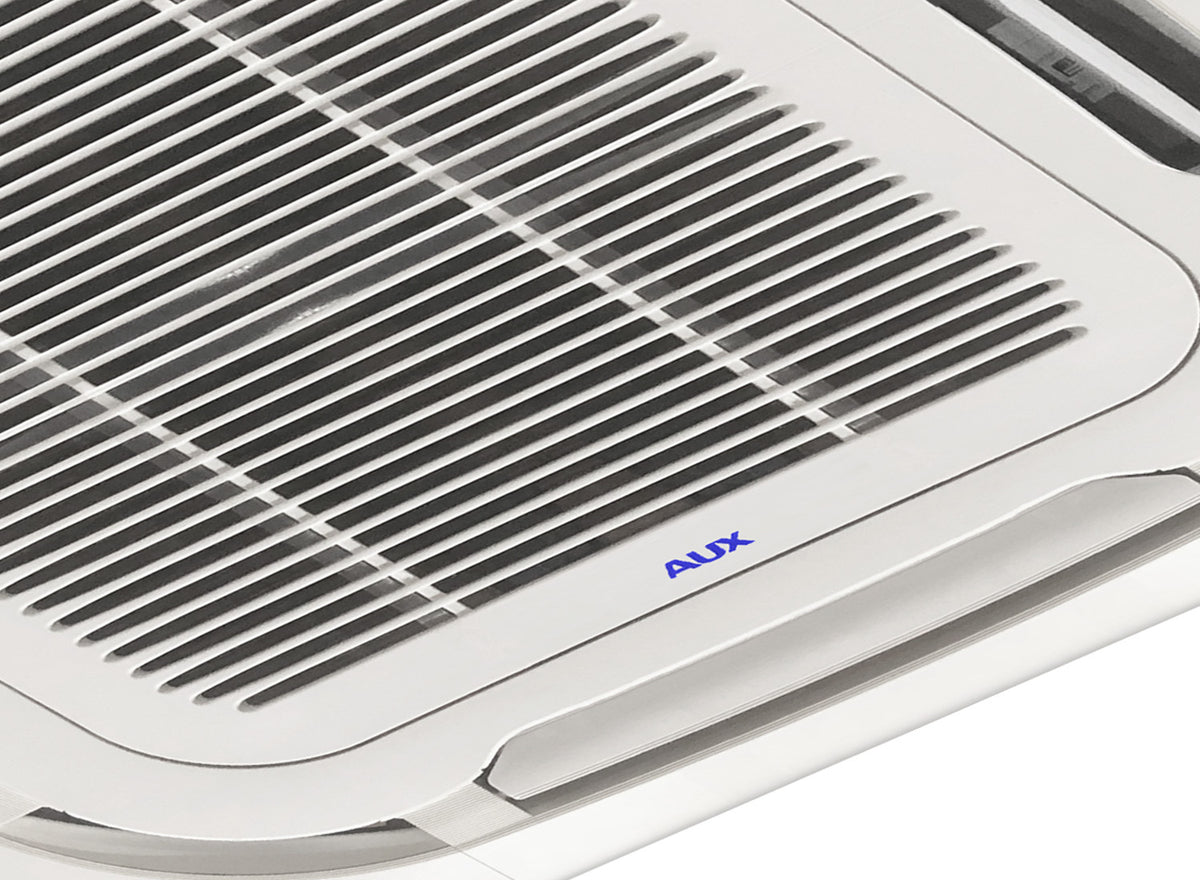

Removable Grille
Tool-Free Access
The grille can be opened by simply pressing it without the need for tools, making installation and maintenance more convenient.

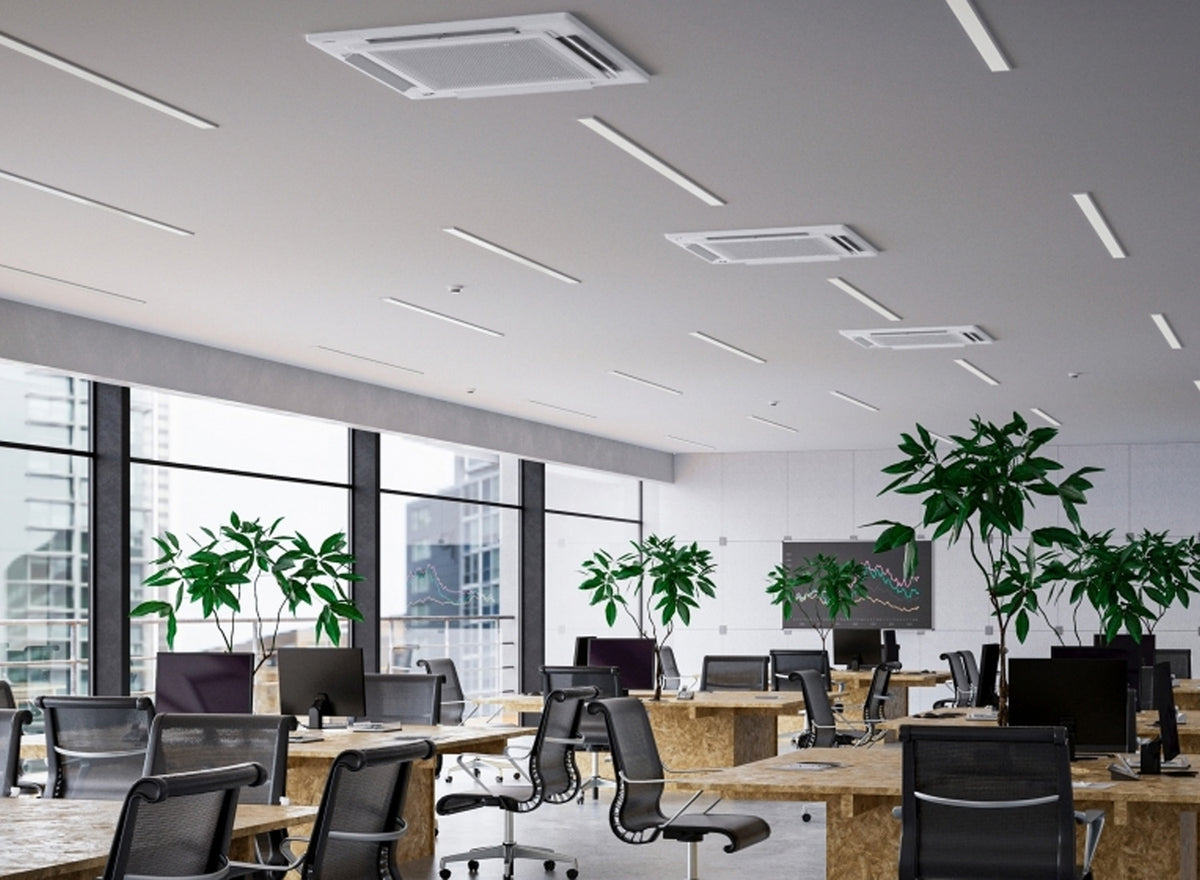

Everyday Cooling Comfort
Efficient & Comfortable Living
Experience a more comfortable indoor environment with efficient cooling performance, even air distribution, and smart convenience features designed for everyday comfort.
| Aux – Cassette AC (48000BTU) | |
| Inverter Four-Way | |
| Brand: | Aux |
| Model: | ALCA-C48/5DR3HI |
| Product Type: | Inverter 8-Way Cassette |
| Capacity: | 48000 BTU |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty |
| Indoor Unit: | |
| Type: | Cooling Only |

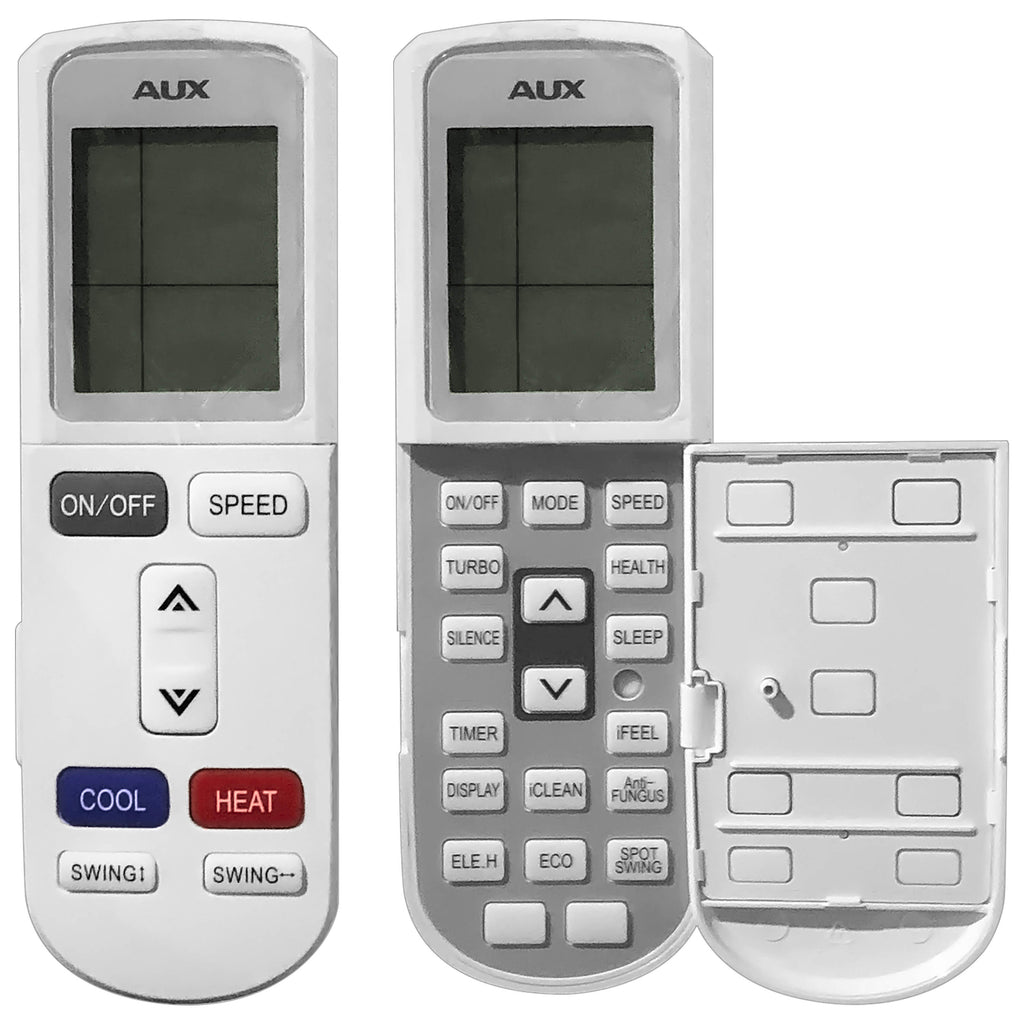

| Control Type: | Remote |
| Power Supply: | 220-240V, 50Hz |
| Capacity (Cooling): | 45000 (21154-48000) Btu/h 13.20 (6.20-14.07) kW |
| Electric Data: | Rated Cooling Power Input: 4.40 (2.55-5.50) kw Rated Cooling Current: 8.00 (3.30 - 9.00) A |
| Performance: | EER: 3 W/W (10.24 Btu/W) SEER (india): 3.5 W/W (11.94 Btu/W) |
| Indoor Coil: | Number Of Row: 2 Tube Pitch (a) x Row Pitch (b): 20.5 x 12.7mm Fin Pitch: 1.5mm Fin Material: Hydrophilic Tube outside Dia. And Material: Ø7mm, Inner grooved Coil (Length x Height x Width): 2084 x 247 x 25.4mm No. of Circuits: 12 |
| Indoor Fan Motor: | Output Power: 100W Speed (Hi/Mi/Lo): 780/700/650 r/min |
| Indoor Air Flow (Hi/Mi/Lo): | 2000/1700/1600 m3/h (1176/1000/941 CFM) |
| Noise Level (Hi/Mi/Lo): | 53/50/47 dB (A) |
| Sound Power Level (Hi/Mi/Lo): | 64/59/56 dB (A) |
| Refrigerant Pipe: | Liquid Side: Ø9.52mm Gas Side: Ø19.05mm |

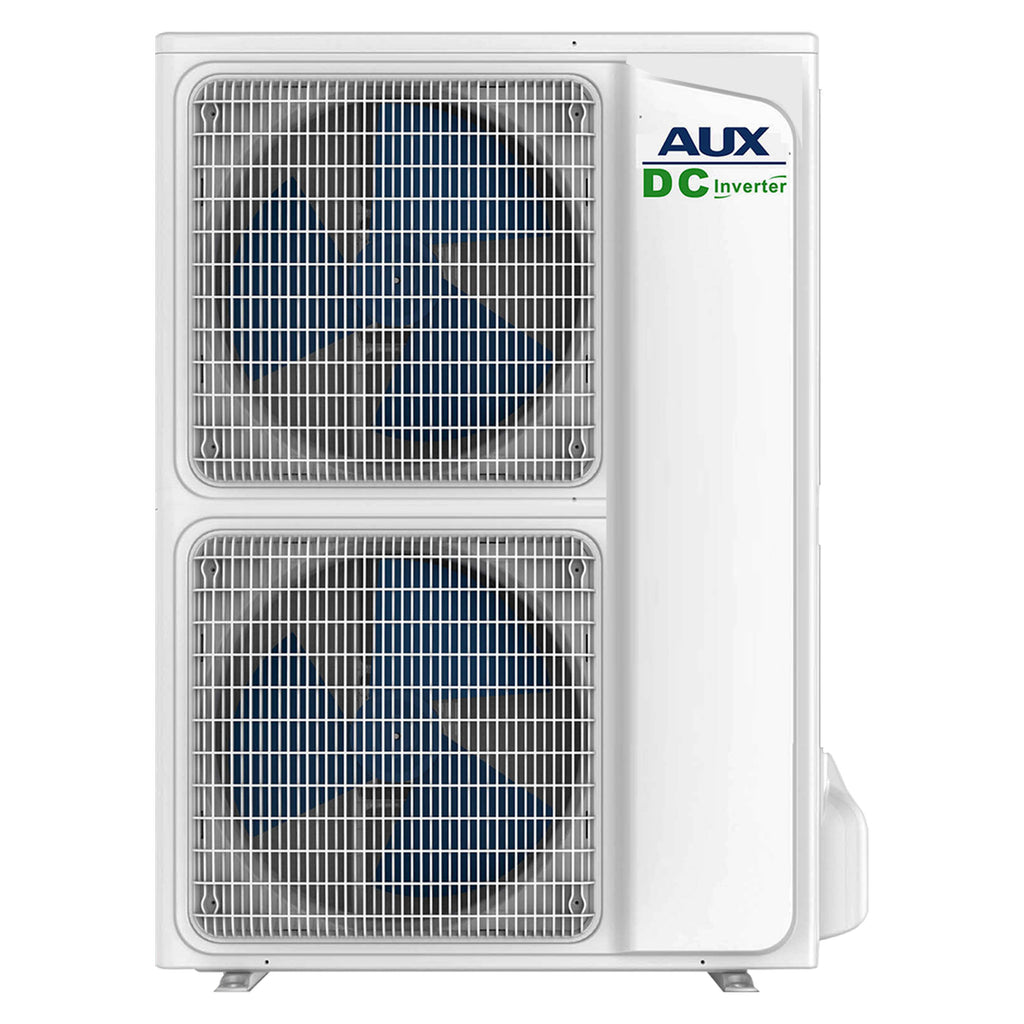

| Outdoor Unit: | |
| Power Supply: | 380 - 415V~, 50Hz, 3-Phase |
| Max. Input Consumption: | 5800W |
| Max. Current: | 11A |
| DC Inverter Compressor: | Type: Rotary Capacity: 10010W Input: 2765W Frequency range: 12-120Hz Rated Current (RLA): 5.38A Refrigerant Oil: 1000ml (VG74) |
| Outdoor Fan Motor: | Output Power x Fan quantity: 85W x2 Capacitor: 4uF x2 Speed: 860 r/min |
| Coil: |
Number Of Row: 1.5 Tube Pitch (a)x Row Pitch (b): 22 x 19.05mm Fin Pitch: 1.5mm Fin Material: Hydrophilic aluminum fin Tube outside Dia. And Material: Ø7mm, Inner grooved Coil (Length x Height x Width): (918+530) + 1276 x 38.1mm Number of circuits: 9 |
| Air Flow Volume: | 3765 CFM, 7000 m3/h |
| Noise Level: | Sound Pressure Noise Level: 58 dB(A) Sound Power Noise Level: 68 dB(A) |
| Operation Temperature Range: | 16°C ~ 32°C |
| Ambient Temperature Range (Cooling): | 5°C ~ 52°C |
| Connection Wiring: | Power Wiring: 5 x 2.5mm2 Connection Wiring (IDU & ODU): 3 x 0.75 mm2 Signal Wiring (IDU & ODU): 2 x 0.2mm2 |
| Refrigerant & Piping: | |
| Refrigerant Type: | R32, 2.8kg |
| Design Pressure: | 4.2 Mpa |
| Liquid Side / Gas Side: | 9.52 mm (3/8 in) / 19.05 mm (3/4 in) |
| Max. Refrigerant Pipe Length: | 50 m |
| Max. Difference in Level: | 30 m |
| Dimensions & Weight: | |

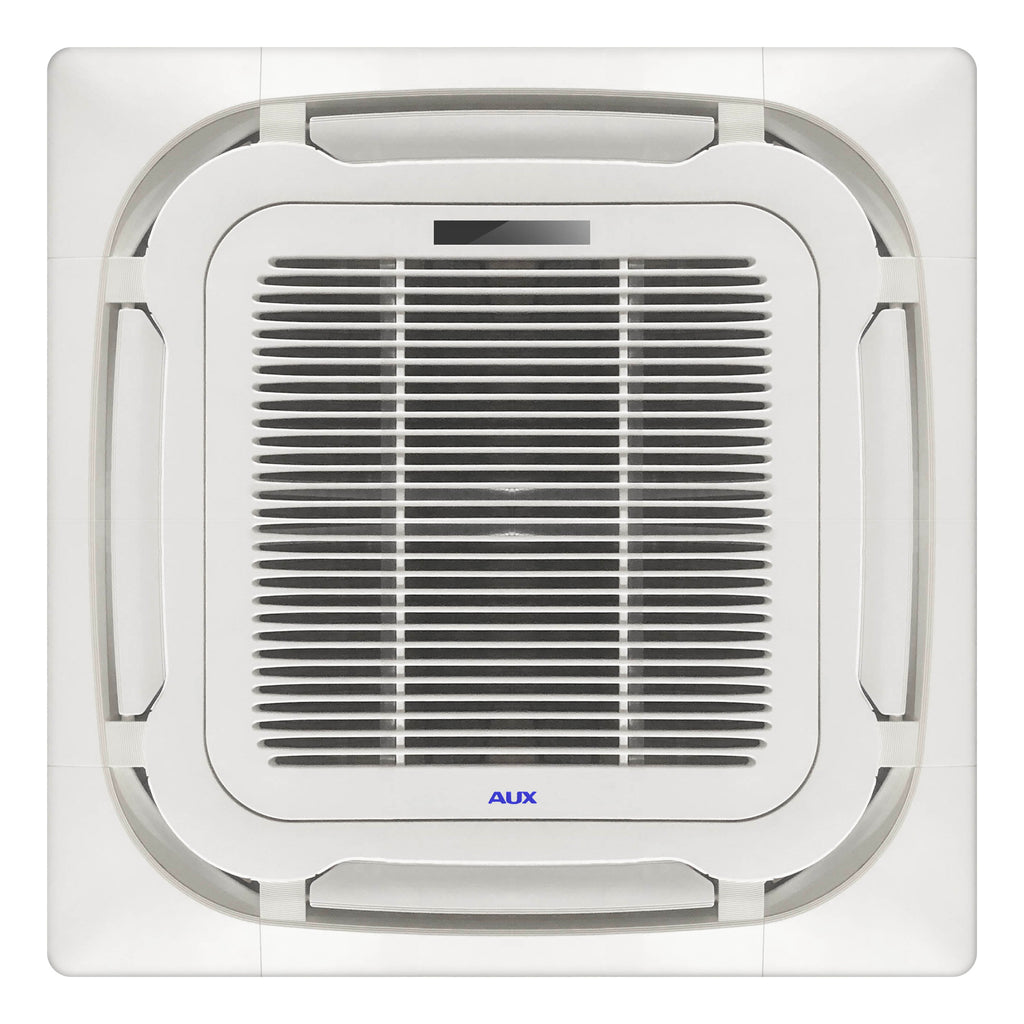

| Panel: | |
| Product Dimension (W x D x H): | 950 x 950 x 55mm (37.4" x 37.4" x 2.2") |
| Packing Dimension (W x D x H): | 1000 x 1000 x 100mm (39.4" x 39.4" x 3.9") |
| Net Weight: | 5.3kg |
| Gross Weight: | 7.8kg |
| Indoor Unit: | |

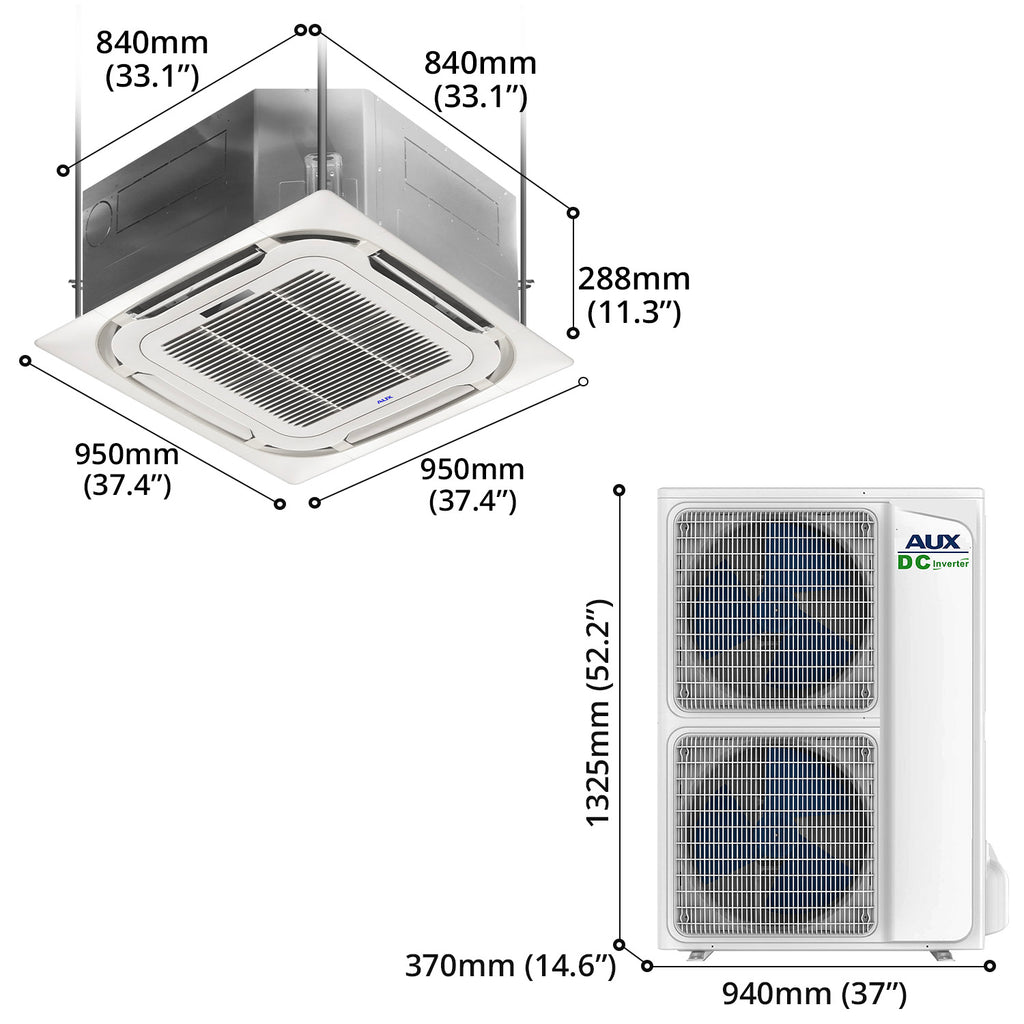

| Product Dimension (W x D x H): | 840 x 840 x 288mm (33.1" x 33.1" x 11.3") |
| Packing Dimension (W x D x H): | 910 x 910 x 350mm (35.8" x 35.8" x 13.8") |
| Net Weight: | 28kg |
| Gross Weight: | 33kg |
| Outdoor Unit: | |
| Product Dimension (W x D x H): | 940 x 370 x 1325mm (37" x 14.6" x 52.2") |
| Packing Dimension (W x D x H): | 1080 x 430 x 1440mm (42.5" × 16.9" × 56.7") |
| Net Weight: | 85kg |
| Gross Weight: | 95kg |
