Specification

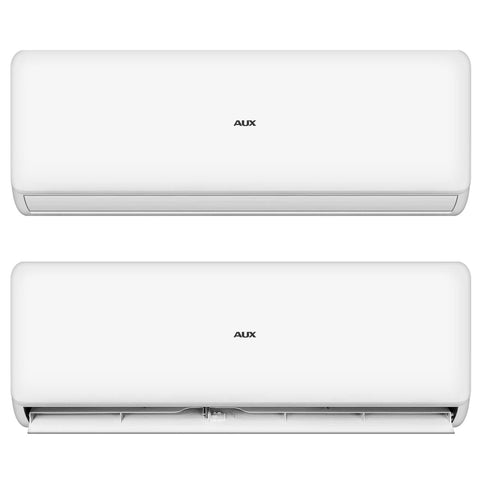

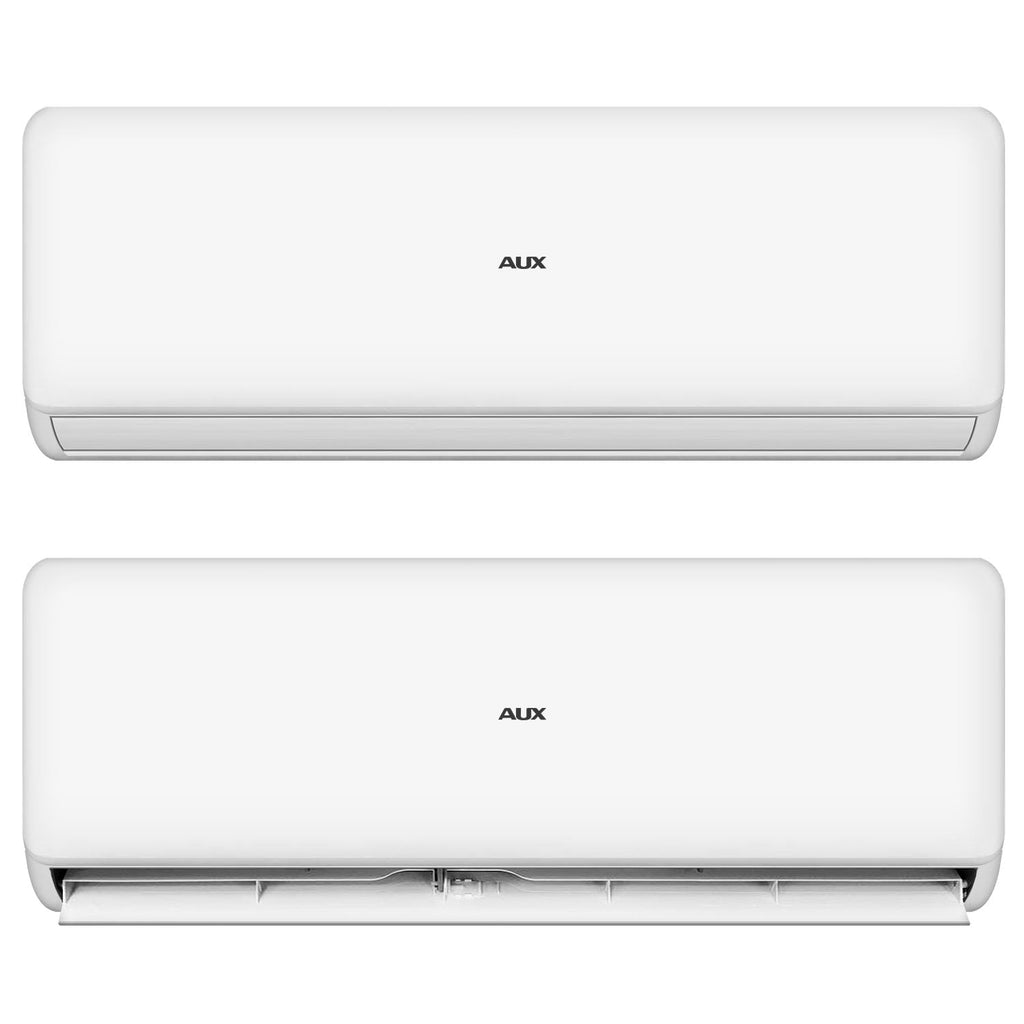

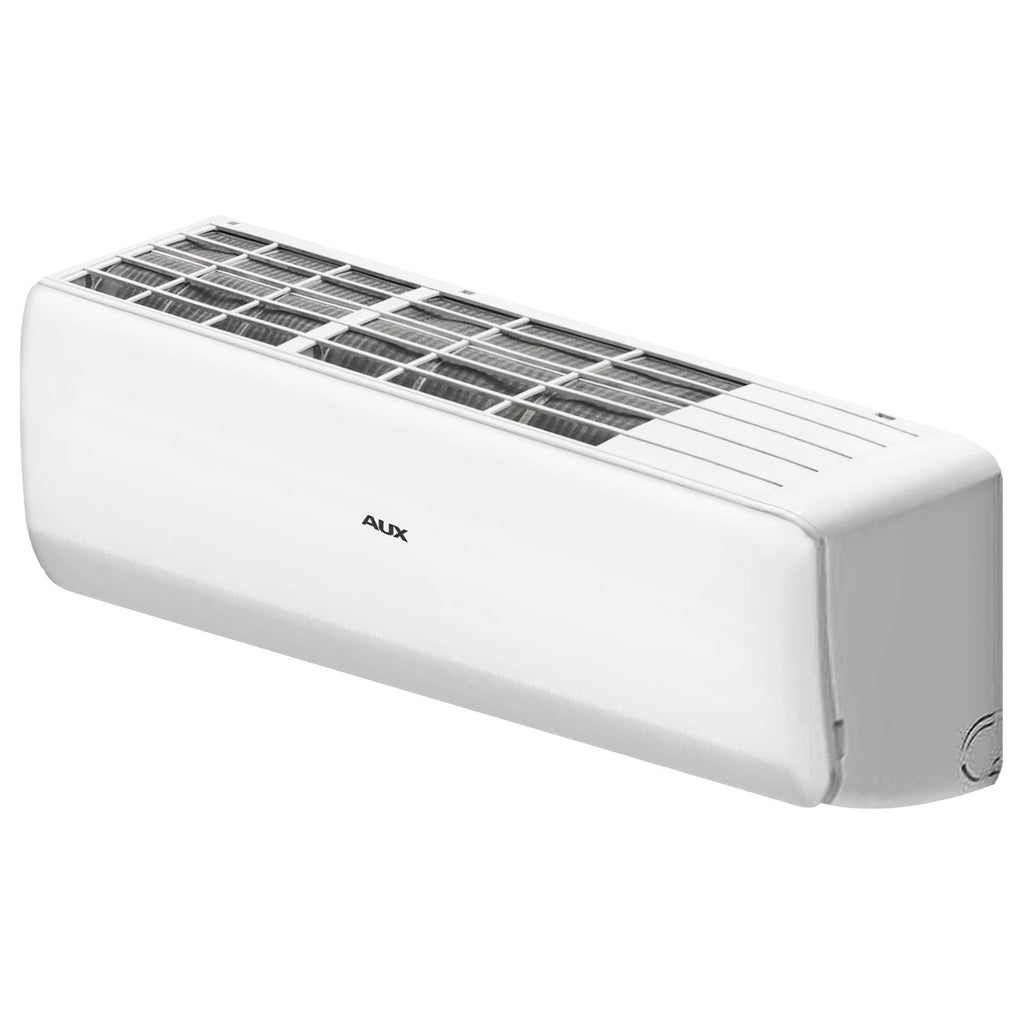

Aux – Multi-Indoor AC Inverter (Free Match)

Brand: Aux

Series: Free Match

Model: AMWM-H09/4R3F

Capacity: 9000BTU

Warranty: 1 Year Warranty

Cooling Capacity:

• 9000 (4780 - 11260) Btu/h
• 2.58 (1.40 - 3.30) kW

Heating Capacity:

• 9215 (4095 - 10240)) Btu/h
• 2.70 (1.20 - 3.00) kW

Electric Data:

• Power Supply: 220 ~ 240V, 50Hz, 1Ph
• Cooling Power Input: 40 (12 - 68) W
• Heating Power Input: 40 (12-68) W

Indoor Fan:

• Output Power: 12W
• Speed: 1150 r/min

Indoor Coil:

• Number Of Row: 2
• Tube Pitch(a)x Row Pitch(b): 20.5 X 12.7mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. And Material: φ7, Inner grooved
• Coil Length x Height x Width: 560 x 41 x 11mm

Air Flow Volume: 353 CFM, 600 m³/h

Noise Level

• Sound Pressure: 40 dB (A)
• Sound Power: 54 dB (A)

Refrigerant Type: R32

Refrigerant Piping:

• Liquid Side: 6.35mm (1/4")
• Gas Side: 9.52mm (3/8")
• Drainage: 16.5mm

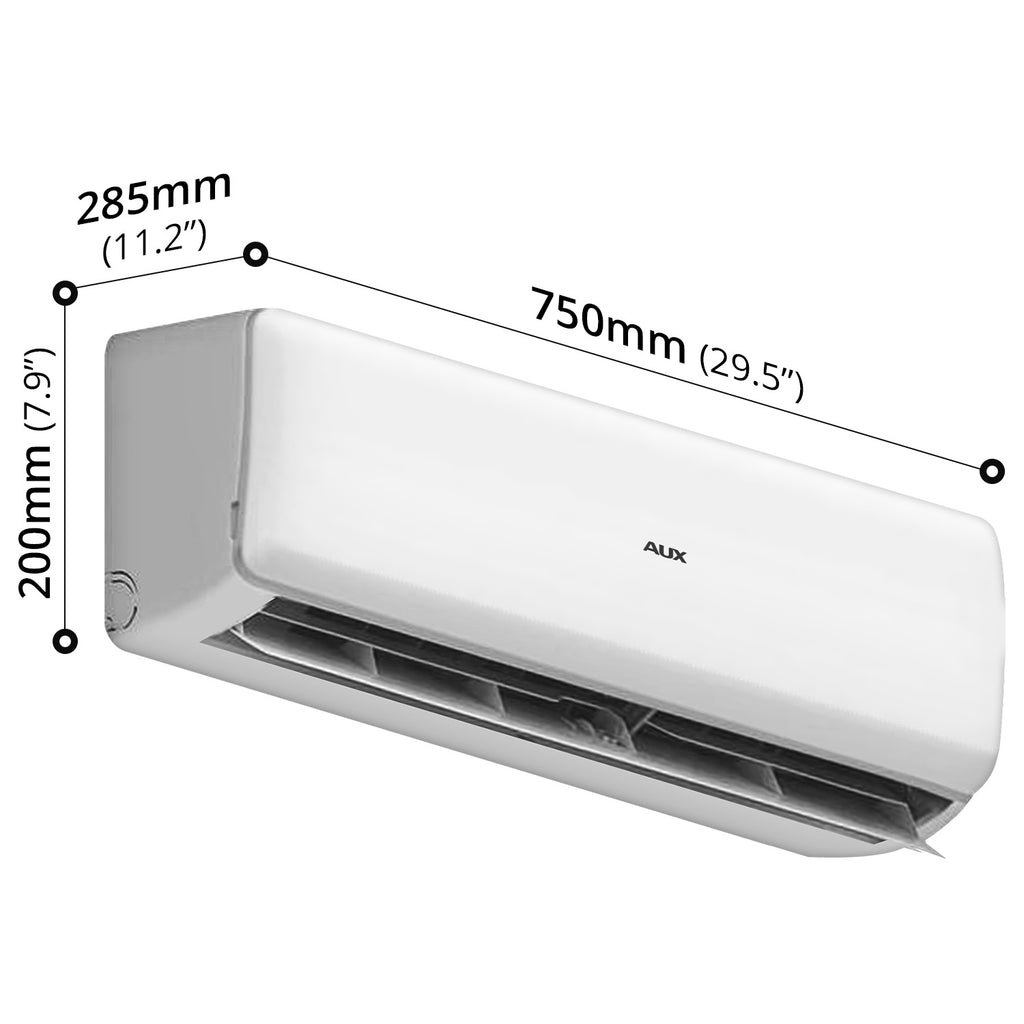

Dimension (W x D x H):

• Net: 750 x 285 x 200mm
• Packing: 820 x 347 x 277mm

Weight:

• Net: 7.5 kg
• Gross: 9 kg
