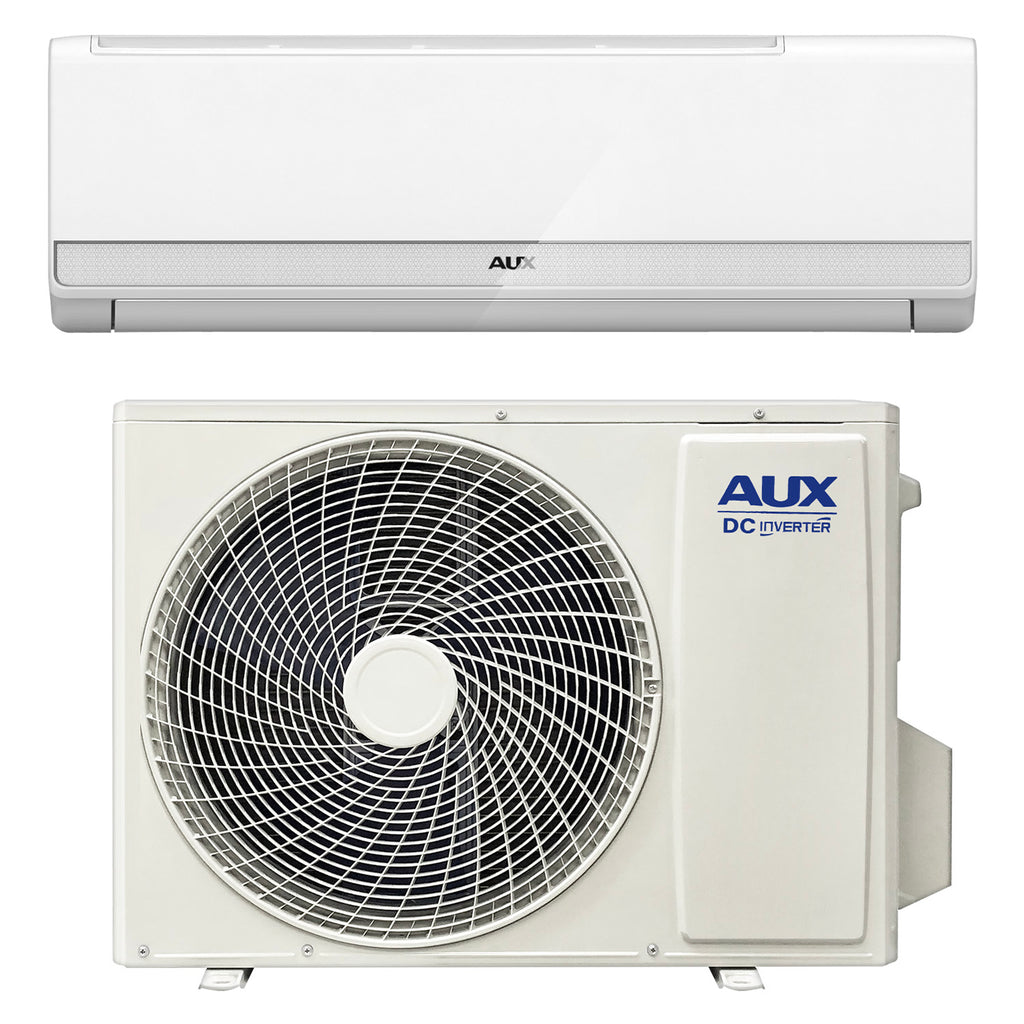

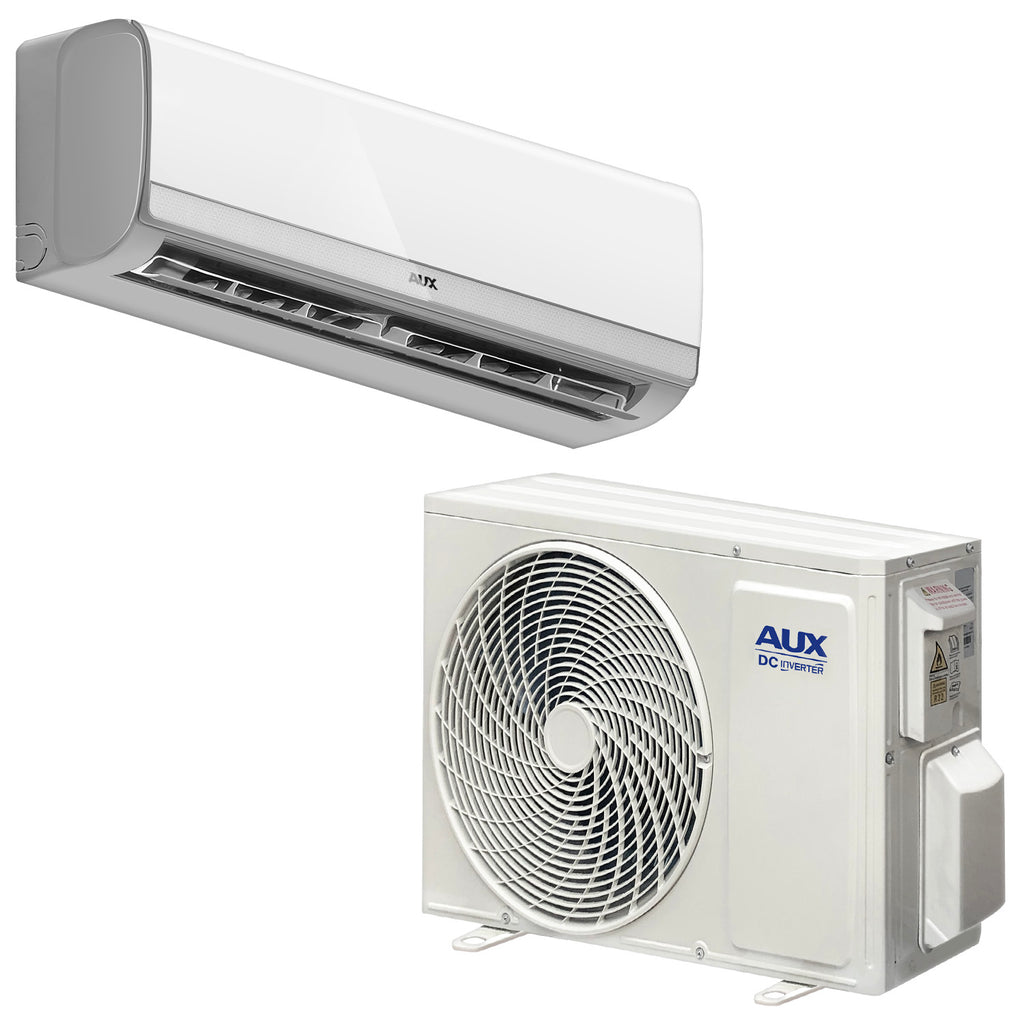

12000 BTU AC (Inverter)
SKU: 61443
DC INVERTER
Model no: MASDC12QHR1-H-SMART
Brand: AUX
Size: 12000BTU

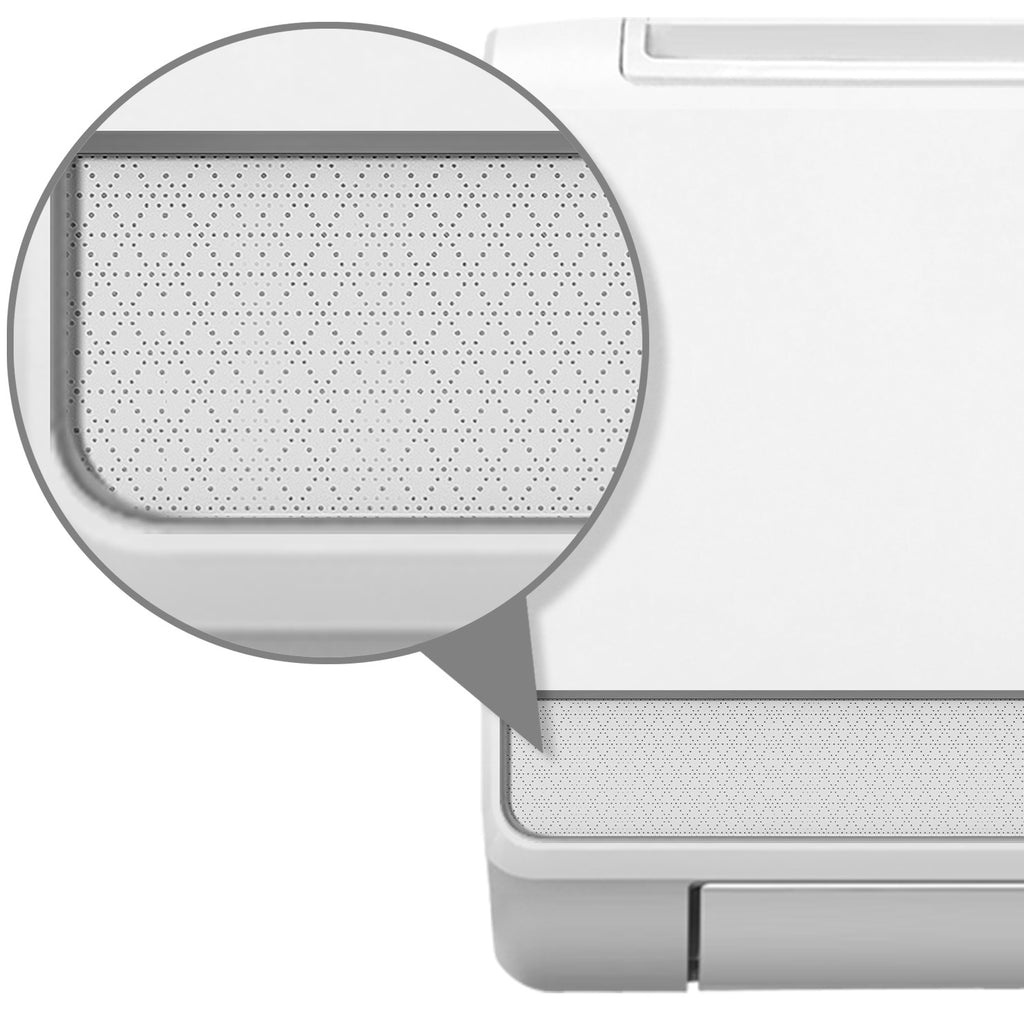

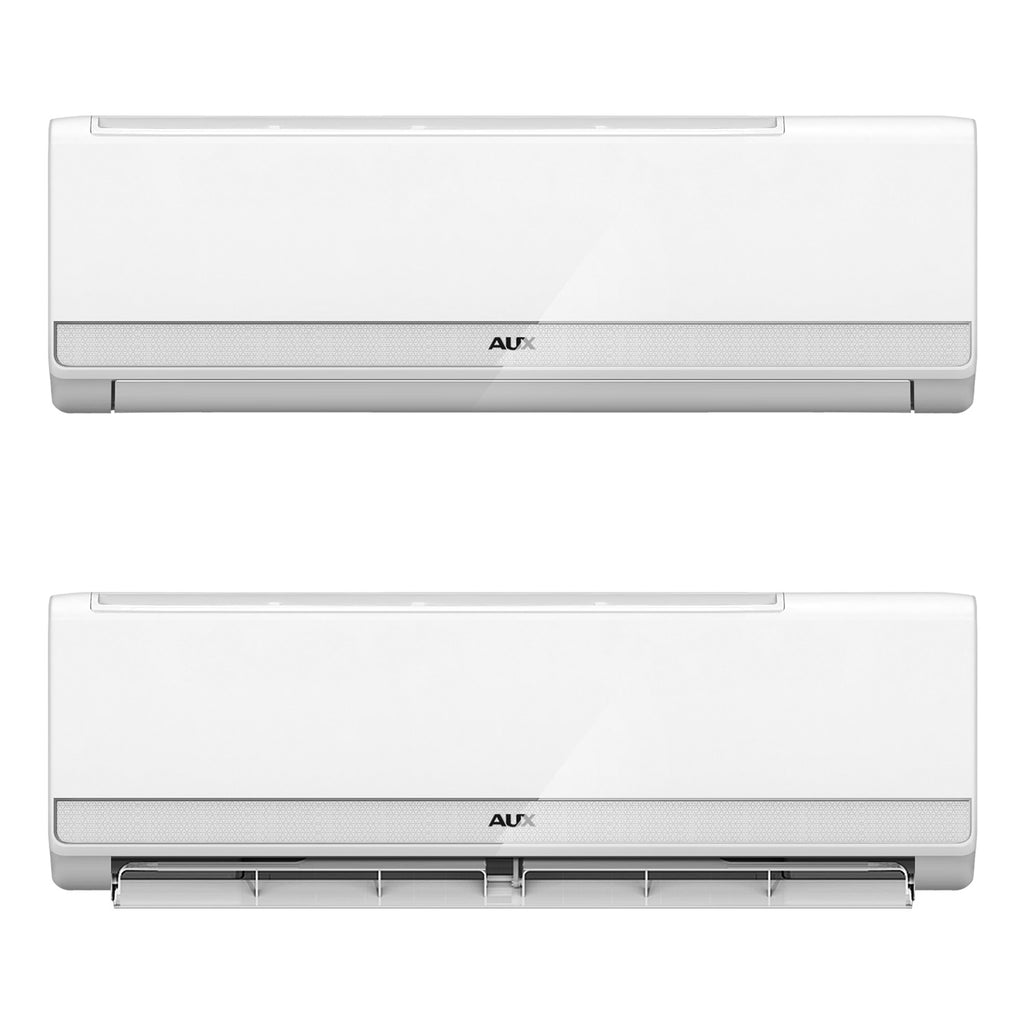

Elegant Modern Design
Glossy & Smooth
Featuring a sleek mirror-finish front panel and elegant rounded-edge design, the H-Smart air conditioner complements modern interiors while delivering a refined and premium appearance.
Fast Cooling Performance
Cool Comfort in Less Time
Advanced inverter technology rapidly increases operating frequency to deliver powerful cooling performance. Enjoy faster temperature reduction and refreshing comfort, even on the hottest days.
High Airflow System
Powerful Air Distribution
H-Smart offer superior airflow volume and long-distance air supply, helping cool larger areas more effectively. Strong and consistent airflow distribution ensures greater comfort while maintaining a refreshing indoor environment throughout the room.

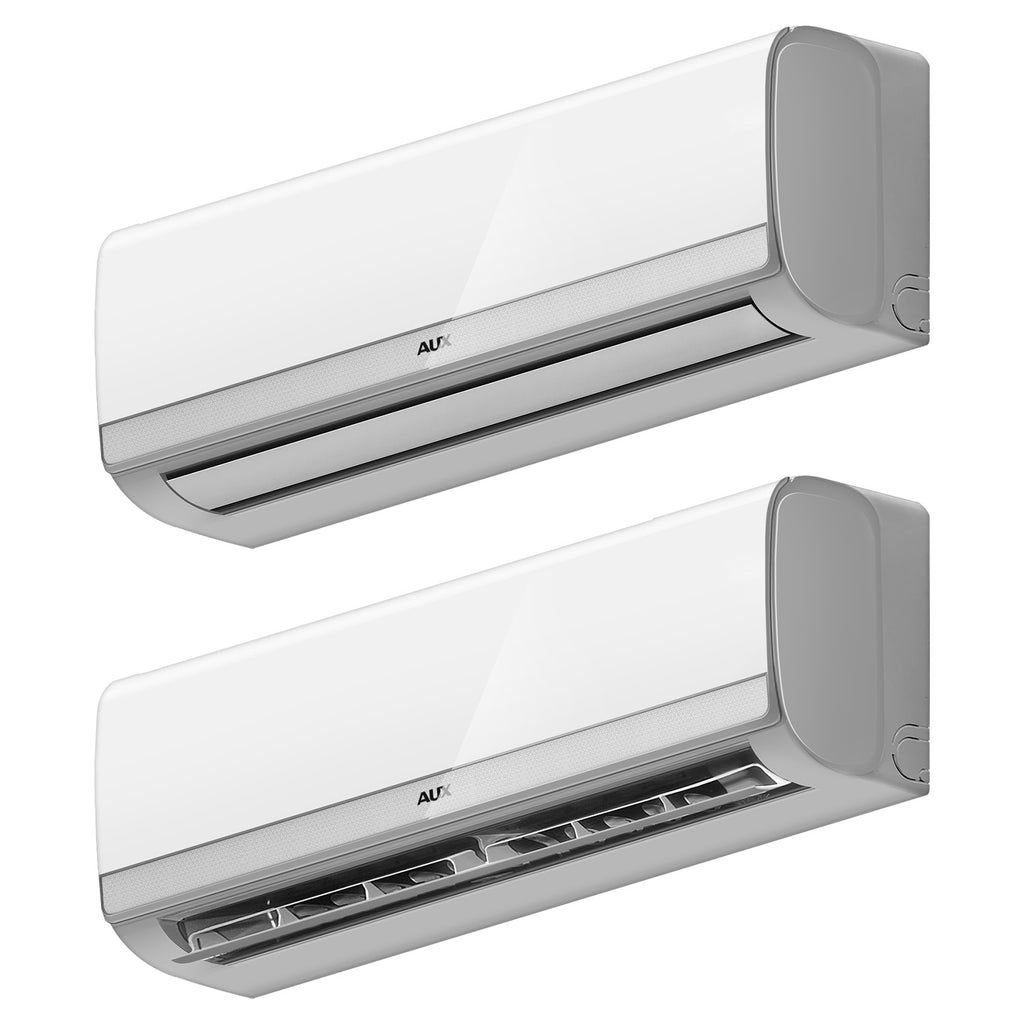

4D Airflow
Comfort in Every Direction
Multi-directional airflow distributes cool air both vertically and horizontally through motorized air swing control, helping ensure more even cooling coverage and a comfortable indoor environment throughout the room.
Eco Energy Saving
Efficient Cooling, Lower Energy Use
The inverter system adjusts cooling frequency according to temperature differences, helping optimize energy consumption while maintaining efficient and comfortable cooling performance.
Smart Wi-Fi Control
Control Anytime, Anywhere
Connect the air conditioner to your smartphone through the dedicated app for convenient remote operation. Adjust temperature settings, control functions, and manage comfort from virtually anywhere.
Quiet Operation
Peaceful Comfort Day and Night
Low-noise indoor operation creates a quieter and more comfortable environment, making it ideal for bedrooms and relaxing spaces where peaceful sleep is important.
High-Temperature Cooling Performance
Reliable Cooling in Extreme Heat
Designed for harsh high-temperature environments, the outdoor unit can operate under extreme conditions up to 68°C, helping maintain stable cooling performance and reliable comfort even during very hot weather.
Three-Proof Outdoor Protection
Built for Long-Term Reliability
The outdoor unit PCB is protected with a UV-resistant coating that helps guard against corrosion and environmental exposure, improving durability and ensuring reliable performance over time.
Fault Code Indication
Easier Troubleshooting & Service Support
The built-in display provides fault code indications to help quickly identify potential operating issues, making troubleshooting easier and improving maintenance efficiency.
PCB Direct Extraction
Faster & More Convenient Maintenance
The indoor unit's main control board can be directly removed for easier access, helping technicians perform inspections, repairs, and maintenance more efficiently.
Smart Comfort for Everyday Living
Cooling Designed Around Your Lifestyle
Combining fast cooling, powerful airflow, energy-saving performance, quiet operation, and smart Wi-Fi control, the H-Smart delivers reliable comfort and convenience for modern everyday living.
|
Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes and any kind of carpentry or electrical works. All above services can be provided at additional charges. To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation. |
| Aux - Air Conditioner (12000BTU) | ||
| Inverter – Wi-Fi Ready | ||
| Brand: | Aux | |
| Model: | MASDC12QHR1-H-Smart | |
| Capacity: | 12000BTU | |
| Color: | White | |
| Air Flow Volume: | 600 m3/h | |
| Warranty: | 1 Year Warranty plus 5 Years Compressor Warranty | |
| Cooling Performance: | ||
| Rated Capacity: | 3500(800-3800) | |
| Rated Power Consumption: | 1250(200-1400) | |
| Rated Running Current: | 5.54(0.9-6.2) | |
| EER Cooling: | 2.8 W/W | |
| Power: | ||
| Power Supply Source: | 220-240V / 1-Phase / 50Hz | |
| Max. Input Power: | 1600W | |
| Max. Input Current: | 8.5A | |
| Refrigerant System: | ||
| Refrigerant: | R32 | |
| Refrigerant charged: | 540g | |
| Max. Discharge Pressure: | 4.3 Mpa | |
| Max. Suction Pressure: | 2.5 Mpa | |
| Indoor Unit: | ||
| Indoor Noise Level: | 41 dB(A) | |
| Fan Motor Type: | DC | |
| Stop Valve: | Liquid valve: 6mm (1/4") Gas valve: 9mm (3/8") |
|

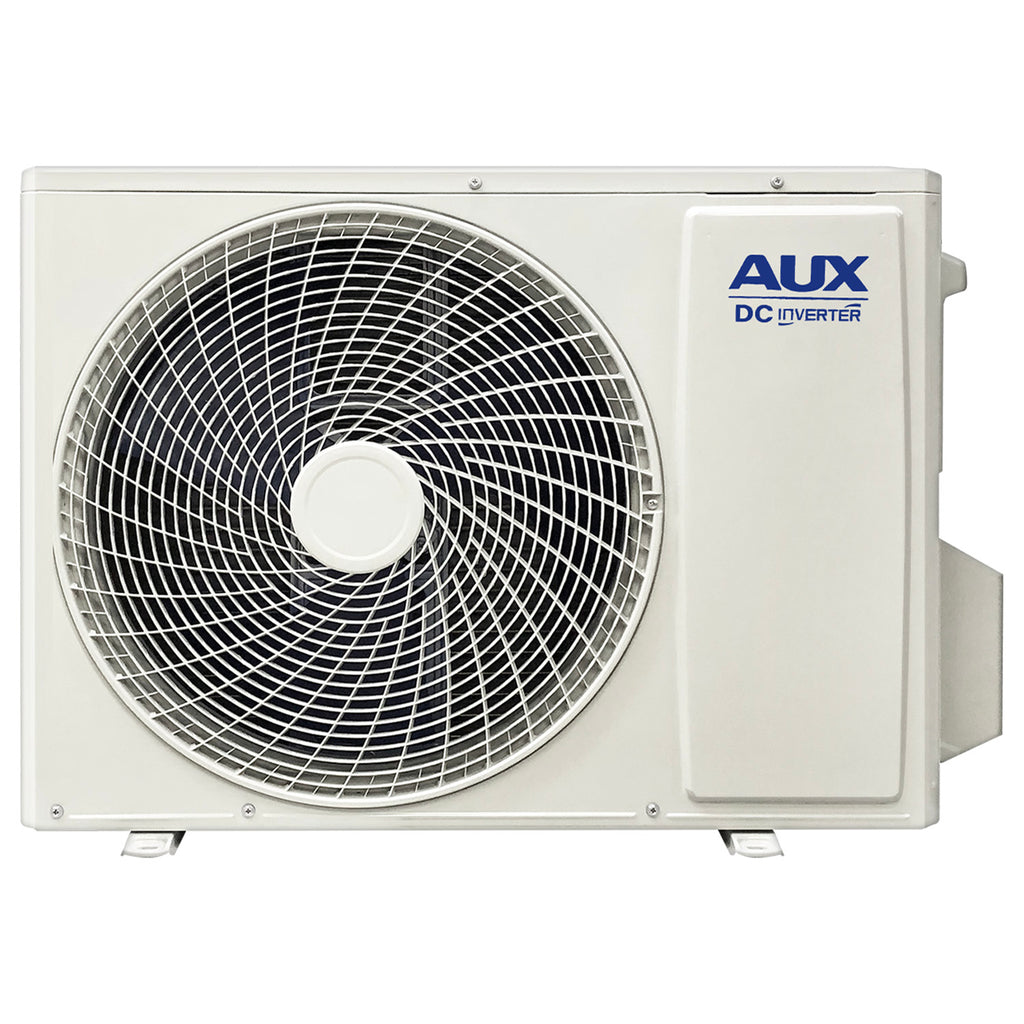

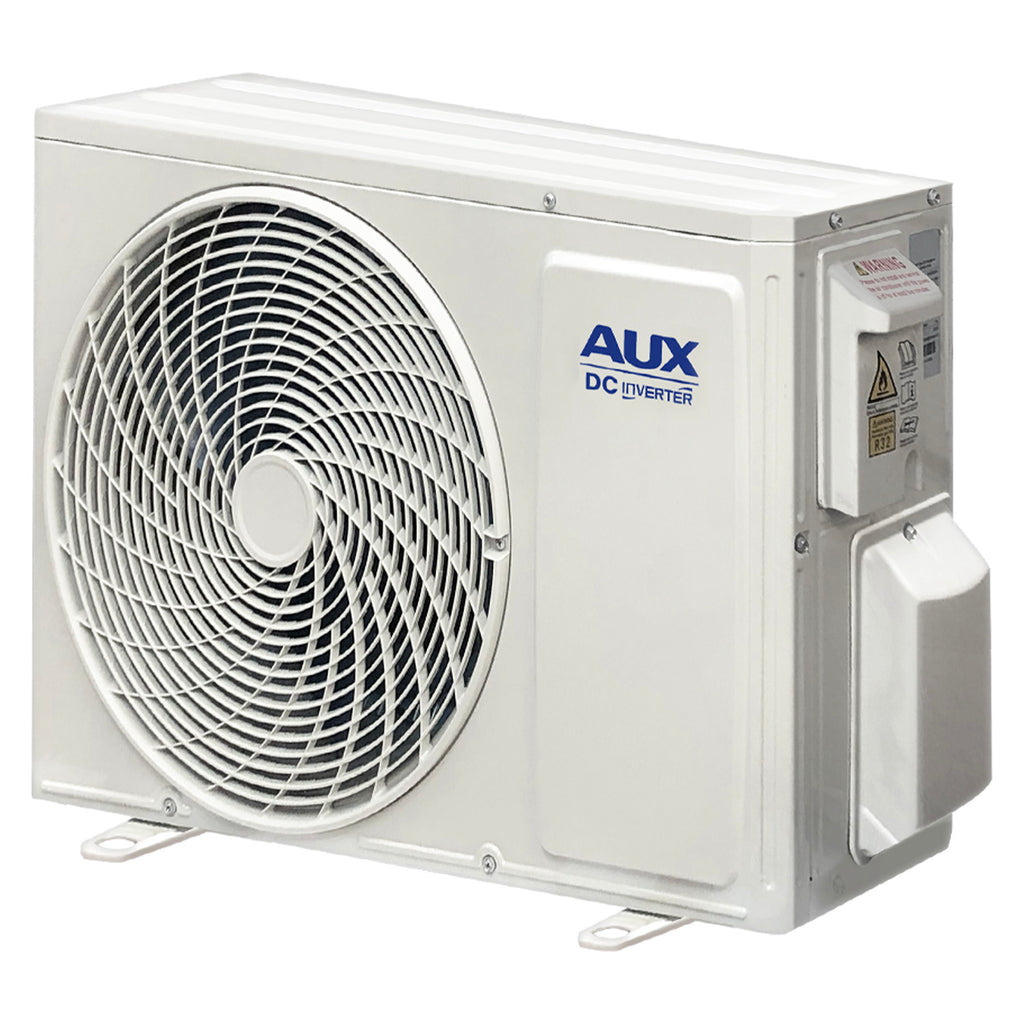

| Outdoor Unit: | ||
| Outdoor Noise Level: | 53 dB(A) | |
| Type: | Rotary | |
| Fan Motor Type: | DC | |
| Dimension & Weight: | ||
| Indoor Unit: | ||

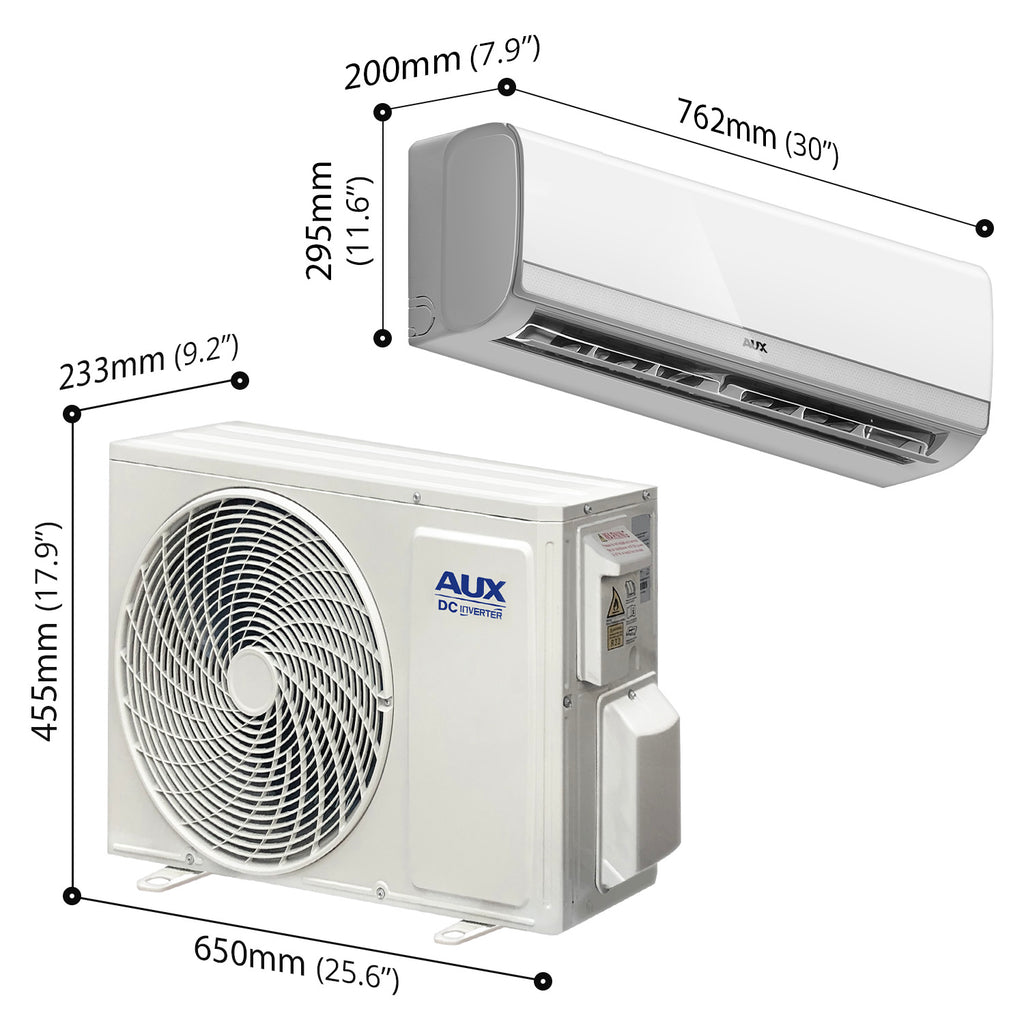

| Product Dimension (W x D x H): | 762 x 200 x 295mm (30.0" × 7.9" × 11.6") | |
| Packing Dimension (W x D x H): | 825 x 277 x 367mm (32.5" × 10.9" × 14.4") | |
| Net Weight: | 8kg | |
| Gross Weight: | 10kg | |
| Outdoor Unit: | ||
| Product Dimension (W x D x H): | 650 x 233 x 455mm (25.6" x 9.2" x 17.9") | |
| Packing Dimension (W x D x H): | 760 x 315 x 510mm (29.9" × 12.4" × 20.1") | |
| Net Weight: | 17kg | |
| Gross Weight: | 20kg | |
| Packing Contents: | ||

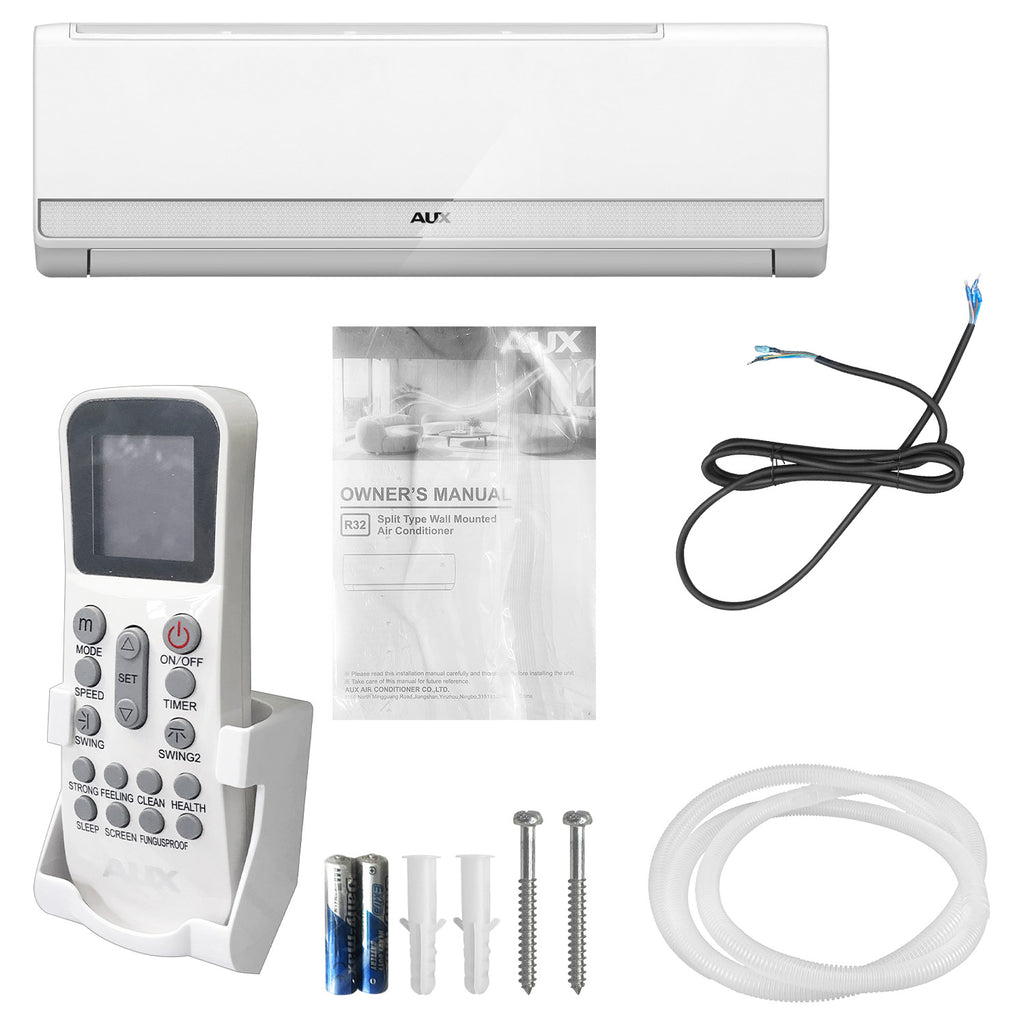

| 12k BTU Indoor Unit – x1 | ||

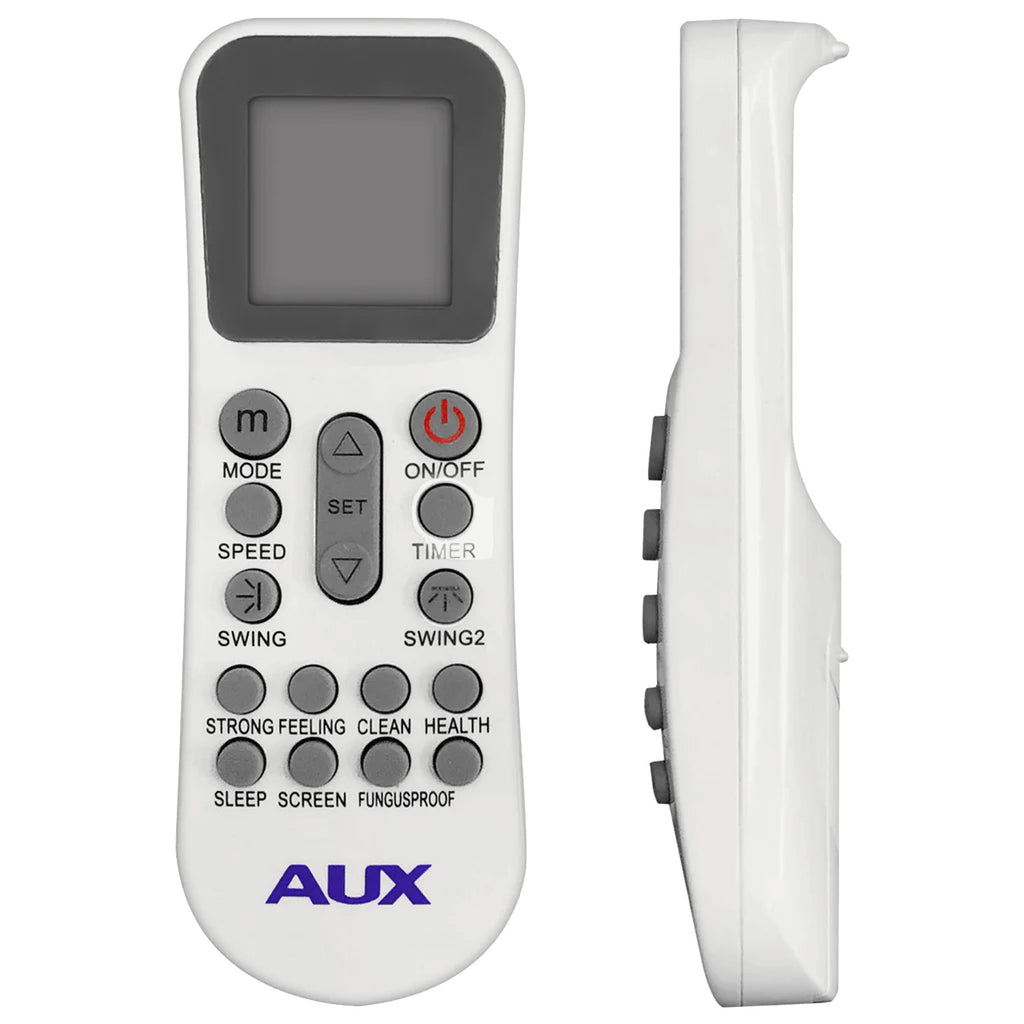

| Remote Control | x1 | |
| Remote Holder (Wall-Mount) | x1 | |
| Screws with Plugs | x2 | |
| AA Battery | x2 | |
| Electric Wire | x1 | |
| Drainage Hose | x1 | |
| User Manual | x1 | |

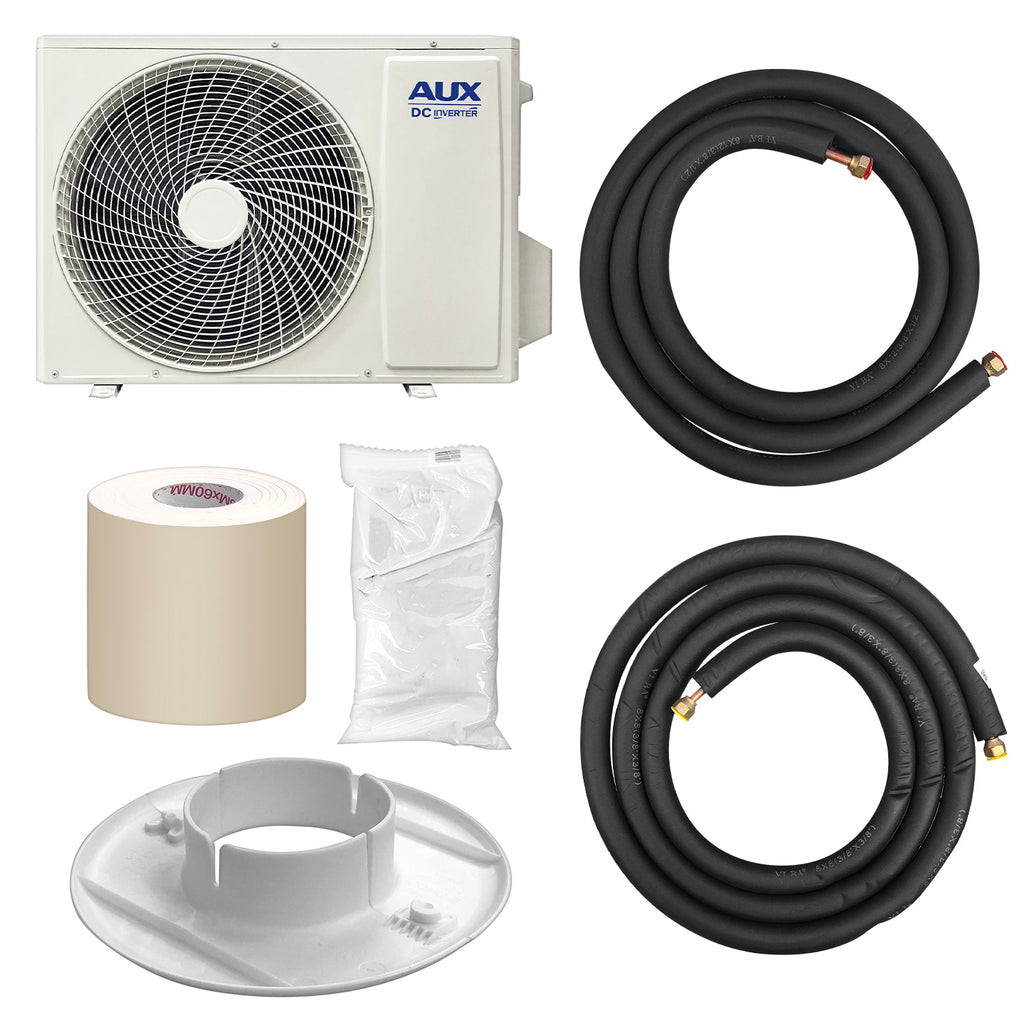

| 12k BTU Outdoor Unit - x1 | ||
| 1/4" Insulated Copper Tube | x1 | |
| 3/8” Insulated Copper Tube | x1 | |
| Clay | x1 | |
| Wall Hole Cover | x1 | |
| Wrapping Roll | x1 | |
