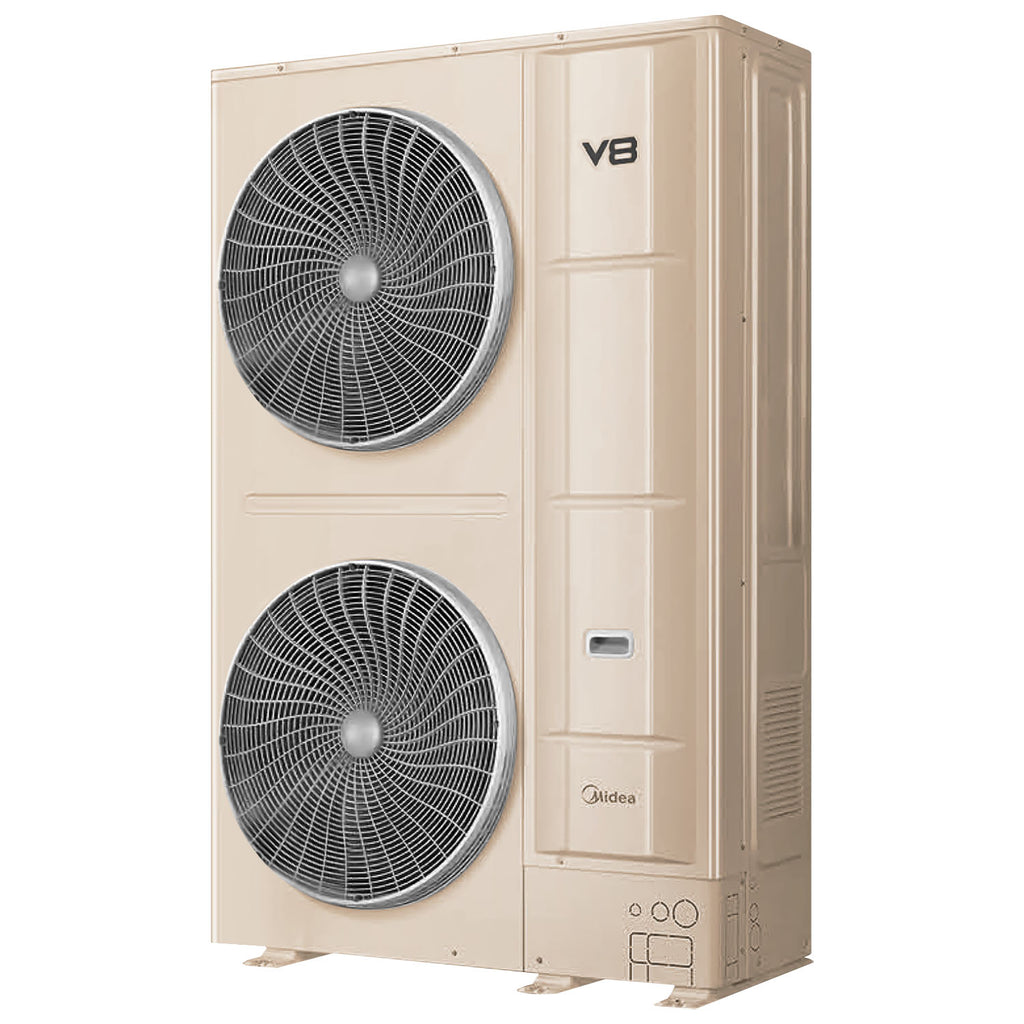

Midea – VRF Outdoor AC

Inverter

Brand: Midea

Model: MV8S-280WV2GN1

Power Supply (V/N/Hz): 380-415V, 3N, 50/60Hz

Warranty: 1 Year Warranty

Cooling Capacity:

• Capacity (kW): 28 kW
• Capacity (Btu/h): 95.5k Btu/h
• Power Input: 7.5W
• EER: 3.73

Heating Capacity:

• Capacity (kW): 31.5 kW
• Capacity (Btu/h): 107.5k Btu/h
• Power Input: 6.8W
• COP: 4.67

Connected Indoor Unit:

• Total Capacity: 50-130% of outdoor unit capacity
• Max. Quantity: 16

Compressor Type: DC Inverter

Fan Motors:

• Type: DC
• Quantity: 2 Fans
• Airflow Rate: 12500 m³/h
• Static pressure:  0-35 (standard); 35-80 (customized)

Sound pressure level: 57 dB(A)

Refrigerant Type: R410A

Refrigerant Piping:

• Liquid Side: Ø12.7mm
• Gas Side: Ø25.4mm

Ambient temp. operation range:

• Cooling: -15 to 55°C
• Heating: -30 to 30

Dimension & Weight:

Weight x Depth x Height

Product Dimension: 1130 x 580 x 1760mm (44.5” x 22.8” x 69.3”)

Packing Dimension: 1210 x 597 x 1916mm (47.6” x 23.5” x 75.4”)

Net Weight: 177kg

Gross Weight: 191kg

Packing Content: Outdoor Unit – x1
