Specification

Logitech – Speaker

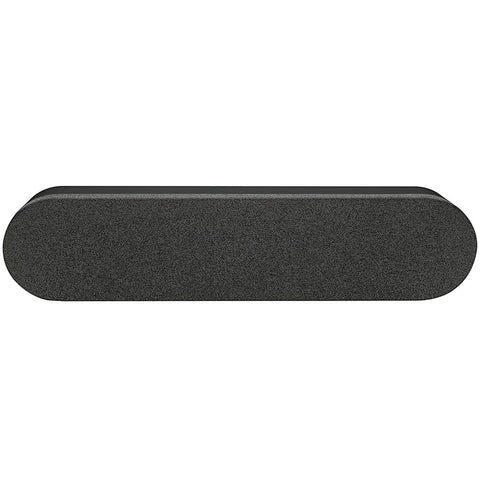

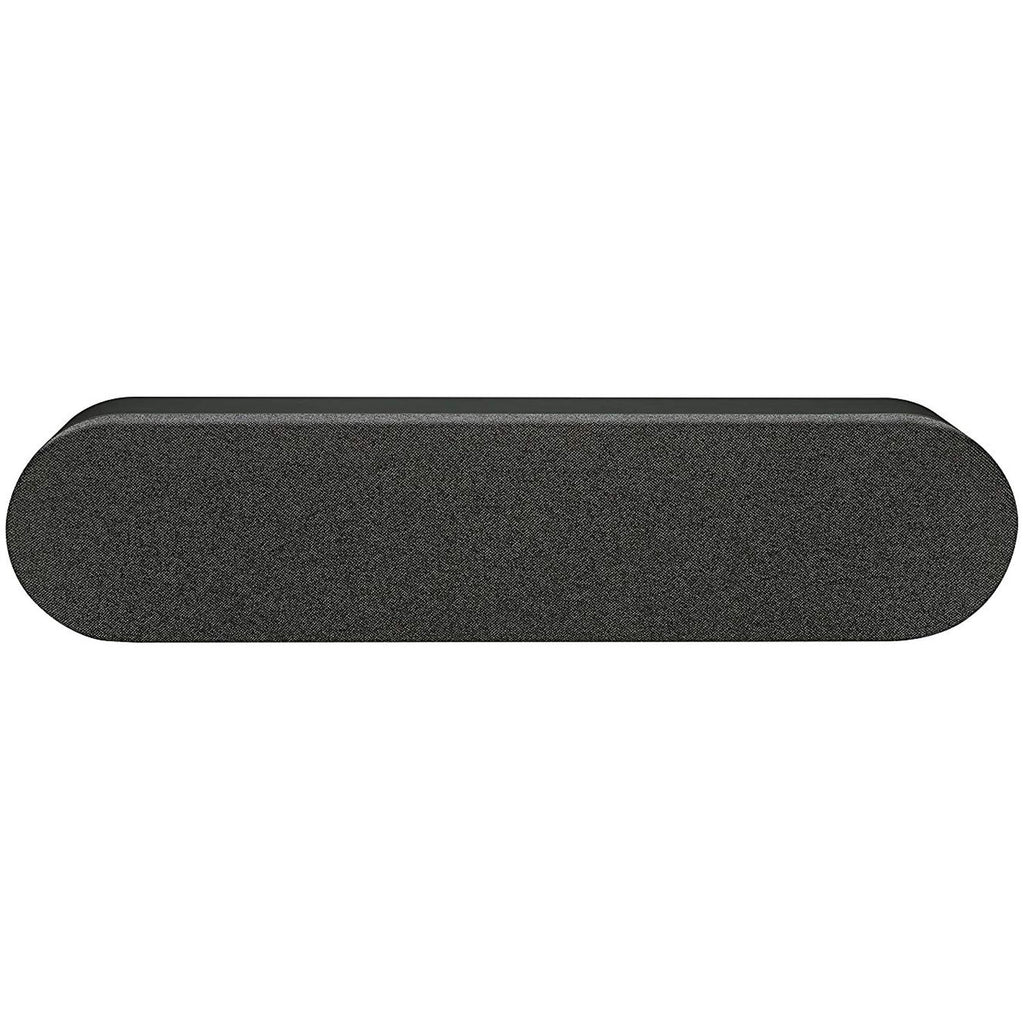

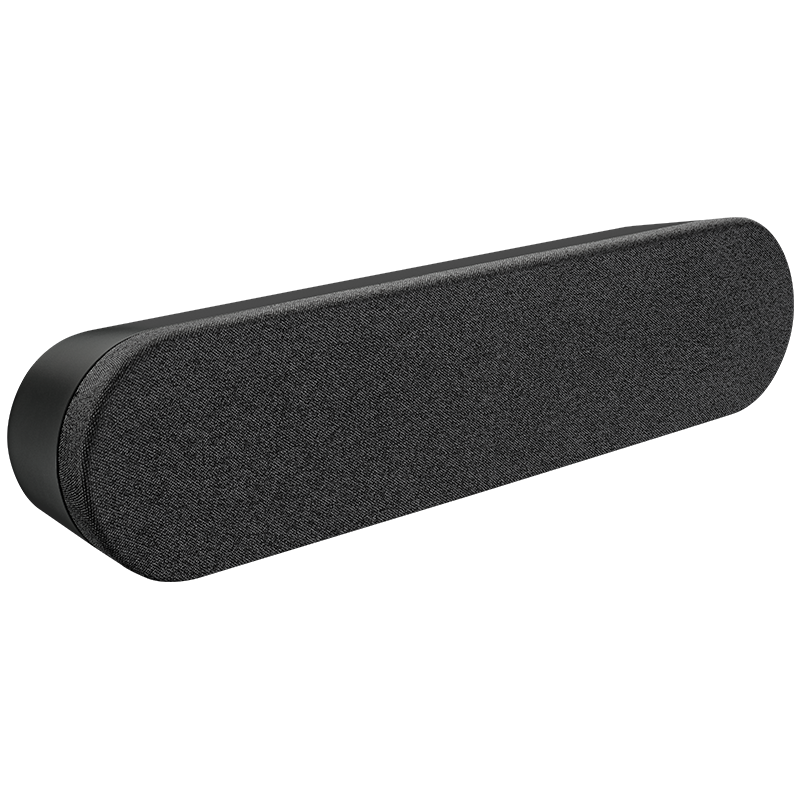

Rally Speaker

Brand: Logitech

Model: 960-001230

Color: Black

System Requirements:

• Logitech Rally system with one speaker
• Maximum speakers per system: 2

Technical Specifications:

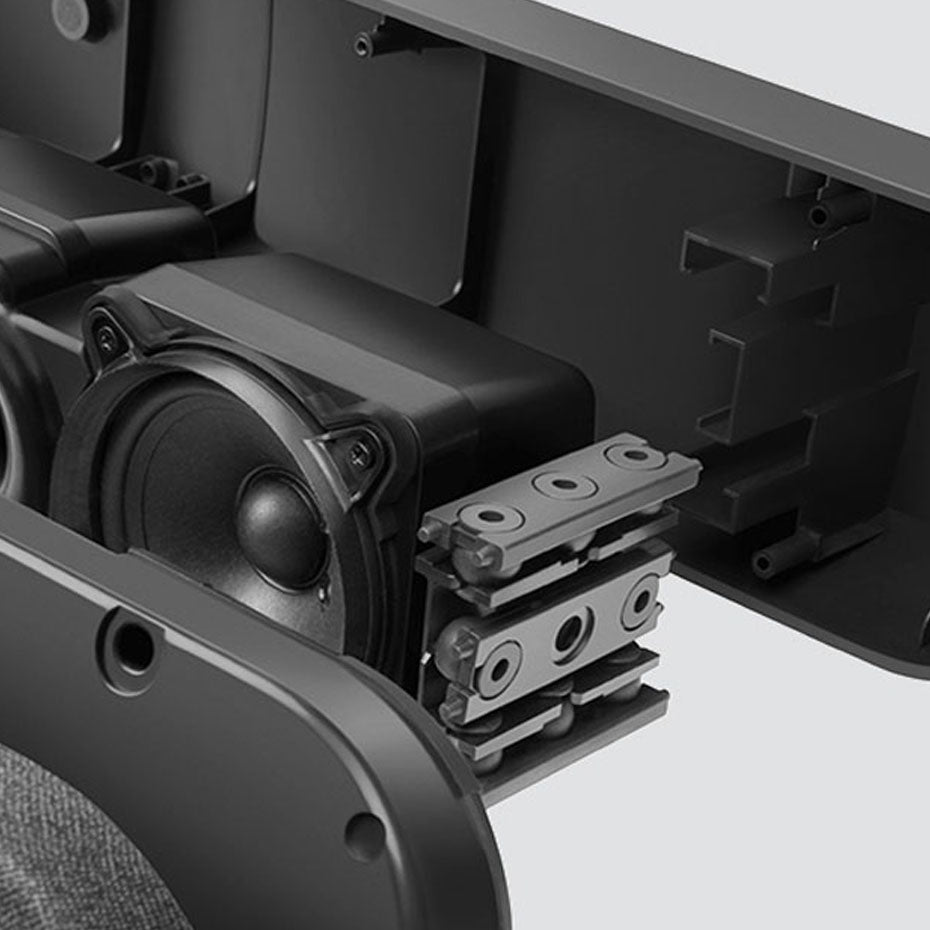

• High-performance 76 mm driver with rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference

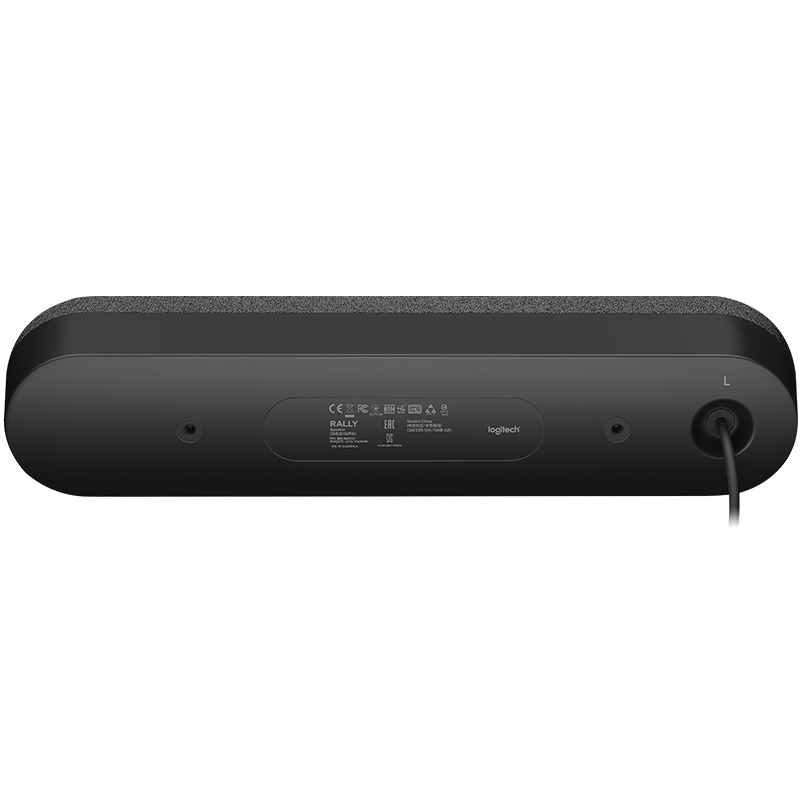

• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume: 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
• Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
• Speaker sampling rate: 48 kHz

Dimensions:

• Height x Width x Depth: 103 mm x 449 mm x 80 mm

Package Contents:

• Rally Speaker with 2.95 m Mini XLR cable (supports customer-supplied extension cables up to 3 m)
• Documentation

Part number: PN: 960-001230
