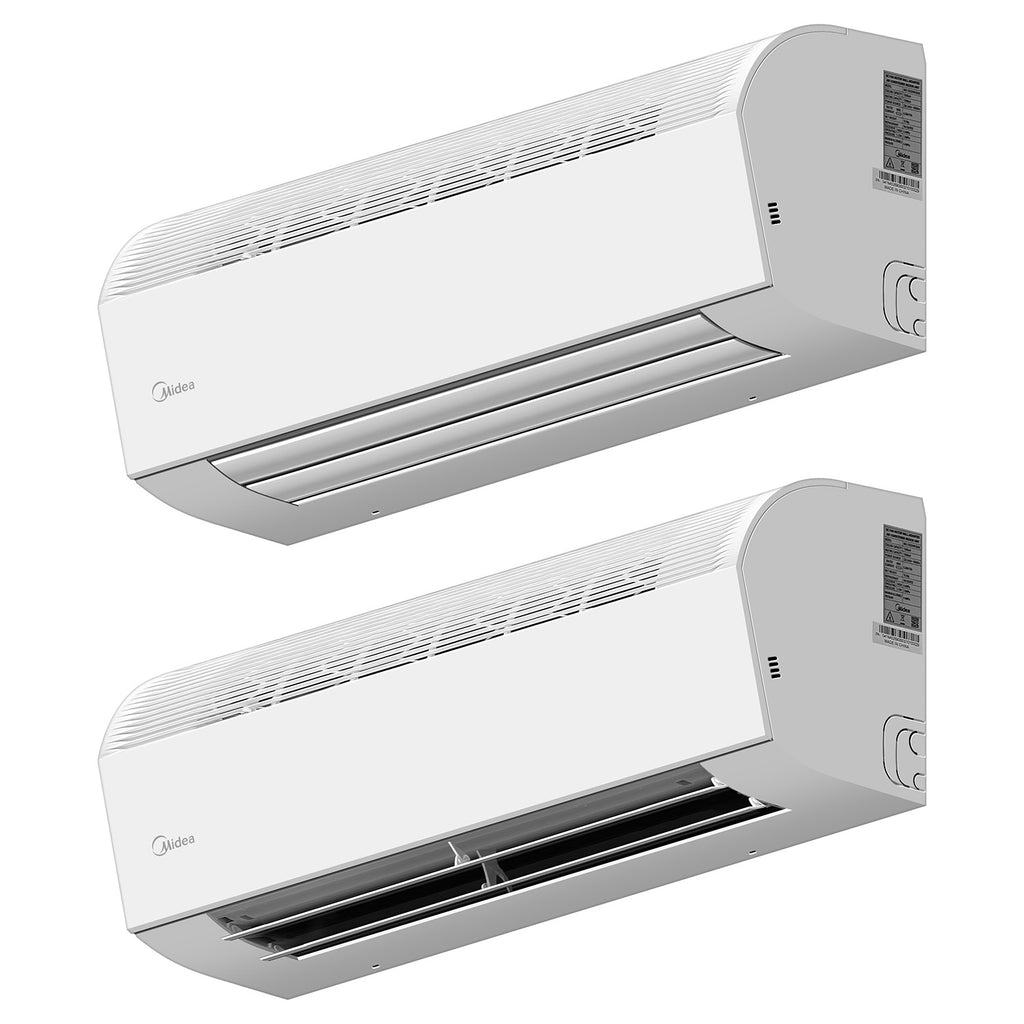

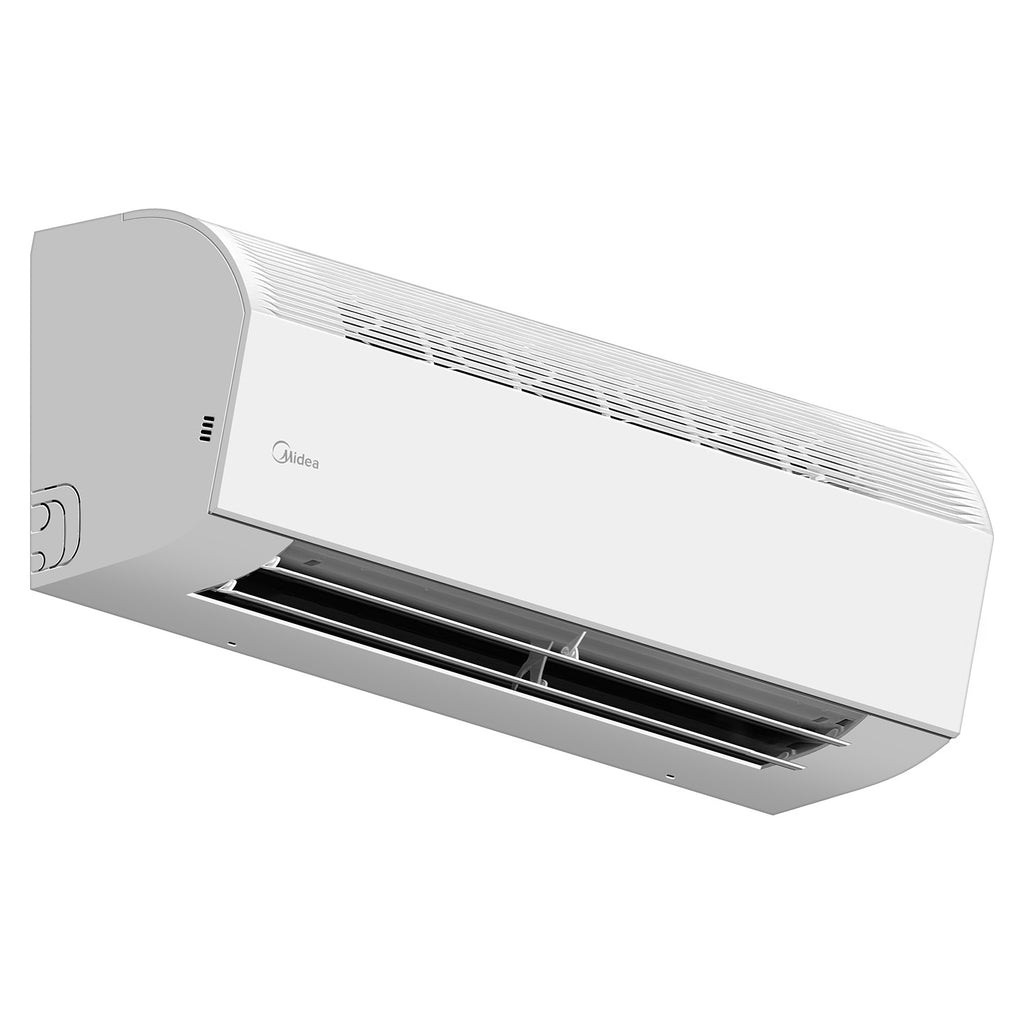

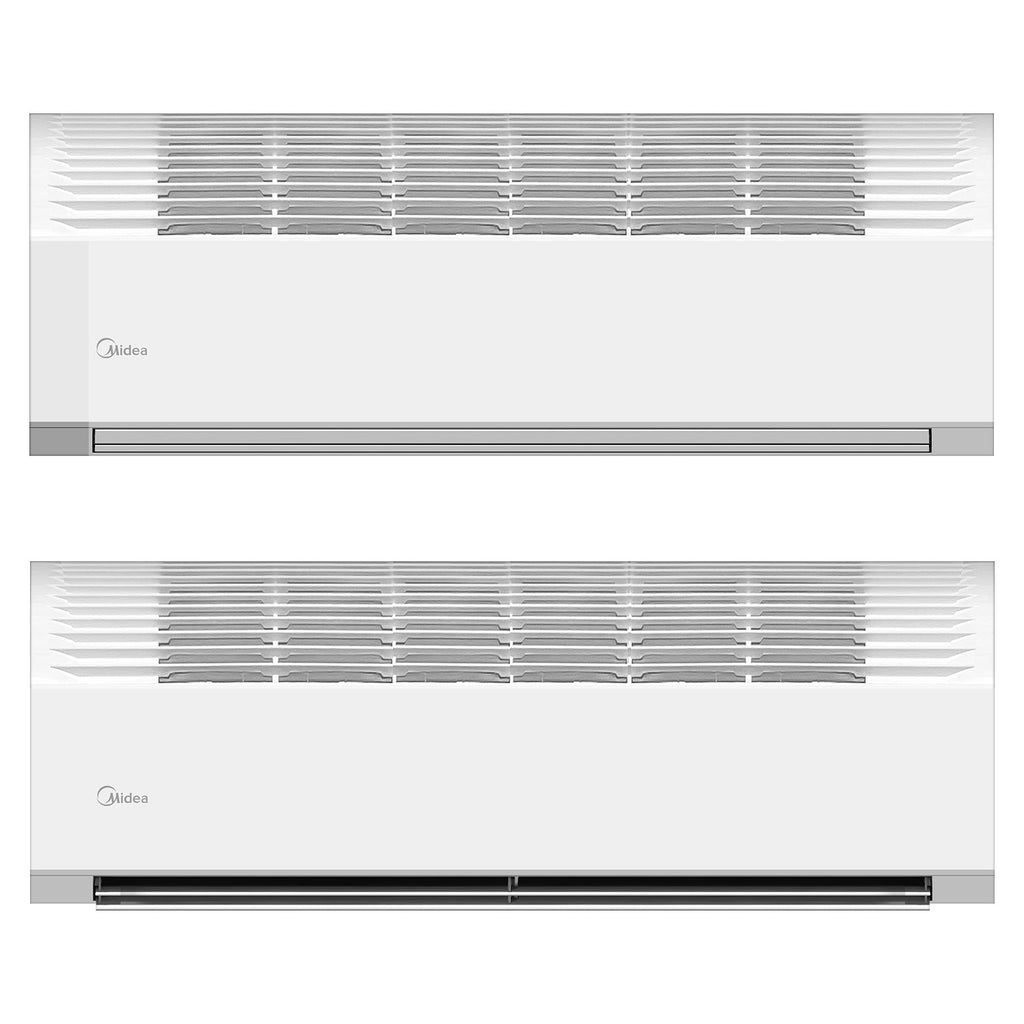

12000 BTU VRF Indoor AC (Inverter)
SKU: 61474
INDOOR UNIT ONLY
Model no: MI2-12GDHN18(At)
Brand: MIDEA
Size: 12000BTU
Quiet Operation
COMFORT
The minimum noise level of Wall Mounted is as low as 27dB(A), idea for hotels and other noise-sensitive locations.
Enclosed design
COMFORT
For Wall Mounted throttling parts and drain pumps adopt closed design, reducing
Human Detect Sensor
COMFORT
Using millimeter-wave radar sensor controller automatically turns indoor units on or off upon detecting that the room is occupied or unoccupied, ensuring climate control whilst minimizing energy consumption.
Sleep Mode
COMFORT
The smart sleep mode provides a comfortable sleep period and a refreshing wake up time.
3D Air Flow
AIR FLOW
Possibility to select automatic vertical and horizontal moving of the air discharge louvre, for uniform air flow and temperature distribution.
Bi-directional Coanda Airflow
AIR FLOW
With bi-directional Coanda airflow delivery technology, the cold air does not blow directly on people and the hot air warms up evenly from the feet for better comfort.

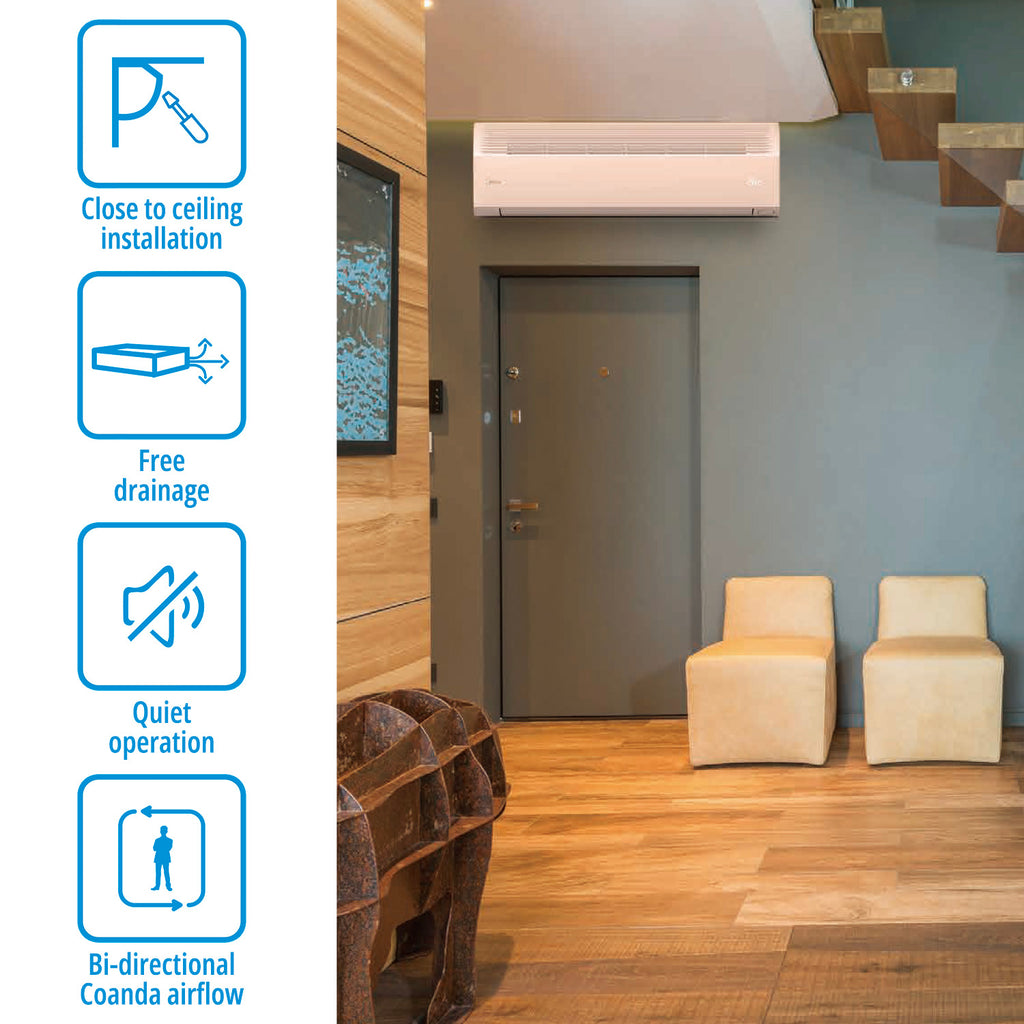

Ceiling Mounting
EASY INSTALLATION

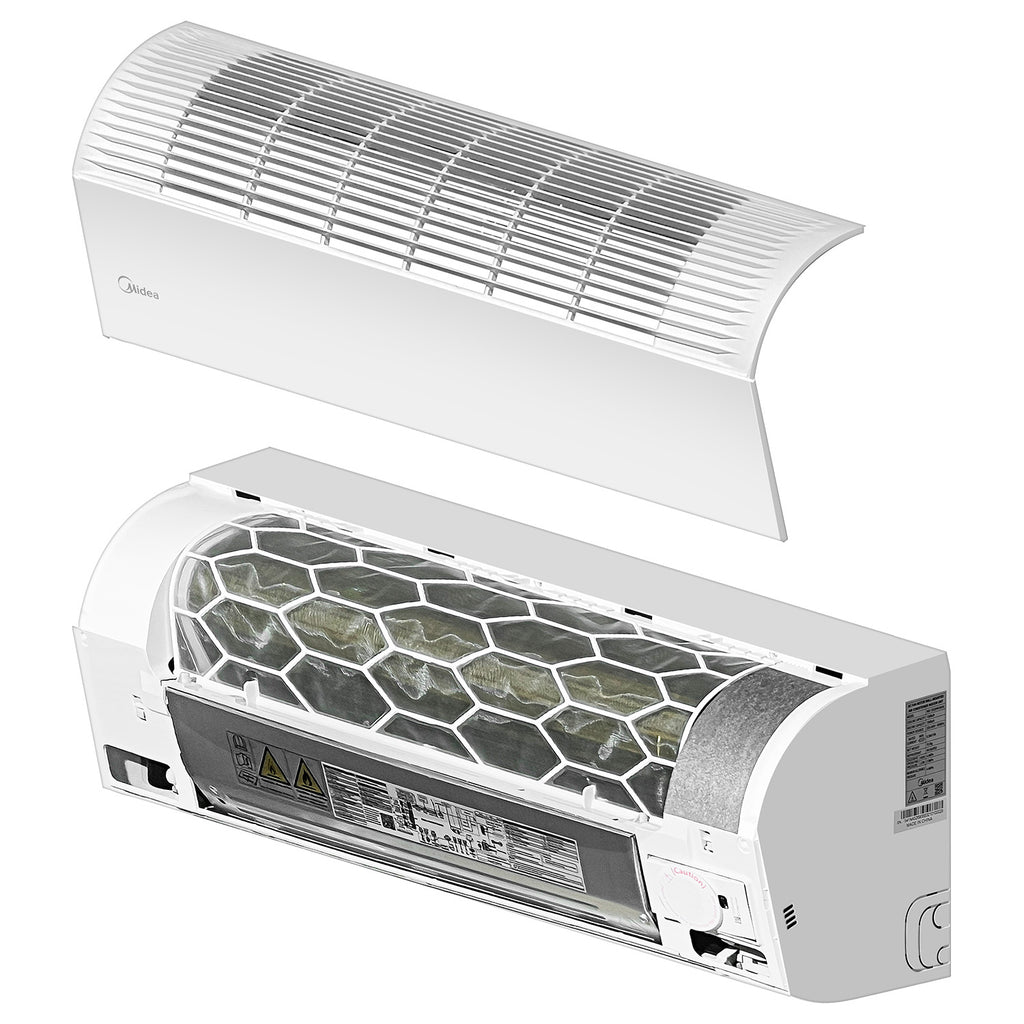

The Wall Mounted new heat exchanger is designed to meet the installation requirements close to the ceiling, and the minimum distance from the ceiling is 3cm.
Free Drainage without Space Restrictions
EASY INSTALLATION
The Wall Mounted can realize horizontal drainage, downward drainage, upward drainage, making installation more flexible.
High-lift drain pump
EASY INSTALLATION
A drain pump with a 1200mm raise height is fitted as a customization option, simplifying installation of the drain piping
| Midea 12k Indoor VRF AC (Inverter) | |
| Brand: | Midea |
| Model: | MI2-12GDHN18(At) |
| Capacity: | 12000 BTU |
| Series: | Atom Series |
| Air flow rate (m3/h): | 580/540/500/460/420/380/340 |
| Power Supply: | 1-phase, 220-240V, 50/60Hz |
| Cooling: | |
| Capacity (kW): | 3.6 kW |
| Capacity (kBtu/h): | 12 kBtu/h |
| Power Input (W): | 27W |
| Refrigerant: | |
| Type: | R410A/R32 |
| Pipe connections: | |
| Gas pipe: | Ø6.35mm |
| Liquid pipe: | Ø12.7mm |
| Drain pipe (Outer Diameter): | Ø16mm |
| Sound: | |
| Sound pressure level (dBA): | 37/36/34/33/31/30/28 |
| Sound power level (dBA): | 54/53/51/50/48/46/44 |
| Dimension & Weight: | |

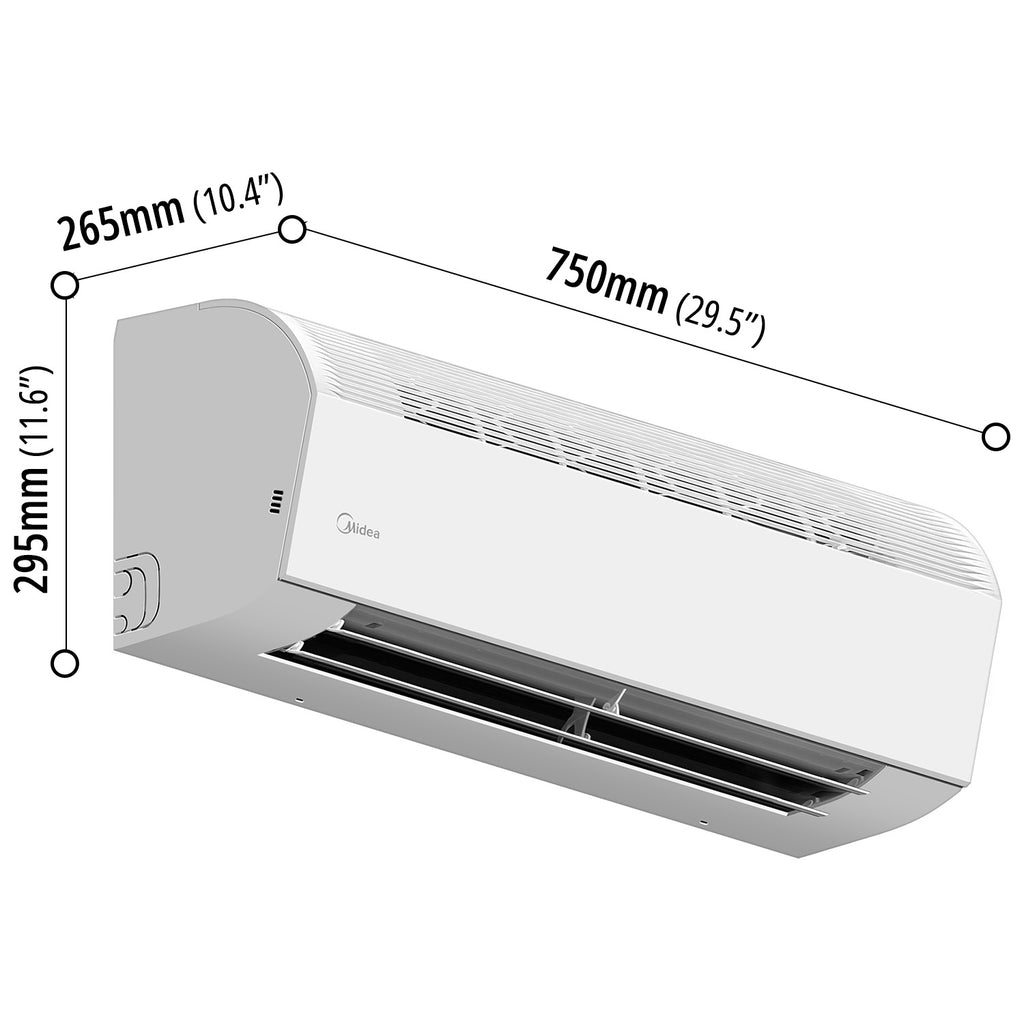

| Product Dimension (W x D x H): | 750 x 265 x 295mm (29.5" x 10.4" x 11.6") |
| Packing Dimension (W x D x H): | 875 x 360 x 385mm (34.4" x 14.2" x 15.2") |
| Net Weight: | 10kg |
| Gross Weight: | 12.5kg |
