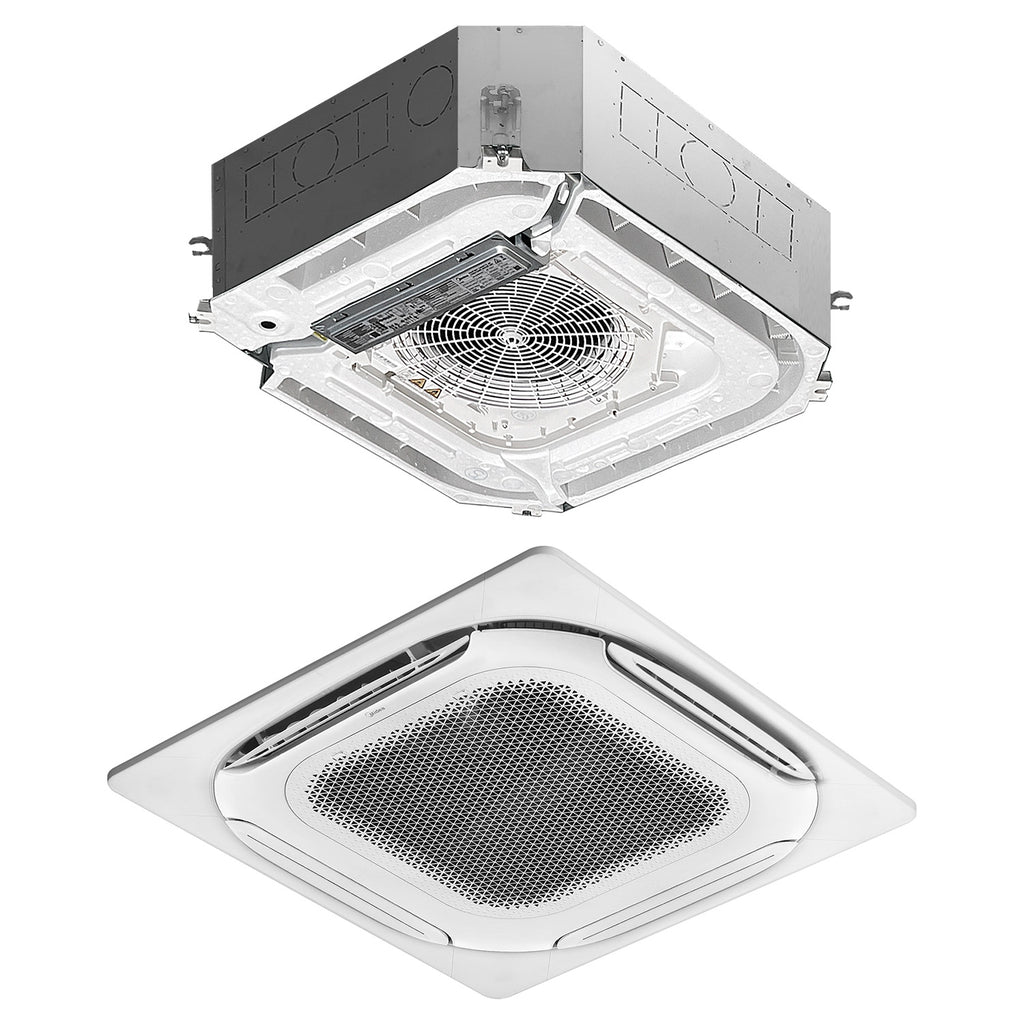

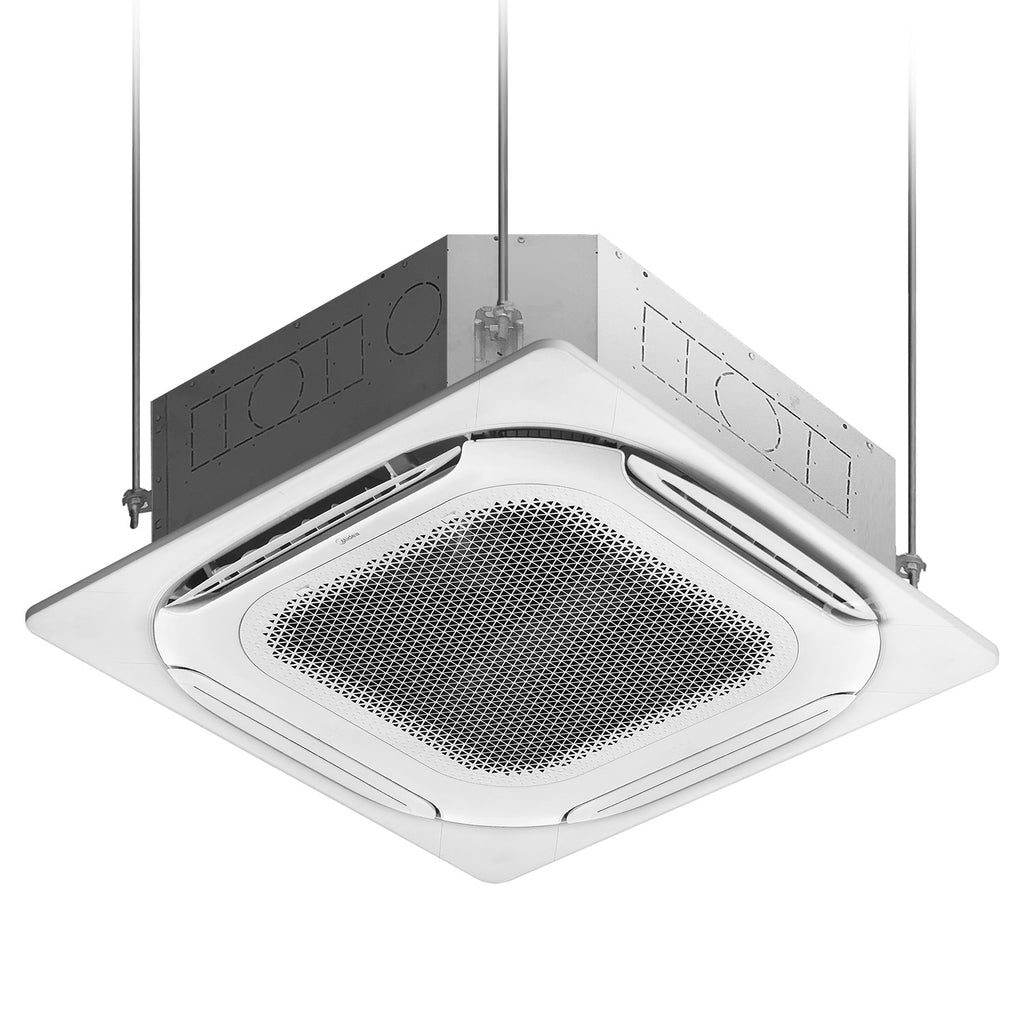

24k BTU 4-Way Mini VRF IDU AC (Inverter)
SKU: 61470
ATOM C | INVERTER
Model no: MI2-24Q4DHN18(At)
Brand: MIDEA
Size: 24000BTU

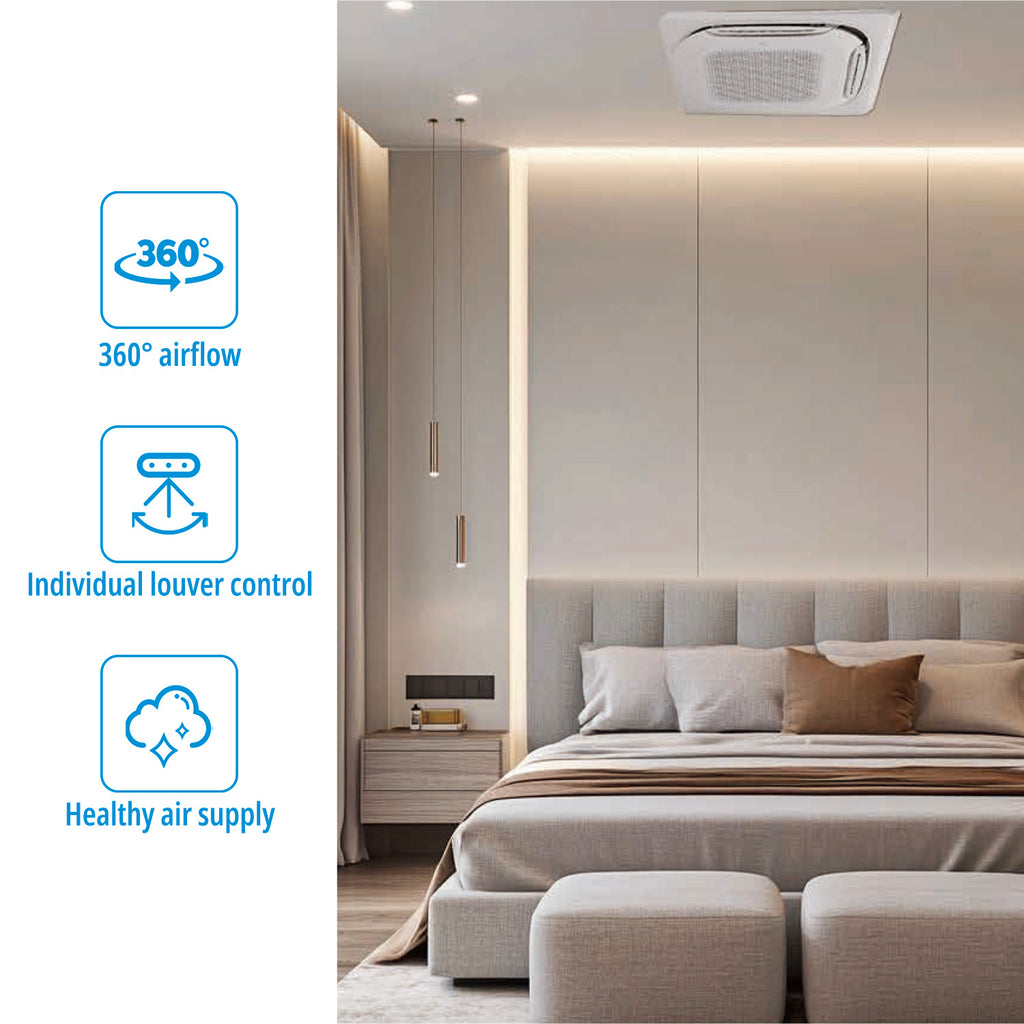

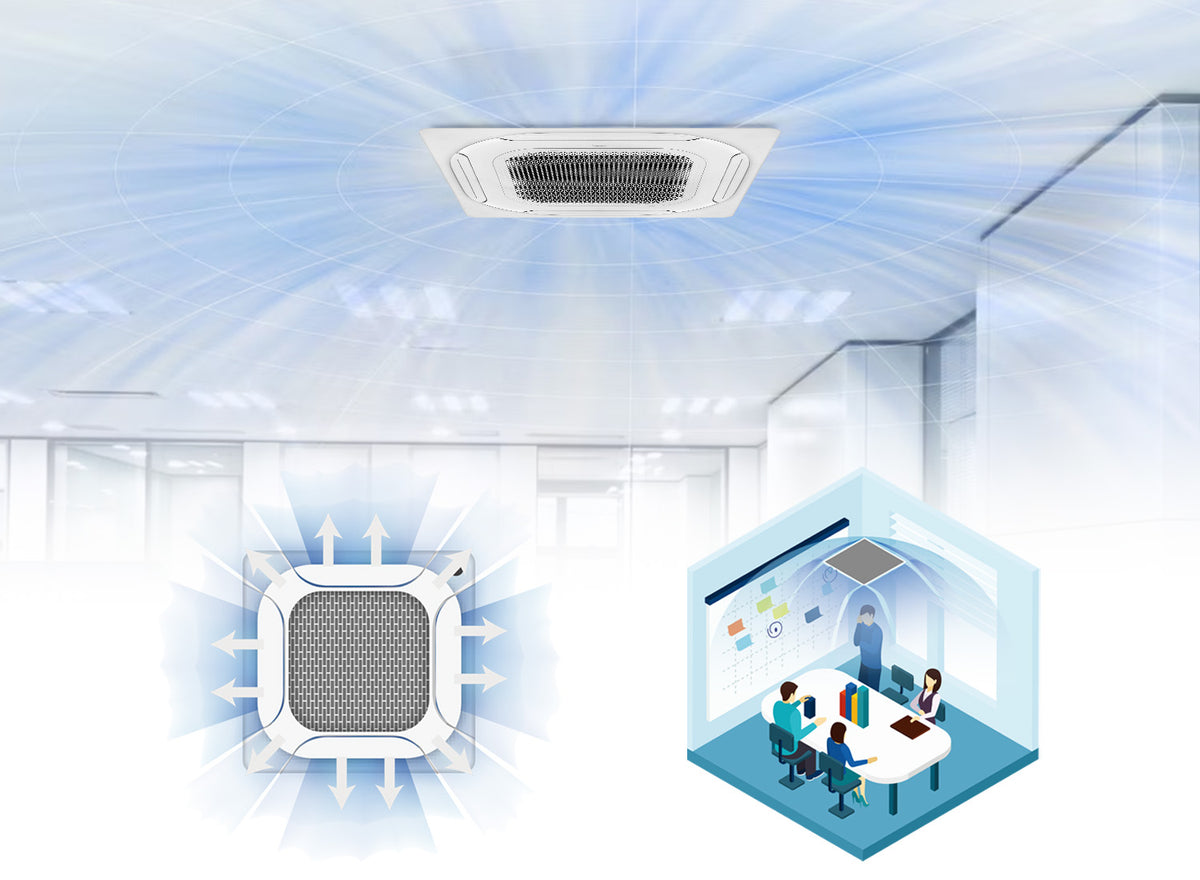

360° Airflow
Uniform Room Cooling
Advanced 360° air distribution helps deliver consistent cooling throughout the room, reducing hot and cold spots for greater comfort.

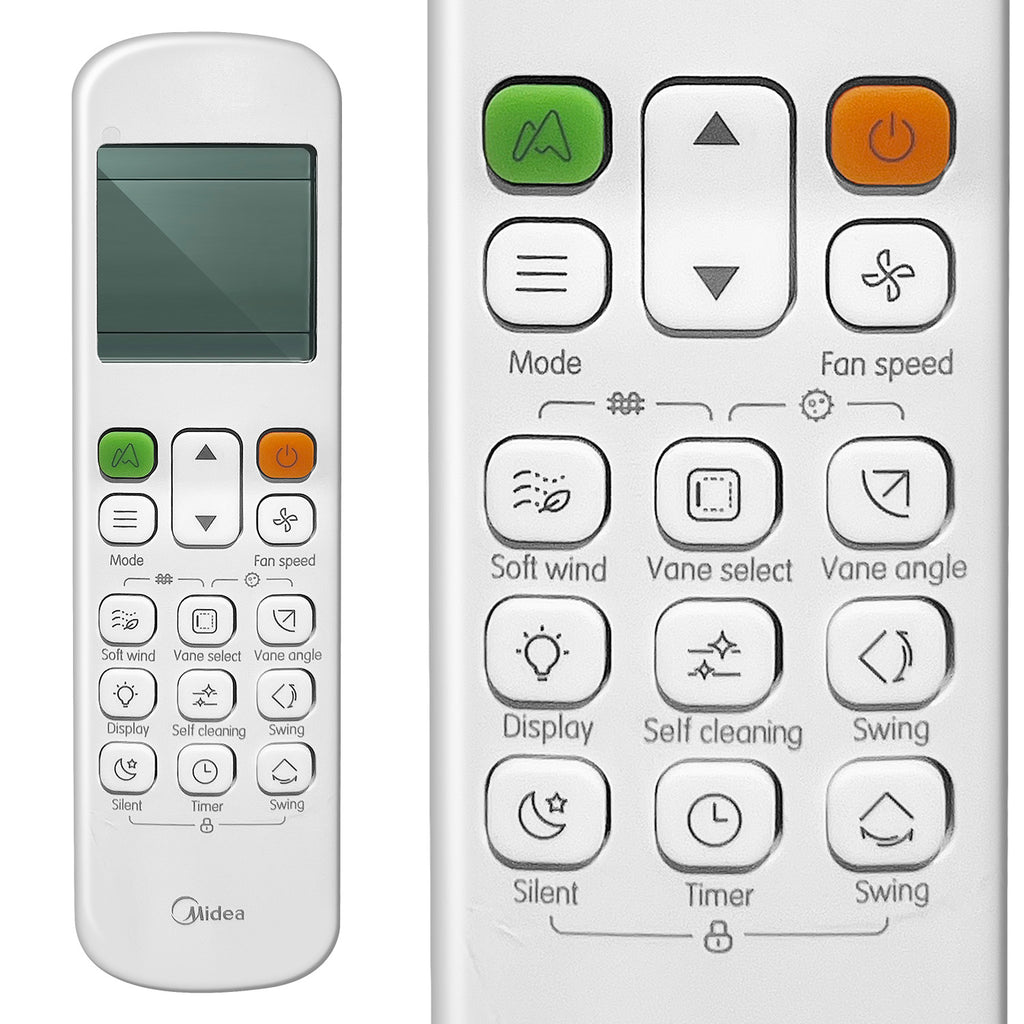

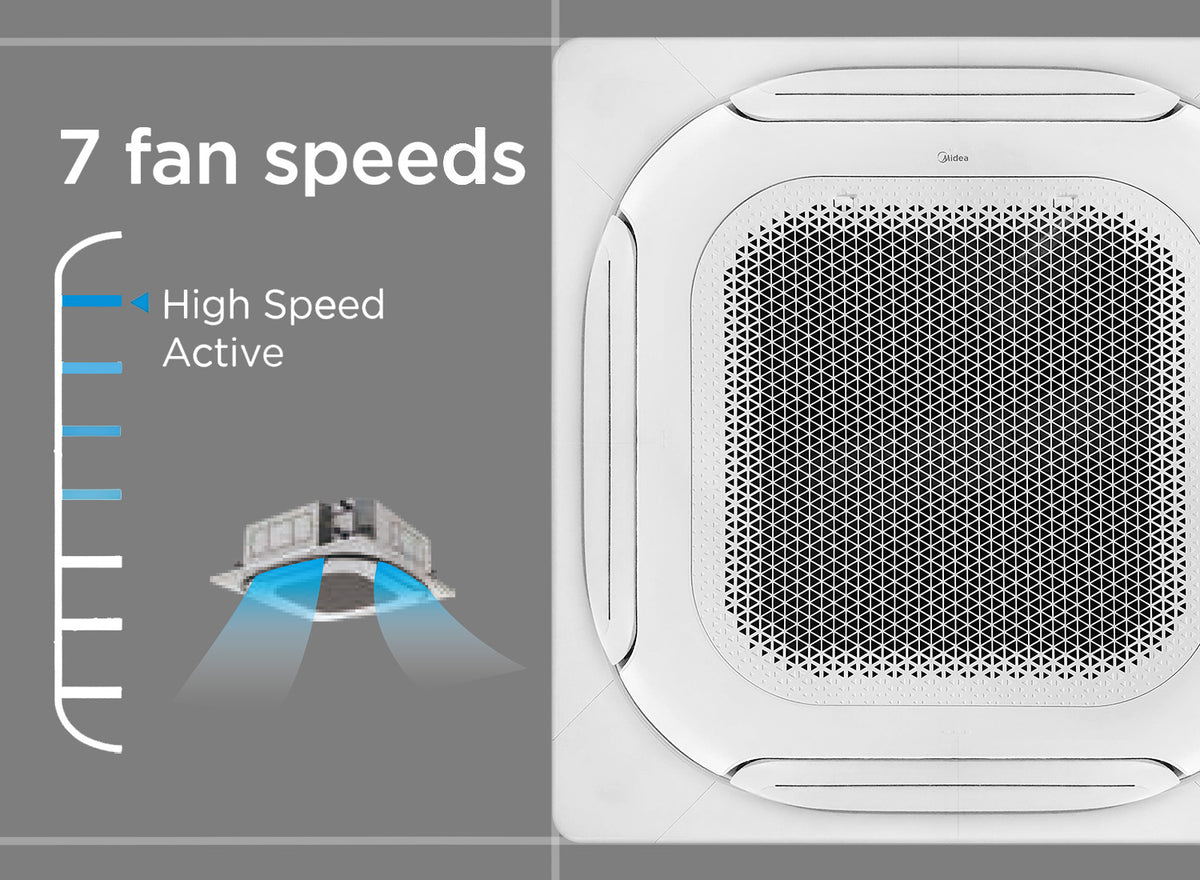

7 Fan Speed Settings
Personalized Comfort Control
Choose from seven fan speed levels to match your cooling preferences and maintain a comfortable indoor environment.

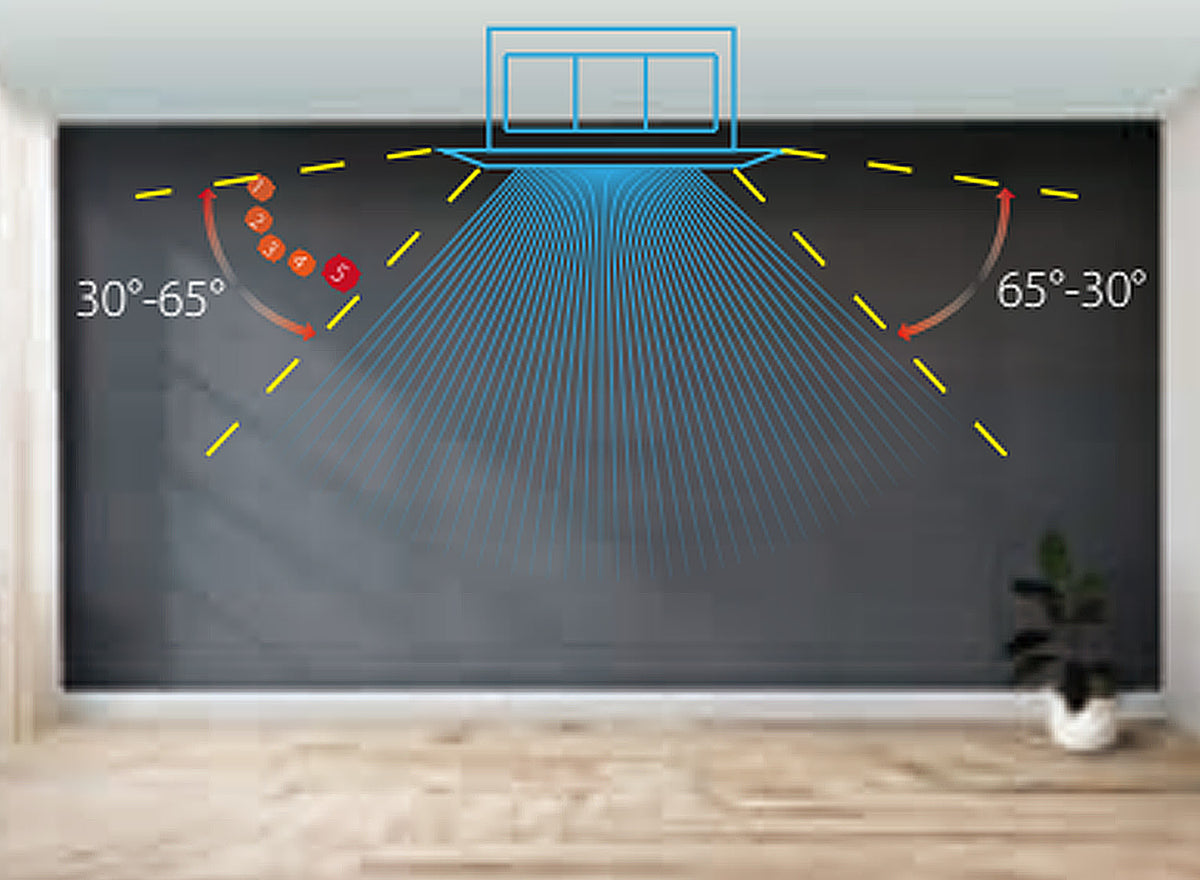

Multi-Step Louver Control
Flexible Airflow Direction
The Four-way Cassette unit has a wide range of airflow angles from 30° to 65° and is equipped with a 5-step louver control and auto swing mode to better meet the needs of different customers.
Individual Louver Control
Customized Air Distribution
Each louvre can be controlled independently, allowing airflow to be directed exactly where it is needed for improved comfort.

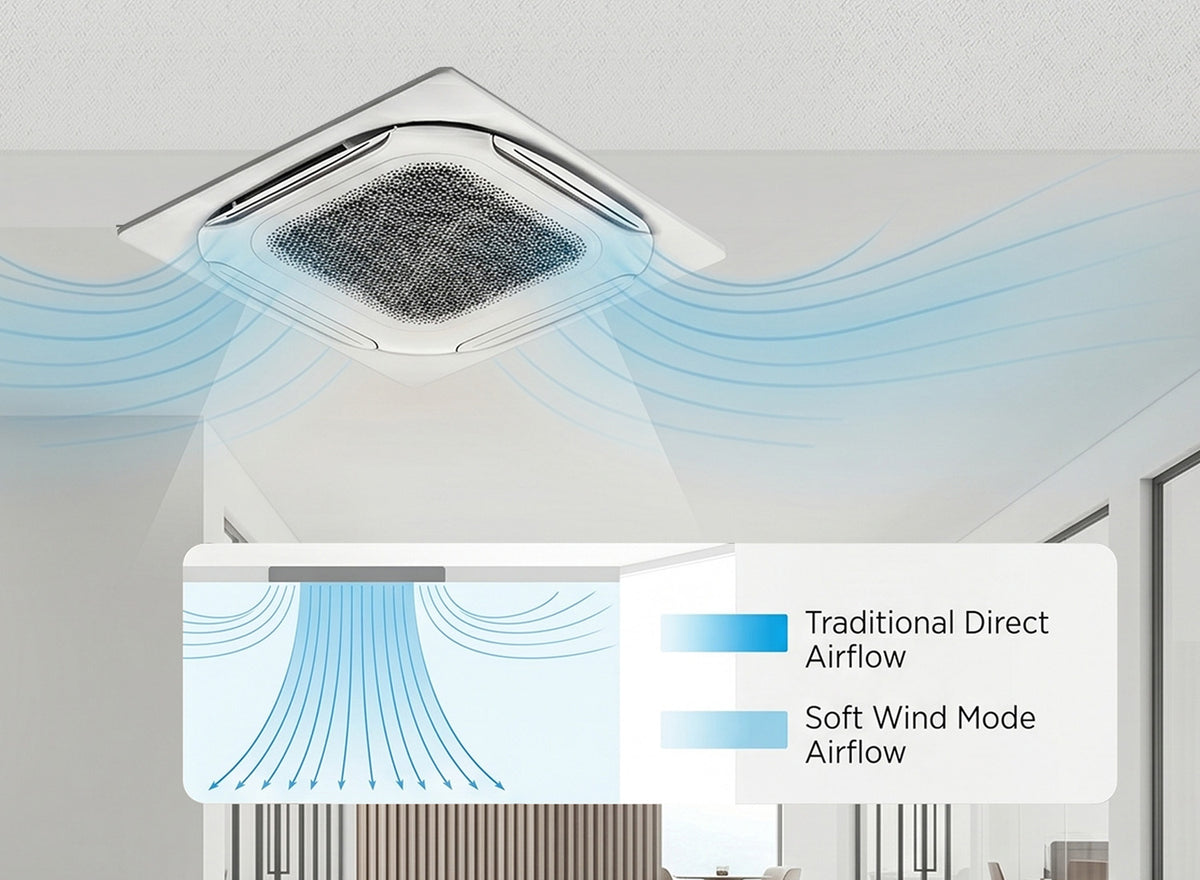

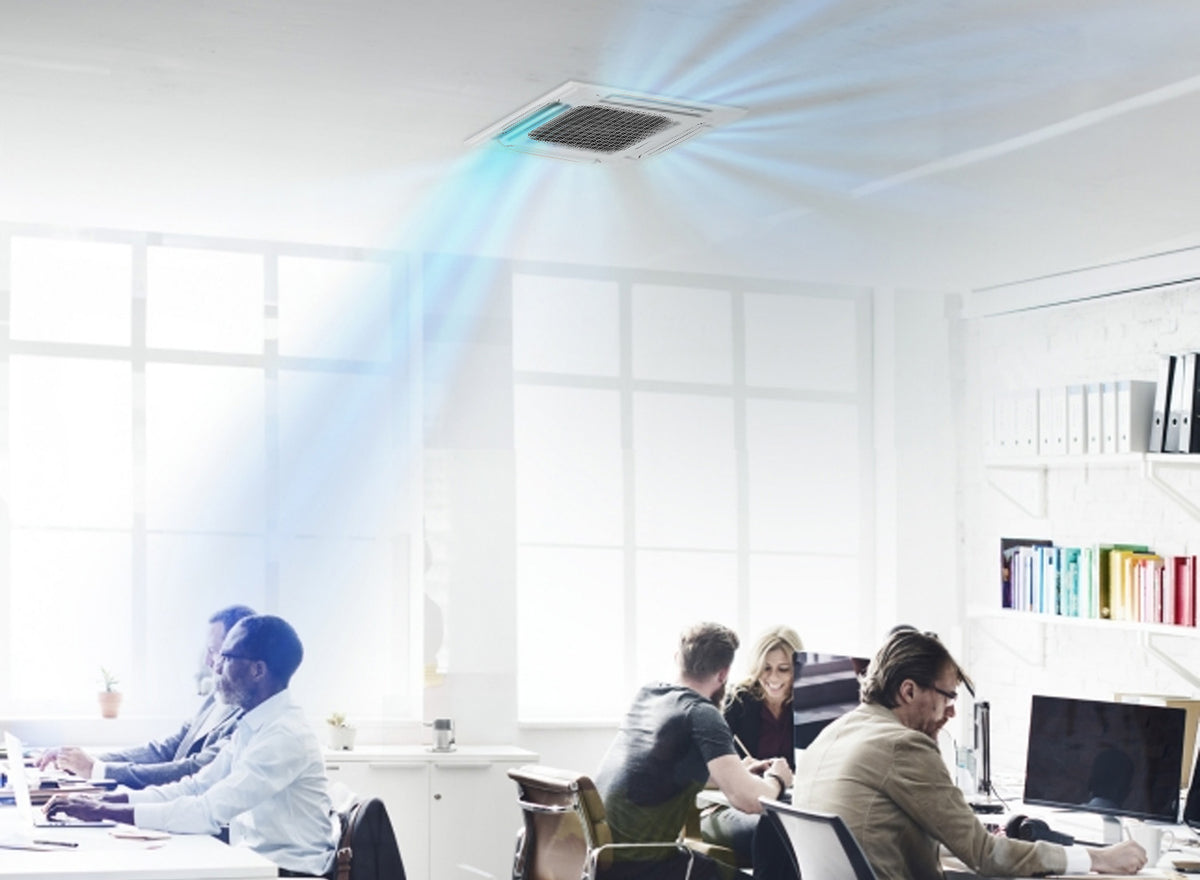

Soft Wind Mode
Gentle & Comfortable Cooling
Designed to distribute air along the ceiling, creating a softer cooling experience with reduced direct airflow on occupants.

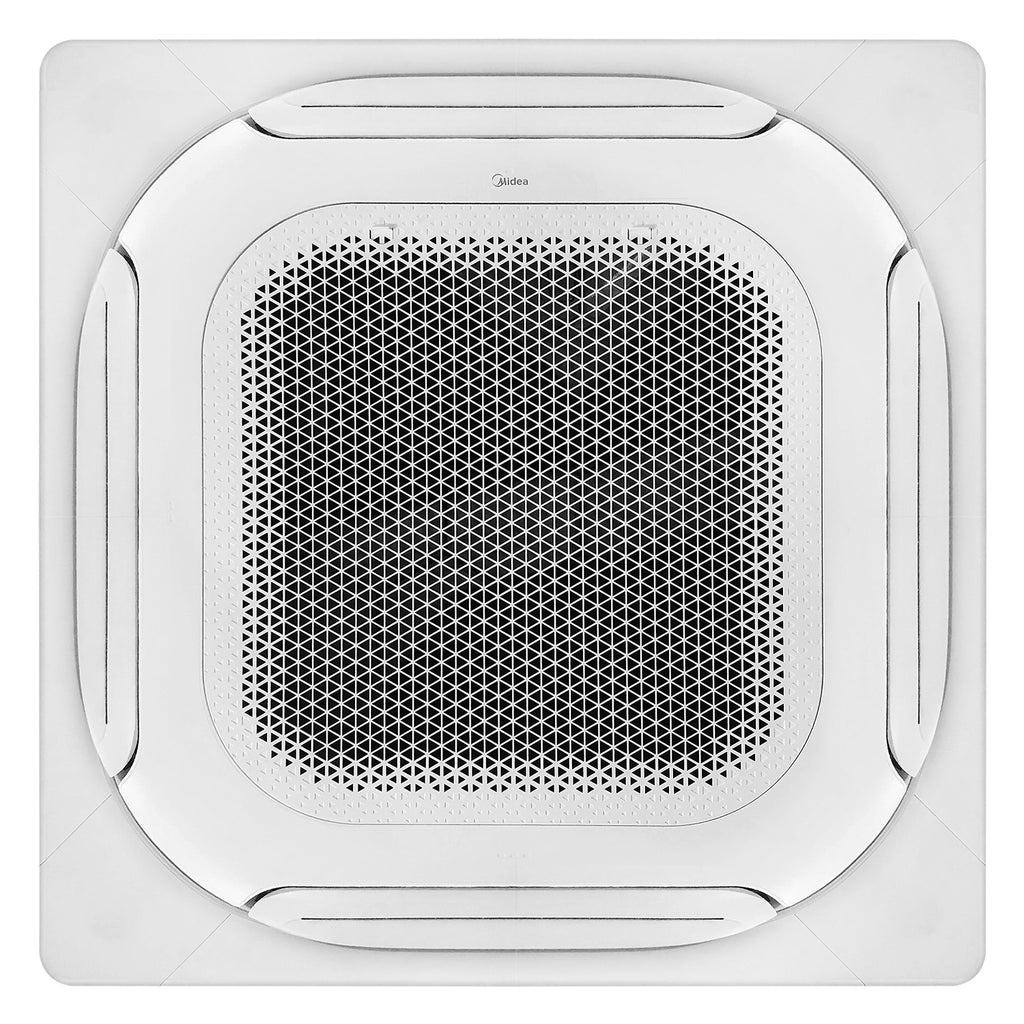

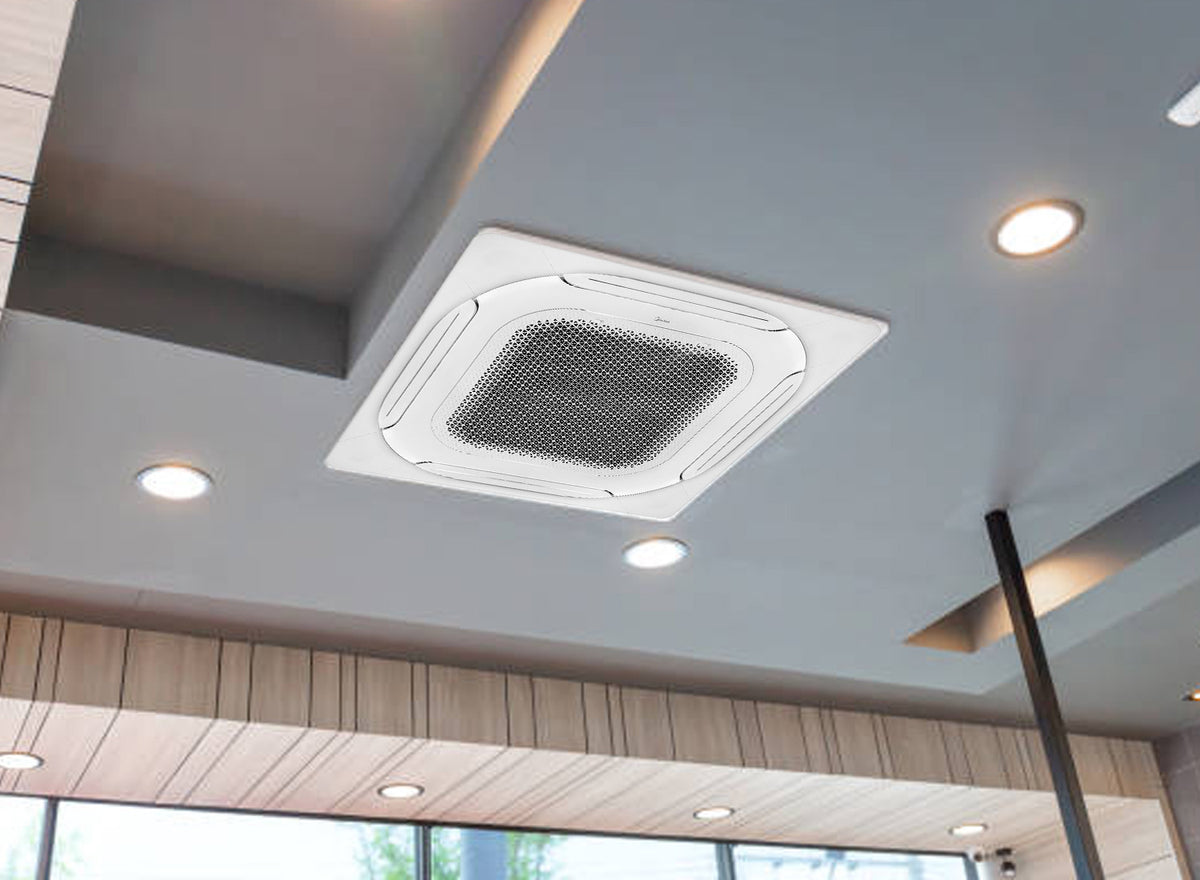

950mm Cassette Design
Seamless Ceiling Integration
Designed with a 950 mm panel size to align with ceiling layouts, providing a clean, integrated appearance while supporting straightforward installation and maintenance.

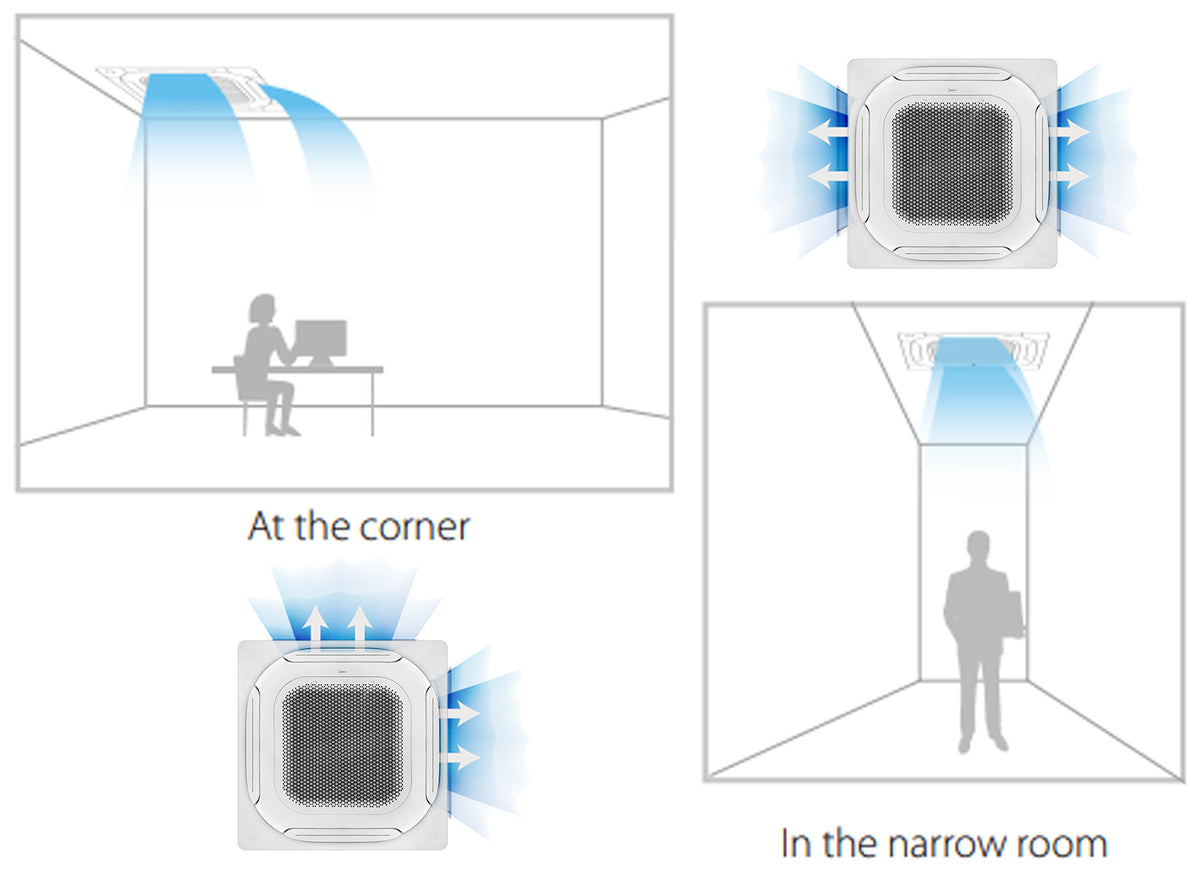

Flexible Air Outlet Configuration
Air baffle fittings for irregular rooms
Select air outlets can be adjusted or blocked to help optimize airflow distribution in irregularly shaped rooms and unique spaces.

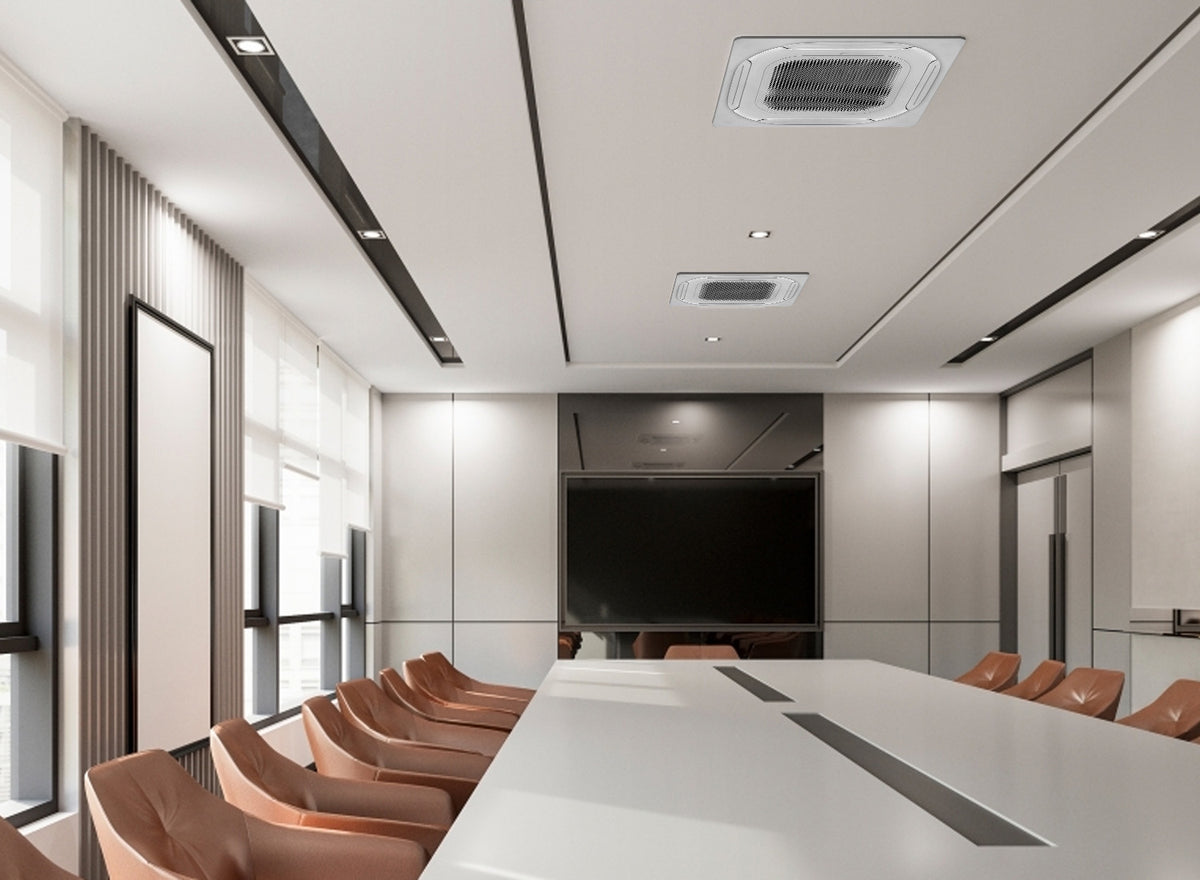

Designed for Commercial Comfort
Engineered for Commercial Spaces
Featuring a 950 mm panel design, 360° airflow, independent louvre control, and flexible installation options, the Four-Way Cassette delivers efficient, uniform, and comfortable cooling across a wide range of commercial applications.
| Midea 4-Way VRF Indoor AC (Inverter) | |
| Brand: | Midea |
| Model: | MI2-24Q4DHN18(At) |
| Series: | Atom Series |
| Air flow rate (m3/h): | 1000/943/886/829/772/715/658 |
| Power Supply: | 1-phase, 220-240V, 50/60Hz |
| Warranty: | 12 Months Warranty |
| Cooling: | |
| Capacity (kW): | 7.1 kW |
| Capacity (kBtu/h): | 24 kBtu/h |
| Power Input (W): | 32W |
| Refrigerant: | |
| Type: | R410A/R32 |
| Pipe connections: | |
| Gas pipe: | Ø9.52mm |
| Liquid pipe: | Ø15.9mm |
| Drain pipe (Outer Diameter): | Ø25mm |
| Sound: | |
| Sound pressure level (dBA): | 37/36/34/33/31/30/28 |
| Sound power level (dBA): | 52/51/50/48/47/45/44 |
| Dimension & Weight: | |
| Panel: | |

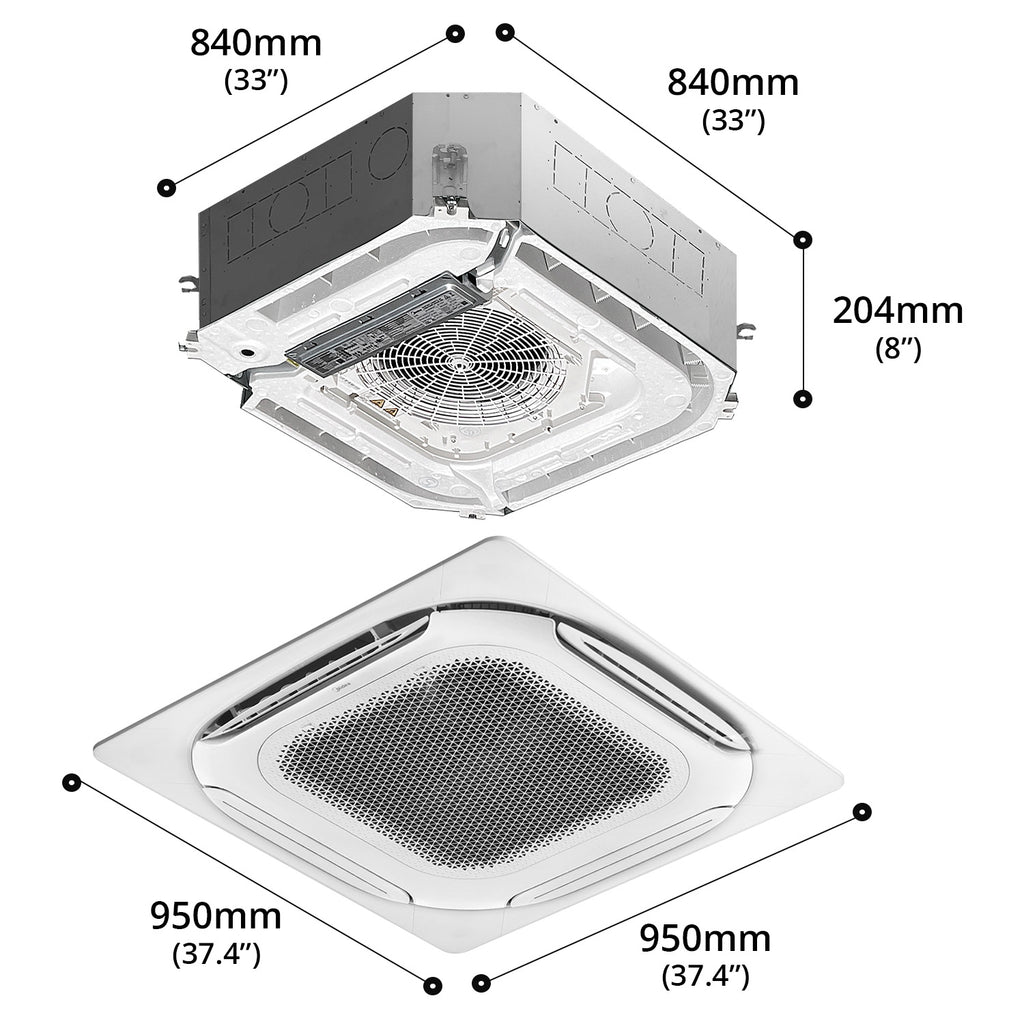

| Product Dimension (W x D x H): | 950 x 950 x 53mm (37.4" x 37.4" x 2.1") |
| Packing Dimension (W x D x H): | 1030 x 1030 x 95mm (40.6" x 40.6" x 3.7") |
| Net Weight: | 5.6kg |
| Gross Weight: | 8kg |
| Indoor Unit: | |
| Product Dimension (W x D x H): | 840 x 840 x 204mm (33.1" x 33.1" x 8") |
| Packing Dimension (W x D x H): | 940 x 940 x 250mm (37" x 37" x 9.8") |
| Net Weight: | 19.5kg |
| Gross Weight: | 22.4kg |
