Specification

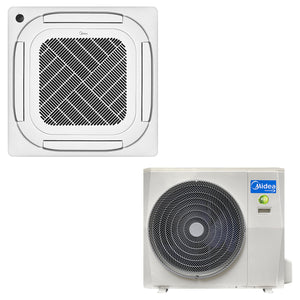

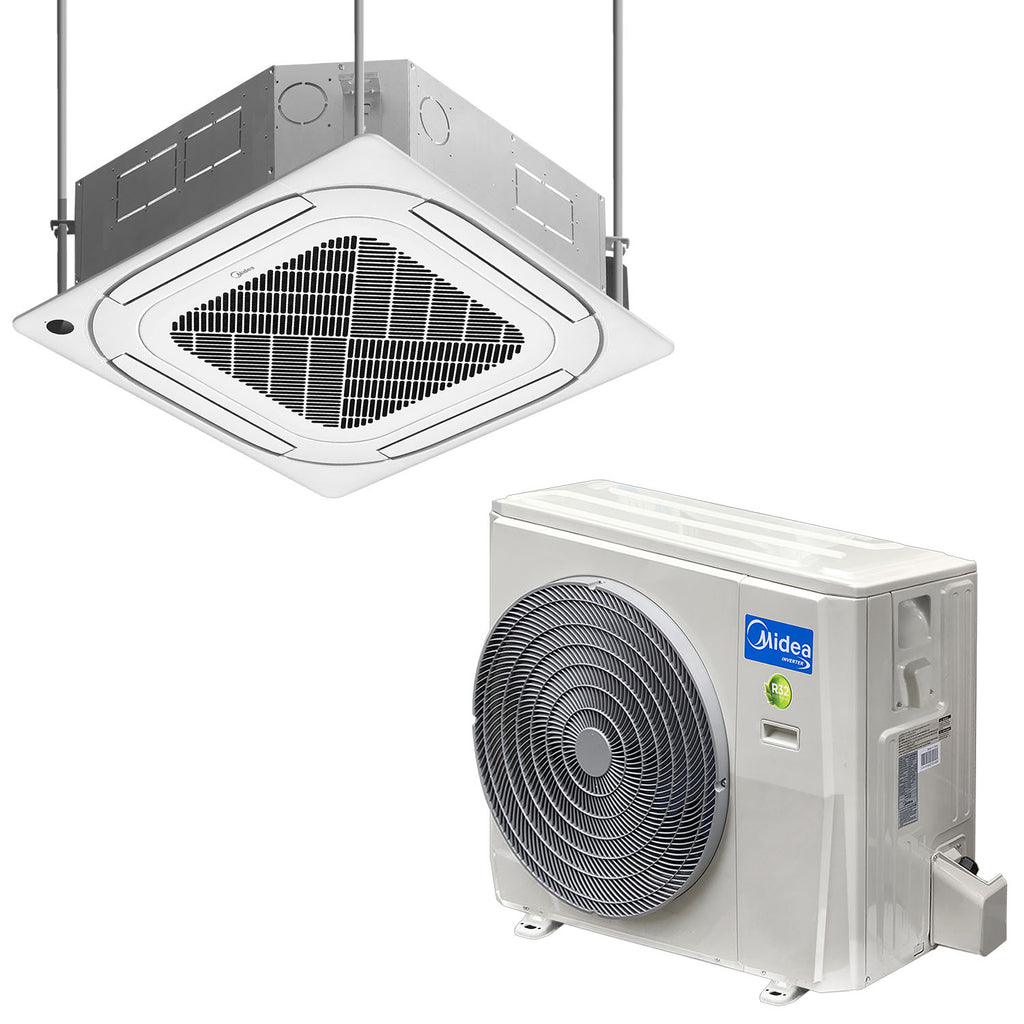

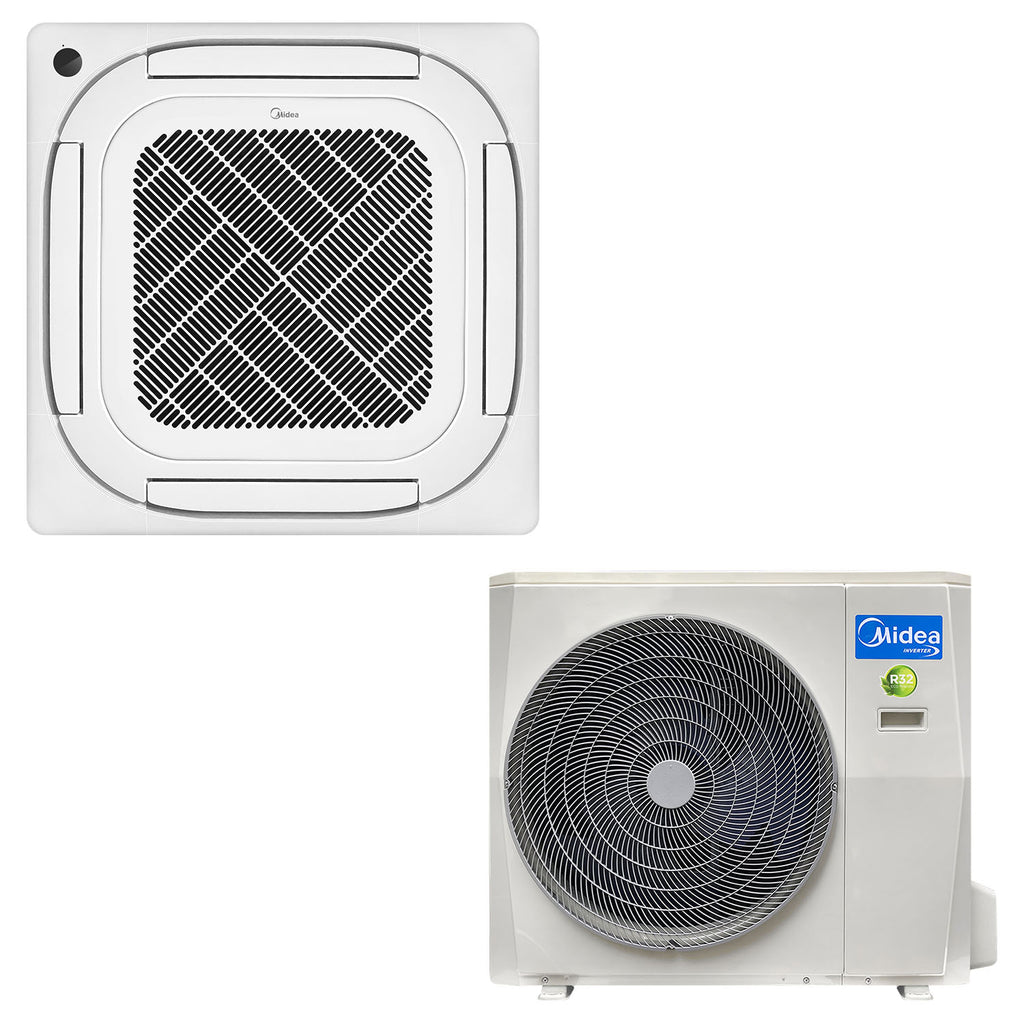

Midea – Inverter 4-Way Cassette (48000BTU)

Inverter Four-Way

Brand: Midea

Model: MCD1-48CRDN8

Capacity: 48000BTU

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

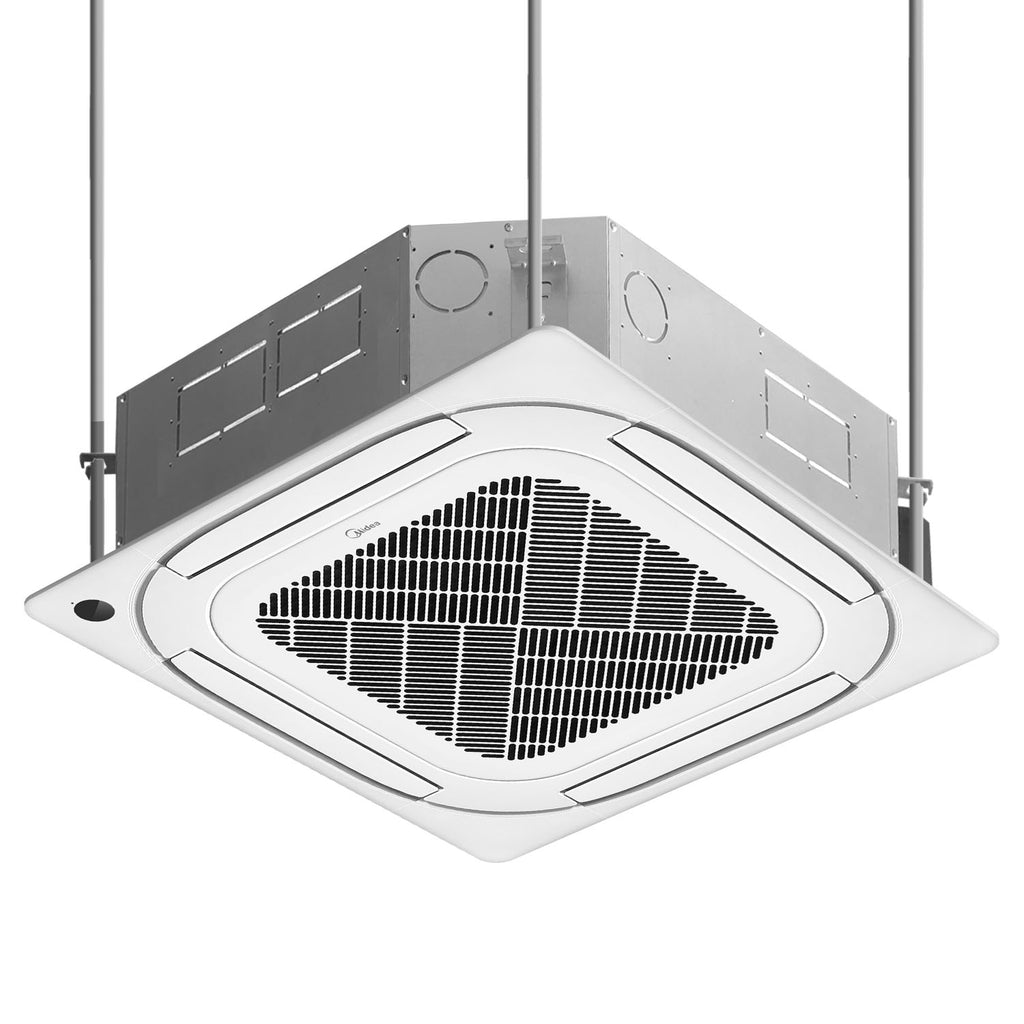

Indoor Unit:

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 380 - 415V, 3Ph, 50Hz

Cooling:

• Cooling Capacity (Btu/h): 48000Btu/h
• Input (W): 5800W
• Rated Current (A): 8.3 A
• EER (W/W): 2.43

Rated Power Input: 7050W

Rated Current: 13A

Indoor Fan Motor Speed (High/Middle/Low): 760/690/610 r/min

Indoor Coil:

• Number of rows: 3
• Tube pitch (a) x row pitch (b): 21 x 13.37mm
• Fin spacing: 1.3mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ7, Inner groove tube
• Coil (length x height x width): 980 x 252 x 40.11mm + 980 x 252 x 40.11mm
• Number of circuits: 10

Indoor air flow (High/Middle/Low): 2000/1800/1600 m3/h

Indoor noise level (High/Middle/Low): 55/53/50 dB (A)

Drainage water pipe dia: OD Ø25mm

Room Temperature Indoor (Cooling): 16 ~ 32 °C

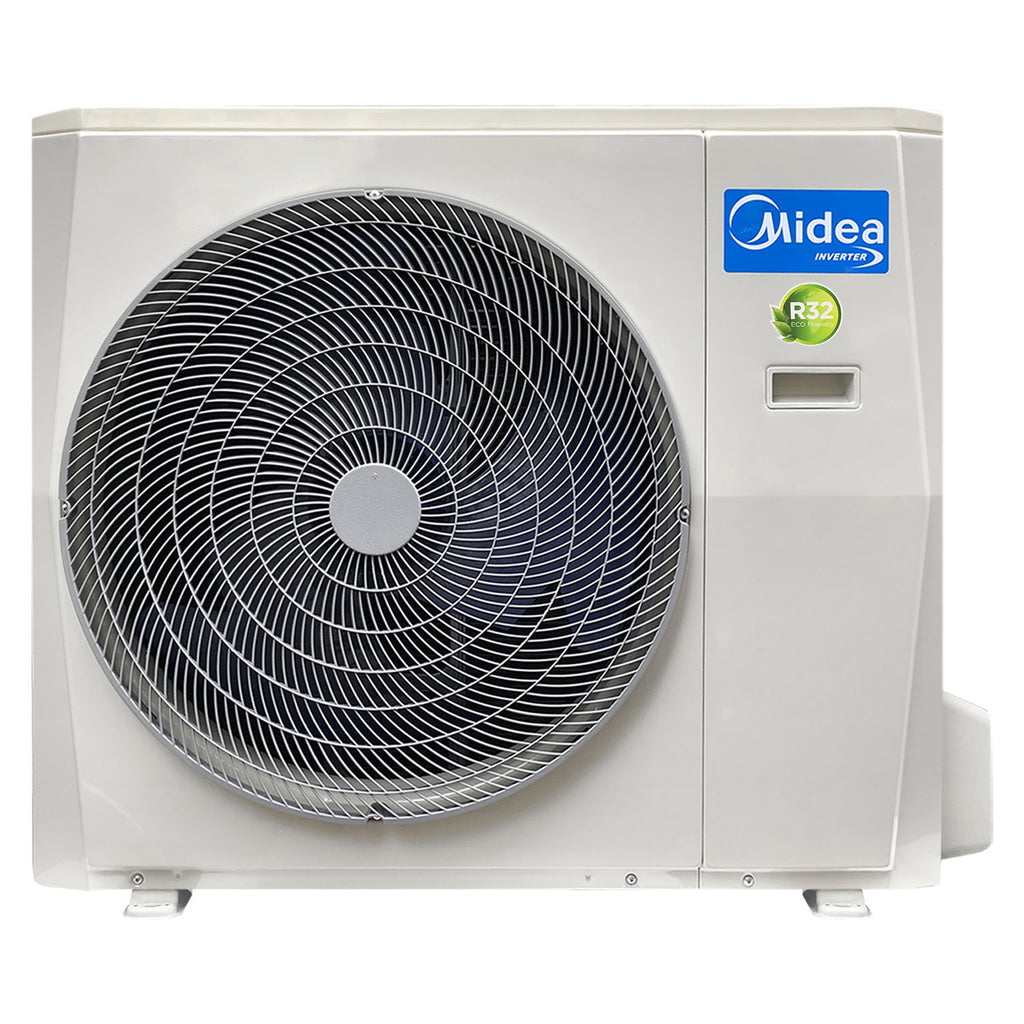

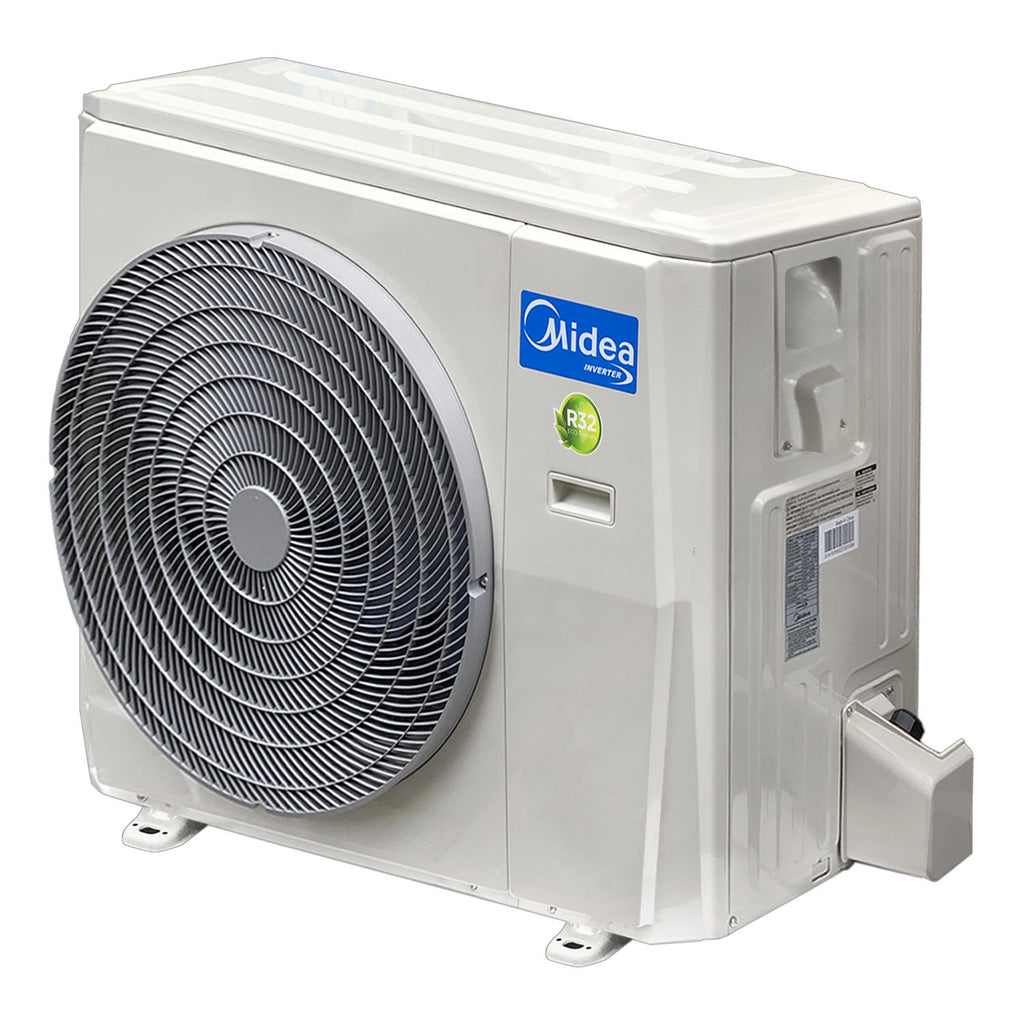

Outdoor Unit:

Power Supply (V, Ph, Hz): 380 - 415V, 3-Phase, 50Hz

Compressor:

• Type: Rotary
• Capacity (W): 10010W
• Input (W): 2765W
• Rated current (RLA) (A): 5.38A

Output Power x Fan quantity: 150W x1

Outdoor Fan Motor Speed: 1050/900/850 r/min

Outdoor Coil:

• Number of rows: 2
• Tube pitch (a) x row pitch (b): 21 x 13.37 mm
• Fin spacing: 1.4mm
• Fin type (code): Golden Hydrophilic aluminum
• Tube outside dia. and type: Φ7, Inner groove tube
• Coil (length x height x width): 9100 x 756 x 26.74mm
• Number of circuits: 6

Outdoor noise level: 62 dB (A)

Refrigerant Type: R32/1.95 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 9.52mm(3/8in)/15.9mm(5/8in)
• Max. Refrigerant Pipe Length: 50m
• Max. Difference in Level: 30m

Operation Temperature: 17 ~ 30 °C

Room Temperature Outdoor (Cooling): 0 ~ 50 °C

Dimension & Weight:

Weight x Depth x Height

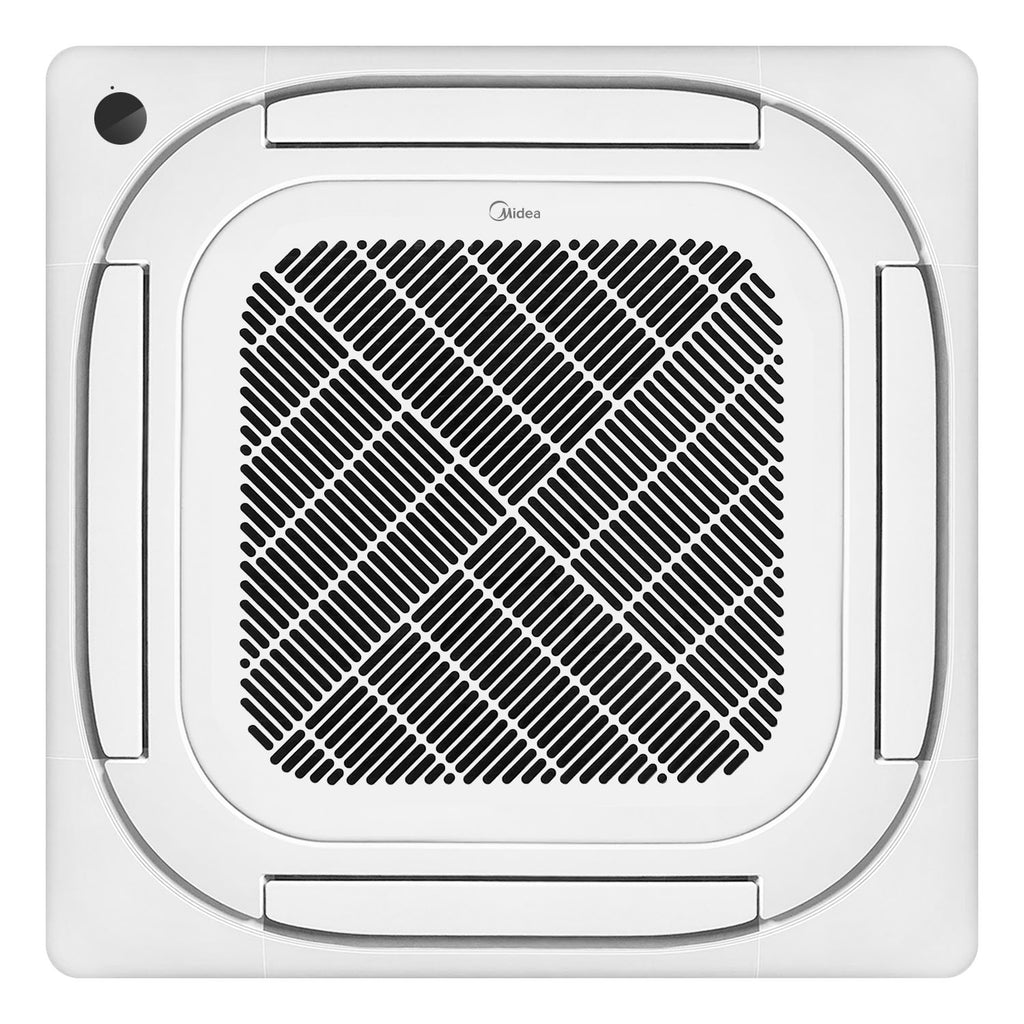

Panel:

• Product Dimension: 950 x 950 x 55mm
• Packing Dimension: 1035 x 1035 x 90mm
• Net Weight: 6kg
• Gross Weight: 9kg

Indoor Unit:

• Product Dimension: 830 x 830 x 287mm
• Packing Dimension: 910 x 910 x 330mm
• Net Weight: 30kg
• Gross Weight: 35kg

Outdoor Unit:

• Product Dimension: 946 x 410 x 810mm
• Packing Dimension: 1090 x 500 x 885mm
• Net Weight: 65.5kg
• Gross Weight: 70.5kg

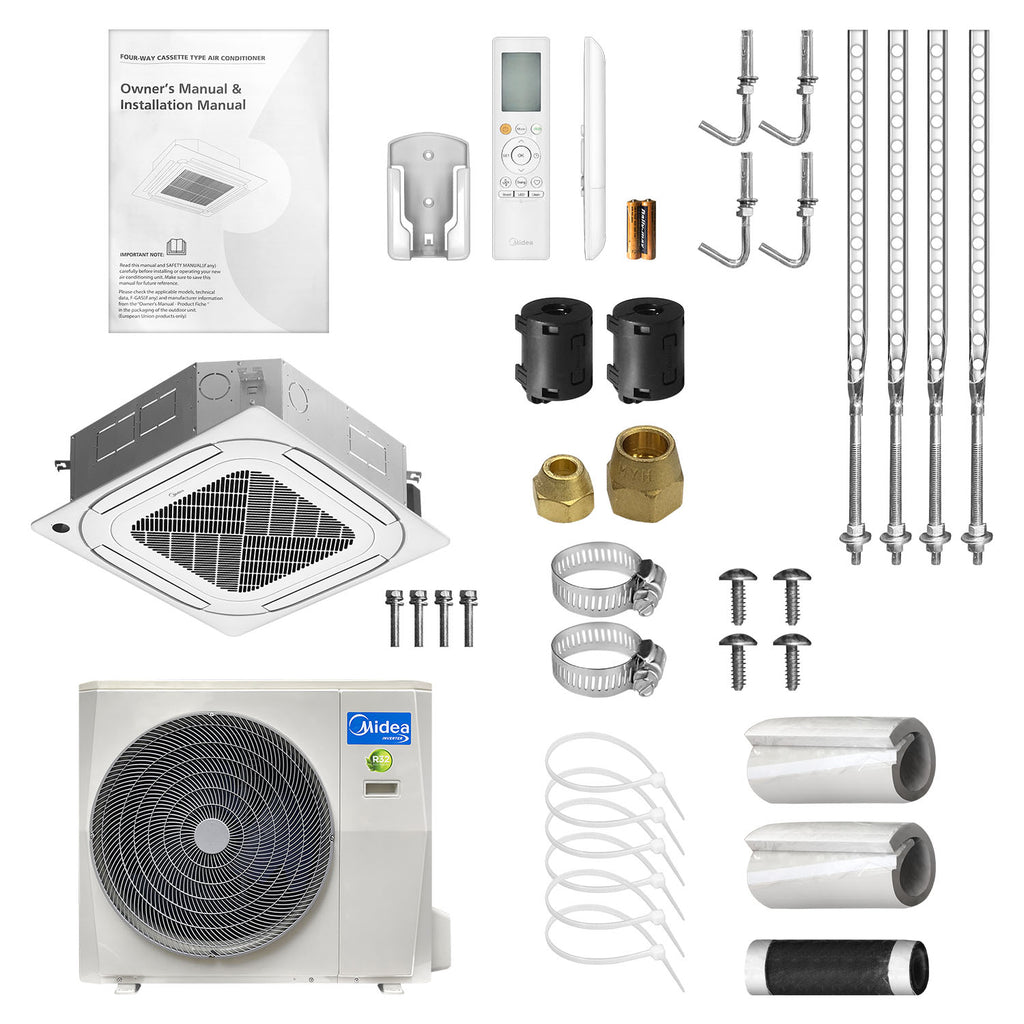

Packing Contents:

48k BTU 4-Way Panel – x1

• Screws – x4

48k BTU Indoor Unit – x1

• Suspension Bolt – x4
• Ceiling Hook – x4
• Hose Clamp – x2
• Screws – x4
• Cable Tie – x6
• Insulation Sheath – x2
• Outlet pipe sheath – x1
• Copper Nut – x2
• Magnetic Ring Cable Filter – x2

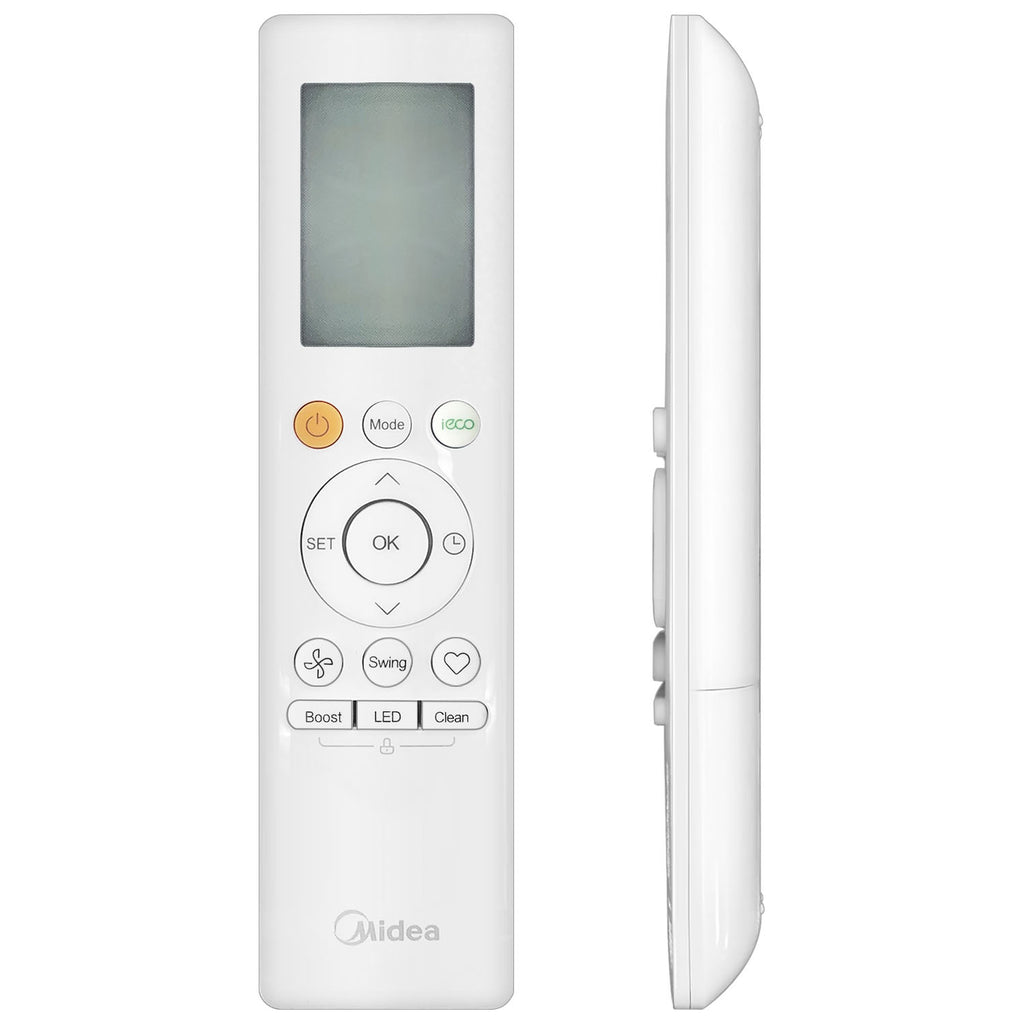

• Remote Control – x1
• AAA Battery – x2
• Wall Mount Remote Holder – x1
• User Manual – x1

48k BTU Outdoor Unit – x1
