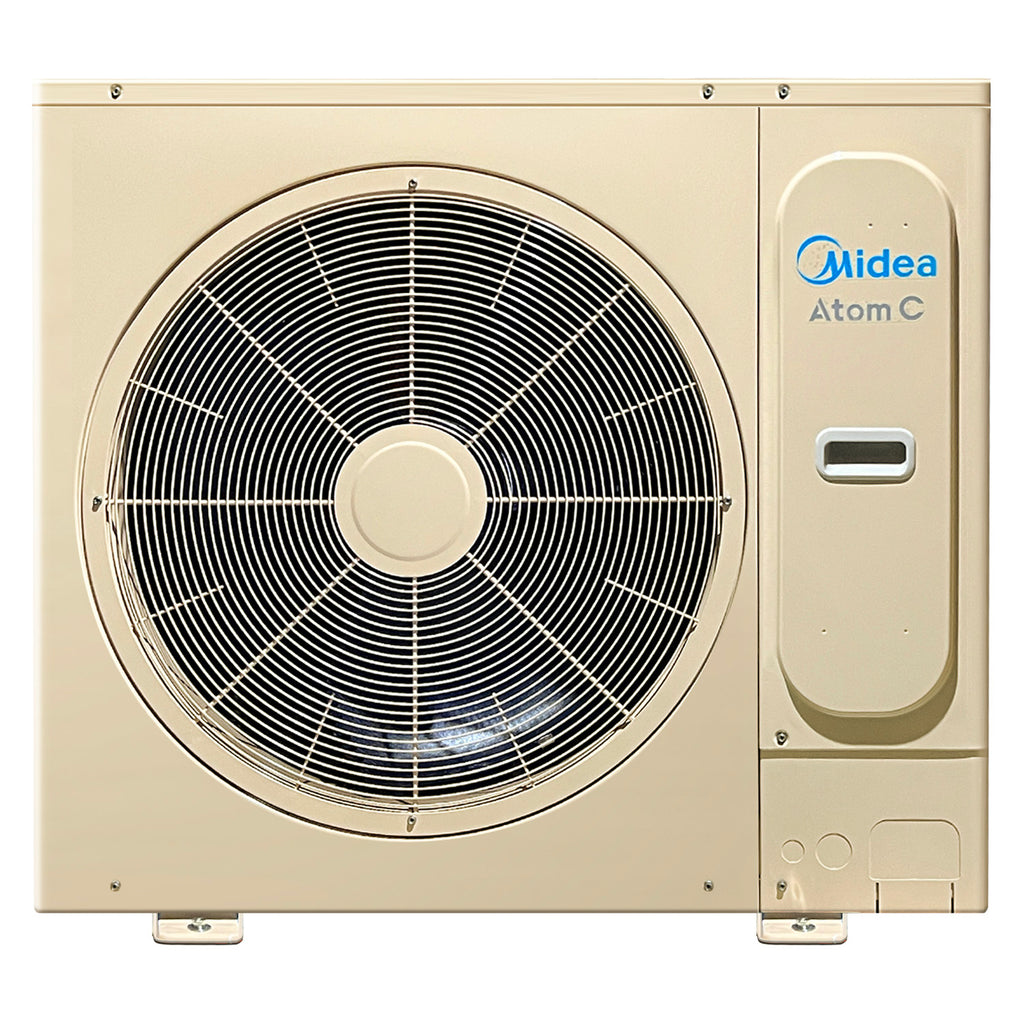

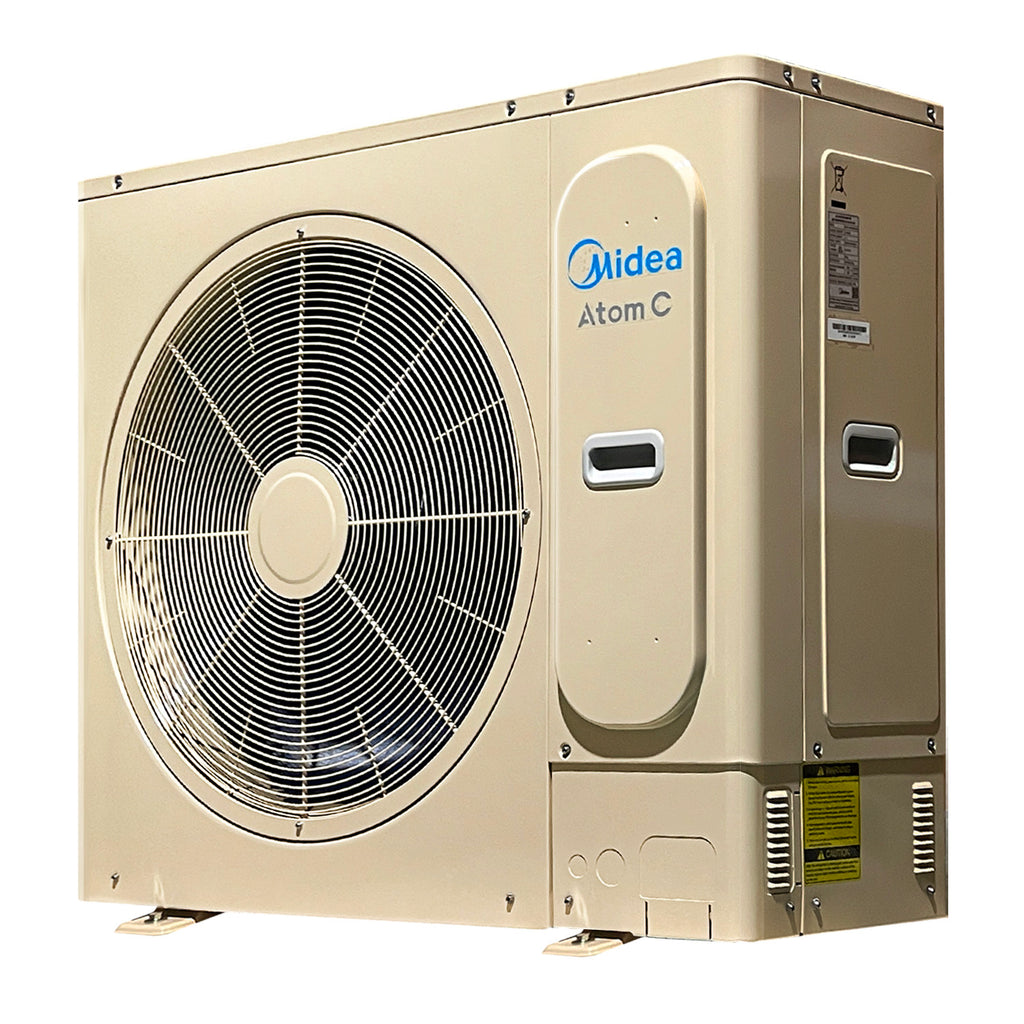

48k BTU Mini VRF ODU AC (Inverter)
SKU: 61468
ATOM C | INVERTER
Model no: MDVC-V48WDHN1(AtC)
Brand: MIDEA
Size: 48000BTU

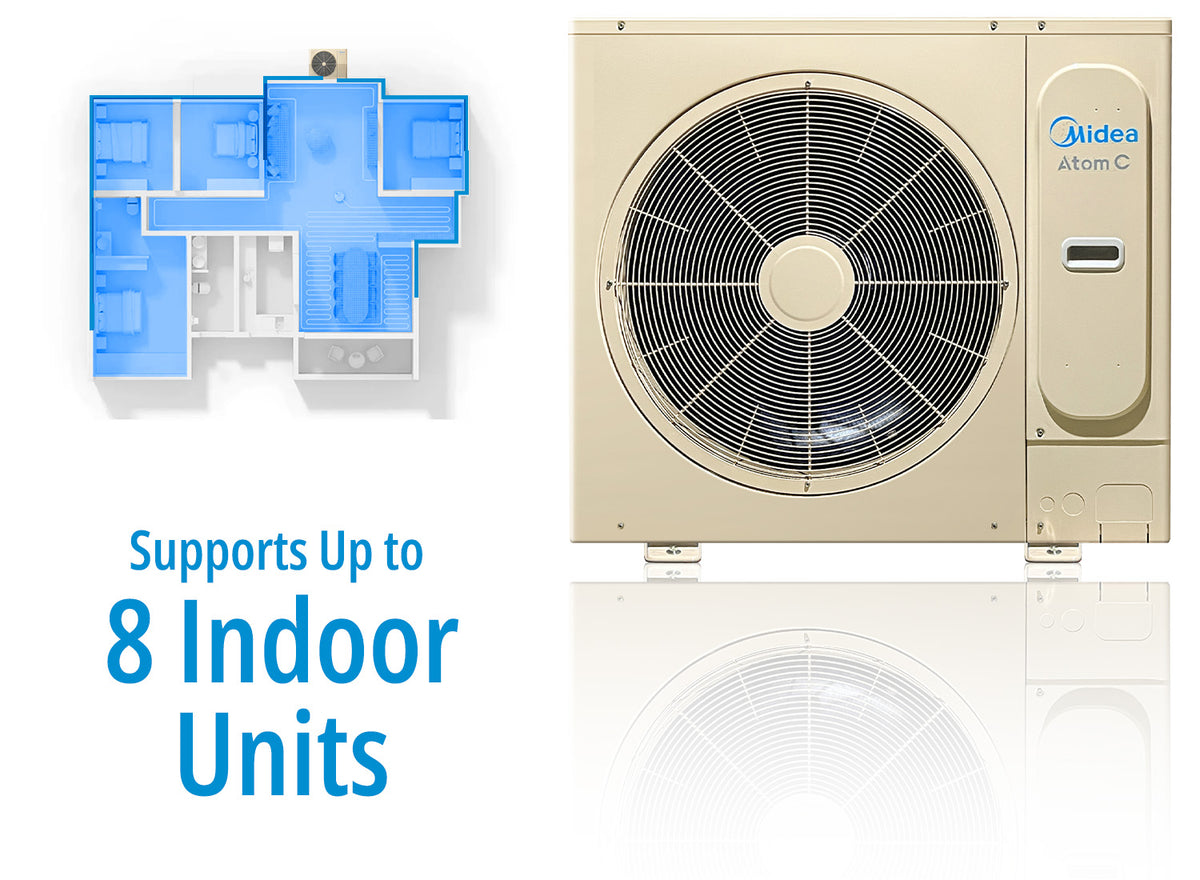

Supports Up to 8 Indoor Units
Expanded Cooling Coverage
The 48,000 BTU outdoor unit supports up to 8 indoor units, making it ideal for larger villas, guesthouses, and multi-room applications requiring flexible climate control.

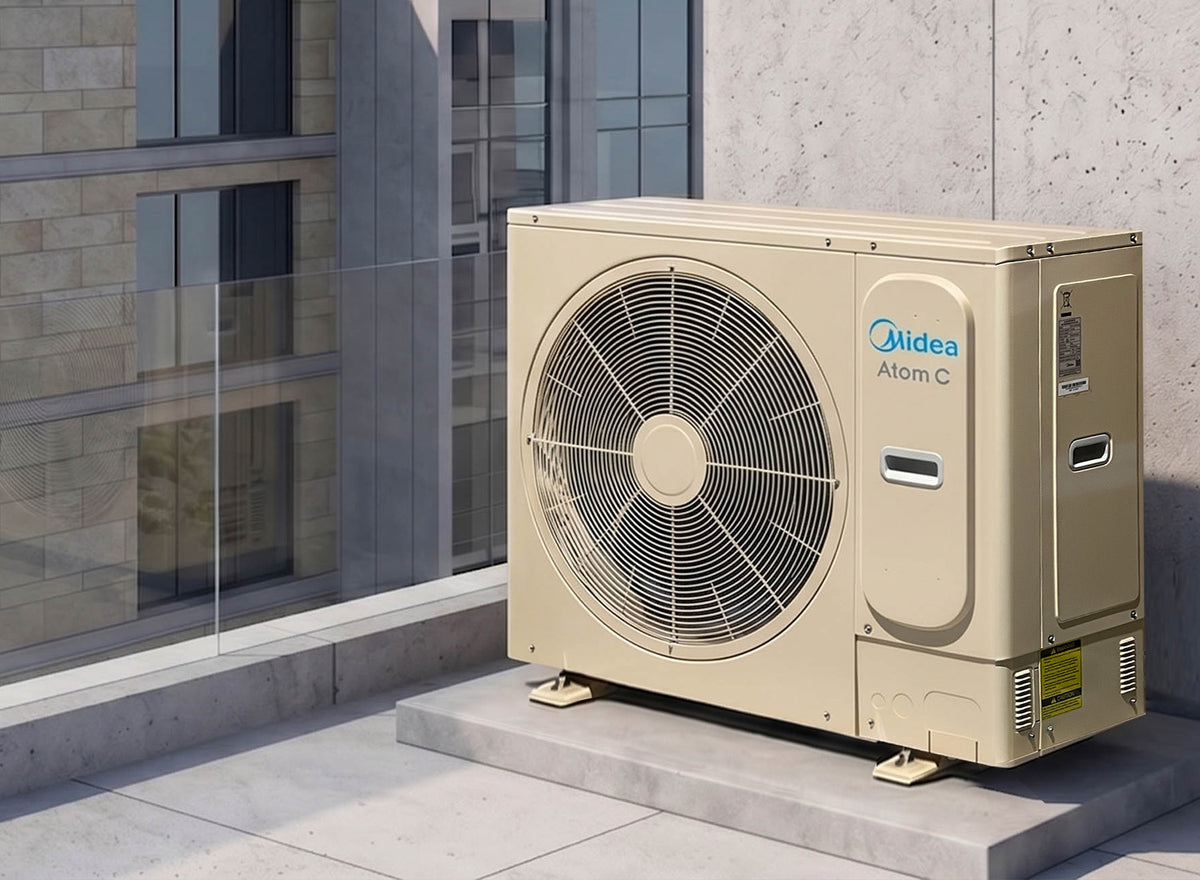

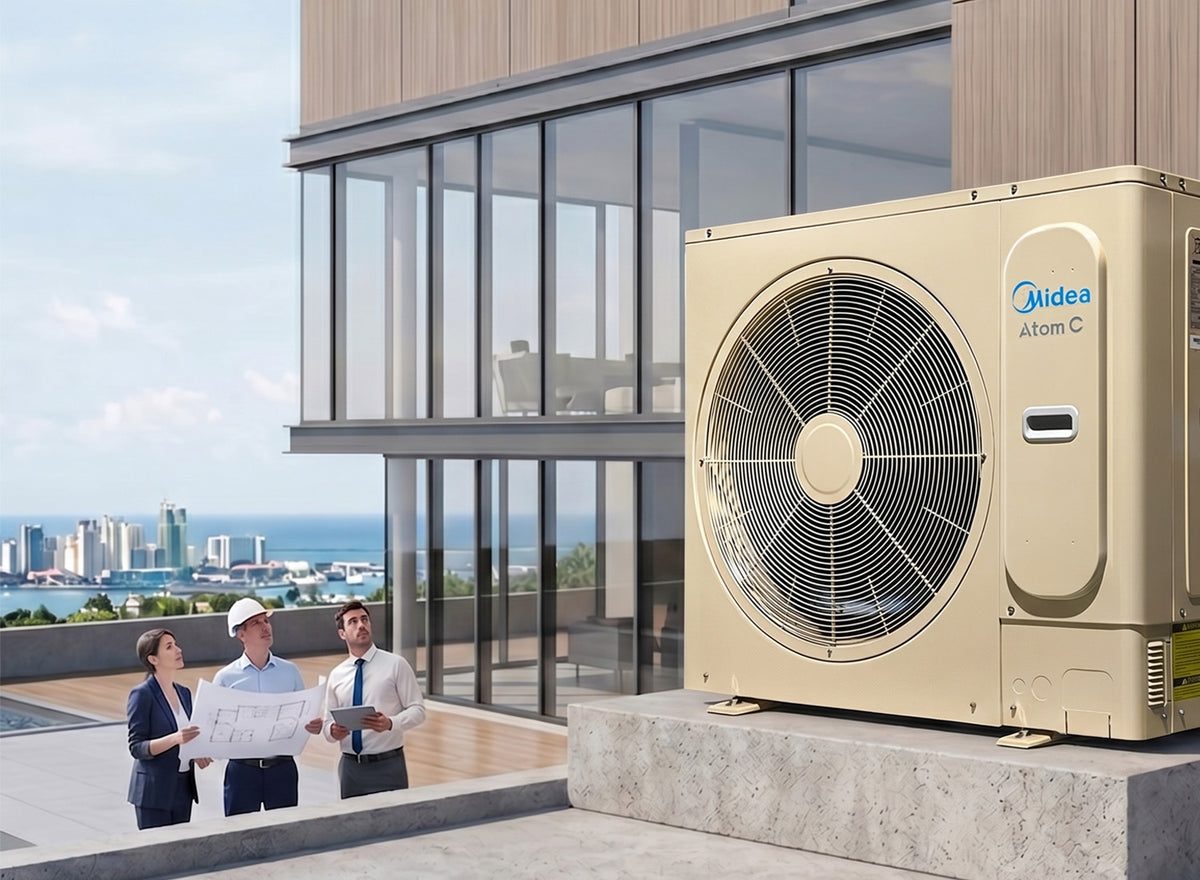

Space-Saving Outdoor Design
Less Outdoor Clutter
Connect multiple indoor units to one outdoor unit, helping free up valuable outdoor space and creating a cleaner building exterior.

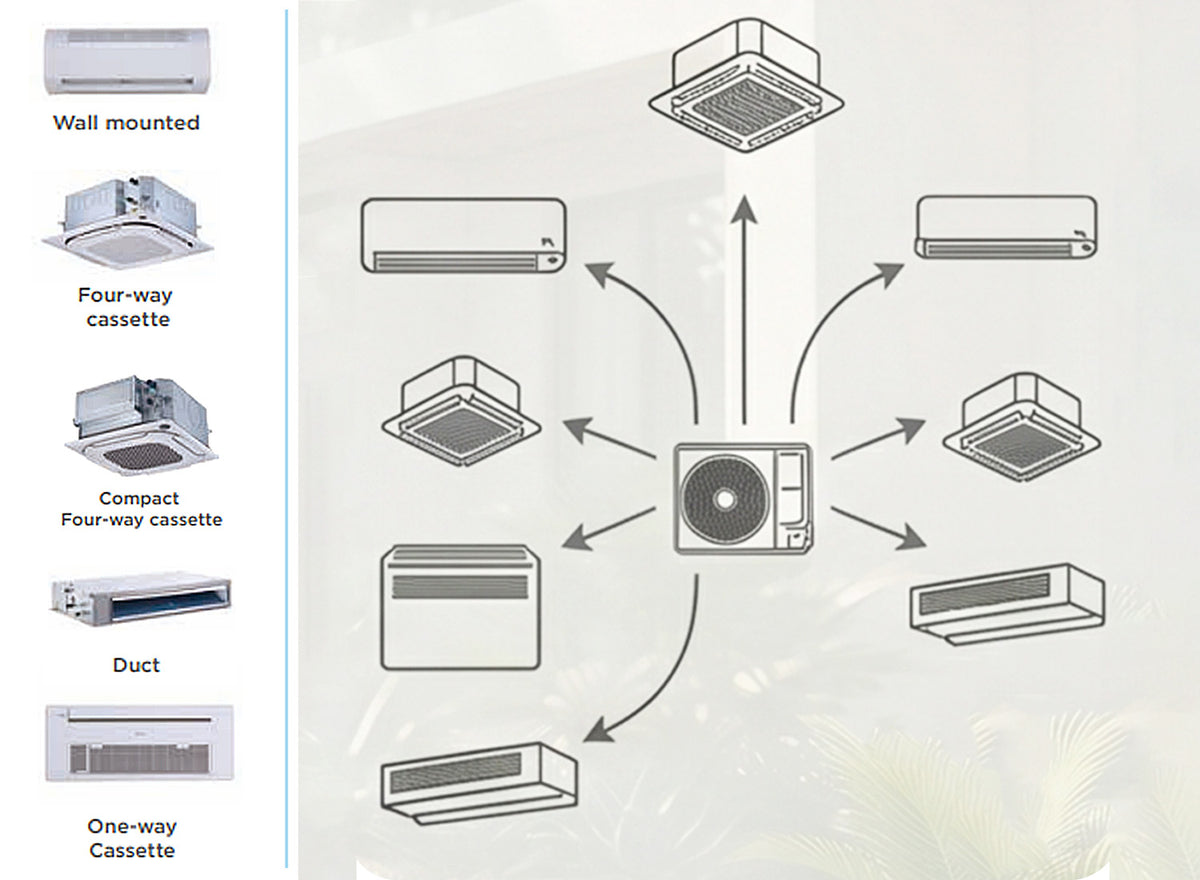

Wide Indoor Unit Compatibility
Flexible System Configuration
Compatible with wall-mounted, ducted, one-way cassette, compact four-way cassette, and four-way cassette indoor units to suit different applications and room requirements.

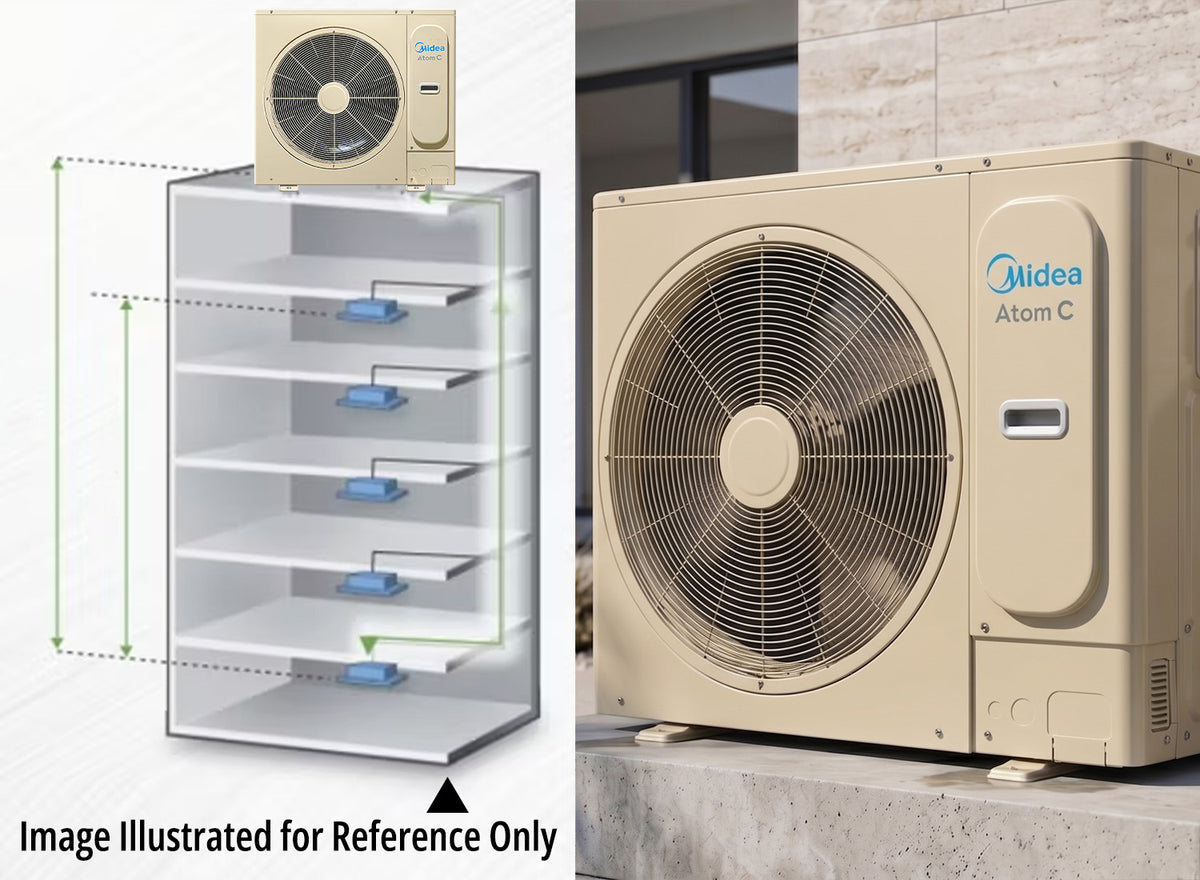

Extended Piping Capability
Greater Installation Flexibility
The AtomC Series VRF is designed to support flexible system layouts, accommodating a wide range of installation requirements. With generous piping and elevation capabilities, it enables efficient integration across diverse building configurations while providing greater freedom in system design and planning.

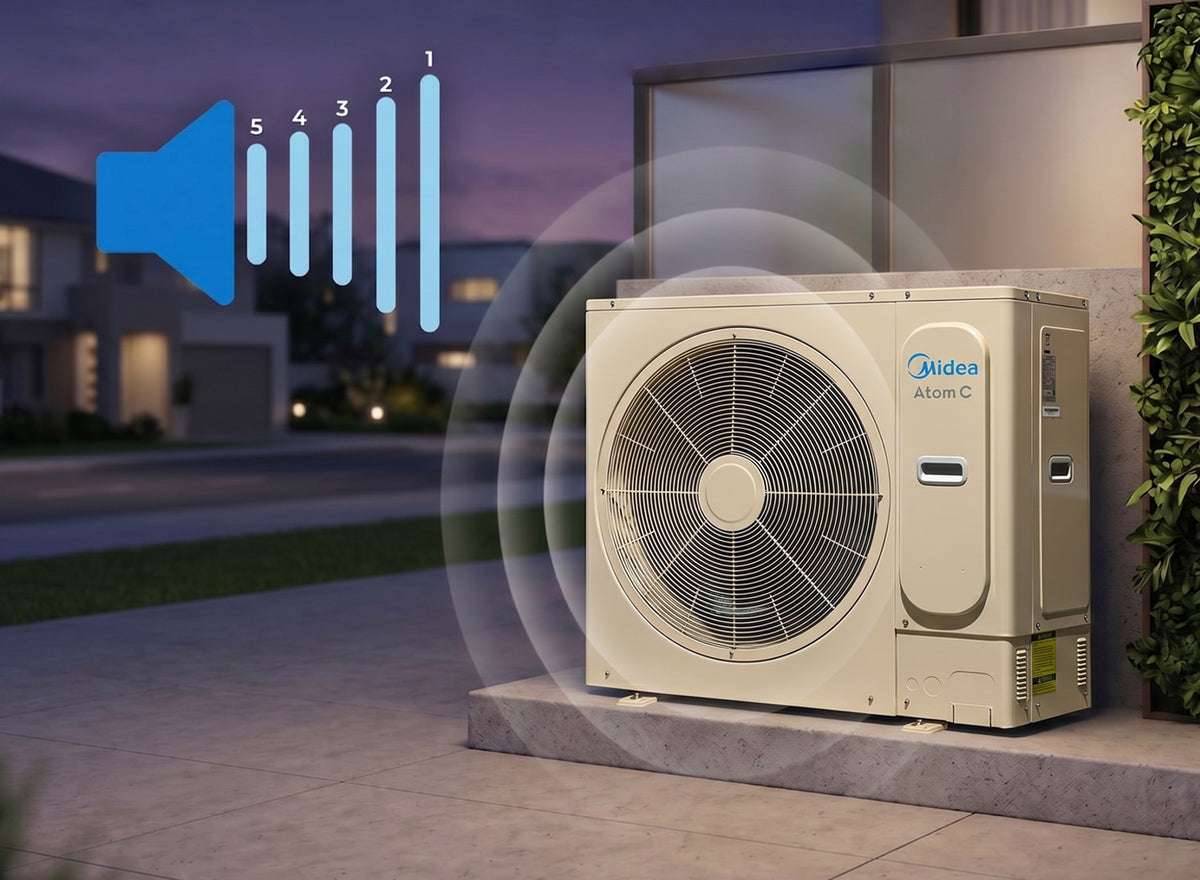

Advanced Silent Technology
Reduced Operating Noise
5-silent operation modes plus night silent mode help reduce outdoor unit noise levels, supporting a quieter and more comfortable environment.
Designed for Modern Buildings
Scalable VRF Performance
Combines flexible indoor unit compatibility, long piping capability, and advanced control features to support efficient cooling across a wide range of applications.
| Midea 48k VRF Outdoor AC (Inverter) | |
| Brand: | Midea |
| Model: | MDVC-V48WDHN1(AtC) |
| Series: | AtomC Series - Cooling Only |
| Power Supply: | 220-240V ~ 50/60Hz |
| Warranty: | 12 Months Warranty |
| Cooling: | |
| Capacity (kW): | 14 |
| Capacity (kBtu/h): | 47 |
| Input (kW): | 3.88 |
| EER: | 3.61 |
| Connected Indoor Unit: | |
| Total Capacity: | 50% ~ 130% of ODU capacity |
| Maximum quantity: | 8 |
| Compressor: | |
| Type: | DC Inverter |
| Quanitity: | 1 |
| Fan: | |
| Type: | DC |
| Quanitity: | 1 |
| Ambient temp. operation range: | |
| Cooling (DB): | -15 ~ 55 °C |
| Refrigerant: | |
| Type: | R410A |
| Factory charge: | 2.35 kg |
| Pipe connections: | |
| Gas pipe: | 15.9 |
| Liquid pipe: | 9.53 |
| Sound pressure level: | |
| Noise (dBA): | 56 |
| Dimension & Weight: | |

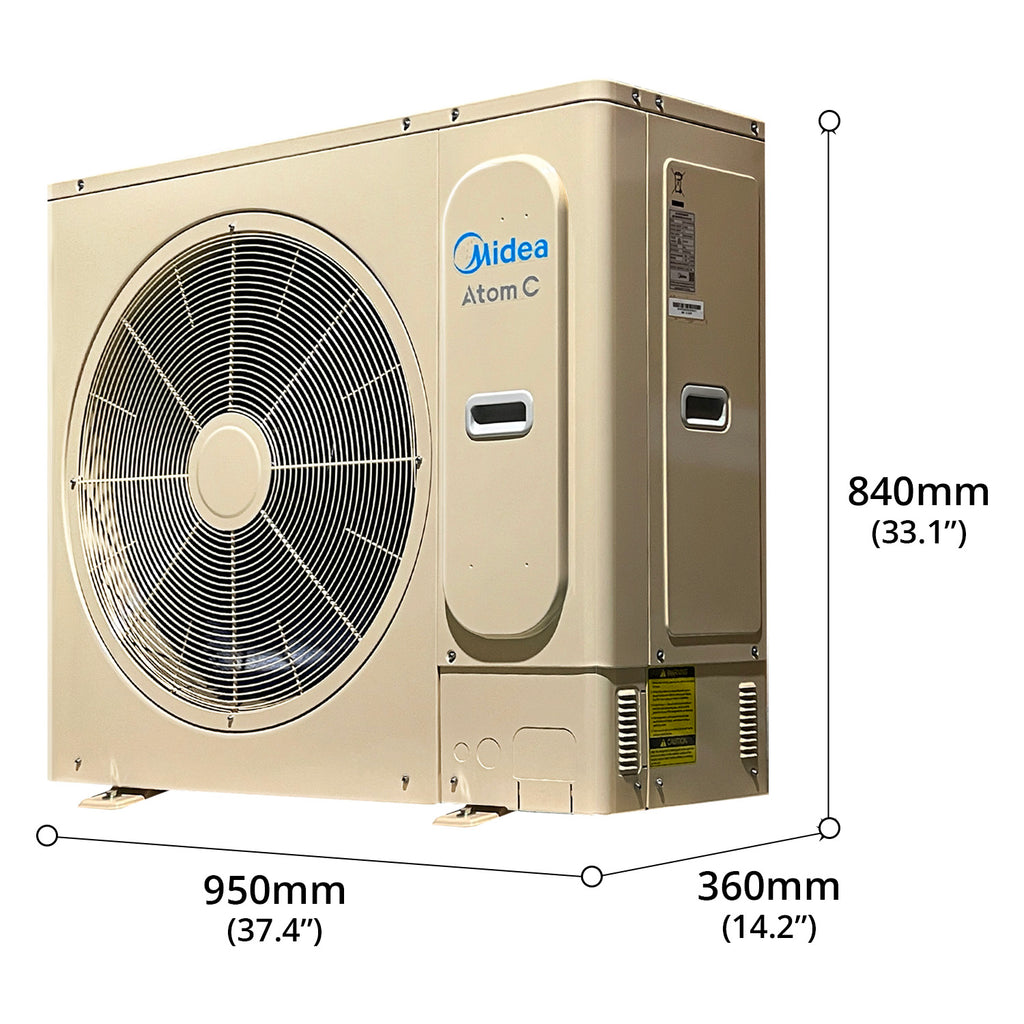

| Product Dimension (W x D x H): | 950 x 360 x 840mm (37.4" x 14.2" x 33.1") |
| Packing Dimension (W x D x H): | 1025 x 510 x 950mm (40.4" x 20.1" x 37.4") |
| Net Weight: | 63kg |
| Gross Weight: | 74.5kg |
